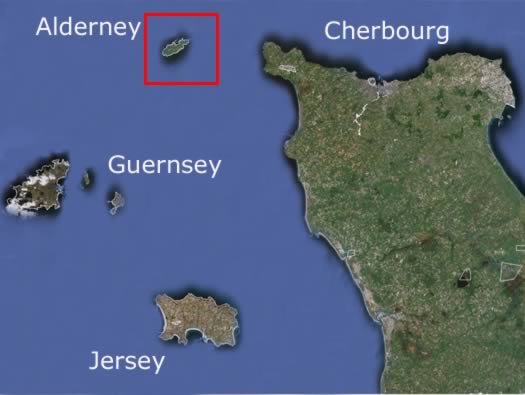

Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles.
In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.




Map.




Alderney, M4 Wn Dohlenfest

Google Maps

Information

Alderney, M4 Wn Dohlenfest

Details



Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Ausboustand-karte Alderney.


Ausboustand-karte Alderney.

Alderney, M4 Wn Dohlenfest

Google

Information

Alderney, M4 Wn Dohlenfest

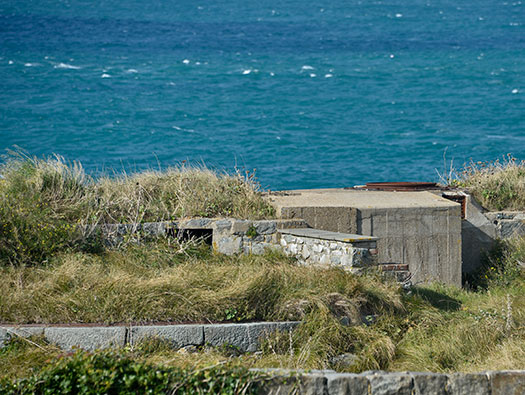

Fort Doyle an English fort placed here at the time of the French revolution and the rise of Napoleon to help defend Alderney.

Details

1 x R676 casemate for a 4.7cm Pak36(t).
1 x Vf Casemate for a 4.7cm Pak36(t).
1 x Unterstand WaKoFest bunker.
2 x PzT tank turrets.
1 x Mortar.
1 x PzM 12 anti-tank wall (Panzermauer).
Many trenches, Machine Gun positions, trenches, field positions minefields and barbed wire defence..











Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

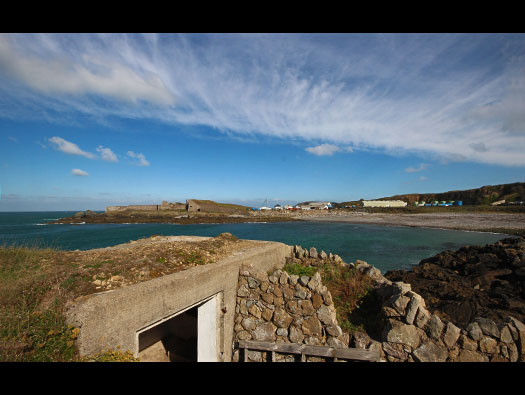

Fort Doyle and Crabby Bay. This would have been defended with barbed wire and mines.


Teller mine plans.


Mines.


Barbed wire defence.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

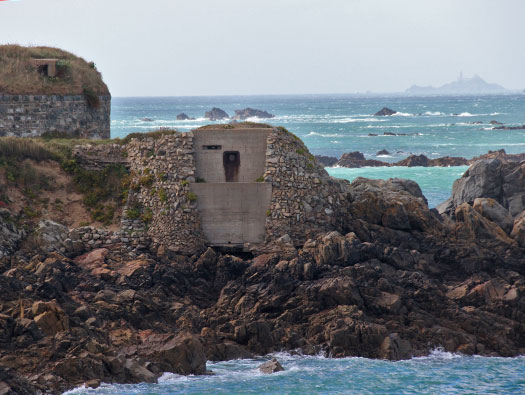

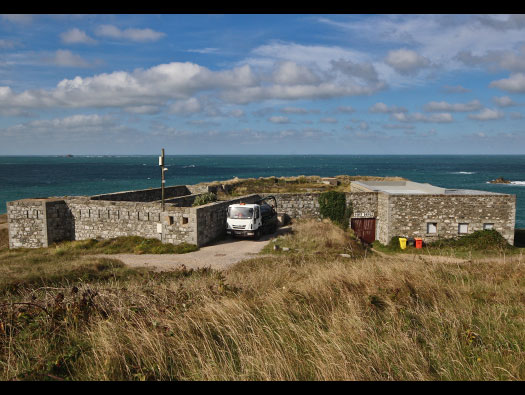

Fort Doyle. Now part of the islands waste management.


Plan.







Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

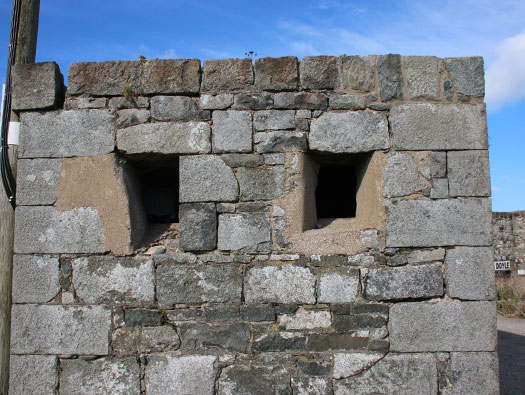

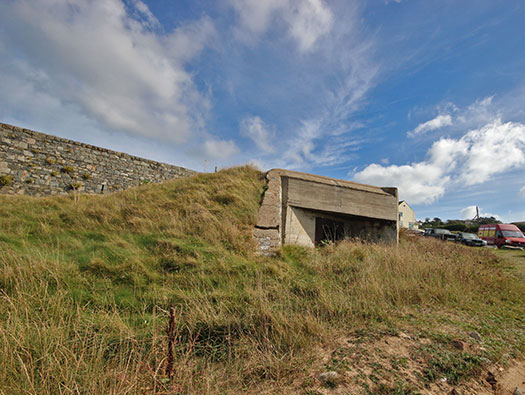

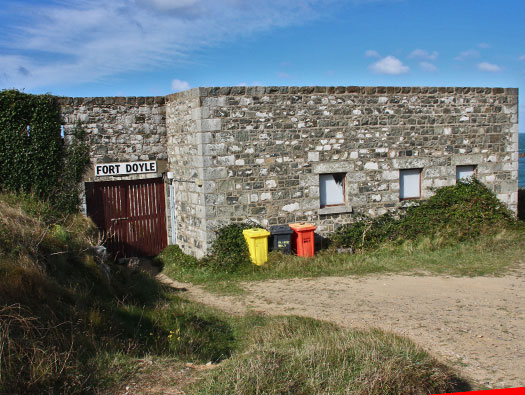

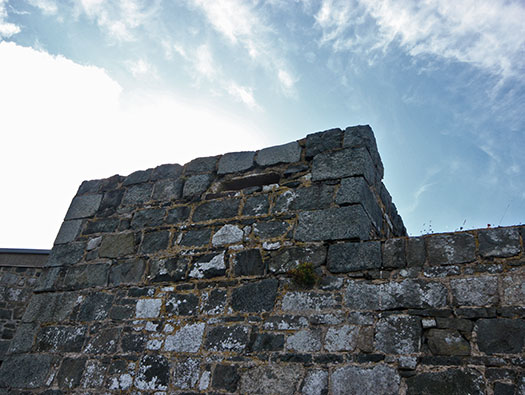

Fort Doyle main gate.


British soldiers.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

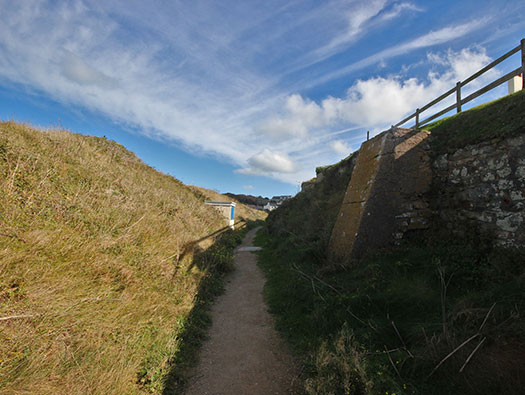

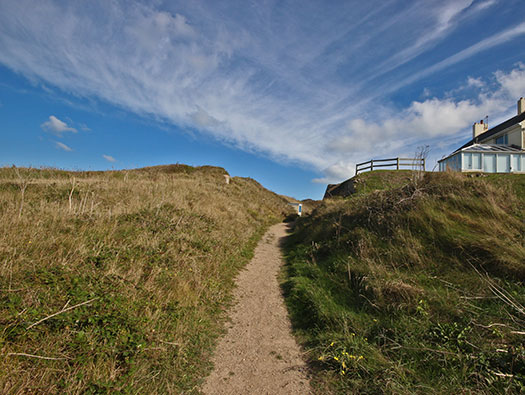

Inside the main gate.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Original defences.


Plan

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Machine gun defence position.




Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

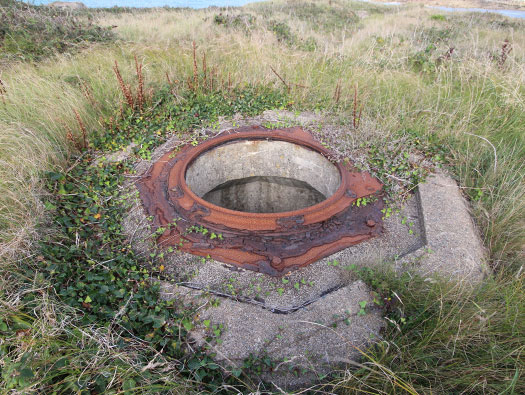

PzT17 3.7 cm KwK tank turret Tobruk.


Plan.


Ft17 tank turret.


Ft17 3.7 KwK tank turret

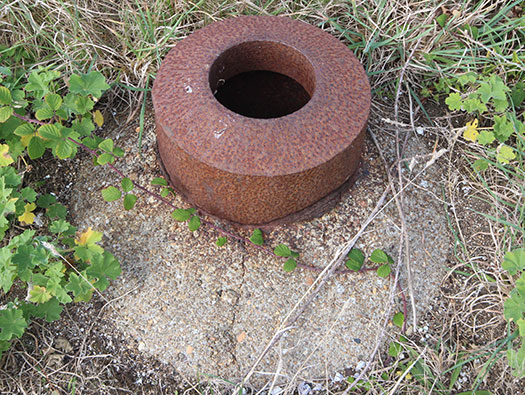

A turret ring.

Alderney, M4 Wn Dohlenfest

20 October 2016 JF

Information

Alderney, M4 Wn Dohlenfest

Details

MG position.








Plan.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

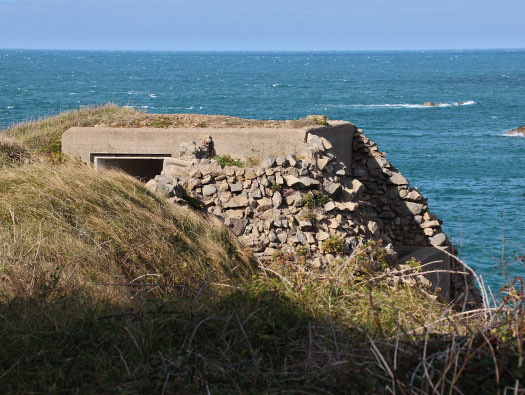

Vf 4.7cm Pak 36(t) casemate.


Plan.


Vf Skoda casemate plan.


Gun set into its steel emplacement

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Vf 4.7cm Pak 36(t) casemate. Nice bit of camouflage.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

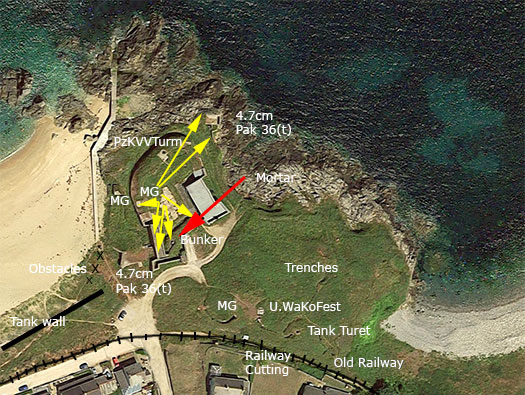

Vf 4.7cm Pak 36(t) casemate. The direction of fire covering Crabby Bay with a 10.5 cm and a searchlight set into Fort Grosnez (M3 StP Josephsburg) facing this way.


Crabby bay, bottom the 4.7cm gun, above the 1.5cm gun and the white arrow the searchlight.

Alderney, M4 Wn Dohlenfest

20 October 2016 JF

Information

Alderney, M4 Wn Dohlenfest

Details

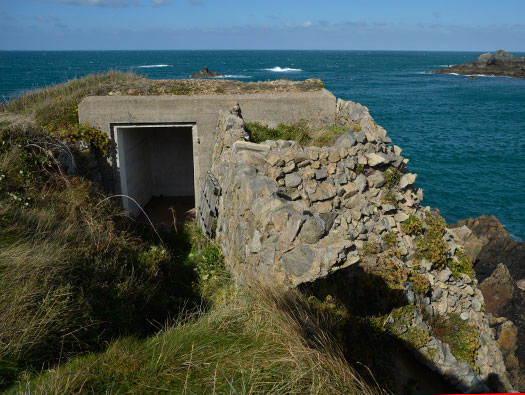

Vf 4.7cm Pak 36(t) casemate entrance with extensive camouflage o the front..

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

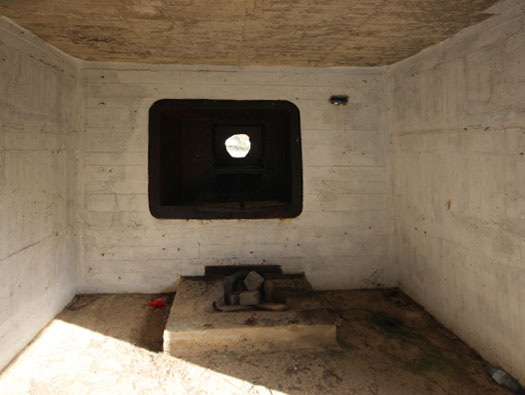

Vf 4.7cm Pak 36(t) casemate inside the gun room.




Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

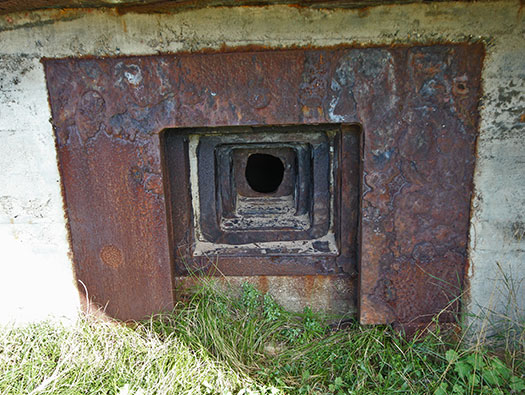

Vf 4.7cm Pak 36(t) casemate. The plate to hold the gun in position is a 770P4 type.


770P4 type.


4.7cm Pak 36(t) in place.


4.7cm case.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

The slot on the top right is the gun commanders viewing slot.


Gun commander using the viewing slot.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Machine gun position.


The two MG positions each side of the Pak casemate.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Railway cutting.


Railway cutting plan.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Railway cutting to the sand dock.


Railway cutting plan.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

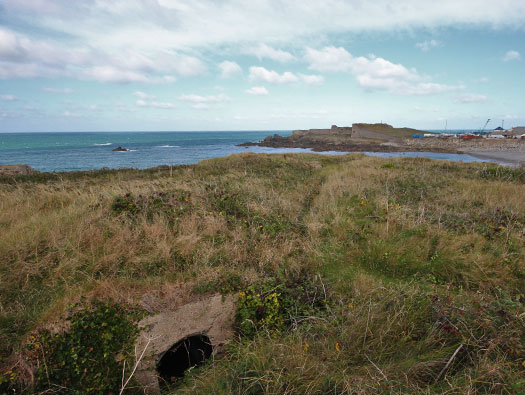

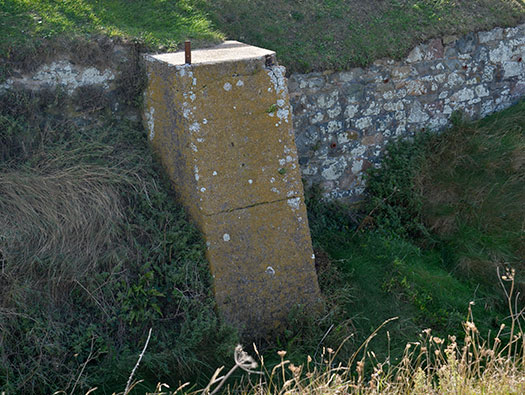

Railway cutting to the sand dock. Not quite sure what this is??

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

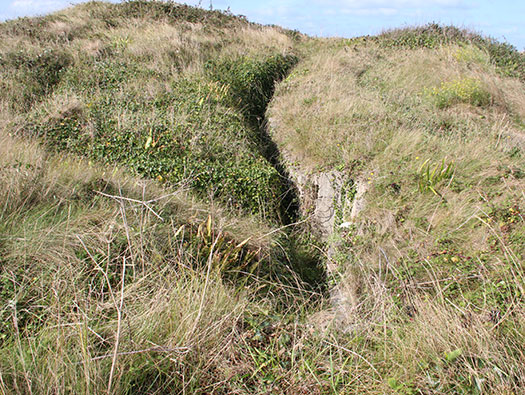

Trenches.


Plan.


Trenches.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Trenches and field bunker.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

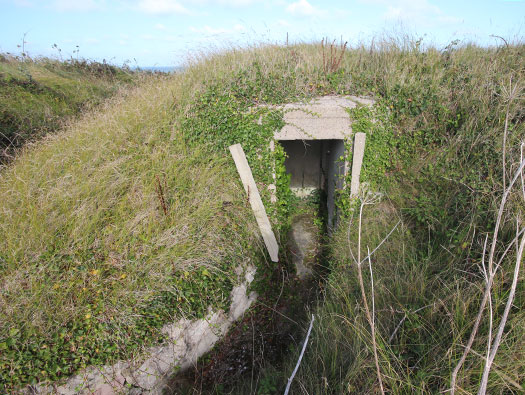

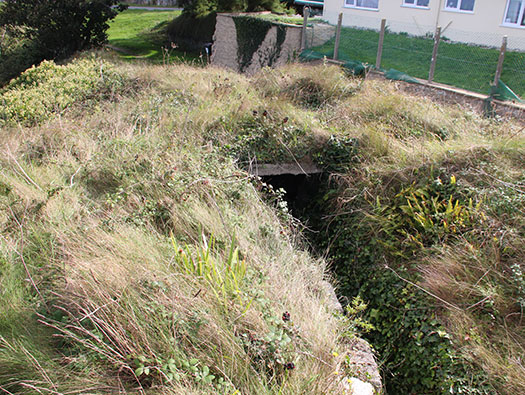

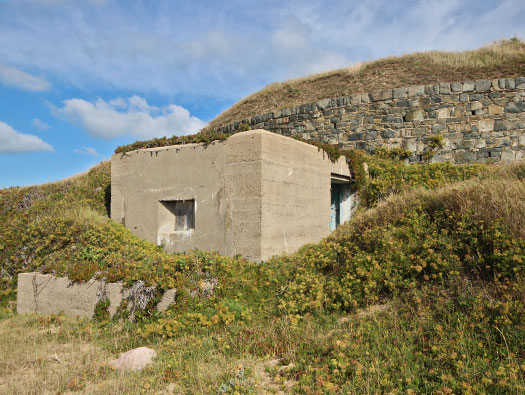

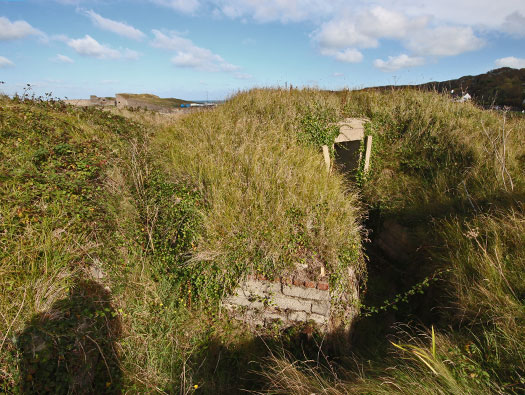

Trenches and shelter Siegfried Vf type.


A shelter Siegfried Vf type.


A shelter Siegfried Vf type how it would look inside.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Trenches and shelter Siegfried Vf type.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Unterstand WaKoFest bunker for twelve men.


Unterstand WaKoFest bunker has a key hole shaped Tobruk (observation) and steps going inside are turning and not straight down. A crew room for twelve men and a store room.


Plan.






Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

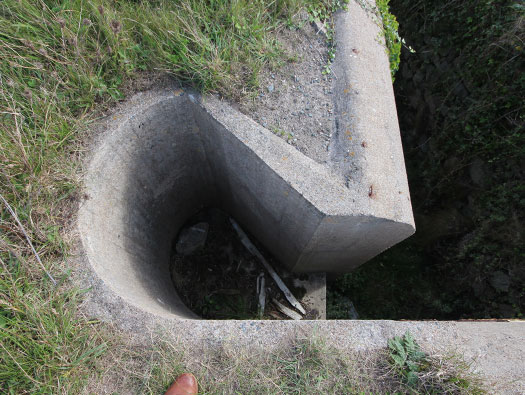

Unterstand WaKoFest bunker for twelve men. Observation post.




Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

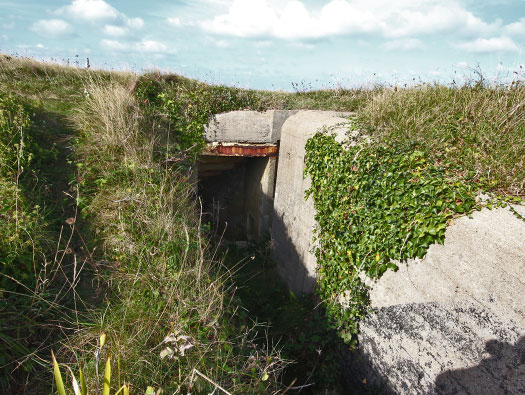

Unterstand WaKoFest bunker for twelve men. Entrance, we did not go in although I believe it is accessible and clean.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

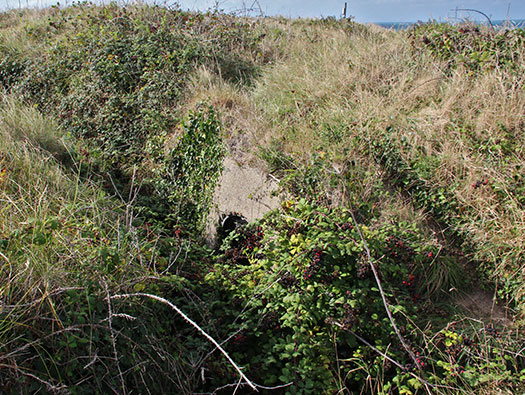

A small recess maybe for ammunition of just sheltering.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

A small recess maybe for ammunition of just sheltering.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Another Ft tank turret but this one is a free running on a ball bearing race and not toothed to be turned by a rear wheel..


Possible plan of the Tobruk.


Plan.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Ft tank turret where the ball bearing race sat on the turret ring and no toothed gears. I would think this was a machine gun type and not a 3.7cm KwK type gun. A machine gun could be a Hotchkiss.


Details2


A French machine gun like this type a Hotchkiss M1914.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

A large hole that could be for a small hut??

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

R676 casemate for a 4.7cm Pak 36(t).


Plan.


Plan of an R676 casemate.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Allied plan of an R676 casemate for a 4.7cm Pak 36(t).

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

R676 casemate for a 4.7cm Pak 36(t).
Front piece of the casemate showing an outer shield and the inner 770P4 type plate. Between the inner and outer was a sliding door that rose and fell vertically via a set of pulleys and a handle inside the casemate to protect the door.


770P4 type plate.


The gun room and gun and handle to wind the steel plate up and down to protect the gun from direct fire.


Down.


Half way up.


Closed off.


Internal mechanism.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

R676 casemate for a 4.7cm Pak 36(t).
We could not get inside but I have seen on the inside wall naming the bunker as 577.





R676 plan.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

R676 casemate for a 4.7cm Pak 36(t).
Showing the area it covered.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

R676 casemate for a 4.7cm Pak 36(t).

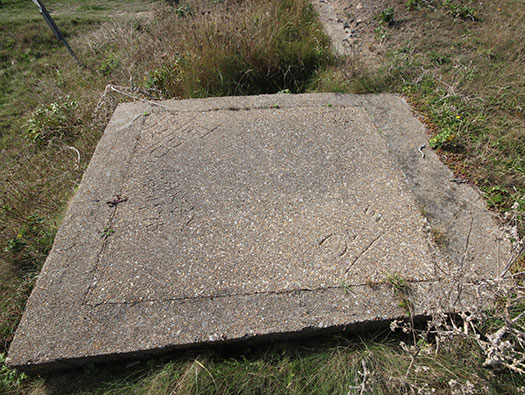

Escape which comes up from inside the bunker. The graffiti in the concrete is rather new I am afraid.


Plan of a bunker escape.


410P9 escape door.


Looking into an escape shaft.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Periscope fitting. The idea of a periscope is a very good idea. There is only one way to look out of a bunker and that is through the gun site or commanders slit. So having a periscope which can also magnify the image and give 360° view.


Details2


Periscope hole inside a bunker.


The view through a periscope.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Vf MG bunker.


Plan.


Making up machine gun belts.


Canister magazine.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

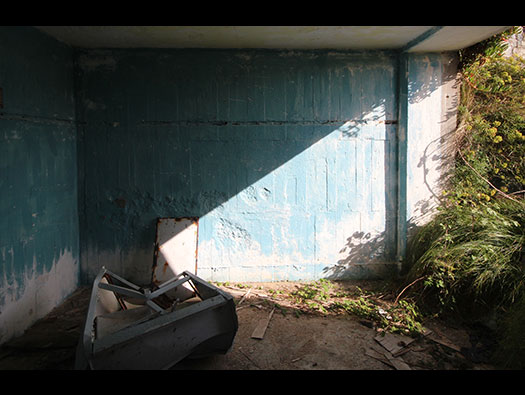

Vf MG bunker. Looking at the back wall and entrance. The entrances are larger than a standard door and we could not work out what sort or was there any rear doors??


Machine gun belt.


Armourer at work.

Alderney, M4 Wn Dohlenfest

20 October 2016

Information

Alderney, M4 Wn Dohlenfest

Details

Vf MG bunker. Gun room.


How the machine gun would have looked.


Mg34 stripped down.


Mg34 in its crate.

Alderney, M4 Wn Dohlenfest

DEFE/2/1296 NA

Information

Alderney, M4 Wn Dohlenfest

Details

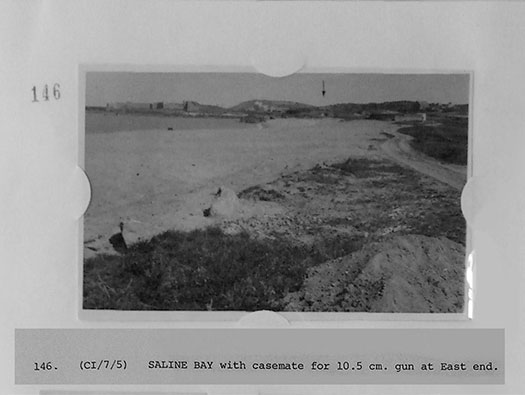

A picture from DEFE/2/1296 Photographs taken by Major G.G. Rice, September 1944.
