RAF Upottery USAAF No. 462


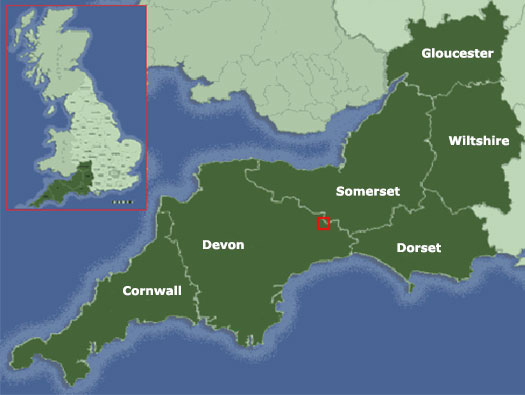

Information

RAF Upottery USAAF No. 462

Details

Opened in 1944 with three runways, 50 aircraft spectacle dispersals and two T2 hangars.


PB4Y- Liberator.







RAF Upottery USAAF No. 462

Information

RAF Upottery USAAF No. 462

Details



RAF Upottery USAAF No. 462

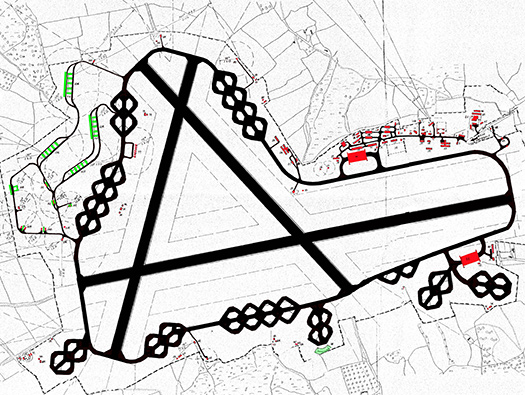

Plan

Information

RAF Upottery USAAF No. 462

Details

RAF Upottery, built as a standard RAF Class‘A’ bomber airfield very late in the war by George Wimpey and Co. Construction started early in 1943 to be ready for D-Day. Three runways, a perimeter track with 50 Spectacle dispersals. A full bomb store and dispersed accommodation.
The Americans were going to use the airfield for medium bombers but later decided to bring in the 439th Group, IX Troop Carrier Command on 26th April 1944. An endless stream of Dakotas and gliders flew in from their former base at Balderton. Just imagine the ground crews vehicle convoy as well.
The 439th group contained 4 squadrons, the 91st, 92nd, 93rd, and 94th, Each squadron had its own code letter painted on the fuselage behind the cockpit in large yellow lettering so it could be easily identified. The 91st being (L4), the 92nd, being (J8) , the 93rd (3B) and the 94th (D8). 81 Dakotas and 81 gliders.


A 91st Sqn L4 parachuting.


92nd Sqn J8.


93rd Sqn 3B.


94th Sqn D8.

RAF Upottery USAAF No. 462

1943

Information

RAF Upottery USAAF No. 462

Details

Under construction in 1943, a long way to go.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

Laing's building a runway somewhere in England.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

118 gliders, 26 Dakotas in preparation for D-Day.


Dakota.


Waco Glider.

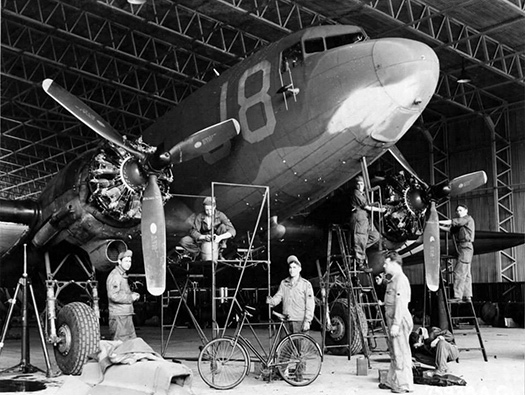

Horsa & Dakota combination.

RAF Upottery USAAF No. 462

Google

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

Starting on the main road running around the perimeter track. The first item is the Petrol Instillation - Aviation.
68. General Purpose Hut            T.B.               12790/42.
70. Latrine                                   T.B.                 9026/41.
71. Picket Post                           T.B.                 1580/42.
72. Petrol Installation - Aviation 76,000 Galls. 1491/44.


Plan.


Plan.


Plan.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

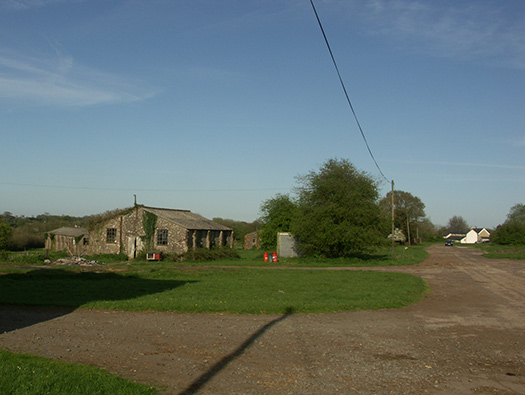

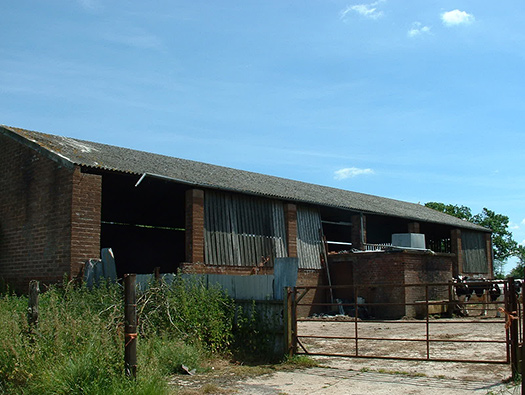

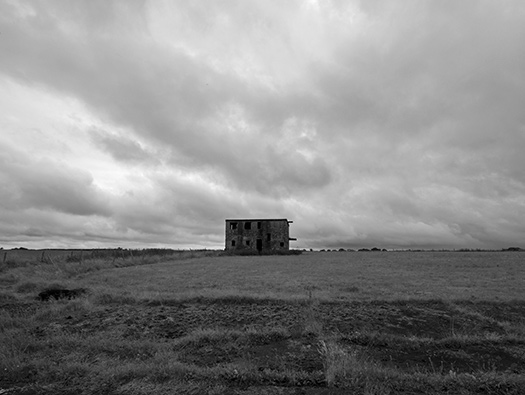

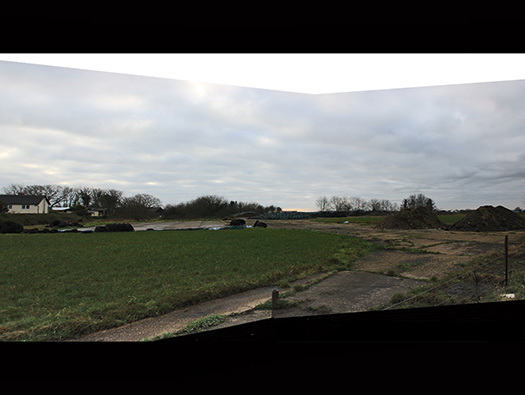

This photo was taken in July 2015 and you can see in the middle a square building protruding, this is the pump house a cruciform shaped building. The rear will be seen in a later pictures.


Fuel pumps.


Fuel gauge.


Fuel tanks would be underground.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

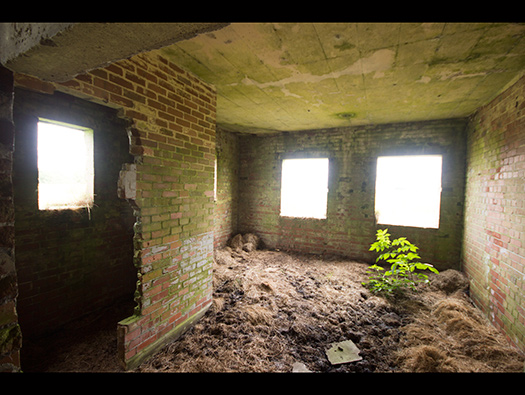

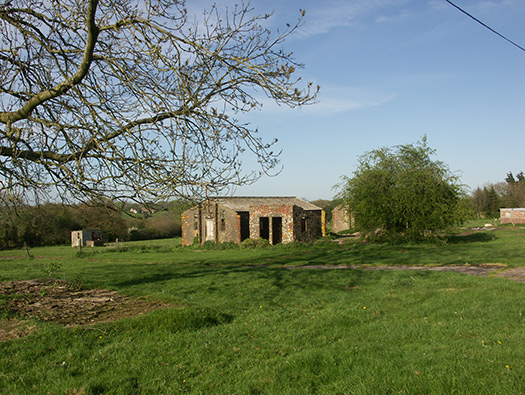

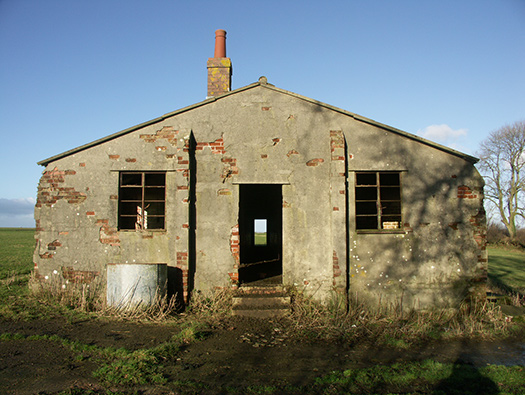

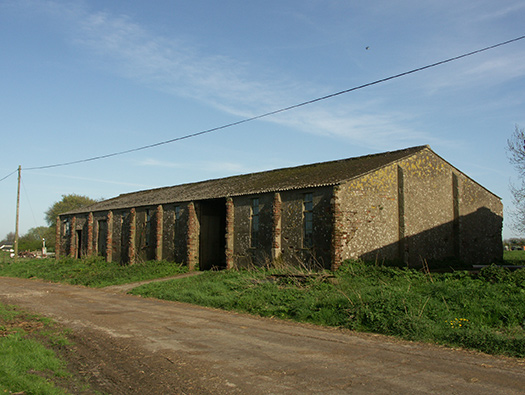

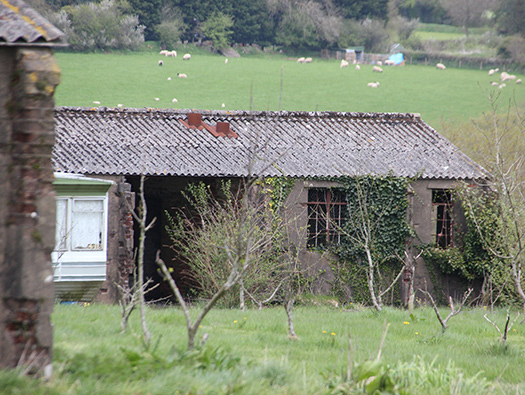

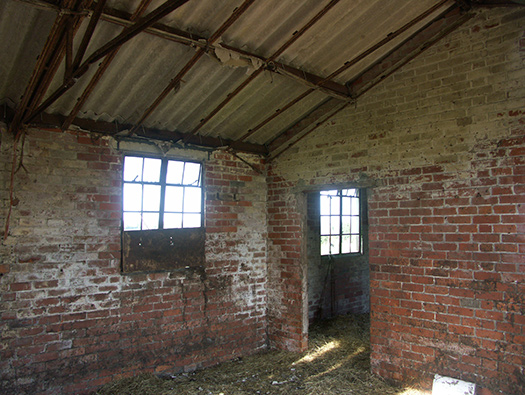

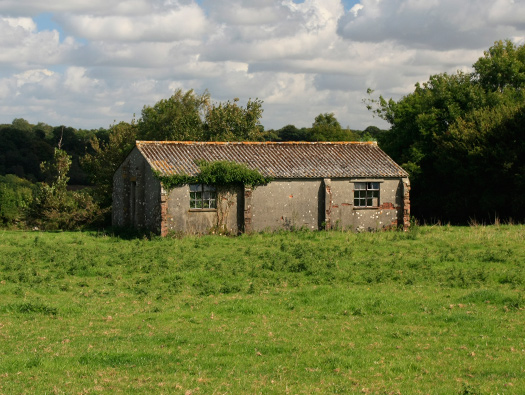

68. General Purpose Hut T.B. 12790/42. was there as a crew room for members of the fuel detail. It may also have been for sleeping.
70. Latrine  T.B.   9026/41. a small toilet block of a standard style used on all airfields.


Plan.

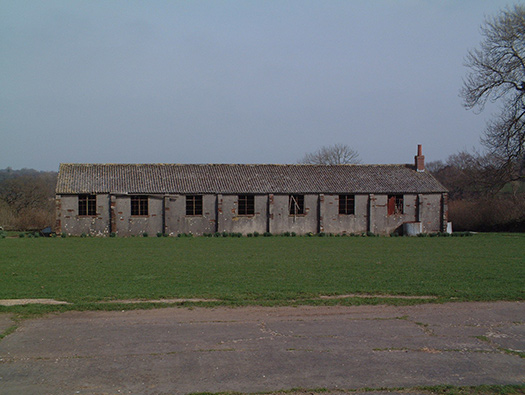

68. General Purpose Hut T.B. 12790/42. This is how the hut may have looked.

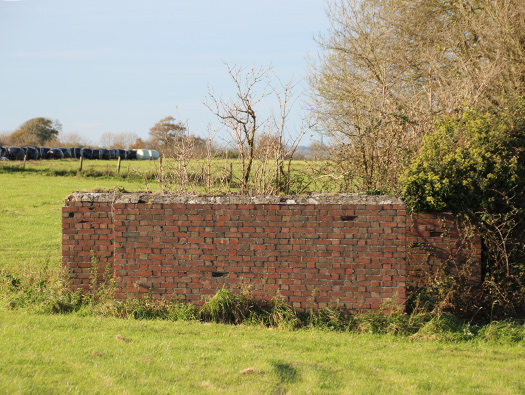

T.B. Temporary Brick, a half brick wall with brick piers.

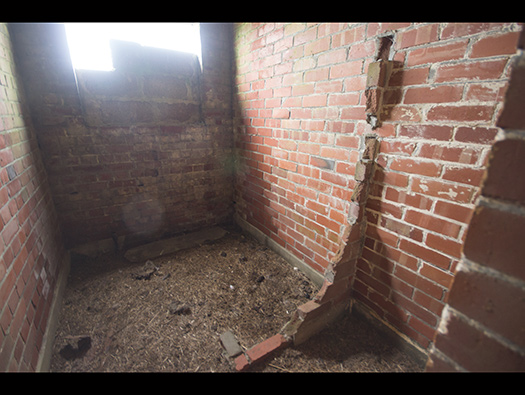

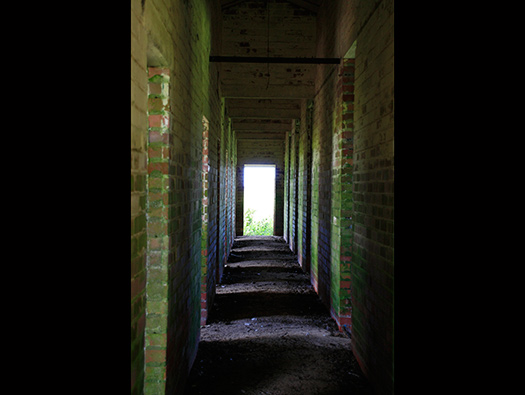

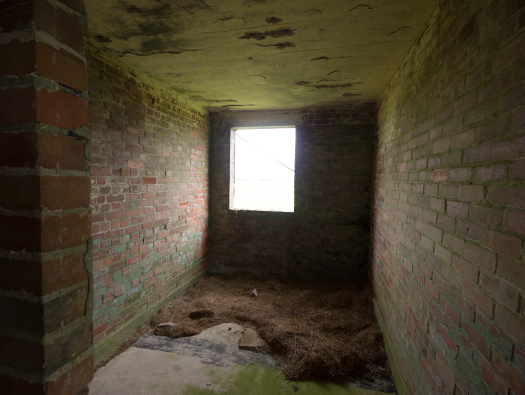

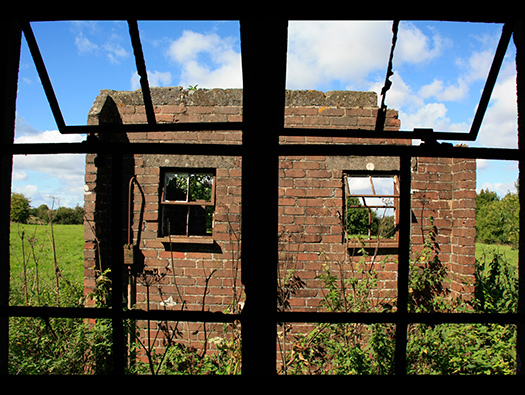

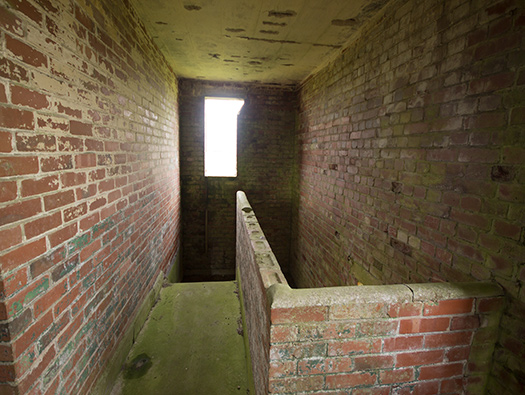

70. Latrine T.B. 9026/41. a small toilet block.

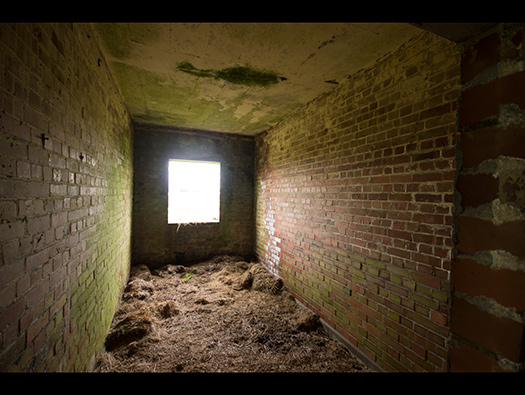

70. Latrine T.B. 9026/41. a small toilet block.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

71. Picket Post                           T.B.                 1580/42.
72. Petrol Installation - Aviation 76,000 Galls. 1491/44.

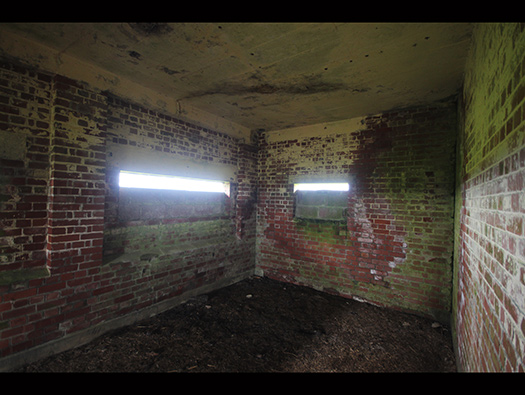

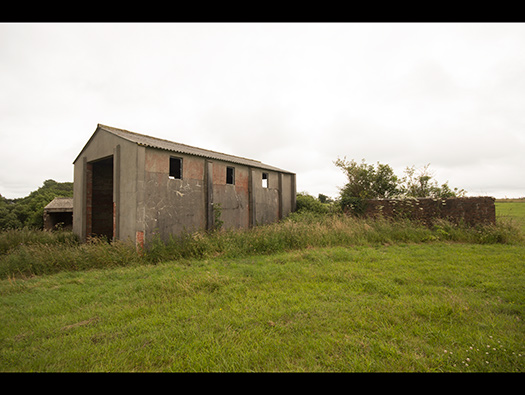

71 a sort of police post, when you need to enter the camp you sign in and then out when you leave. The public roads were closed.
Fuel tankers arriving would sign in and out and thier quantities checked. So anything passing has to be recorded.

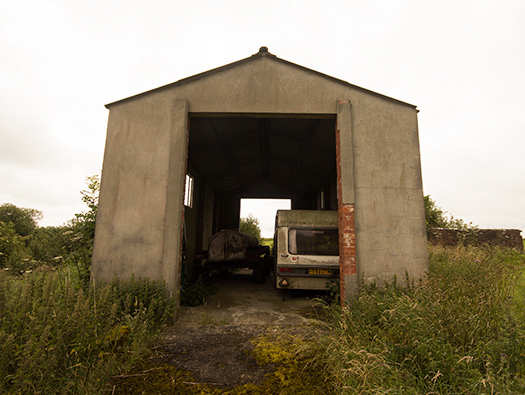

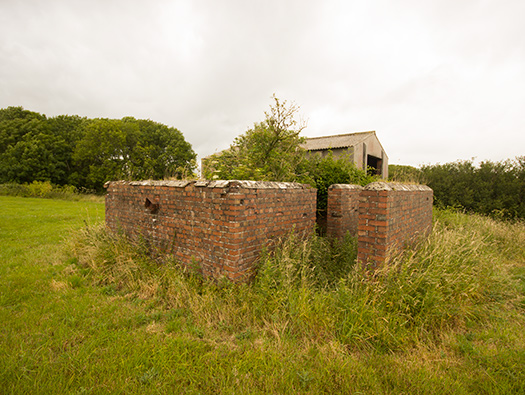

71. Picket Post T.B.1580/42.
The same type as this one at RAF Bibury.

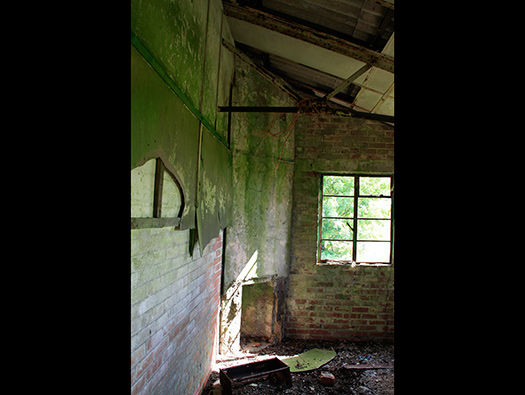

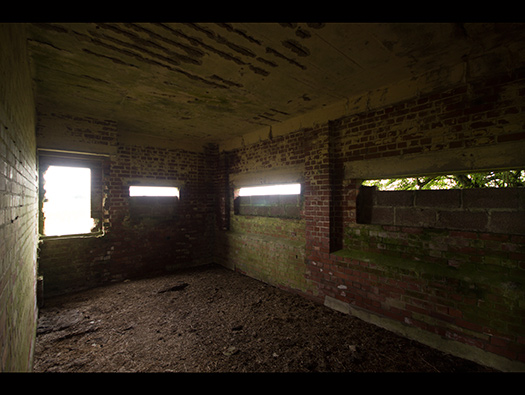

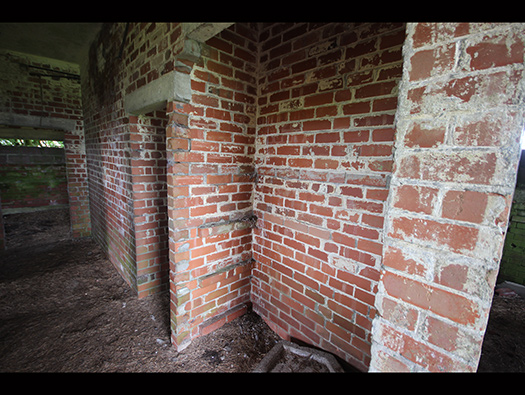

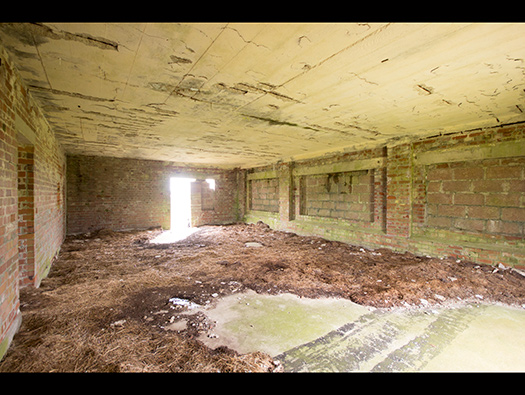

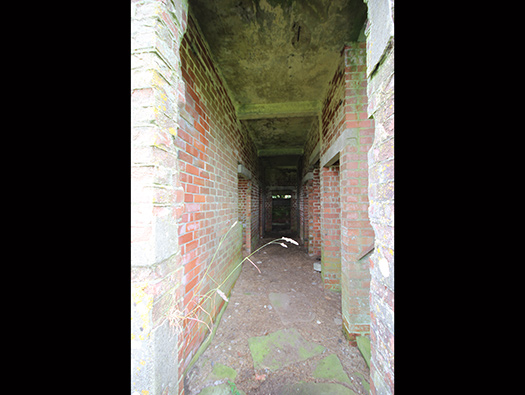

71. Picket Post T.B.1580/42. inside.


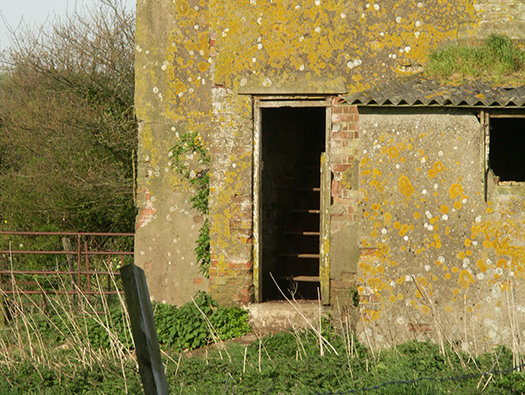

71. Picket Post T.B.1580/42. entrance door.



RAF Charmey Down's 15425/40 Petrol Installation - Aviation. The one here would have been much bigger..

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

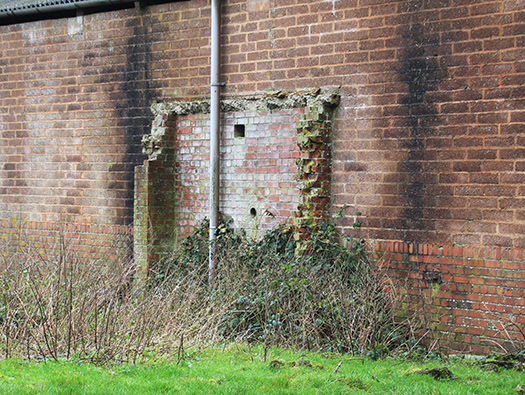

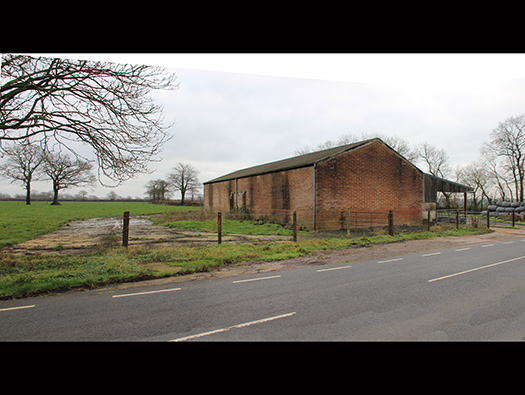

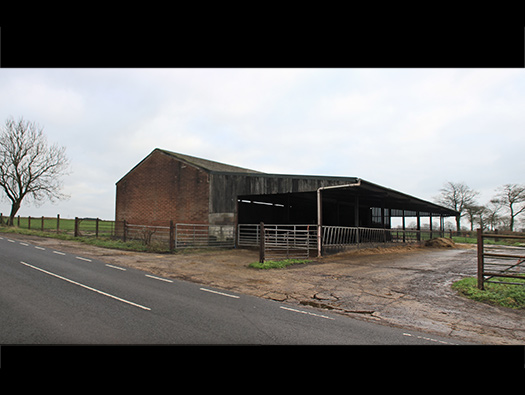

The back wall of the barn showing up part of the 15425/40 Petrol Installation - Aviation building. Basically a pump house to transfer fuel from the tanks of 76,000 Galls of aviation fuel into tankers (Bowser´s in the RAF) to refuel the aircraft out on the airfield.


RAF Charmey Down's 15425/40 Petrol Installation - Aviation. The one here would have been much bigger..

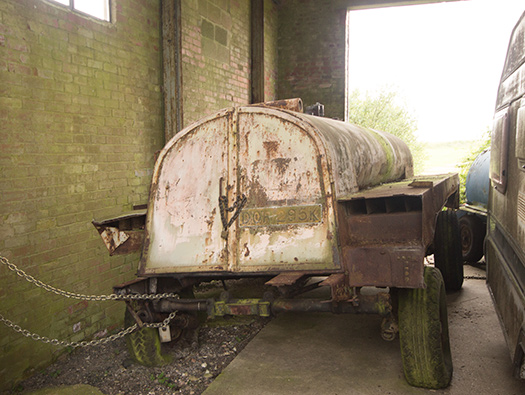

Bedford POOL delivery tanker, from the refineries to the airfield. A government company delivered all fuel in WW2.




RAF Upottery USAAF No. 462

WW2

Information

RAF Upottery USAAF No. 462
Petrol Installation - Aviation

Details

An American tanker filling up from an RAF pump house exactly as it would have looked here.

RAF Upottery USAAF No. 462

13 June 212 July 20154

Information

RAF Upottery USAAF No. 462
M&E plinth

Details

An M&E plinth is where a cable runs around the airfield and at junction boxes (M&E Plinths) that can convert the power up or down to what is needed in the area, if the mains power fails.
The plinth on the plan is in the wrong place, it was further back under the far hedge. Plans are as accurate as needed and are never absolutely accurate. I could not find this plinth on my visit in 2018, also parts of the hedge have been removed.


73. I am sure was actually here.


Plan of an M&E Plinths


A piece of armoured cable that ran around airfields.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Memorial

Details

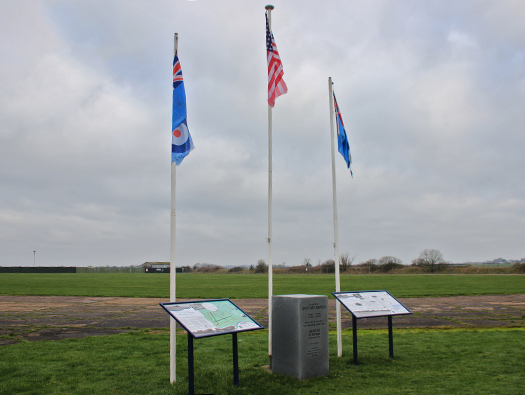

The new memorial to the airfield.


Red is the road layout today and yellow the memorial.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Memorial

Details

The new memorial to the airfield.


Red is the road layout today and yellow the memorial.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Memorial

Details

The new memorial to the airfield.


Red is the road layout today and yellow the memorial.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

Light fittings set out along the inside of the perimeter track.


Red is the road layout today and yellow the memorial.


Perimeter lighting type C.2. M&E Drg. No. 12043/41 & 728/41.


Perimeter lighting type C.2. M&E Drg. Nod. 12043/41 & 728/41.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

Light fittings set out along the inside of the perimeter track.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

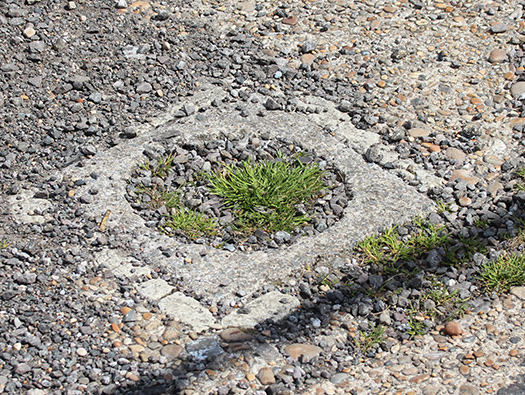

Flush concrete manhole cover for landing lights, I see some were 6volts.


Landing lights.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

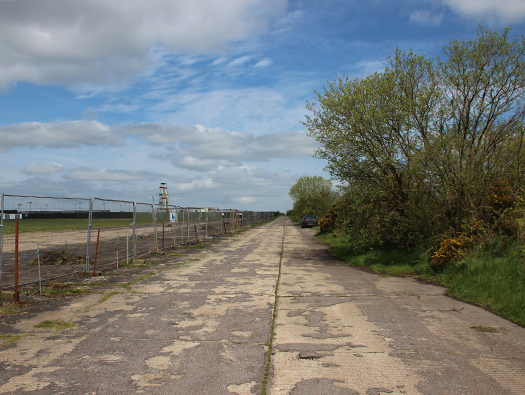

Perimeter track running into the north/south runway.


02 runway.


Compass.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Runway

Details

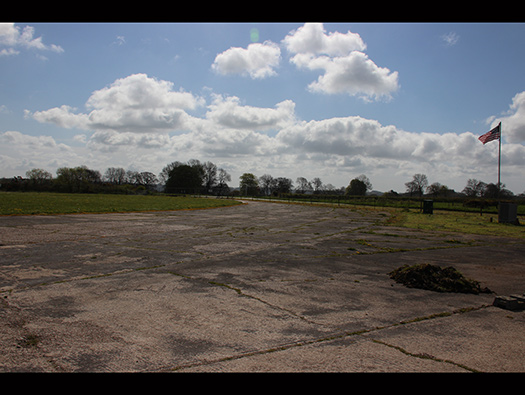

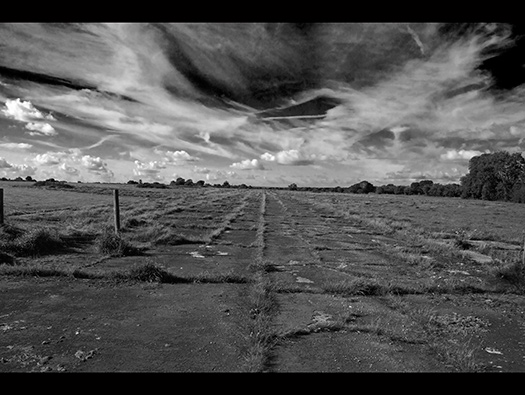

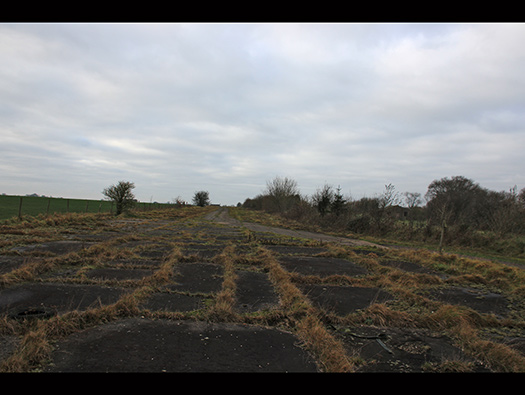

Runway 02, the runways were all 150ft wide and perimeter tracks 50ft wide.


Plan.


The roadway is now the the red lines but the runway is much wider.


plan.

RAF Upottery USAAF No. 462

Plan

Information

RAF Upottery USAAF No. 462

Details

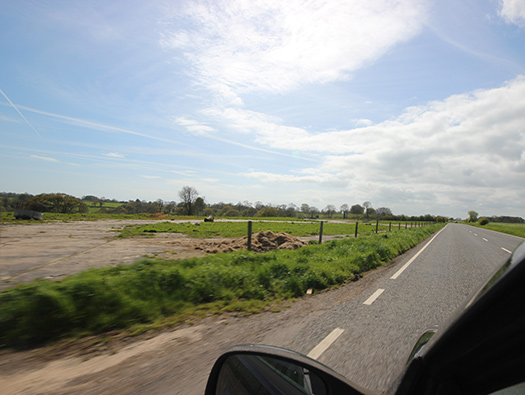

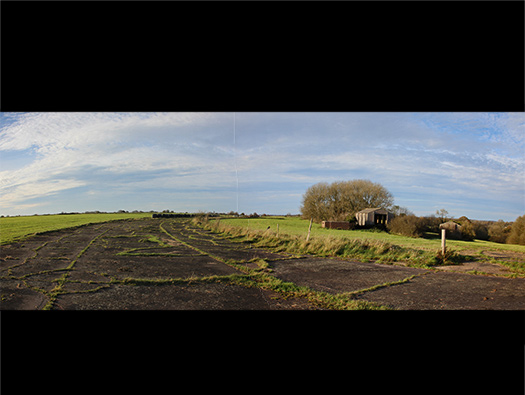

Continuing on the road follows the perimeter track east and along here were 16 Spectical dispersals now used to store farm waste. Dispersals have several different designs, the frying pan dispersal was the main type but did cause undercarriage damage when turning so spectacle replaced it. You just drive on and off with much less manoeuvring.


Frying Pan type.


Dispersal types.


Dispersals and aircraft.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Dispersals

Details

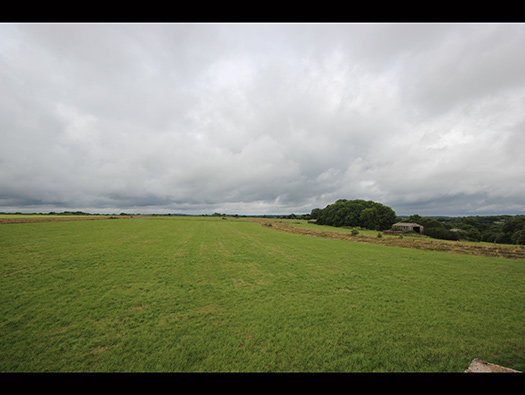

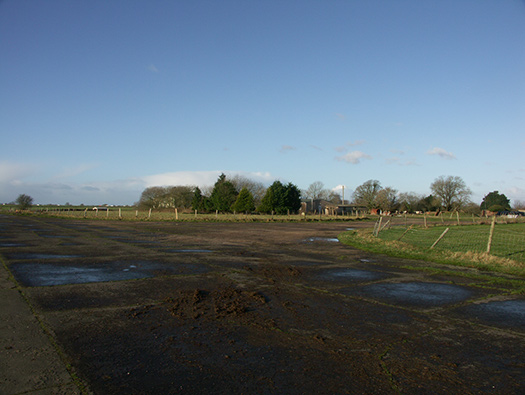

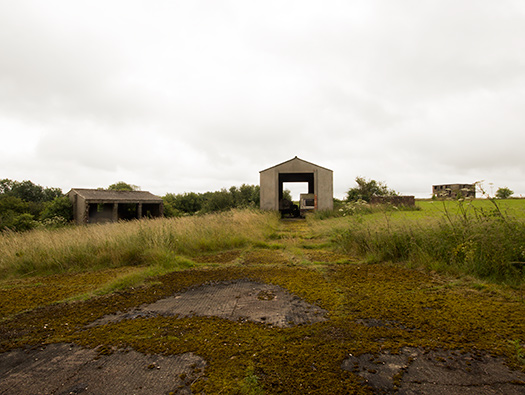

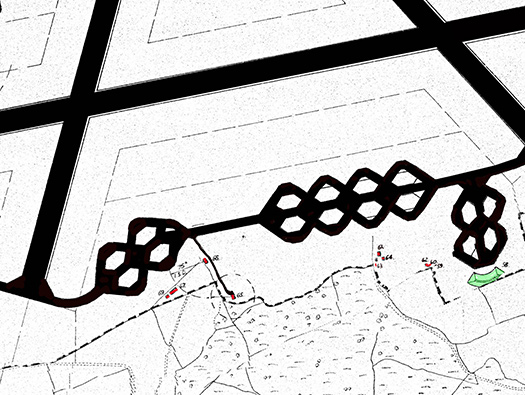

Spectical dispersals along the south side of the airfield for 16 aircraft, there were 50 dispersals laid out altogether.


Plan.


Plan.


The mound of earth is for bomber to test and set their guns.


Spectical dispersals and 58. Shooting - In - Butts Earth Travers. 4728/43..

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
T2 hangar base

Details

This is the site of the first T2 aircraft hangar.


Plan.


Plan.


Plan.


T2 inside.


T2 at RAF Elvington.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
T2 hangar 1

Details

50. Armoury - Squadron N. 2406/43.
51. Store Block               N. 2406/43.
52. Latrines Technical  T.B. 9026/41.
53. Hangar (23bay)       T2. 3653/42.
N = Nissen Hutting. T.B. Temporary Brick.


Plan.


Plan.



T2 hangar.



How it may have looked..



52. Latrines Technical  T.B. 9026/41.



Store Block/Armoury, Nissen 2406/43.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
T2 hangar 1

Details

50. Armoury - Squadron N. 2406/43.

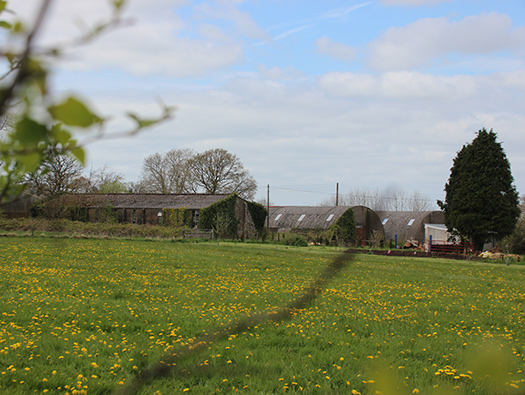

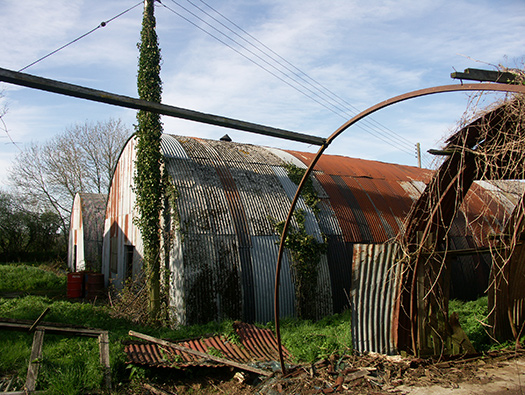

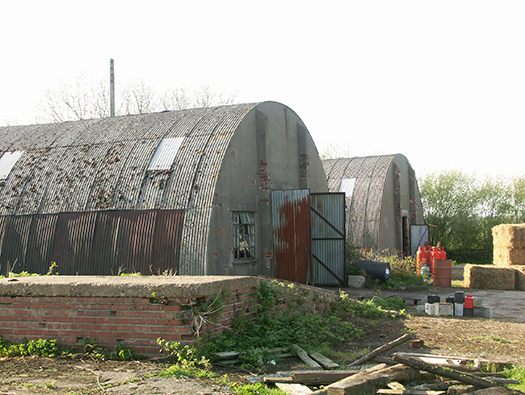

51. Store Block              N. 2406/43. This is a triple length Nissen hut.

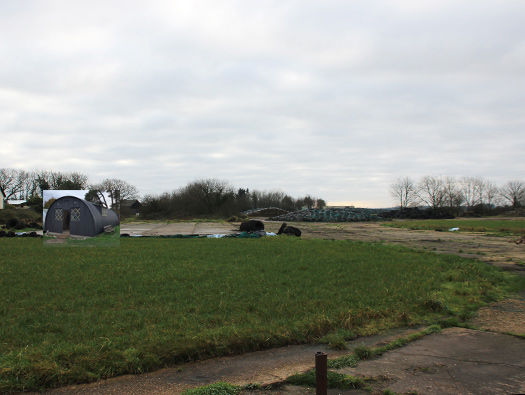

I have added a Nissen hut to show what it may have been like.


Plan.


50. Armoury - Squadron N. 2406/43.
51. Store Block               N. 2406/43.


2406/43 extended Nissen hut.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462
53 Hangar st T2 3653/42

Details

Hangar T2 (st) steel clad meaning corrugated iron sheets.


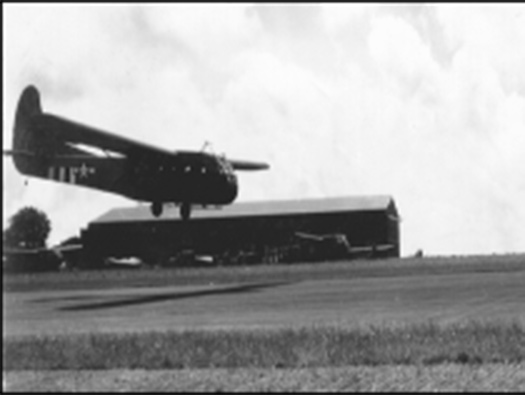

T2 hangar.

RAF Upottery USAAF No. 462

00

Information

RAF Upottery USAAF No. 462
53 Hangar st T2 3653/42

Details

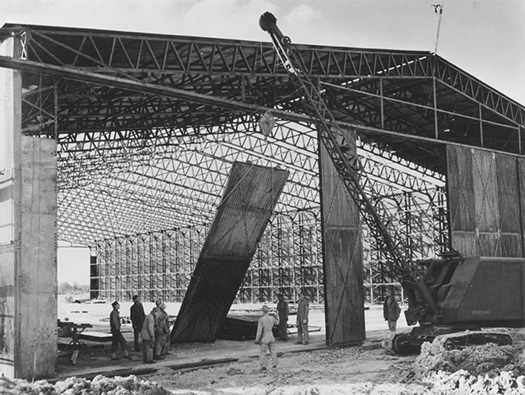

Inside the hangar showing its internal make up and this wonderful image of a 98Sqn Dakota being serviced by engineers.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
M&E Plinth

Details

M&E Plinth not on the plan.


M&E plinth.


Cable layout.




RAF Upottery USAAF No. 462

13 June 212 July 20154

Information

RAF Upottery USAAF No. 462
M&E Plinth

Details

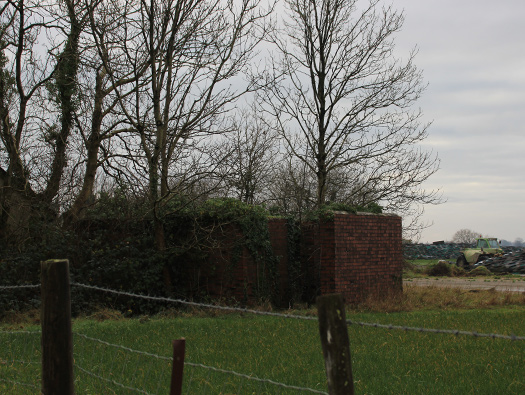

M&E Plinth not on the plan. Blast wall covering the entrance.


Inside an M&E plinth.


Ring main cable.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Petrol Instillation - Aviation

Details

49. Petrol Instillation - Aviation 72,000galls 13022/42 the second.
A circular road allowing tankers to drive in and around and out without reversing.


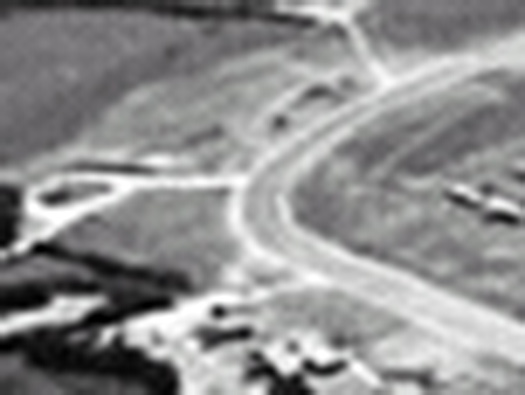

You can see the circular Petrol Installation..


Plan.


Plan.


Fuel meter.

RAF Upottery USAAF No. 462

WW2

Information

RAF Upottery USAAF No. 462
Petrol Instillation - Aviation

Details

This is very like it was there.





A B17 being refuelled by an RAF Bowser.

RAF Upottery USAAF No. 462

Google earth

Information

RAF Upottery USAAF No. 462
Petrol Instillation - Aviation

Details

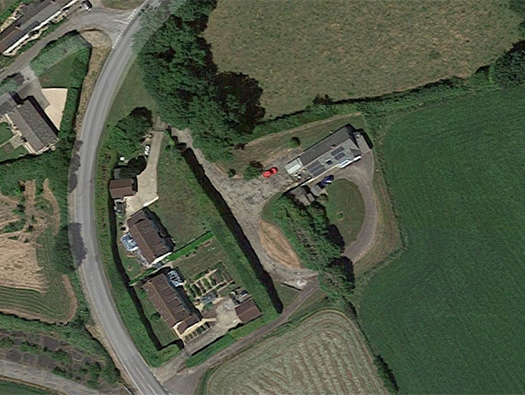

Its basically still there. The full circle of the instillation even with a house on it.


Plan.


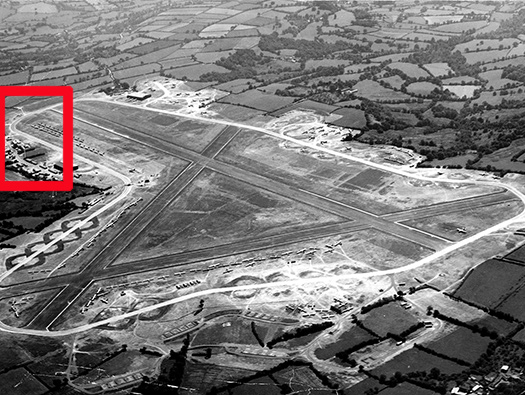

Th circle on the far left.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

Across from the Petrol Instillation is the continuation of the perimeter track.



Plan.


Perimeter track.


Plan.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

50ft wide and about 4.5 miles long.


Plan.


Plan.

RAF Upottery USAAF No. 462

Google

Information

RAF Upottery USAAF No. 46
Smeatharpe

Details

Main Entrance


Main Entrance.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462
Main entrance

Details

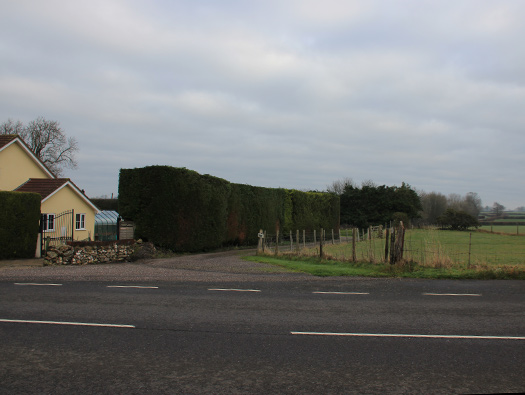

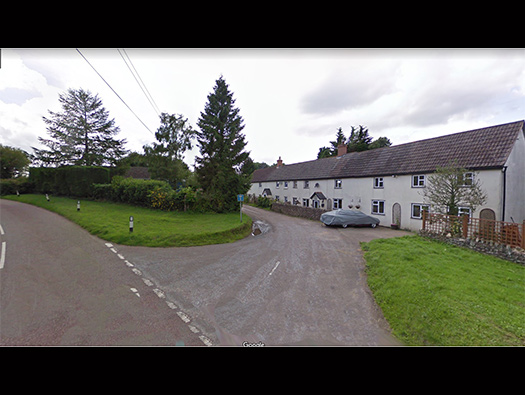

This was the main entrance to the airfield the village of Smeatharpe.

RAF Upottery USAAF No. 462

WW2

Information

RAF Upottery USAAF No. 462
Main entrance

Details

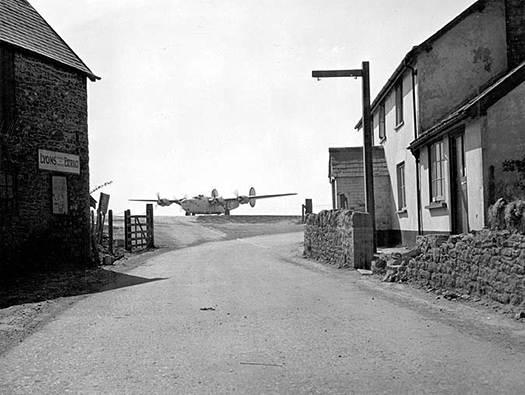

US Navy Liberator sat on the perimeter track. The US Navy used Upottery as a satellite airfield to RAF Dunkeswell for a while.


B-3c VB103.1941.


Liberator over the sea.




RAF Upottery USAAF No. 462

13 June 2004

Information

RAF Upottery USAAF No. 462
Site 1 Airfield M&E plinth

Details

On the right was the: -
1. Guard House & Fire Party N 1204/41.
2. M&E Plinth.
The Guard House was the Guard Room, you book in and you out everything and every body arriving and leaving the camp. Fire Party was the fire brigade to tackle any local (dispersed camp) fires rather than aircraft fires but may have helped out in real emergencies.


Plan.


Plan.

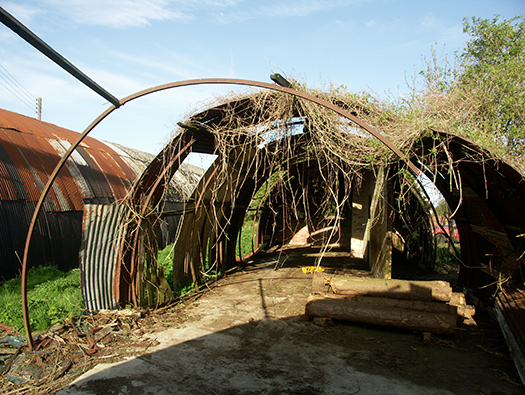

16ft Nissen hut.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Site 1 Airfield

Details

M&E Plinth.


M&E plinth plan.

RAF Upottery USAAF No. 462

28 December 2018

Information

RAF Upottery USAAF No. 462

Details

3. Fire Tender House N 12410/41.
This was a Nissen Hut fire station garage for the camp fire tender & pump with the RAF. The USAAF may have used Jeep type tenders.


Plan.


It would have looked a bit like this.


A US Jeep fire tender.


Trailer pump set..

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Works Service Hut & Yard

Details

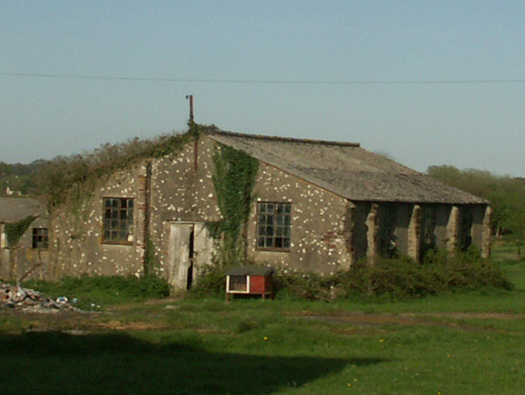

4. Works Service Hut & Yard T.B. 5538/42.

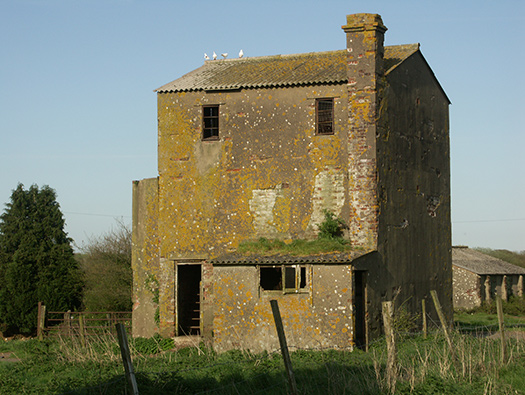

Behind the four huts and a toilet was the yard where building materials would be stored behind a wire mesh fence. This area would hold the plans of the airfield, huts, hangars and details of materials to be used. Run by a Clerk of Works a Ministry employee to oversee the civilian workforce.

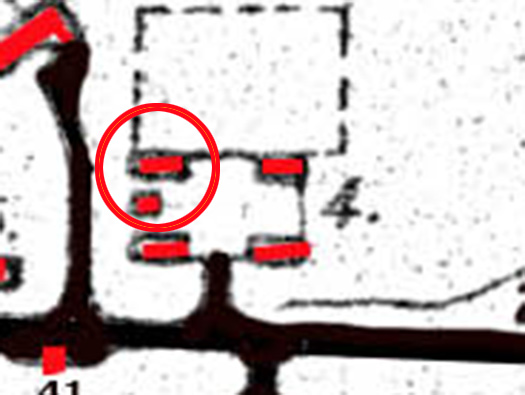

Plan.


Plan.


Civilian workforce.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
Works Service Hut & Yard

Details

4. Works Service Hut & Yard T.B. 5538/42.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Radar Workshop

Details

6. Radar Workshop T.B. 7352/42.
Most types of heavy aircraft could carry a form of Radar and a workshop was needed. It also had to have an area where the radar could be tested and there was to be no humans to get into the way of the radio waves. So the workshop was always placed where it had a clear direction to check the radars.


Plan.


Plan of the Radar Workshop and the clear are to test the radars.


Loran aircraft radar.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Radar Workshop

Details

6. Radar Workshop T.B. 7352/42.


A1 radar.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Sub-Station

Details

7. Sub-Station P.B. 11274/2.
A substations a part of an electrical generation, transmission, and distribution system. Substations transform voltage from high to low, or the reverse.







RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Electricity Sub-Station, Dinghy Shed

Details

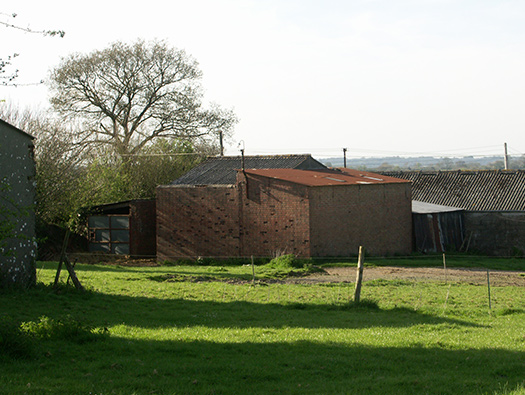

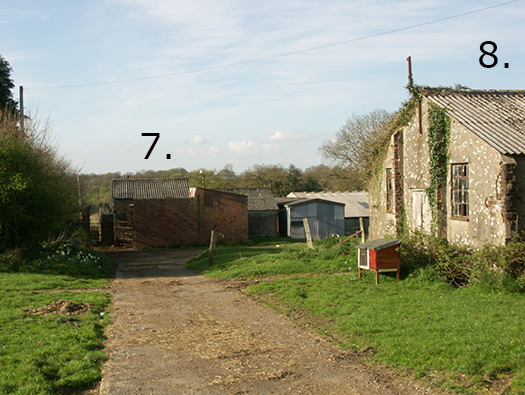

7. Sub-Station   P.B. 11274/2.
8. Dinghy Shed T.B.  2901/43.
(P.B. - permanent brick build).

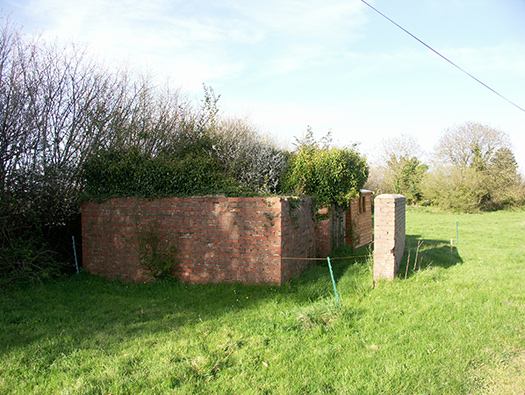

Circled Sub-Station.







RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Dinghy Shed

Details

8. Dinghy Shed T.B.  2901/43.


8. Dinghy Shed.


8. Dinghy Shed.




RAF Upottery USAAF No. 462

05 May 212 July 20156

Information

RAF Upottery USAAF No. 462
Dinghy Shed

Details

8. Dinghy Shed T.B.  2901/43.

RAF Upottery USAAF No. 462

05 May 212 July 20156

Information

RAF Upottery USAAF No. 462
Dinghy Shed

Details

8. Dinghy Shed T.B.  2901/43.

RAF Upottery USAAF No. 462

John Grech

Information

RAF Upottery USAAF No. 462
A.M. Bombing Teacher

Details

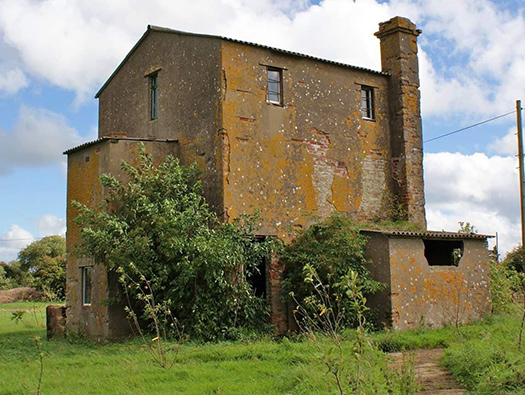

'A' class RAF airfields were basically designed for heavy bombers, so bomb aimers needed to be kept well trained. An A. M. (Air Ministry) Bombing Teacher was a tall building with several levels. The first is where the bomb aimer laid, behind him the pilot sat at a set of controls. Above again a film projector that shone down onto the floor. The pilot flew the plane, the aimer instructed him to fly left & right and the film projected on the floor moved as if you were flying over. A WW2 computer game.


A.M. Bombing Teacher.


Vickers Bygrave Bombing Teacher.




RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
A.M. Bombing Teacher

Details

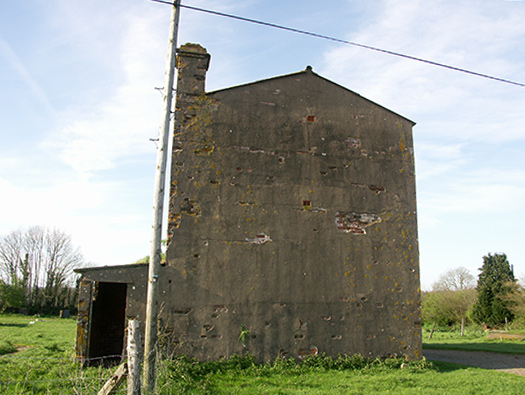

11. A.M. Bombing Teacher P.B. 816/43.
The room needed to be kept warm to work in and an attached room there was a boiler.


A.M. Bombing Teacher plan.


Boiler


details

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
A.M. Bombing Teacher

Details

11. A.M. Bombing Teacher P.B. 816/43.
Stairs to take you up t the different levels.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
A.M. Bombing Teacher

Details

11. A.M. Bombing Teacher P.B. 816/43.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462

Details

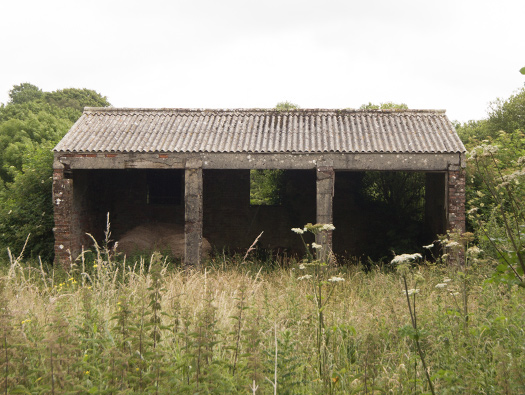

37. M.T. Sheds (1 No Repair Bay) T.B. 9026/41.
38. Squadron & Flight Offices         T.B. 1451/42.
Now removed the M.T. Motor Transport garage of four bays and one of them for servicing with its own vehicle pit.

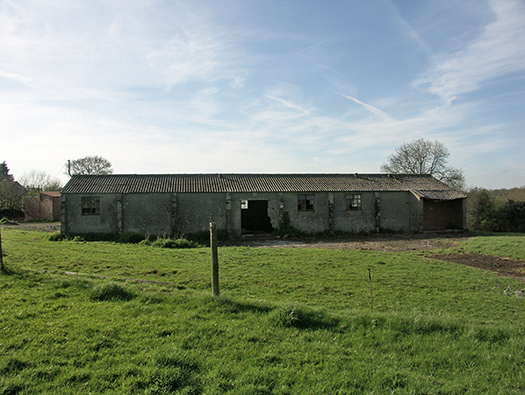

MT Garage service pit in one bay.


Tyre changing US style.


4 bay M.T.12775/41.

RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462
Squadron & Flight Offices

Details

38. Squadron & Flight Offices T.B. 1451/42.
Each Squadron would be issued a flight office.


Crew driving out to their planes.







RAF Upottery USAAF No. 462

03 May 2018

Information

RAF Upottery USAAF No. 462

Details

1 x 34. Gas Clothing & Respirator Store T.B. 13730/41.
2 x 16. Main Stores                                     R         827/43.
TB Gas Clothing store and two Main Stores in Romney, corrugated iron.


Plan.


1 x 34. Gas Clothing & Respirator Store T.B.13730/41.
2 x 16. Main Stores R 827/43.
17. Stores & Workshop Office Block N 2981/43.


Romney hut supports.

RAF Upottery USAAF No. 462

John Grech

Information

RAF Upottery USAAF No. 462
Main Stores

Details

2 x 16. Main Stores  R 827/43.

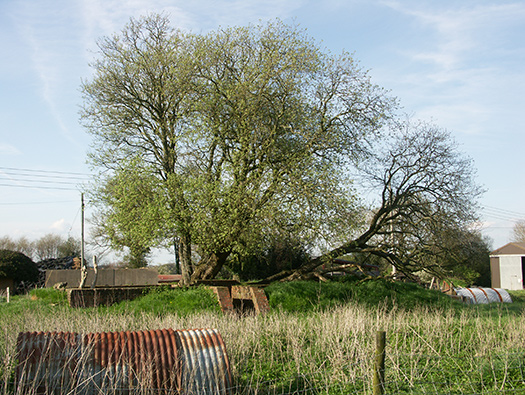

Romney huts were a much larger Nissen style hut. Made from hoops of tubing with wooden spars and the corrugated tin/asbestos is screwed to the wooden spars.
Main Stores held everything from aircraft parts to typewriter ribbons.


Tube supports and wooden spars.


Looking inside a Romney hut.


USAAF Main Store.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Main Stores

Details

2 x 16. Main Stores R 827/43.
Loading/unloading ramp. The original RAF Main Stores had integral loading ramps and the loading bay was made with a higher floor to match, but Romney huts did not have that advantage and needed its own ramp. There was also two Main Workshops of the same style further behind but now removed.


Plan.







RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Stores & Workshop Office Block

Details

17. Stores & Workshop Office Block N 2981/43.


1 x 34. Gas Clothing & Respirator Store T.B.13730/41.
2 x 16. Main Stores R 827/43.
17. Stores & Workshop Office Block N 2981/43.

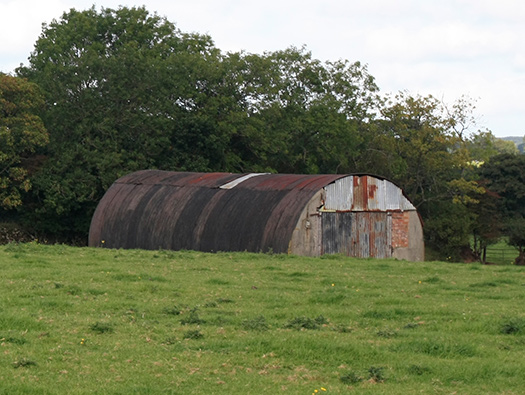

Nissen hut.

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Main Stores, Stores & Workshop Office Block

Details

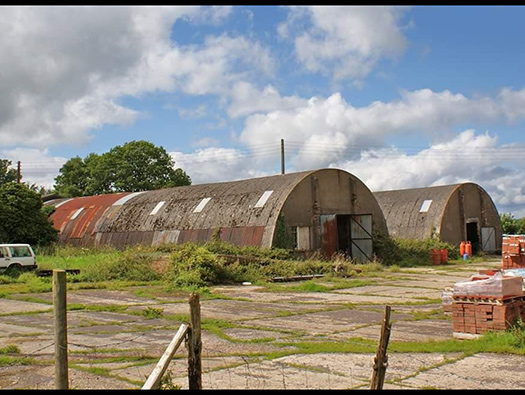

Nissen huts came flat pack, first a concrete base was laid and then he hut was assembled.


Nissen huts came flat pack.







RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Air Raid Shelter

Details

Blast shelter for 32 men 2360/41. As this airfield was built late in the war I am surprised that any were built. There are none on the dispersed accommodation sites.


Plan.


Blast shelter plan 2360/41.




RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462

Details

34. Gas Clothing & Respirator Store T.B. 13730/41. This building harps back to the early and pre war days when the RAF thought they could be fighting a Mustard type gas war. Later on they were used as medical stores but still had an anti-gas role.










RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
Perimeter Track

Details

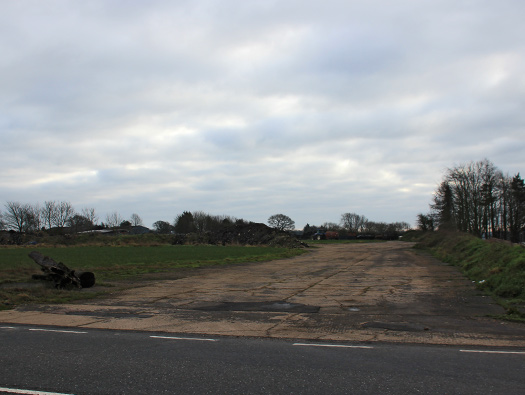

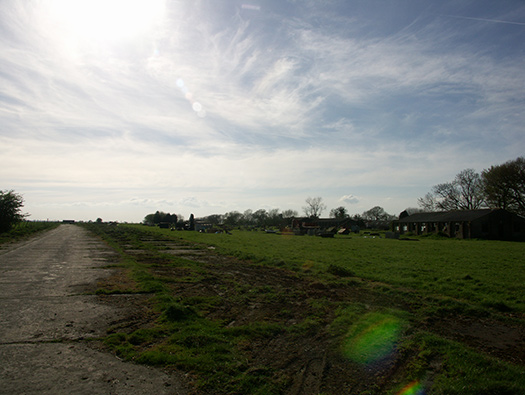

Perimeter track leads on to the site of the second T2 hangar.


details

RAF Upottery USAAF No. 462

05 May 2006

Information

RAF Upottery USAAF No. 462
T2 hangar

Details

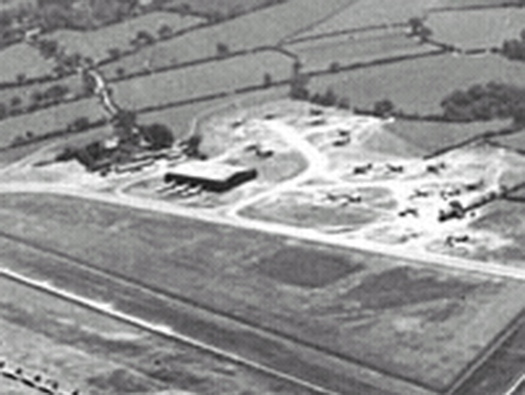

Perimeter track with a lead in to the hangar. The T2 was the hangar of the time. It was big enough to take any service plane of the time and used for major servicing.


Plan.







RAF Upottery USAAF No. 462

25 October 2017

Information

RAF Upottery USAAF No. 462
T2 hangar

Details

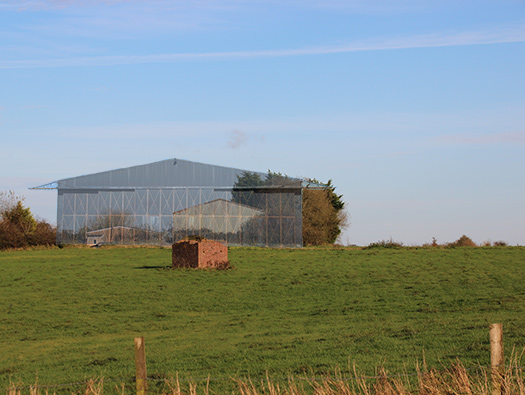

30. Hangar (23 Bays) St. T2 3653/42. I have superimposed a T2 hangar on the picture.


details

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
T2 hangar

Details

30. Hangar (23 Bays) St. T2 3653/42.


Built from bolted steels and covered in sheets of corrugated iron.


details




RAF Upottery USAAF No. 462

John Grech

Information

RAF Upottery USAAF No. 462
Control Tower

Details

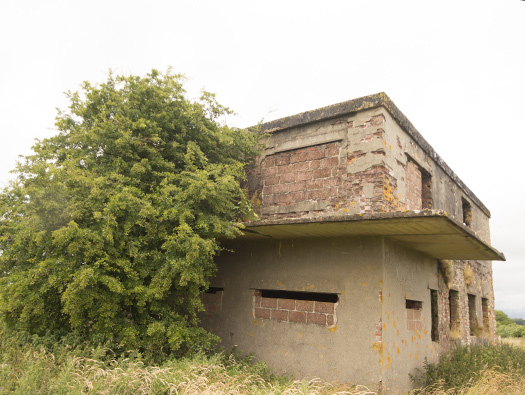

The heart of an airfield the Control Tower. Where ever you are on the airfield, you can be seen from the tower.







x

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

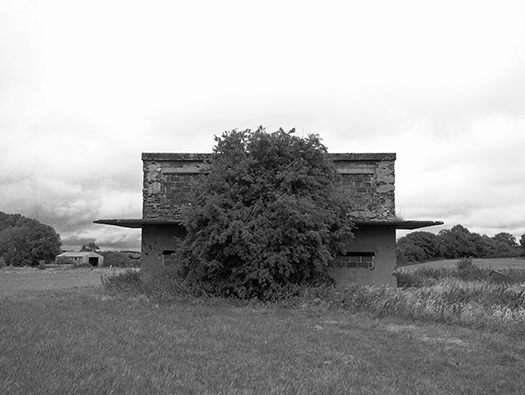

Again the tower see's you.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

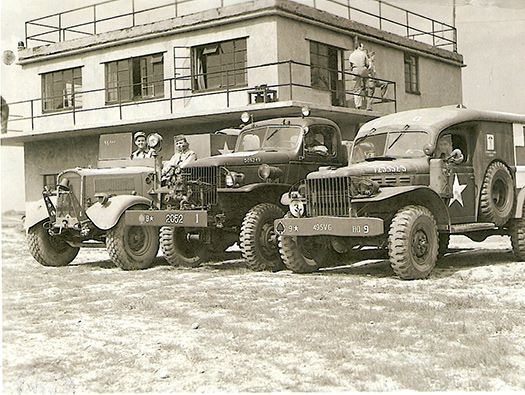

A very good picture of the tower at Upottery with ambulances & fire crews.

RAF Upottery USAAF No. 462image

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

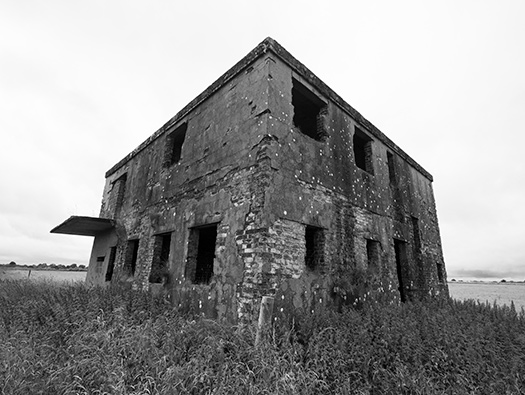

89. Control Tower. (Watch Office) P.B. 343/43. The watch office small window and larger windows in the control room.


Plan of the 343/43 ground floor.


Plan of the 343/43 first floor.




RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Windows were steel frames made by Crittal and the designs are still held at their offices today, so can be replaced even in double glazing.


Steel steps up to the balcony and then another set on the opposite side up to the roof with galvanised railings all around the top.


Steel stairs.


Crittal windows.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Rear.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Rear entrance into a passageway that runs to the watch office at the front.


Plan of the 343/43 ground floor.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Cupboard usually with wooden doors painted a dark green.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Cupboard in the middle.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Toilets.


Plan of the 343/43 ground floor.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Met office, there would be a direct teleprinter line to the RAF's Meteorological office for weather forecasting. Another toilet in the corner.


Met office.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Watch Office with in the corner the flair store that would have been a fully bricked cupboard with a steel door and if the flairs ignited for any reason. The blast would blow outwards through the window.


Plan of the 343/43 ground floor.


Flair cartridges.


Very Light flair gun.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

The windows today have been bricked up. Originally they were large windows as above. But due to night flying the smaller windows were easier to black out. Well thats what the book says.


The windows could be larger or smaller as in this plan of the front face.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Teleprinter room


Plan of the 343/43 ground floor.


Teleprinter room.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

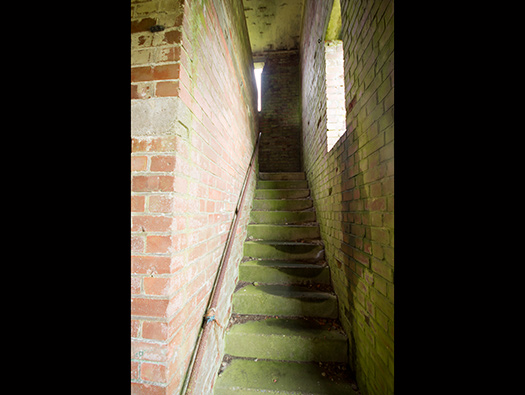

Stairs to the first floor.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

First Floor landing.


Plan.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

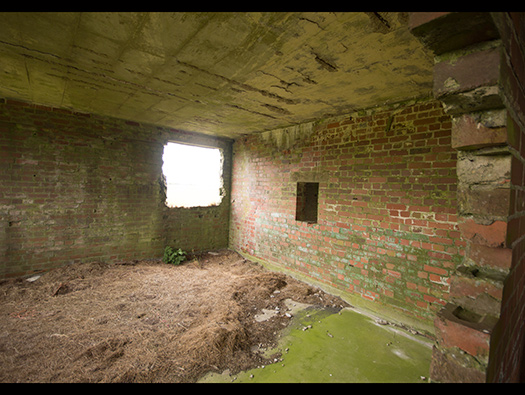

Signals office with the message hole in the wall where messages could be passed to the controllers in the front.


Signals room.


Signals office with the message hole.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Controllers rest room


Duty pilot/controllers rest room.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Control room. A large space where all airfield movement would be controlled. Access to the balcony and roof through two doors either side of the control room.


Plan.







RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

What looks like here is the take off or landing of an aircraft, a senior officer watching with another looking through binoculars. Another just looking on. Two Airmen one possibly talking to planes and another looks as though he is writing something down. On the wall a chalk board with details of (I am presuming) if the Beacon was on/off. The Q Site was in operation. Q Site was the decoy of the airfield set out somewhere in the area to attract bombers in to bomb the decoy and not the airfield. If the Flare path is/is not lit and the Weather for the day.


Q Site bunker.


Q Site bunker plan.


A Q Site bulb.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

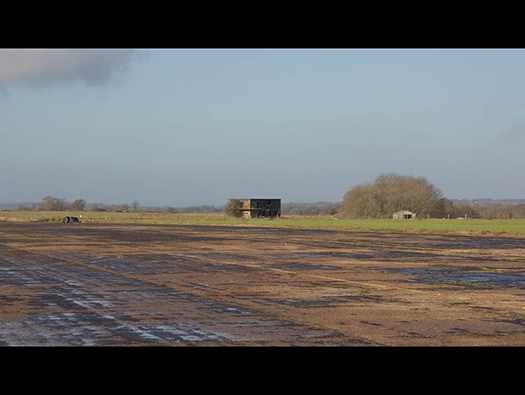

The view out over the northern dispersals.


Red arrow is the control tower and the dispersals to the left

RAF Upottery USAAF No. 462

25 October 2017

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Don't tell his mother know what he gets up to when out with Granddad.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
89 Control Tower T.B. 343/43

Details

Looking due south at the rear of the control tower.

RAF Upottery USAAF No. 462

25 October 2017

Information

RAF Upottery USAAF No. 462
Perimeter

Details

50ft perimeter track in very good condition and beyond eight Spectical dispersals.


details







RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462

Details

M&E Plinth.
87. Floodlight Trailer & Tractor     TB 12411/41.
88. Night Flying equipment Store TB 12411/41.
Both exactly the same drawing numbers, I have checked up several other airfields and its the same numbers.

RAF Upottery USAAF No. 462

25 October 2017

Information

RAF Upottery USAAF No. 462
M&E Plinth

Details

Another plinth covering the Control Tower area.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
M&E Plinth

Details

M&E Plinth


Fitting on the outer wall.


Gate hinge.


Hinged gate plan.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462

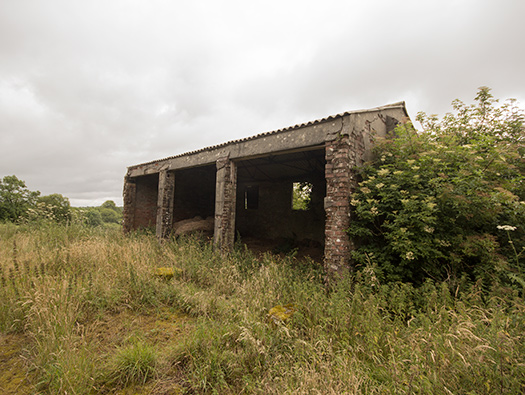

87. Floodlight Trailer & Tractor     TB 12411/41.

Details

A tractor pulling a floodlight on a trailer could be driven in through the back door and when next needed just drive out of the front door, so no need to turning around.


Chance light, lighting up a runway.


Chance light.


Fordson tractor.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
87. Floodlight Trailer & Tractor     TB 12411/41.

Details

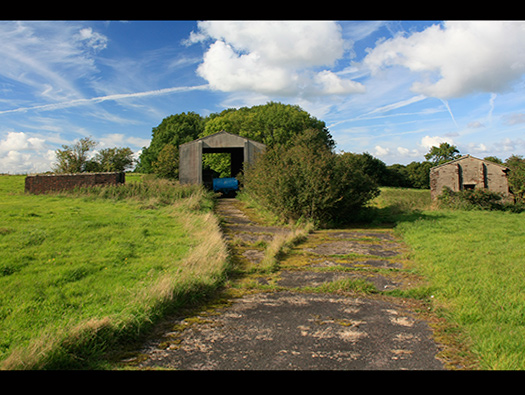

The roadway in.




RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
87. Floodlight Trailer & Tractor     TB 12411/41.

Details



RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
87. Floodlight Trailer & Tractor     TB 12411/41.

Details

Old RAF fuel tanker trailer.


Inside.


Refuelling.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
88 Night Flying Equipment Store T.B. 5373/41.

Details

This building held all the night flying landing aids. Goose neck flairs, battery electric lamps, etc.


Night Flying Equipment Store T.B. 5373/41 with doors on.


Goose neck flair.


Goose neck flair.

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
88 Night Flying Equipment Store T.B. 5373/41.

Details




Goose neck flair.





Landing lights

RAF Upottery USAAF No. 462

12 July 2015

Information

RAF Upottery USAAF No. 462
88 Night Flying Equipment Store T.B. 5373/41.

Details

The stone blocks to park the doors open to stop vehicles from damaging the doors.


Night Flying Equipment Store T.B. 5373/41 with doors on.


Design of the post.

RAF Upottery USAAF No. 462

27 December 2004

Information

RAF Upottery USAAF No. 462
86 Crew Room, Locker & Drying Rooms S 2862/43

Details

Crew Room, Locker & Drying Rooms made in 'S' Uni-Seco hutting


details


Crew Room, Locker & Drying Rooms at RAF Kingston Bagpuize in Uni-Seco hutting and now completely removed.


Boiler for heating.

RAF Upottery USAAF No. 462

27 December 2004

Information

RAF Upottery USAAF No. 462
86 Crew Room, Locker & Drying Rooms S 2862/43

Details

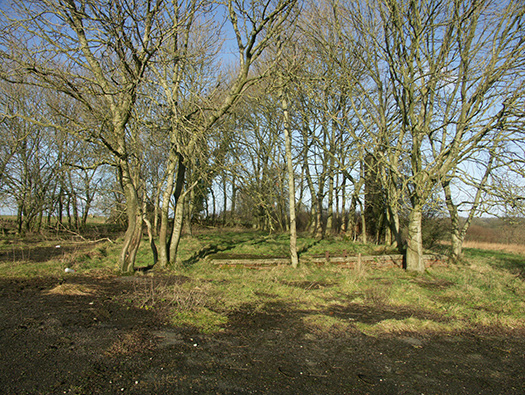

Crew Room, Locker & Drying Rooms very well hidden in woodland, the outline and a chimney for heating the drying room are still there.


Seco hut.


Crew drying room.


Crew Room, Locker & Drying Rooms.

RAF Upottery USAAF No. 462

27 December 2004

Information

RAF Upottery USAAF No. 462
85 Squadron & Flight Offices T.B. 1451/42

Details

Squadron & Flight Offices, these airfields were designed to hold one RAF squadron and were laid out for that purpose. Each flight would park their planes close to their flight office. But here the Americans came in with four squadrons and must have been very cramped in thier office accommodation. I expect the standard American square tents would be used for extra space.


Plan.







RAF Upottery USAAF No. 462

19 January 2000

Information

RAF Upottery USAAF No. 462
85 Squadron & Flight Offices T.B. 1451/42

Details

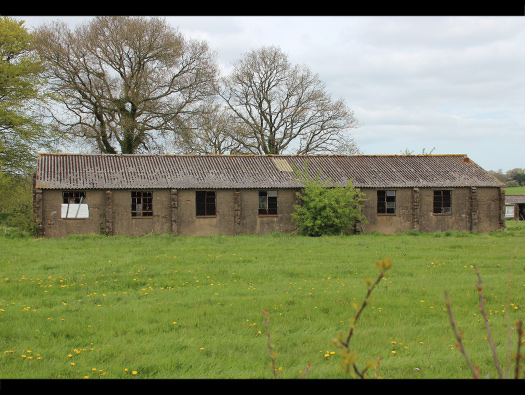

The time I turned up the Daffodils were starting to grow along the front of the offices, I just wonder who planted them??


details







RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462
85 Squadron & Flight Offices T.B. 1451/42

Details

The centre corridor with offices both sides.










RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462
85 Squadron & Flight Offices T.B. 1451/42

Details

Maybe Squadron commanders office??







RAF Upottery USAAF No. 462

27 December 2004

Information

RAF Upottery USAAF No. 462
82 General Purpose Hut TB 12790/42
84 Latrines                       TB 9026/41

Details

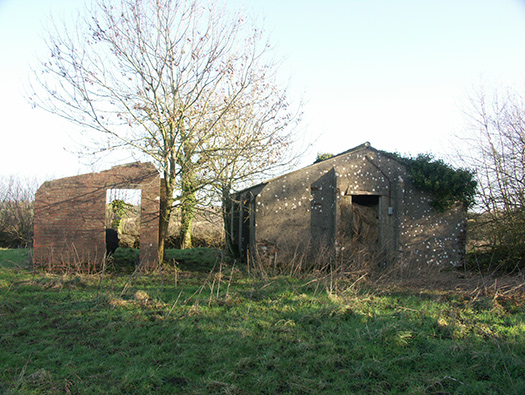

General Purpose Hut & A Latrine


Plan

RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462
84 Latrines                       TB 9026/41

Details

Latrine two bay.


The plan is a four bay but the one here is only a two bay type.

RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462
82 General Purpose Hut TB 12790/42

Details

General Purpose Hut probably for the aircraft ground crew to keep tools and also use as their crew room.










RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462
80 Pyro Store N 2169/43

Details

Pyro Store is for the storage of any pyrotechnics carried on planes. When a plane lands, all the combustible stores would be removed. In a Dakota it would probably be Very Pistols and their flair cartridges.


Plan.


1941 British No.3Mk1.


Pyro cartridges.

RAF Upottery USAAF No. 462

12 September 2010

Information

RAF Upottery USAAF No. 462

Details

Eight aircraft scissor dispersals.


Dispersal aircraft.


Plan.


Another view from the air.

RAF Upottery USAAF No. 462

June 1944

Information

RAF Upottery USAAF No. 462

Details

Paratroops walking out to their planes for D-Day.


Walking out.


Adjustment.


Climbing aboard.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

Possibly prior to D-Day as I cannot see any markings on the wings and also the planes squadron numbers.


Hooking up.


Loading up.


Towing high.

RAF Upottery USAAF No. 462


Information

RAF Upottery USAAF No. 462

Details

“Nine Airplanes Wide, Five Hours Long” by Ken Wakefield
That was one crew member’s apt description of the stream of American troop carrying aircraft that passed over Portland Bill, Dorset, in the early hours of D-Day, June 6, 1944. The stream consisted of 821 Douglas C-47 Skytrains, 130 of them towing Waco CG-4A gliders, of the IX Troop Carrier Command, 9th US Air Force, and they were bound for Normandy carrying 13,348 men of the 82nd and 101st Airborne Divisions.

RAF Upottery USAAF No. 462

06 June 1944

Information

RAF Upottery USAAF No. 462

Details

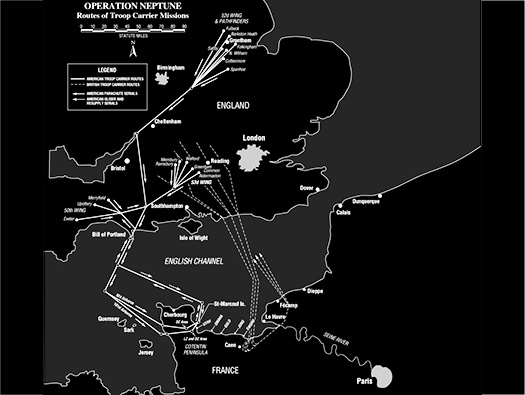

This is the plan of all the Troop Carrier Commands routes from aerodromes in England and to the Cotentin peninsular.





Cut away.


Hooking up.

RAF Upottery USAAF No. 462

Information

RAF Upottery USAAF No. 462

Details

Gliders landing post D-Day on one of the A airstrips built in Normandy.

RAF Upottery USAAF No. 462

06 June 1944

Information

RAF Upottery USAAF No. 462
101st Glider Landings in Normandy

Details

The small black dots indicate landing locations of the 52 CG-4A WACO gliders of the 'Chicago Mission', which landed 148 men at 0400 hrs on D-Day. The Red Triangles indicate landing locations of the 'Keokuk mission'. This consisted of 32 Horsa gliders, which delivered 165 men, including 6 A.T. guns of the 327th GIR at 2130 hrs on 6 June, 1944.

RAF Upottery USAAF No. 462

06 June 1944

Information

RAF Upottery USAAF No. 462

Details

'Keokuk mission'. This consisted of 32 Horsa gliders, which delivered 165 men, including 6 A.T. guns of the 327th GIR at 2130 hrs on 6 June, 1944.

RAF Upottery USAAF No. 462

06 June 1944

Information

RAF Upottery USAAF No. 462
Normandy

Details
