RAF Riccall, Operations Block.

06 April 2010

Information

Operations Block 15589/40

Details

Here all operational planning and received & transmitted messages critical to the running of the airfield passed through here.


Operations Block 15589/40.


A group of sergeants being briefed in an ops. room.


Route out and back.

RAF Riccall, Operations Block.

Information

Operations Block 15589/40.

Details



RAF Riccall, Operations Block.


Information

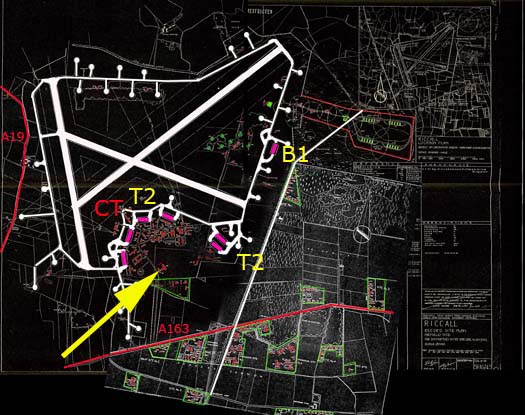

Airfield plan.

Details

The yellow arrow is pointing at the site of the Operations Block.
1658 HCU with Halifax I/II & III.


Halifax prototype, Mk I & Mk III.


Halifax.

RAF Riccall, Operations Block.

14 April 2010

Information

Operations Block.

Details




42 - Station headquarters.
43 - Operations block.
Blue - not mentioned on the site plan.







RAF Riccall, Operations Block.

24 April 2011

Information

A Heron Flew Over the Ops Block.

Details

Due to the large drainage ditches in the area its a Herons paradise.




RAF Riccall, Operations Block.

2010 and 2011

Information

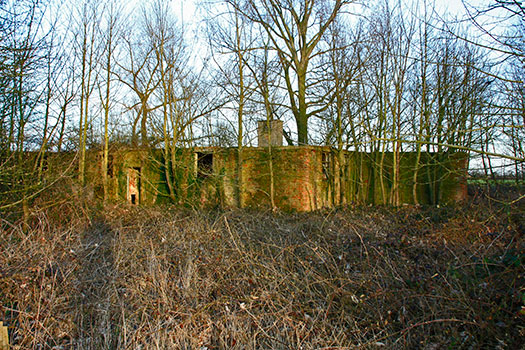

Operations Block north entrances.

Details

There are several doors all the way around and they would have had a blast wall covering them.


Plan.

RAF Riccall, Operations Block.

2010 and 2011

Information

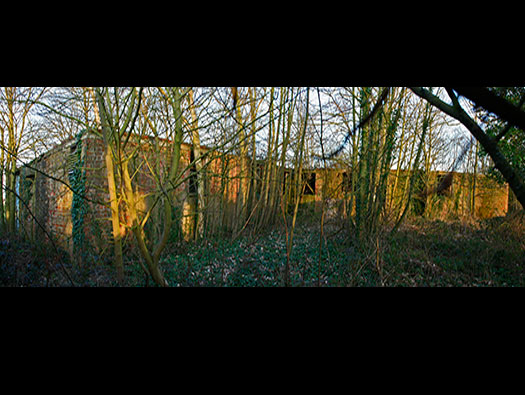

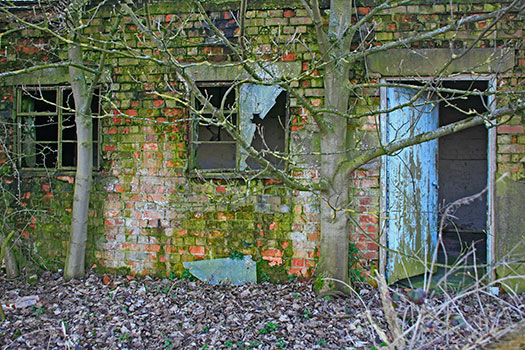

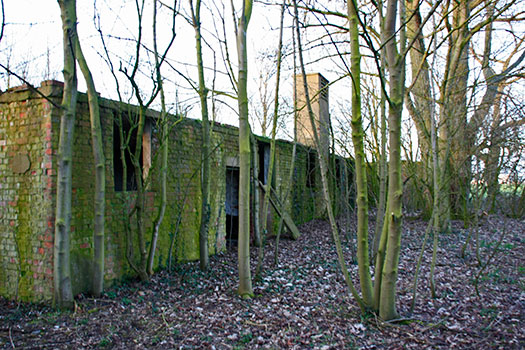

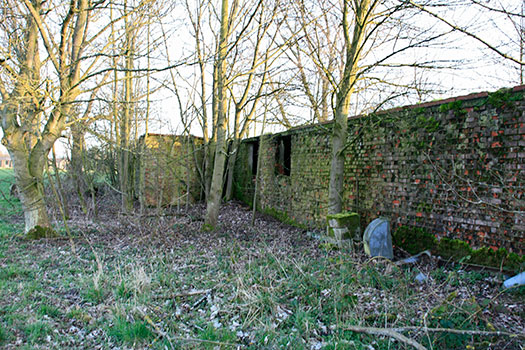

Ops Block west side.

Details




Airman's barrack huts in the distance.


Plan.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

One of the side entrances to block.


The plan was kindly given to me after my visit to Riccall, so I have placed the pictures as best as I can in relation to the plan. The plan although a 15589/40 number may differ internally as at the time and since walls, door, entries & windows may have been removed/replaced or adjusted.


.




RAF Riccall, Operations Block.

2010 and 2011

Information

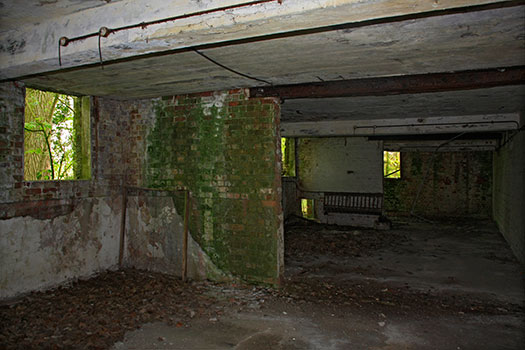

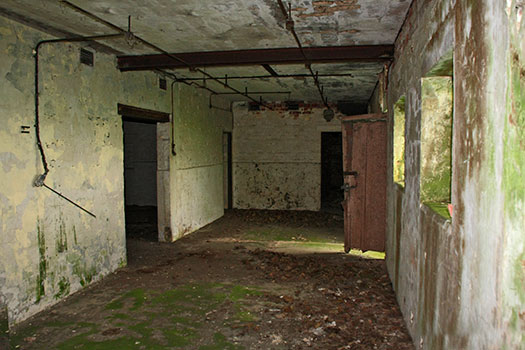

The first room I entered.

Details

In one of these rooms a secure line teleprinter would receive a message from Group who intern received their message from Bomber Command HQ. The message gave the target and planes that were to be used. In here officers would draw up lists of crews & planes and mark a black board with all the details in a bomber station, here it may sort out training routeens and who will be flying.


Plan.


WAAF's using a teleprinter.


Ops board..

RAF Riccall, Operations Block.

2010 and 2011

Information

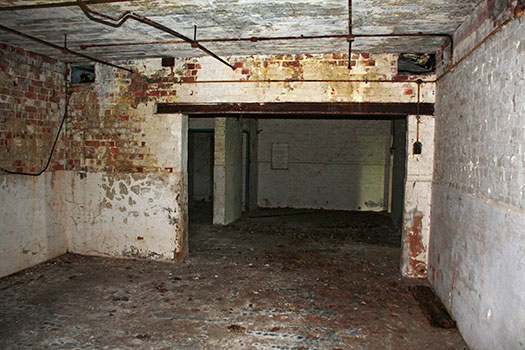

Operations block.

Details




Plan.

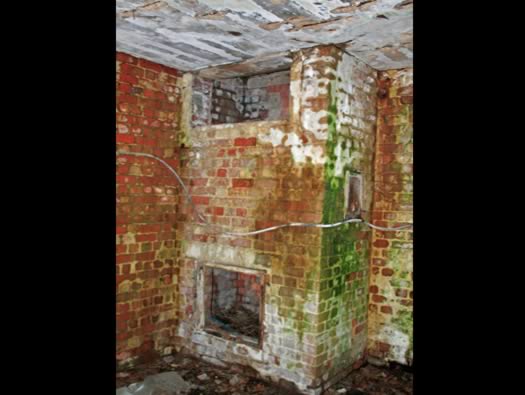

Some form of heating.


A wall covering, may be chalking boards.

RAF Riccall, Operations Block.

2010 and 2011

Information

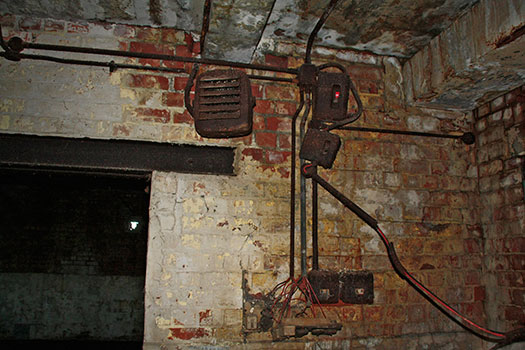

Electrics.

Details

A mix of modern & old, or old and older.
Crews would be called in and briefed about the target and routes. Then the different crew members would be split up and go to separate briefings on radio's, navigation, bombing, gunnery, etc. .


Operations board with squadron, aircraft number, pilot, target, take off time, route, TOT, ETA, ATA, remarks..


Early wartime map.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

A lot of original detail here..


The arrow showing the corridor and at the end a blast wall covering the exit..





Crew whistle.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

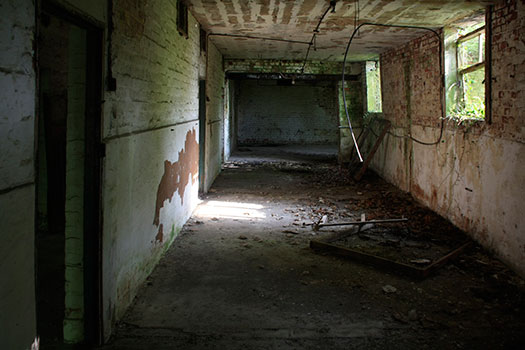

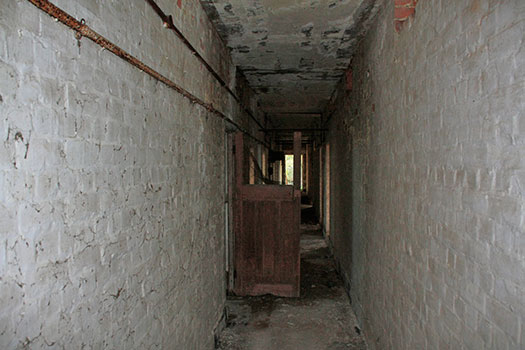

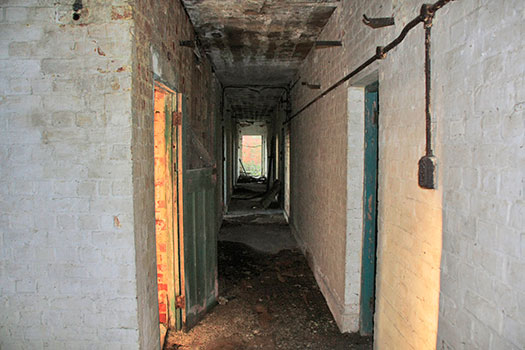

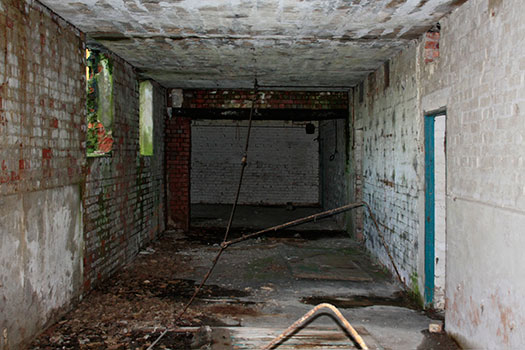

Another corridor.


Plan.


Air vent. There would have been a form of air conditioning and an over pressure in the building to keep gas out if there was a gas attack.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

Some heavy concrete beams in the roof.


Plan.


An electrical mains inlet cable.


Crew briefing.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details




Plan.


Mix of electrics.


Double switch.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

.


Plan.


Window catch.




RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

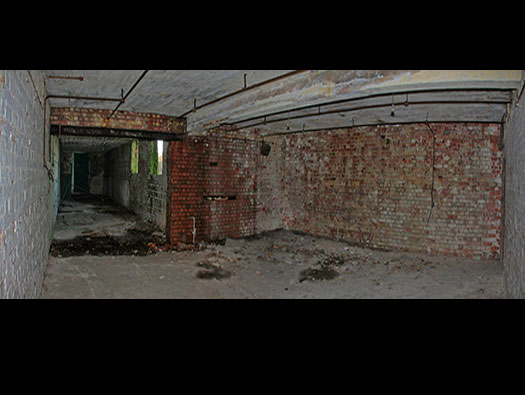

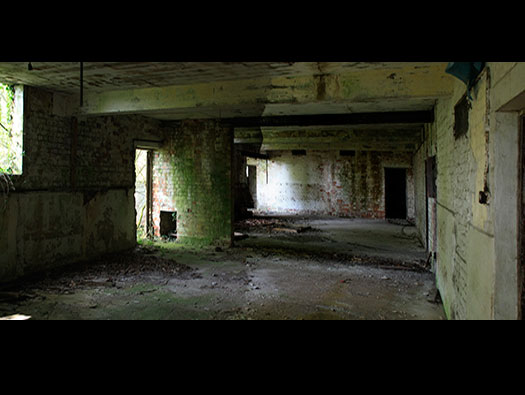

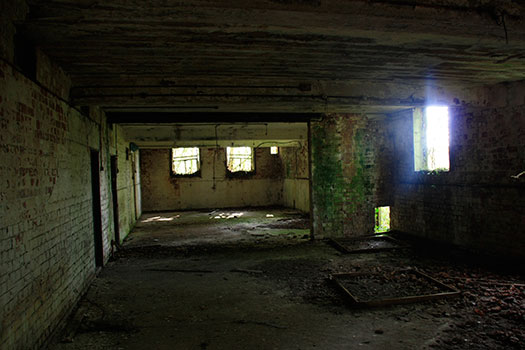

Continuation of the larger rooms. This is a 1940 plan and was designed for 1940's planes and operations. By 1942 things had changed. 1940 one and two engined bombers with two to four crew, by 1942 heavy four engined bombers with seven and eight man crews and also the aircraft in a squadron increased and the amount of squadrons per airfield increased.


Plan.


Single switch.


Radio operators badge.

RAF Riccall, Operations Block.

2010 and 2011

Information

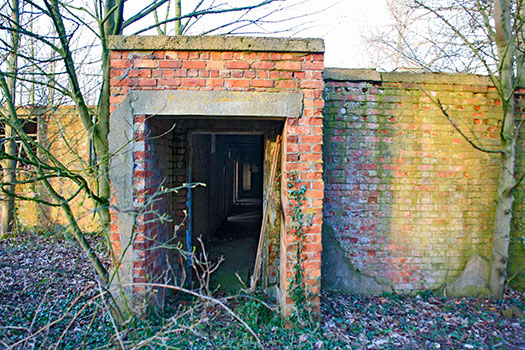

Main entrance Porch.

Details

This is a modern look to this design Art Deco almost.


Plan.


Library of aircraft types.


Photo interpretation..

RAF Riccall, Operations Block.

2010 and 2011

Information

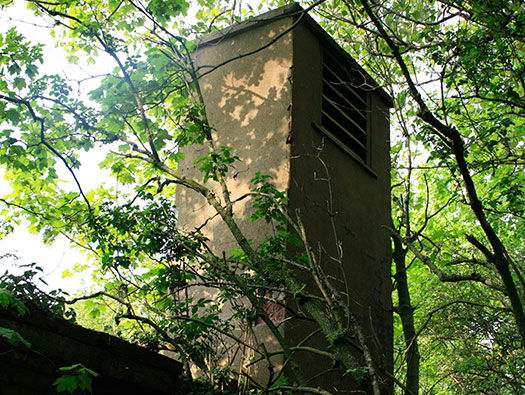

Heating/air conditioning chimney.

Details




Plan.

RAF Riccall, Operations Block.

2010 and 2011

Information

Heating/air conditioning chimney.

Details

Air conditioning was used because the building was sealed against a gas attack and the air had to be kept fresh and at a higher pressure to stop the ingress of any gas. There was usually a heating and an air conditioning plant room. Here there only seems to be the air conditioning chimney left.


Part of a blackout curtain fixing. Blackout curtain was weather a heavy dark material or a shutter board painted black to stop light showing out of the windows at night.

RAF Riccall, Operations Block.

2010 and 2011

Information

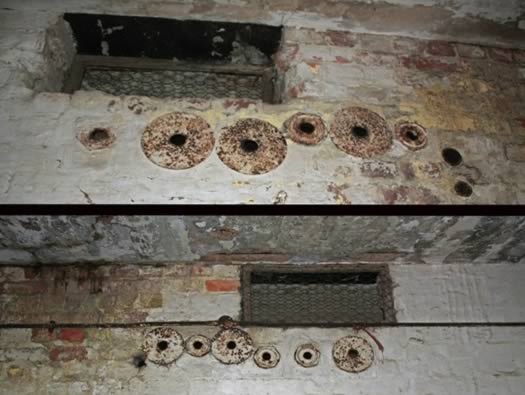

Pipes in Main corridor.

Details

Two photos from both sides of the main corridor wall allowing several entries of pipes and an air vent. I have no idea what the pies were for.


Plan.

RAF Riccall, Operations Block.

2010 and 2011

Information

Heating or air-conditioning plant.

Details

Some information here.


Louvered wall air vents.


Louvered door.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details




Plan.


Some information here.

RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

You can only wonder what happened here.


Plan.







RAF Riccall, Operations Block.

2010 and 2011

Information

Operations Block.

Details

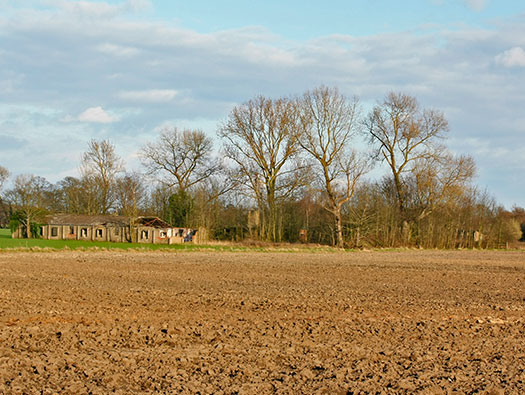

Another outside view.


Some information here.

RAF Riccall, Operations Block.

2010 and 2011

Information

Some information here.

Details

Temporary Brick Hut Blue on Plan this building may have been added as a briefing room?


The hut blue on plan is not marked on the 5116/45 RAF site plan. It may have been added at any time and could have been used as an extra briefing room as the airfield increased in size and as the war went on..

RAF Riccall, Operations Block.

2010 and 2011

Information

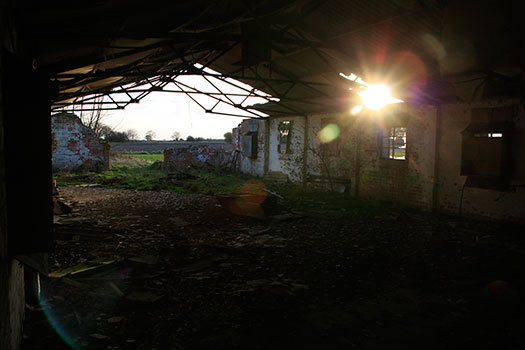

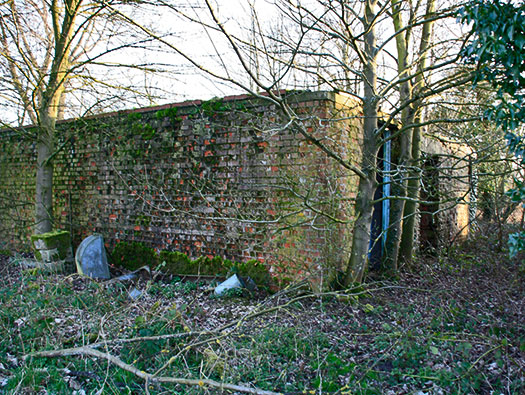

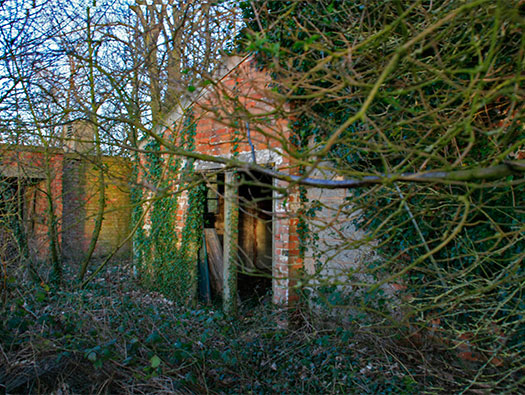

Temporary Brick Hut.

Details

It looks like an 8208/40 TB hut..


One of the Crittall windows.







RAF Riccall, Operations Block.

2010 and 2011

Information

Temporary Brick Hut.

Details



RAF Riccall, Operations Block.

2010 and 2011

Information

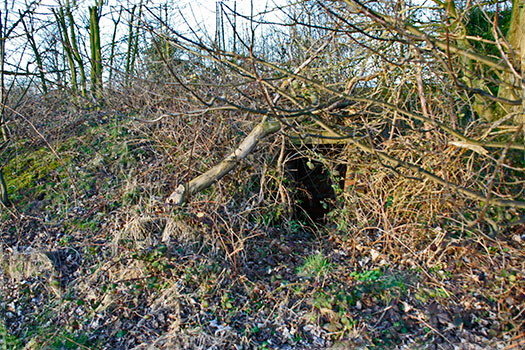

Stanton Air-Raid Shelter.

Details

This is the entrance and a Rabbit would have a few problems getting in?
Hard to see in the thick undergrowth but it is there equidistant between the three buildings. It would have held about 30 people but more could cram in.





An other Stanton air-raid shelter inside.

RAF Riccall, Operations Block.

2010 and 2011

Information

Stanton Air-Raid Shelter.

Details

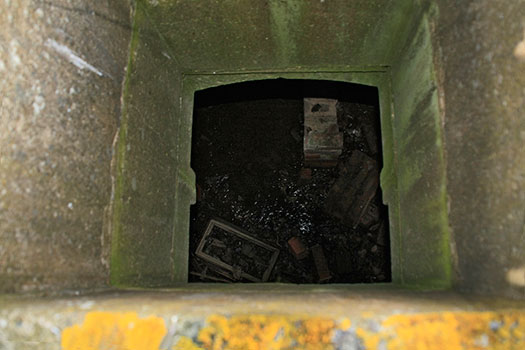

Looking down the escape hatch and full of water.




RAF Riccall, Operations Block.

2010 and 2011

Information

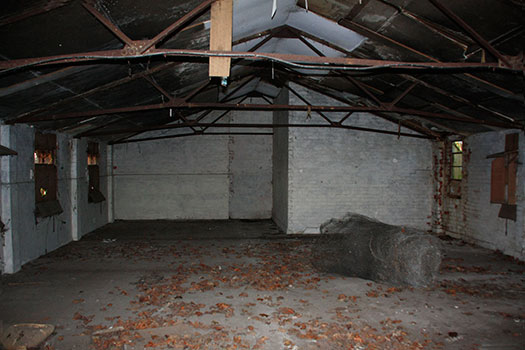

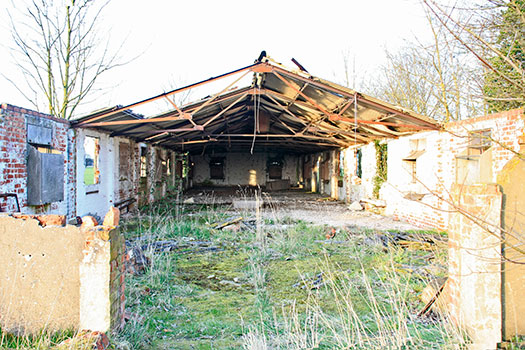

Station Head Quarters [42] 8208/40 TB hut..

Details

This is where the whole airfield and all its complement of men and WAAF's would be smoothly run.


42.


8208/40 TB hut.




RAF Riccall, Operations Block.

2010 and 2011

Information

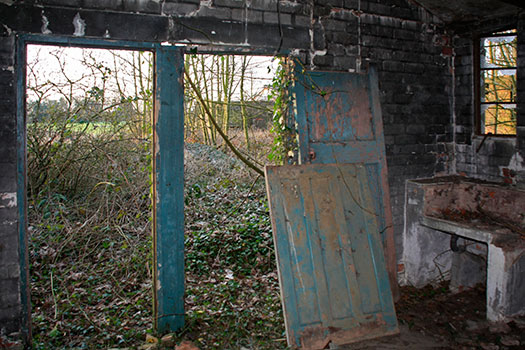

Station HQ.

Details

Two front doors.


Sink fitting in the corner.


Office.




RAF Riccall, Operations Block.

2010 and 2011

Information

Station HQ.

Details






RAF Riccall, Operations Block.

2010 and 2011

Information

Station HQ.

Details

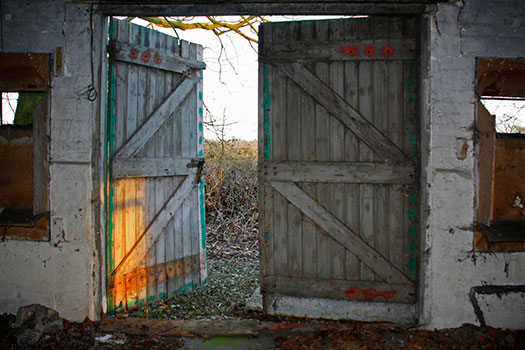

Double doors.


8208/40 TB hut plan.

RAF Riccall, Operations Block.

2010 and 2011

Information

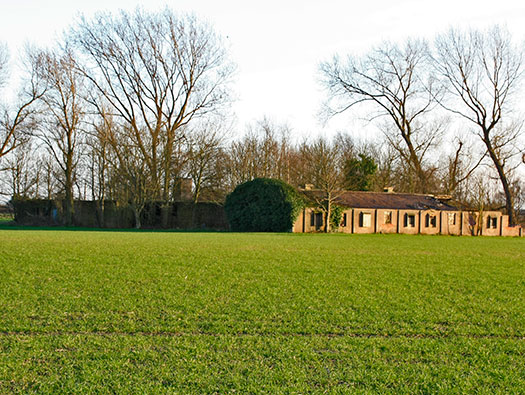

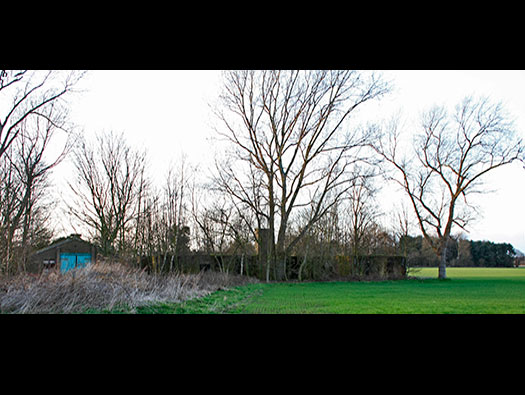

Operations Block and Station HQ..

Details




Operations Block and Head Quarters.


Airfield plan.


Operations block.

RAF Riccall, Operations Block.

2010 and 2011

Information

Sunset at Riccall.

Details
