Wn Va06 Le Méné Begot, K.V.G. Vannes, Brittany.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

1 x R677 (R680) casemate.
(2) x Flakstellung.
3 x Vf58c Tobruk´s.
3 (4) x Vf2a bunkers.
1 x Wasser reservoir.
(1) x Ringstand 5cm.
1 x Kabelbrunnen.
1 x 5cm GrW Mortar.
(2 x 2cm Flak 30).
(1 x 5cm KwK 38).
1 x 8.8cm Pak (7.5cm Pak ).
(1 x Pz.T FT17).
() - Brackets mean I am very unsure of exactly what was here. Looking through all my documents/books Rolf 2/Chazette 2/Tomine/Relikte and others. (No original sources).

R677 casemate.

8.8cm Pak..

Vf2a bunker..

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

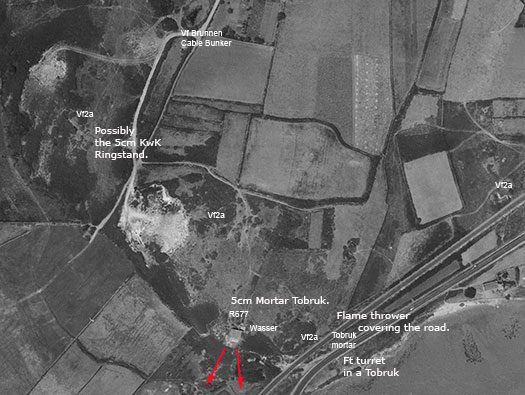

Plan of Va06 showing the casemate covering the road and railway. A Tobruk with a mortar by the railway, several Vf2a´s scattered around and a cable bunker (Kabelbrunnen).

Kabelbrunnen.

Vf2a bunker for 10 men.

5cm GrW mortar.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

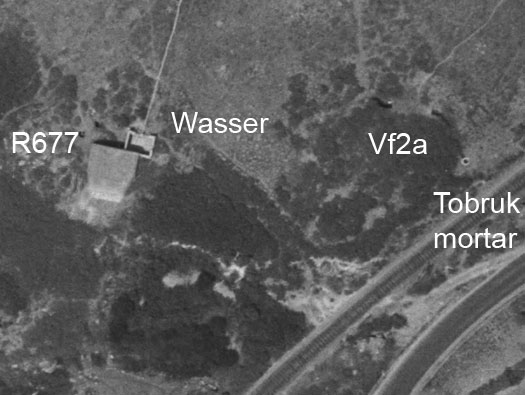

This is a close up of the defences around the railway, the Tobruk ring shows up well as do the two entrances into the Vf2a bunker. Behind the casemate is a water bunker.

Vf58c Tobruk..

5cm GrW mortar fitted into a standard Tobruk..

Elevation of a 5cm mortar fitting.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

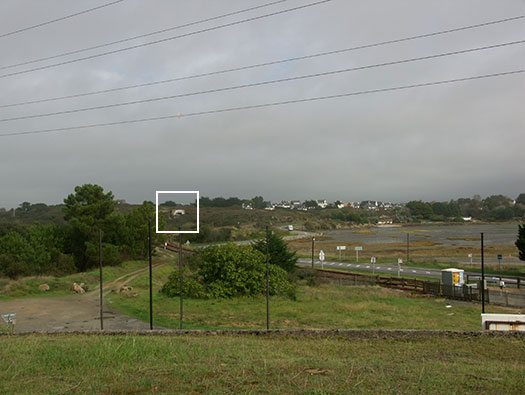

The R677 for an 8.8sm Pak gun in the far distance covering the entrance to the peninsular.

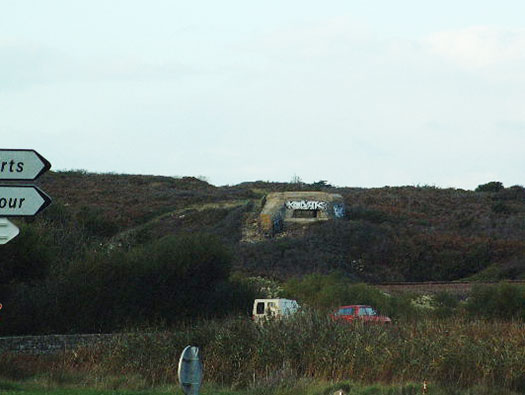

R677 casemate.

Inside an R677 with its 8.8cm Pak.



Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot R677 casemate

Details

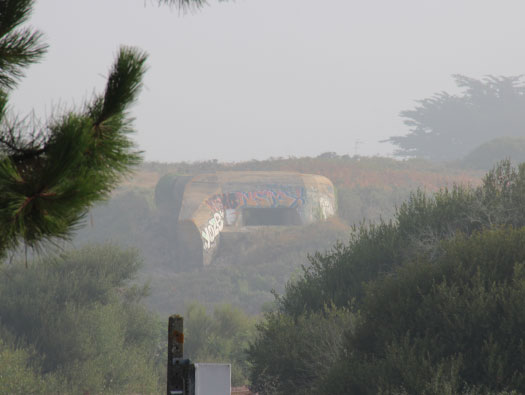

A closer view with its flanking wall on its right side.

Two ammunition niches on both sides of the bunker..

8.8cm ammunition is a box.

Vf2a elevation.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

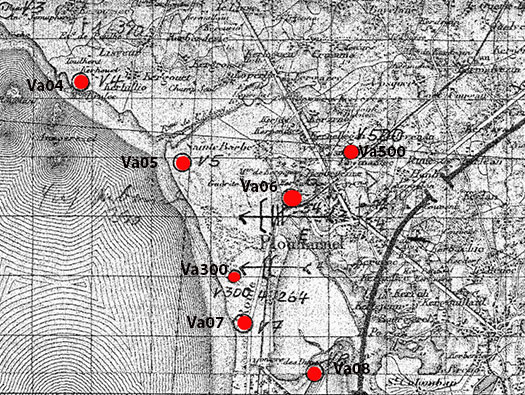

The German military map of the area.







Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

R667 casemate.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

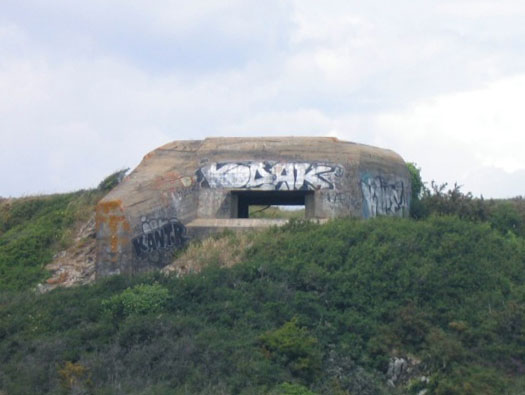

R677 casemate.

Wn Va06 Le Méné Begot

Information

Wn Va06 Le Méné Begot

Details

Île de Roëlan.
