Wn03 Franceville-Plage


Information

Franceville is a summer village between Cabourg & Ouistreham and Wn03 is the strip of dunes (now backed by houses) and runs along the beach front.

Details

3. KP, Grenadier-Regiment 736.
1 x R643 Fire Control Post with dome.
3 x Feldm shelters.
3 x Tobruks.
1 x Ic116 Tobruk
1 x R622
1 x SK/Doppelschartenstand
1 MG. Stand
2 x Nr1694
4 x Vf58c Tobruk's.
2 x ringstand for 5cm KwK.
3 x 5cm KwK L/40 Pak guns.


R643 three embrasured turret bunker.


R643 three embrasured turret bunker.


R643 three embrasured turret bunker.


3P7 dome the type that would have been here.

Wn03 Franceville-Plage

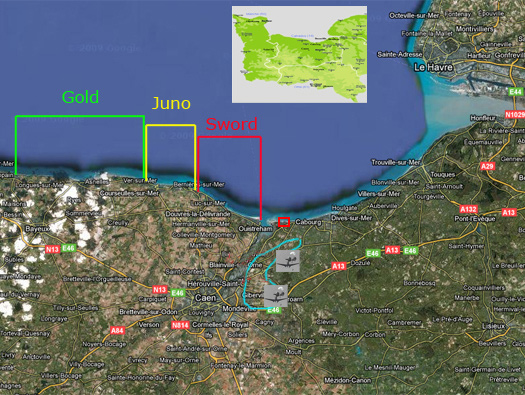

Google Maps

Information

Wn03 Franceville-Plage

Details



Wn03 Franceville-Plage

06 March 2012

Information

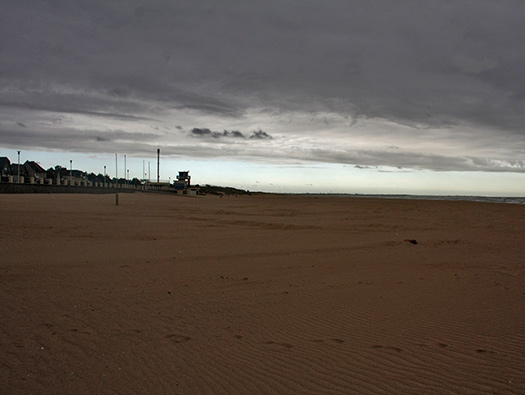

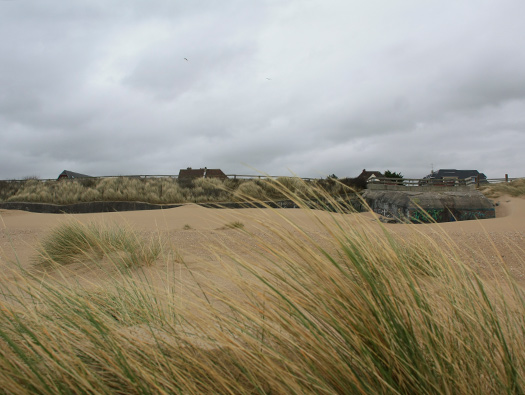

Franceville-Plage looking west.

Details



Wn03 Franceville-Plage

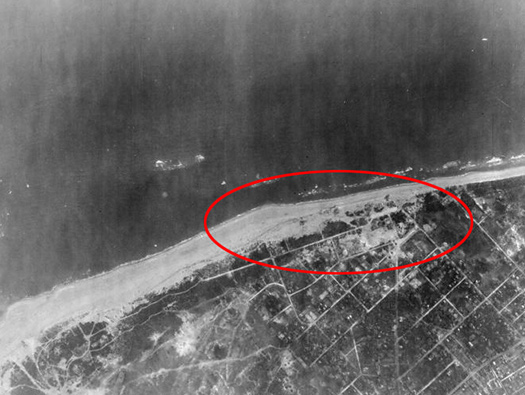

Air reconnaissance photo May 1944.

Information

Wn03 Franceville-Plage

Details

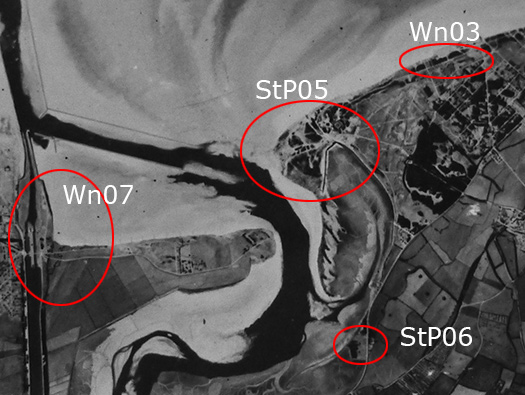

Defences around Franceville-Plage.










Wn03 Franceville-Plage

Air reconnaissance photo May 1944.

Information

Wn03 Franceville-Plage

Details

Air reconnaissance photo.


The American USAAF also used Lightening’s for reconnaissance missions.


Doppelschartenstand 5cm KwK L/60 Pak.


5cm KwK L/60 Pak.

Wn03 Franceville-Plage

Bigot

Information

Wn03 Franceville-Plage

Details

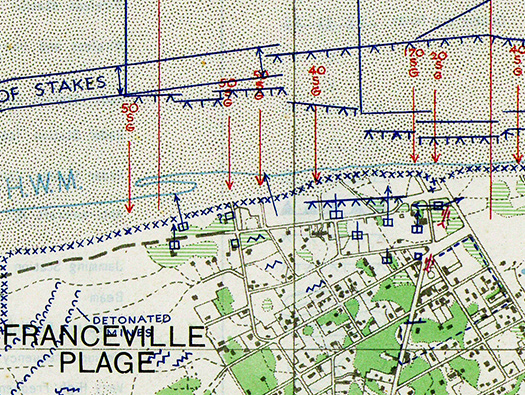

Bigot map of Wn03 showing the beach defences and known gun positions.


Bigot Top Secret.







Wn03 Franceville-Plage

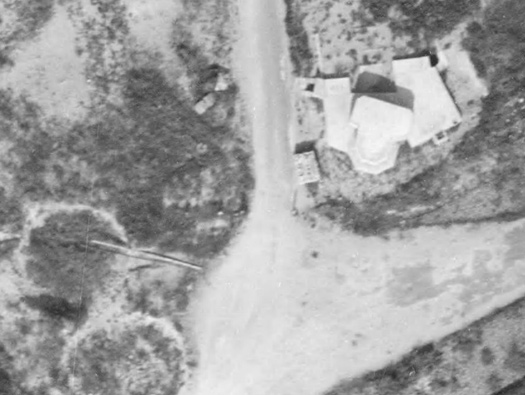

Air reconnaissance photo.

Information

Wn03 Franceville-Plage

Details

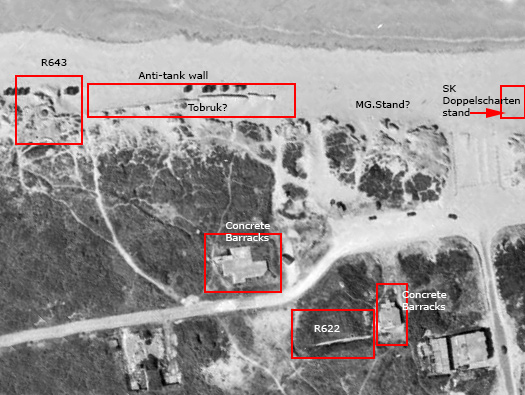

A three embrasure R643 bunker covering the left flank, a long anti-tank wall with a Tobruk defence. A machine gun stand and then a Doppelschartenstand 5cm KwK L/60 Pak. now missing. Behind a large concrete barracks, another and an R622.


Tobruk.


Barracks.


Doppelschartenstand 5cm KwK L/60 Pak.


R622 twin gruppe bunker.

Wn03 Franceville-Plage

06 March 2012

Information

Wn03 Franceville-Plage

Details

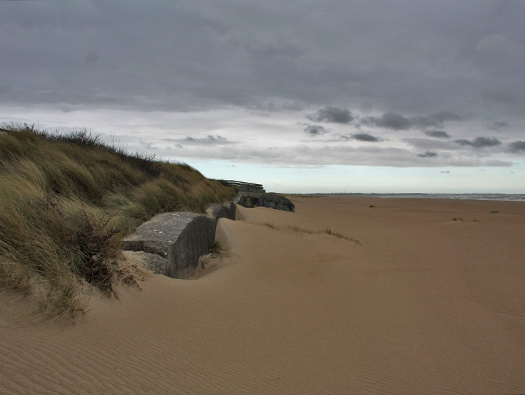

Anti-tank wall interestingly it has a form of camouflage built into it as it has an undulating top. Usually the wall runs along with a straight top.


This is the usual wall design.


A picture of the beach [Alamo].





Churchill Ark tank bridge.


Churchill Ark tank bridge and Churchill tank negotiating an anti-tank wall. One of the ways the British dealt with a-t-walls.

Wn03 Franceville-Plage

06 March 2012

Information

Wn03 Franceville-Plage

Details

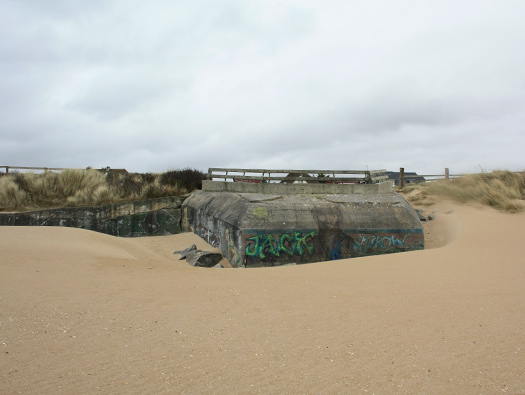

The tank wall and the R643 three embrasured turret bunker. The machine gun has three embrasures covering about 160/180 deg. but could only fire through one embrasure at a time and using a periscope to help sight the gun.


R643 three embrasured turret bunker.


R643 three embrasured turret bunker. [SHM]


A 3P7 three embrasured dome for a machine gun.

Wn03 Franceville-Plage

06 March 2012

Information

R643 three embrasured turret bunker.

Details

R643 uses a three embrasured steel turret (un movable) set into the concrete of the bunker. An MG34 machine gun fired on a movable mounting that could easily moved to each embrasure as was needed.
R643 inside from L/R :
3P7 turret - crew room - gas lock - close combat room.


R643 three embrasured turret bunker.


The type of mounting that may have been used here.


Close combat embrasure MG mounting covering the rear door.

Wn03 Franceville-Plage

06 March 2012

Information

R643 three embrasured turret bunker.

Details

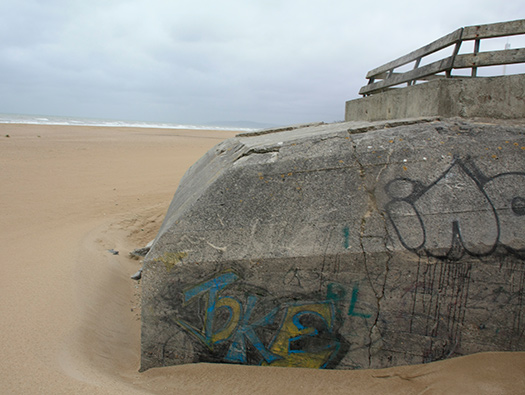

The nose of the bunker a solid block of steel reinforced concrete.


A side view of the bunker.







Wn03 Franceville-Plage

06 March 2012

Information

R643 three embrasured turret bunker.

Details

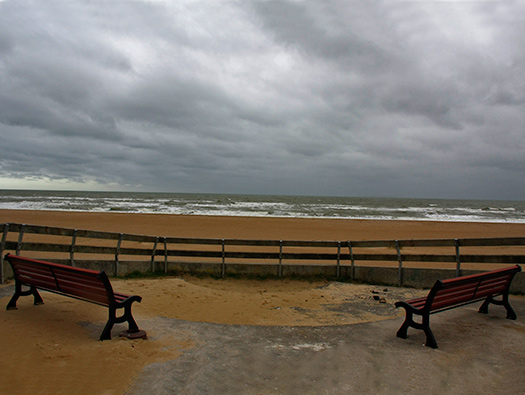

The turret has now been removed and scrapped and the shape on the concrete is where it was set in.


An Allied plan of the inside of a dome.


MG mount.




Wn03 Franceville-Plage

06 March 2012

Information

R643 three embrasured turret bunker.

Details




Bunker construction with a dome/turret in place.


Crew.




Wn03 Franceville-Plage

06 March 2012

Information

R643 three embrasured turret bunker.

Details

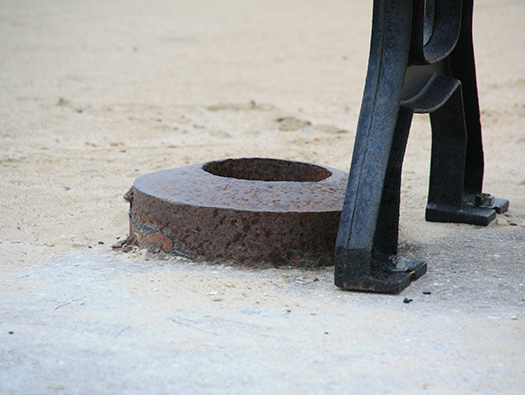

This is the armoured top of the periscope outer tube. The periscope would pass through this tube and it could be raised or lowered as is needed in battle. From here the bunker occupants would have been able to zoom in on the whole of Sword Beach and watched the bombing/shelling and then the landings.


Lancaster bomber..


HMS Glasgow.


Sword Beach.


Bunker periscope.

Wn03 Franceville-Plage

1940's

Information

Nr.1694 ringstand with covered lid.

Details

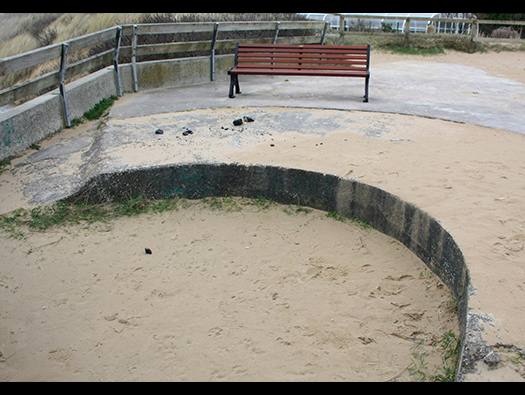

An open ringstand with a lid to cover the rear and top of the ringstand.


This is how it would have looked, this picture is of Wn02 Franceville-Ost.


5cm KwK L/60 Pak gun.

Wn03 Franceville-Plage

06 March 2012

Information

Wn03 Franceville-Plage

Details

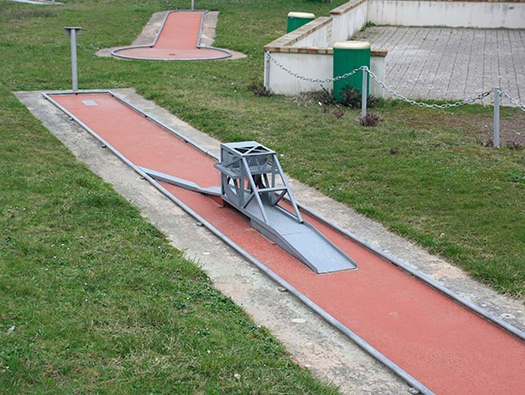

A very nice Crazy Golf course is situated behind the defence and look what is one of the features.
