A Dombunker for two K5 railway guns, an air-raid shelter at the station and more around the site.










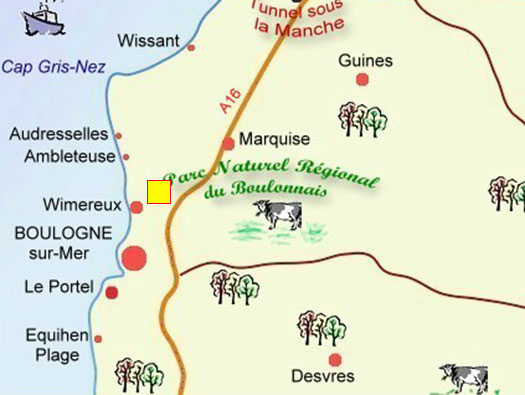

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

Details



Wn208 Grabelweihe, Pointe aux Oies E. Bttr

Google

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

Details

Batterie E.713
1 x Dombunker
3 x Vf bunkers
1 x SK/Peilstand (FCP)
2 x 5cm KwK ringstands
1 x Luftschutzbunker
2 x 28cm K5 railway guns
2 x 2cm Flak 30.
2 x 2cm Flak 38.
2 x 5cmKwK L/42
1 x 2cm KwK 38.


5cm KwK gun position inside somebodies garden.


Breach block of a K5 gun.


Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

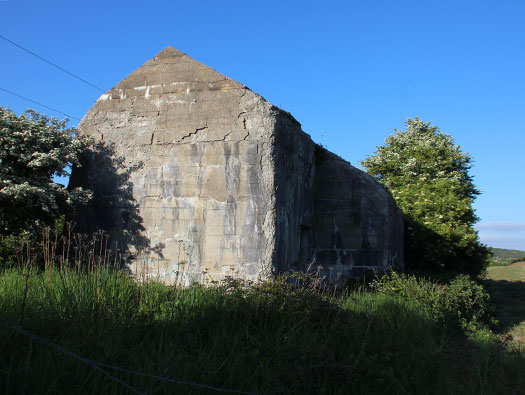

Dombunker

Details

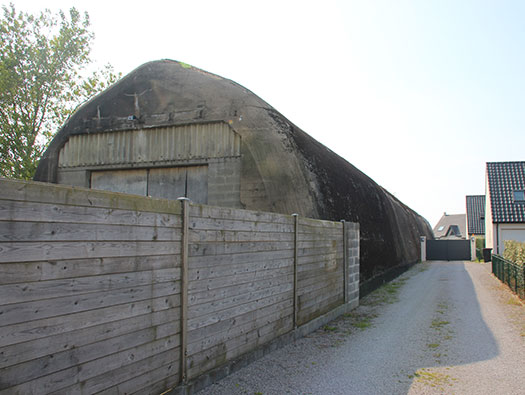

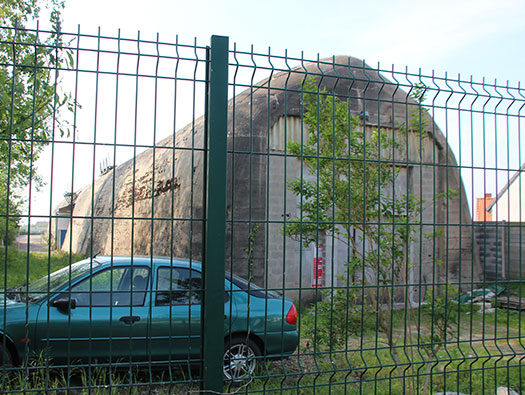

A Dombunker was designed to store one or two K5 railway guns, huge 28cm barrel plus its long railway chassis with two six wheeled bogies.








Range of an E Batterie.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
K5 Railway gun.

Details

Two types of high explosive projectile were used with the K5. The 28cm G35 weighed 255 kilograms (562 lb) and contained a charge of 30.5 kilograms (67 lb) of TNT. The 28cm Gr.39 m. Hbgr. Z. was slightly heavier, weighing 265 kilograms (584 lb) and containing around 44.5 kilograms (98 lb) of TNT (Wiki).


Diesel shunter.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Dombunker

Details

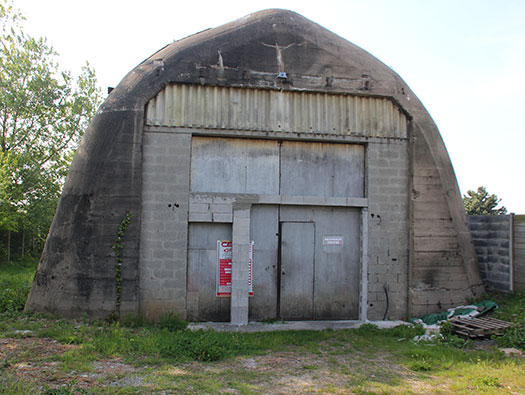

The marks of the door fittings across the top.
The railway guns arrived down into France from Germany in 1940 to protect the flanks of Operation Seelöw. 1941 and with Operation Seelöw cancelled, the guns had to go on the defensive and help cover this part of the Atlantikwall and Dombunkers were made to protect the guns. Before the Canadians arrived to capture this part of France in 1944, the guns were withdrawn to Germany.




Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Dombunker StP89 Fulda, Calais Nieulay

Details

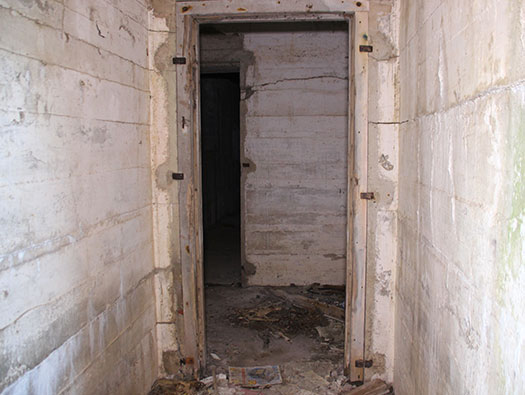

Heavy steel doors closed off the two entrances to protect the guns.


Plan elevation.





Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Dombunker

Details

You can see the length of the building and it would have had earthed heaped up on both sides to serve as camouflage and also extra protection.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

Int

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Dombunker

Details

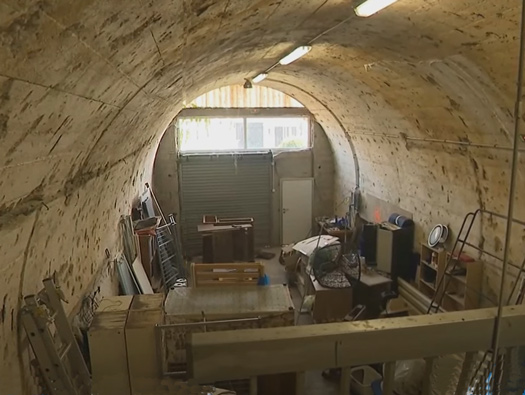

A picture of this bunker having the earth removed post war.




Wn208 Grabelweihe Dombunker.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Fire Point 1

Details

Here there was a Vögel Turntable.







Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Vögel Turntable.

Details

Vögel Turntable was a portable turntable that could be carried with the gun on railway trucks and assembled where it was needed. The gun was pushed up a ramp onto a railway turntable base and could turn 360°.


Vögel Turntable plan.





Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
SK bunker

Details

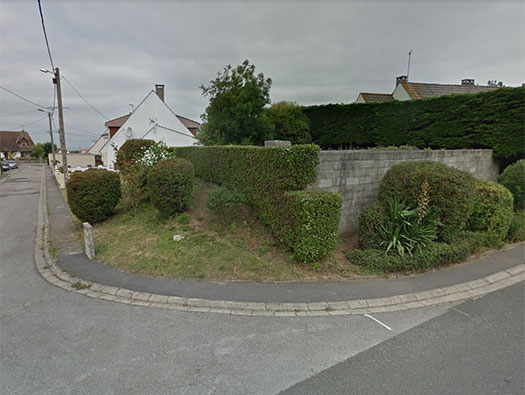

SK bunker still in somebodies garden.







Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Fire point 2

Details

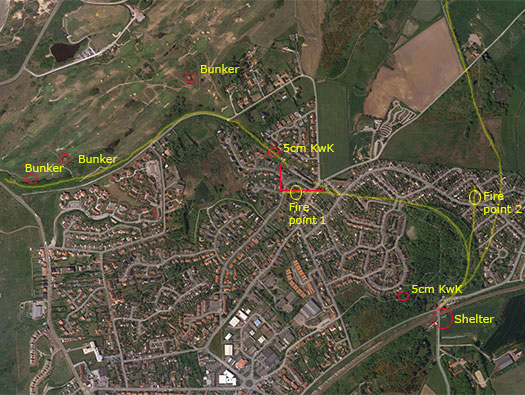

This is the second Fire point lower down now a housing estate.


Details2




Wn208 Grabelweihe, Pointe aux Oies E. Bttr

1946 Geoportail

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Aiming

Details

A K5 being ready to fire.
Calibre - 283mm.
Length - 30m.
Shell weight - 225kg.
Range - 64km.


Diesel shunter.




Wn208 Grabelweihe, Pointe aux Oies E. Bttr

1946 Geoportail

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

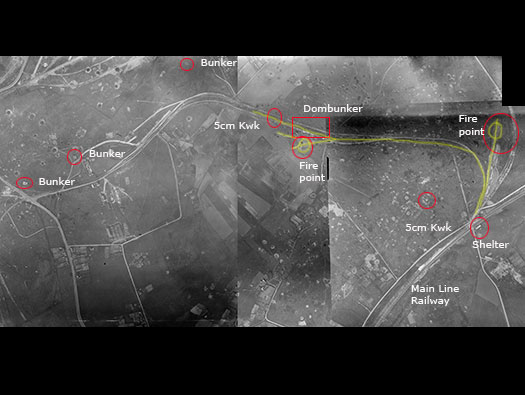

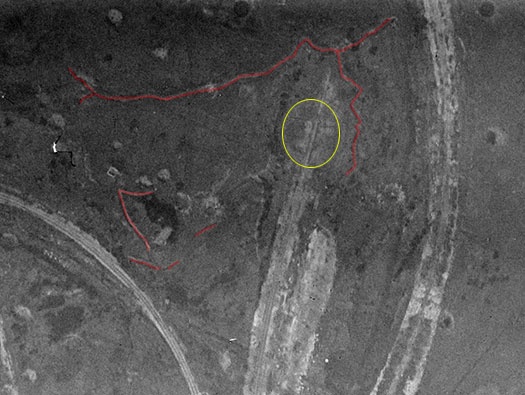

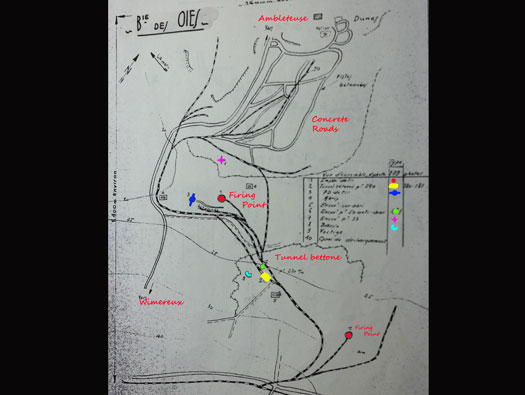

1946 air photo of the area.

Details

The railway line follows the line of the old railway along the coast.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Dombunker

Details

Domebunker showing the engine (diesel) and the gun in place and also showing that two guns and their engines would fit in.


Front elevation.


Diesel engine.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

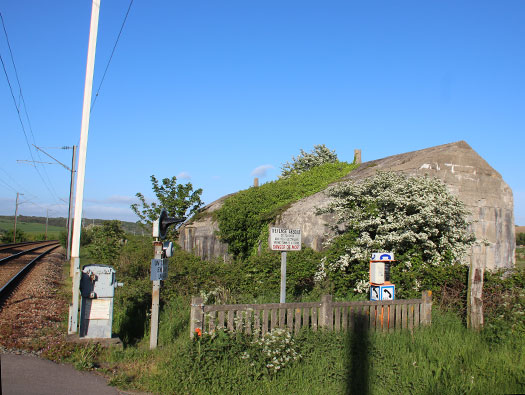

This is an air raid shelter set down by the old railway station and a level crossing on the main line and the old railway turned left and through a small valley rising up to the Dombunker. Quite a pull for an engine.


Lancaster's on a daylight bombing mission.


Bomber stream.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

The rear entrance.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

Air vent on the roof.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

Rear door.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details




Arm band.





Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

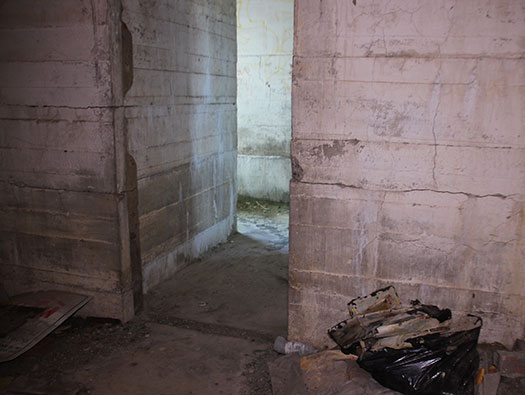

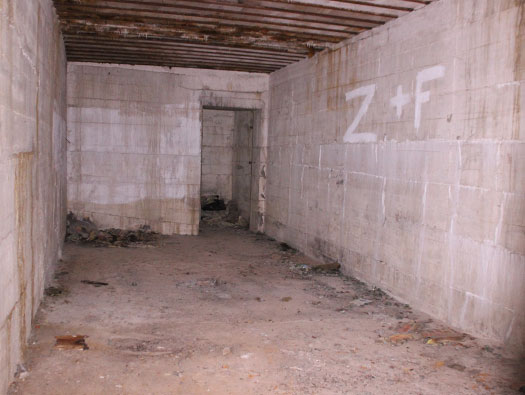

The main shelter room. I believe it was the French Railway SNCF that built the shelters, some prior to the war in preparation.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

Far door.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

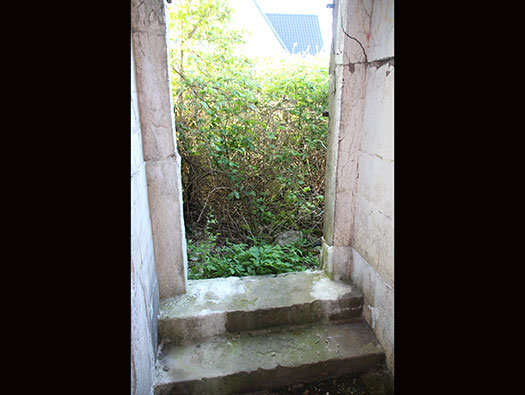

The second door almost impenetrable brambles.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Luftschutzbunker

Details

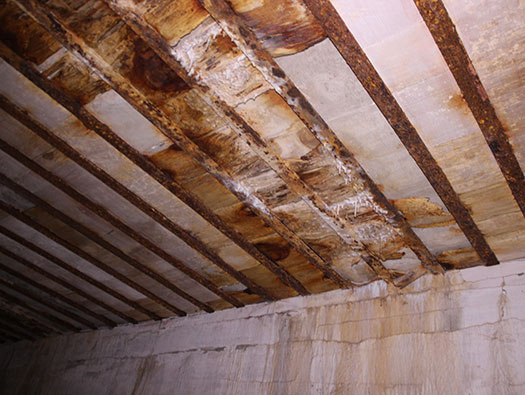

Bunker roof.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Roadside fence

Details

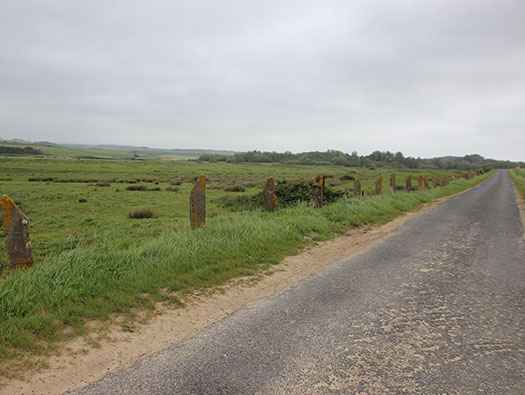

They are


Concrete beach defences Rommel's Asparagus.




Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Roadside fence

Details

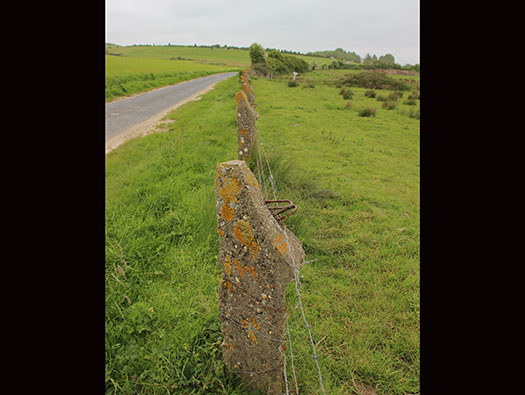

The steel wire to connect the three uprights together.




Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Railway line.

Details

The bank through the field is a continuation of the railway line.


A K5 train set up.

Wn208 Grabelweihe, Pointe aux Oies E. Bttr

17 August 2018

Information

Wn208 Grabelweihe, Pointe aux Oies E. Bttr
Railway line.

Details

You can see the embankment here. It leads to the left to the next E Batterie at StP Schwarztal, Noirbernes, K.V.Gruppe Wissant.
