HQ of Artillerie Abteilung 105.










StP139 Hamm, Mont de Couple ouest

Information

StP139 Hamm, Mont de Couple ouest

Details



StP139 Hamm, Mont de Couple ouest

Google

Information

StP139 Hamm, Mont de Couple ouest

Details

Stab 105./HAA

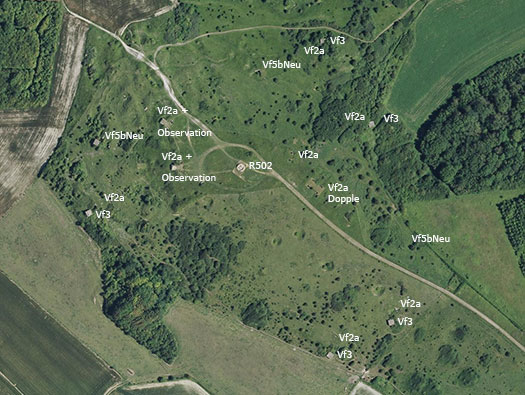

1 x R502 + cloche (dome). Twin group shelter.
2 x Vf2a Peilstand (Observation).
3 x Vf5b 2 x Neu type.
7 x Vf3 machine gun and observation.
8 x Vf2a
1 x Vf2d
5 X Vf3 defence bunker.


R502 twin group shelter


Vf5bNeu gun garage.


Post observation Vf.


Vf3 machine gun and observation.


Vf2a Gruppe shelter


Vf2a Doppel Gruppe shelter.

StP139 Hamm, Mont de Couple ouest

Google

Information

StP139 Hamm, Mont de Couple ouest

Details

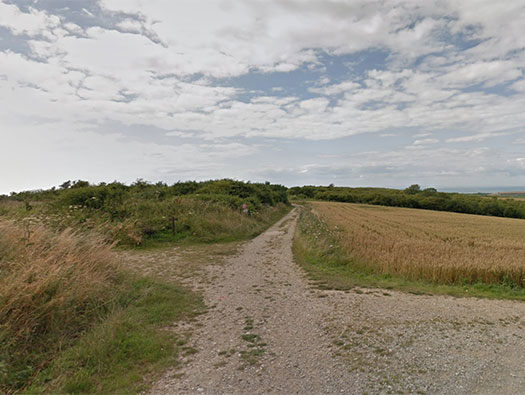

This is at the top of the ridge at StP140, for StP139 you have to continue on.


The above picture was taken at 140, Wn140.


Guard room.

StP139 Hamm, Mont de Couple ouest

Google

Information

StP139 Hamm, Mont de Couple ouest

Details

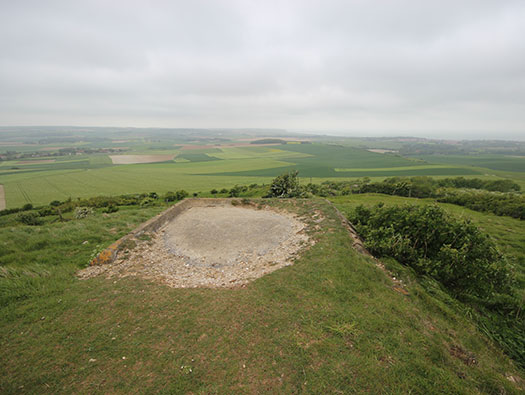

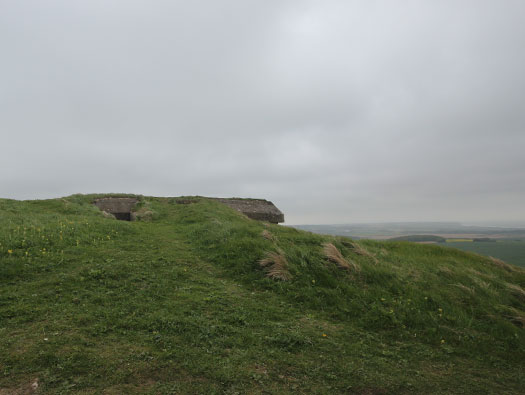

We are now on top of the orientation table looking east along the ridge, this is StP139 and on the top of an R502 twin group shelter which had a


This picture is on the top of the R502 at 139, StP139.


R502.


The dome may have been a 90P9 type for viewing not defence.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

The orientation table sat on the top of the R502.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

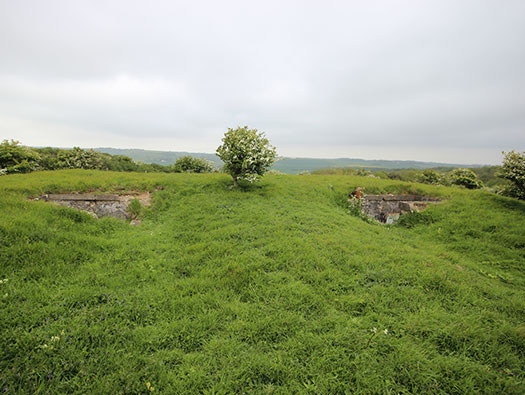

A small gruppe bunker, most of the bunkers are a 1942 design or earlier so it looks as though it was never updated.


Plan


Vf2a Doppel, a small twin gruppe bunker.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

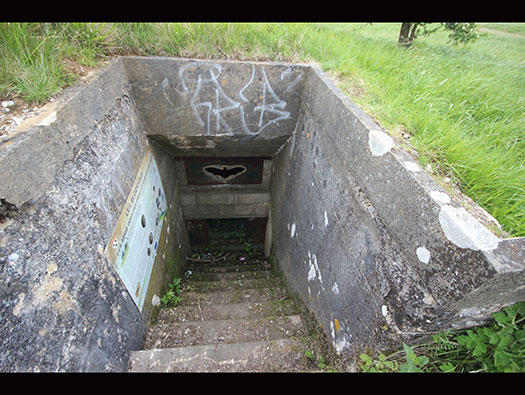

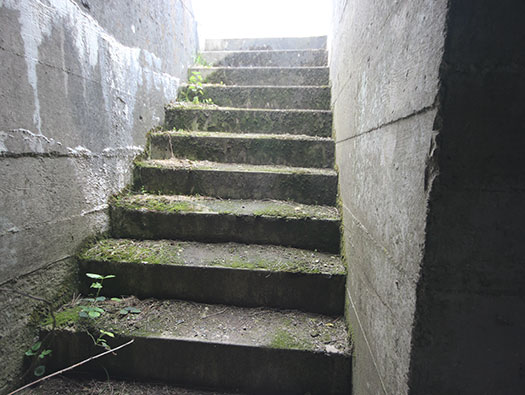

One of the two steps down into the bunker.


Plan.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

One of the two steps down into the bunker.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

One of the two steps down into the bunker.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

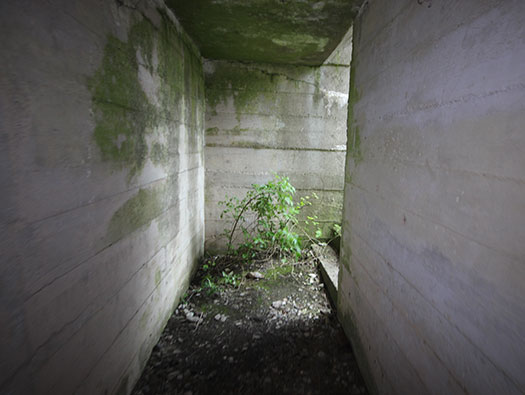

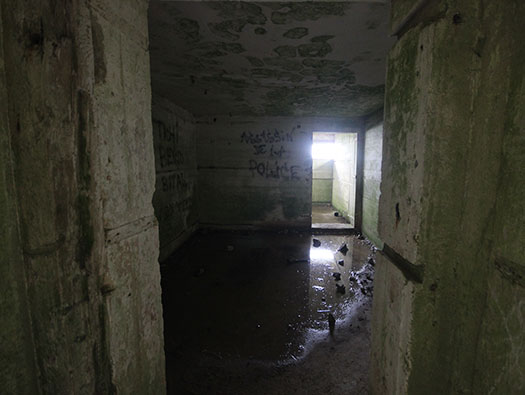

The passage to the small bunkers.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

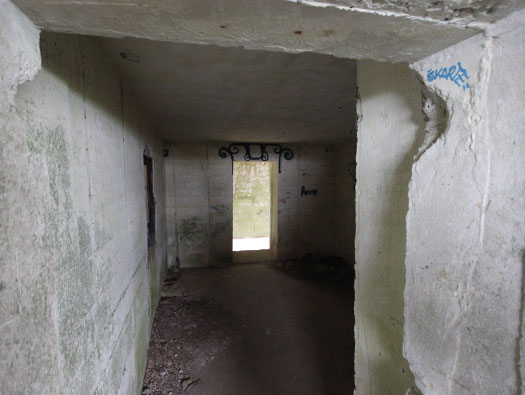

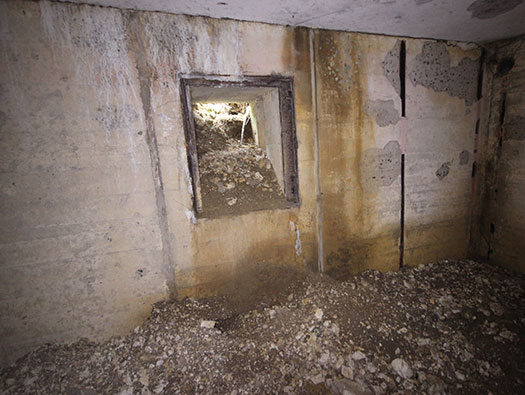

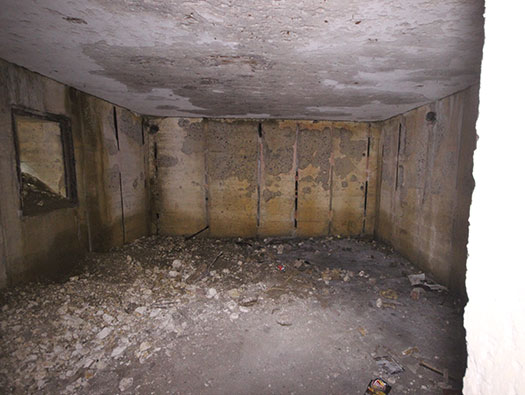

Gruppe room.







StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

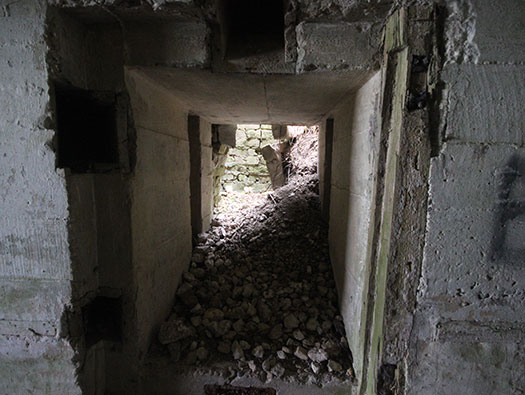

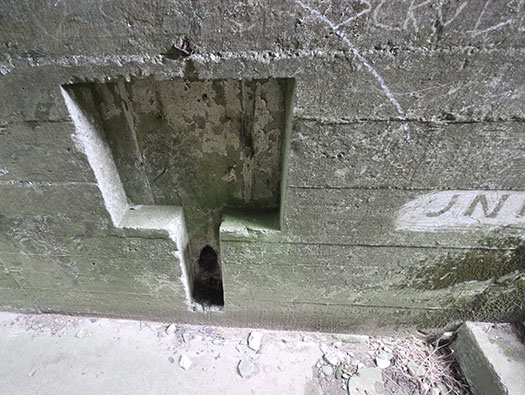

Escape hatch.


Plan of an escape.


410P9 type escape hatch door..


410P9 type.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a

Details

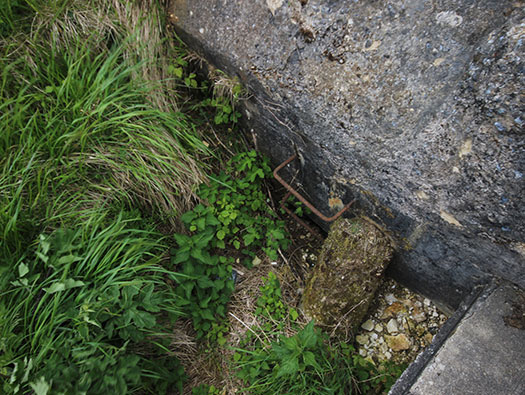

Escape ladder coming up the side of the bunker.


Steel ladder.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

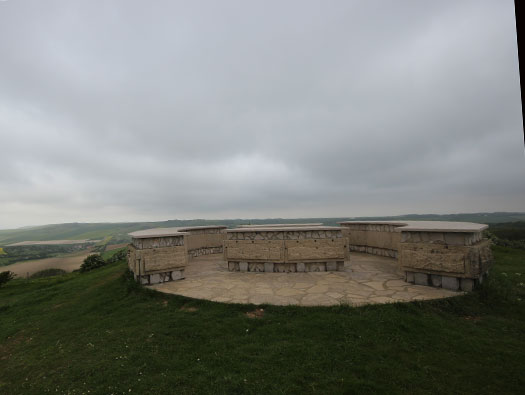

Mont de Couple orientation.
Under it is an R502 which also had a dome.


this is how I see the R502 with an extension from the store/periscope room and a dome added on the top.


How the extended R502 may have looked.


A 89P9 cloche at Dieppe.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

89P9 cloche (or dome). This is more a viewing cloche than a defensive type.


89P9


Plan.


89P9 cloche.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation.

Details

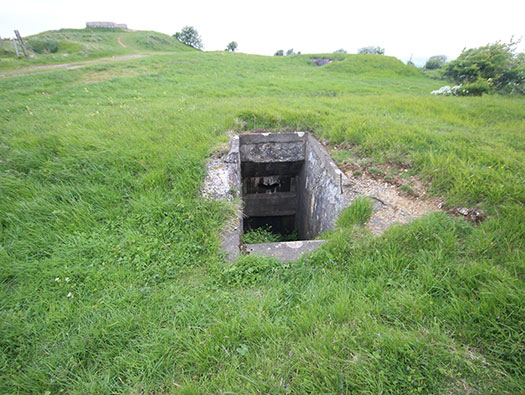

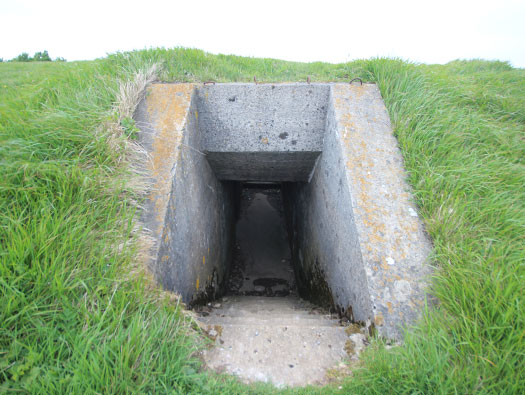

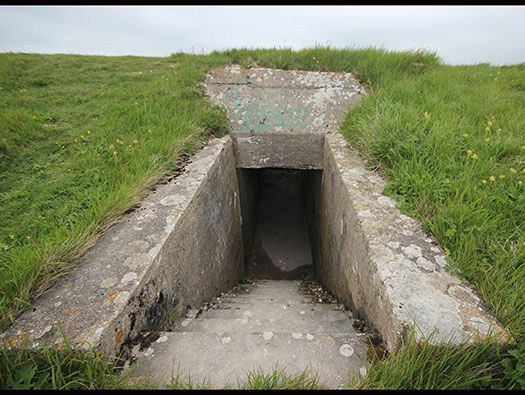

The entrance steps down into this Vf2a observation bunker.


details


Vf2a observation plan.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

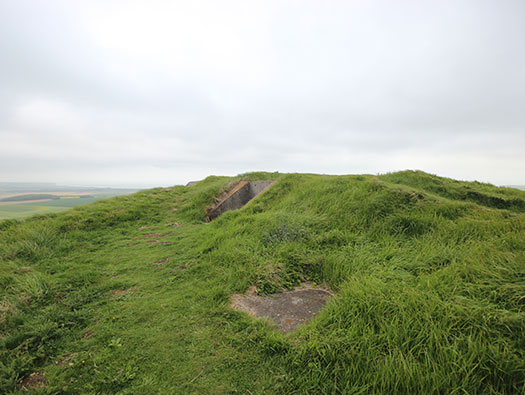

The lid over the observation room.


Vf2a observation plan.




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

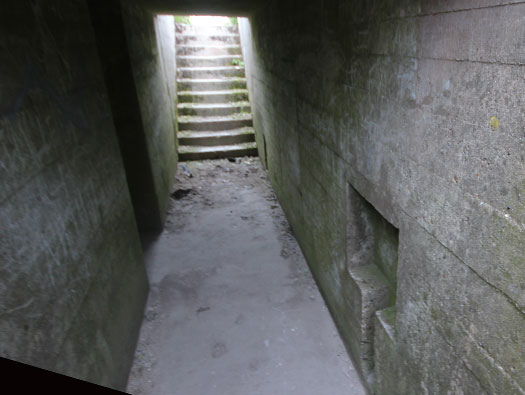

The steps down and there is another set the other side.


Vf2a observation plan.




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

At the bottom of the stairs an electrical connection to a light switch/speaking tube/socket for telephone?


Bunker light switch.


Relay box.


Telephone.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

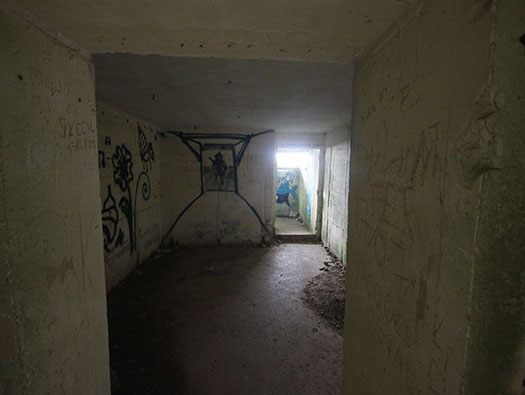

Crew room.


details





Command.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

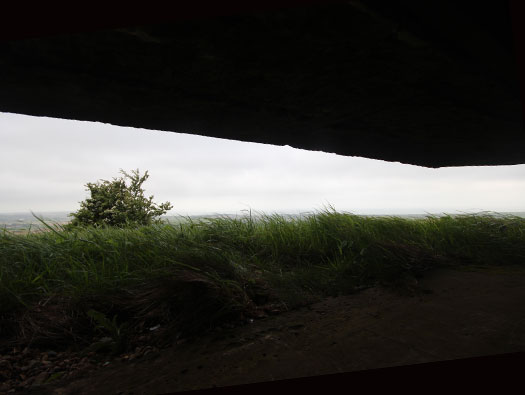

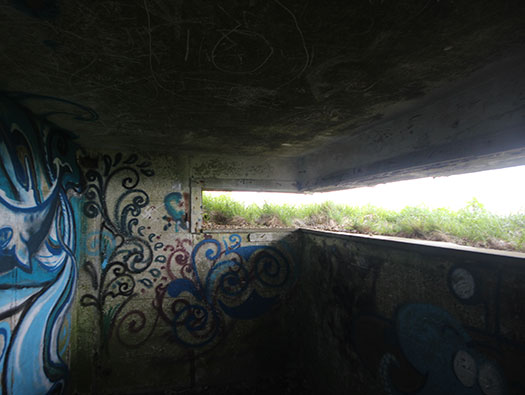

Observation room.




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

Observation room.




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

Observation room.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation

Details

Crew room.


s

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

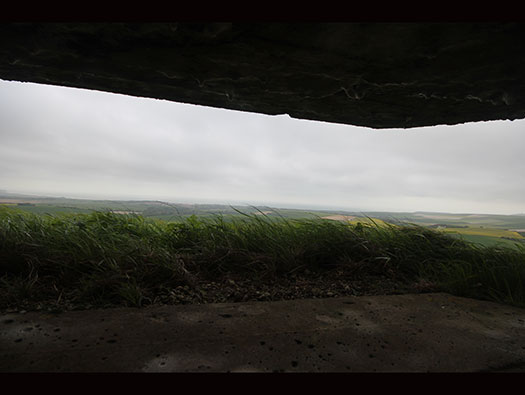

Looking out to sea.

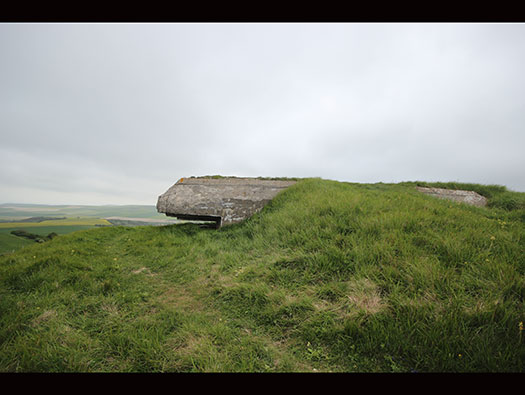

Vf3 defence bunker.


Vf3 defence bunker plan.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details

Details




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details









StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details

Crew room.







StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details

Escape.


Outer escape shutters.


Escape door handle.


Escape plan.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details

Details







StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details

The nose of the observation.





Field telephone.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details



StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest
Vf2a Observation 2

Details



StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

I am not sure if this is a bunker or a water reservoir.

StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

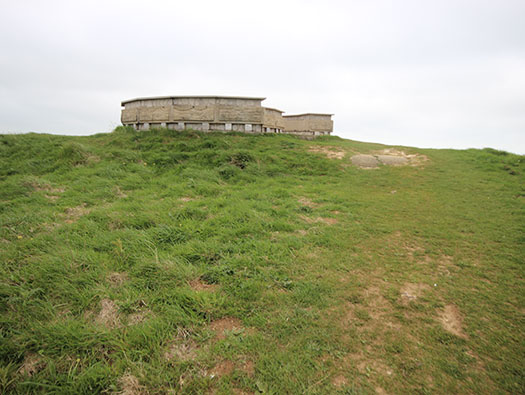

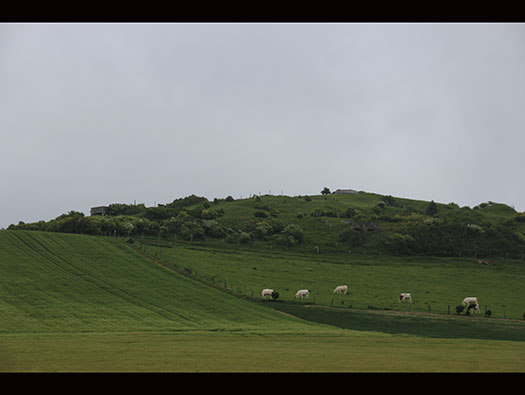

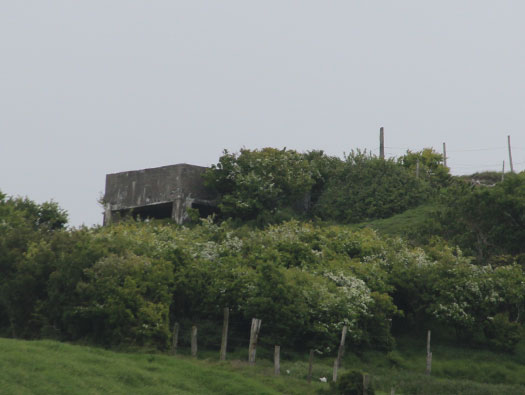

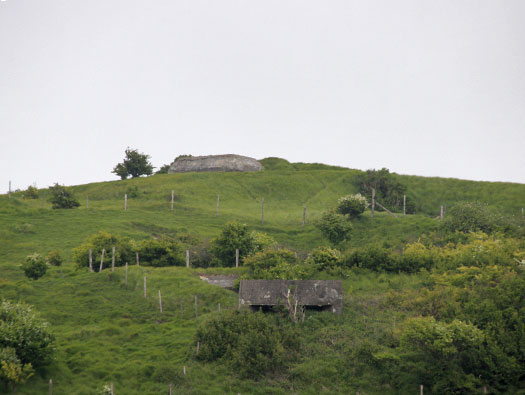

Looking up the hill at the array of bunkers. The lower bunker is a Vf3 defence bunker.










StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

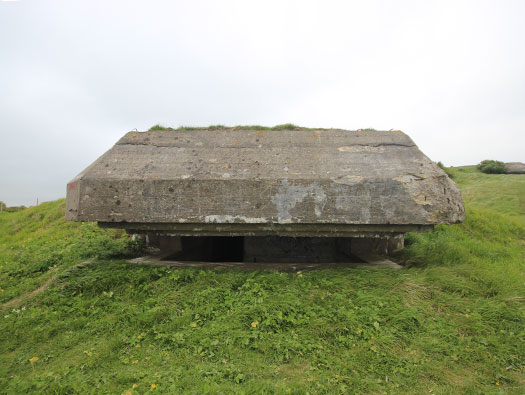

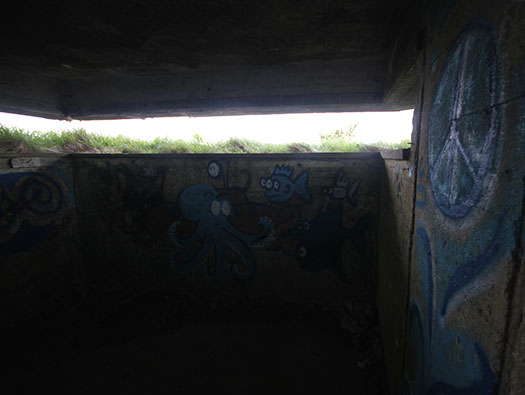

Vf3 defence bunker.


Vf3 defence bunker.


Vf3 defence bunker plan.




StP139 Hamm, Mont de Couple ouest

16 May 2018

Information

StP139 Hamm, Mont de Couple ouest

Details

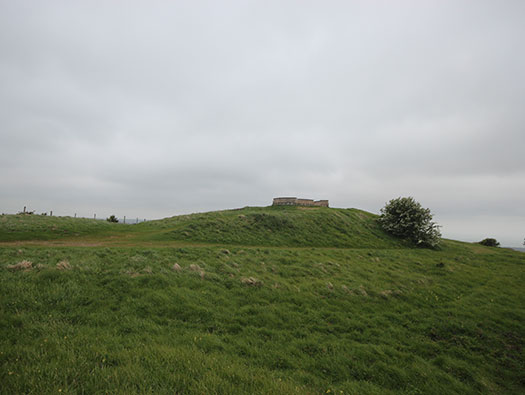

Mont Couple.
