StP Berck Nord, Berck Bellevue H.K.B.


Information

StP Berck Nord.

Details

Batterie 6./H.K.A.R.1245.
1 x R636a.
3 x Geschützstellung (open ringstands).
1 x Vf7a.
1 x Vf7b.
1 x R127.
1 x Vf52a.
5 x R630.
1 x R624.
1 x R105.
4 x Michelmannstand.
1 x Ringstand for a 5cm KwK.
2 x R611.
1 x Vf/Skoda.
3 x 17cm K18 guns.
1 x 7.5cm F.K.236(b).
1 x 7.5cm F.K.38.
1 x 2.5cm Pak 112(f).
1 x 4.7cm Pak K.36(t0.
1 x Pz.T. 3.7cm KwK 144(f).
2 x 2cm Flack 30.


3 x 17cm K18 guns.


4 x Michelmannstand.


2 x 2cm Flack 30.

StP Berck Nord, Berck Bellevue H.K.B.

Information

StP Berck Nord, Berck Bellevue H.K.B.

Details


StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Berck Plage.

Details



StP Berck Nord, Berck Bellevue H.K.B.


Information

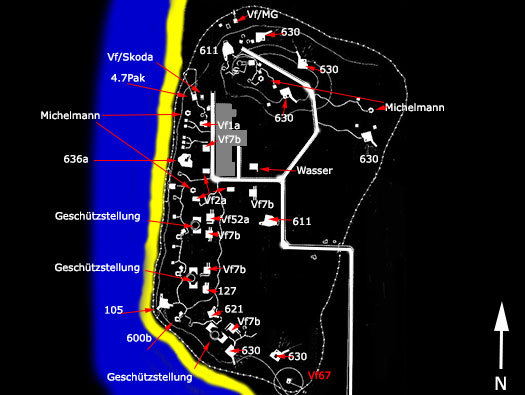

Plan StP Berck Nord Heers Kusten Batterie.

Details

Heers Kusten Batterie (Army Battery).
Plan of the battery, this is a mix of a three gun battery and a defensive site, defending the north beach at Berck. For this we have a complete cross section of bunkers from quite early machine gun bunkers, open Geschützstellung to R611, but no newer types?


R611.


5cm KwK ringstand.


R127.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

StP Berck Nord.

Details

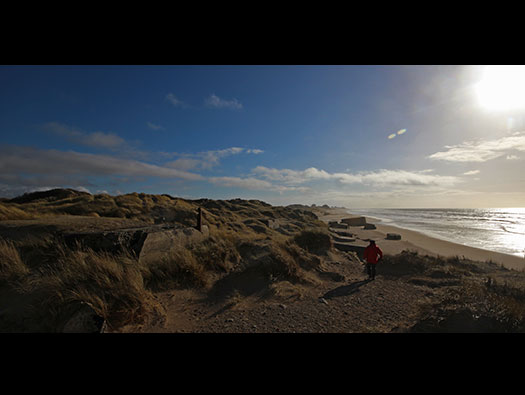

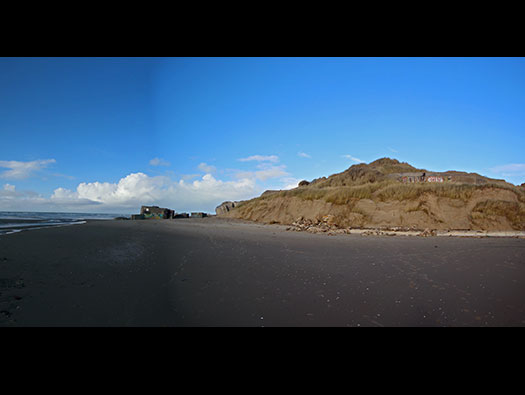

This is the start of our walk, we visited a lot of bunkers, about half of what was there. Many have been removed and also the massive hotel/hospital has now been removed.


R630.


Vf1a.


Vf52a.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

StP Berck Nord.

Details

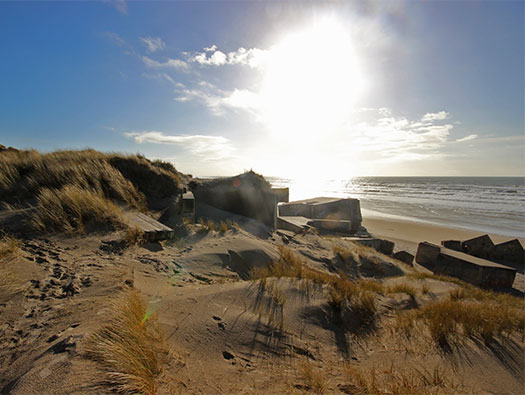

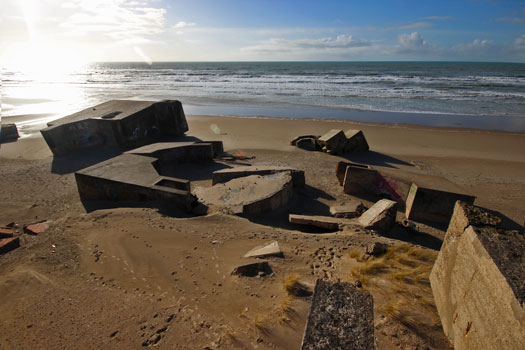

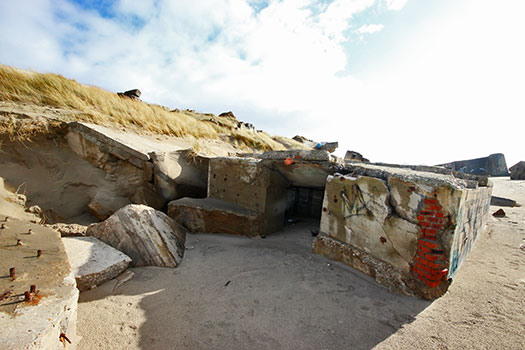

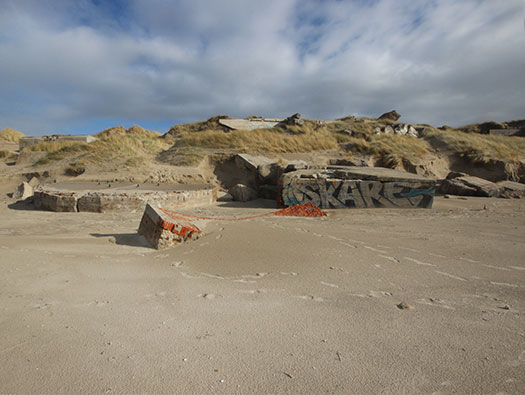

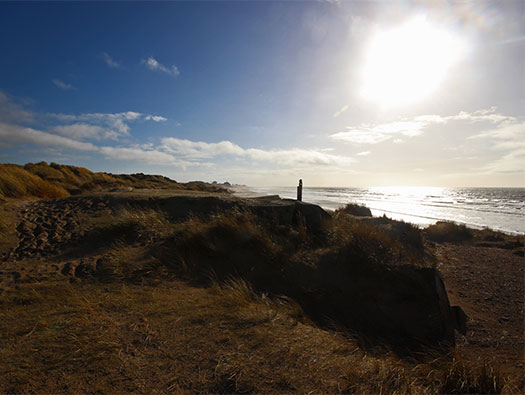

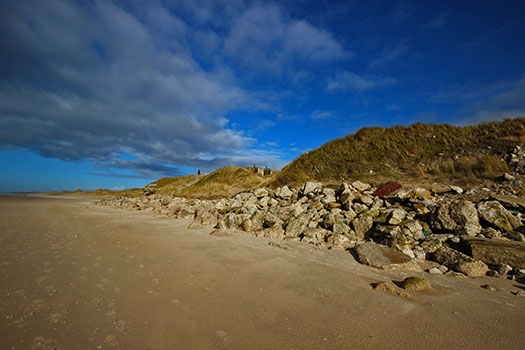

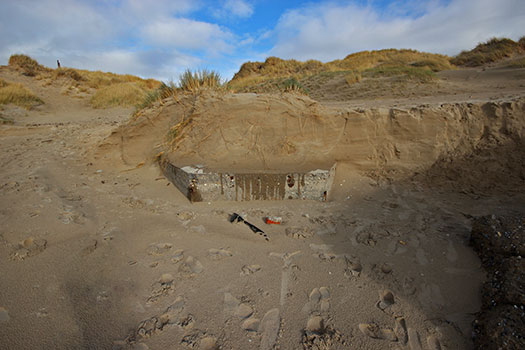

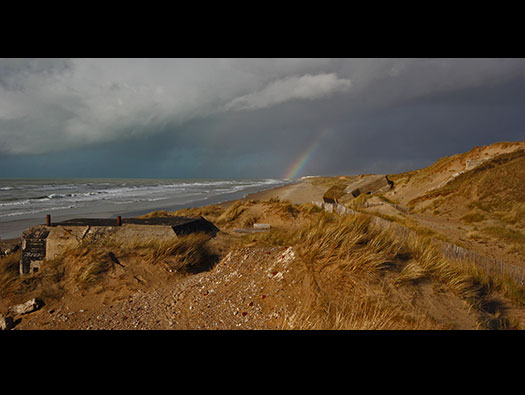

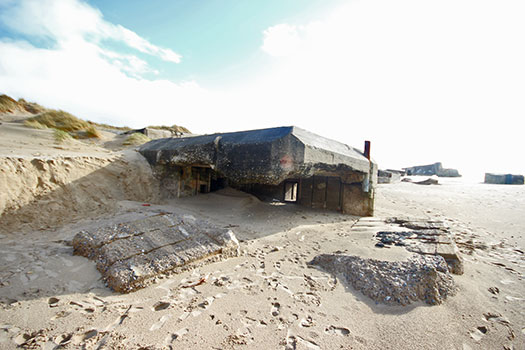

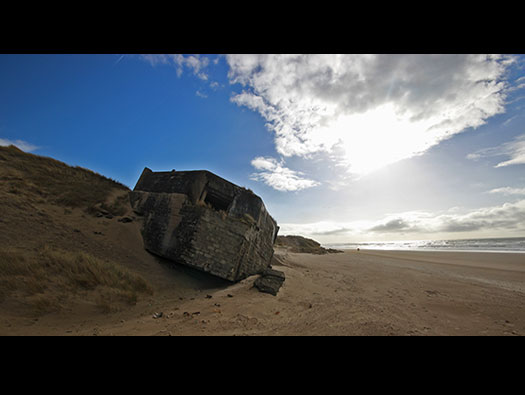

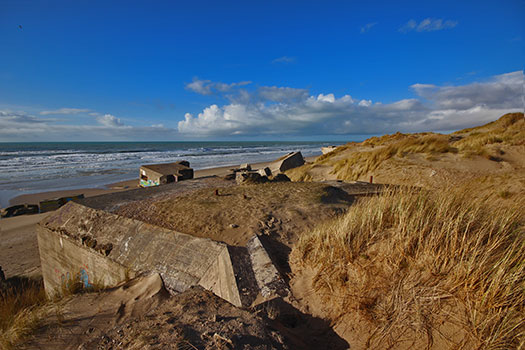

Bunkers littering the beach and sand dunes.


Geschützstellung.


3 x 17cm K18.


3 x 17cm K18.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R621 & R127.

Details

L to R R621 group shelter and an R127 a group bunker with a forward apron.


R621 crew room, gas lock and Tobruk.


R127, crew room, store room, ammunition & gas lock.


A gas lock.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R600b & storage.

Details

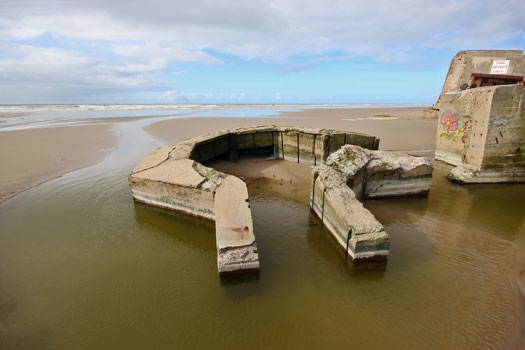

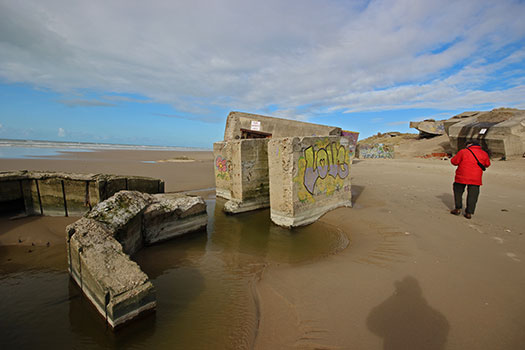

R600b or a 5cm KwK gun with a small storage bunker. A respectable little gun taken from a tank when they were made redundant as the 7.5 & 8.8cm came on stream. The gun was fitted to a modified chassis and bolted to a concrete base.


5cm KwK L42 Pak gun.


5cm KwK L42 Pak gun.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R600b & storage.

Details




R600b ringstand model.


This is how it may have looked.


5cm ammunition.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Attached store.

Details




R600b.


5cm KwK gun.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Storage bunker for the 5cm KwK gun.

Details

Lovely art.


Site plan.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105 Machine gun casemate.

Details

A rather large casemate just for a machine gun with quite few rooms. This type was not rally cost effective and was dropped later on.


R105.





Site plan.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

The metal plate covering the embrasure.


78P9 Pz Schartsnplatte mg34.

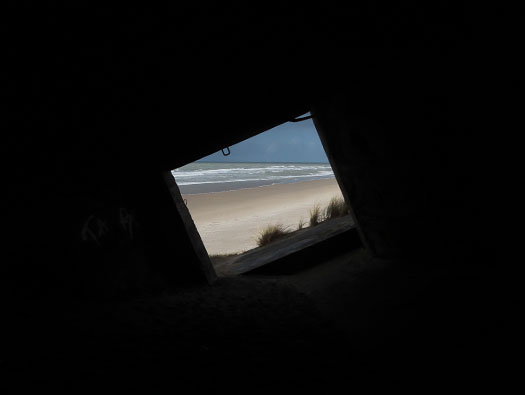

The view from inside.


Mg34.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

Rear entrance with a close combat window on the left to cover the door.


Aerial view..




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

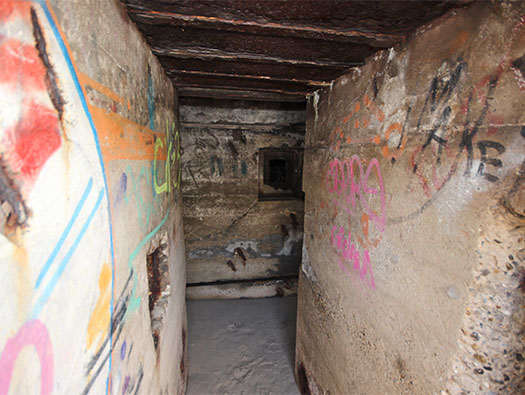

Passage inside


Plan.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details




Plan.


StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

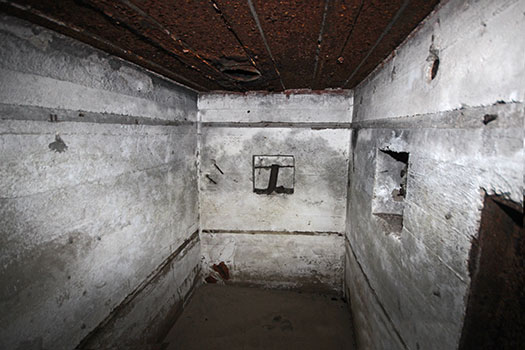

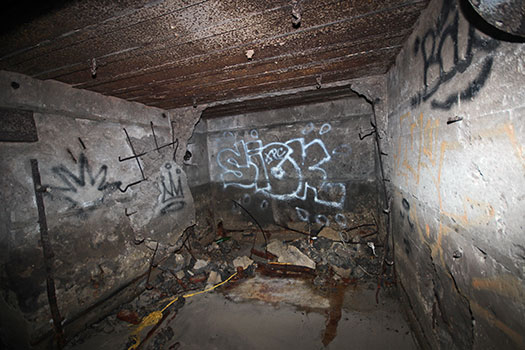

Crew room.


Plan.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

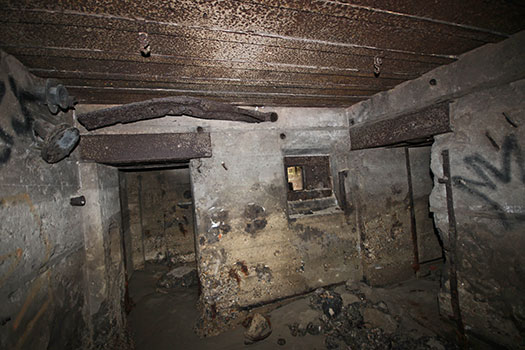

Crew room and close combat window covering the entrance passage.


Plan.


Equaling valve.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

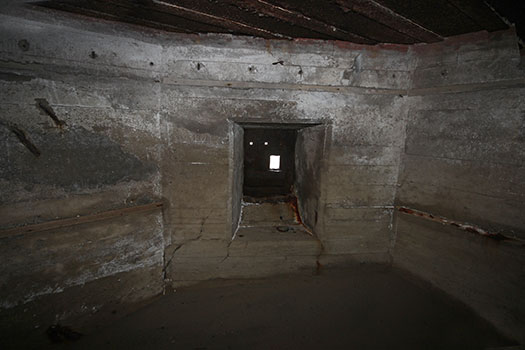

The gun room.


Plan.


.


Cable inlet recess..

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

Gun room.


Some information here.





Machine gun 34/42 ammunition linking machine.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

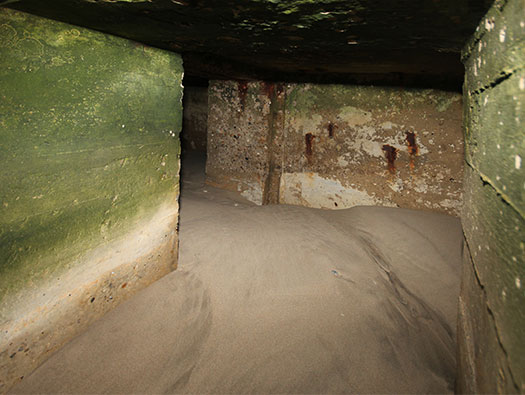

Passage.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

The periscope room would be connected to the gun room and could guide the gun onto its target.


Periscope room.


Periscope in a bunker.


Periscope hole in roof.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

Periscope room.


Some information here.


Some information here.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

Close combat embrasure it looks like a 57P8?


Plan.


57P8.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

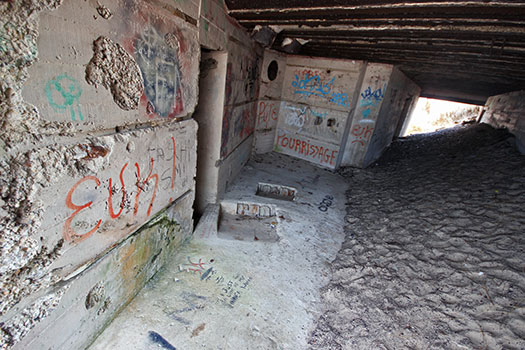

This is the exit passage with two recesses each side to allow radio aerials to slot in. They were telescopic and were raised up by cables and a winding handle.


Aerial in its slot.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

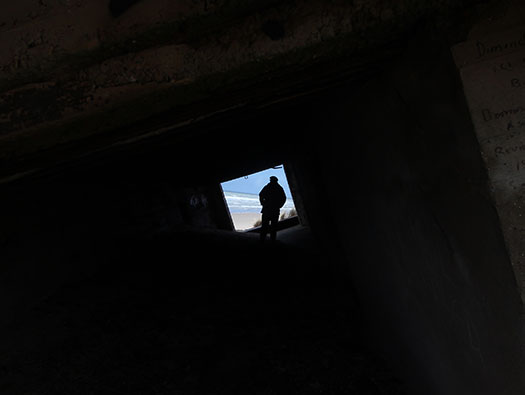

Exit and I feel I have been found?

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details

Attached Tobruk for area defence.


A cutaway of a bunker Tobruk.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R105.

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

This is the second of three Geschützstellung that were here. The third I believe has been completely destroyed. They were built for 17cm K 18 guns.

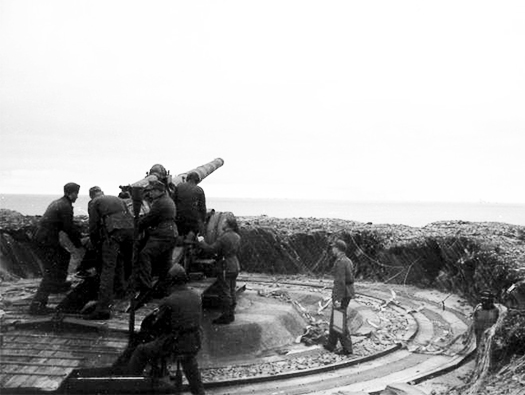

A 17cm K18 gun on a Geschützstellung.




StP Berck Nord, Berck Bellevue H.K.B.

NA

Information

The bombing of StP Berk Nord.

Details

Most Allied heavy and light bombers pounded the batteries all the way up the coast.


RAF Lancaster bomber stream.


USAAF B17.


Marauder.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

Left hand ammunition space.


The gun sitting in the middle and two ammunition spaces each side.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

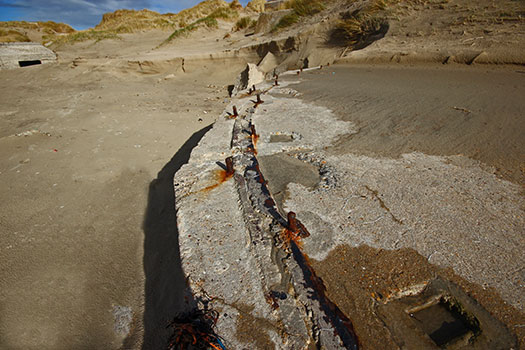

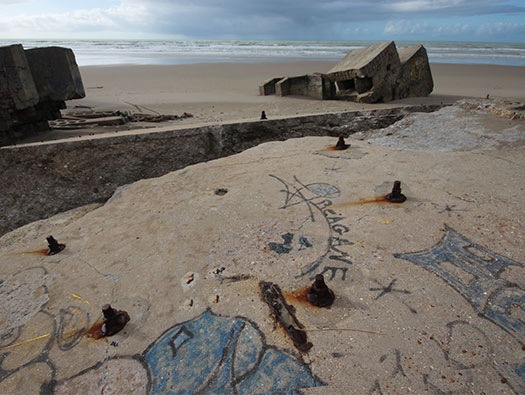

The racer ring would be bolted down to these bolts.


The racer is the outer ring that the guns trail rest on.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

Eastern ammunition space.


Crew loading.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

The view from the sea.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

Another ammunition room.


Some information here.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

Looking down the entrance to the ammunition room.


Some information here.


How it may look inside.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

The passageway in.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 2.

Details

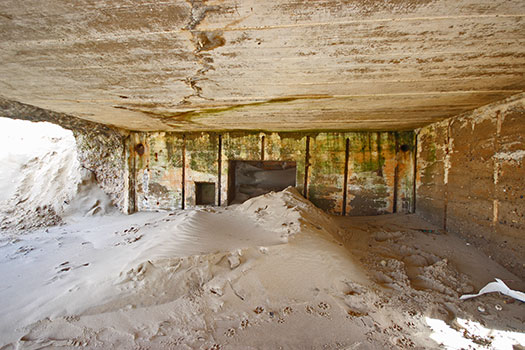

Ammunition room.


Shell boxes.







StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 1.

Details

This is the second Geschützstellung for 17cm K18 gun.







StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 1.

Details

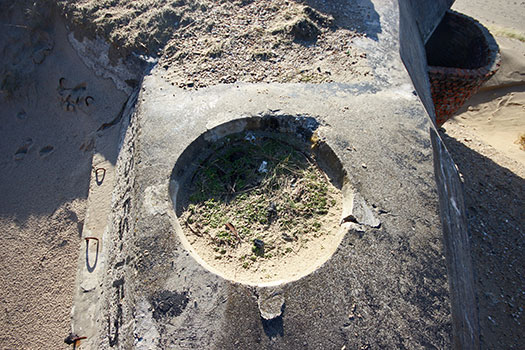

The large centre plinth for the gun to sit on..


17cm K18 gun.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 1.

Details

Ammunition.


Site plan.





StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Geschützstellung (open ringstands) Turm 1.

Details

The guns racer where the trail would slot in and slide around.


You can see the guns racer in the picture.


17cm K18.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Some information here.

Details

Vf2a group shelter.


Vf2a elevation.


Vf2a plan.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf2a group shelter.

Details

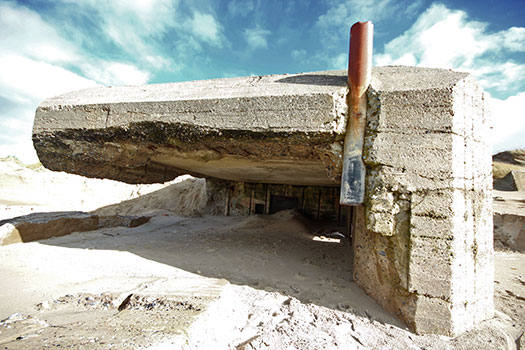

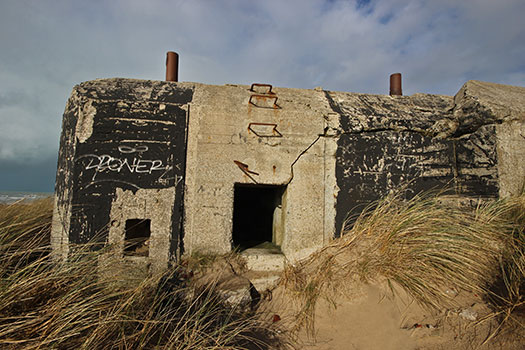

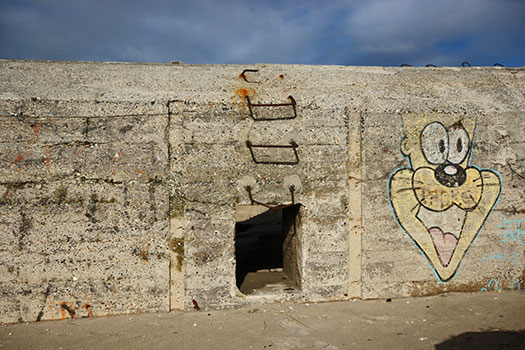

The escape hatch and steel ladder rungs up the side of the bunker. This bunker was sunken to its roof in the sand but all that has been washed away by the sea.


A plan of this Vf2a showing the escape and a brick wall holding back the sand.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf2a group shelter.

Details

Looking into the crew room.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf2a group shelter.

Details

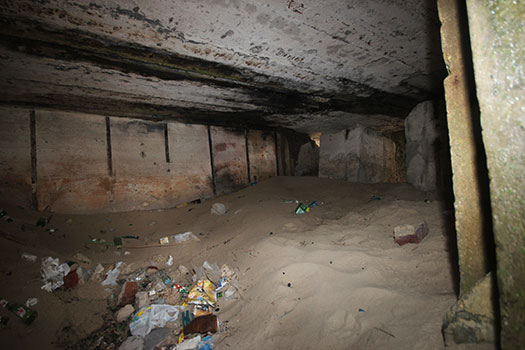

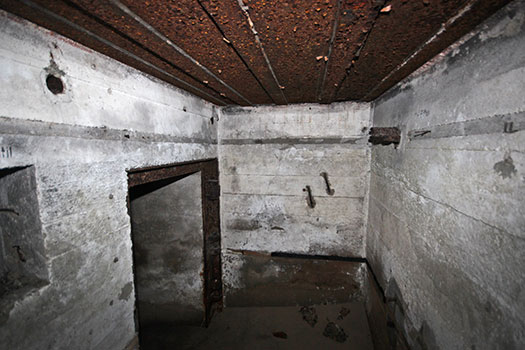

Crew room, there would have been bunks attached to the wall and roof around the room. The bunkers door is at the fa end and the left wall has been blown out.


Vf2a plan.


How it may have looked.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf2a group shelter.

Details

Looking out of the escape hatch.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf2a group shelter.

Details

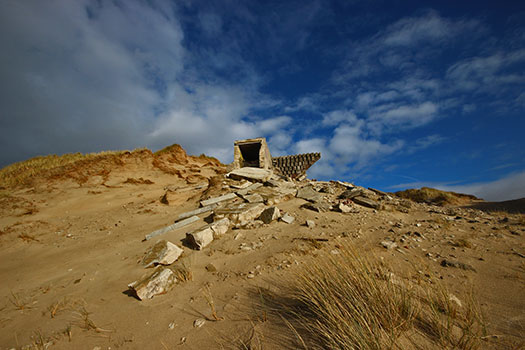

A rather damaged model. The escape showing up and sand filling the entrance passage.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Michelmannstand.

Details

A form of ringstand for a machine gun. A very distinctive shape and I think ammunition storage below.


Michelmannstand.


Michelmannstand elevation.


Maxim .

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Detritus of bunkers.

Details

If you are good with Jig Saws you would be able to build your own bunker.


Brick work from a bunkers escape.


Periscope tube, air vent, chimney, ??.


Railway line.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate for a 7.5cm F.K38.

Details

This one covers the right flank.


Plan of an R611 with a large crew room, two ammunition rooms, gun room and central passage.


7.5cm F.K38.


Powder box for a 7.5cm gun.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate

Details

Note the size of the foundations underneath the bunker. Another very large bunker, superseded by an R669 much smaller type later in the war


R669 showing the extraction system of foul air after the gun has fired.


R611.


Site plan.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate front view

Details

A very strong bunker and looks as though it has been completely missed by aerial bombing.


Bombing of Berck.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate

Details

There he is again always in the way.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate gun room.

Details

This is where the 7.5cm F.K38 gun would have sat.


7.5cm F.K38.







StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate gun room.

Details

The door into the two ammunition rooms, one for the case and the other for the shells. The other side is the crew room under the sand.


Some information here.


7.5cm ammunition.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate rear view.

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

The site of the Sanitarium Bellevue.

Details




Site plan.

StP Berck Nord, Berck Bellevue H.K.B.

aerial-photography Marc Bourbon copyright Marc bourbon all rights reserved-Thank you Marc

Information

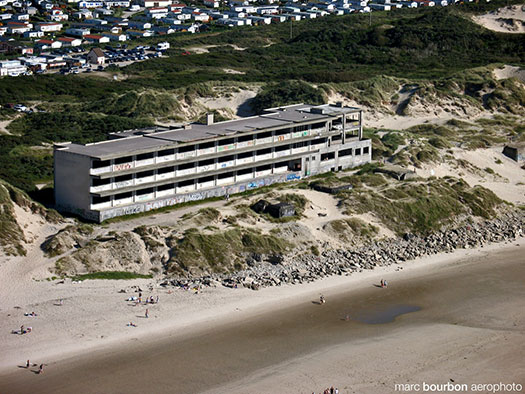

The Sanitarium Bellevue.

Details

Was derelict for many years, it was demolished quite recently.


Map of this part of Berck with the Sanatorium in the yellow square a the top.


Berck Nord being bombed.


Bombs being released over StP Berck Nord but may be landing on Berck aerodrome inland. RAF 250 pound General Purpose bombs.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R636a Command Post for Army Batteries.

Details

An R636a was here but I think demolished before or at the same time as the Sanitarium. It would have controlled the 17cm K18 batteries in the area.


17cm K18 gun..


How it may have looked inside.


Site plan where it was sited.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf1a group shelter.

Details




Vf1a plan.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf1a group shelter.

Details




Plan.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf1a group shelter.

Details

Crew room.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf1a group shelter.

Details

The great escape.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R630 casemate with two guard posts.

Details

R630 casemate for a heavy machine gun.


R630.


Mg34.


Site plan.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Lookout.

Details

I presume this is authentic to the battery and there is another about 100meters beyond stood on the ground.


Guard with his dog.

StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

The view through the observation slit. There is another post like this about 100meters in the thick undergrowth and at ground level.

Details

In the distance is an R630 covering any attack north from behind the beach. One heavy machine gun behind a thick steel plate.


Plan.


R630.


Machine gun casemate gun fitting.

StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

R730 machine gun casemate.

Details

We parked back outside the camping site. Oh dear what joys, many cars with ONE man in each. If you do enter this bunker, be very careful. Its used by many of these men and quite honestly there are better R630's to visit in the area. Best give this one a miss.

StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

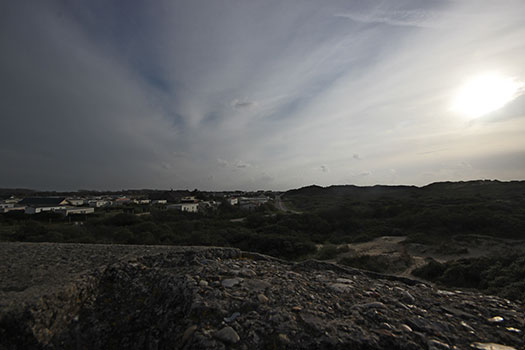

R630 the view from the Tobruk.

Details

This is the view that the machine gun would have had right down the road and covering the flatter ground on the left side. To the right its all sand dunes and hard to access for an attack.




StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

The R630 embrasure.

Details

There would have been a heavy steel plate closing off the aperture with a viewing slit and a machine gun fitting.


78P9, Pz Schartsnplatte for an Mg.34


Mg34.


A gunner set behind an Mg34 fitted into a 78P9 plate.

StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

R630 flanking wall.

Details




Some information here

StP Berck Nord, Berck Bellevue H.K.B.

22 October 2014

Information

Part of the concrete road.

Details

This road would have supplied the StP with all its needs.


Supplies would have been delivered by wagon.


Field kitchen.


StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf7a ammunition bunker.

Details




Plan of a Vf7a.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

Vf7a

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R611 casemate

Details

Flanking wall.

StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R621 group shelter.

Details

The flanking wall and the bricked up escape .


Plan of an R621.




StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R621 group shelter Tobruk defence.

Details

Area defence.







StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

R621 group shelter.

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information

This is part of one of the ammunition of Turm 1.

Details



StP Berck Nord, Berck Bellevue H.K.B.

WW2 Bundesarchiv

Information

How the battery of 17cm K18 guns would have looked.

Details



StP Berck Nord, Berck Bellevue H.K.B.

22 February 2014

Information



Details
