StP Monchaux Quend Plage route principale


Information

StP Monchaux Quend Plage route principale

Details

HQ II./H.K.A.R.1245 batterie.
1 x R119a Batterie Commander's Bunker.
1 R600b ringstand.
1 x 5cm KwK 38.


R119a Batterie Commander's Bunker.


R600 ringstand.


5cm KwK 38.

StP Monchaux Quend Plage route principale

Google

Information

StP Monchaux Quend Plage route principale

Details



StP Monchaux Quend Plage route principale

Google

Information

StP Monchaux Quend Plage route principale
R119a

Details

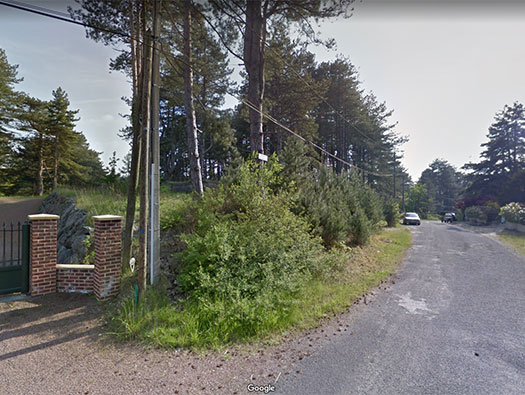

The bunker can just be seen behind the pole, this is before the house was built.


Plan.







StP Monchaux Quend Plage route principale

Geoportail 1971

Information

StP Monchaux Quend Plage route principale
R119a

Details

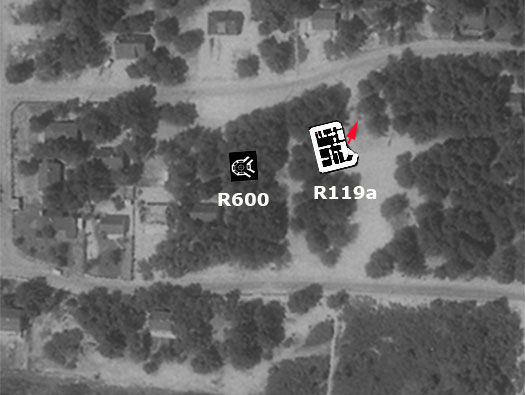

The position of the bunker in sand dunes in 1971. I am not yet sure where the 5cm KwK gun position was but feel it may have been on the western side on the top of the next sand dune. It would have been in a perfect position to cover the R119a from attack from the seaward side.


5cm KwK.


Part of some concrete I found where the R600 ringstand may have been.




StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a HQ bunker

Details

This is an R119 in mirror so is numbered R119a.
A Batterie commanders bunker for II./H.K.A.R.1245 just down the coast at StP Pte De St Quentin.

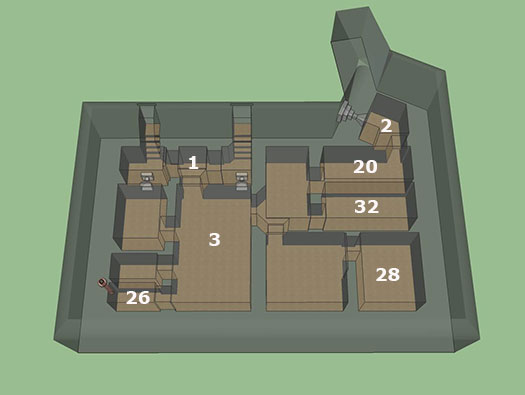

1 - Gas Lock.
2 - Close Combat Defence.
3 - Crew.
20 - Wireless.
26 - Observation Room. Periscope.
28 - Communications.
Commander.










StP Monchaux Quend Plage route principale

26 January 2020

Information

StP Monchaux Quend Plage route principale
R119a

Details

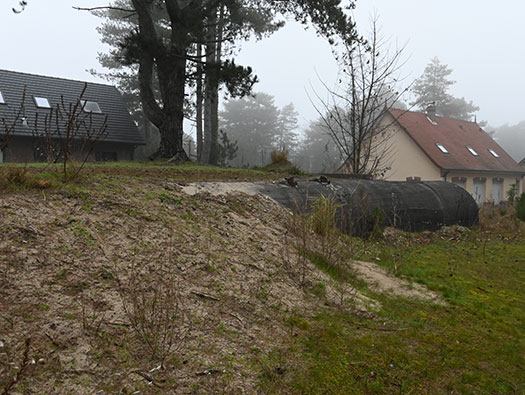

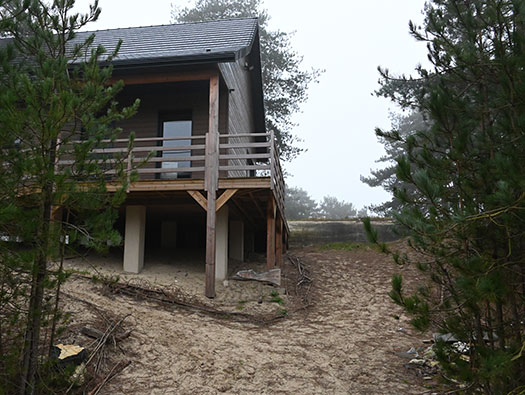

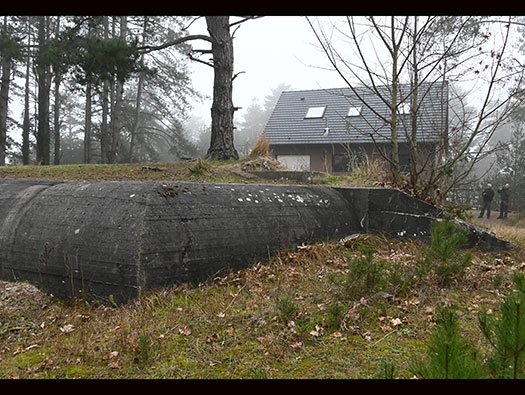

To the right of the house you can just see the curved side of the bunker.


Plan.







StP Monchaux Quend Plage route principale

26 January 2020

Information

StP Monchaux Quend Plage route principale
R119a

Details

The view around the back. Two aerial fittings can be seen


Plan.







StP Monchaux Quend Plage route principale

26 January 2020

Information

StP Monchaux Quend Plage route principale
R119a

Details

Behind the raised wall is the close combat embrasure covering the two rear doors.


Plan.


Close combat defence embrasure.




StP Monchaux Quend Plage route principale

26 January 2020

Information

StP Monchaux Quend Plage route principale
R119a

Details

The two rear doors.


Plan.


A gate entrance would have closed off the bunker called a Gittertur.


491P2 Gittertur.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a

Details

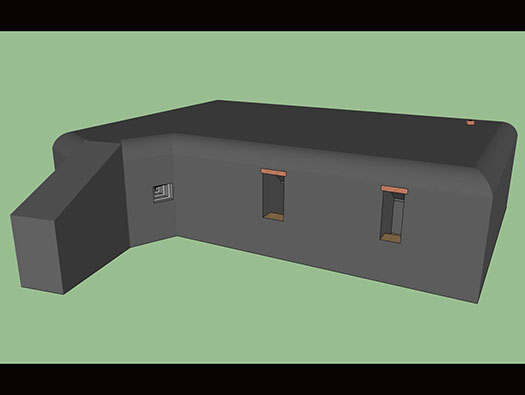

A model off the bunker showing the close combat defence on the far left and the two entrance doors.
The close combat machine gun could fire across the rear doors to stop an enemy getting into the bunker.





48P8 steel embrasure.




StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a Crew Room

Details

This looks like the crew room (these pictures are from Kurt at MKB Bunkertour and I was not there at the time). A larger main door to allow either machinery through or ease of access by soldiers coming and going. The close combat embrasure covering the right hand entrance stairway with a machine gun.


R671 elevation


This could have been the door, one standard door plus a half door. The number may have been 685P01.


Close combat embrasure machine gun fitting.

StP Monchaux Quend Plage route principale

MKB Bunkertour.

Information

StP Monchaux Quend Plage route principale
R119a Crew Room

Details

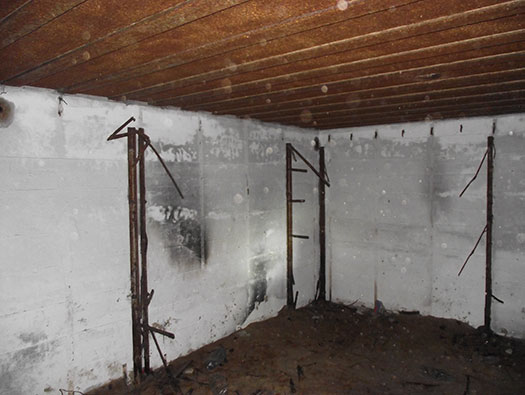

Crew room bunk fittings on the walls.


Plan.


Beds.




StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a Crew Room

Details

If there is a risk of gas, use a connector with nerousmen? room or round filter.


R671 elevation


Gas filter. An electric motor can be attached or the handle has to be used if not. They are surprisingly easy to keep moving.


room or round filter. Roumfilters S2,4 on the top and a G2,4 underneath. Some filters are for certain gases and others are to clean smokie air and clean it through filter agents and allowing fresh air inside the bunker.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a Crew Room

Details

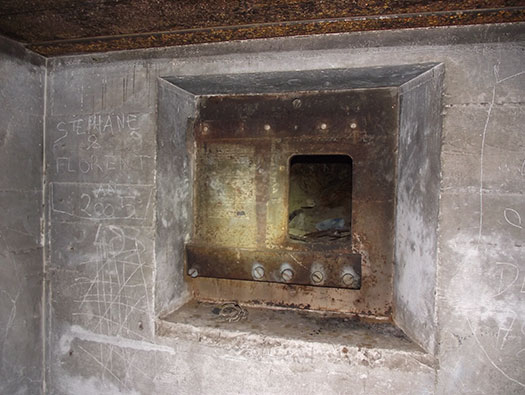

Close combat defence embrasure. On the plan you can see two embrasures, one in the crew room and the other in the small room on the left and both cover the two entrance stairs..


Plan.


48P8 Close combat embrasure. The sliding shutter can be slid to the left (open) and a gun can cover the stairs or closed (right) to seal it off if there is a gas attack. There is a heavy gasket between the plate and the wall sealing the C C Embrasure.




StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a room 20 Wireless room

Details

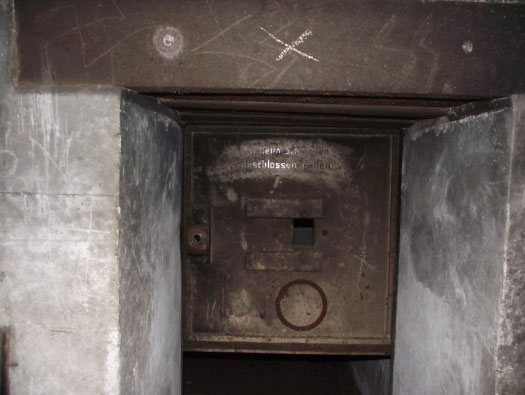

This door could be the one in the radio room or Funkroom. It closes off the 2 close combat embrasure room. The machine gun here would be able to fire across the two bunker entrances..


Plan.


The red circle states that the door is a gas tight door. A safety feature.


The red circle states that the door is a gas tight door. A safety feature.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a room 20 Wireless room

Details

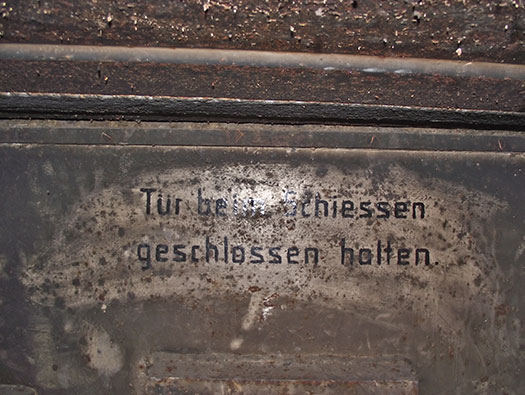

Keep the door closed when shooting.


Plan.




StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a room 32 Commanders room

Details

The batterie commanders room. This would be his sleeping, living and possibly work room. His private space. There is even a slot in the wall where messages can be passed back and forth between the commander and the communications room.


R671 elevation


Working in a bunker.


Sleeping bunker.

StP Monchaux Quend Plage route principale

MKB Bunkertour.

Information

StP Monchaux Quend Plage route principale
R119a

Details

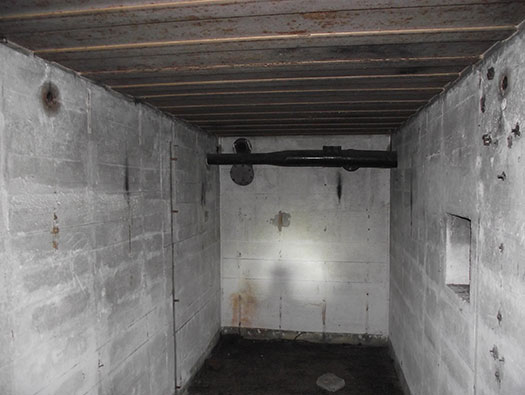

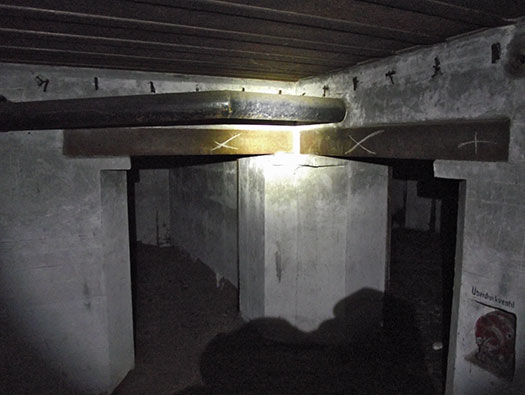

The area here is a sort of passage way connecting the Commanders, Wireless rooms to the Crew room.


Plan.

StP Monchaux Quend Plage route principale

MKB Bunkertour.

Information

StP Monchaux Quend Plage route principale
R119a inside

Details

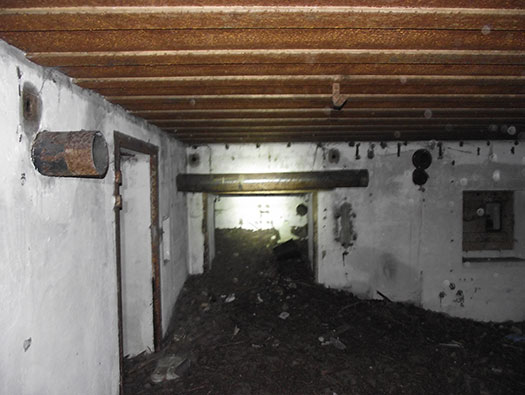

The filtration system..


Crew room.





Flexible pipe.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a inside

Details

Do nicht operate this air if the gas is dry.


Plan.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a inside

Details

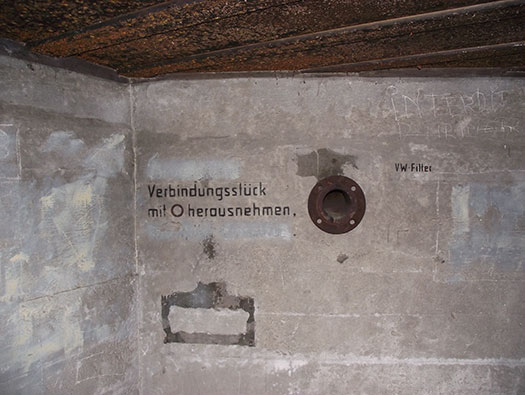

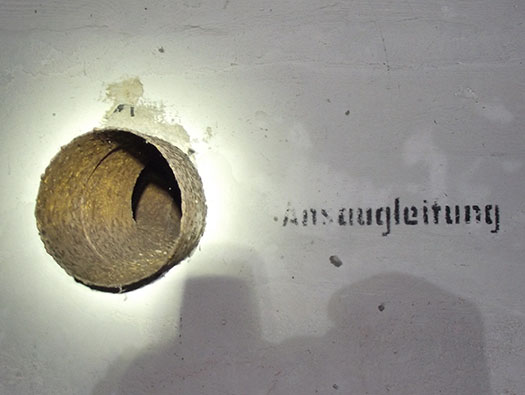

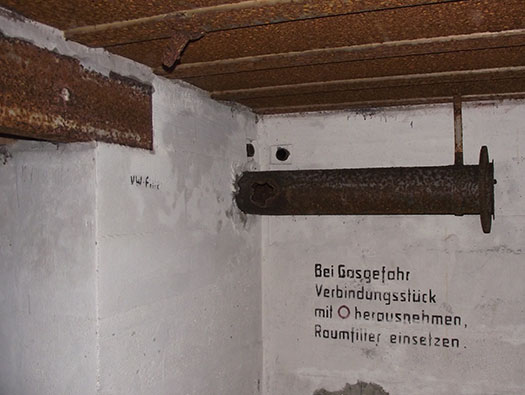

More writing on the wall and pipe fittings..


Plan.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a inside

Details

Suction??. The mind boggles.


Plan.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a inside

Details

More writing on the wall and pipe fittings..


Plan.

StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a outside

Details

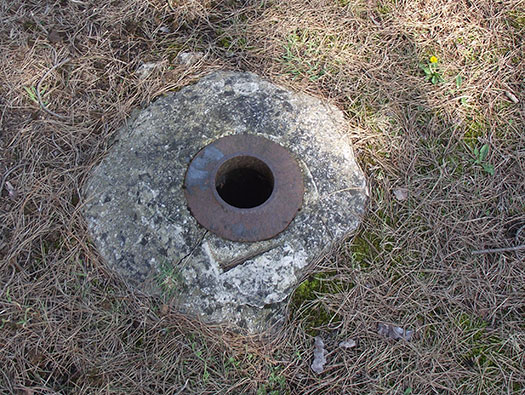

Periscope fitting in the roof..


Plan.







StP Monchaux Quend Plage route principale

MKB Bunkertour

Information

StP Monchaux Quend Plage route principale
R119a outside

Details

Squeezing out, this is as it was before the house was built.


Plan.


Gittertur, gate fitting on the front doors.


491P2 Gittertür-(Screen-Door).

StP Monchaux Quend Plage route principale

Plan K.V.A D2 sud.

Information

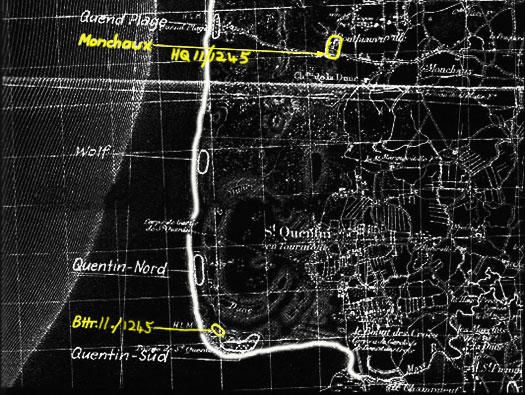

StP Pointe de St Quentin (StP Monchaux Quend Plage route principale)
II./H.K.A.R.1245, the batterie was situated at StP Pte De St Quentin.

Details

The German plan of K.V.A D2 sud. The HQ bunker










StP Monchaux Quend Plage route principale

00 00 00

Information

StP Monchaux Quend Plage route principale

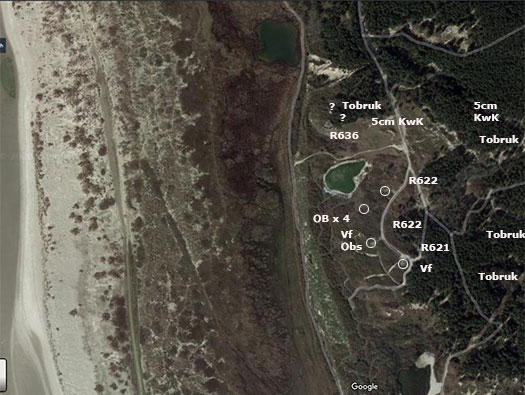

II./H.K.A.R.1245, the batterie was situated at StP Pte De St Quentin.

Details

1 x R636 Fire Control Post.
4 x Offen Bettung ringstands.
4 x R671 casemates (destroyed).
2 x R600 ringstands.
4 x 10.5cm K.331(f) guns.
2 x 5cm KwK guns.
3 x Tobruk's.



R622 twin group bunker.


R621 group bunker.


R636 Fire Control Post.










StP Monchaux Quend Plage route principale

Bundesarchive

Information

StP Monchaux Quend Plage route principale
R671 StP Fort Mahon

Details

10.5 cm K331(f).


Open emplacement.





Ammunition box.




StP Monchaux Quend Plage route principale

StP Fort Mahon, K.V.A D2.

Information

StP Monchaux Quend Plage route principale
R671 StP Fort Mahon

Details

There were I believe, four R671 casemates. Now removed, but some bits of broken concrete can be found.


R671 elevation


R671 plan.


10.5cm K331(f).

StP Monchaux Quend Plage route principale

00 00 00

Information

StP Monchaux Quend Plage route principale
R671 StP Fort Mahon

Details

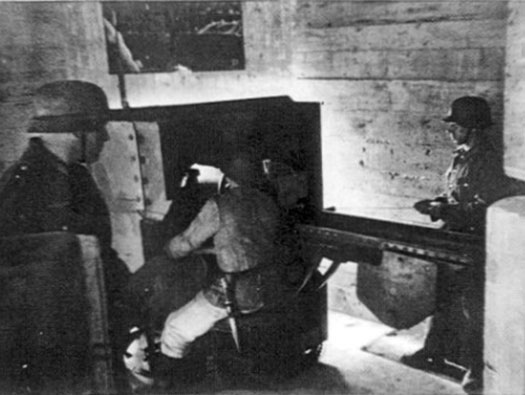

10.5cm K331(f) inside an R671 casemate.







StP Monchaux Quend Plage route principale

22 February 2014

Information

Quend Plage
