Wn Trou02 Honfleur digue est et port


Information 621

Wn Trou02 Honfleur

Details

This defence is of one of the prettiest harbours in France. The defence of this harbour was inside the entrance with one 5cm KwK Pak gun on the north bank of the harbour, a Pz.T. R35 3.7cm KwK144 (f) tank turret on the other side and 4.7cm Skoda Pak in the middle.
The British and Canadians forces came down the main road from the south the D579A.


R621 group shelter..


5cm KwK Pak L/60.


L411 60cm search light bunker.


Plan of the remaining defences.

Wn Trou02 Honfleur digue est et port

Information

Wn Trou02 Honfleur

Details



Wn Trou02 Honfleur digue est et port

IGN 1947

Information

Wn Trou02 Honfleur plan

Details

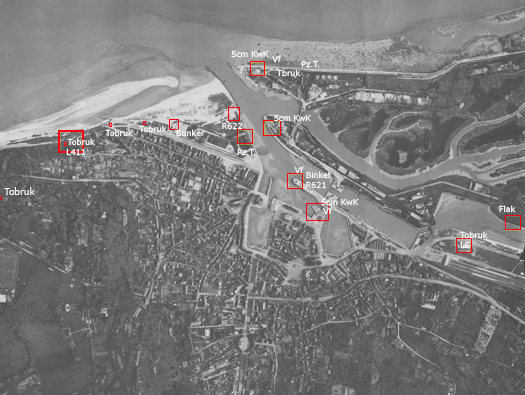

Plan of the defences.
1 - R621 Unterstand group shelter.
1 - Vf/Skoda
3 x Ringstands for 5cm KwK L/60.
3 x Vf58c Tobruk.
1 x L411 bunker for 60cm searchlight.
1 x L7 position for a 60cm searchlight.
1 x Ls. bunker.
3 x 5cm KwK L/60
1 x 4.7cm Pak K.36
1 x Pz.T. R35 3.7cm KwK144 (f) tank turret.
3 x 5cm KwK L/60


Vf58c Tobruk.


Ls. bunker.


Nr.1694 ringstand for a 5cm KwK L/60 gun.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak

Details

This is an open emplacement for a 5cm KwK L/60 gun with a small ammunition and crew bunker.


Plan.


Plan of the Vf bunker.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak

Details

The open emplacement for a 5cm KwK is on the left and the Vf bunker on the right.


5cm KwK L/60.


5cm KwK L/60 in an Nr.1694 ringstand.


5cm KwK L/60.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Bunker.

Details



Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak.

Details






Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak

Details

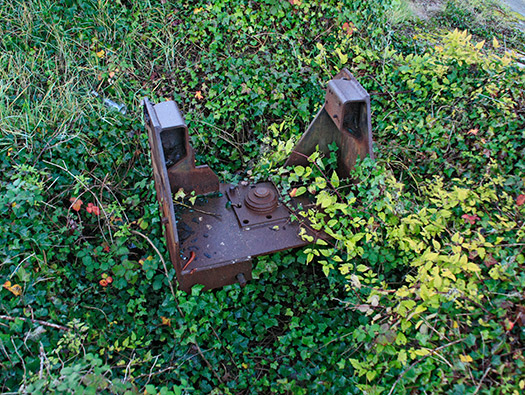

The base of the Pak gun is still in the bunker.


5cm KwK ringstand & Vf bunker with a trench entrance. IGNF1946.





Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak.

Details

You can just see the cradle of the Pak gun sticking out of the top.




Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf Pak

Details

The Pak guns cradle.


5cm KwK gun.


5cm KwK gun.


5cm KwK gun.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur

Details

Vf bunker.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

The entrance into the Vf bunker


Plan.


Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

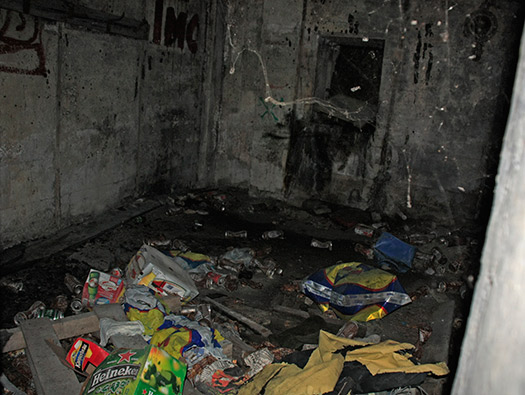

The first room of the Vf bunker, note the small escape hatch in the far wall.


Plan.


Escape plan.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

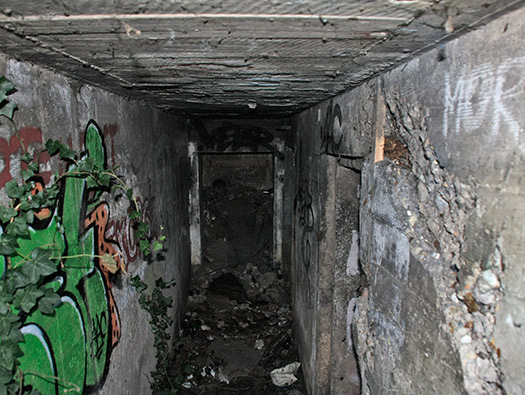

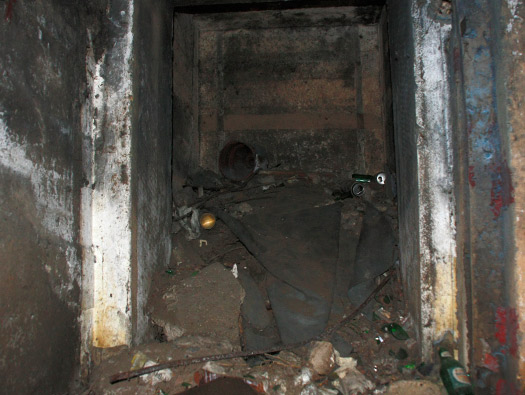

The end of the corridor.?


Plan.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

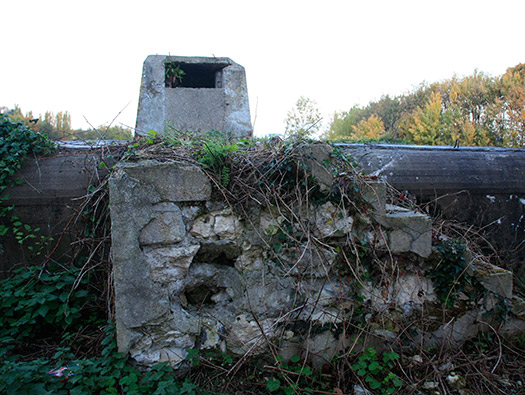

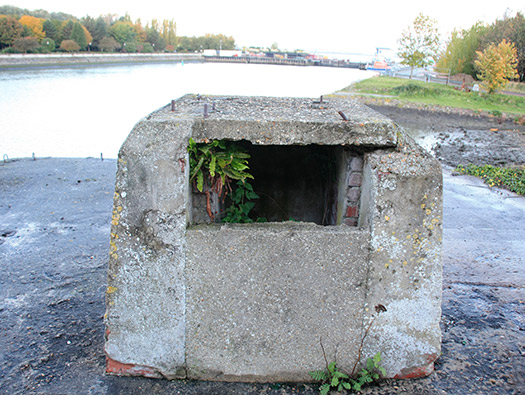

This raised concrete looks like the same as a cable bunker. This may be a ventilation shaft??


Cable bunker.


On a cable bunker there is a raised section which was used for ventilation (Luchtkoker).

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

Vf Bunker roof. This may be a ventilation shaft??

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Vf bunker

Details

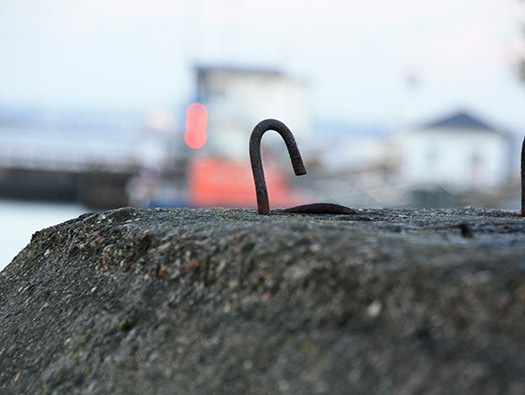

Camouflage hooks.


Camouflage netting.


Camouflaging a bunker with netting.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur 5cm KwK ringstand

Details

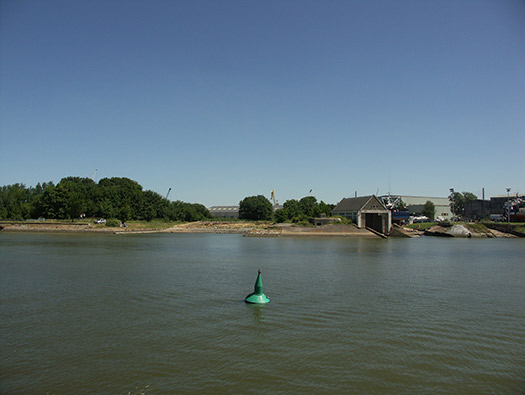

Inside the harbour is another 5cm KwK Pak gun in an open emplacement.

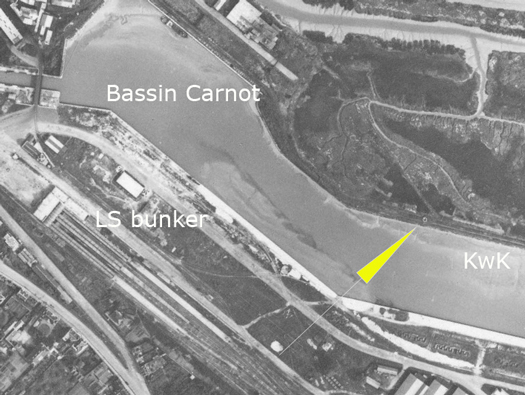

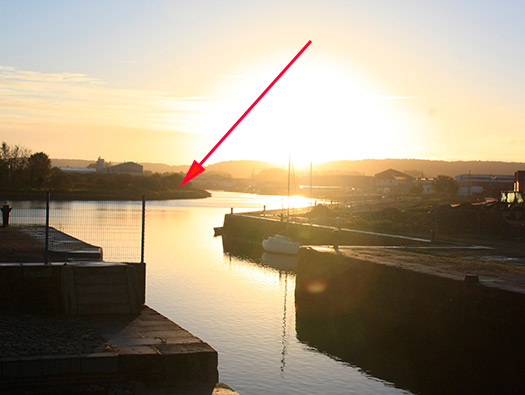

Site of the second ringstand.


Open ringstand emplacement.




Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur 5cm KwK ringstand

Details

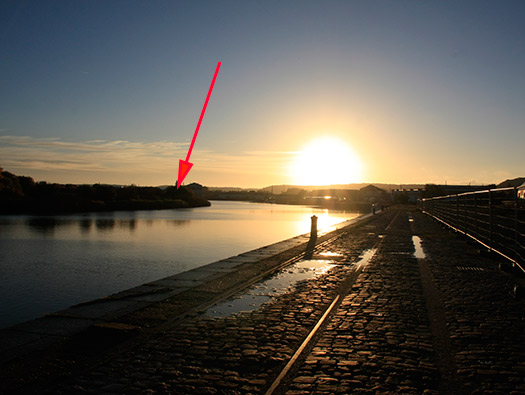

Another picture a bit closer.


Honfleur Les Bassins Bateaux, (www.delcampe.net).


Dockers.




Wn Trou02 Honfleur digue est et port

Google maps

Information

Wn Trou02 Honfleur tank obstacles

Details

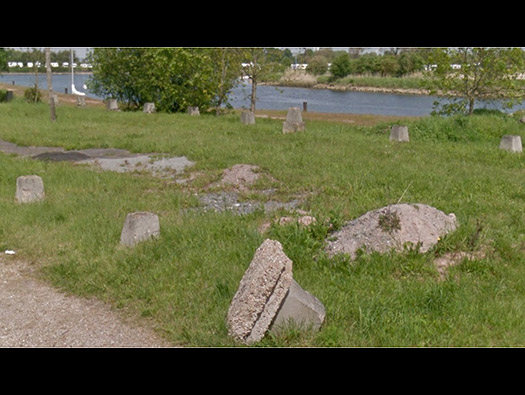

Tank obstacles around the inner docks.

Wn Trou02 Honfleur digue est et port

IGNF1946

Information

Wn Trou02 Honfleur Ls shelter

Details

Ls shelter - Luftschutz.
The railway on one side and the docks the other. Also note that there were two Tobruk's covering each entrance.


Luftschutz with a Tobruk each side.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Ls shelter

Details

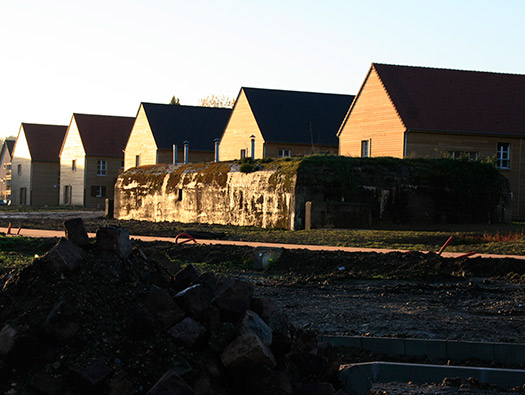

Large air-raid shelter.


Luftschutz arm band.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Ls shelter

Details

As this was a working docks the RAF would have been very interested in it and would have bombed it quite a few times. The shelter was for the dock workers and towns people in the vicinity.


First Aid kit.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Ls shelter

Details

Eastern protected entrance.

Wn Trou02 Honfleur digue est et port

02 November 2010

Information

Wn Trou02 Honfleur Ls shelter

Details

Western protected entrance.


Heavy bombing.


Lancaster's.


Lancaster radio operator.

Wn Trou02 Honfleur digue est et port

WO 252/151

Information

Wn Trou02 Honfleur SK Skodabunker.

Details

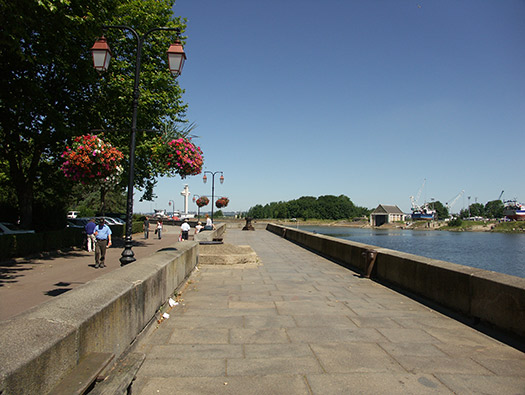

The inner harbour now a lovely car park.


Plan of an SK Skodabunker.


The plan today, the basin is a car park and the quay has had all the bunkers removed.


The port of Dieppe, quay des Pilotes casemate SK pour antichar de fortress 4,7 cm Festungspak 36 (t) it may have looked like this one?

Wn Trou02 Honfleur digue est et port

WO 252/151

Information

Wn Trou02 SK Skodabunker R621 Unterstand

Details

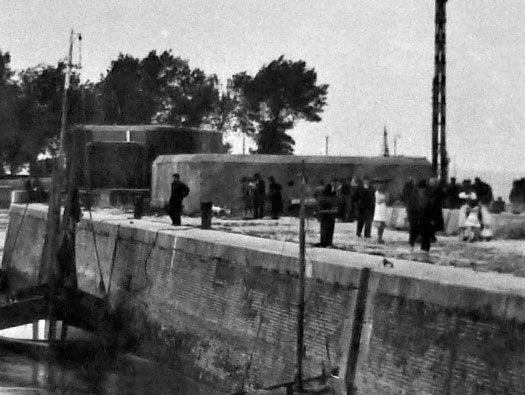

The far bunker is an SK Skodabunker. R621 Unterstand group shelter.


How it may have looked from the front.


4.7cm Pak K.36(t).


R621 Unterstand group shelter.

Wn Trou02 Honfleur digue est et port

IGN 1949

Information

Wn Trou02 SK Skodabunker R621 Unterstand

Details

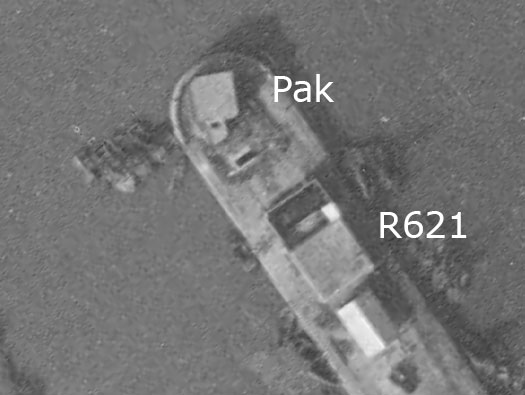

A zoomed in aerial view of the bunkers.

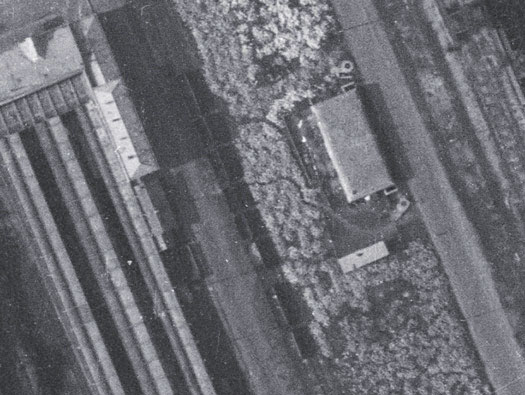

This looks like another Luftschutz of some type.

Wn Trou02 Honfleur digue est et port

27 July 2008

Information

Wn Trou02 tank turret

Details

Pz.T. R35 3.7cm KwK144 (f) tank turret.


R35 French tank the type the turrets came from.

Wn Trou02 Honfleur digue est et port

27 July 2008

Information

Wn Trou02 tank turret

Details

Pz.T. R35 3.7cm KwK144 (f) tank turret.


Plan.


Plan.

Wn Trou02 Honfleur digue est et port

27 July 2008

Information

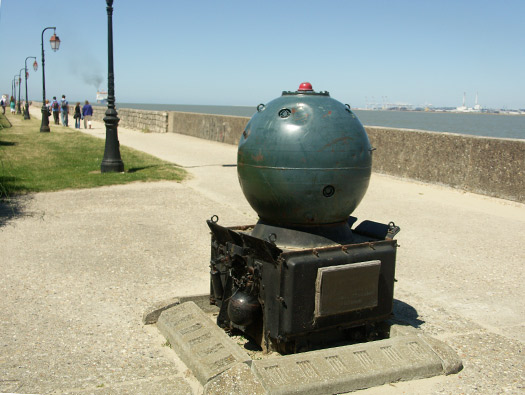

Wn Trou02 sea mine

Details

There were many mines stored at StP Hasso, Dannes, Pas-De-Calais. K.V.A. D1 Hardelot to Merlimont.


Mk6 mine.


Mine laying from the rear of a ship.


Mines on a ship ready to drop.

Wn Trou02 Honfleur digue est et port

27 July 2008

Information

Honfleur
