Ca12 Onival.


Information

Ca12 Onival.

Details

1 x Peilstand/Vf.
1 x R600b.
2 x Schnabelstand.
1 x 7.5cm Pak 97/38.
1 x 5cm KwK 38.


R600b fir the 5cm KwK 38.


Schnabelstand.


7.5cm Pak 97/38.

Ca12 Onival.

Information

Ca12 Onival.

Details



Ca12 Onival.

1945

Information

Ca12 Onival.

Details

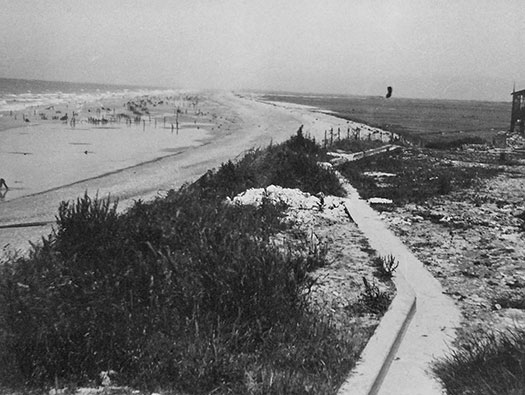

The beach running up to Cayeux and the Somme estuary.


Teller mine on a tree trunk.


More beach defences.


Rommel and his Asparagus.

Ca12 Onival.

21 February 2014

Information

Ca12 Onival.

Details

The first Schnabelstand set into the side of the road just outside Onival.





Schnabelstand could also be used as a machine gun pillbox.




Ca12 Onival.

15 April 1946

Information

Ca12 Onival.

Details

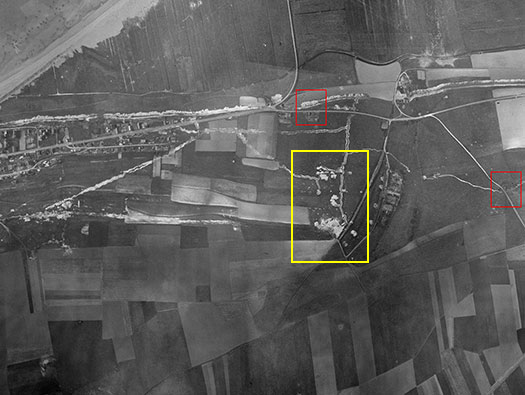

This 1947 photo shows the two Schnabelstand (red squares) and linking trenches gradually being filled in. It looks as though there was a sort of command area set back up the slope (yellow square) where there look to be some bunkers with trenches connecting them. I cannot see where the other bunkers and guns were laid out.










Ca12 Onival.

21 February 2014

Information

Ca12 Onival.

Details

Some bits and pieces in the field behind the first Schnabelstand. It may be the foundations of a dismantled house?


There looks as though there was a house there?

Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

There was a trench system running along this bank as a defence and so troops could move from position to position.


An elevation plan of a Schnabelstand.


Observation.

Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

The front sticking out of the bank and a good view of the camouflage, the bunker would be cast with flat concrete face and a mix of asbestos mixed with concrete would be daubed on to create camouflage breaking up its clean lines.


Image Caption

Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

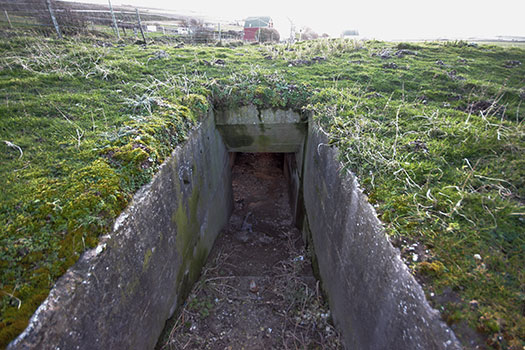

The trench and rear entrance tunnel to the bunker.







Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

Trench leading into the bunker.

Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

Looking into the main room.




Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

The viewing slit with the centre section has been broken away for some reason.







Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

The doorway into the control room.

Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

Looking back into the main room.







Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

The square holes in the walls are for wooden blocks to be set into them (we would now call the a sort of Raul Plug) and maybe a wall covering in wood nailed to them making it a warmer and more homely place.







Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

Steps up to the trench exit.




Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

View from above.

Ca12 Onival.

21 February 2014

Information

Eisenpfahel.

Details

The German barbed wire post designed as a picket post to hold barbed wire, the square piece is a Swastika symbol.


Eisenpfahel.







Ca12 Onival.

21 February 2014

Information

The first Schnabelstand.

Details

Some additional details will go here

Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

View from behind.





Troops camping.

Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

The entrance.

Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

The entrance.




Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

Main room.




Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

Viewing room. I have tried with Photoshop to add the tree photos together.




Ca12 Onival.

21 February 2014

Information

The second Schnabelstand.

Details

The door with several niches that may have been to hold battery or Acetylene lamps.


Battery lamp.


Acetylene lamp.

Ca12 Onival.

21 February 2014

Information

Eisenpfahel.

Details






Ca12 Onival.

21 February 2014

Information

Onival on a Bright February.

Details
