Wn Nz364 Le Petit Marsac.

Details

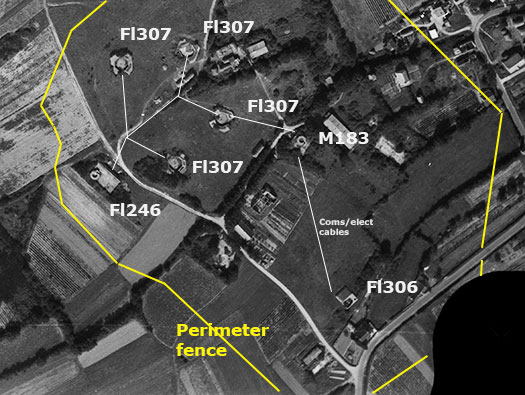

1 x Fl304 fire control post for heavy AA Batterie.
1 x Fl317 (BW791) Ammunition depot. [I believe its an Fl246?Ammunition depot].
1 x M183 Machinery bunker.
6 x Vf58c Tobruk's.
4 x Fl307 Emplacement for a 12.8cm Flak 40 gun.


Fl246 Ammunition depot.


Fl307 12.8cm Flak 40.


Fl304 Fire control post for a heavy AA batterie.

Wn Nz364 Le Petit Marsac

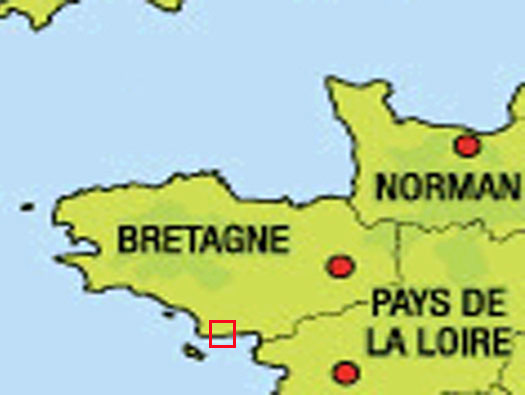

Google Maps

Information

Wn Nz364 Le Petit Marsac.

Details

Saint-Nazaire was ringed by heavy AA batteries to protect the U-boat base.
Nz309 Marsain Bttr.Bussard A2 4 x 10.5cm Flak.
Nz311 Kerlédé Bttr.Leopard A3 4 x 10.5cm Flak.
Nz321 Aine Bttr.Dragon Natter 2 x 10.5cm Flak.
Nz322 Le Trembly Bttr.Sperber/Falke 4 x 10.5cm Flak.
Nz326 Le Pin Bttr.AlbatrosI 2 x 10.5cm Flak.
Nz329 La Ramée Battr.Kormoran 2 x 10.5cm Flak.
Nz331 La Fernais Bttr.Kondor 4 x 10.5cm Flak.
Nz340b St-Brevin les Sablais Bttr.Seelöwe 4 x 10.5cm Flak.
Nz341 Mindin Nez de Chien Battr.Koralle 4 x 12.8 Flak.
Nz348 Le Lazaret Bttr.Delphin 4 x 10.5cm Flak this one.
Nz360 St-Brévin plage Bttr.Haï 4 x 10.5cm Flak.
Nz363 La Trémbale Bttr.Luchs/Ilts 4 x 10.5cm Flak.
Nz364 Le Petit Marsac Bttr.Drache I 4 x 12.8cm Flak.
Nz371 Le Tilloux Bttr.Albatros II 4 x 12.8cm Flak.
Nz418 Gron Battr.Seeadler 4 x 10.5cm Flak.
Nz428 Le Plessis Bttr.Panther 4 x 10.5cm Flak.

Wn Nz364 Le Petit Marsac

Google Maps

Information

Wn Nz364 Le Petit Marsac.

Details

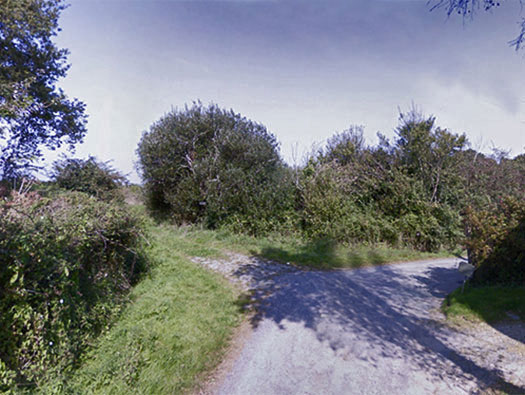

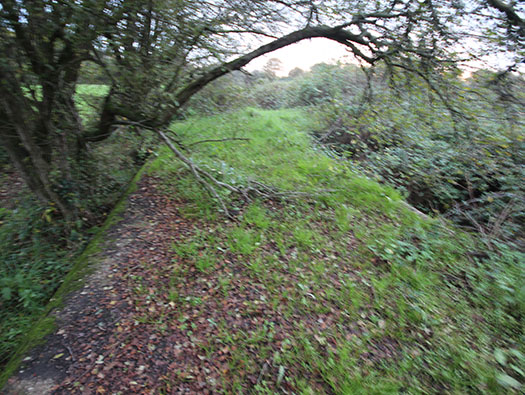

This is the path (to the left) where the battery lies, to the right is the M183 Machinery bunker plus a 2cm Flack on its roof and behind for the Fl304 fire control post for heavy AA Batterie.


Opel Blitz wagon.




Wn Nz364 Le Petit Marsac

04 November 2015

Information

Wn Nz364 Le Petit Marsac.

Details

A barbed wire fence around the perimeter with its six Tobruk's which I have not found.


Barbed wire fence.


Tobruk in anti-aircraft position.


Guard.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Wn Nz364 Le Petit Marsac.

Details

Fl246 Ammunition depot with a 2cm Flak position o the roof..


Fl246 Ammunition depot plan.


2cm Oerlikon Flak28.


2cm Oerlikon Flak28. The two types of mountings that could be used.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

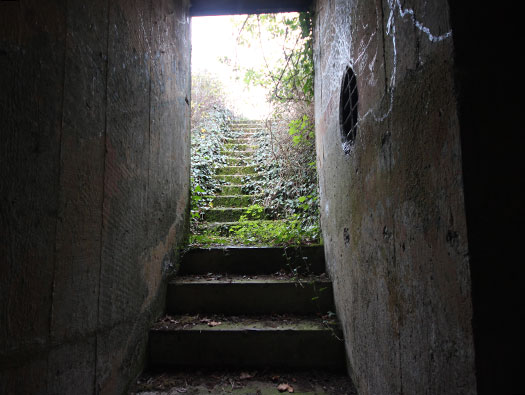

Now just imagine what it would be like to climb up and down all these steps carrying 12.8cm shells.


Plan.


12.8cm Flak shell ready to load into the gun.




Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

A very large bunker.


Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

Left hand entrance.








Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

19P7 light steel armoured door,now removed.


Plan.


19P7 door.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

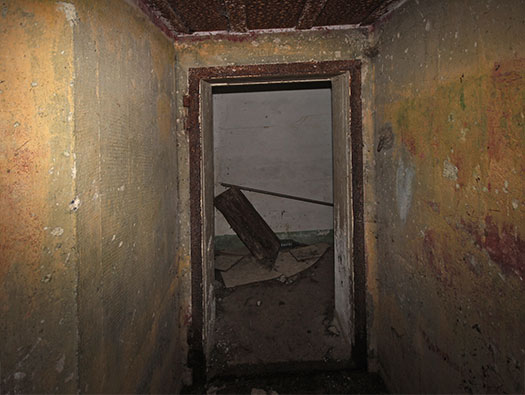

Now inside the first room. There are three inner doors to each room and for some unknown reason they are arched and with no doors.


Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

An arched door.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details




Plan.


Stored ammunition.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

Another and then another arch.


Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

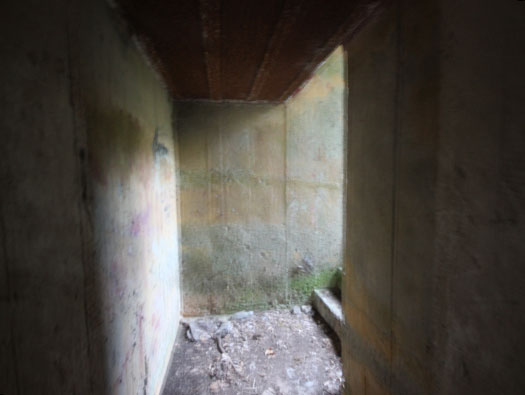

One of the small rooms at the front.


Details2

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

The far end and then some small rooms along the side wall..


Details2

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

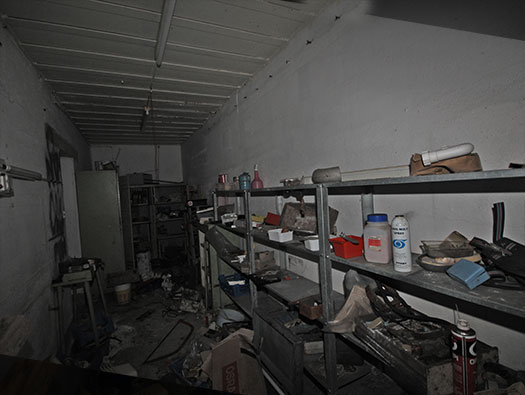

The side room possibly for the 2cm ammunition.


Ammunition.


Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

The right hand entrance. The small niche.


Plan.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

The right hand entrance.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

The second 19P7 door, this one is still in place.


Details2




Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

The right hand entrance.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

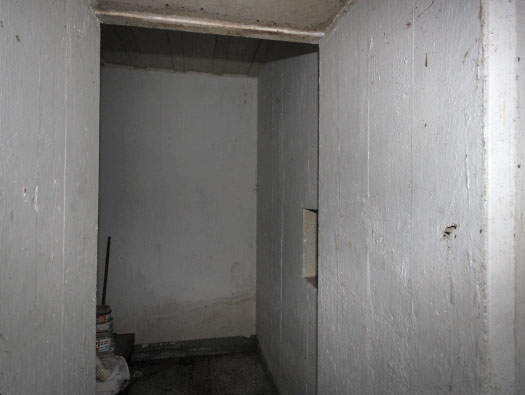

Niche for a light switch. It looks as though there was a box fitted into the niche.


Another type of light switch.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

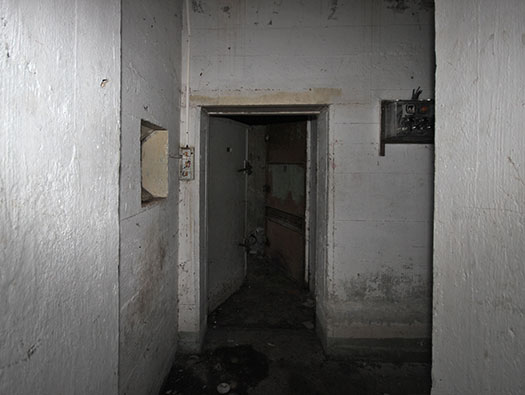

The second 19P7 door, this one is still in place with a small window of glass to see through.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details



Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

Back to the left entrance and the multi coloured camouflage can be seen.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

Left entrance.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details

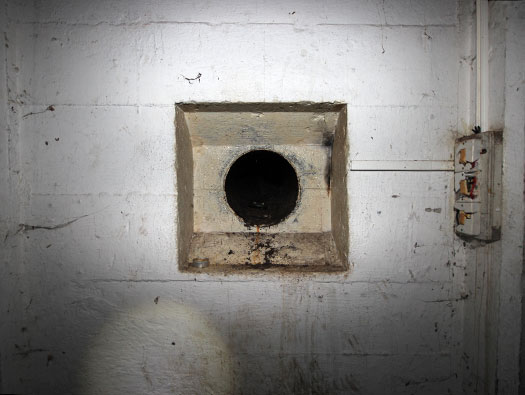

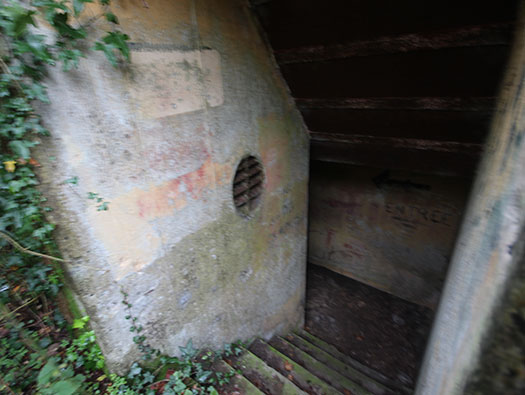

Air vent.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl246 Ammunition depot.

Details



Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details

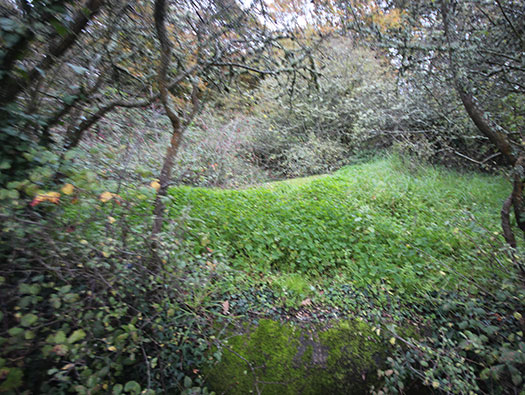

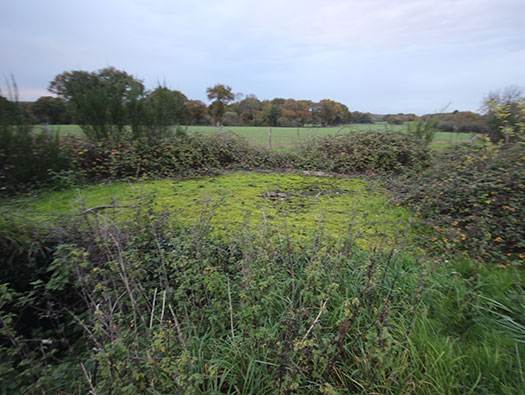

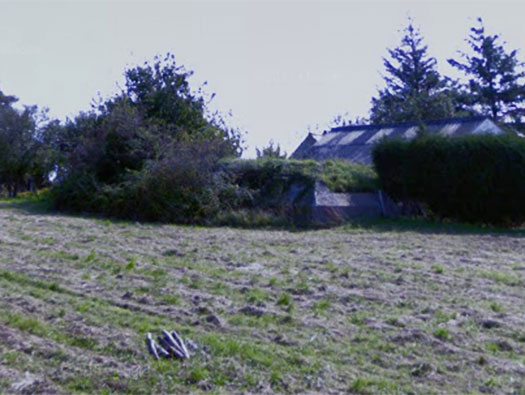

The first of the emplacement I found. Two are accessible but the other two look to be very overgrown.


Plan.


Fl307 Emplacement for a 12.8cm Flak 40 gun.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details

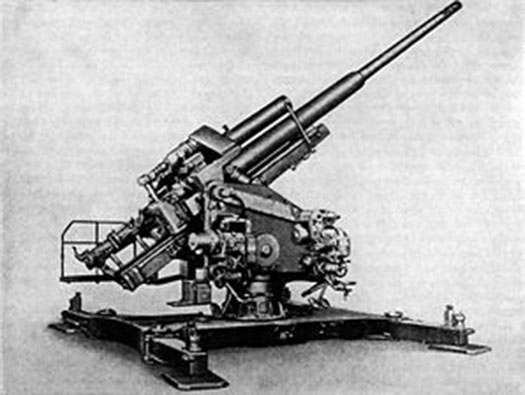

12.8cm Flack 40 inside an Fl307 open emplacement.


Big shell and big gun.


Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details

Where the gun sat.




Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details



Wn Nz364 Le Petit Marsac

04 November 2015

Information

The second Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details




Details2

Wn Nz364 Le Petit Marsac

04 November 2015

Information

The second Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details



Wn Nz364 Le Petit Marsac

04 November 2015

Information

The second Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details

You can just make out on these last two photos the wall of the emplacement.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

The second Fl307 Emplacement for a 12.8cm Flak 40 gun.

Details



Wn Nz364 Le Petit Marsac

04 November 2015

Information

M183 Machinery bunker with a 2cm Flak28 on its roof..

Details

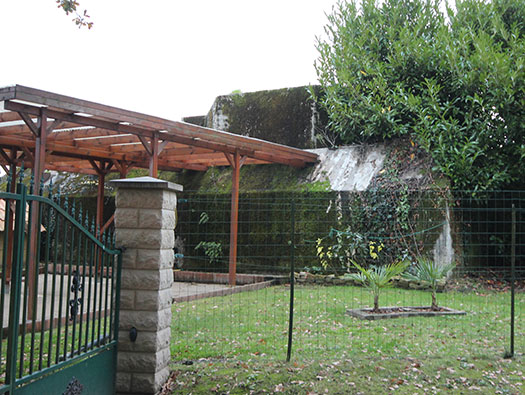

This bunker held a generator for all the power needs. There is also a 2cm Flak28 emplacement on its roof.


M183 Machinery bunker.


8kw generator.


2cm Flak 28.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Wn Nz364 Le Petit Marsac.

Details

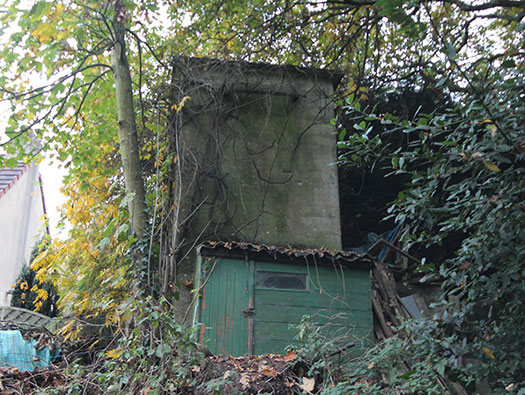

Just past the machinery bunker is this small tower. I have no idea if it is relevant to Nz364 or not.


Details2

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Wn Nz364 Le Petit Marsac.

Details

Another picture of the top of the tower.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Wn Nz364 Le Petit Marsac.

Details

At its base this looks like stairs going down under the tower.

Wn Nz364 Le Petit Marsac

04 November 2015

Information

Fl304 fire control post for heavy AA Batterie.

Details

Each large battery needed controlling and an Fl304 did that. It would have been given the direction aircraft would be flying in from Nz365 command post and relaid the information to the guns via a telephone link (white lines on the plan) wire that were buried in the ground for safety in case of bombing.


Plan.


Fl304 fire control post for heavy AA Batterie.


Range finder would have been situated on the round centre and a height finder. Details passed inside the bunker to a communications room sending out orders to the guns.


Radio room (Funk room).
