Wn11 Foucarville Mauger


Information

Wn11 Foucarville Mauger

Details

4., Grenadier-Regiment 919
2 x Vf2a
3 x ammunition bunkers
2 x Feldmässig
1 x Bf.58c Tobruk.
1 x Bf.69 mortar ringstand.
1 x 1694 ringstand
2 x U Tobruk ringstands Pz.Drehturm (Turret).
1 x 5cm KwK L/60 Pak.
1 x 3.7cm KwK144(f) FT turret.
1 x M.G.311(f) FT Turret.
2 x 8cm s.GrW.34










Wn11 Foucarville Mauger

Google

Information

Wn11 Foucarville Mauger

Details



Wn11 Foucarville Mauger

Google

Information

Wn11 Foucarville Mauger U ringstand

Details

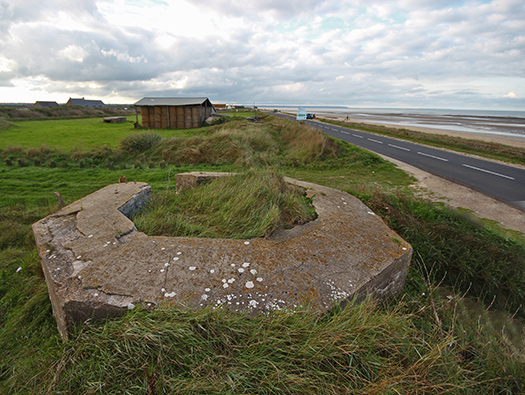

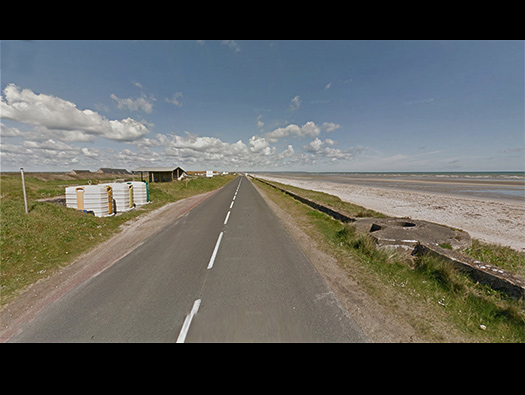

The view of Wn11 from the road running north with the first U ringstand for a 7.5mm s.MG311(f) Reibel machine gun.


Renault FT tank turret with a 7.5mm s.MG311(f).


Plan U ringstand.


Side view of a U Tobruk.


Three man crew in a U Tobruk.

Wn11 Foucarville Mauger

Plan

Information

Wn11 Foucarville Mauger Plan

Details

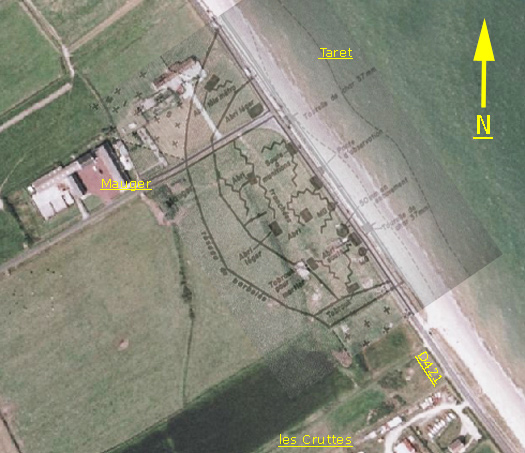

Plan of Wn11 showing an overlay plan over today´s fields.


Two FT turrets and U Tobruks were the corner stones of the defence with back up of two 8cm mortars and a 5cm KwK Pak.


Nr1694 ringstand for a 5cm KwK.


Bf69 mortar Tobruk with one ringstand for the 8cm Mortar and one Tobruk for a machine gun and artillery spotter.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger

Details

Date of Construction.

Wn11 Foucarville Mauger

Plan

Information

Wn11 Foucarville Mauger Plan

Details

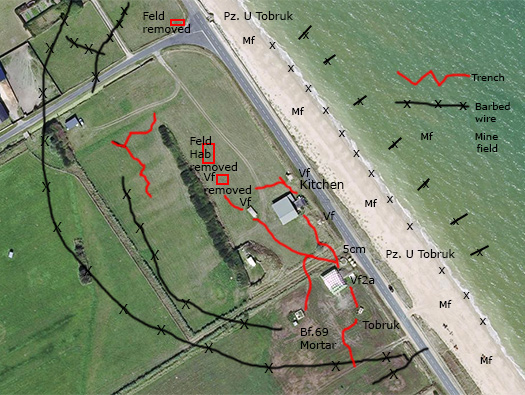

My plan showing most buildings intact. Barbed wire and mine field Mf.55 covered the rear and a mine field Mf.3 and beach defences out on the sand. Trenches made it easy to get from living bunkers to the fighting positions.








Infantry of the defences building Rommel asparagus.

Wn11 Foucarville Mauger

Geoportail 1947

Information

Wn11 Foucarville Mauger Air Photo

Details

1947 air photo showing the defences still in place.










Wn11 Foucarville Mauger

Allied Bigot Map

Information

Wn11 Foucarville Mauger Allied Bigot Map

Details

The German plan of the Wn's in the area and the minefields.


An officer sat next to a map like the one above.

Wn11 Foucarville Mauger

GSGS 4347 31/20NE - 3900 Foucarville

Information

Wn11 Foucarville Mauger Air Photo

Details

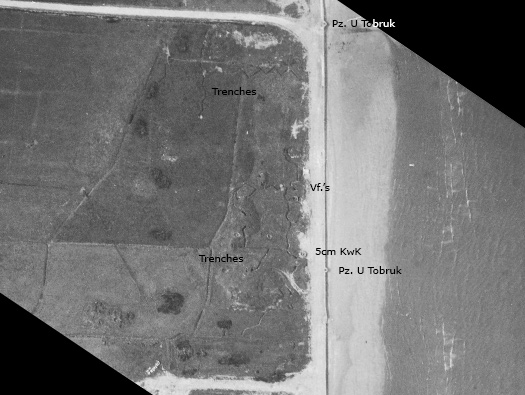

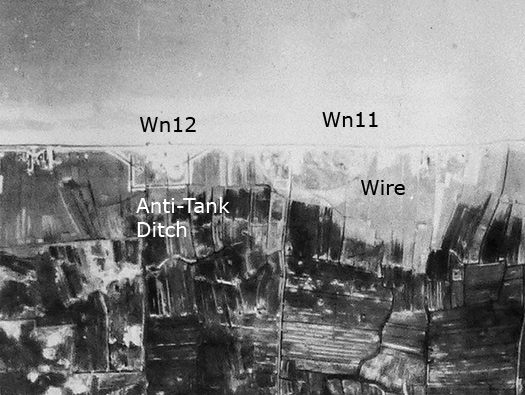

GSGS 4347 31/20NE - 3900 Foucarville an allied air photo showing up the defences, the barbed wire can be seen here.


Lightening photo reconnaissance

Wn11 Foucarville Mauger

Int

Information

Wn11 Foucarville Mauger Beach view

Details

The sort of beach defences that may have been placed out in front of Wn11.


Tree trunks with an added old shell attached to the top. The shell would explode on contact with a landing barge.


A shell on a post at Riviere.




Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U Tobruk

Details

U Tobruk for an FT Renault tank turret.


Plan showing where the tanks turret would be bolted down.


Four ammunition niches either side of the passageway into the bunker.


Three man crew of the 3.7cm FT turret.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U Tobruk

Details

Anti-tank wall attached to the bunker looking north.


Plan of the layout with a trench entranceway with dwarf walls allowing a safer way in and out.


Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U Tobruk

Details

The view the gunners would have had.


FT turret with the gunner inside.


t turret and crew.


Renault FT turret with a Reibel 7.3mm M.G.311(f).

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Nr1694 for a 5cm L/60 Pak

Details

An Nr1694 ringstand looking very good in its dominant position with a 360° view. The defenders added sand bags around the front side to give themselves a bit of cover and this could have been done when they were rudely awoken on the morning of D-Day to suddenly find an armada sitting out to sea bombarding them. Also USAAF Marauders flew in and bombed down the beach. We do know they hit Wn05 very hard.


Nr1694 ringstand.


Marauder.


Plan..

Wn11 Foucarville Mauger

Page 7 Utah Beach to Cherbourg

Information

Wn11 Foucarville Mauger Nr1694 for a 5cm L/60 Pak

Details

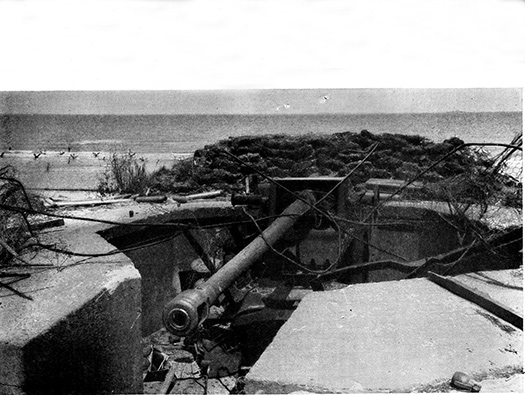

This is the ringstand with the 5cm KwK L/60 without a shield and a small wall of sand bags built up on the seaward side. The gun has been turned possibly to cover an attack from the rear.
The first two Wn's05/08 were taken on D-Day and as the beach expanded that day Wn's09/10. Then on D+1 the Americans started to attack up the beach. Next was Wn11 Foucarville Mauger. The 3 Battalion of the 22 Inf. Div. with tanks moved up the road and the infantry skirted through the inundated area and attacked from the back. Supported by fire drome the Navy, mortars and the tanks. They allowed the Americans to get quite close and then opened fire. It turned out to be a very slow and costly battle.


Nr1694 ringstand.


Sherman’s coming ashore..


Moving up the beach.


Destroyer support.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Nr1694 and Vf2a

Details

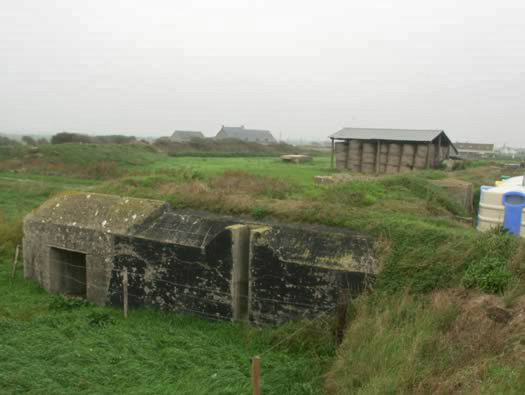

Nr1694 ringstand & the Vf2a from behind.


5cm ammunition.


Plan..

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Nr1694 & Vf2a

Details

The Nr1644 ringstand on the left and the entrance to the Vf2a on the right and a trench would have been dug around and sand bagged up.


5cm ringstand and Vf2a.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf2a

Details

Vf2a shelter for the 5cm KwK crew. The slot in the side of the bunker I believe is where a heater chimney came out.


Vf2a elevation.


Vf2a plan.


Plan of a bunker heater.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf2a

Details

Vf2a. The black is a tar paint to stop the ingress of water when the bunker was covered in earth and turfs.


Vf2a plan.


Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf2a

Details

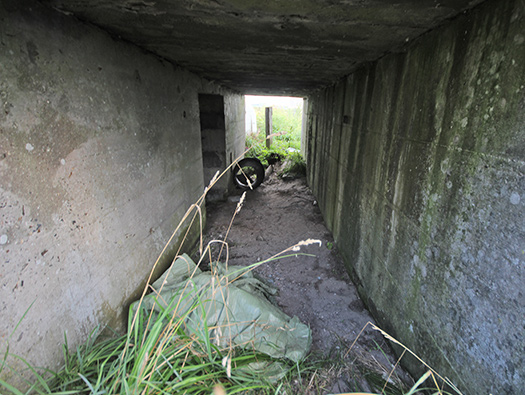

Vf2a passage.


Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf2a

Details

Crew room. There are two pipes one in the back wall and the other in the right hand wall may have been for a heater.


Heater.


WT80K.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Bf69

Details

Bf69 mortar Tobruk. The large ringstand is for an 8cm Gr.W.34 French captured mortar. There was also a second mortar in a field mortar pit.


Bf69 mortar Tobruk.


8cm Gr.W.34 (f).


The Tobruk was used as an observation for the mortar and/or a machine gun position.


Plan.

Wn11 Foucarville Mauger

Bundesarchiv

Information

Wn11 Foucarville Mauger Bf69

Details

A second mortar in a field mortar pit.


8cm mortar bombs.


8cm Gr.W.34 (f).


8cm mortar bombs.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Bf.58c

Details

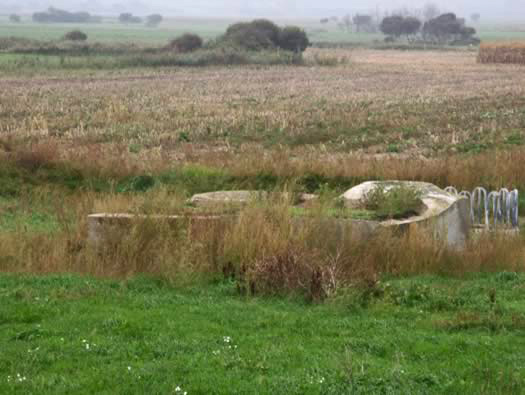

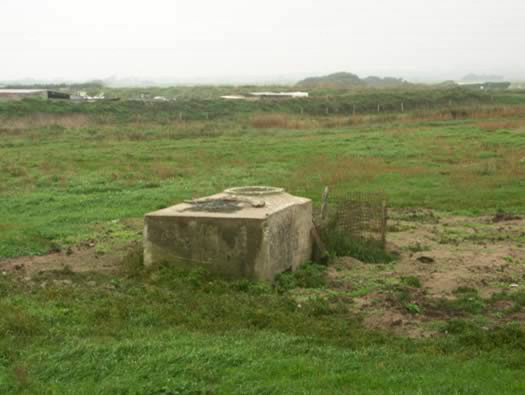

A Bf.58c Tobruk covering the southern rear side. This was very open ground ans the next defence south is quite a long way away. Earth would have covered the roof of the Tobruk with the ringstand clear and a trench connecting it to the other bunkers.


Bf.58c Tobruk.








Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Ammunition

Details

Two rooms, one larger and one smaller. A trench reached here and being in the middle could be accessed from all the Wn easily.


Plan.


3.7cm ammunition..





Plan.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Ammunition

Details

Vf ammunition bunker.


Plan.


Small arms ammunition boxes.


7.9mm \ammunition.

Wn11 Foucarville Mauger

06 October 2013

Information

Wn11 Foucarville Mauger Ammunition

Details

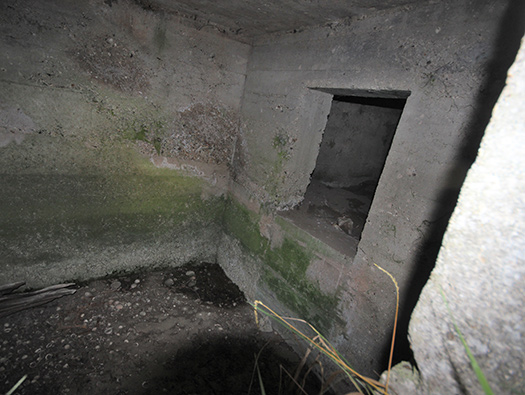

Looking inside with the main room and a second room at the far end.


Plan.







Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf kitchen

Details

Just inside the door on the left another store area.


Plan.




Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf

Details

An entrance with a stronger front face. A bunker for around six men.


Details2





Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf

Details

Looking inside where six men may have slept and lived.







Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf Kitchen

Details

It is now very hard to enter this bunker but our first visit it was very easy, I have lost the original picture (full size) and only have the smaller pictures here


Peeling potatoes.


Plan.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Vf Kitchen

Details

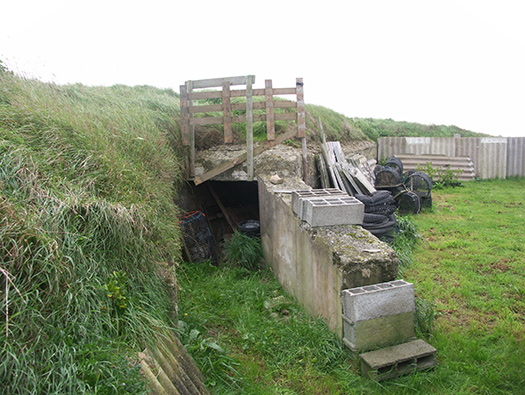

Trench entrance.
It is now very hard to enter this bunker but our first visit it was very easy, I have lost the original picture (full size) and only have the smaller pictures here like this one as a barn has been built around it.


Plan.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Vf Kitchen

Details

The passageway.

Wn11 Foucarville Mauger

Unknown

Information

Wn11 Foucarville Mauger Vf Kitchen

Details

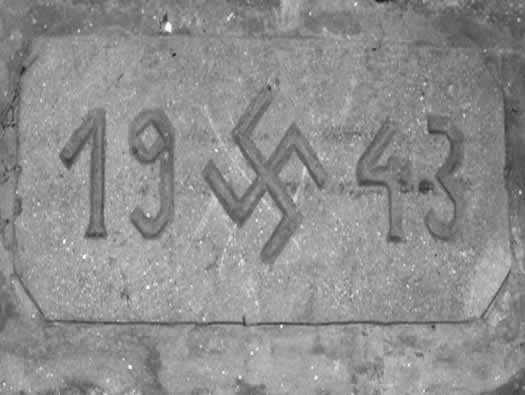

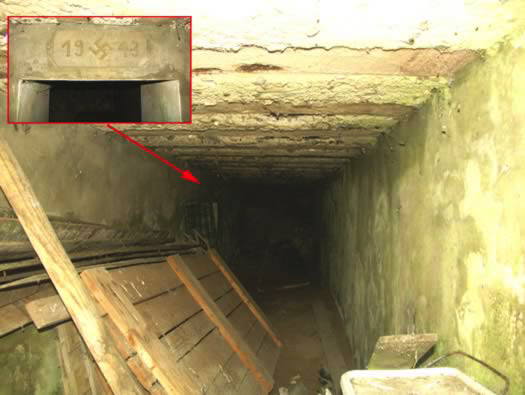

Above the door is a Swastika and the date 1943.


Either side of the entrance are two plates with 'Zur Atlantik-Klause'. This translates to The Atlantik Cell, German humour of the troops here that they felt they were imprisoned here.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Vf Kitchen

Details

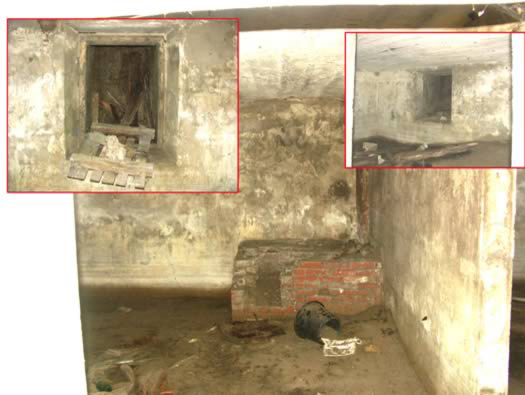

The two niches each end of the bunker as a plinth for a kitchen stove.


Details2


Fire with the coffee on the top.


Store.


Cooking..

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf Kitchen

Details












Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger Vf bunker.

Details

Small Vf bunker.





Plan.

Wn11 Foucarville Mauger

21 October 2004

Information

Wn11 Foucarville Mauger Vf bunker.

Details

Looking inside at the rubbish put in.




Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U ringstand

Details

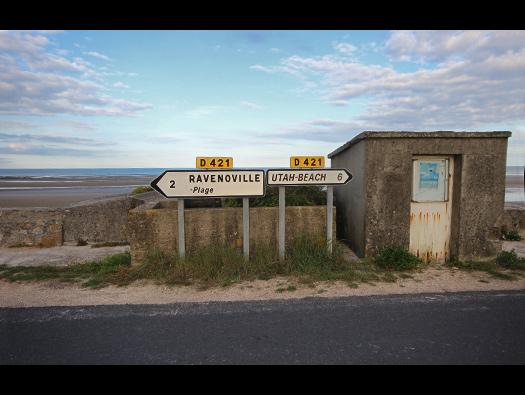

U ringstand for a 3.7cm FT turret behind the road sign and the hut is a later addition.


Landing craft under fire.


American advance.


Plan.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U ringstand

Details

U ringstand for a 3.7cm FT turret behind the road sign and the hut is a later addition.


3.7cm FT turret.


Three man crew of the 3.7cm FT turret.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U ringstand

Details

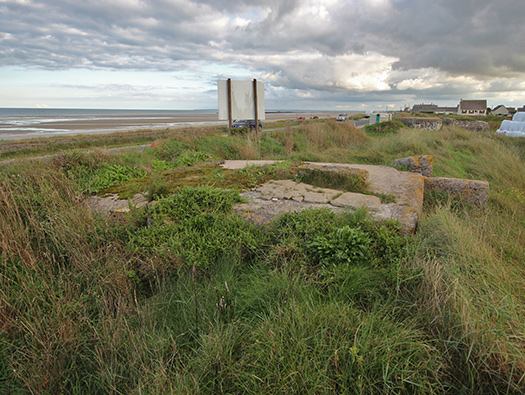

U ringstand for a 3.7cm FT turret.


Plan showing where the tanks turret would be bolted down.


Four ammunition niches either side of the passageway into the bunker.

Wn11 Foucarville Mauger

June 1944 taken from video footage

Information

Wn11 Foucarville Mauger U Tobruk for a 3.7cm FT

Details

A U Tobruk for a 3.7cm FT turret at Wn5 just down the coast.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger U Tobruk for a 3.7cm FT

Details

View from the waters edge, the hut would not have been there.

Wn11 Foucarville Mauger

Bigot plan 12 May 1944

Information

Wn11 Foucarville Mauger Bigot

Details

The Allied plan of Wn11 of what the intelligence had managed to make of the defences.






















Wn11 Foucarville Mauger

Early 6th June 1944

Information

Wn11 Foucarville Mauger US Navy approaches

Details

American troops leaving their mother ships to head for the beach.


Tank landing ship.


Details2

Wn11 Foucarville Mauger

Int

Information

Wn11 Foucarville Mauger US Army landing

Details

US troops coming ashore.

Wn11 Foucarville Mauger

Utah to Cherbourg

Information

Wn11 Foucarville Mauger Map

Details

The landing in the south immediately joined up with the 101st & 82nd Airborne. Then move inland and then move north.


Details2

Wn11 Foucarville Mauger

Int

Information

Wn11 Foucarville Mauger US Army advances

Details

Walking through the inundated area.

Wn11 Foucarville Mauger

Int

Information

Wn11 Foucarville Mauger US Army advances

Details

Troops advancing. Checking for mines.

Wn11 Foucarville Mauger

Int

Information

Wn11 Foucarville Mauger

Details

Relaxing after battle and repairing a wound.








Beach party.

Wn11 Foucarville Mauger

09 October 2013

Information

Wn11 Foucarville Mauger

Details

The beach today.
