Wn13 Grand Hameau des Dunes


Information

Wn13 Grand Hameau des Dunes

Details

4./119 Grenadier Regiment, 709th ID
1.K.p./Bau.Pioneer Bt1. 59 I.D.

2 x Vf2a crew bunkers.
1 x SK/Doppelschartenstand.
1 x Bf58c Tobruk.
1 x Vf Pakstand.
1 x 5cm KwK L/60.
1 x 4.7cm Pak 181(f).


4.7cm Pak 181(f).


5cm KwK L/60.


SK/Doppelschartenstand.

Wn13 Grand Hameau des Dunes

Google

Information

Wn13 Grand Hameau des Dunes

Details



Wn13 Grand Hameau des Dunes

Google

Information

Wn13 Grand Hameau des Dunes

Details

Wn13 was here to protect the beach entrance where fishermen could pass through the sea wall. This entrance also gives direct access to the D15 which runs inland and a good place for an Allied invasion point. The Army wanted the opening in the sea wall closed off but a company of Seenotdienst (Luftwaffe sea) air sea rescue boats that were also used by fortress engineers to gain access to St-Marcouf Islands needed it.


Plan.


Air photo.


Pioneer assault boats39.

Wn13 Grand Hameau des Dunes

Google

Information

Wn13 Grand Hameau des Dunes

Details

Sea wall entrance (Panzersperre) with a Bf.58c Tobruk. Two Vf.2a bunkers for ten men each. An Sk Doppelschartenstand for a 5cm KwK L/60 Pak gun shooting up and down the beach, then a 4.7cm Pak 181(f) anti tank gun in a field ringstand and stored in a Pakstand garage. There was also an 8cm G.W mortar in a field position. To the south flank several machine guns in field positions covering the sea road.


4.7cm Pak garage.


Elevation of a Pak garage.


Pakstand (garage) StP09.

Wn13 Grand Hameau des Dunes

1943/44 reconnaissance air photo

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

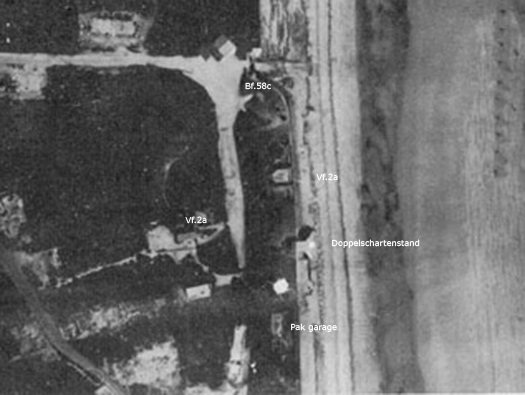

Allied reconnaissance air photo possibly just before D-Day.

Wn13 Grand Hameau des Dunes

German plan

Information

Wn13 Grand Hameau des Dunes

Details

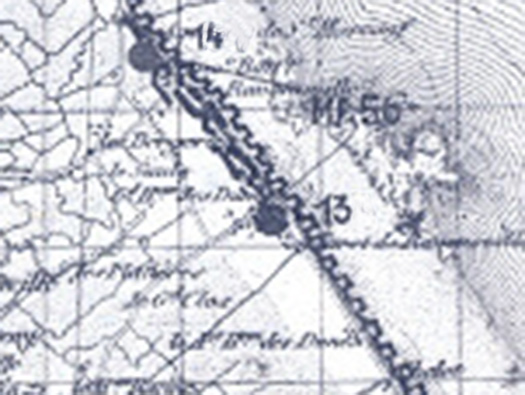

This is the German plan of the defences with Wn13 & Wn14 with the mine field to the north M.F.56 and to the south M.F.55.





Laying out a mine field.




Wn13 Grand Hameau des Dunes

Mine field plan Wn14/Wn13

Information

Wn13 Grand Hameau des Dunes Mine field map

Details

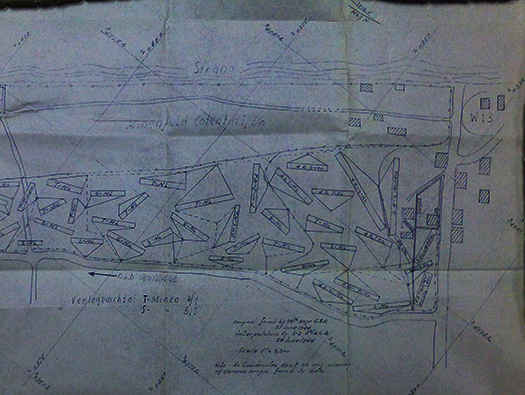

T mines and S mines and the plan of how they were laid out behind the


S Mine in its box..


T Mines (Teller) being laid.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes SK/Doppelschartenstand.

Details

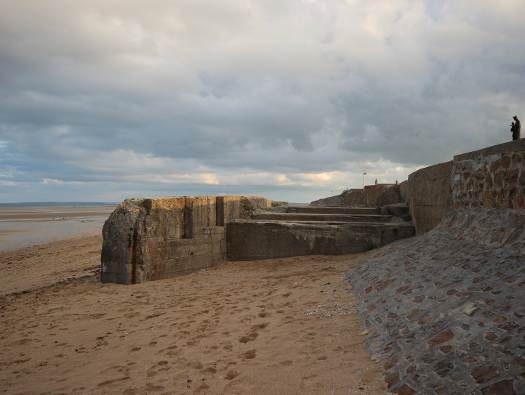

Sk Doppelschartenstand.


Air photo post war of the SK/Doppelschartenstand and it looks badly damaged.


Plan.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

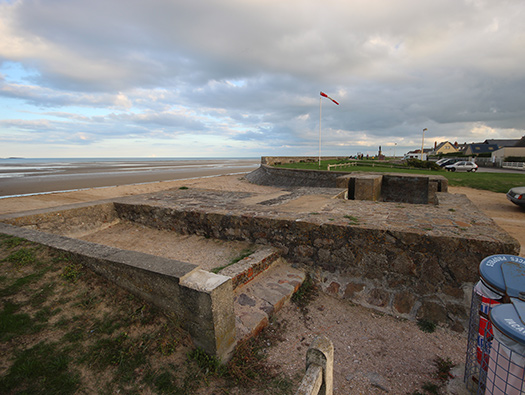

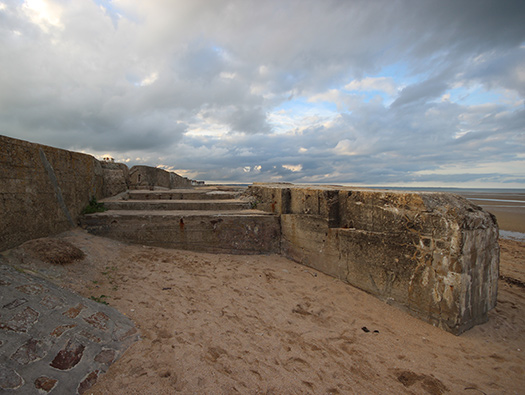

The complete roof section and walls now removed leaving only the floor area left.


Sk Doppelschartenstand.


Sk Doppelschartenstand.


5cm KwK L/60 Pak.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

This wall would have been filled in to protect the gun and crew.


Sk Doppelschartenstand how it should have looked.


Plan.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

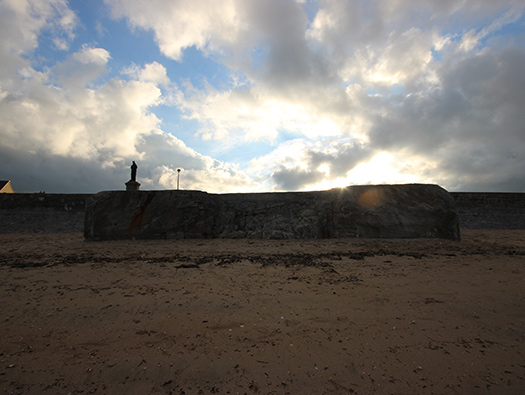

The other side.


Sk Doppelschartenstand front view.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

Gun room.
D-Day and the Americans landed seven kilometres south and a few Wn's & StP's were cleared on D-Day but Wn13 was a bit later and some very bitter fighting took place. Strait after the war many of the of the bunkers and positions were cleared away.


Sk Doppelschartenstand gun room.


5cm KwK L/60 Pak.


Air photo post war of the SK/Doppelschartenstand and it looks badly damaged.

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

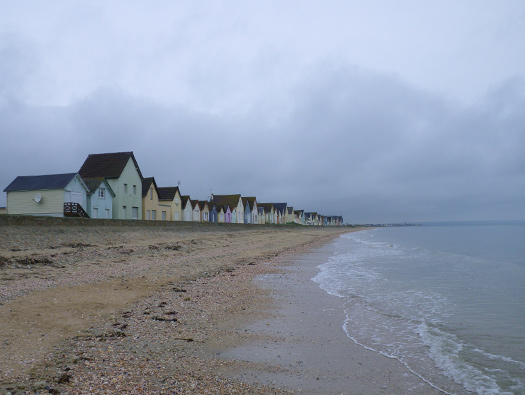

This is the area that the gun could have covered.







Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Sk Doppelschartenstand

Details

This is the area that the gun would have covered but remember only one gun and if it was covering the other flank, that meant that this flank was not being covered. This was the only problem with the Sk Doppelschartenstand.


Sk Doppelschartenstand plan from above..




Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Vf.2a

Details

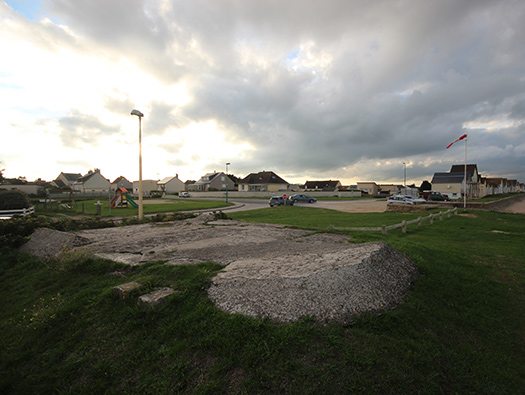

Vf.2a was a bunker for ten men to live in in relative safety, semi sunk into the ground and a small covering of earth/sand and grass growing on the top for camouflage.


Vf.2a plan.


Vf.2a elevation.


Inside a Vf bunker.



Inside a Vf bunker.

Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes Vf.2a

Details

Another view of the bunker, the second was across the road to the right of this one.


Bunker heating.




Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details




Plan.


This is a road block in north Holland showing the use of Belgian Gates (Element C).

Wn13 Grand Hameau des Dunes

06 October 2013

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details



Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

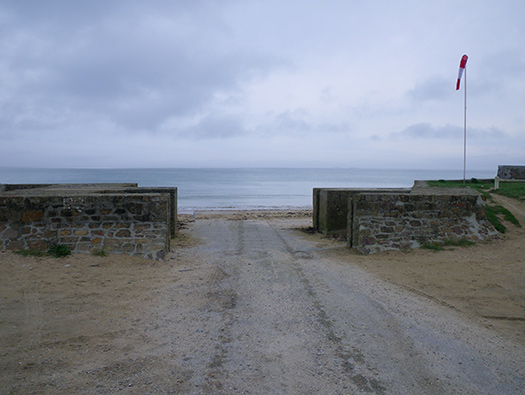

The clear opening today but in 1944 this would be a very good target to land and get inland on to the D15 and inland. That is why it was blocked and defended.

Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

How it may have looked dragging the Belgian Gate (Element C).


Belgian gate being moved by a horse.


The gate had rollers so that they could be moved around and welded fittings on the sides to either link into another gate to make a barrier or to attach them to, like here a wall.


Three gates locked together.

Wn13 Grand Hameau des Dunes

08 July 1945

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

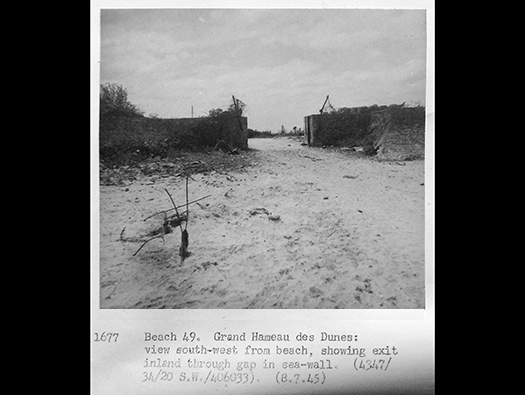

The above picture was taken by a British Army unit whose job was to photograph landing beaches all along the French coast..

Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

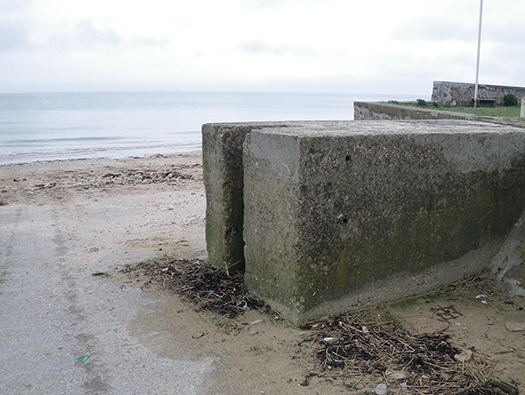

Slots in the wall to allow wooden beams to be slotted in to hold back a high tide but in wartime a Belgian gate would be fixed here.

Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes Panzersperre

Details

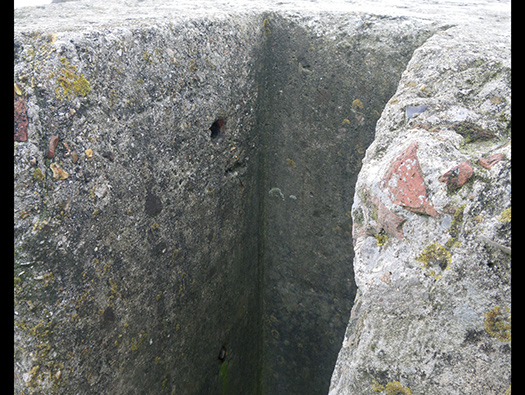

The slot and pin holes to pass a large rod to lock the gates.

Wn13 Grand Hameau des Dunes

Bundesarchiv

Information

Wn13 Grand Hameau des Dunes

Details

A mortar was stored in an ammunition bunker so there may have been a field position of some type to be able to use it.


8cm mortar bombs.


8cm Gr.W.34 (f).


8cm mortar bombs.

Wn13 Grand Hameau des Dunes

Int

Information

Wn13 Grand Hameau des Dunes Bf.58c Tobruk

Details

Covering this opening was a Bf.58c Tobruk a small ringstand just big enough for one/two men could uses a machine gun. The gun looks like an M.G.34 type.


Bf.58c Tobruk plan.


Plan of a Tobruk.


Tobruk fitting to rest on when firing a machine gun.


Plan.

Wn13 Grand Hameau des Dunes

02 April 2011

Information

Wn13 Grand Hameau des Dunes St-Marcouf Islands

Details

Stationed here were a unit of the Seenotdienst (Luftwaffe sea) with Engineer assault boats Leiche Pioniersturmboot 39. They were used for air sea rescue but also by fortress engineer company 1.Kp./Bau.Pioneir Infanterie.1st Bt.59I.D. to lay out the defences on St-Marcouf Islands and the local Wn´s and StP´'s. The Islands where not defended by any troops but a very extensive mine field was laid out around them. Just before D-Day the Americans suddenly realised that the Islands could be heavily defended and could cause damage to their landings further south. They urgently trained up an Armoured unit as assault infantry (you can imagine the grumbling from the ranks). They assaulted just before H hour and found the islands empty of any enemy but lost a lot of men to mines. EF.


Seenotdienst (Luftwaffe sea). EF.


Seenotdienst (Luftwaffe sea). EF.


The Eagle with a Swastika in its talons the emblem of the unit. EF.

Wn13 Grand Hameau des Dunes

Allied publication

Information

Wn13 Grand Hameau des Dunes Saint Marcouf Islands

Details

St-Marcouf Islands.


Illes St. Marcouf.


Assault troupes setting off for an attack.

Wn13 Grand Hameau des Dunes

Bigot 19 March 1944

Information

Wn13 Grand Hameau des Dunes Bigot Map

Details

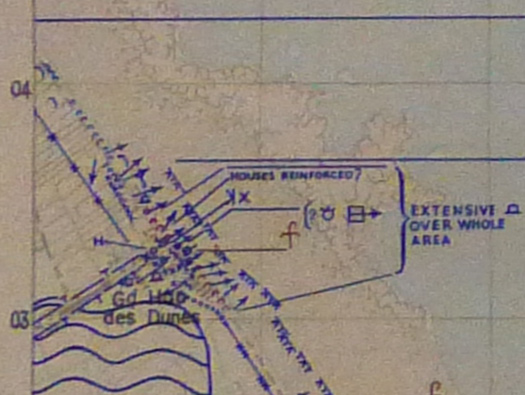

Bigot map 19 March 1944 showing the defences the Allies thought were here. The arrows show automatic weapons.


Details2


Details2


Details2

Wn13 Grand Hameau des Dunes

Int 1944

Information

Wn13 Grand Hameau des Dunes Attack

Details

US troops that attacked Wn11 & Wn12 then moved inland to Ravenoville, then turned east and Wn13. The navy softened up the defence and did quite a lot of damage. Many German soldiers tried to escape either to be captured or move away and north, but were prevented by their officers. A German POW was sent into Wn13 by the Americans under a white flag and 82 remaining Germans of the garrison surrendered and walked out to become POW's.


American engineer clearing mines.


Tank about to shoot.
