RAF Long Marston Communal Sites.

RAF Long Marston, Communal.

RAF Long Marston due to the fact it was a bomber Operational Training Unit (OTU), it would have had a lot of Officers in training passing through. Most crews were Officers, so a large Officers Mess would have been needed. This was for their meals, rest, recreation, and socialising. A Mess was a home from home. white table cloths, soft leather comfy chairs to lounge in, nice fire places to sit around.

Fire place.
Fire place.
Drinks and a leather chair.
Drinks and a leather chair.

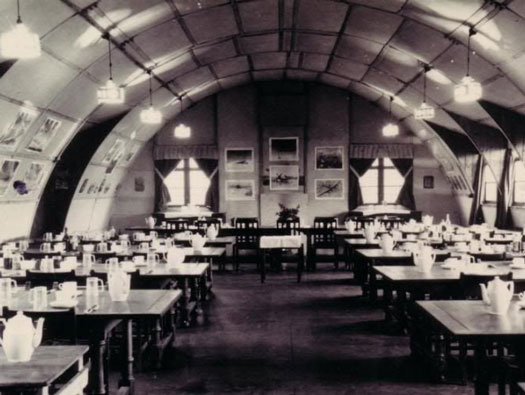

Dinning.
Dinning.

RAF Long Marston, Communal.



RAF Long Marston, Communal.

RAF Long Marston, Communal.

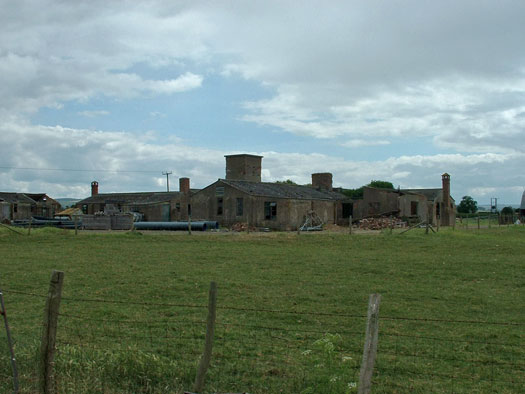

We were allowed access in 2004 now I am not too sure that many of the buildings are there, its about to be swallowed up under housing.

RAF Long Marston, Communal.
RAF Long Marston, Communal.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.
Communal : is usually the Mess's, Sergeants, Officers and the men's institute. On these early airfields the WAAF's had their own parallel communal site with mess's, etc and sleeping accommodation. On later built airfields the WAAF communal site often integrated with the men but they always had their own sleeping sites. The Mess was/is the place that Officers/Sergeants/Corporals ate, relaxed and socialise together, a very class related system. The men had the Institute for relaxing/socialising and the usually huge dinning room to eat in.

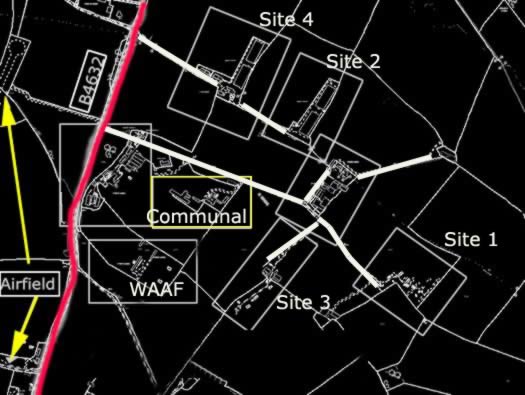

Plan.

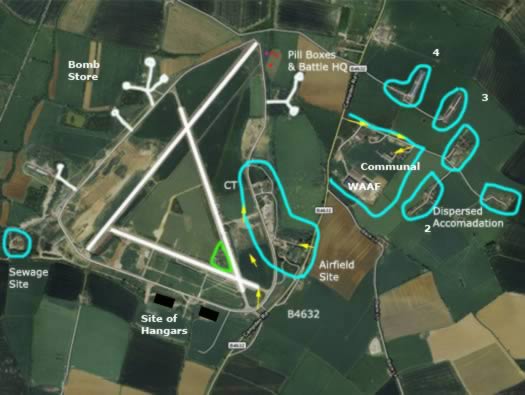

    The communal site within the yellow square.
Plan. The communal site within the yellow square.
RAF Long Marston, Communal.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

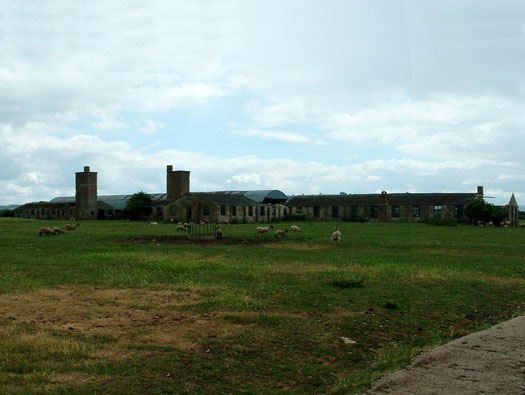

Officers Mess I do not have a full site plan for RAF Long Marston so I am guessing that this is an communal site built in temporary brick construction, rendered with asbestos sheet roofs over steel trusses and a long 30ft Romney hut, possibly dinning room..
Plan.
Plan.
Air photo.
Air photo.
Plan.
Plan.

RAF Long Marston, Communal.

RAF Long Marston, Communal.
Officers Mess. Because of the RAF rank structure there were lots of officers in aircrew and they needed large living accommodation to cope. The mess was designed on the Pre-war mess's idea of comfortable soft chairs and sofas, with a well stocked bar.
Pre dinner drinks.
Pre dinner drinks.
A Cecil Beaton photo of a Mess.
A Cecil Beaton photo of a Mess.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

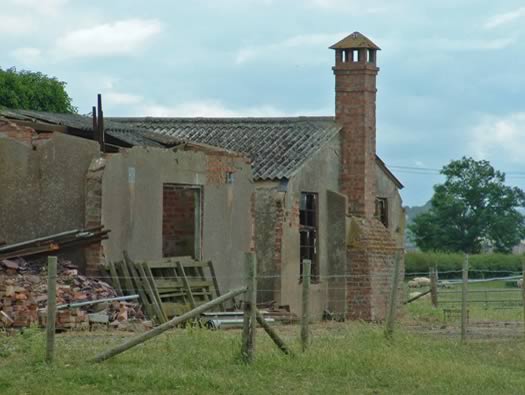

Officers Mess note the extra detail to the chimney.

04 June 2004

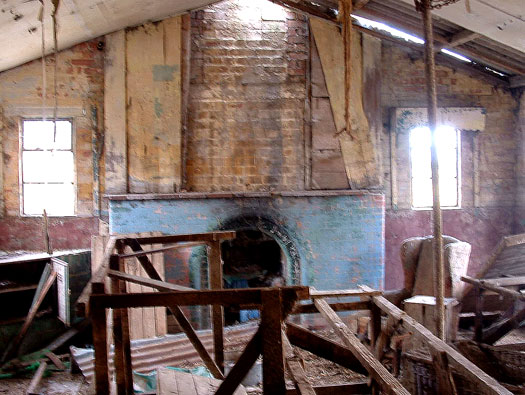

The fire place inside.
The fire place inside.
24ft Nissen hut Officers Mess fire place.
24ft Nissen hut Officers Mess fire place.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

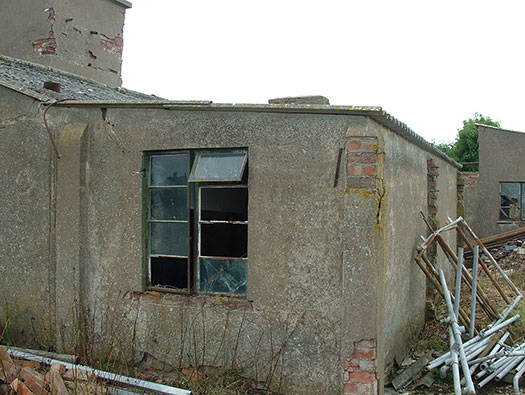

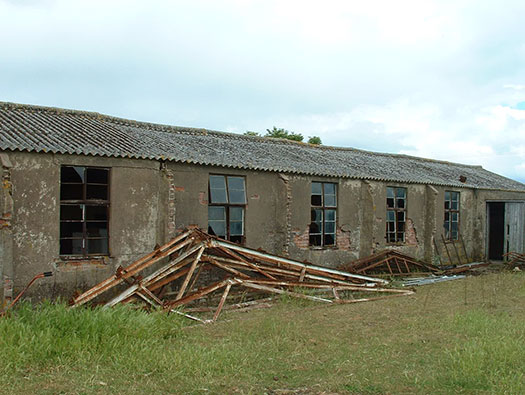

Offices Mess Temporary Brick structure with steel roofing trusses and asbestos roofing sheets. Lying on the ground are some steel roof trusses from demolished buildings.

04 June 2004

TB layout.
TB layout.
TB design.
TB design.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

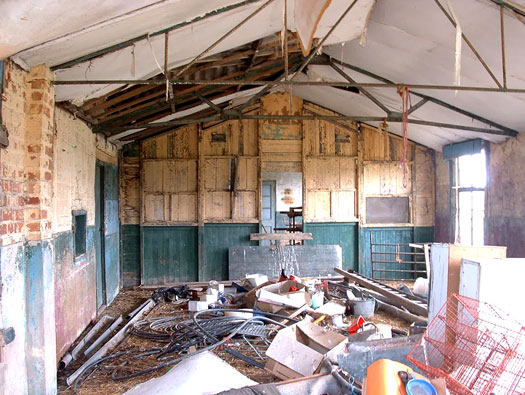

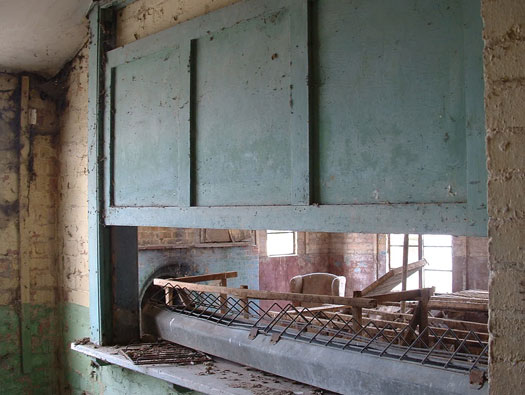

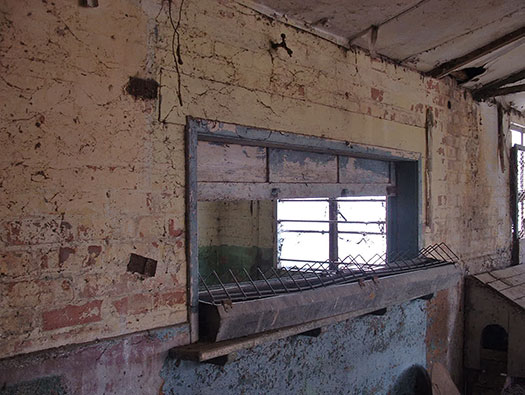

Offices Mess. There is a small serving hatch on the left to a kitchen. The wooden panelling, steel trusses. pelmets on the windows and the two tone colour scheme.
The mess serving hatch was not for full meals, but for snacks where stewards could cook up or make the odd sandwich.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.
Officers Mess Small attached kitchen, probably for tea, coffee and snacks.
Mess servant.
Mess servant.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

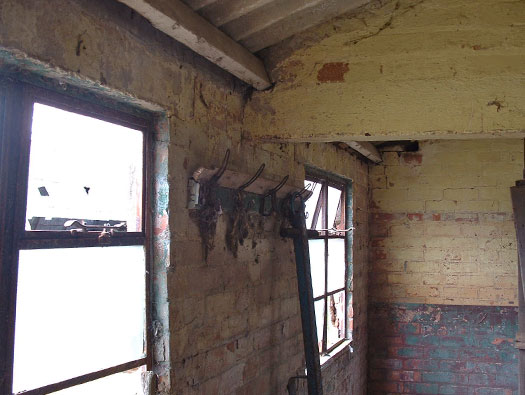

Officers Mess Coat rack still on the wall.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

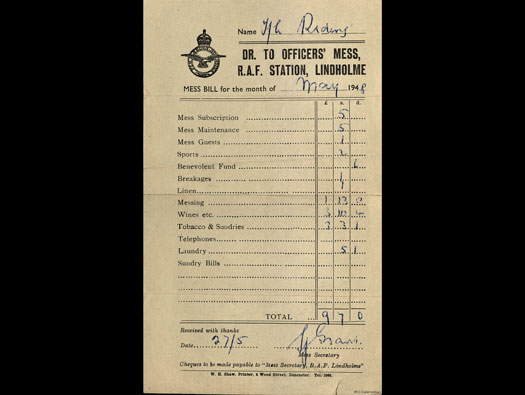

Mess bill from RAF Lindholm, a bomber station on the east coast.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

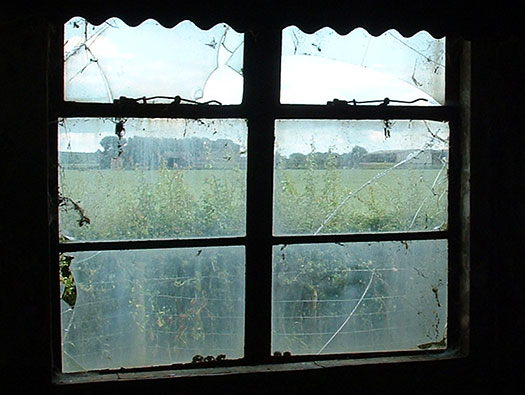

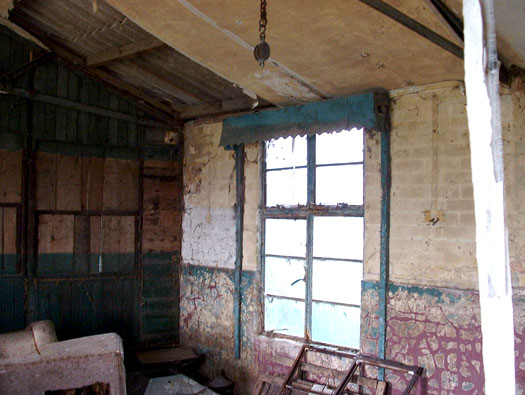

Officers Mess note the pelmet on the window where curtains and a blackout blind would have been fitted. The colours although faded, these are the original colours.

Blackout blind: was a black roller blind that could be pulled down over the window to stop any light seeping out. This was an air-raid precaution. Another method was a wooden shutter that hooked into slots and had small wooden turn buttons to hold them on.

04 June 2004

Blackout four turn buttons to hold a blackout panel.
Blackout four turn buttons to hold a blackout panel.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

Officers Mess a very comfy rest room, I expect they even had slippers.

The RAF was very class-conscious and Officers had either a room on their own or to share with one other. A man servant (batman) between two to four Officers.

A comfortable Officers Mess to live in and dine.

Sergeants had to share rooms at four to a room, their own Mess, dinning and rest-room .

The men had to make do with a hut for about 10 or more and an institute, with hard chairs and tables, heated by stoves and not at all so cosy.

Fire places.
Fire places.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.
Officers Mess Servery. I believe these huts were also used after WW2 by displaced Polish families into the 1970's.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

Looking from the kitchen side.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

Officers Mess.

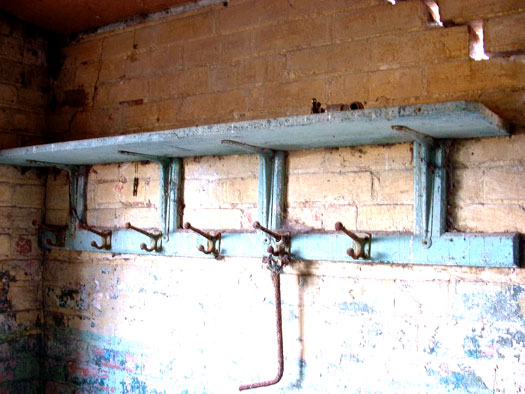

Coat and hat rack.

04 June 2004

Officers service cap.
Officers service cap.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

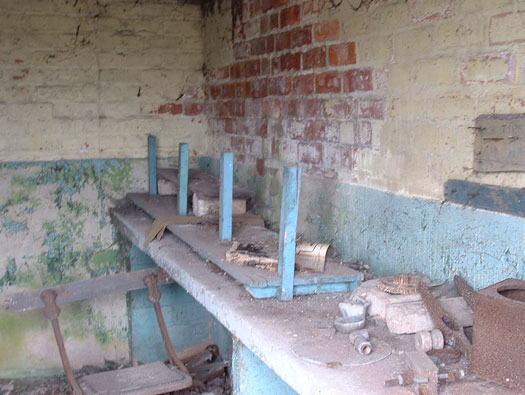

Officers Mess servery concrete preparation table. Even an original chair?

RAF Long Marston, Communal.

RAF Long Marston, Communal.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

Motor Transport.

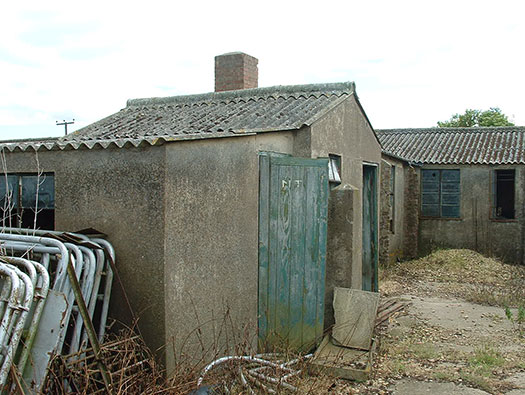

This is the toilet and possibly the rest room next door for the Motor Transport staff car drivers? They would be on call 24hours for senior Officers use only.

04 June 2004

Hillman staff car.
Hillman staff car.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

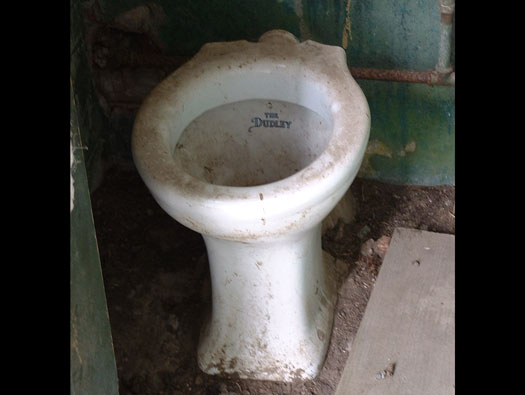

The M.T. drivers toilet 'The Dudley'.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

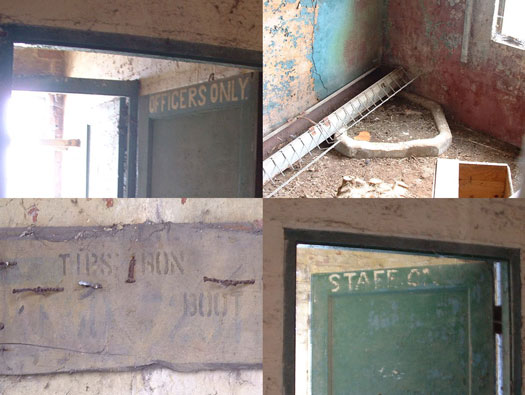

Officers Mess A montage showing different details around the Mess. Officers only toilets. A pot bellied stove corner base. 'Tips Iron Boot' cobblers shop, and 'Staff Only' into the kitchen.

04 June 2004

Stove and base.
Stove and base.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

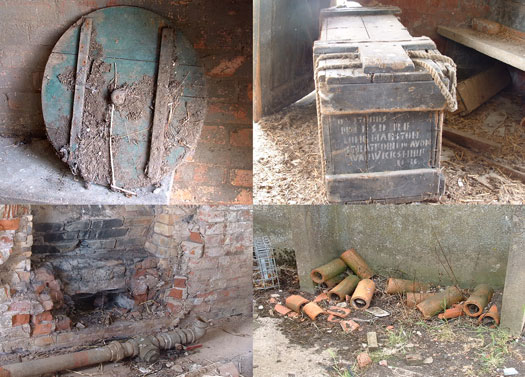

Officers Mess lid cover for an Elsan toilet bucket. A box stencilled with Marston Moor on it. Large hot water pipe passing under the fire place for central heating. Hand made clay water pipes.

04 June 2004

Elsan bucket at RAF Hurn.
Elsan bucket at RAF Hurn.
RAF Long Marston, Communal.

RAF Long Marston, Communal.

RAF Long Marston, Communal.

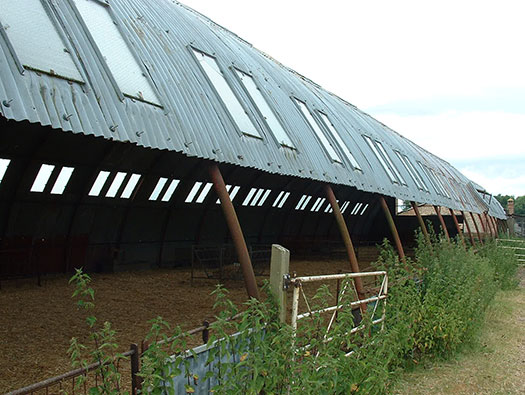

Officers Mess The large dinning hall for Officers in a Romney hut (about 30ft).
Note the Romney tubular hoop supports.

04 June 2004

RAF Long Marston, Communal.

RAF Long Marston, Communal.

This is a 30ft Nissen hut, but the Romney would have looked very similar

AIR Doc

RAF Long Marston, Communal.

RAF Long Marston, Communal.

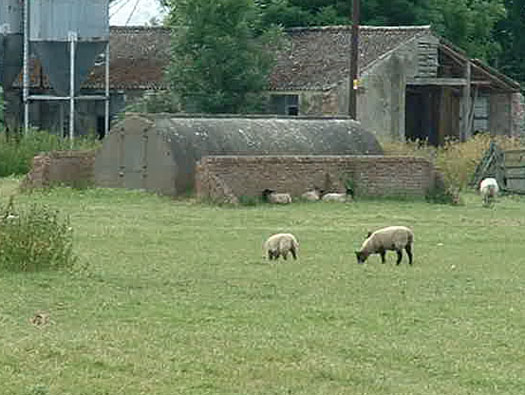

Stanton air raid shelter.
