StP123 'Mülheim' Calais Digue Royale ouest
STP · K.V.Gruppe Calais · AOK 15 Nord Pas de Calais · France
StP123 Mülheim Calais Digue Royale ouest
As far as I can see, this site was a Flak site covering a band of the countryside from just behind the sand dunes and some inland batteries. The guns 2cm and 3.7cm Flak could also be used as ground defence and for AA cover over a vast area with railway guns and heavy gun batteries under their protection.
StP123 Mülheim Calais Digue Royale ouest
StP123 Mülheim Calais Digue Royale ouest
5 x Wellblech bunkers.
2 x R600b open emplacements.
2 x Vf Unterstand plus Flak.
2 x 5cm KwK L/42.
2 x 2cm Flak 30.
1 x 3.7cm Flak 36.

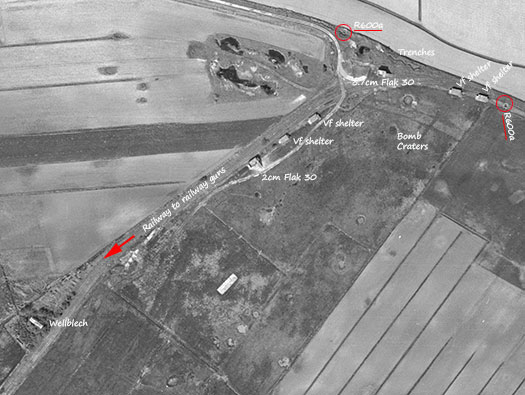

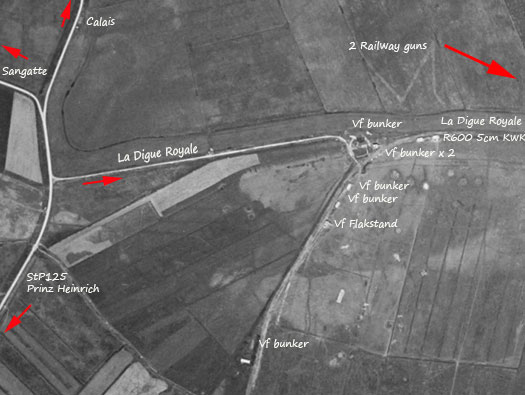

1946 Geoportail
StP123 Mülheim Calais Digue Royale ouest

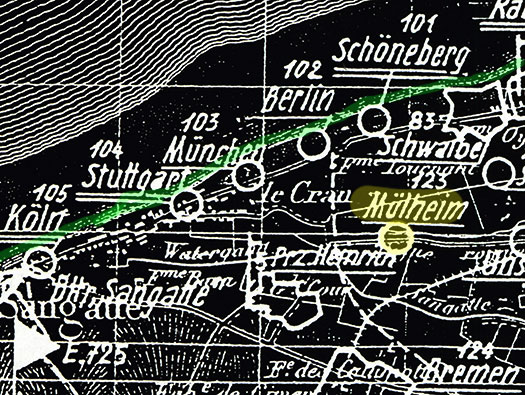

Mülheim sitting between the beach and the next level of defences behind. This was one of the strongest defence of the Atlantikwall.

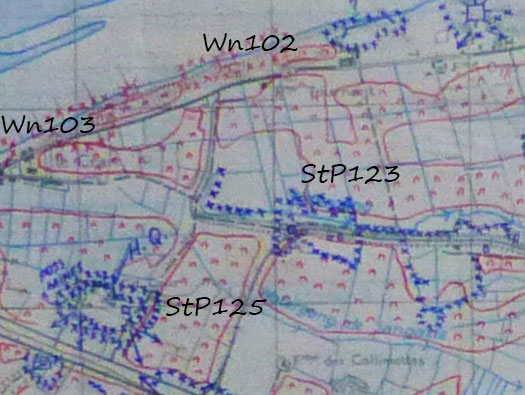

Stützpunkte und Reserven plan im K.V.A. C 20 May 1944
StP123 Mülheim Calais Digue Royale ouest
Allied plan of the area used by Allied forces attacking Calais in “Operation Undergo”.
Map of “Operation Undergo - Calais”
StP123 Mülheim Calais Digue Royale ouest
I believe its a one room bunker with a door the other side.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

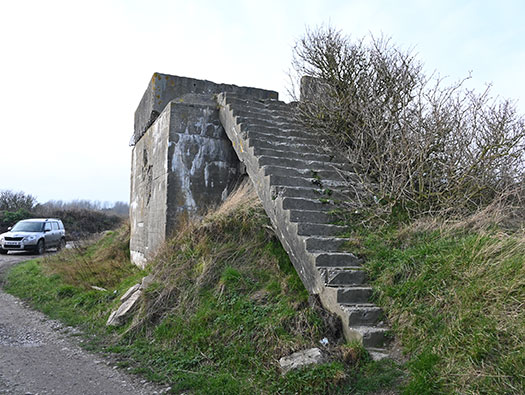

The steps up or down and remember you will have to carry 3.7cm Flak 36 cannon shells up there.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

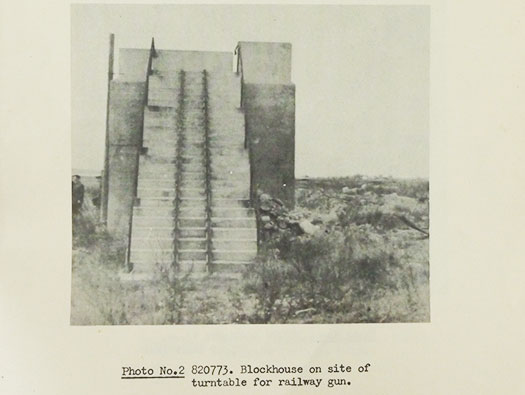

A 1945 photo of the steps up the flak tower. I see there were hand rails running up each side and what look like railway lines running up the steps to draw a gun/searchlight up the emplacement.
820773 The exact purpose of the railway lines embedded in the steps leading to the parapeted roofs of the blockhouses cannot be ascertained (? for mounting small radar in connection with rly battery) from the reference on WO 33/1831.
WO 33/1831 German Coastal Defence in the Pas de Calais - October 1945
StP123 Mülheim Calais Digue Royale ouest
It could be a double entry like a Vf2a type bunker.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest
This looks like an air strike from above and to the right, cannon shell maybe. The bunker looks as though it was here and somebody decided to add a flak position on its roof and as you see. The flak wall is made of different materials and at a different time.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

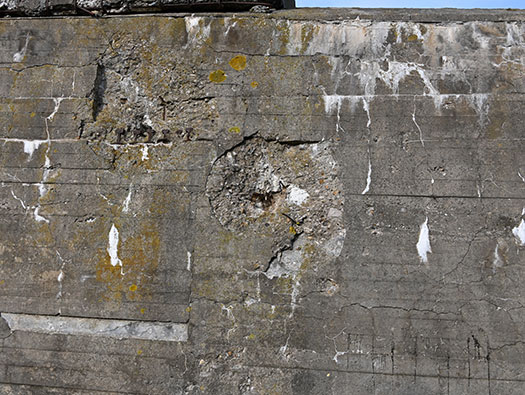

More cannon strikes.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

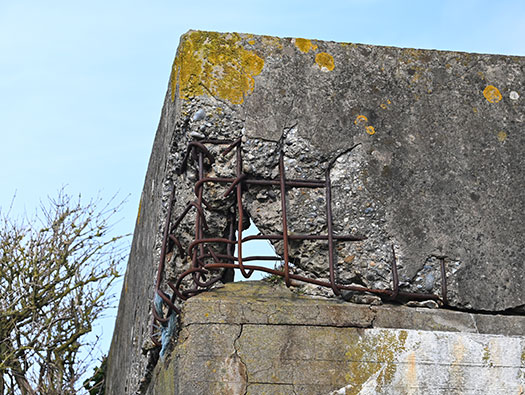

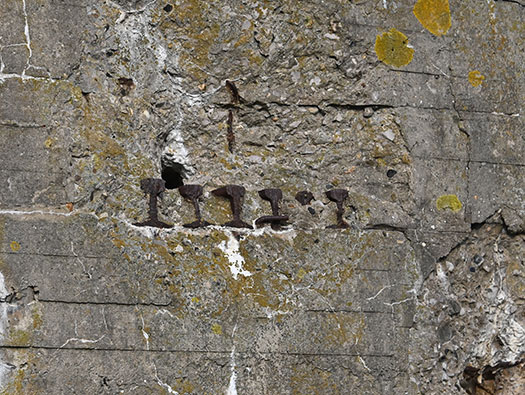

Railway lines being used to strengthen the roof of the bunker.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

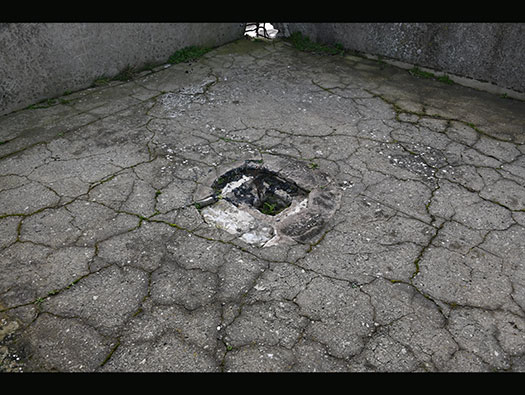

Up on the roof where a gun would have sat. I would say 3.7cm.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

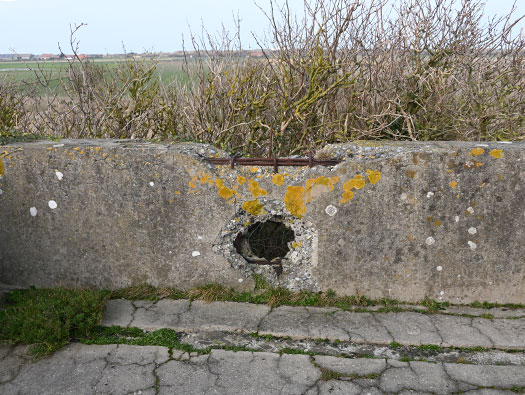

I hope the water does not drain into the bunker. You can also see where the cannon shell went through the outer wall.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest
This maybe an armoured piercing shot from a Canadian Sherman.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

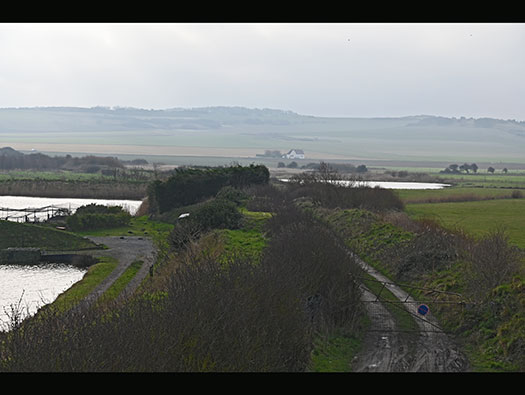

The view to several more Vf (Vf2a's) type bunkers. And beyond all sorts up on that hill.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest

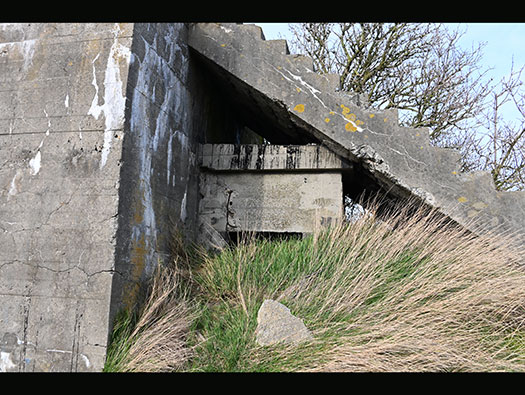

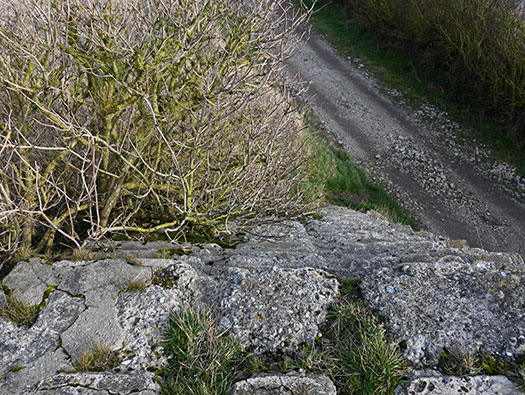

The steps down.
26 January 2020
StP123 Mülheim Calais Digue Royale ouest
There was one on each flank.
Geoportail 1961
StP123 Mülheim Calais Digue Royale ouest

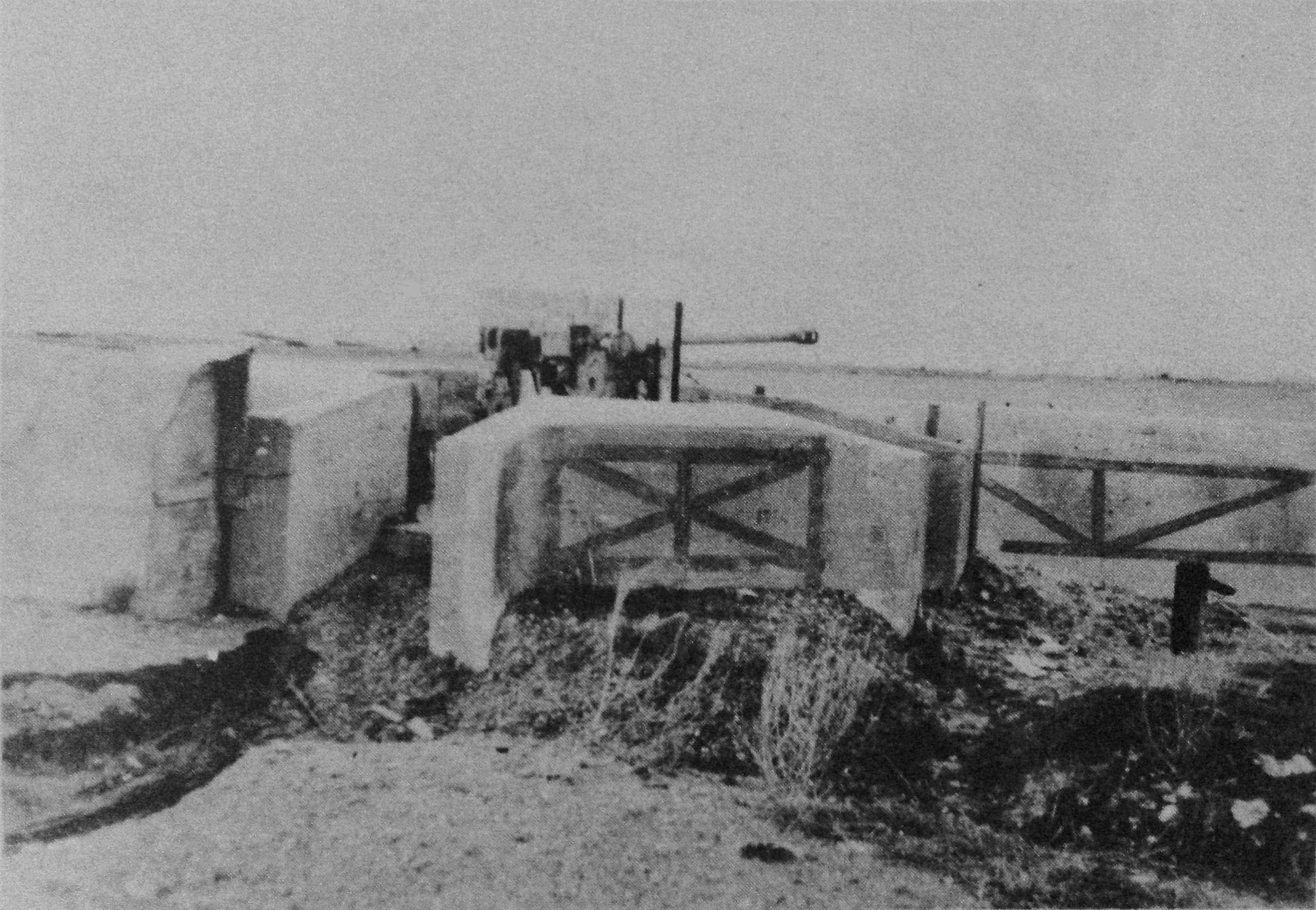

A Vf600a exactly like the two here would have looked.
WO 33/1831
StP123 Mülheim Calais Digue Royale ouest
26 January 2020
