Wn10 Hameau Mottet
WN · K.V.Gruppe Cotentin Ost · AOK 7 Normandy · France
StP10 Hameau Mottet
2 x Vf2a shelters.
2 x Vf69 mortar Tobruk's.
1 x Vf/Skoda.
1 x R676 casemate.
1 x R612 Gruppe bunker.
1 x Vf/MG.
4 x Vf shelters.
4 x Vf58c Tobruk's.
1 x Ringstand Gr.W.
1 x 5cm Ringstand.
1 x 7.5cm F.K.
1 x FT17 3.7cm KwK 144(f).
1 x S35 4.7cm KwK 173(f).
2 x 4.7cm Pak K36(t).
1 x 5cm KwK L/60.
1 x 4.7cmPak 181(f).
StP10 Hameau Mottet
Google Maps
StP10 Hameau Mottet

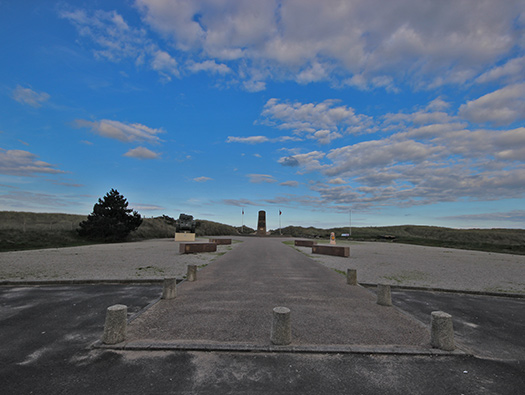

Memorial to the landing of the 2nd Armoured Division (French: 2e Division Blinder, 2e DB), commanded by General Philippe Leclerc landed around the 1st August 1944.
06 October 2013
StP10 Hameau Mottet

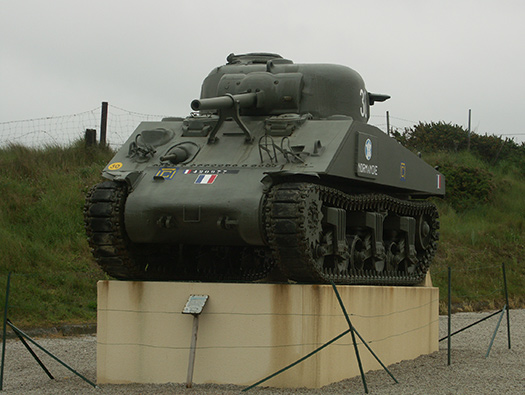

Possibly an M4A2 of the 2e Division Blinder.
14 May 2005
StP10 Hameau Mottet
Possibly just arrived in France and waiting
14 May 2005
StP10 Hameau Mottet

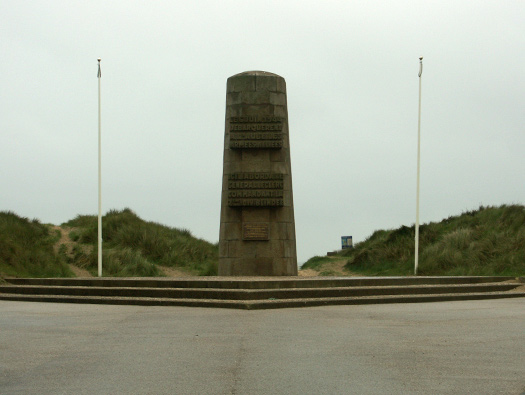

A monument to General Leclerc’s 2nd Armoured Division of the Free French Army who landed on this stretch of Utah beach on the 1st August 1945.
14 May 2005
StP10 Hameau Mottet

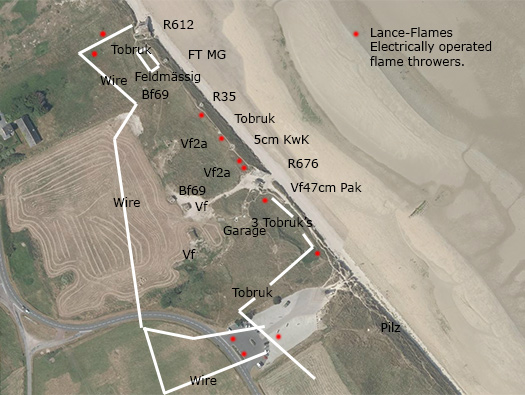

Layout of the defences of StP10 and the barbed wire fence surrounding the inland side.
Plan
StP10 Hameau Mottet

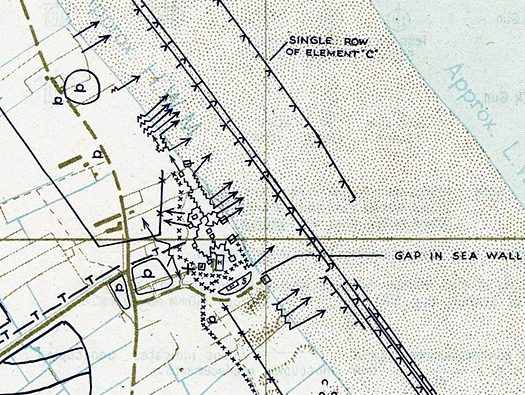

The Allied Bigot map showing the defences and the row of Element 'C' just off the beach..
Plan
StP10 Hameau Mottet

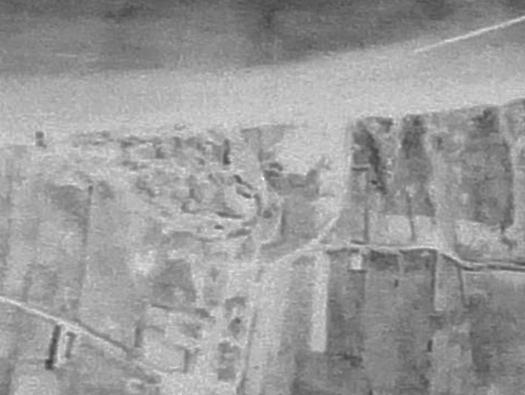

The RAF & the USAAF had reconnaissance Squadrons that worked together to gather as much intelligence as they could before D-Day.
Plan

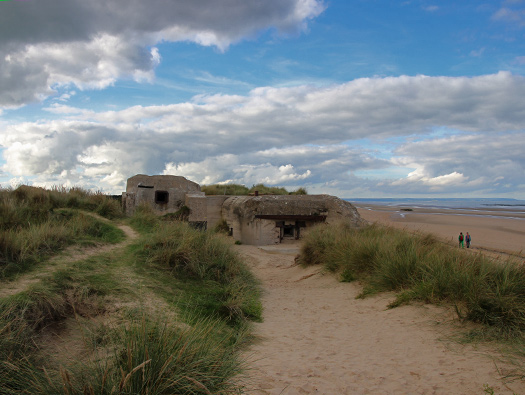

StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet

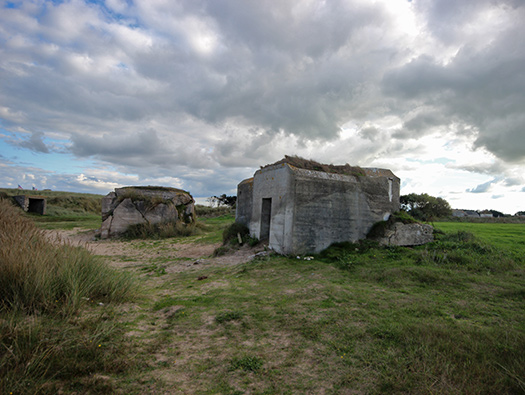

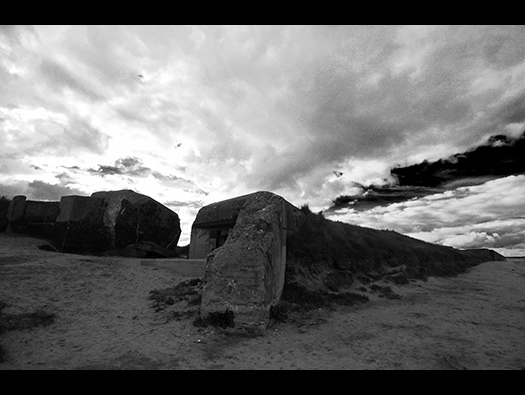

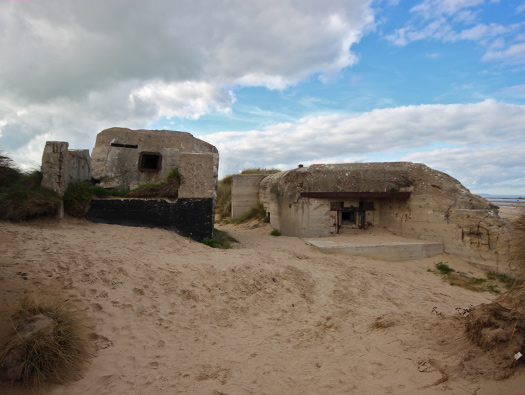

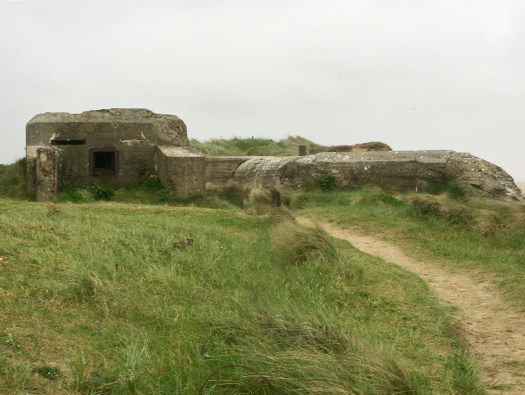

The left bunker: an old fortress design not really a field positions type.
The right bunker: an R676 an updated version of the Skoda bunker. This one has an integral flanking wall. A better rear entrance and an escape hatch. Oh and much thicker concrete.
06 October 2013
StP10 Hameau Mottet
Left - Vf Skoda 4.7cm Pak K36(t).
Right - R676 4.7cm Pak K.36(f).
06 October 2013

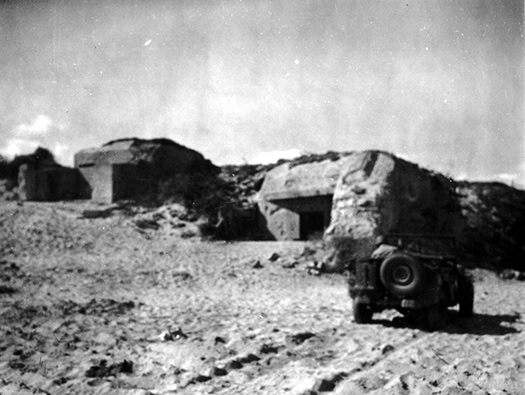

StP10 Hameau Mottet
1944
StP10 Hameau Mottet

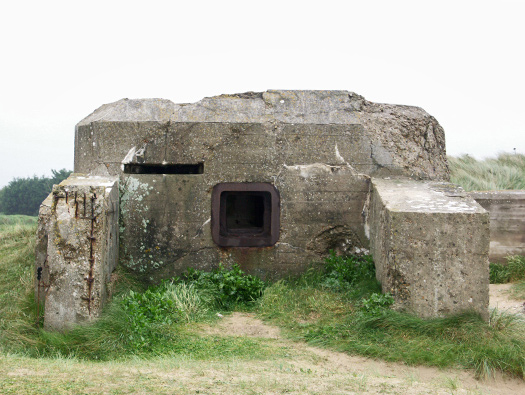

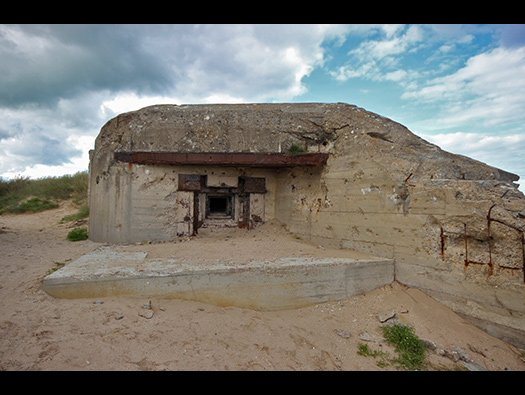

A standard Vf Skoda casemate one of several around this part of France. A Fortress design but adopted here with two flanking walls and also they are quite low so the vision slit can view over them.
00 00 00
StP10 Hameau Mottet
The gun was set into the embrasure and the slit on the left is the gun commanders viewing slot. Two unusual defensive flanking walls may have been added to protect the gun after it was built. They were not standard.
00 00 00
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet

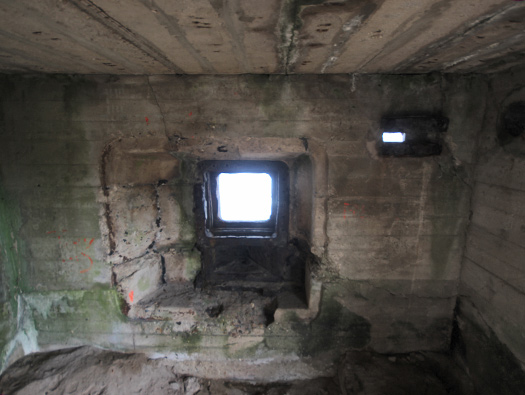

Gun room.
06 October 2013
StP10 Hameau Mottet
The gun was bolted to the embrasure and could swing inward to open. The main 4.7cm gun can be used but also a co-axle MG.Vz37(t) could also be used for close defence.
06 October 2013
StP10 Hameau Mottet

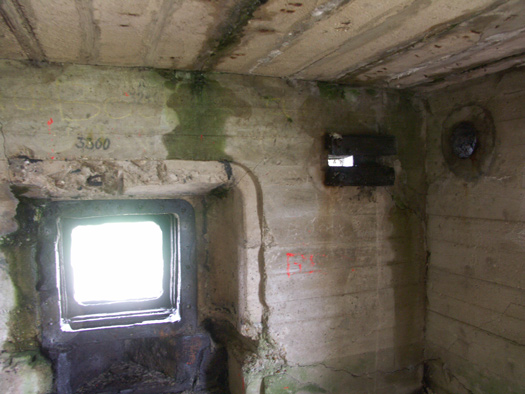

The numbering above the guns embrasure indicates the angle of the gun 3300°. The German compass measurement is 0 to 6400 thousands (mills). [Bunkersite.com]
06 October 2013
StP10 Hameau Mottet

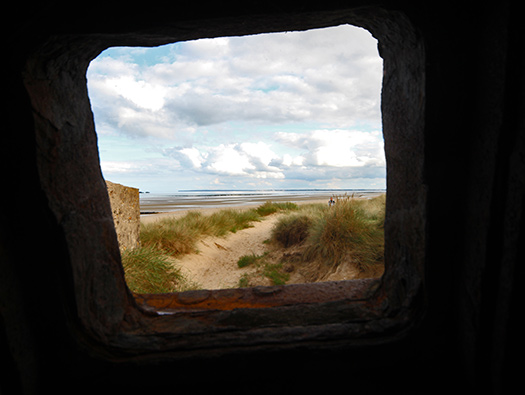

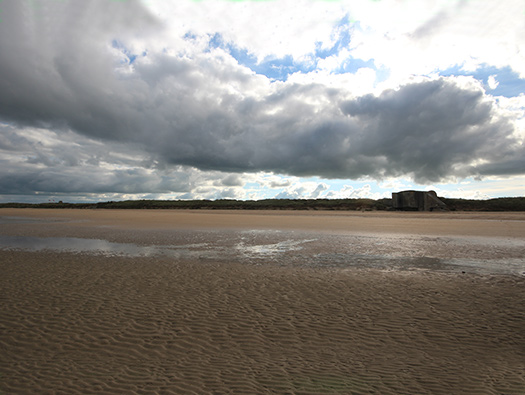

The view down the beach.
06 October 2013
StP10 Hameau Mottet

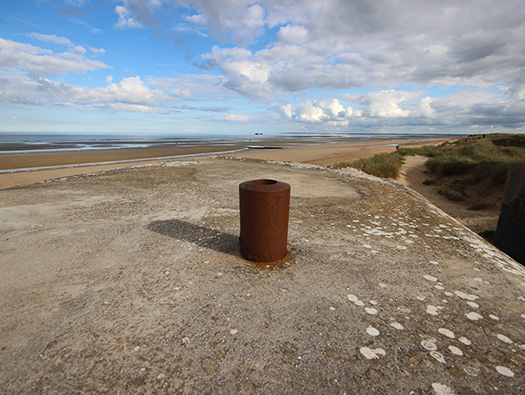

Note the periscope armoured tub rising out of the bunker.
06 October 2013
StP10 Hameau Mottet

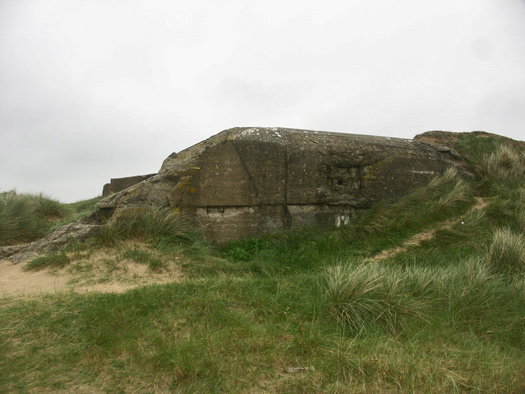

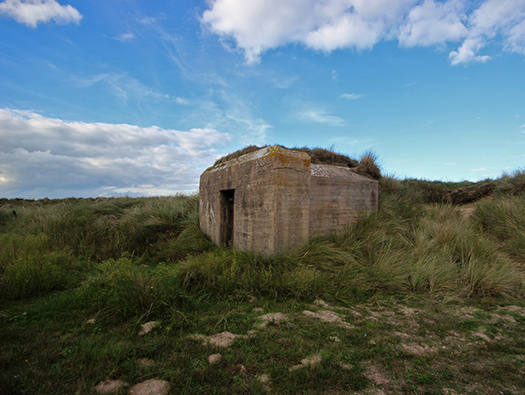

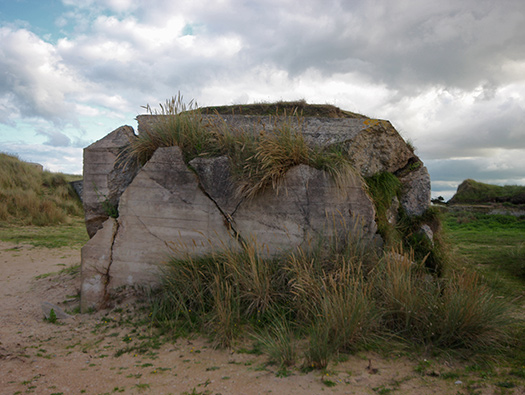

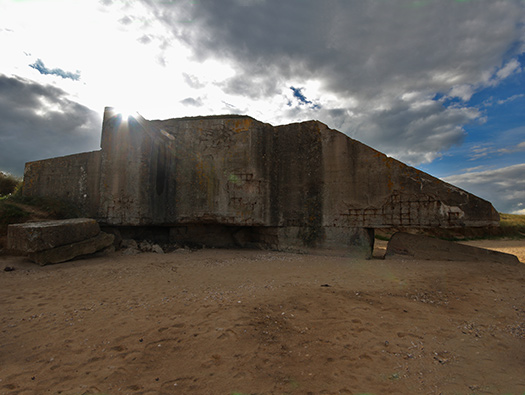

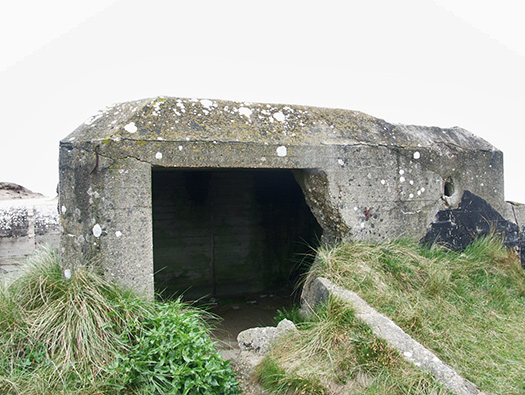

Rear of the bunker.
14 May 2005
StP10 Hameau Mottet
An armoured piercing round. Looks a bit like a Sherman round? or a destroyer out to sea.
14 May 2005
StP10 Hameau Mottet

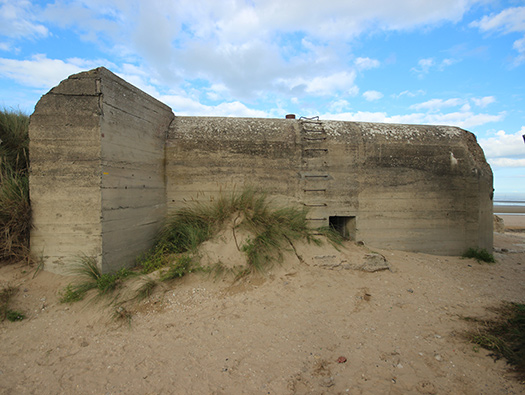

The escape hatch and steel ladder up the side of the bunker. There would have been a brick wall built around the ladder as protection and the sand covering the whole of the side.
06 October 2013
StP10 Hameau Mottet

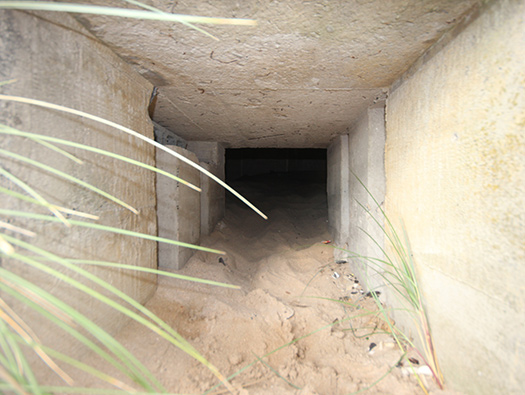

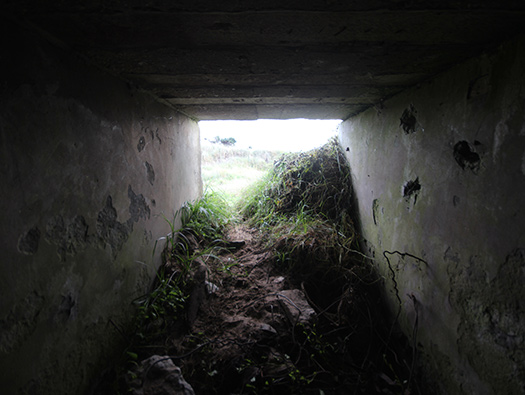

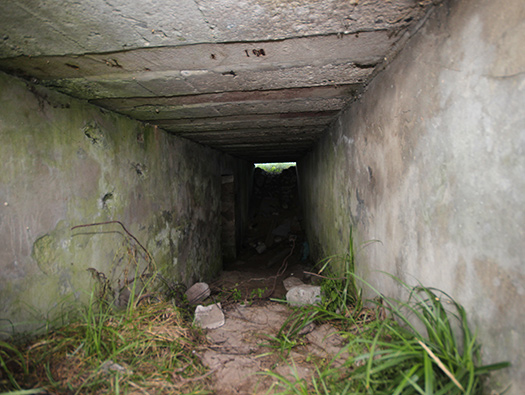

The escape tunnel.
06 October 2013
StP10 Hameau Mottet
The front view.
06 October 2013
StP10 Hameau Mottet

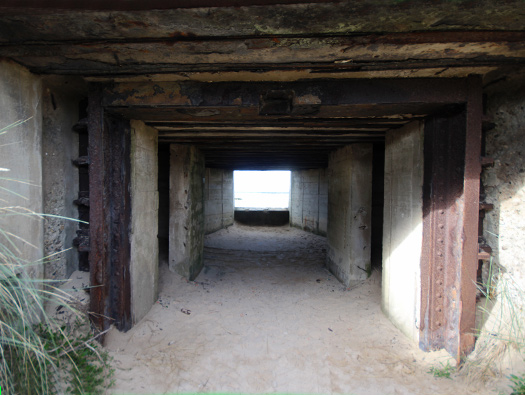

The gun room and rear entrance.
06 October 2013
StP10 Hameau Mottet
Periscope tube fitting. This would allow the gun commander to be able to stay in safety and have a 360° view.
06 October 2013
StP10 Hameau Mottet

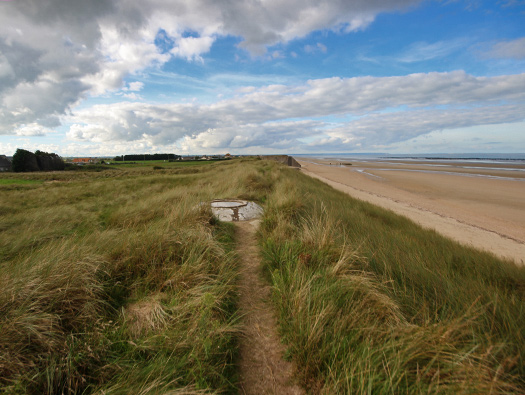

View up the beach.
06 October 2013
StP10 Hameau Mottet

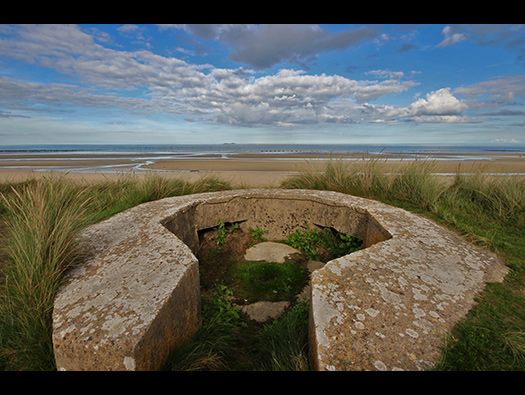

A very simple gun emplacement with ready ammunition niches around the walls.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet

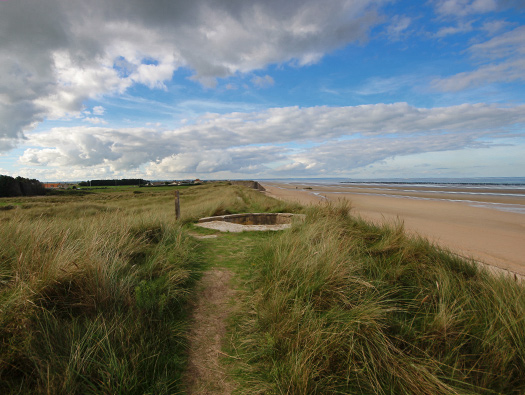

It would have been a hell of a view from here on D-Day.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
Now concreted over.
06 October 2013
StP10 Hameau Mottet

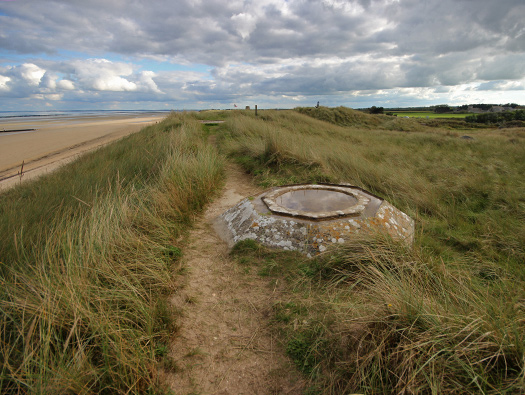

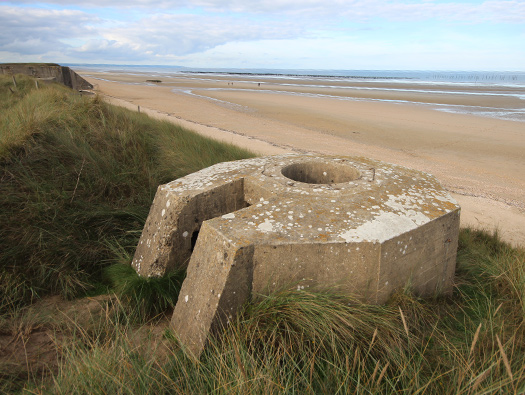

These very easy to make had a tank turret fitted on the top and small ammunition shelves each side. Crewed by two to three men, gunner, ammunition handler and third either helping pass ammunition or spotting for the gun.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
Rear view.
06 October 2013
StP10 Hameau Mottet
Gun room. A heavy steel door frame around the entrance where there should have been two steel doors. These if fitted would have been removed by the scrap men.
L.A.G. Landings Abwehr Geschutz ( Landing Defence Gun).
06 October 2013
StP10 Hameau Mottet

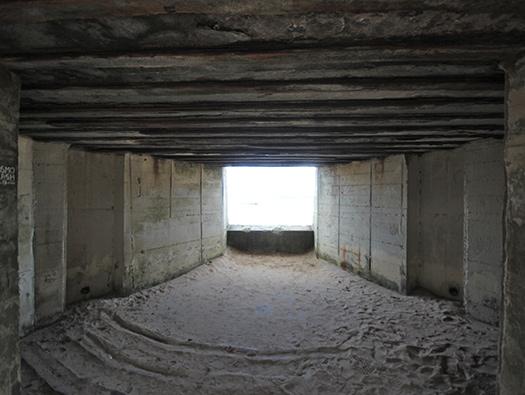

Gun room. The half round slots in the floor were so the guns trail could slot into it and stop the gun moving backwards when fired.
06 October 2013
StP10 Hameau Mottet

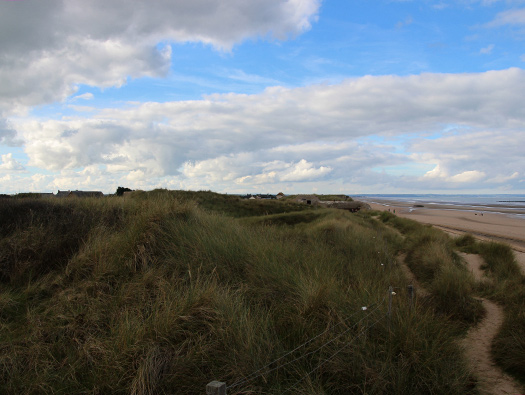

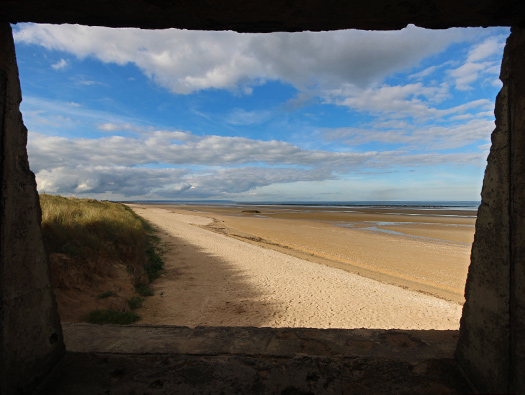

The view the gunners would have had up the beach to the north.
06 October 2013
StP10 Hameau Mottet

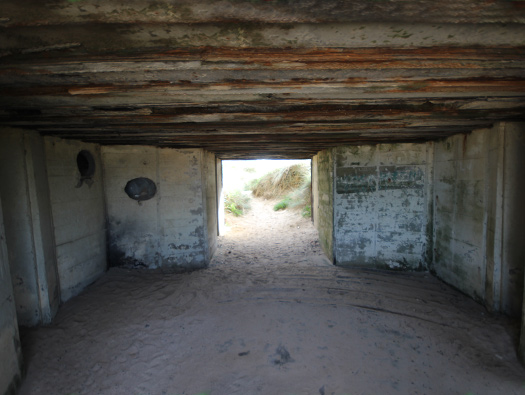

The gun room towards the rear.
06 October 2013
StP10 Hameau Mottet

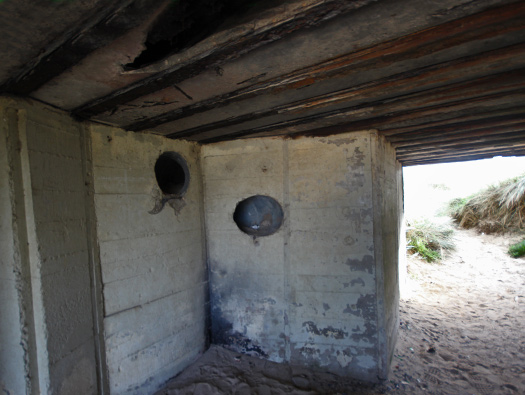

The two large pipe fittings on the left side for a large extractor fan.
06 October 2013
StP10 Hameau Mottet
Two ammunition niches either side.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
What looks like a 3inch shell may have come from a Tank Destroyer
14 May 2004
StP10 Hameau Mottet

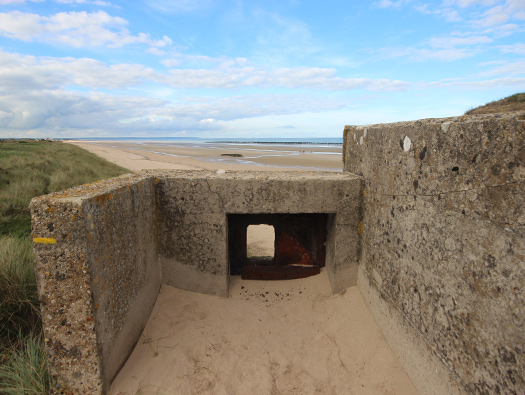

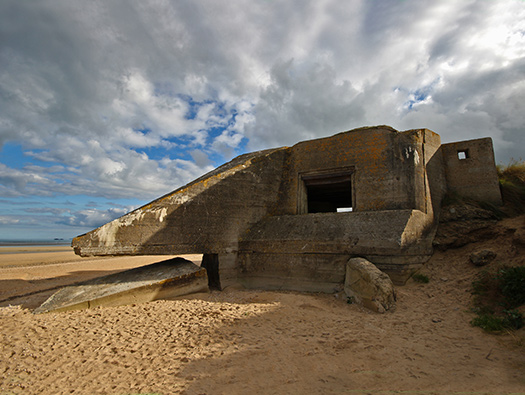

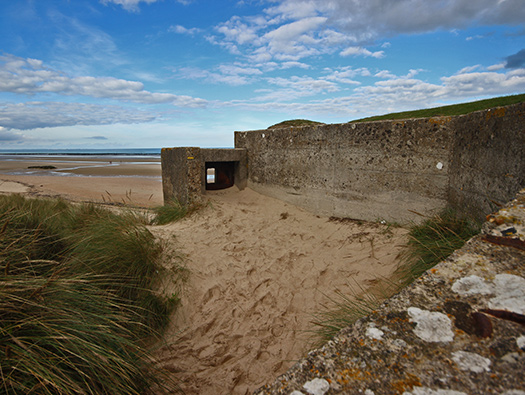

The view at the front. Note the small machine gun embrasure to the right of the bunker.
06 October 2013
StP10 Hameau Mottet

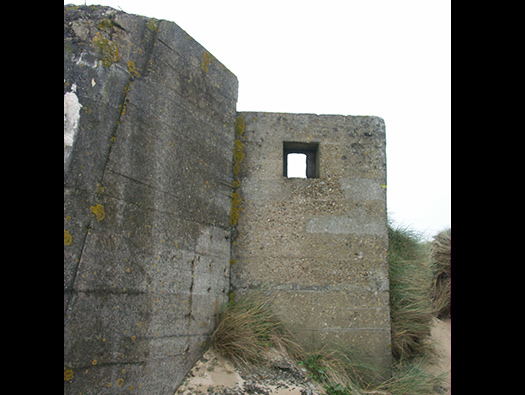

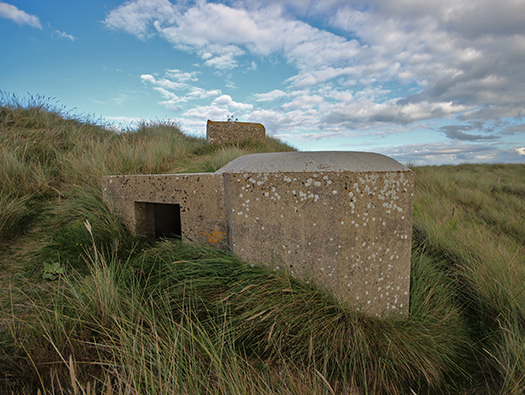

Tagged onto the side of the casemate is a machine gun position.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet

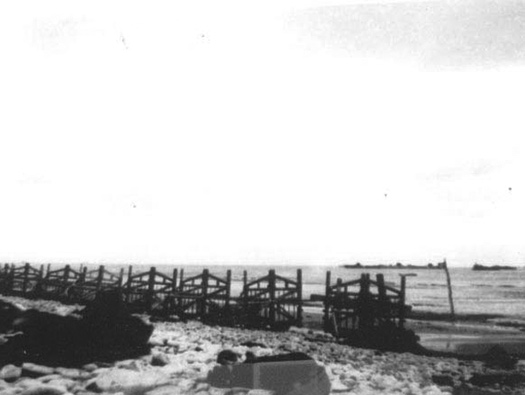

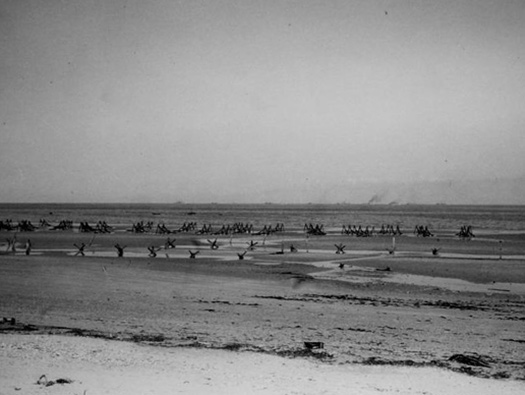

The Belgian Gates removed off the beach by US engineers.
06 October 2013
StP10 Hameau Mottet
Details
06 October 2013
StP10 Hameau Mottet
An emplacement for a Gr.W.34 80mm mortar.
06 October 2013
StP10 Hameau Mottet

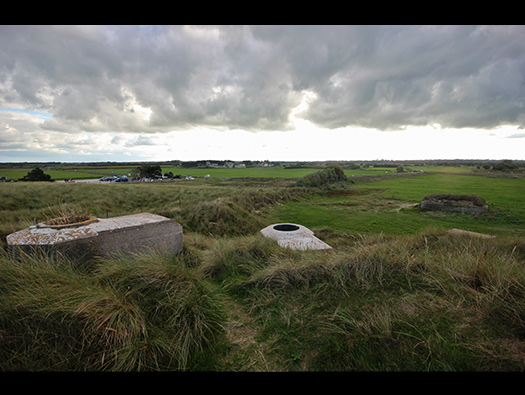

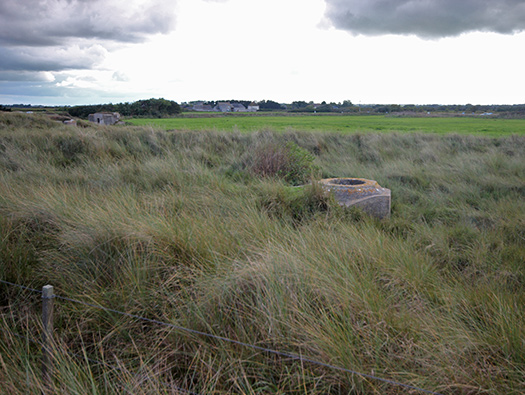

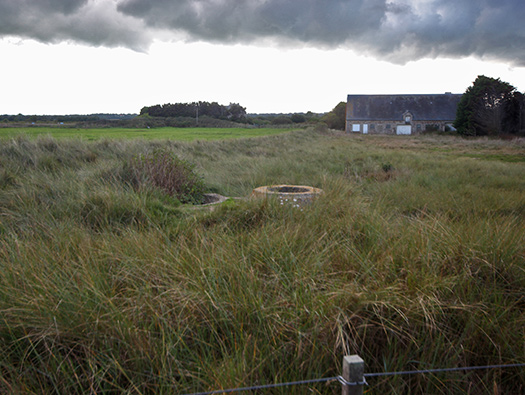

You can just see the second larger mortar pit and the Tobruk for close defence and spotting the mortars fire.
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet

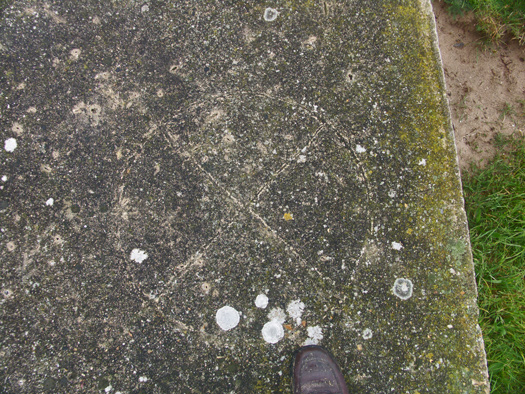

This is a very interesting item, its a compass platform where the soldiers stationed here could be shown the points of the compass. A very important training aid. A lot of the soldiers were non German speakers or their fist language was not German, so by taking them here and showing them the points, when told to fire east Exxon degrees, they would know in which direction to fire.
06 October 2013
StP10 Hameau Mottet
The German compass as I said earlier is 0 to 6400 thousands (mills). [Bunkersite.com] and here it can be shown to the new soldiers to the Wn.
06 October 2013
StP10 Hameau Mottet

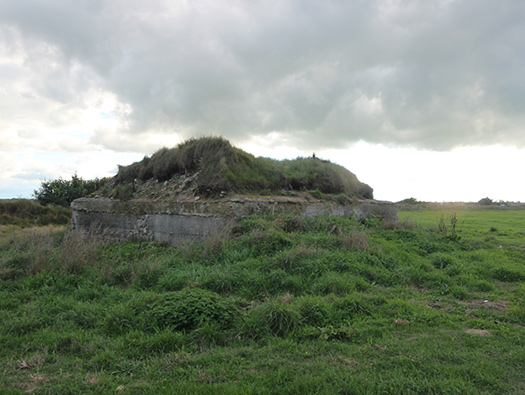

This emplacement would and was sunk into the sand dunes, but for some reason the farmer cleared away the sand and has exposed several bunkers. He has done it rather badly and not in an Archaeological way and left rather a lot of damage and more than the combined forces of America could inflict on it.
06 October 2013
StP10 Hameau Mottet
Entrance.
06 October 2013
StP10 Hameau Mottet
Ammunition room.
06 October 2013
StP10 Hameau Mottet
Machine gun Tobruk which doubles as the fire control and observation. From this Tobruk you cannot see the targets to the eastward (sea). So the machine gunner would take messages from a forward observation soldier by a field telephone. But this may brake so he may have to make hand signals to the machine gunner and there may have been special hand signals.
06 October 2013
StP10 Hameau Mottet

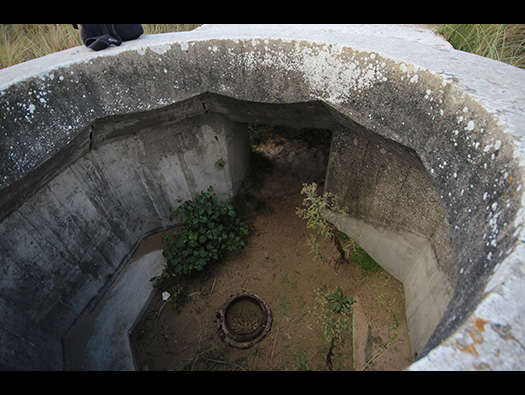

Mortar pit.
06 October 2013
StP10 Hameau Mottet

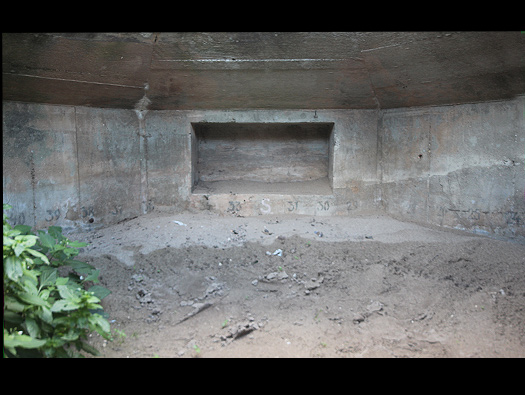

Mortar pit ammunition niche. Below the niche is the direction 'S' south.
06 October 2013
StP10 Hameau Mottet

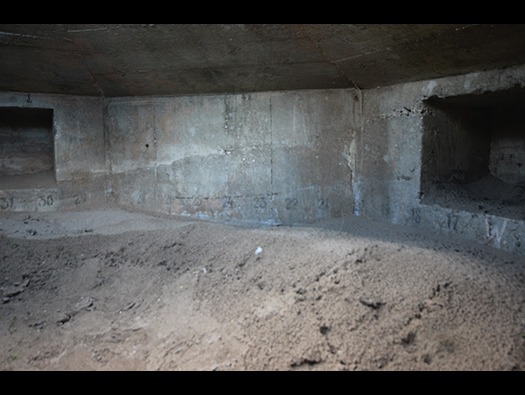

South to West. 31 to 16.
06 October 2013
StP10 Hameau Mottet
The plate for the base of the mortar.
06 October 2013
StP10 Hameau Mottet

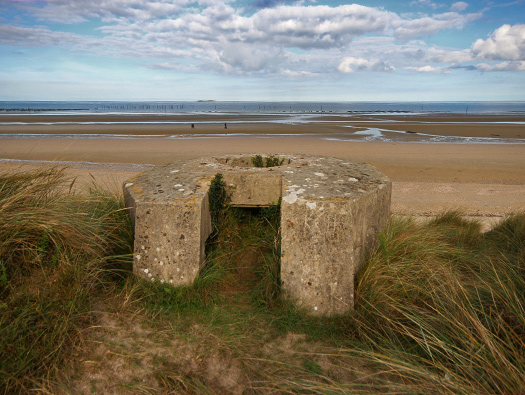

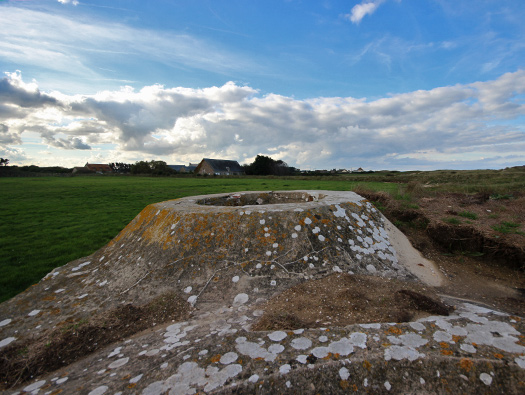

Observation/defence Tobruk.
06 October 2013
StP10 Hameau Mottet

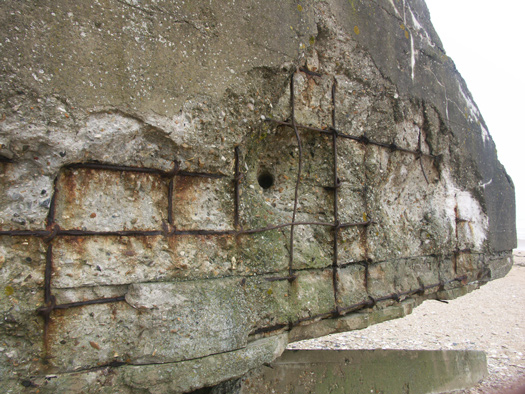

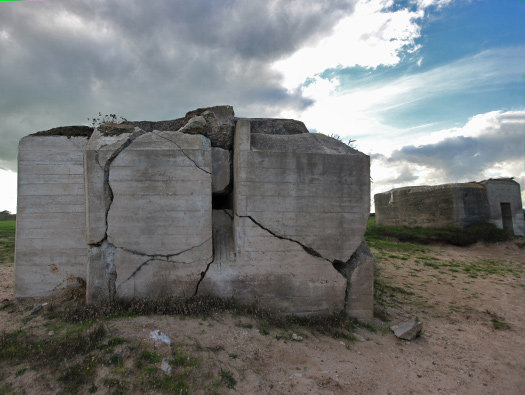

Not sure if the damage was during the war or the farmers heavy handed archaeology.
06 October 2013
StP10 Hameau Mottet
Chimney outlet.
06 October 2013
StP10 Hameau Mottet

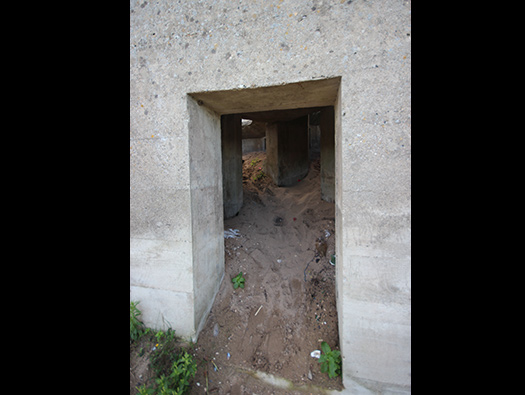

Way in.
06 October 2013
StP10 Hameau Mottet
Named as the kitchen.
06 October 2013
StP10 Hameau Mottet
Passage entrance.
06 October 2013
StP10 Hameau Mottet

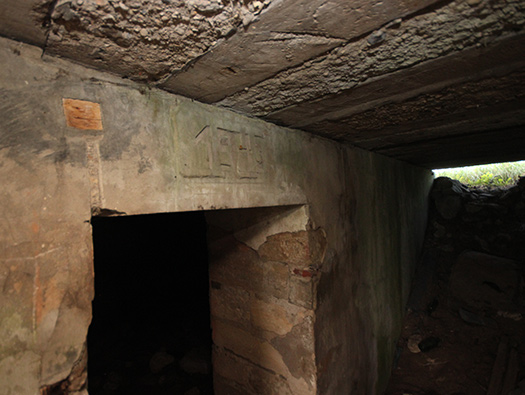

Date of manufacture 1943.
06 October 2013
StP10 Hameau Mottet

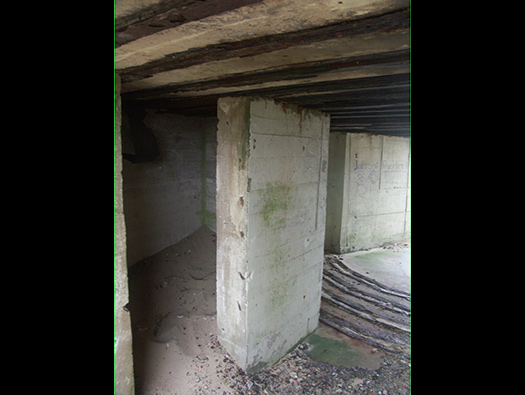

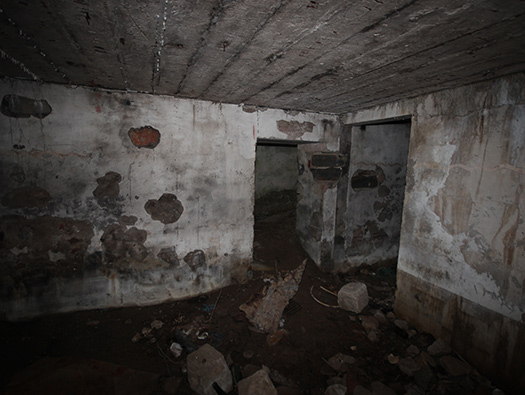

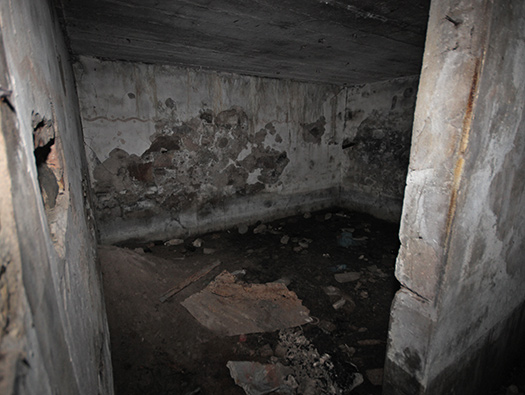

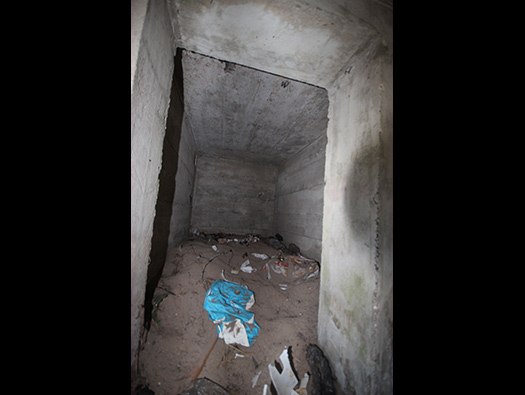

Inside.
06 September 2013
StP10 Hameau Mottet
Escape in the far wall.
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet
Way out.
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet

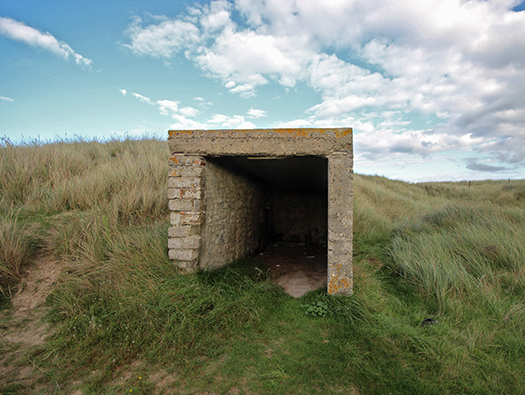

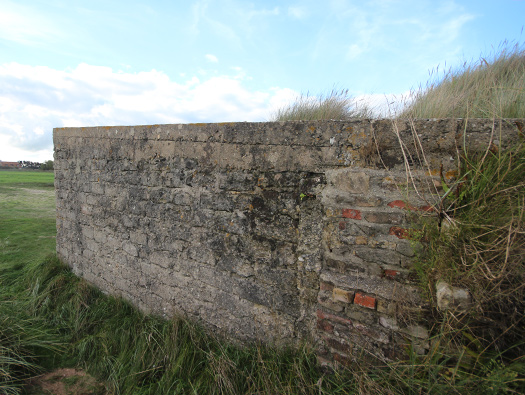

It looks like the garage has been made out of an old building. The left wall made of brick and the rest concrete. It may have been a garage for 3.4cm anti/tank gun before the casemates were built.
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet
Details
06 September 2013
StP10 Hameau Mottet
Type Ic116
06 September 2013
StP10 Hameau Mottet

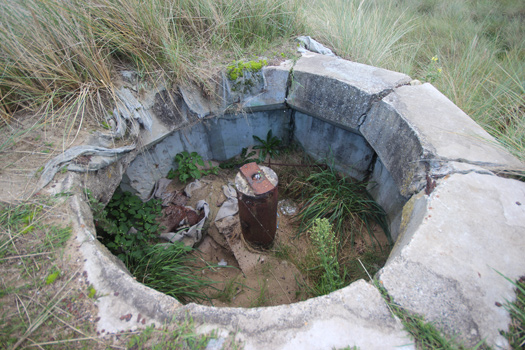

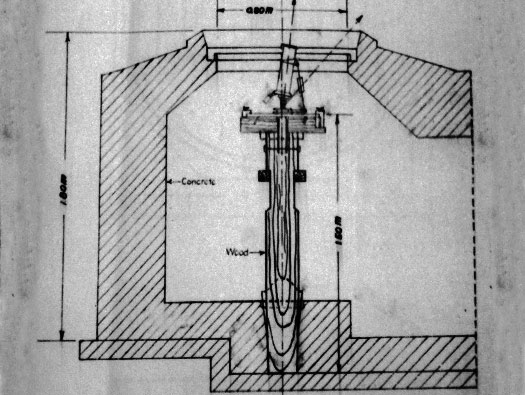

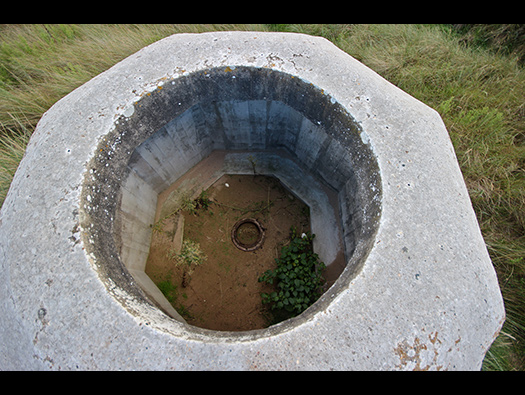

Plan of how these 5cm mortar Tobruk's work. A post set into the centre hole in the floor, pegged tight and the mortar sits on a table on the top.
Allied intelligence plan.
StP10 Hameau Mottet
Entrance into the crew room.
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet
06 September 2013
StP10 Hameau Mottet

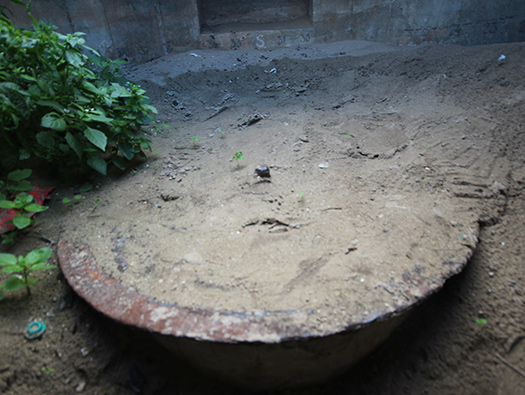

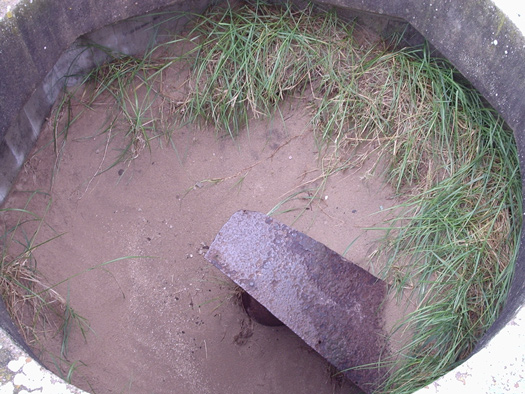

The plate was to sit the 5cm mortar on.
11 March 2003
StP10 Hameau Mottet
This is how it looks now after the thieves had been around.
06 September 2013
StP10 Hameau Mottet
Out on the wire defending the rear defence.
14 May 2005
StP10 Hameau Mottet
14 May 2005
StP10 Hameau Mottet

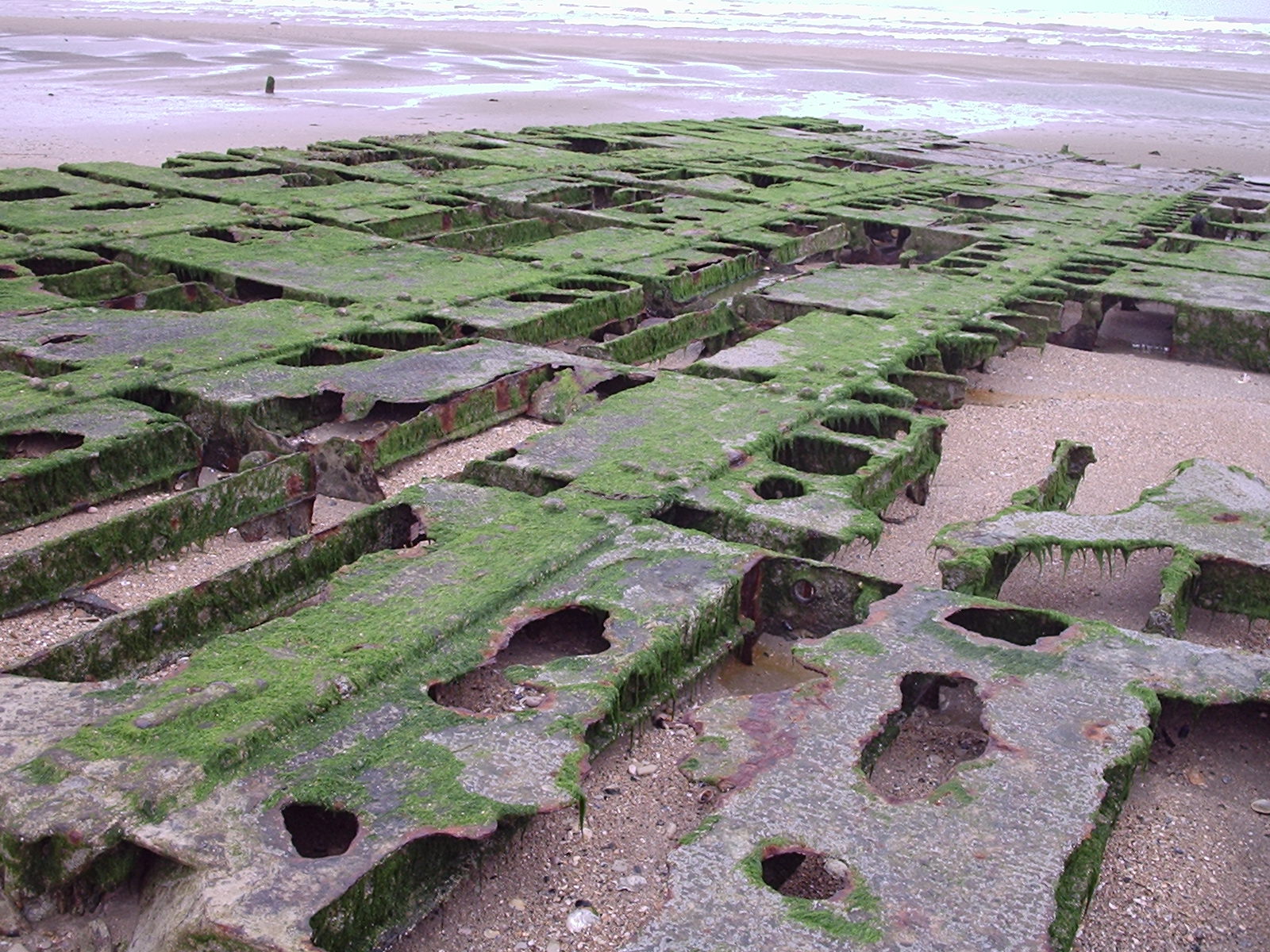

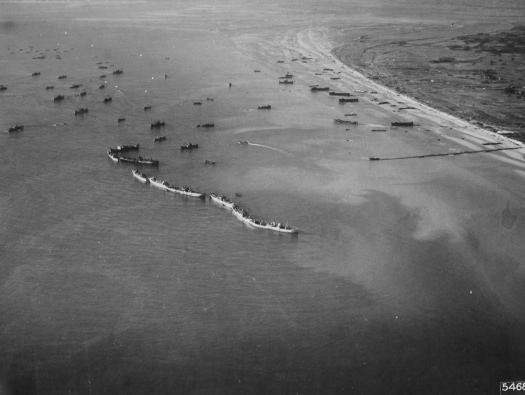

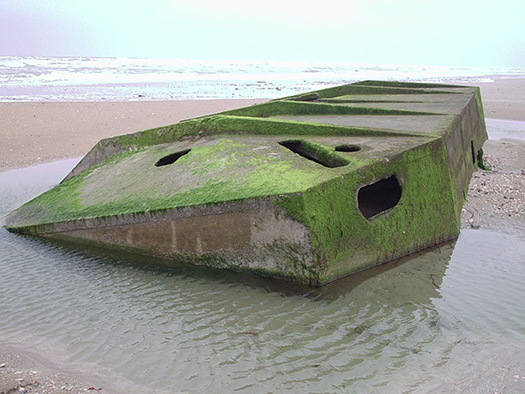

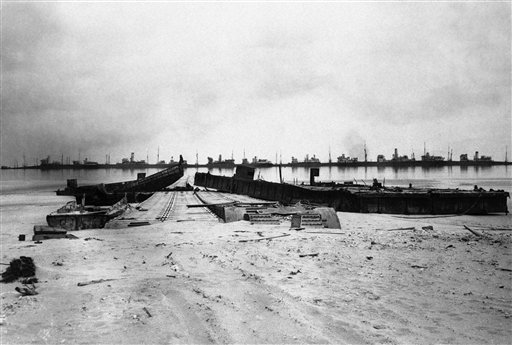

LCT could come it to the end and unload and smaller LCT's and infantry craft could land along the sides.
14 May 2005
StP10 Hameau Mottet

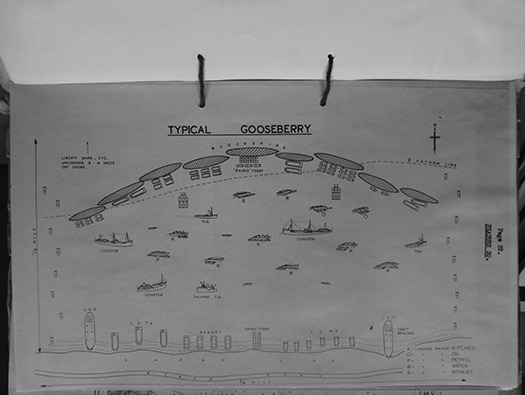

Allied plan.
1945
StP10 Hameau Mottet
06 October 2013
StP10 Hameau Mottet
1944
StP10 Hameau Mottet
US infantry landing.
1944
StP10 Hameau Mottet
14 May 2005
StP10 Hameau Mottet
1944
StP10 Hameau Mottet

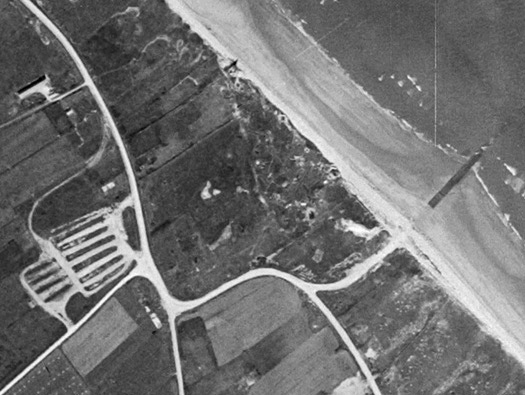

This is a picture that we rarely see or understand. On the beach is the landing stage built to the south of StP10. The roadway inland and north & south. Then an odd parking area inland. This is where vehicles coming off landing ships/craft and driving into the fields to either remove all their water proofing and later to unload ammunition, food, spares, kit, etc. It would be then collected and taken inland to where it was needed.
1947
StP10 Hameau Mottet
14 May 2005
