Berck La Fourche H.K.B.

Batterie 6./H.K.A.R. 1245.
3 x 689 casemates.
1 x Z733 SK/Machinen bunker red circle.
1 x Zisterne.
3 x 17cm K18L/50 guns.

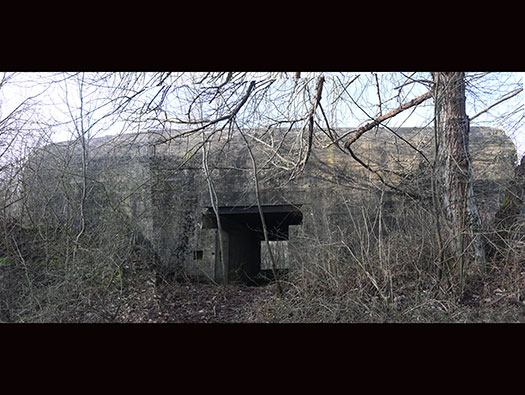

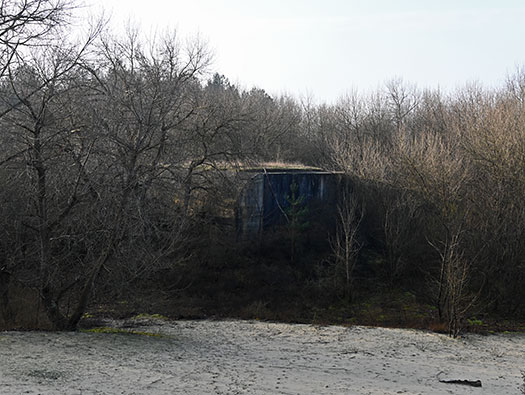

R689 casemate Turm 3
A large bunker looming out of the trees.

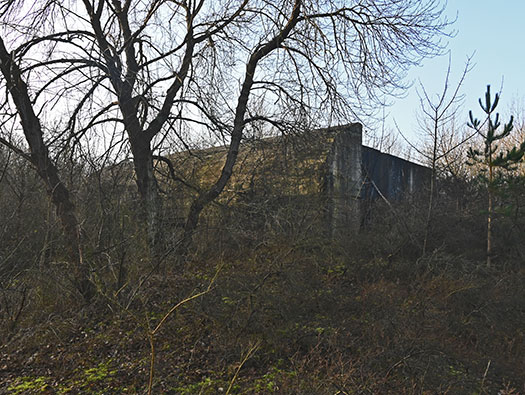

R689 casemate Turm 3.
A very large rear wall.

R689 casemate Turm 3
A surprisingly small rear entrance.

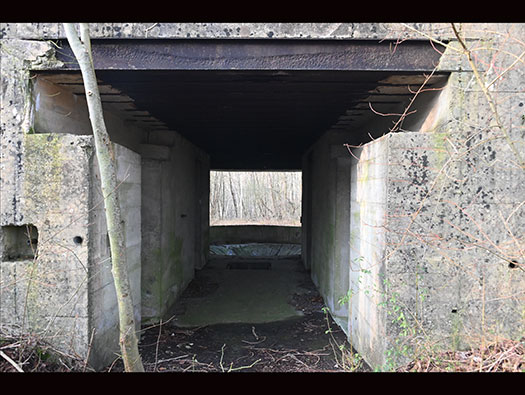

R689 casemate Turm 1.
A long central passage way. I doubt that doors were ever fitted as I believe these were built quite late in 1944.

R689 casemate Turm 3.
Small ammunition rooms considering the large calibre of the guns.

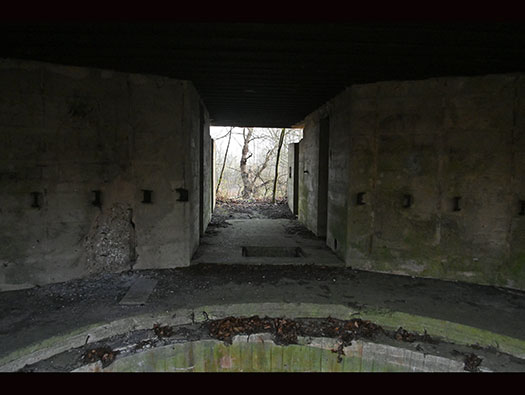

R689 casemate Turm 3
Gun room Looking back through the large almost tunnel exit.

R689 casemate Turm 3.

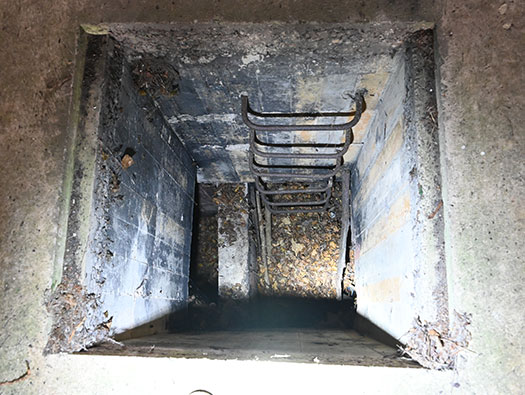

Gun room, when the gun fires and the case is ejected from the breach, it is removed and placed down a chute. Usually there are two chutes, one each side. Then a manhole is here to remove the fired cases at a safe time to send them back for re using.

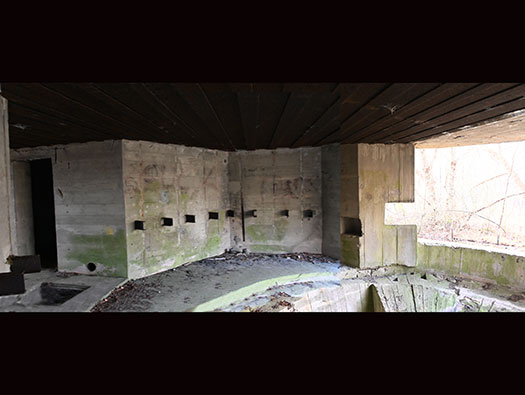

R689 casemate Turm 3.
Gun room, note the steel girders set into the rear wall, presumably to make up a shelf to rest ready ammunition on.

R689 casemate Turm 3 gun room.

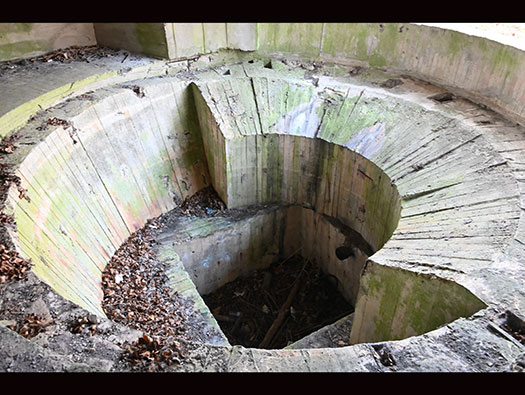

A heavy steel ring would have been fitted into the concrete base, then the gun lowered onto it and bolted down.

Embrasure R689 casemate Turm 3.
The five squares in the concrete on both sides of the embrasure, is where large wooden blocks would be cut and placed and then two steel armoured plates would have been bolted on with five large bolts. All this to add protection to the bunker.

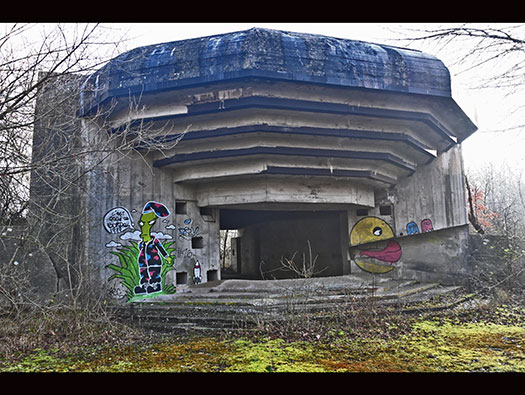

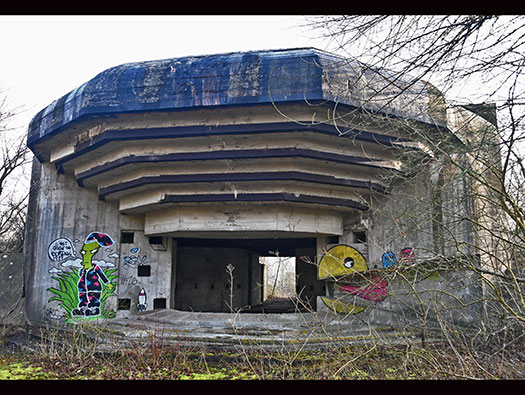

R689 casemate Turm 3.
A very large casemate with a very heavy concrete roof and lid to cover the important gun.

Plan of a Z733 SK/Machinen bunker.
This was used to power the three guns.

Z733 Sk/Machinenstand plan.

Z733 Sk/Machinenstand
Access to the defence Tobruk.

Z733 Sk/Machinenstand
Entrance to the bunker.

Z733 Sk/Machinenstand
Entrance.

Z733 Sk/Machinenstand
Entrance.

Z733 Sk/Machinenstand
Water reservoir.

Z733 Sk/Machinenstand
Storage room, fuel, spare parts, food.

Z733 Sk/Machinenstand
I believe this may be a German can, its marked

6544

DBC or BBC?

Z733 Sk/Machinenstand
Close combat defence embrasure.

Z733 Sk/Machinenstand
Engine room.

Z733 Sk/Machinenstand
Engine room.
Escape tunnel and the close combat defence embrasure covering the entrance.

Z733 Sk/Machinenstand
Escape tunnel.

Escape Notausgang.

1 x SK/Machinen bunker.
The entrance to the engine room, it looks like it had a large armoured door.

1 x SK/Machinen bunker.

On our way out of the sand dunes, we passed a garden. Inside was a concrete bunker of some type, the wall looked Todt built and reinforcing mesh used as a fence.
