Cr342 Grand Gouin

BATTERIE · K.V.Gruppe Carmaret · AOK 7 Brittany · France

C342 Pointe du Grand Gouin.

H.K.B 1274 is situated on the west coast of Crozon peninsular of Brittany and covering the important port of Brest where a large U-boat pens were being constructed.
4 x Geschützstellung, large Ringstands.
7 x Flakstellung.
2 x VF51's.
1 x R501/SK.
4 x R668 small six man bunker.
4 x R502/SK. 1 x R636a FCP. 2 x R670 casemates. 1 x R638 hospital. 4 x R641ammunition 1 x R621group bunker. 2 x R671 7.5cm C/97 Schneider. 4 x 22cm K532 Schneider models 1917 (f). 1 x 15cm Search Light. 4 x 7.5cm model M32(f) AA guns. 3 x 2cm Flak 30 2 x 7.5cm assault guns. 4 x Vf58C Tobruk's. 4 x Maxims in the FCP.

14 September 2013

C342 Pointe du Grand Gouin, H.K.B 1274

Google

C342 Pointe du Grand Gouin.

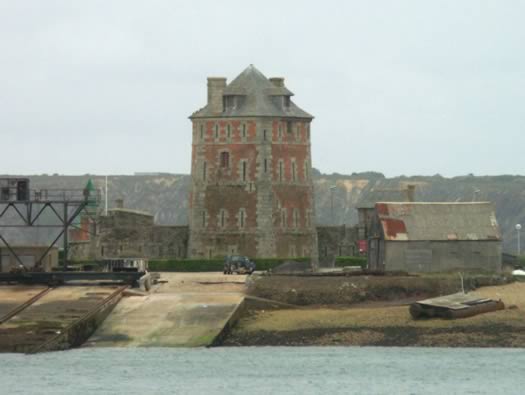

Tour Vauban de Camaret-sur-Mer. The battery is to the west of the small town of Camaret-sur-Mer a lovely little fishing port with good cafe's and restaurants.

08 October 2006

C342 Pointe du Grand Gouin.

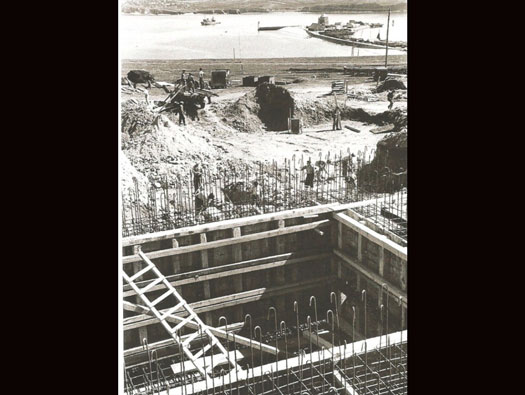

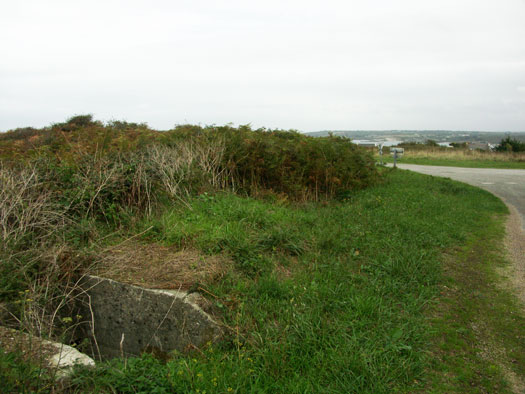

FA Unterstand under construction overlooking Camaret-sur-Mer.

08 October 2006

C342 Pointe du Grand Gouin.

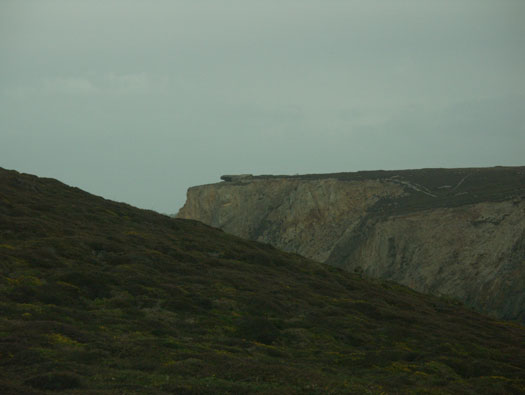

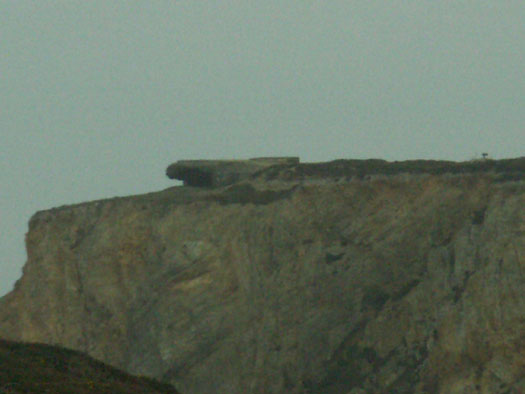

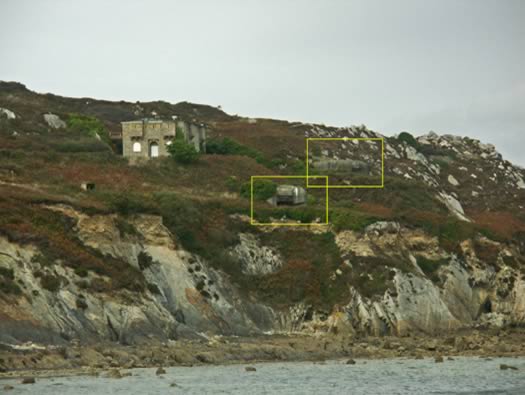

Redout Francais. This type are common all around the Normandy/Brittany. There were also 3 x 7.5cm K. M/97 Schneider on pedestals two in R671 casemates.

08 October 2006

671 casemate for medium pivot guns 90deg.

C342 Pointe du Grand Gouin.

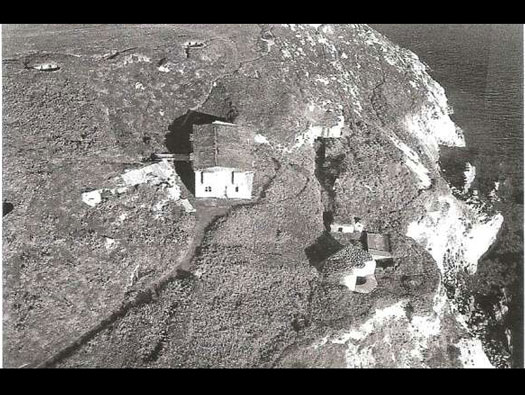

Redout Francais from the air.

1960 DR

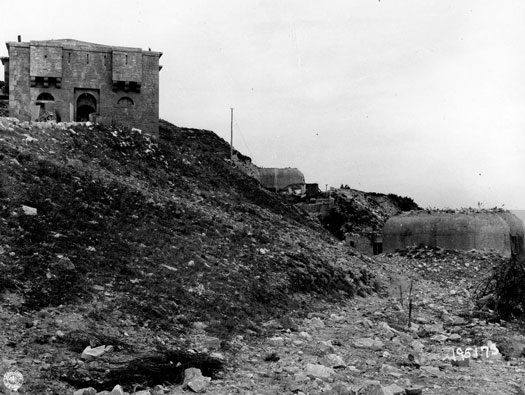

The old French Fort with the casemates in front.

US Sign. Corps

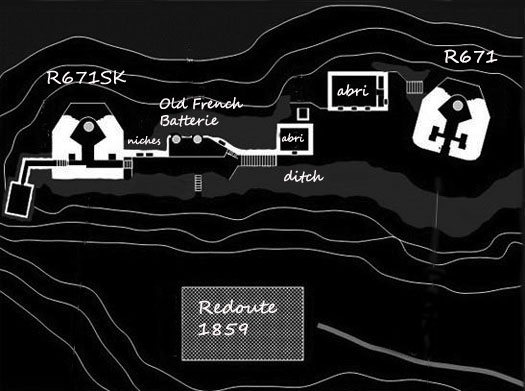

A very nice plan of the two casemates and many of the old French fortifications of Carmaret.
This plan was used in a former Atlantikwall website, I have tried to trace it and the owner, but have never had any replies.

adjusted plan

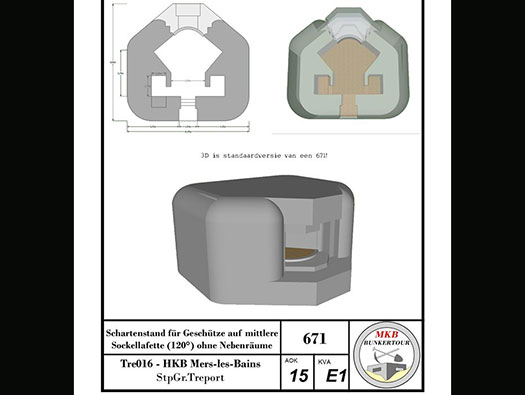

R671 casemate plan.

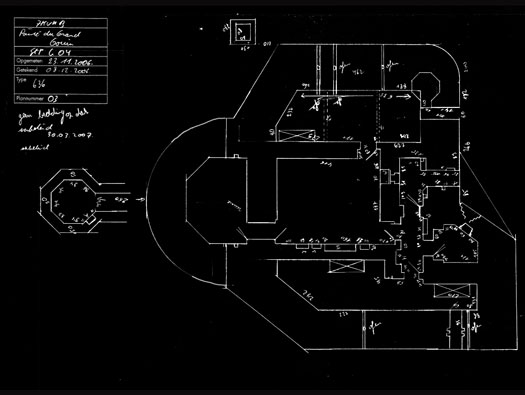

Plan Kurt

Part of the quarters.

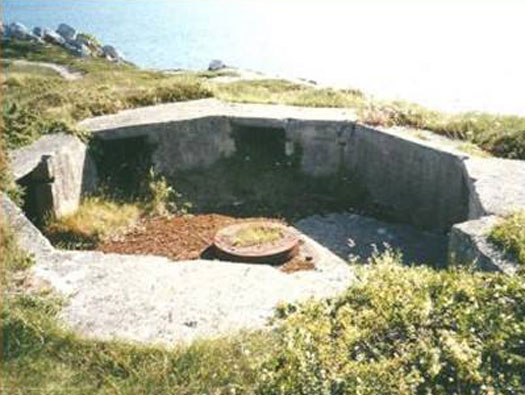

There are three of these open Flak emplacements.

C342 Pointe du Grand Gouin.

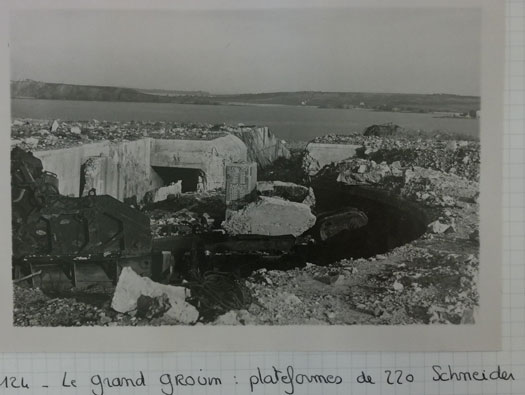

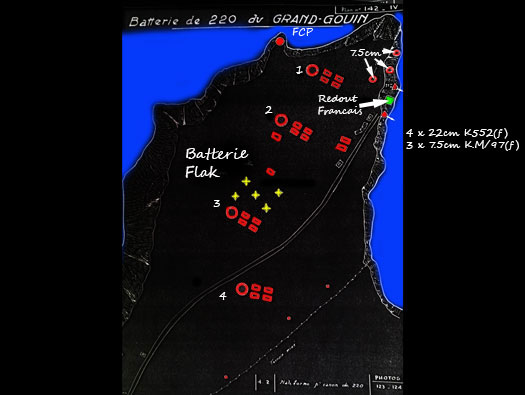

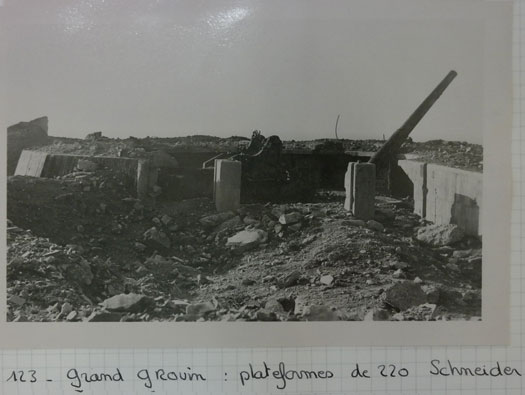

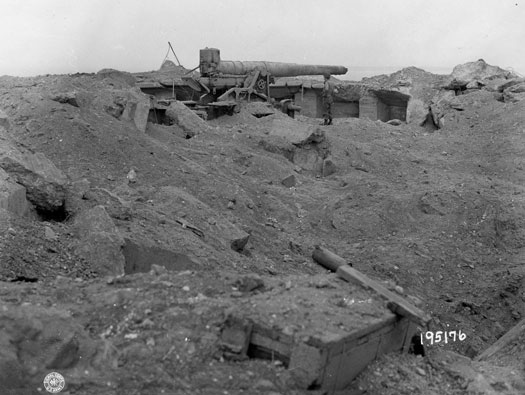

4 x Protected positions with 22cm K532 Schneider models 1917 (f). With construction starting in late 1942 on a virgin sight. A Heer (army) battery H.K.B.1275, crewed by 200 men. The range of the guns was about 22km.

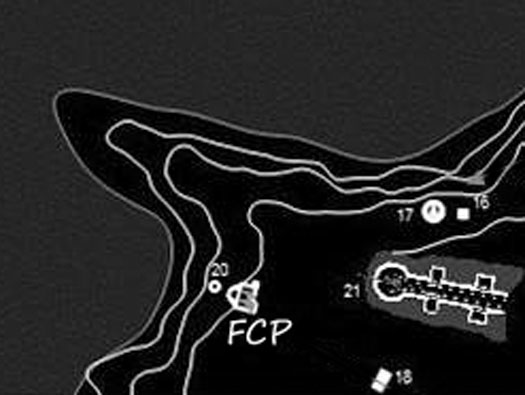

Plan based on the SHM plan

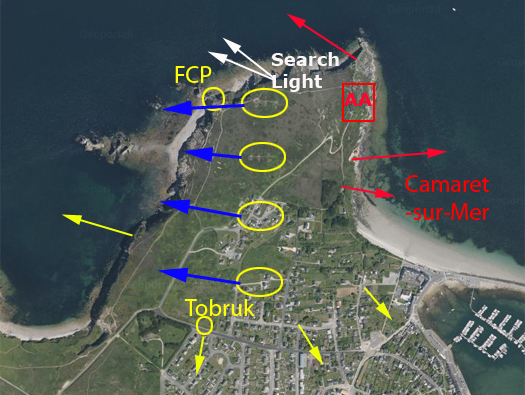

C342 Pointe du Grand Gouin.

Attached to the battery were five 7.5cm M32(f) AA guns three 2cm Flak 30. Three 7.5cm K/97(f), one to fire star shells and the other two inside casemates protecting the port of Camaret.

Plan

Vf51a half group shelter, enough for half the guns crew..

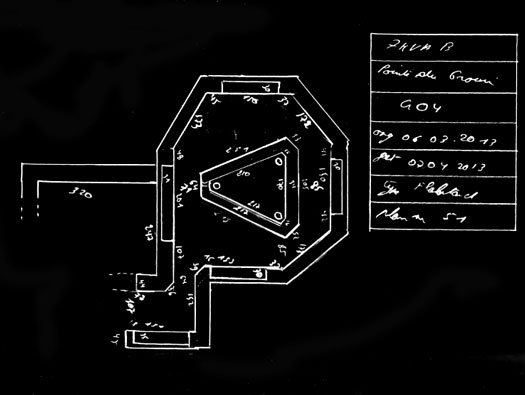

Plan 2cm Flak emplacement plan.

C342 Pointe du Grand Gouin.

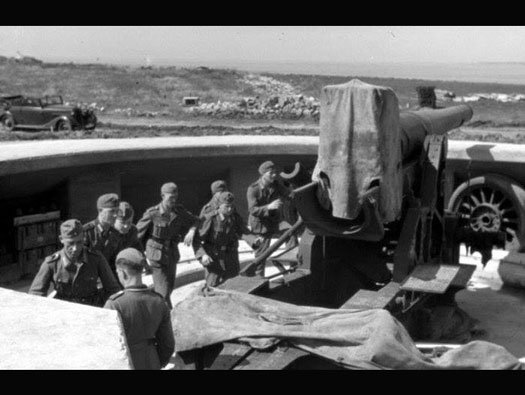

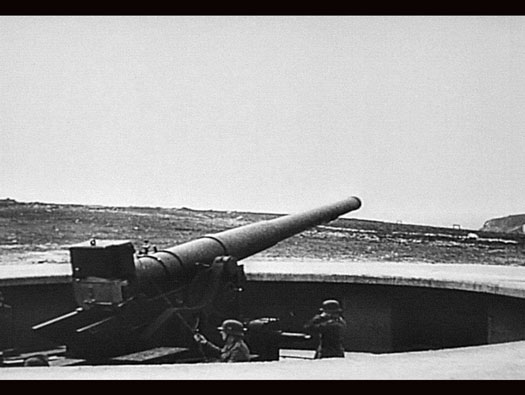

Action stations, all men to the gun. 22mm K532 Schneider models 1917 (f). A French captured gun and re used in many emplacements around the borders of occupied Europe.

Bundesarchiv
