Alderney, M4 Wn 'Dohlenfest'

Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles. In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.

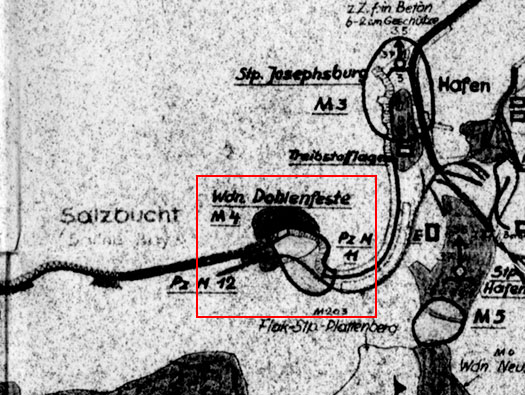

Map.
Map.
Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

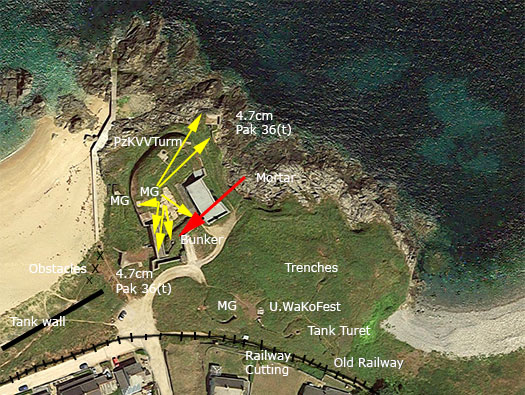

Google Maps

Alderney, M4 Wn Dohlenfest

Alderney, M4 Wn Dohlenfest
Ausboustand-karte Alderney.

Ausboustand-karte Alderney.

Ausboustand-karte Alderney.
Ausboustand-karte Alderney.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Fort Doyle an English fort placed here at the time of the French revolution and the rise of Napoleon to help defend Alderney.
1 x R676 casemate for a 4.7cm Pak36(t).
1 x Vf Casemate for a 4.7cm Pak36(t).
1 x Unterstand WaKoFest bunker.
2 x Pz.T tank turrets.
1 x Mortar. 1 x Pz M 12 Anti-tank wall (Panzermauer).
Many trenches, machine gun positions, field positions, minefields and barbed wire defence.
Google

Google

Alderney, M4 Wn 'Dohlenfest'
Alderney, M4 Wn 'Dohlenfest'
Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

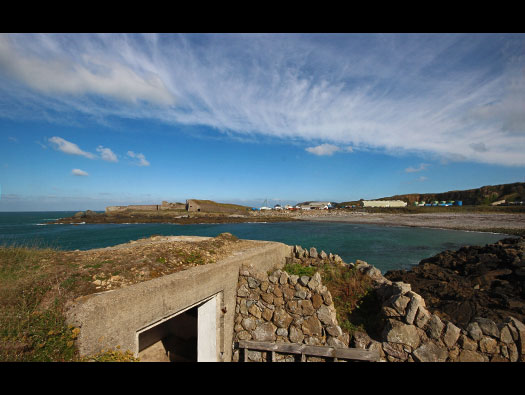

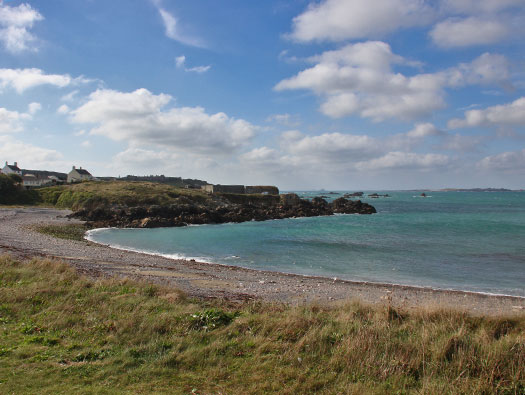

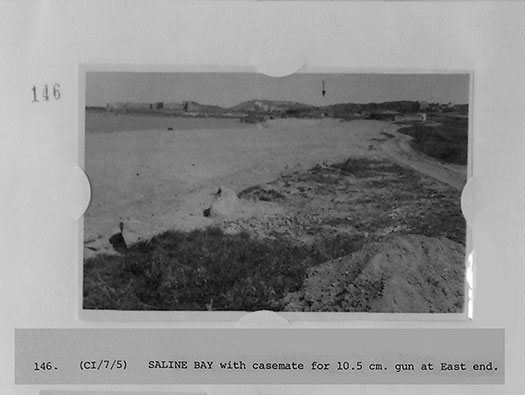

Fort Doyle and Crabby Bay. This would have been defended with barbed wire and mines.

2006-05-07

Teller mine plans.
Teller mine plans.
Mines.
Mines.
Barbed wire defence.
Barbed wire defence.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

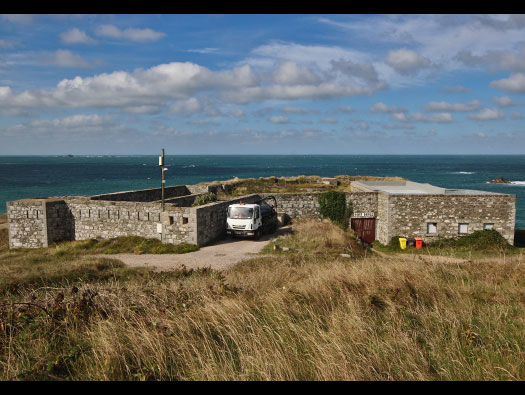

Fort Doyle. Now part of the islands waste management.

2006-05-07

Plan.
Plan.
Alderney, M4 Wn 'Dohlenfest'
Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

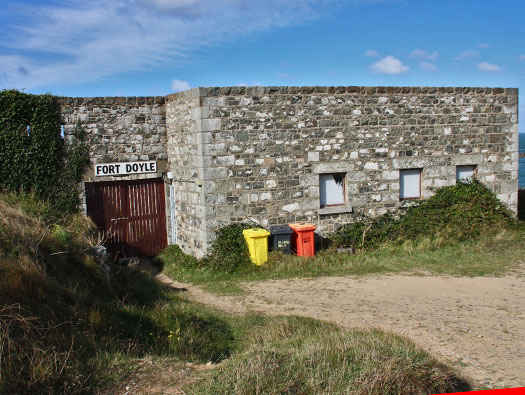

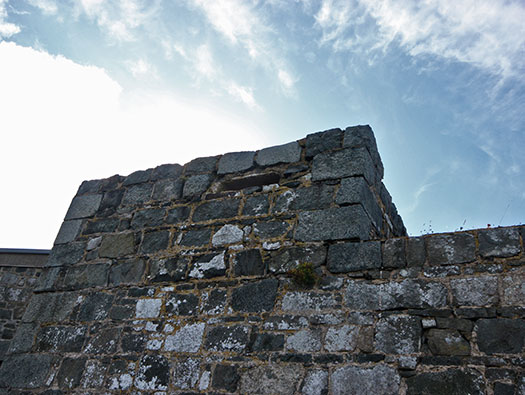

Fort Doyle Main gate.

2006-05-07

British soldiers.
British soldiers.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Inside the main gate.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

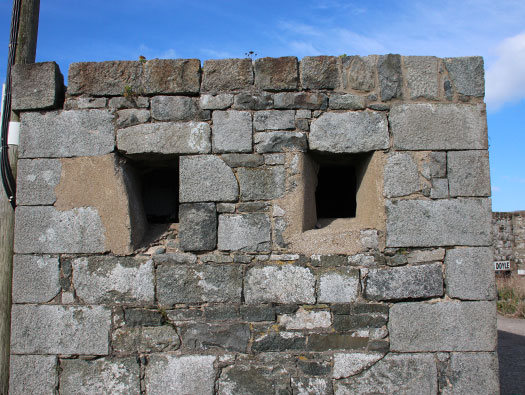

Original defences.

2006-06-07

Plan
Plan

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

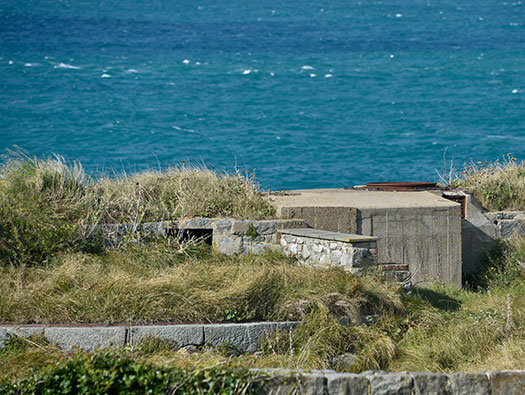

Machine gun defence position.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

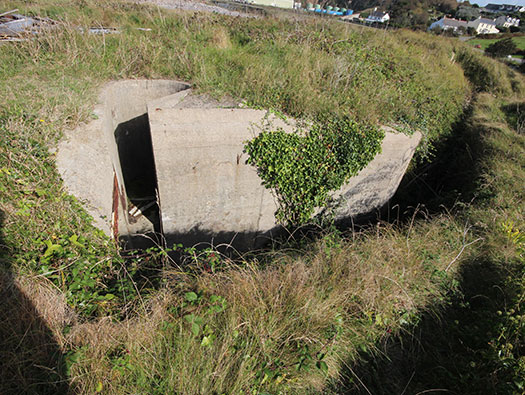

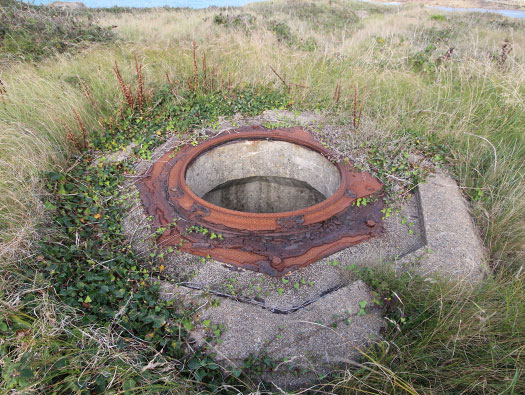

Pz.T 17 3.7 cm KwK tank turret Tobruk.

2006-05-07

Plan.
Plan.

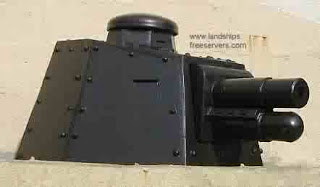

Ft17 tank turret.
Ft17 tank turret.
Ft17 3.7 KwK tank turret
Ft17 3.7 KwK tank turret
A turret ring.
A turret ring.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

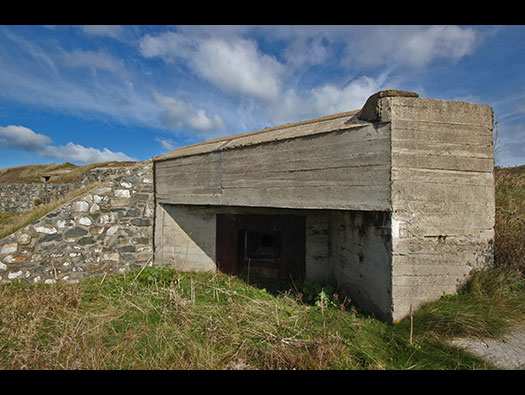

MG position.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'
Alderney, M4 Wn 'Dohlenfest'
Plan.
Plan.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Vf 4.7cm Pak 36(t) casemate.

2006-05-07

Plan.
Plan.
Vf Skoda casemate plan.
Vf Skoda casemate plan.
Gun set into its steel emplacement
Gun set into its steel emplacement

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

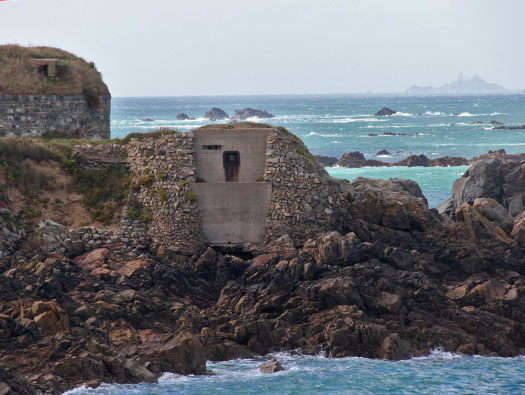

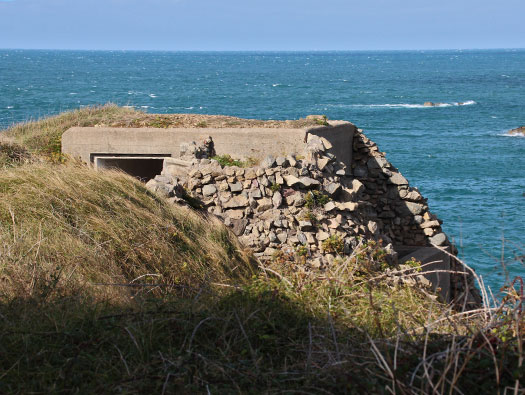

Vf 4.7cm Pak 36(t) casemate. Nice bit of camouflage.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Vf 4.7cm Pak 36(t) casemate. The direction of fire covering Crabby Bay with a 10.5 cm and a searchlight set into Fort Grosnez (M3 StP 'Josephsburg') facing this way.

2006-05-07

Crabby bay, bottom the 4.7cm gun, above the 1.5cm gun and the white arrow the searchlight.
Crabby bay, bottom the 4.7cm gun, above the 1.5cm gun and the white arrow the searchlight.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

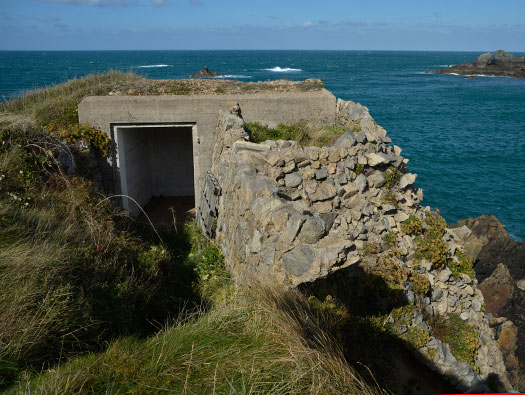

Vf 4.7cm Pak 36(t) casemate entrance with extensive camouflage o the front..

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

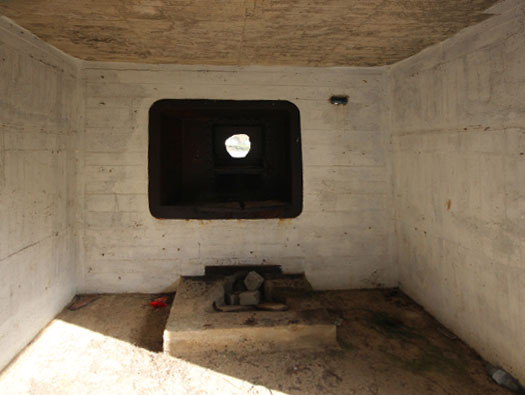

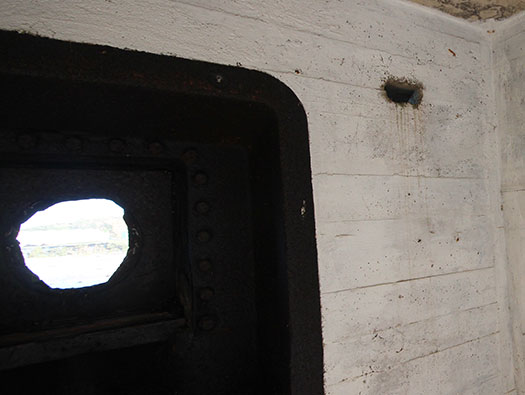

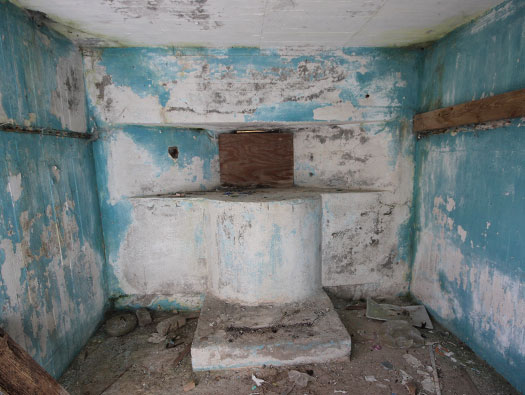

Vf 4.7cm Pak 36(t) casemate. Inside the gun room.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

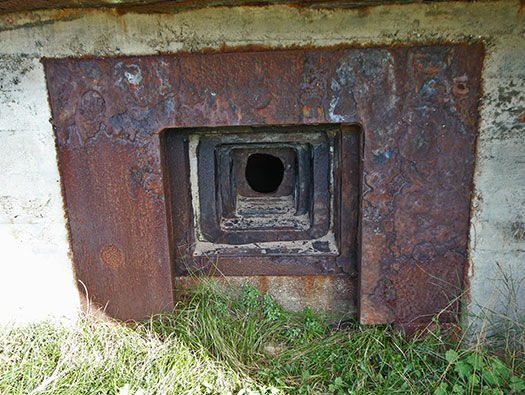

Vf 4.7cm Pak 36(t) casemate. The plate to hold the gun in position is a 770P4 type.

2006-05-07

770P4 type.
770P4 type.
4.7cm Pak 36(t) in place.
4.7cm Pak 36(t) in place.
4.7cm case.
4.7cm case.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Vf 4.7cm Pak 36(t) casemate. The slot on the top right is the gun commanders viewing slot.

52006-07-06

Gun commander using the viewing slot.
Gun commander using the viewing slot.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Vf 4.7cm Pak 36(t) casemate. Machine gun position.

2006-05-07

The two MG positions each side of the Pak casemate.
The two MG positions each side of the Pak casemate.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Railway cutting.

2006-05-07

Railway cutting plan.
Railway cutting plan.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Railway cutting to the sand dock.

2006-05-07

Railway cutting plan.
Railway cutting plan.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

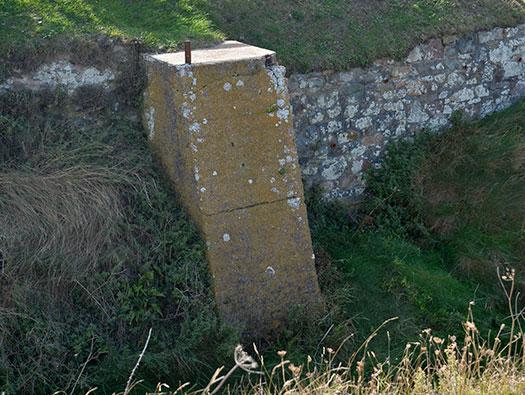

Railway cutting to the sand dock. Not quite sure what this is??

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

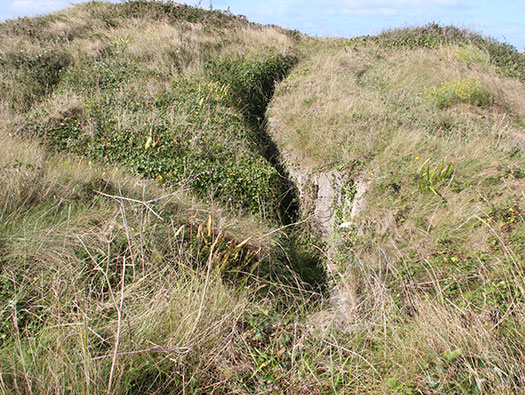

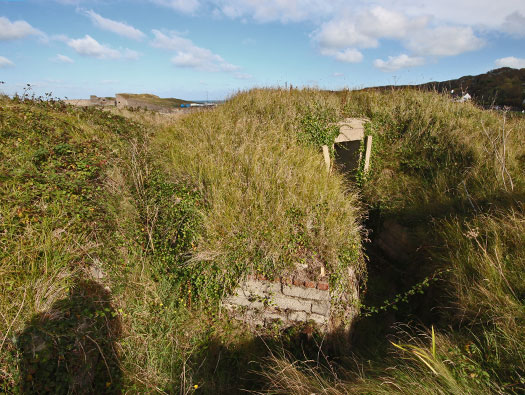

Trenches.

2006-05-07

Plan.
Plan.
Trenches.
Trenches.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

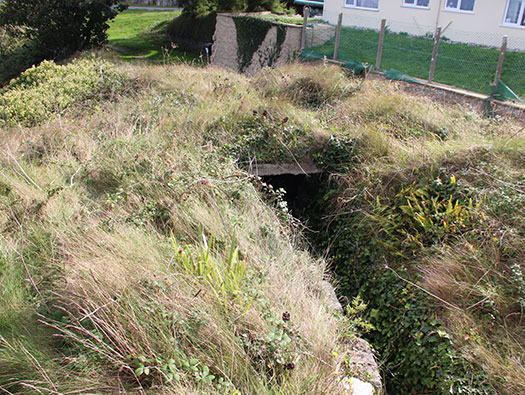

Trenches and field bunker.

20 October 2016

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

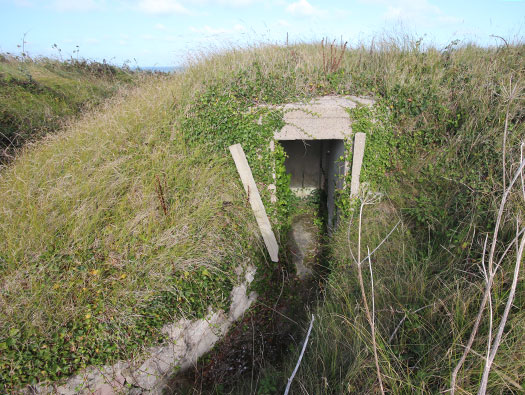

Trenches and shelter Siegfried Vf type.

2006-05-07

A shelter Siegfried Vf type.
A shelter Siegfried Vf type.
A shelter Siegfried Vf type how it would look inside.
A shelter Siegfried Vf type how it would look inside.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Trenches and shelter Siegfried Vf type.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

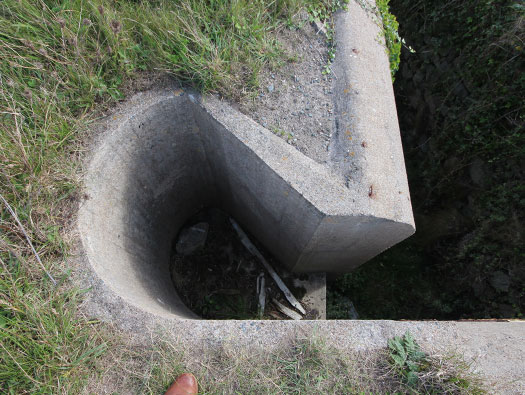

Unterstand WaKoFest bunker for twelve men.

2006-05-07

Unterstand WaKoFest bunker has a key hole shaped Tobruk (observation) and steps going inside are turning and not straight down. A crew room for twelve men and a store room.
Unterstand WaKoFest bunker has a key hole shaped Tobruk (observation) and steps going inside are turning and not straight down. A crew room for twelve men and a store room.
Plan.
Plan.
Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Unterstand WaKoFest bunker for twelve men. Observation post.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

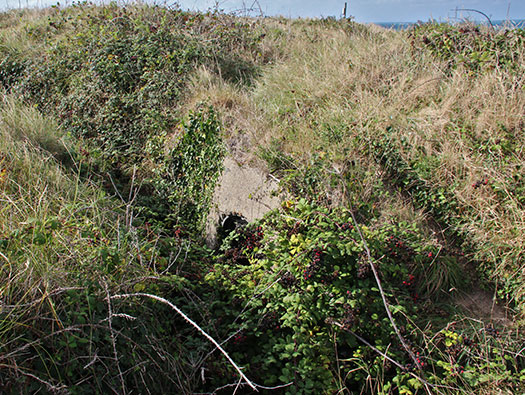

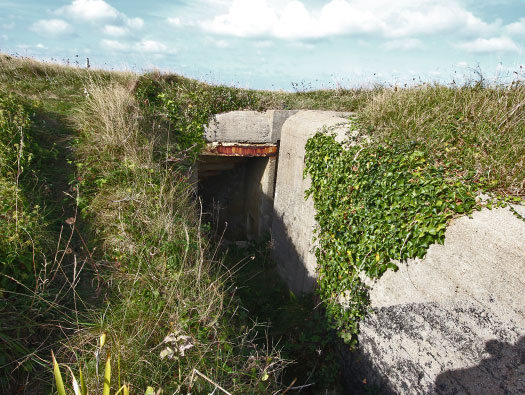

Unterstand WaKoFest bunker for twelve men. Entrance, we did not go in although I believe it is accessible and clean.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

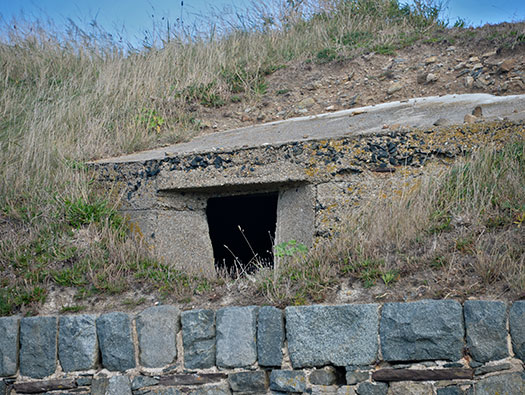

A small recess maybe for ammunition of just sheltering.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
A small recess maybe for ammunition of just sheltering.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

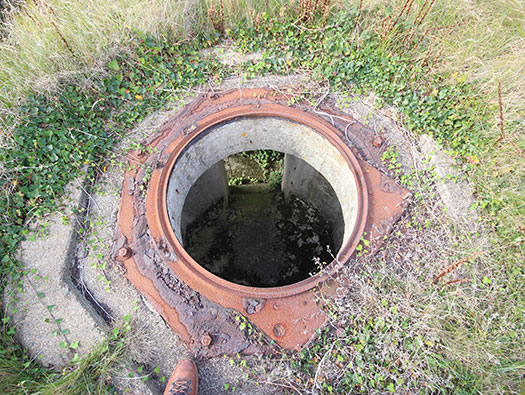

Another Ft tank turret but this one is a free running on a ball bearing race and not toothed.

2006-05-07

Possible plan of the Tobruk.
Possible plan of the Tobruk.
Plan.
Plan.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
Ft tank turret where the ball bearing race sat on the turret ring and no toothed gears. I would think this was a machine gun type and not a 3.7cm KwK type gun. A machine gun could be a Hotchkiss.

2006-05-07

Details2
Details2
A French machine gun like this type a Hotchkiss M1914.
A French machine gun like this type a Hotchkiss M1914.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

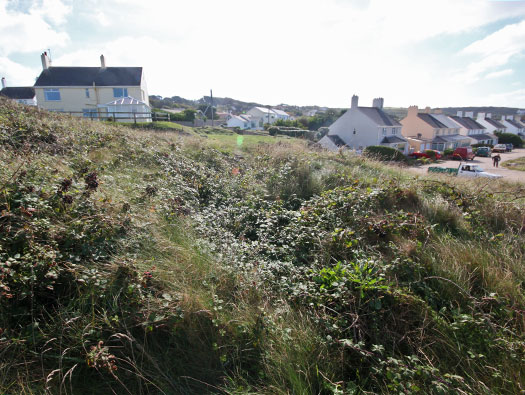

A large hole that could be for a small hut??

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

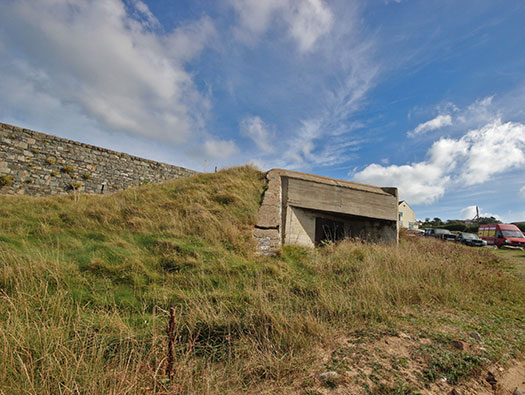

R676 casemate for a 4.7cm Pak 36(t).

2006-05-07

Plan.
Plan.
Plan of an R676 casemate.
Plan of an R676 casemate.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'

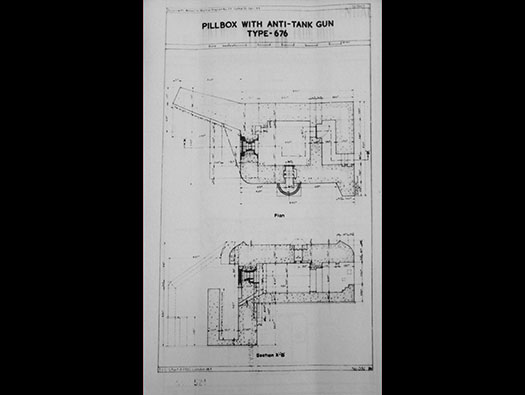

Allied plan of an R676 casemate for a 4.7cm Pak 36(t).

APGD London W1 No.1392

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
R676 casemate for a 4.7cm Pak 36(t). Front piece of the casemate showing an outer shield and the inner 770P4 type plate. Between the inner and outer was a sliding door that rose and fell vertically via a set of pulleys and a handle inside the casemate to protect the door.

2006-05-07

770P4 type plate.
770P4 type plate.
The gun room and gun and handle to wind the steel plate up and down to protect the gun from direct fire.
The gun room and gun and handle to wind the steel plate up and down to protect the gun from direct fire.
Down.
Down.
Half way up.
Half way up.
Closed off.
Closed off.
Internal mechanism.
Internal mechanism.

Alderney, M4 Wn Dohlenfest

Alderney, M4 Wn Dohlenfest
R676 casemate for a 4.7cm Pak 36(t). We could not get inside but I have seen on the inside wall naming the bunker as 577.

2005-05-06

Alderney, M4 Wn Dohlenfest
R676 plan.
R676 plan.

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
R676 casemate for a 4.7cm Pak 36(t). Showing the area it covered.

2006-05-07

Alderney, M4 Wn 'Dohlenfest'

Alderney, M4 Wn 'Dohlenfest'
R676 casemate for a 4.7cm Pak 36(t). Escape which comes up from inside the bunker. The graffiti in the concrete is rather new I am afraid.

2006-05-07

Plan of a bunker escape.
Plan of a bunker escape.
410P9 escape door.
410P9 escape door.
Looking into an escape shaft.
Looking into an escape shaft.

Alderney, M4 Wn Dohlenfest

Alderney, M4 Wn Dohlenfest

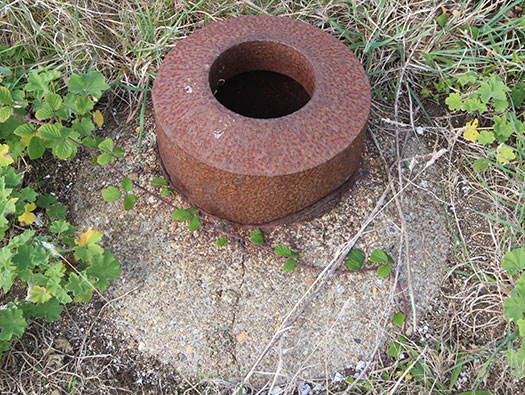

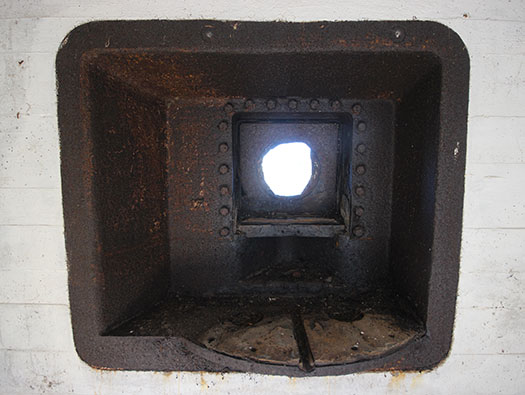

Periscope fitting 735P3. The idea of a periscope is a very good idea. There is only one way to look out of a bunker and that is through the gun site or commanders slit. So having a periscope which can also magnify the image and give 360° view.

2006-05-07

Details2
Details2
Periscope hole inside a bunker.
Periscope hole inside a bunker.
The view through a periscope.
The view through a periscope.

Alderney, M4 Wn Dohlenfest

Alderney, M4 Wn Dohlenfest

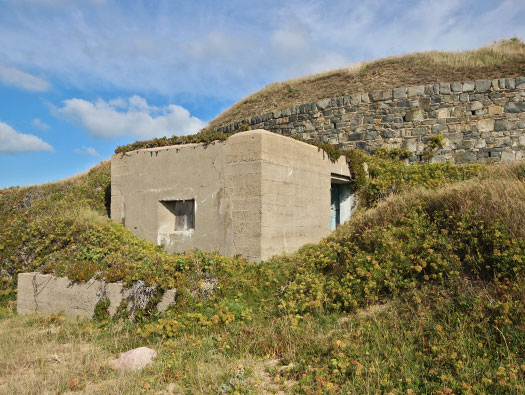

Vf MG bunker.
