Marg03 Ste Marguerite plage

StP Gruppe Ste Marguerite · AOK 15 Haute-Normandie · France

Marg03

Ste-Marguerite-sur-Mer is a small village just back from the coast and its name was used in StP Gruppe Ste Marguerite. Here we are down on the beach with Quiberville to the west and the Phare d'Ally in the east.

Marg03

There are five bunkers that I found and one is the famous R622 that has fallen off the cliff. Due to the quarrying of chalk around the bunker it became very unstable. So it was pushed onto the beach I believe with the help of the local Fire Brigade and their hoses. This was the area of the 348 Inf. Div. and Marg03 had elements of the Gren. Rgt. 864.
1 (3) x R622 twin group shelter.
3 x Vf67 Tobruk's.
2 (3) x R612 casemates. (Pos. one under construction?
1 x R134 ammunition bunker.
2 (1) x R502 twin group shelter.
2 x Geschützstellung open gun emplacements.
1 x SK/M.G.
3 x Pz.T tank turret.
2 x 7.5cm F.K.
1 x 5cm KwK. Out of brackets are Chazette/Rolf (in brackets are from Relikte)

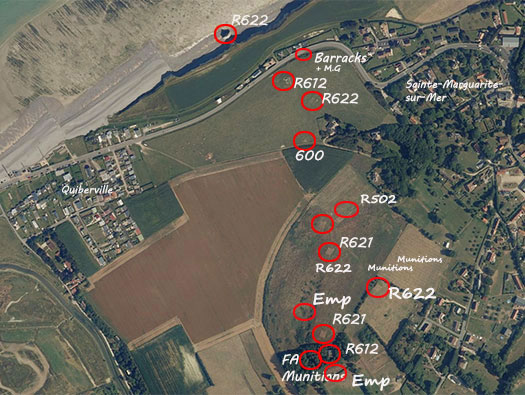

Google

Marg03

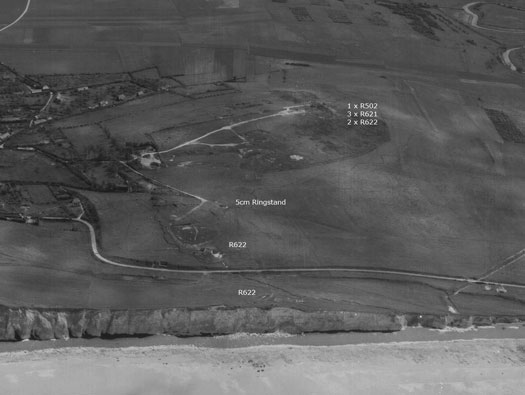

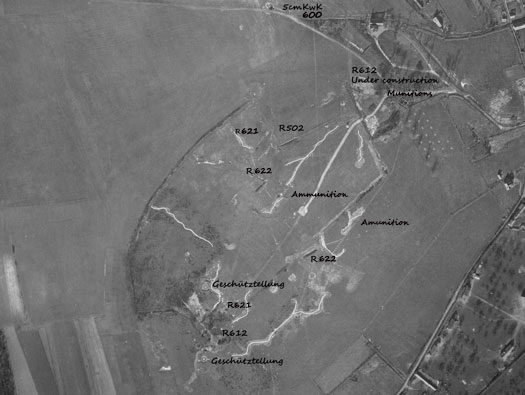

9th USAAF 18 June 1945.

NARA

Marg03

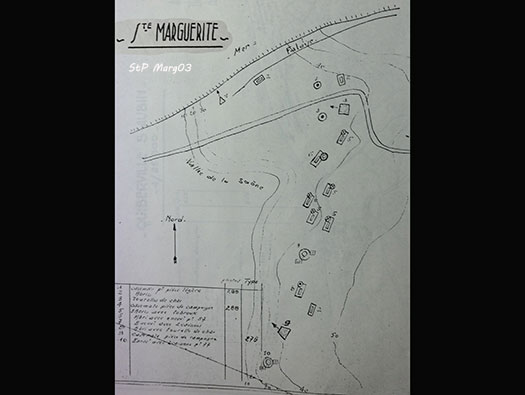

The SHM plan of Marg03 showing its line running along the edge of the hill side. On the 19th August 1942 at the beach at Quiberville, Lord Lovat's No.4 Commando landed at Orange Beach 2 to attack the 'Hess battery' of six 150 mm guns above Varengeville-sur-mer. So possibly due to that happening, this area was strengthened and a row of bunkers could cover the beach, just in case another landing was tried.

SHM

Lord Lovat at Newhaven after the raid had been completed.

Marg03

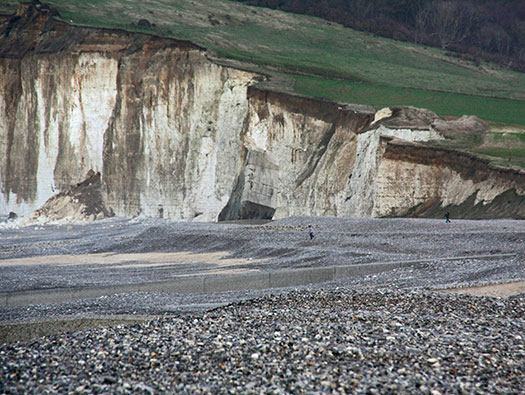

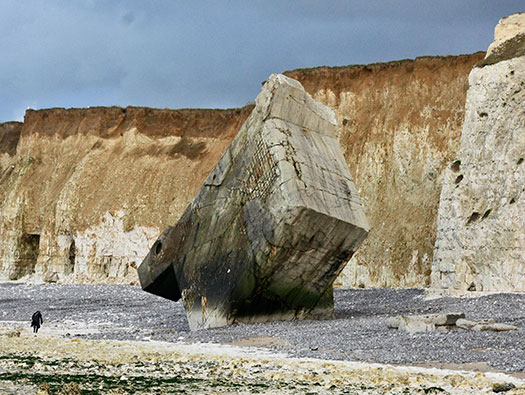

The R622 twin group bunker It used to sit on the top of the cliff but due to the quarrying of chalk the bunker was left on a pinnacle of chalk. The Pompiers helped the local authorities with some jets of water to slide it off in a controlled and safe manner, thus leaving it in this unique position.

03 March 2012

Chalk quarrying was carried on around the bunker, I presume by the farmer?? and it left the R622 on a pillar of chalk. The fire brigade (Pompiers) sprayed water from their hoses at the chalk and the bunker gradually slid down onto the beach.

Marg03

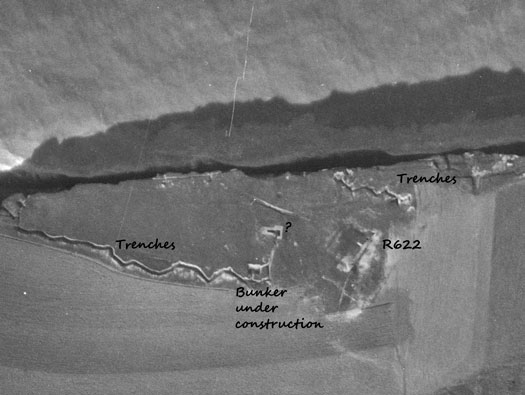

The bunker was quite a way back from the cliff edge in 1948. Trenches can be seen and possibly a Pz.T. Tobruk there? This was an infantry position defending the cliff.

IGNF 1948

Marg03

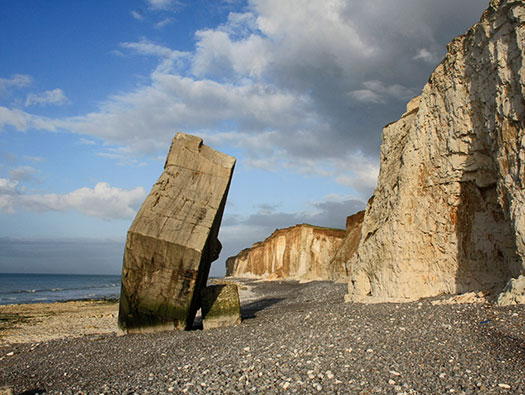

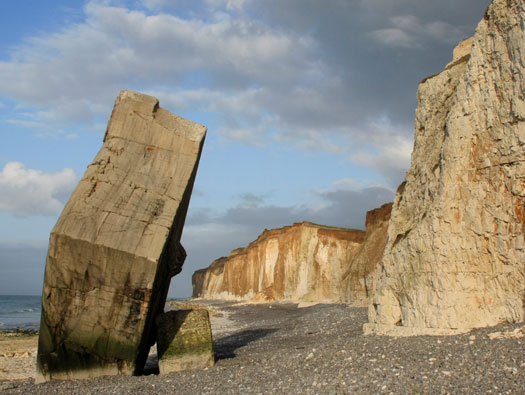

R622 on the beach.

03 March 2012

Marg03

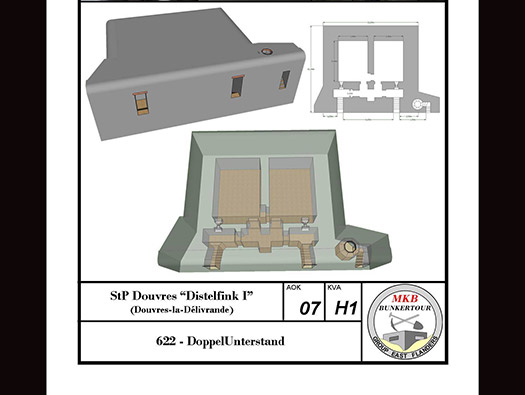

R622 twin group shelter. Called a shelter as it only has two meter walls and roof. When called a bunker it has 3.5 meters of concrete. There were fittings for three bunks high, nine bunks per side and 18 men per bunker, if full.

MKB Bunkertour

Marg03

R622 twin group shelter. The two upper doors are for entry/exit, the lower door is to the Tobruk defence. The Tobruk had no access to the bunker and they had a speaking tube (Sprachrohr) to talk into the bunker. So he was out there on his own. His job was lookout, to warn of any problems and also to defend the bunker.

03 March 2012

Marg03

R622 twin group shelter. The Tobruk entrance and also you can see the camouflage effects on the rear bunker wall. This is indicative to the Dieppe area.

03 March 2012

Showing the entrance into a Tobruk on a bunker in Brittany.

Marg03

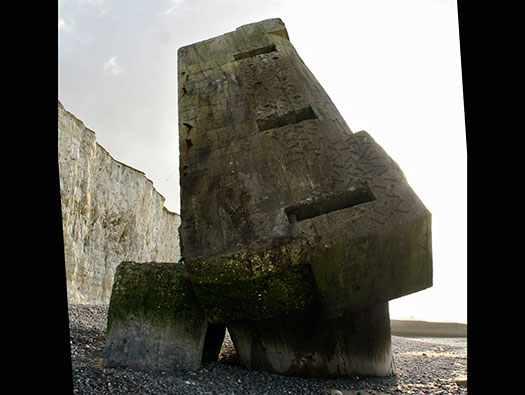

R622 twin group shelter. This is the underside of the bunker and it was 80mm thick concrete. Until I came here, I had seen hundreds of bunkers, but this is the first time I had seen the underside of an R622.

03 March 2012

Marg03

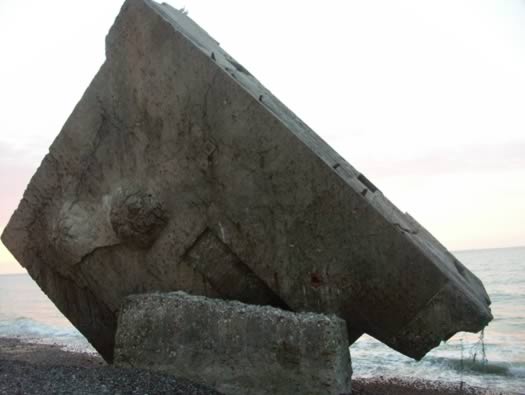

R622 twin group shelter.

03 March 2012

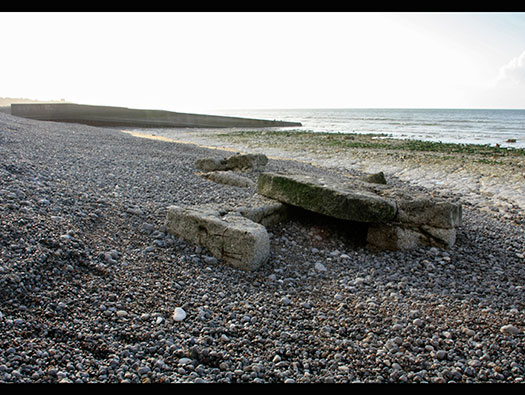

Marg03

Either a machine gun/observation position, or an ammunition niche.

03 March 2012

Marg03

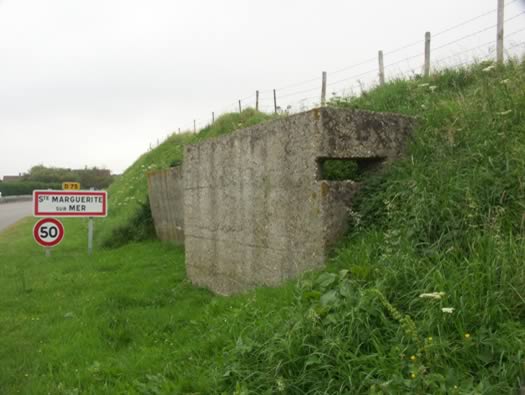

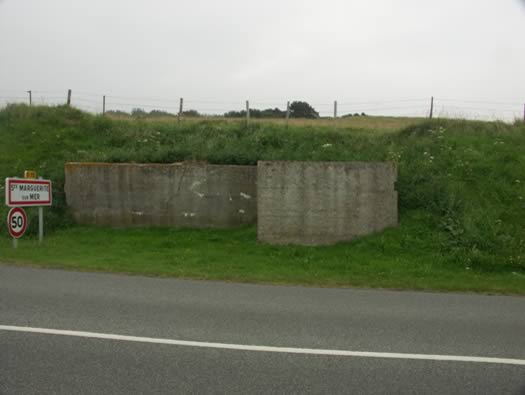

SK/M.G. Splitterschutz baracke zerst - Splinter protection barrack destroyed. No idea what it actually was, but it does have a machine gun, rife defence embrasure.

12 August 2007

Marg03

SK/M.G. Splitterschutz baracke zerst - Splinter protection barrack destroyed.

12 August 2007

Marg03

SK/M.G. Splitterschutz baracke zerst - Splinter protection barrack destroyed.

12 August 2007

Marg03

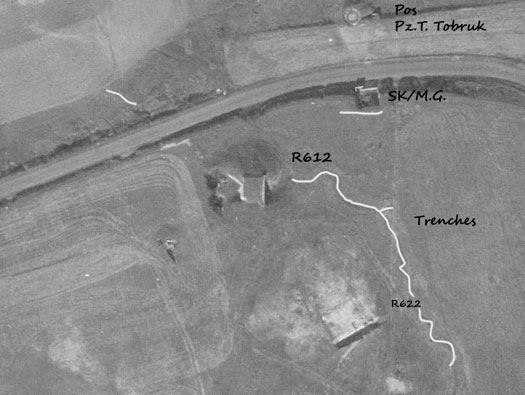

Now south of the road and up into the fields. SK/M.G. + barracks?, an R612 casemate, trenches and an R622 twin group shelter.

IGN 1948

Marg03

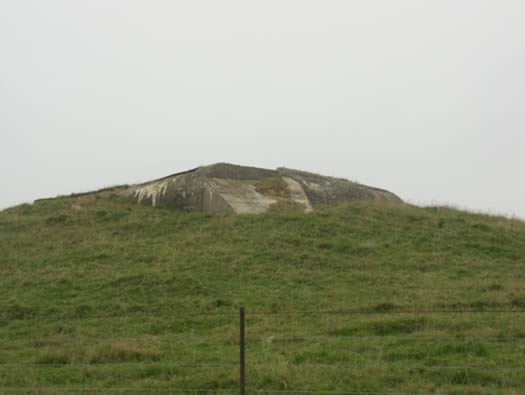

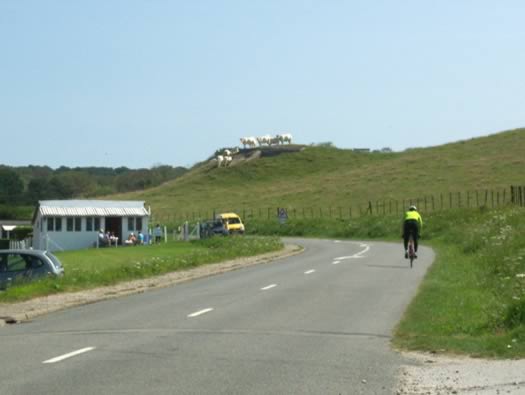

R612 casemate.

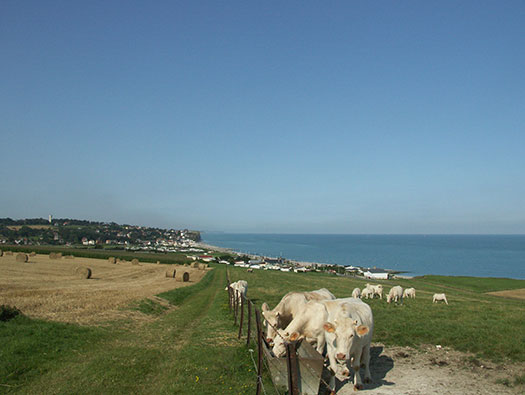

Or Cow stand. You can see that this gun covered the road up from the beach.

12 August 2007

Marg03

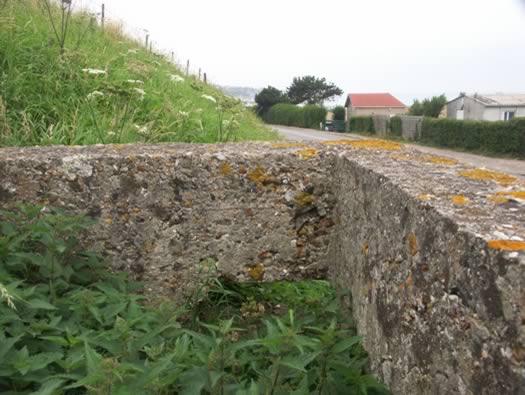

R612 casemate.
The flanking wall to protect the guns embrasure from direct fire from the sea.

12 August 2007

Marg03

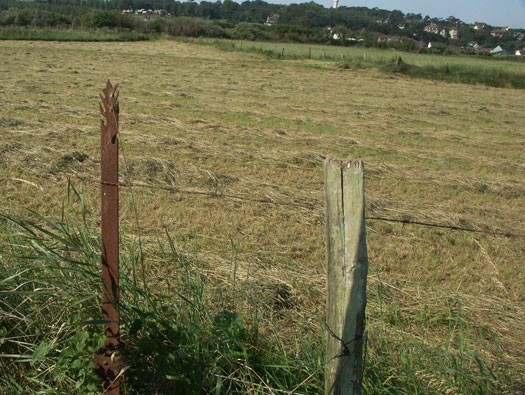

Eisenpfahel.
A German steel post to hold barbed wire.

12 August 2007

Marg03

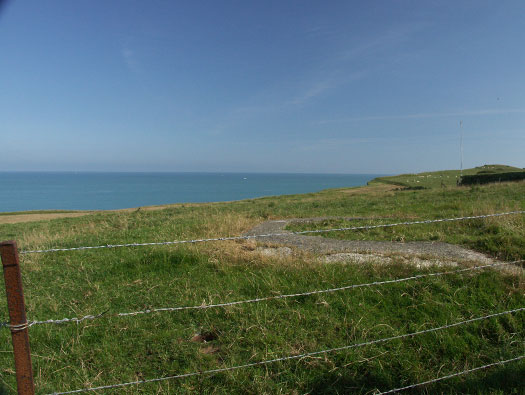

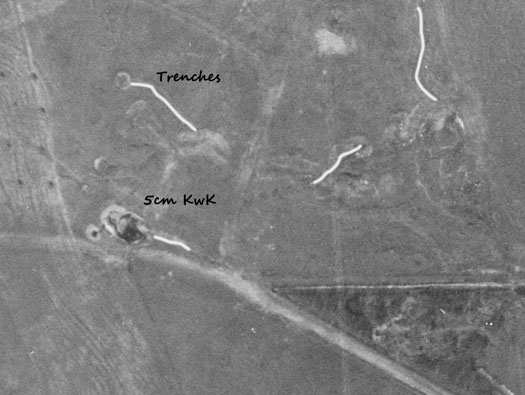

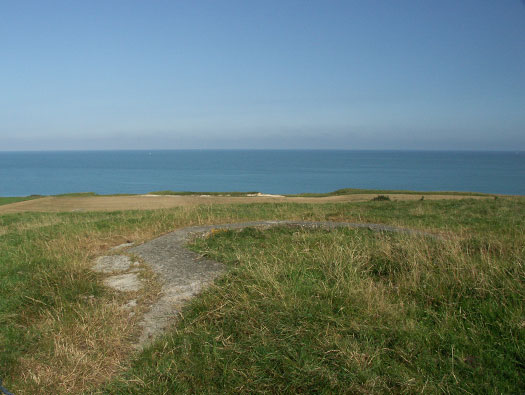

Vf600 for a 5cm KwK. Vf600 - Vf = V (Verstärkt) f. (feldmäßig [er]). Reinforced field work. There are two builds of a Vf600. One is just the top half for the gun and sometimes they have a two roomed shelter underneath. One is a crew room and the other an ammunition room.

12 August 2007
