MB 2 M.K.B. Batt. Annes

MKB · Gruppe Alderney · Kanalinseln (Channel Islands) · France

MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney a small island off the coast of the Cherbourg Peninsular one of the Channel Islands and a Crown dependency. 3miles x 1.5miles. In June 1940 its entire population was removed and sent to either the other Channel islands or to Britain (most ended up in Glasgow). Then the German occupation forces arrived on the 2nd July. Hitler thinking that the British would attempt at recapturing, ordered it to become a Festung and later combined into the Atlantikwall.
German map of the island and its defences.
German map of the island and its defences.
Alderney, MB 2 M.K.B. Batt. 'Annes'
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'


Google Maps

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
M.A.A. 605 (Marine Artillery Abteilung) Marine Batterie 2. 4 x 15cm SK C/28 guns in open emplacements. 4 x hexagonal gun positions (Bettung). 6 x 2cm Flak. 3 x four barrelled 2cm Flak. 1 x 7.5cm LAG (anti air landing gun). 1 x 3.7cm Pak gun. 1 x M120 Fire control post for a 17cm batterie. 2 x 150cm searchlights field positions (Anton & Bruno). 5 x M151 quarters for 1 Officer, three NCO´s and 24 privates. 2 x M145 ammunition bunkers. MAA - Marine Artillery Abteilung MKB - Marine Kusten Batterie

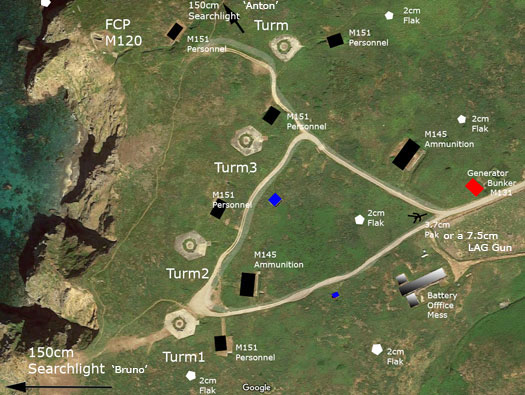

Google Plan

M145 ammunition bunkers.
M145 ammunition bunkers.
For guns crew M151 quarters for 1 Officer, three NCO´s and 24 privates.
For guns crew M151 quarters for 1 Officer, three NCO´s and 24 privates.
M120 Fire control post.
M120 Fire control post.
M120 Fire control post.
M120 Fire control post.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

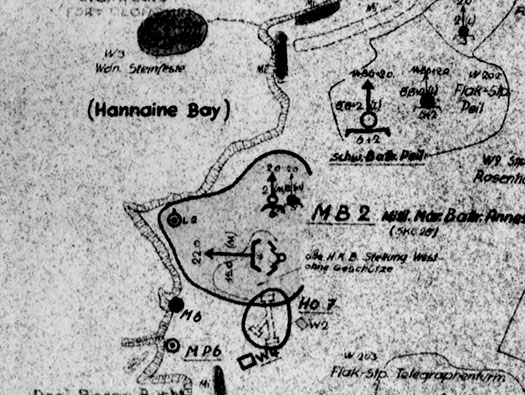

Ausboustand-karte Alderney the German map of the batterie.

Ausboustand-karte Alderney

Flak.
Flak.
Main batterie.
Main batterie.
M120 Fire control post.
M120 Fire control post.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Road into the battery.

05 October 2016

4 x 15cm SK C/28 gun.
4 x 15cm SK C/28 gun.
M131 bunker for permanent machinery.
M131 bunker for permanent machinery.
109C type generator.
109C type generator.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

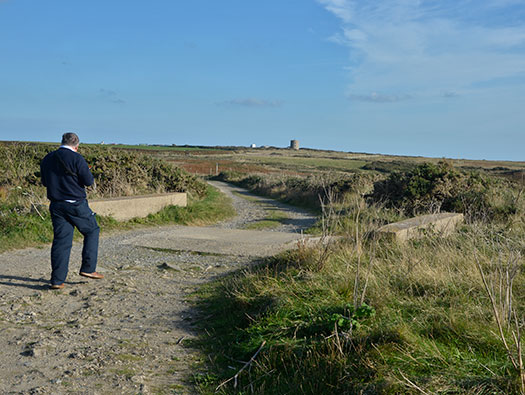

A concrete bridge allowing heavy lorries to pass over a defence trench system.

05 October 2016 John

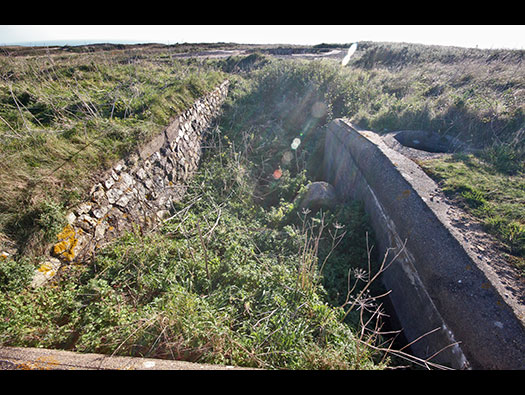

Trench.
Trench.
Alderney, MB 2 M.K.B. Batt. 'Annes'
Trench layout and where the bridge is situated.
Trench layout and where the bridge is situated.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

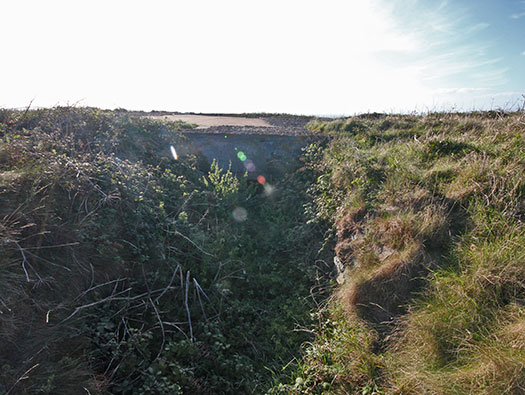

The edge of the bridge with the trench running out into the fields.

05 October 2016

Trench layout and where the bridge is situated.
Trench layout and where the bridge is situated.
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

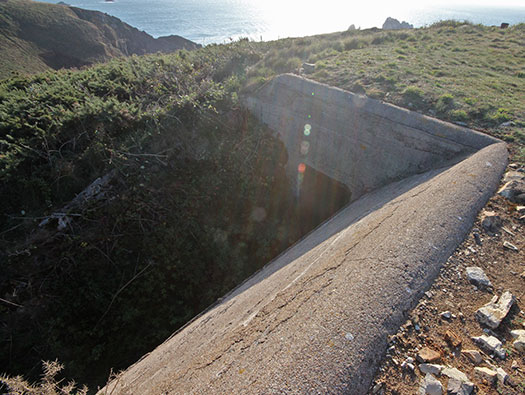

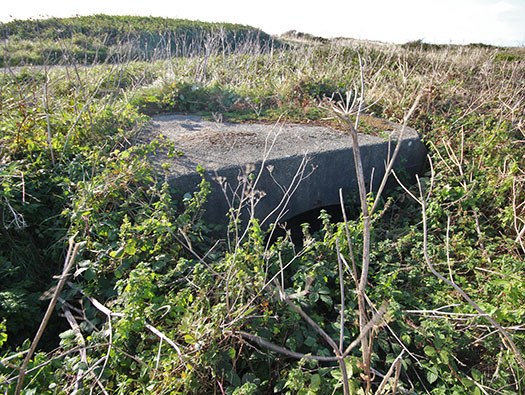

Another trench bridge.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

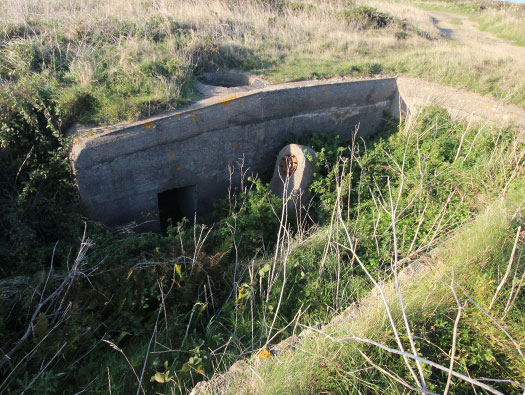

M145 ammunition bunker. This is a multi roomed ammunition storage. All ammunition had to be carried by hand down into the bunker and then when needed carried back out.

05 October 2016

Map.
Map.
Plan.
Plan.
Alderney, MB 2 M.K.B. Batt. 'Annes'
Crew.
Crew.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

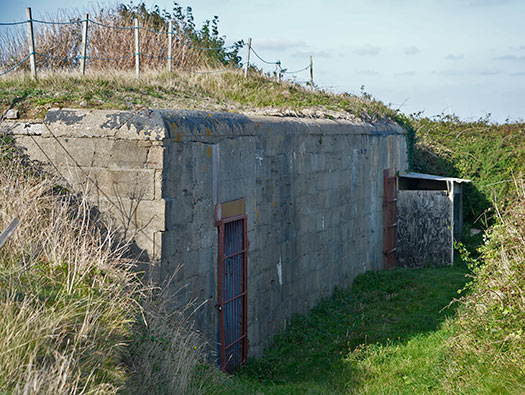

M145 ammunition bunker with two entrances.

05 October 2016 John

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

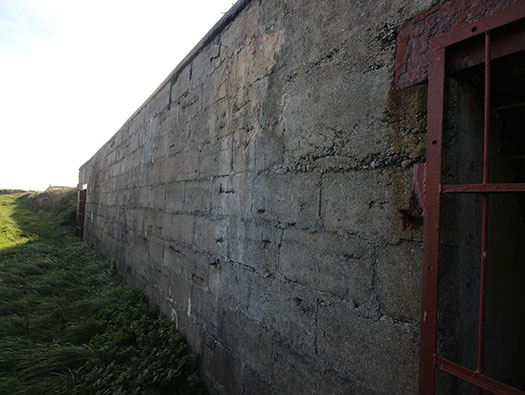

M145 ammunition bunker. It was made in Bauform concrete block.

05 October 2016

Bauform blocks and reinforcement.
Bauform blocks and reinforcement.
Bauform construction in a casemate.
Bauform construction in a casemate.
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

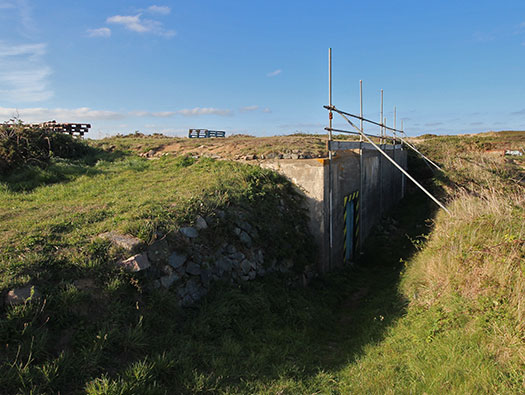

M145 ammunition bunker. Two entrances this one was extra wide to allow easier access for ammunition. The ramps running down the steps are to roll ammunition down to the bunker.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'
Alderney, MB 2 M.K.B. Batt. 'Annes'
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

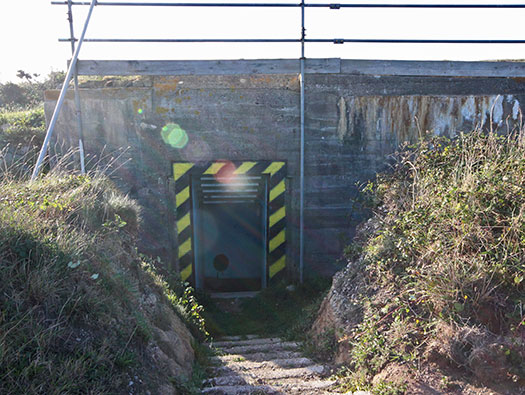

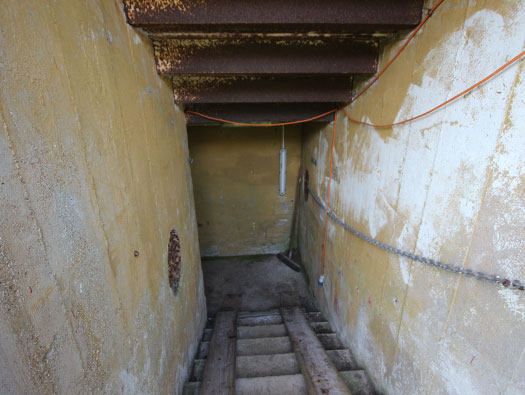

M145 ammunition bunker. This is the crew access.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'
Naval ammunition handlers.
Naval ammunition handlers.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

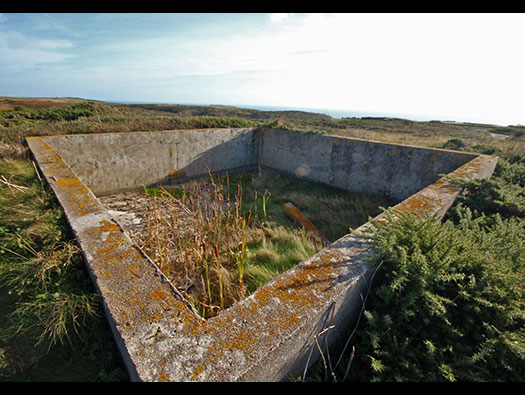

Water reservoir. This may have been used for the construction phase and then kept on as an emergency water supply in case of a local fire.

05 October 2016

Map.
Map.
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
The second large M145 ammunition bunker..

05 October 2016

6 x 2cm Flak 38.
6 x 2cm Flak 38.
3 x 2cm 38 Vierlinge [quadruple].
3 x 2cm 38 Vierlinge [quadruple].
7.5cm LAG gun.
7.5cm LAG gun.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
The second M145 ammunition bunker. Again nice wide outer stairs.

05 October 2016

M145 ammunition bunker plan.
M145 ammunition bunker plan.
Map.
Map.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

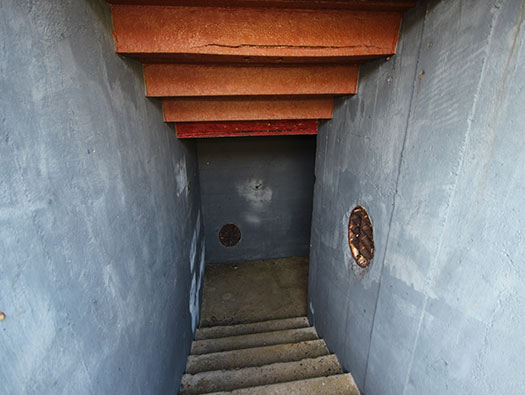

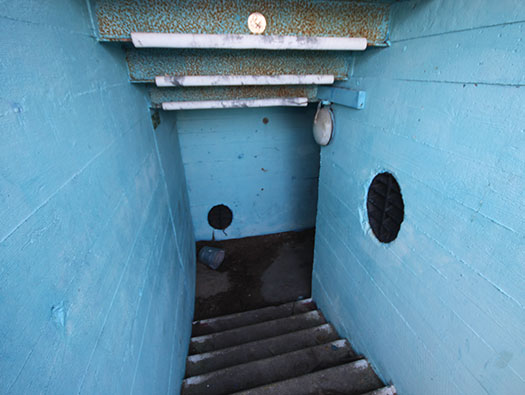

The secondM145 ammunition bunker. Steps down with a 200mm air vent on the side wall.

05 October 2016

Plan.
Plan.
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
The second M145 ammunition bunker.

05 October 2016

Plan.
Plan.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

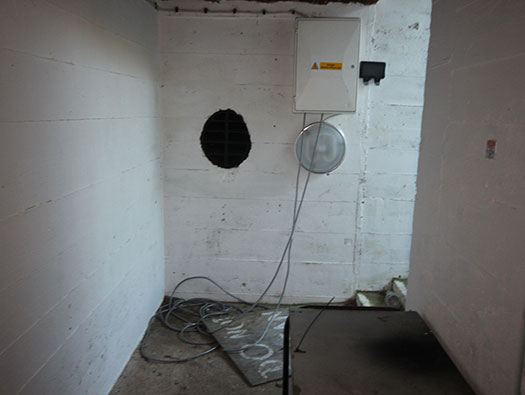

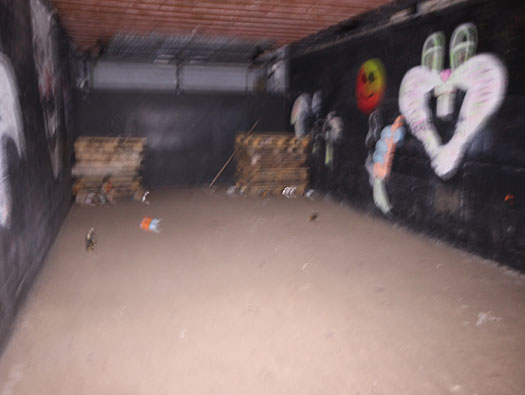

The second M145 ammunition bunker. The first large room.

05 October 2016

Plan.
Plan.
Shells.
Shells.
Cases.
Cases.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
The second M145 ammunition bunker. The second room.

05 October 2016

Plan.
Plan.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

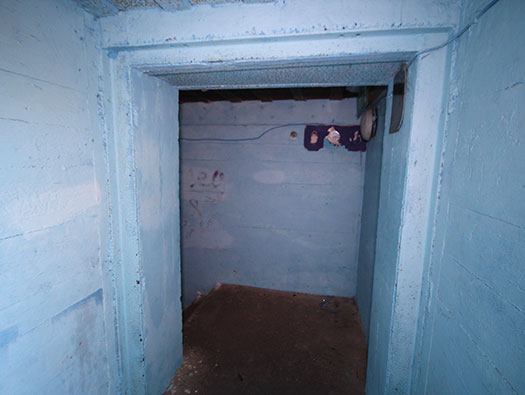

The second M145 ammunition bunker. Smaller room for maybe flak 2cm, small arms or fuzes??

05 October 2016

Plan.
Plan.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
The second M145 ammunition bunker. The second way out.

05 October 2016

Plan.
Plan.

Alderney, MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. Annes
M151 quarters for one officer, three NCO´s and 24 privates bunker.

05 October 2016

Map..
Map..
M151 quarters for 1 Officer, three NCO´s and 24 privates.
M151 quarters for 1 Officer, three NCO´s and 24 privates.
Officer.
Officer.
Three NCO´s.
Three NCO´s.
24 Men.
24 Men.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

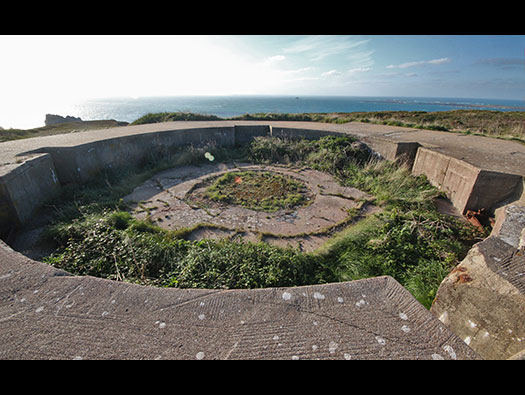

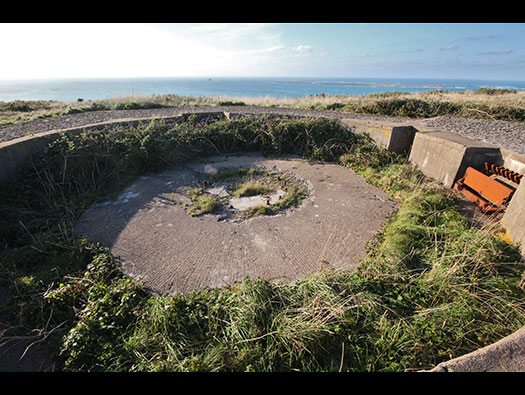

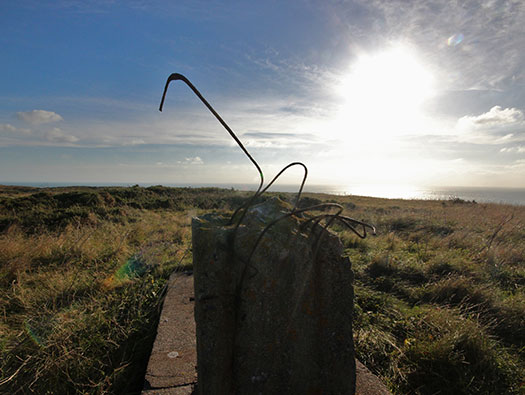

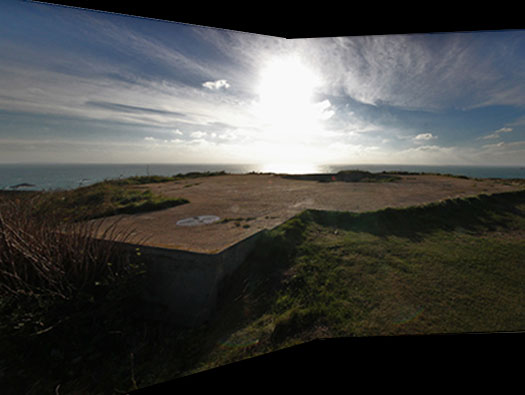

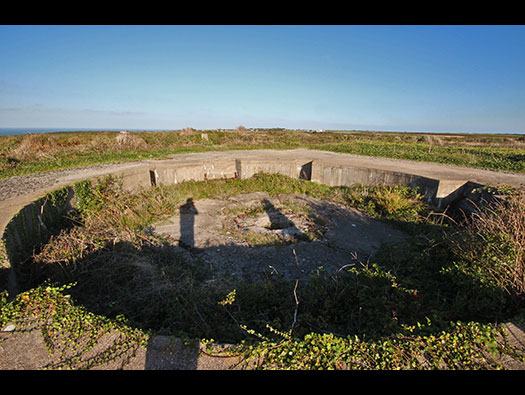

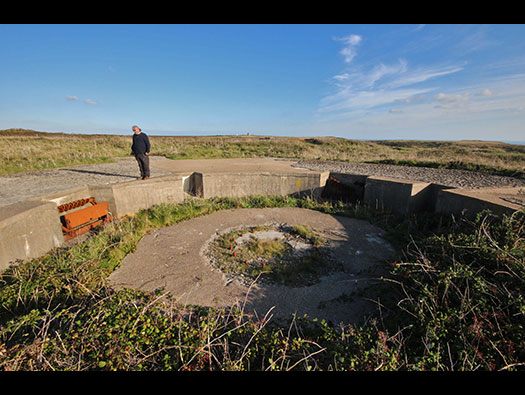

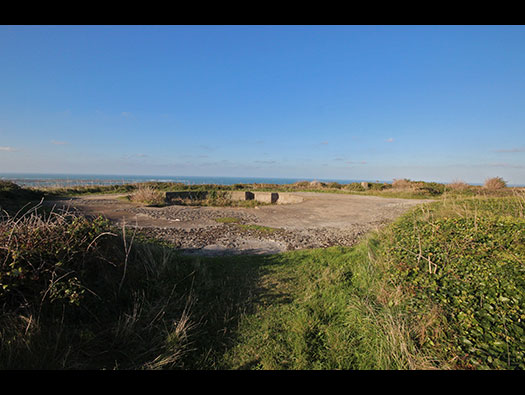

Turm 1. The first large gun emplacement with a trench leading into the emplacement.

05 October 2016

My plan of the emplacement or Bettung.
My plan of the emplacement or Bettung.
Map.
Map.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

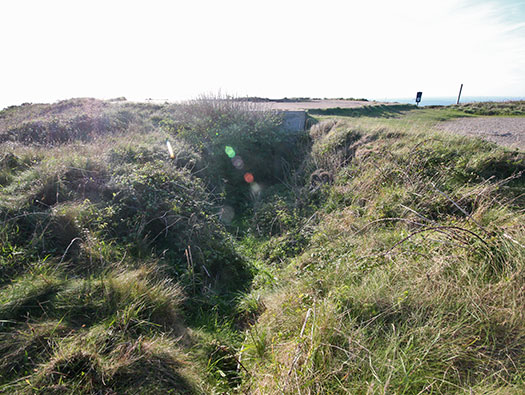

Turm 1. The trench entrance into the Bettung.

05 October 2016

The gun in its Bettung.
The gun in its Bettung.
Alderney, MB 2 M.K.B. Batt. 'Annes'
Behind the shield.
Behind the shield.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 1.

05 October 2016

15cm SK C/28 gun.
15cm SK C/28 gun.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

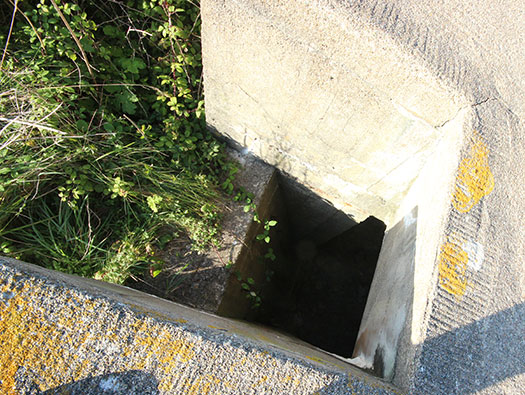

Turm 1. There are three small niches like this and three larger ones. These may be used for the cases to be passed up through?? The larger ones for the heavier shells.

05 October 2016

Another view of the hole..
Another view of the hole..
Case with cordite to power the shell out of the gun.
Case with cordite to power the shell out of the gun.
Alderney, MB 2 M.K.B. Batt. 'Annes'
Shells and case.
Shells and case.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 1. Another view of the hole. One more has a steel ladder down to the lower level which we did not enter.

05 October 2016

Steel type ladders that was used.
Steel type ladders that was used.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 1. Ammunition hoist, this is where the shells came up from the storage under the concrete lid.

05 October 2016

Shells.
Shells.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

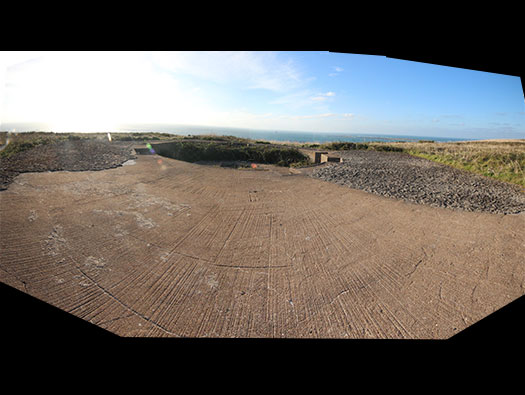

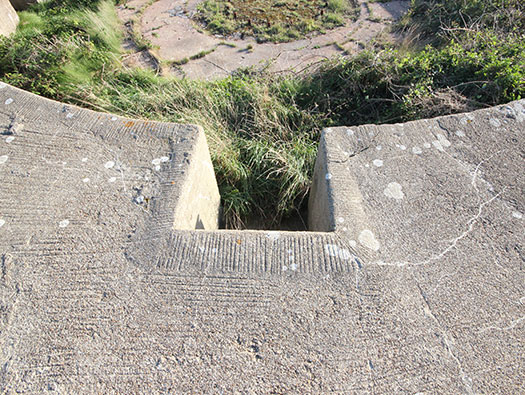

Turm 2. The concrete finished off with grooves.

05 October 2016

Map.
Map.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 2. The centre tie downs for the gun and shell ammunition hoist.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

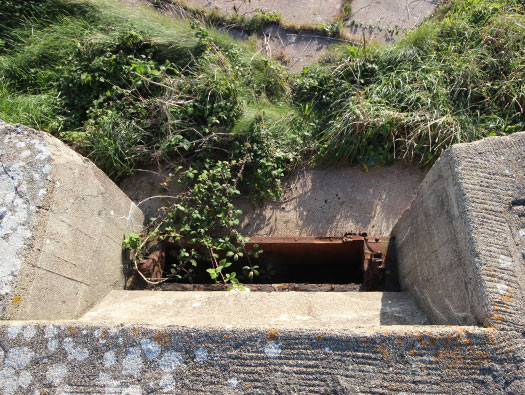

Turm 2. Shell ammunition hoist.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 2.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 2. Ammunition hoist.

05 October 2016 John

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 2. Trench entrance into Turm 2.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

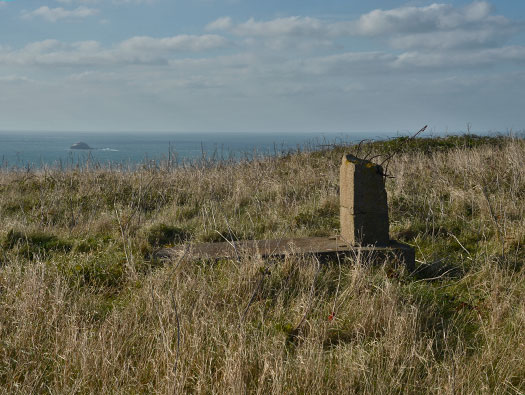

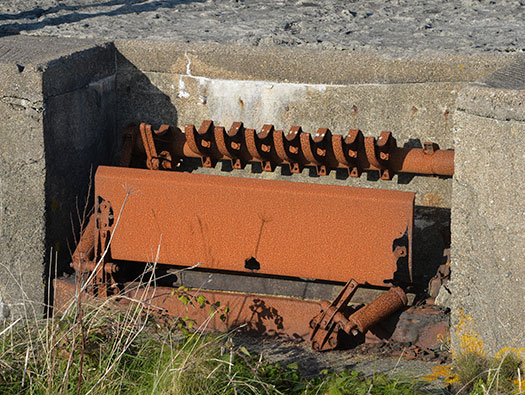

This is very interesting if only I knew what it was???

05 October 2016

Details2
Details2

Alderney, MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. Annes
It could have been were the gun line was set out and this may have been a compass base.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 3.

05 October 2016

A very bad plan of the emplacement or Bettung.
A very bad plan of the emplacement or Bettung.
Map.
Map.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

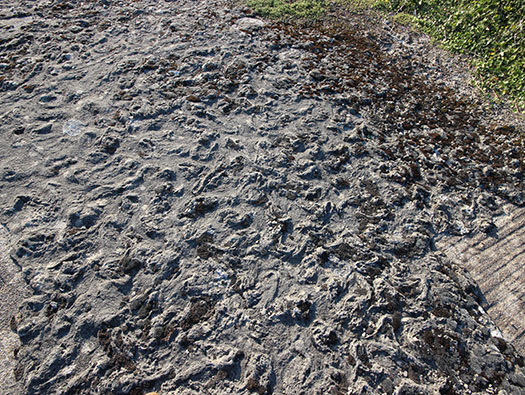

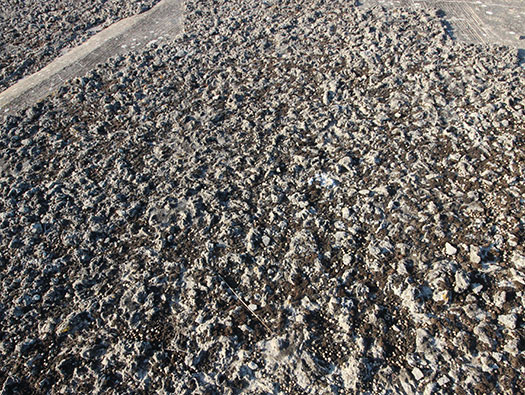

Turm 3´s added coat of camouflage concrete.

05 October 2016

Alderney, MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. Annes

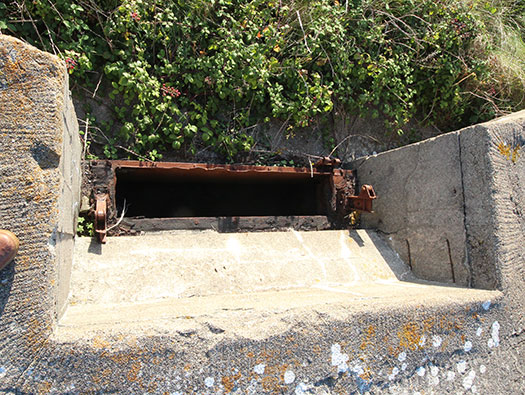

Turm 3. Another ammunition hoist.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

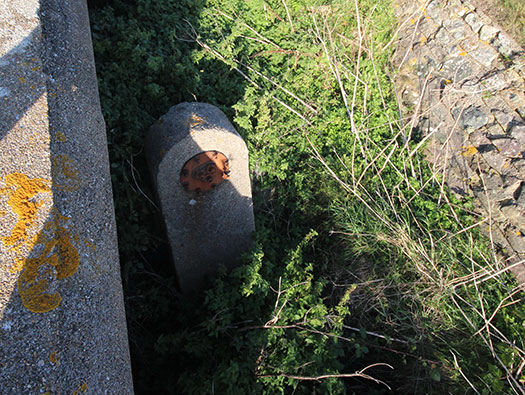

M151 quarters for 1 Officer, three NCO´s and 24 privates. This is the entrance attached to the gun Betting via a trench. In this trench is another odd item??

05 October 2016

M151 quarters for 1 Officer, three NCO´s and 24 privates.
M151 quarters for 1 Officer, three NCO´s and 24 privates.
Map.
Map.
Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
M151 quarters for 1 Officer, three NCO´s and 24 privates. This is the entrance attached to the gun Betting via a trench.

05 October 2016

M151 quarters for 1 Officer, three NCO´s and 24 privates. Tow large crew rooms for 12 men each. Officers room & a room for three NCO´s.
M151 quarters for 1 Officer, three NCO´s and 24 privates. Tow large crew rooms for 12 men each. Officers room & a room for three NCO´s.
Crew.
Crew.
NCO´s.
NCO´s.
Officer..
Officer..

Alderney, MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. Annes

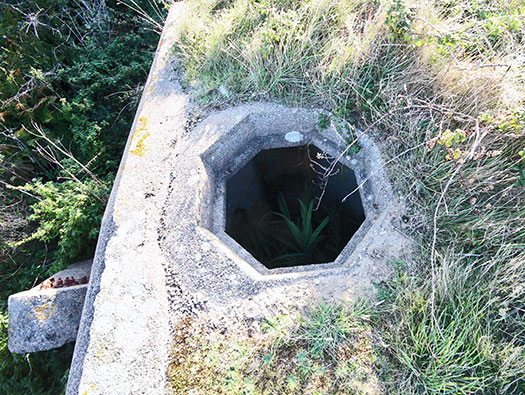

M151 quarters for 1 Officer, three NCO´s and 24 privates. Tobruk for all around defence.

05 October 2016

A round Tobruk.
A round Tobruk.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

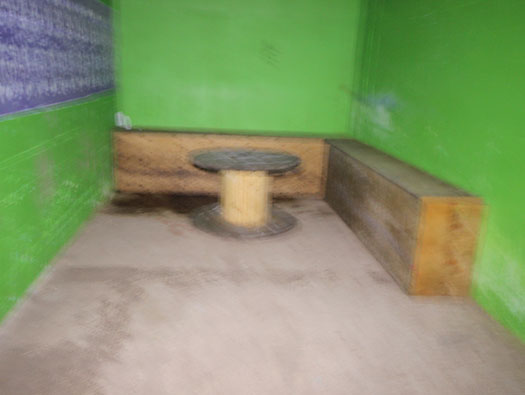

M151 quarters for 1 Officer, three NCO´s and 24 privates. This is another view of the other item I have no idea what it was for.

05 October 2016

Officers room.
Officers room.
Crew.
Crew.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 4.

05 October 2016

Gunner.
Gunner.
15cm SKC 28.
15cm SKC 28.
15cm SKC 28.
15cm SKC 28.

Alderney, MB 2 M.K.B. Batt. Annes

Alderney, MB 2 M.K.B. Batt. Annes
Turm 4.

05 October 2016

Map.
Map.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 4.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'

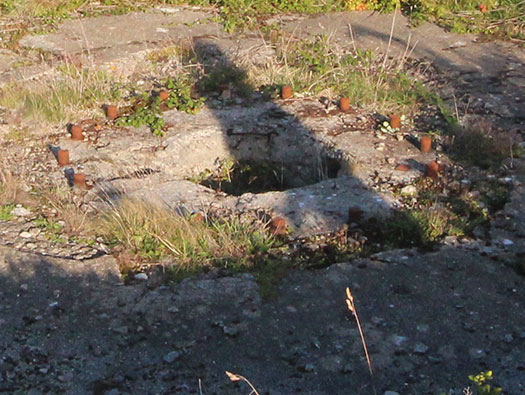

Turm 4. About 17/18 threads with a hole in the centre to allow command wires to come up to the gun and steel ladder down into it.

05 October 2016

Centre.
Centre.
15cm SK C/28 gun.
15cm SK C/28 gun.
The base of an SK C/28 gun.
The base of an SK C/28 gun.

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
Turm 4 added camouflage.

05 October 2016

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'
M120 Fire control post. 1 x M120 Fire control post for a 17cm batterie. Attached by short trench is an M151 accommodation bunker for FCP crew. Although the FCP is for a 17cm batterie, here it is used with a 15cm batterie.

05 October 2016

Map.
Map.
M120 large FCP bunker. In the nose - Observation room. passage way to - computing room. [Three lower rooms] Wireless, ventilation, latrines & wash room. Above - crew rooms. Middle rear - ventilation, gas lock, close combat.
M120 large FCP bunker. In the nose - Observation room. passage way to - computing room. [Three lower rooms] Wireless, ventilation, latrines & wash room. Above - crew rooms. Middle rear - ventilation, gas lock, close combat.
M120 large FCP bunker elevation. Top three rooms. Obs, obs & range finder. Computing lower front.
M120 large FCP bunker elevation. Top three rooms. Obs, obs & range finder. Computing lower front.
M120 two observation domes and one large range finder.
M120 two observation domes and one large range finder.
M120 Noirmont.
M120 Noirmont.

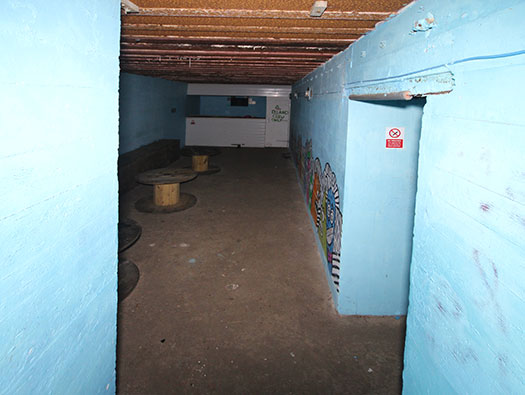

M151 quarters for 1 Officer, three NCO´s and 24 privates.
M151 quarters for 1 Officer, three NCO´s and 24 privates.

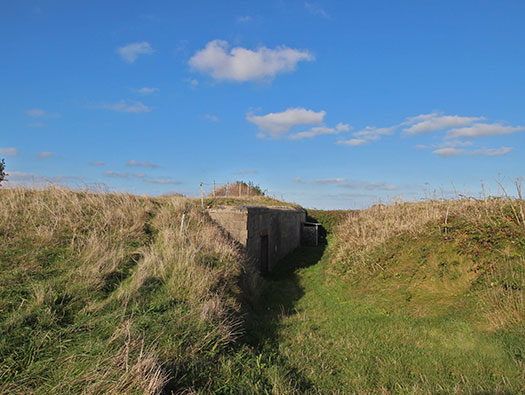

Alderney, MB 2 M.K.B. Batt. 'Annes'

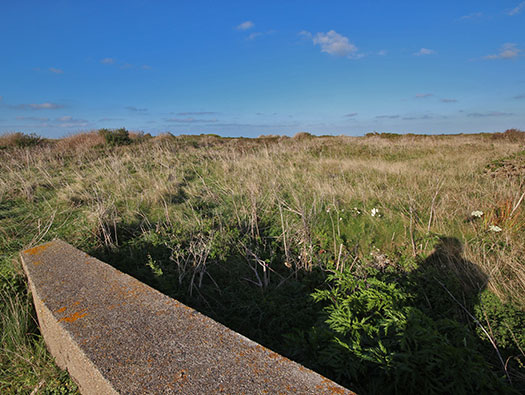

Turm 2. At the south side of the battery is an oblong sunken area which was dug out to place possibly a wooden long hut in it to use as a battery office/canteen/barracks, anything that was needed..

05 October 2016

Map.
Map.
Wooden hut at Batterie York, Cherbourg..
Wooden hut at Batterie York, Cherbourg..
A base for a wooden hut Margival showing what it may look like..
A base for a wooden hut Margival showing what it may look like..

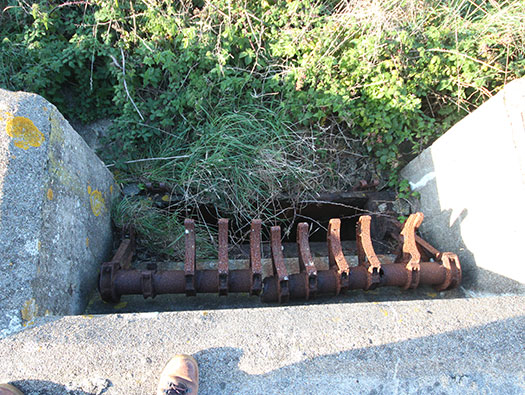

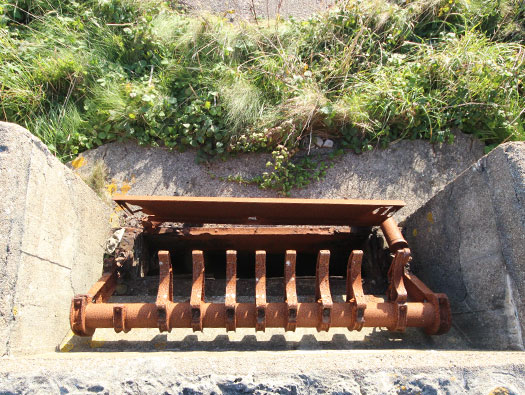

Alderney, MB 2 M.K.B. Batt. 'Annes'

Alderney, MB 2 M.K.B. Batt. 'Annes'


05 October 2016
