Few of these photos are mine, unfortunately. So I have fall back on Google and Geoportail.
This was a small in number but large in area Wn. About a Kilometre of frontage. It covers both sides of the Yéres River. There may be more bunkers to be found here so an interesting place.
Pen02 Criel plage
Pen02 Criel plage
1 x Vf bunker for 4.7cm Festung-Pak(t).
2 x R134 ammunition bunker's.
2 x R502 Twin Groupe shelter.
2 x R600b Ringstand.
1 x R680 (casemate for 7.5cm Pak40.under construction.
5 x Feldm shelter.
1 x Vf67 Tobruk.
2 x Pz.T. tank turret.
2 x 5cm KwK.
2 x 7.5cm F.K.235(b)
22 October 2014
Pen02 Criel plage

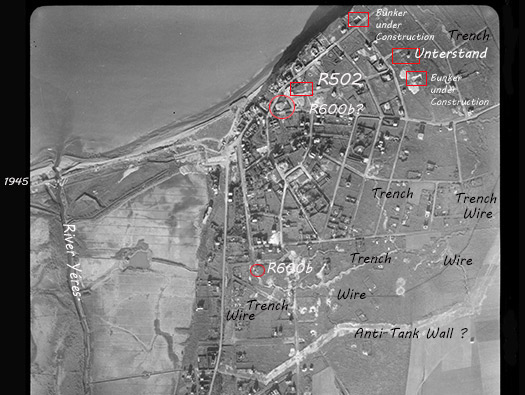

Plan of the east of the River Yéres. There may have been an anti-tank wall to the south & west, a barbed wire defence and then trenches. Inside there seems to be some bunkers under construction and an R600b for a 5cm KwK may have been installed there. An R502 is still in a garden in Rue des Embruns. An unterstand with an odd (chimney or bunker?) is in Rue Sainte-Catherine. Then an R600b for a 5cm KwK Pak is in Boulevard Jean Mermoz.
1945 Geoportail
Pen02 Criel plage

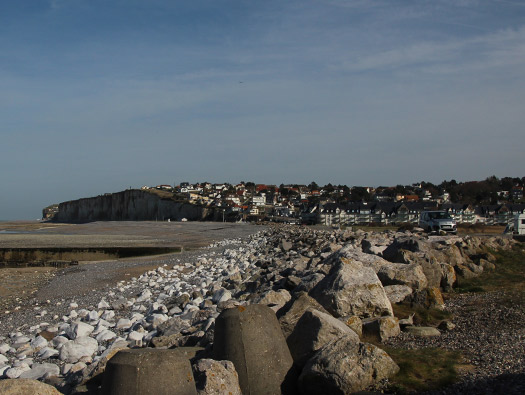

Criel Plage on the hill with the beach of Criel sur Mer.
24 March 2014
Pen02 Criel plage

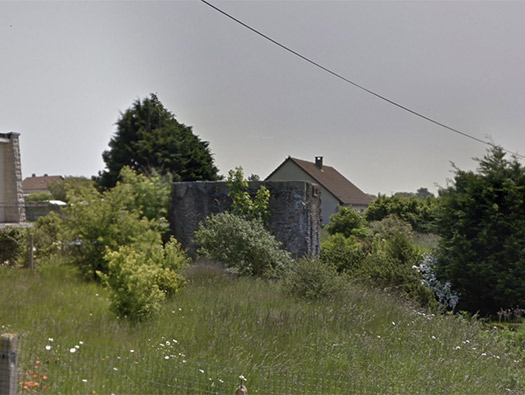

FA Unterstand in Rue Sainte-Catherine.
Pen02 Criel plage

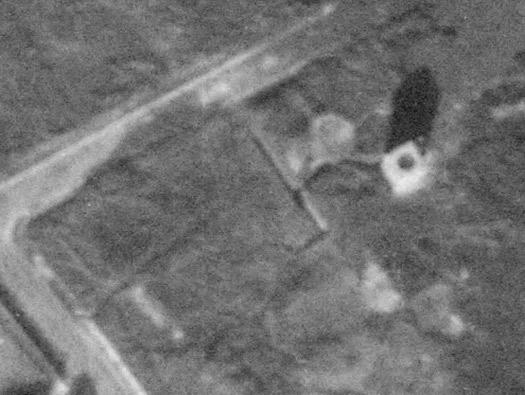

FA Unterstand in Rue Sainte-Catherine seen from the air. Notice the large that looks like a chimney?
1945 Geoportail
Pen02 Criel plage
FA Unterstand this could be the chimney? or a Tobruk?
Pen02 Criel plage

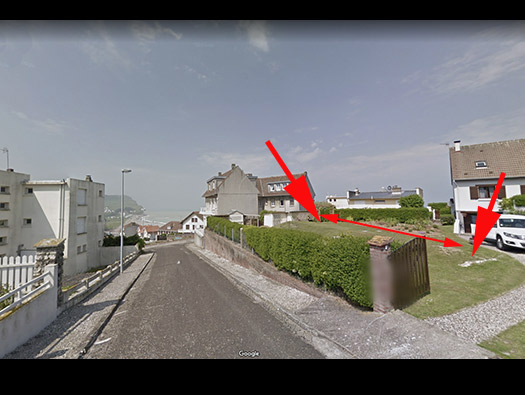

R502 is still in a garden in Rue des Embruns. The arrows show the size of it and also there is/was a Tobruk defence on the left side.
Pen02 Criel plage

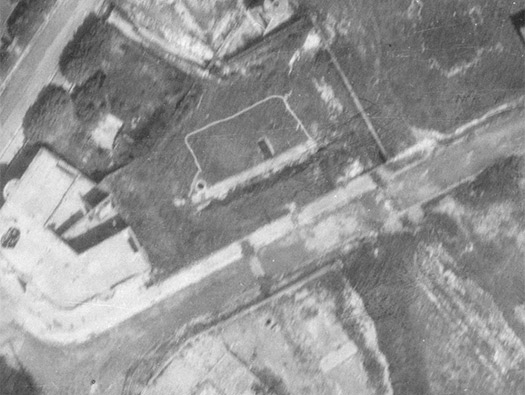

R502, I have outlined the sides and rear wall that cannot be seen. The Tobruk defence shows up well in this 1945 photo.
1945 Geoportail
R504 plan.
Plan Kurt.
Pen02 Criel plage

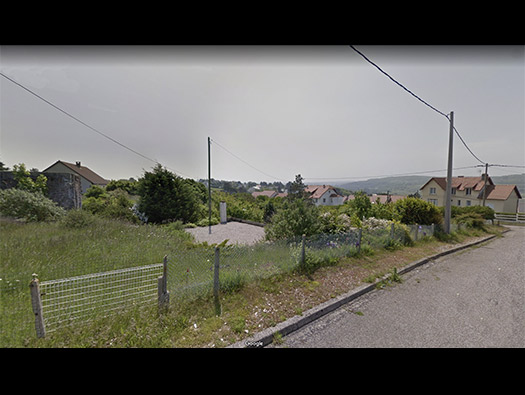

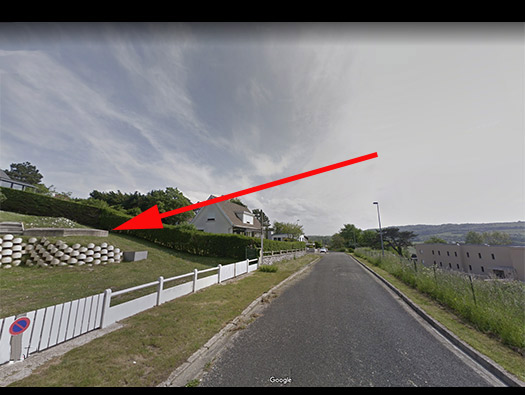

In the Boulevard Jean Mermoz is this is stated to be an R600b, but it could also just be an Nr1694 type?
Google looking South
Pen02 Criel plage

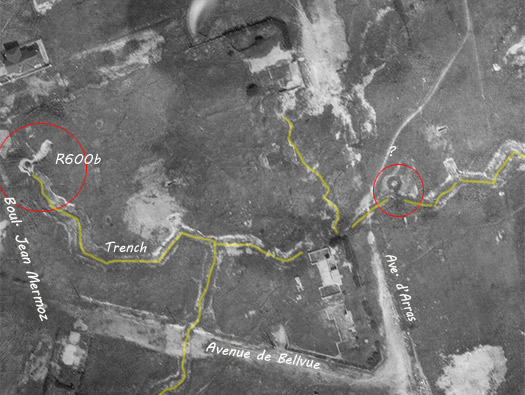

The Boulevard Jean Mermoz ringstand is marked as an R600b and to its right along the trench line, it looks like possibly another?
1945 Geoportail
Pen02 Criel plage

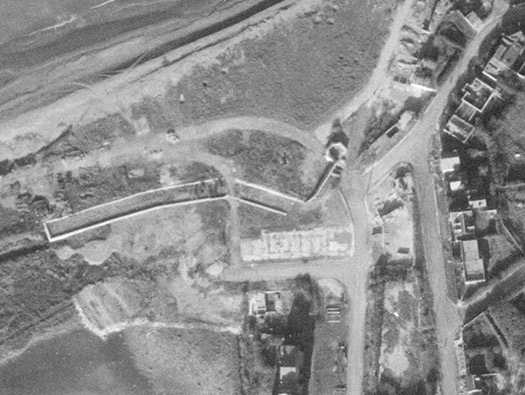

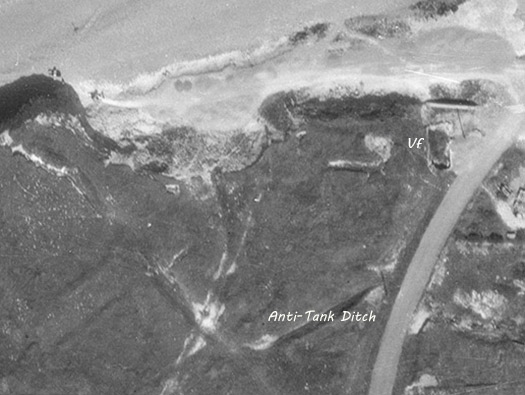

The area at Rond-Point de Verdun. This maybe the start of a defence anti-tank ditch or just a water drainage culvert.
1945 Geoportail
Pen02 Criel plage

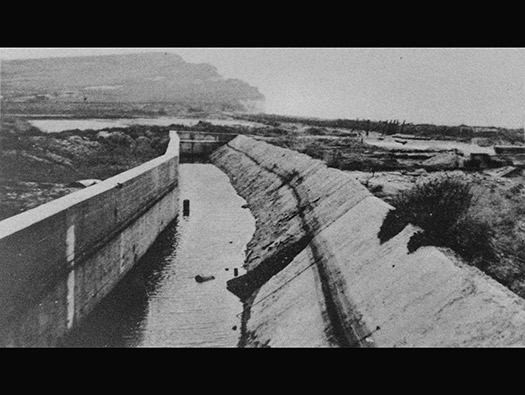

Anti-tank ditch or just a water drainage culvert. Even as a culvert it would make a very good anti-tank ditch.
DEFE 2/2092 Report No 2 on German coastal defences in the Ostende/Dieppe area
Pen02 Criel plage

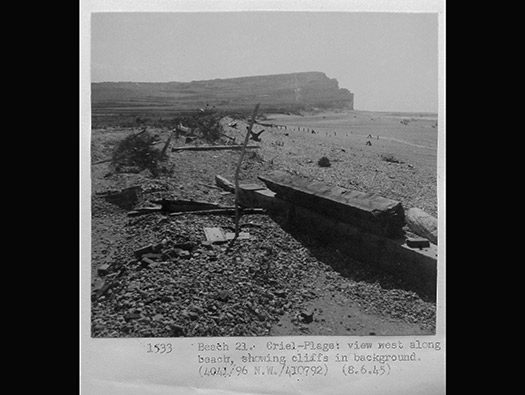

The beach around 1944/5 with the barbed wire, tetrahedra and what looks like a floating mine box.
WO 252/149 Northern France Check Reconnaissance
Pen02 Criel plage

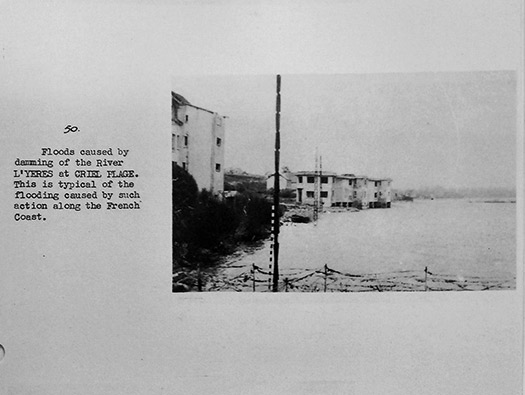

The river was allowed to flood the inland and can be seen in this picture.
DEFE 2/2092 Report No 2 on German coastal defences in the Ostende/Dieppe area
Pen02 Criel plage

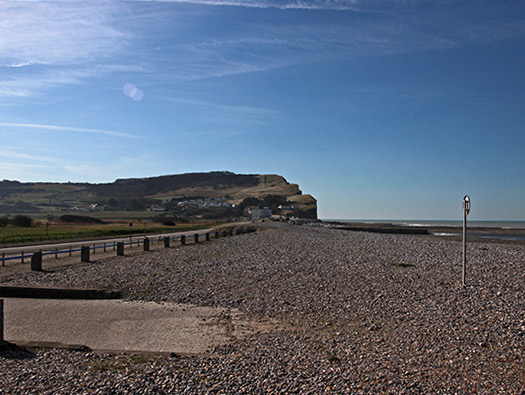

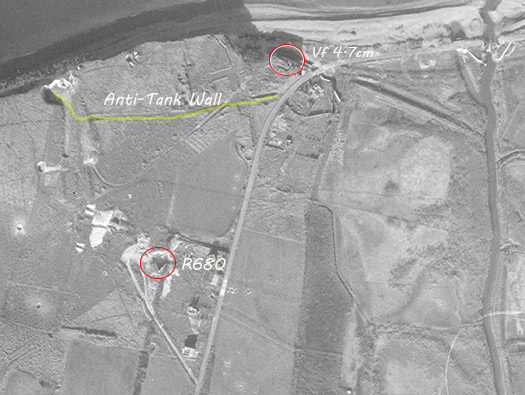

The West side of Criel plage. This is a smaller defence but an R680 was being constructed to hold a 7.5cm Pak 40. By the beach a Vf bunker for 4.7cm Festung-Pak(t).
1945 Geoportail
Pen02 Criel plage

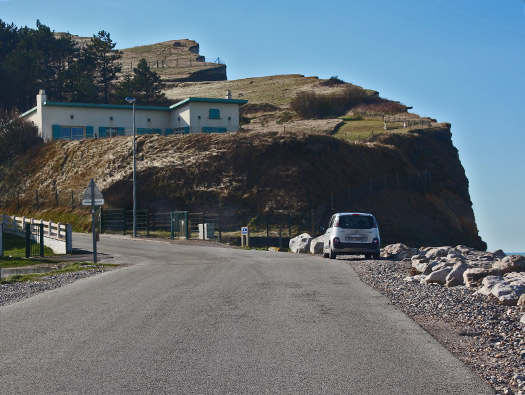

24 March 2014
Pen02 Criel plage
A possible Vf bunker for a 4.7cm Pak (t).
1945 Geoportail
Pen02 Criel plage
Somewhere here was a Pak bunker
24 March 2014
Pen02 Criel plage
There is a small concrete wall and a flint and brick wall behind???
24 March 2014
Pen02 Criel plage

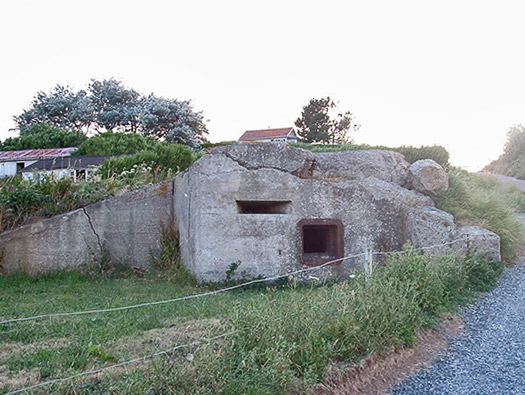

This is possibly the Vf casemate type that was used here.
24 March 2014
Pen02 Criel plage

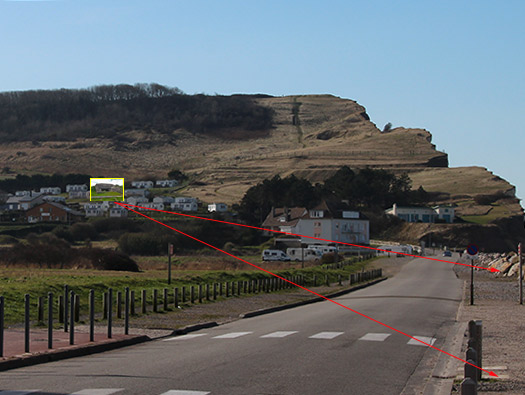

This is about where the large R680 casemate was being constructed. You can see the red lines where the gun could fire. Deadly.
An R680 could take a range of guns that were available from a 5cm Pak to the 7.62cm Pak(r) but also a field gun could be placed inside and there were two field guns here at Pen02 7.5cm F.K.235(b) type.
24 March 2014
Pen02 Criel plage

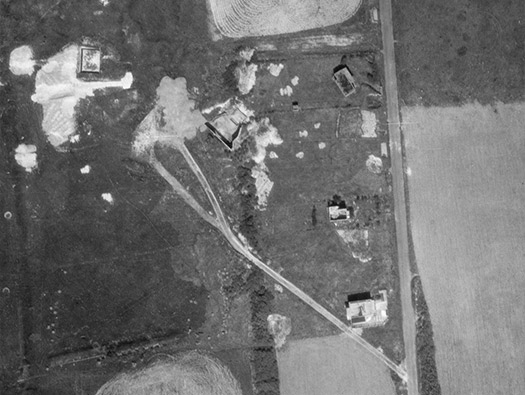

Air photo of the R680 casemate under construction and it looks like it is being built in Formstein, a form of concrete block inner and outer wall, in the gap steel reinforcement rods were placed and then filled with concrete.
1945 Geoportail
Pen02 Criel plage
