Ra143 Plage de Longchamp est

K.V.Gruppe Rance · AOK 7 Brittany · France

Ra143 Plage de Longchamp est

Ra143 Plage de Longchamp est is the beach at Saint-Lunaire a favoured watering hole of British tourists at the turn of the century.

Ra143 Plage de Longchamp est

1 x R667 casemate.

1 x R105c machine gun casemate.

1 x R501twin Gruppe bunker.

2 x Vf58c Tobruk's.

2 x R612's ?? .

1 Vf/MG Stand.

1 x 5cm KwK Pak gun.

2 x 7.5cm F.K . Anti-Tank Ditch.

Ra143 Plage de Longchamp est

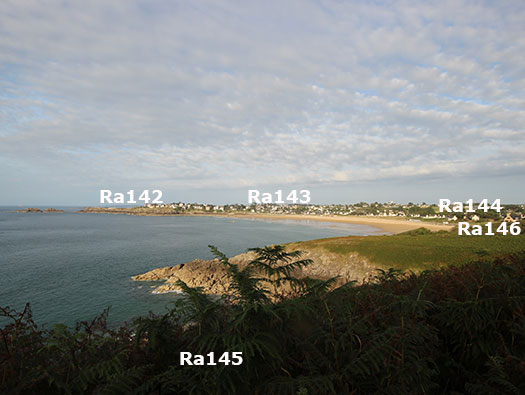

The sites of all the Widerstandsnest around Saint-Lunaire.

21 July 2015

MG34 mounting for a bunker with an steel plate.

78P9 PZ Schartsnplatte for an MG34 machine gun.

Ra143 Plage de Longchamp est

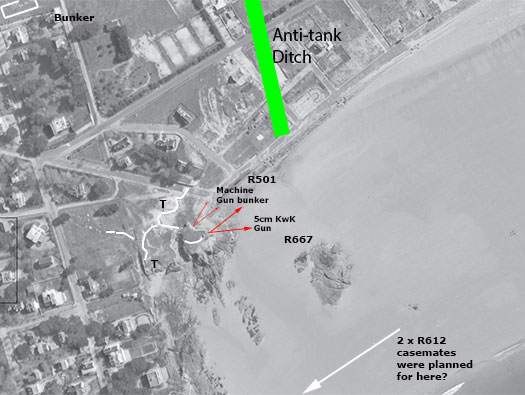

First there were the trenches and then the R105c machine gun bunker was built and later on the R667 casemate for the 5cm KwK Pak. Trenches ran around the back of the bunkers and also cut through the road into the adjacent garden. Two 'T' Tobruk's were placed being the casemates. Inland we found a bunker that to us looked like an R502 but the Gruppe bunker that is stated here is an R501 quite a bit smaller? There are two R612 casemates also stated here, I cannot find any evidence of them. There was a long anti-tank ditch running along the rear of the beach.

IGNF 1951

Ra143 Plage de Longchamp est

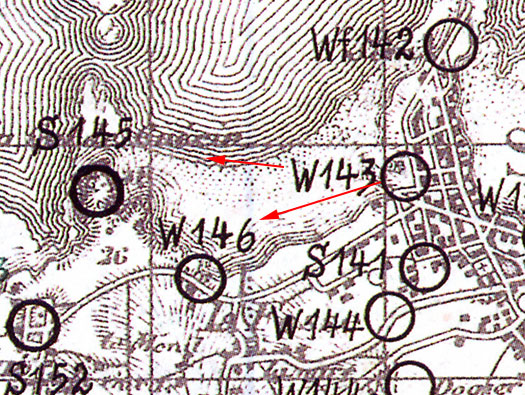

The German plan of the Widerstandsnest

Plan

Ra143 Plage de Longchamp est

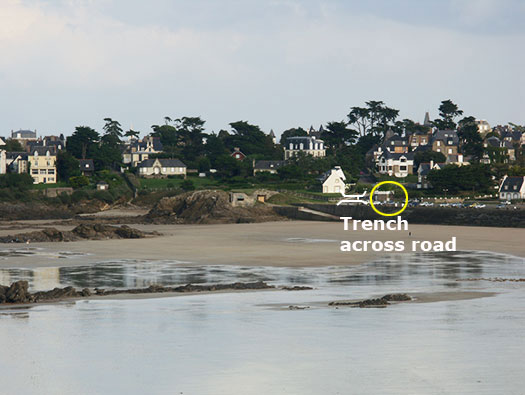

The two casemates and trenches behind. There was also a trench across the road to the adjacent garden.

21 July 2015

Ra143 Plage de Longchamp est

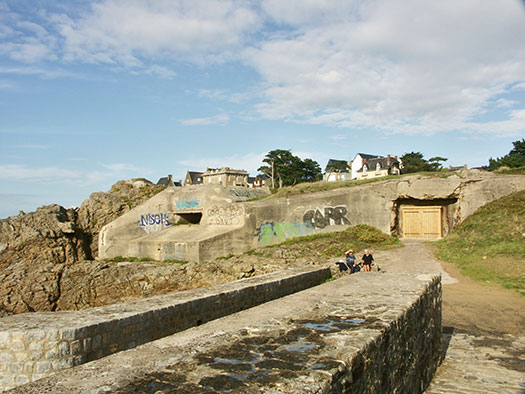

R667 on left and R105c on right.

09 October 2006

Ra143 Plage de Longchamp est

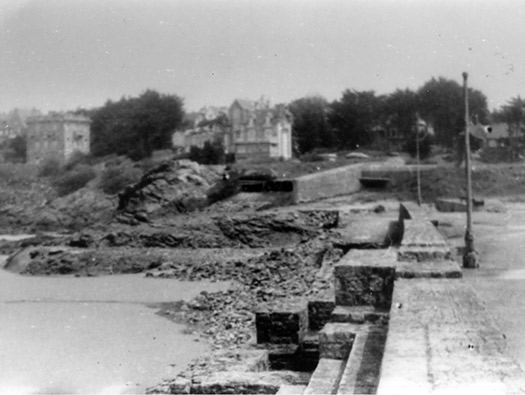

A contemporary picture of the defence. (picture with thanks Charly Ler).

Charly Ler

Ra143 Plage de Longchamp est

R667 on left and R105c on right. The lady and gentleman sitting in the sun, he was a waiter in a large hotel in London . A lovely couple.

09 October 2006

Ra143 Plage de Longchamp est

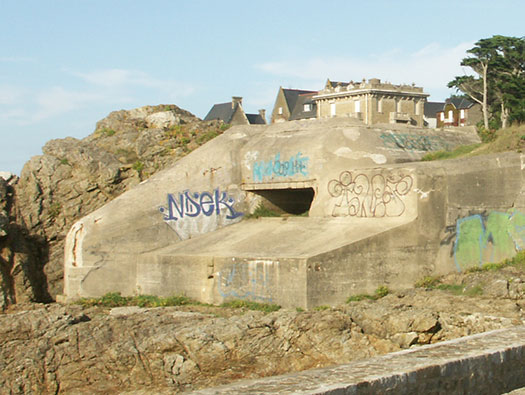

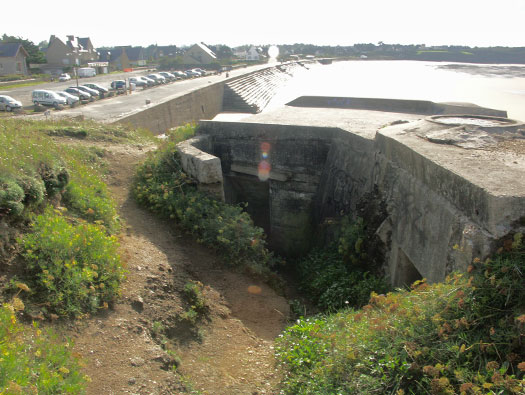

R667 casemate. A large concrete glasses plate at the front, a flanking wall to cover the embrasure from being shot at from the seaward side.

09 October 2006

Ra143 Plage de Longchamp est

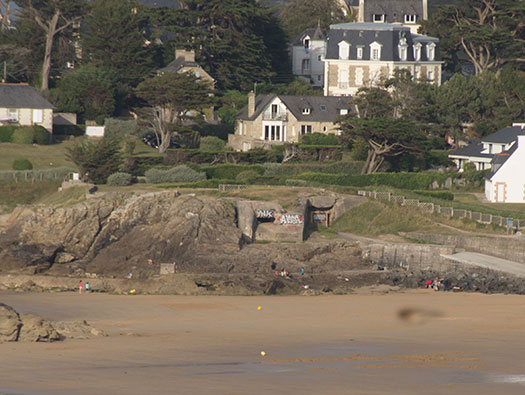

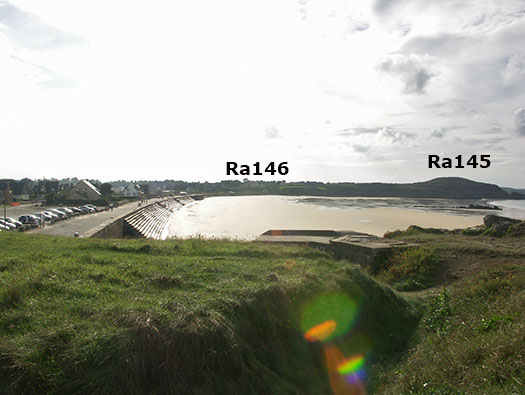

The guns would have fired straight along the beach. There was another R667 at the other end of the beach at Ra146 and two 7.5cm Kannon in R611 casemates in Ra145..

09 October 2006

Ra143 Plage de Longchamp est

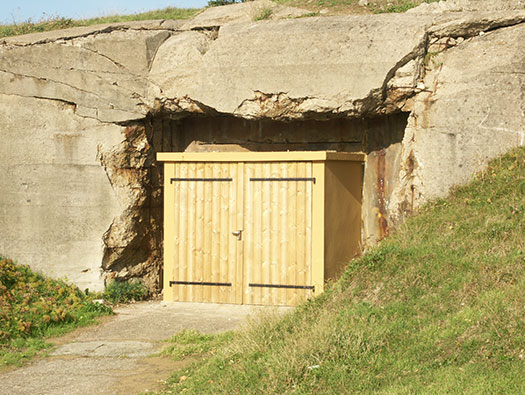

R667 rear entrance and attached Tobruk on the side. The attached Tobruk was added extra.

09 October 2006

Ra143 Plage de Longchamp est

R105c casemate for a machine gun. The metal plate has been removed.

09 October 2006

Ra143 Plage de Longchamp est

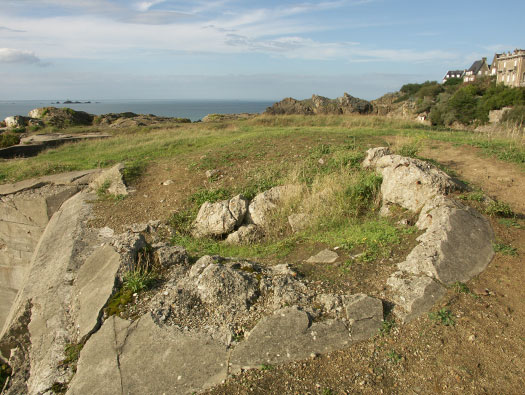

In this space was a large steel dome used as observation via a centrally mounted periscope and four or six viewing points.

09 October 2006

Ra143 Plage de Longchamp est

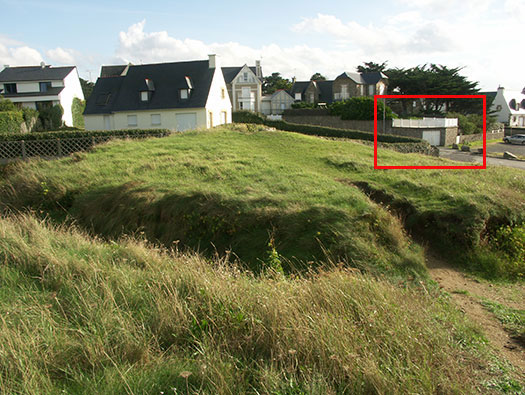

Trenches behind the bunkers. There was a trench that ran across the road to the garden opposite.

09 October 2006

Ra143 Plage de Longchamp est

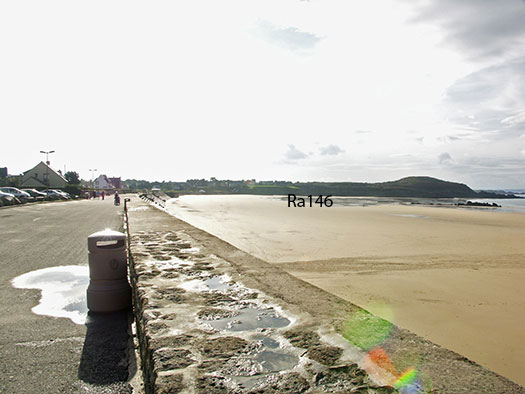

There would have been many beach defences and mines along this part of the coast. The other end of the beach was Ra146 with two 5cm KwK guns.

09 October 2006

Ra143 Plage de Longchamp est

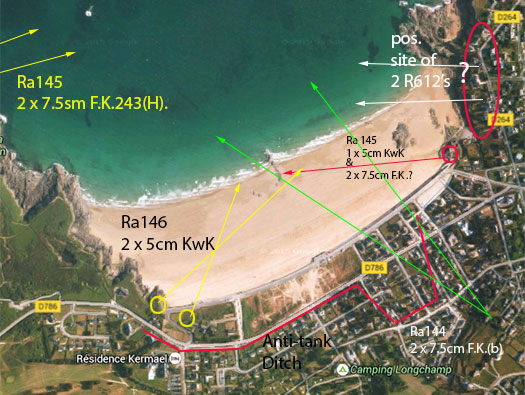

Plan of the beach defence. Somebody was rather worried about this beach. I believe there were to be two more R612 casemates with 2 x 7.5cm F.K . in Ra143 but I cannot find any evidence??

Plan

Ra143 Plage de Longchamp est

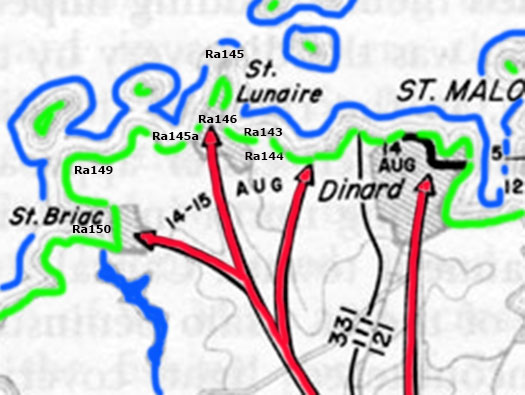

The attack by the Americans on Feste St Malo.

August 1944

Ra143 Plage de Longchamp est

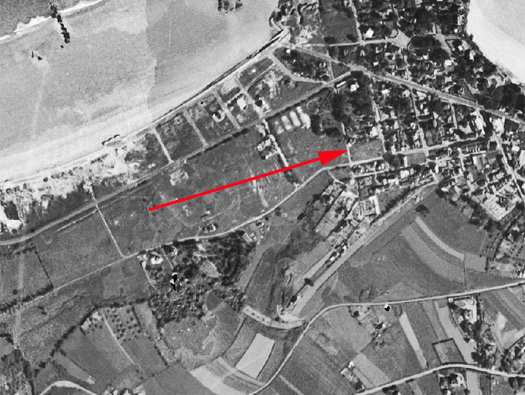

Set in the suburbs of Saint-Lunaire an area that was starting to be populated by quite large holiday homes in the 1900's, this plot was empty so maybe that is why a bunker was built here.

1950

Ra143 Plage de Longchamp est

The plot today but not that long ago it was covered in trees.

24 November 2013

Ra143 Plage de Longchamp est

I presume it will be a building plot very soon.

24 November 2013

Ra143 Plage de Longchamp est

.It feels like the dimensions of an R502 but I am not too sure as the aerial slot and the periscope are in the wrong place and there is supposed to be an R501 Gruppe bunker.

24 November 2013
