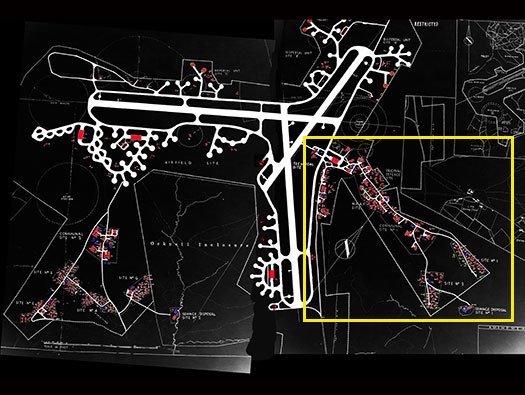

RAF Stoney Cross, Hampshire USAAF Station 452, Technical, Communal Site 1, Sites,1, 2 & WAAF

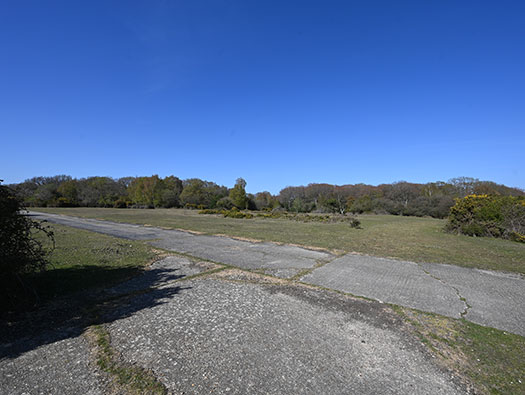

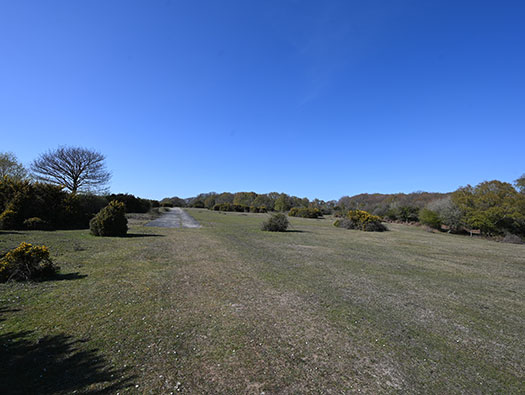

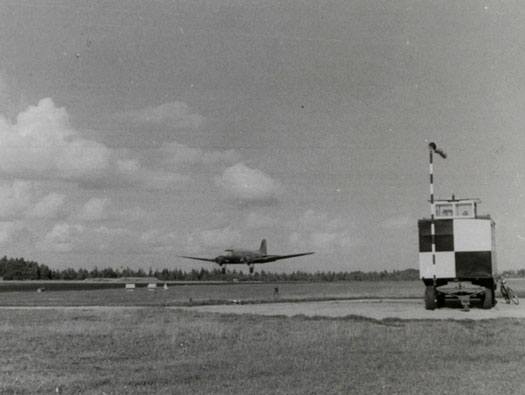

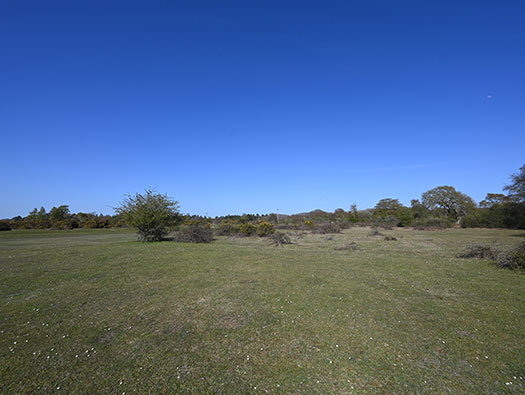

And this is what the runway would have looked.

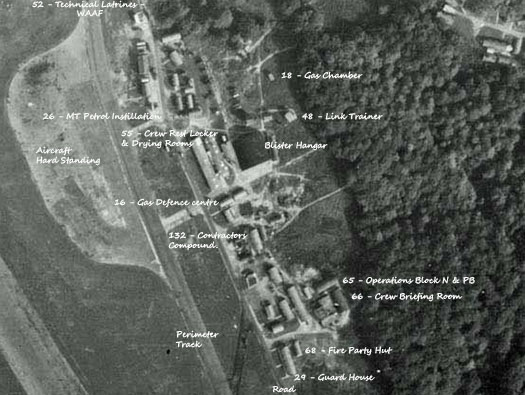

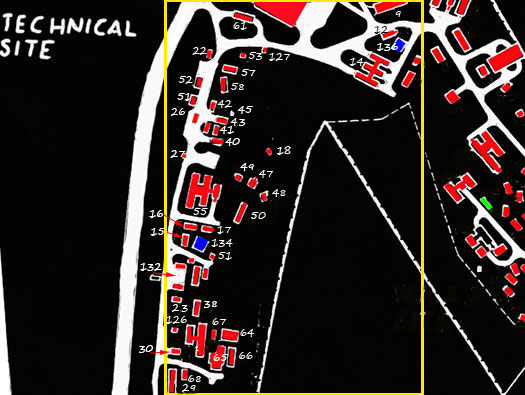

Technical Site
9 - Armoury - N - 8036/42.
12 - Parachute Store - TB - 11137/41.
14 - Main Workshops - N - 12774/41.
15 - Gas Defence centre - N - 12408/41.
16 - Gas Defence centre - N - 12408/41.
17 - Works Flight Store - N.
18 - Gas Chamber - TB - 12411/41.
19 - Station HQ Offices - N - 14027/41.
22 - Technical Latrines - RAF - TB - 12411/41.
23 - Technical Latrines - RAF - TB - 12411/41.
26 - MT Petrol Instillation ( 5,000 Gals) - 4619/40.
27 - Bulk Oil Instillation (3,500 Gals) - 11270/40.
29 - Guard House - N - 12404/41.
30 - Fire Tender House - N - 12404/41.
38 - Signals Block - N - 8036/42. (it looks like an 8?)
40 - Maintenance & Armoury Unit - N - 8037/42 (+ 41,42,43,44, & 45)
47 - Link Trainer (One Compartment) - TB - 10040/11.
48 - Link Trainer (One Compartment) - TB - 4188/42.
50 - Flight Office - N - 8036/42.
51 - Speech Broadcasting Building - PB - 10786/41.
52 - Technical Latrines - WAAF - TB - 9026/41.
53 - Technical Latrines - WAAF - TB - 9026/41.
55 - Crew Rest Locker & Drying Rooms - TB - 1565/41.
57 - Flight Equipment Store - N - 12777/41.
58 - Maintenance Staff Block -N - 12777/41.
61 - Maintenance Staff Block - N - 12777/41
64 - Operations Block N & PB - 4891/42.
65 - Operations Block N & PB - 4891/42.
66 - Crew Briefing Room - N - 4891/42.
67 - Office Latrine RAF - TB - 9026/41.
68 - Fire Party Hut - N.
127 - Transformer Plinth - PB.
132 - Contractors Compound.

Technical area.

Perimeter Track.

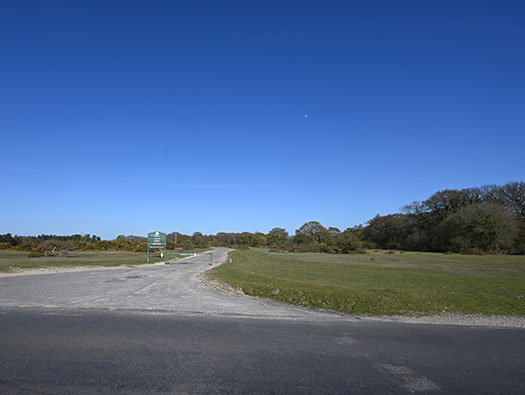

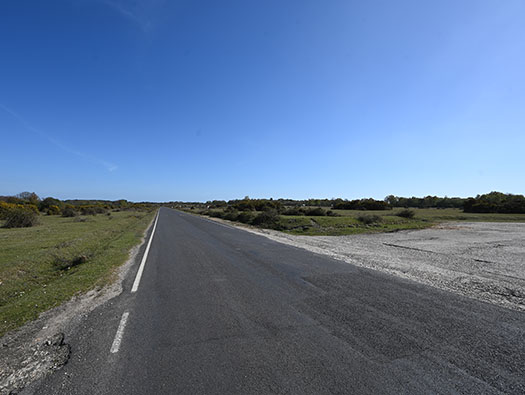

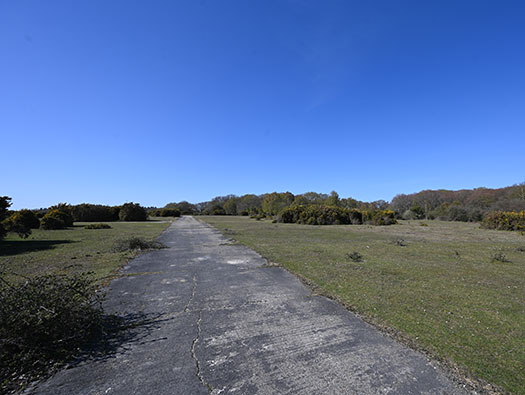

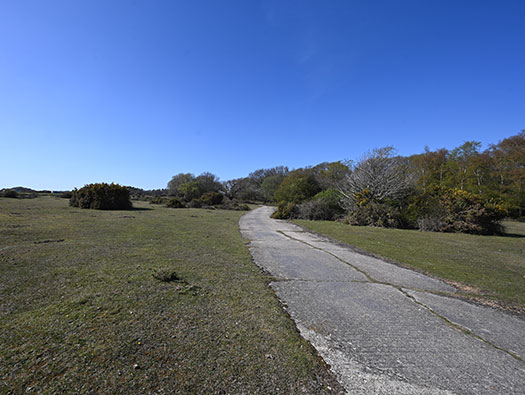

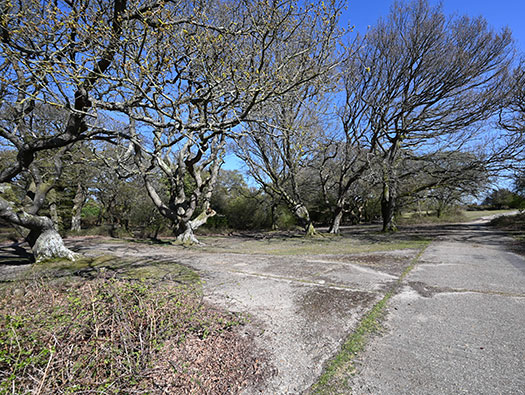

The perimeter track (road) ran right around the airfield to join the runways to the aircraft dispersals, 50ft wide (here the road is 20ft wide now) and a heavy bomber/transport can drive under its own power from here to the T2 hangar in the far distance and beyond to the main runway. The second photo is a squadron preparing to take off and queuing down a perimeter track somewhere in England..

Technical area.

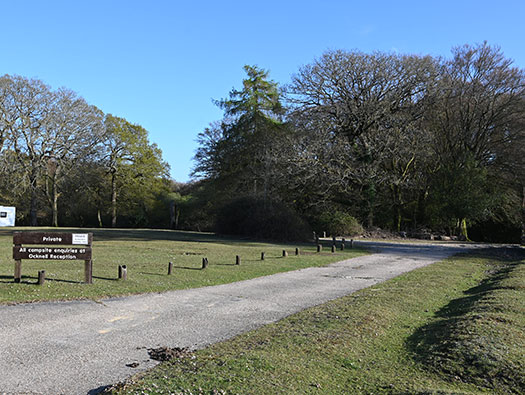

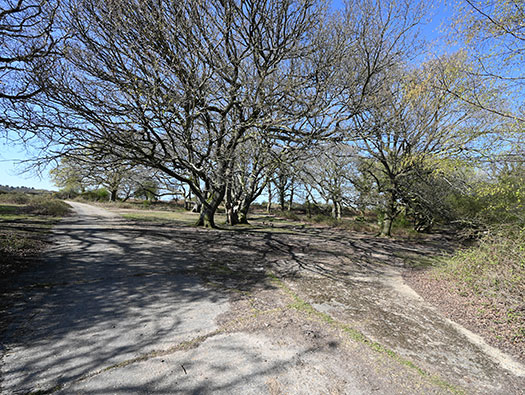

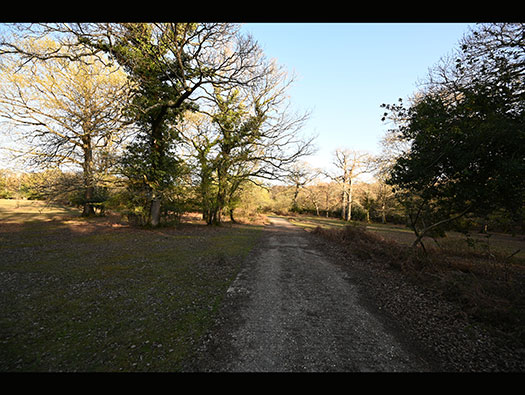

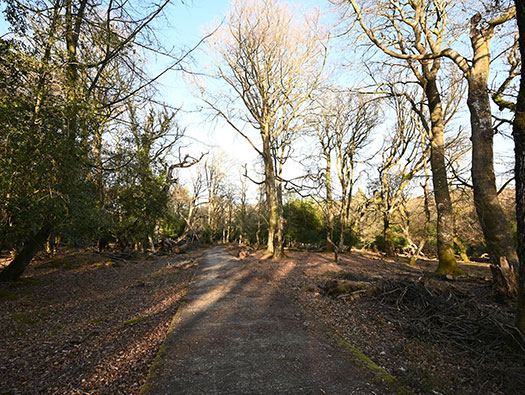

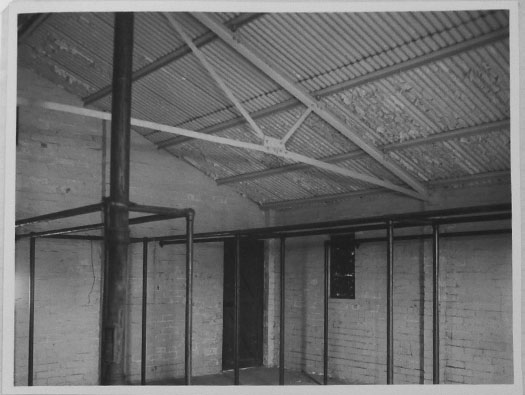

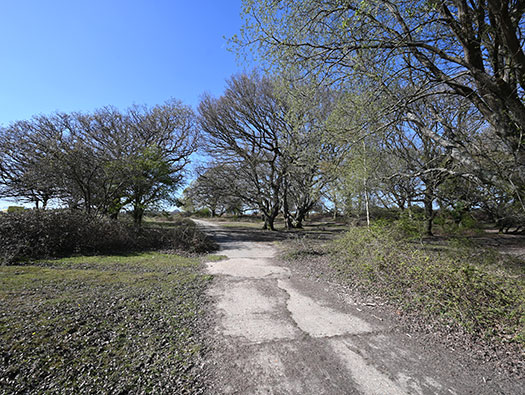

The road is the camp road and that connects the Station Sick Quarters to the rest of the airfield and also it is a main thoroughfare bringing in all materials, fuel, bombs and service men & women form the Southampton/Ringwood road 55 - Crew Rest Locker & Drying Rooms - TB - 1565/41. Here the crew of a flight/squadron would rest and the small hut would have had a heating plant to warm water to run through pipes where clothing and equipment could be dried out, the middle room was for storage and the main room for offices, resting, etc.

Technical area.

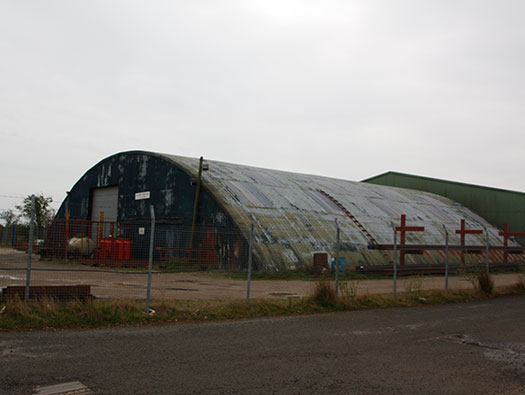

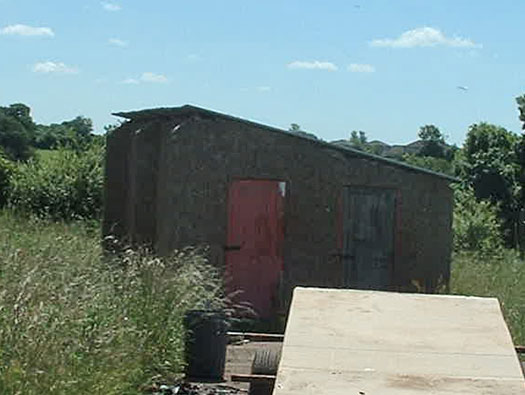

RAF Tholthorpe, Yorkshire Behind the Crew Rest Locker & Drying Rooms, was a Blister hangar that would have been used possibly as a training shed. Or it could have been for storage.

Technical area.

Further on and

Technical area.

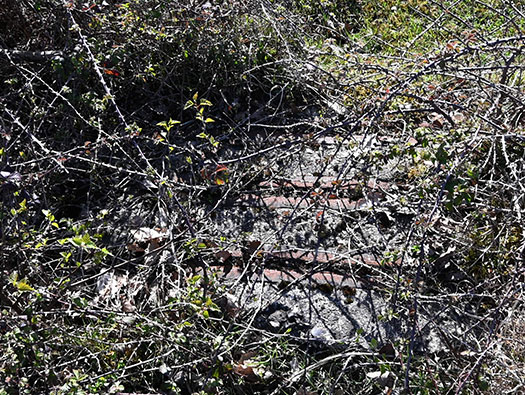

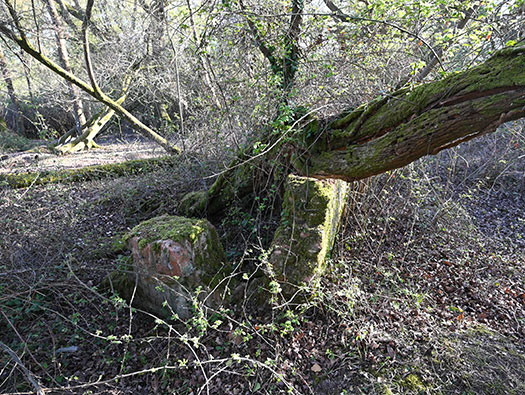

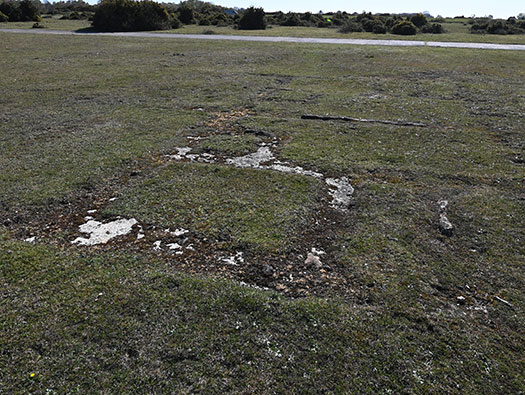

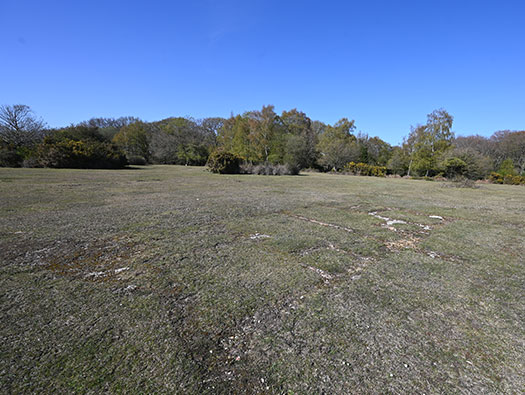

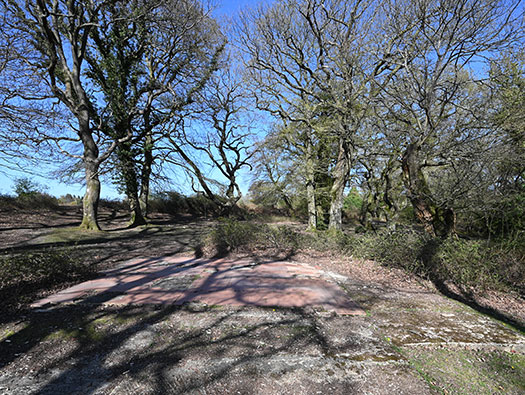

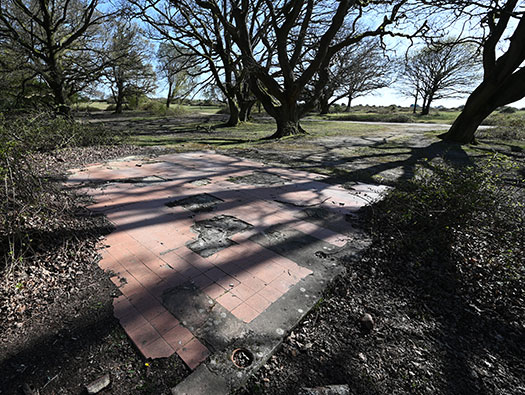

55 - Crew Rest Locker & Drying Rooms - TB - 1565/41 foundations can just be seen here.

Technical area.

55 - Crew Rest Locker & Drying Rooms - TB - 1565/41.

Technical area.

22 - Technical Latrines - RAF - TB - 12411/41.
26 - MT Petrol Instillation ( 5,000 Gals) - 4619/40.
51 - Speech Broadcasting Building - PB - 10786/41.
52 - Technical Latrines - WAAF - TB - 9026/41.

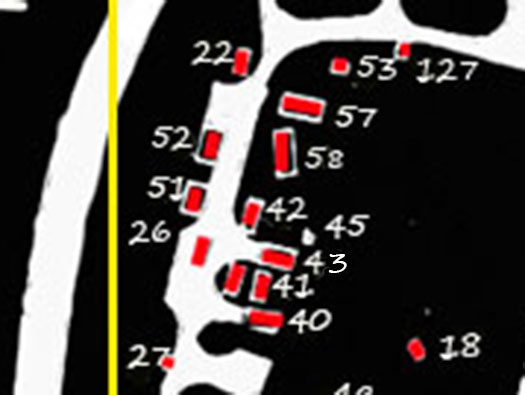

Technical area plan

18 - Gas Chamber - TB - 12411/41.
22 - Technical Latrines RAF - TB - 9026/41.
26 - MT Petrol Installation (5000 gal) - 4619/40.
27 - Bulk Oil Instillation (2500 Gal) 11270/40.
40to45 - Maintenance & Armoury Unit - N - 8037/42.
51 - Speech Broadcasting Building - PM - 10789/41.
52to54 - Technical Latrines WAAF - TB - 9026/41.
57 - Flight Equipment Store - N - 12777/41.
58 - Maintenance Staff Block - N1277741.
127 - Transformer Plinth - PB.

Technical area.

On the left: -
27 - Bulk Oil Instillation (3,500 Gals) - 11270/40. On the right : -
40 - Maintenance & Armoury Unit - N - 8037/42.
41,42,43,44, & 45, Nissen huts.

Technical area.

Maintenance & Armoury
40 - Maintenance & Armoury Unit - N - 8037/42 (+ 41,42,43,44, & 45), six Nissen huts. The whole area on the right was Maintenance & Armoury Unit. With all Nissen huts. When you think a Spitfire had eight .303 Browning guns, a Lancaster again eight, a Mustang 6 .5 Browning’s. Others had 20mm Cannons. So the armoury grew probably from two huts to five.

Technical area.

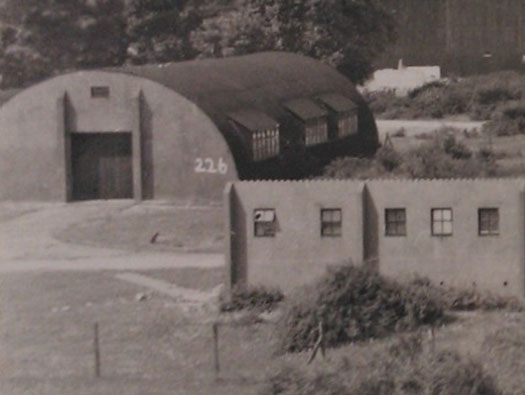

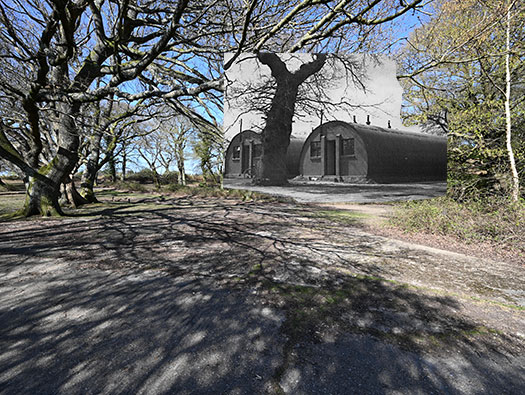

Maintenance & Armoury Unit How it may have looked with Nissen huts in the trees. Here machine gun belts would have been assembled as well as cleaning & repair of weapons.

Technical area.

Maintenance & Armoury Unit Now this is where airfield archaeology can catch you out. Around here were six Nissen huts all the same building number and used as an Armoury. So why is there a toilet block here. Well, in the sixties the New Forest authority (Forestry Commission) built a toilet block on the foundations of this armoury hut. So you come along and have no idea what was here, you would automatically think this is WW2. I can just remember a toilet block here.

Technical area.

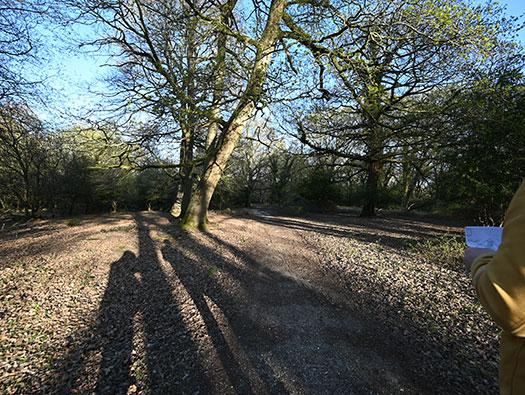

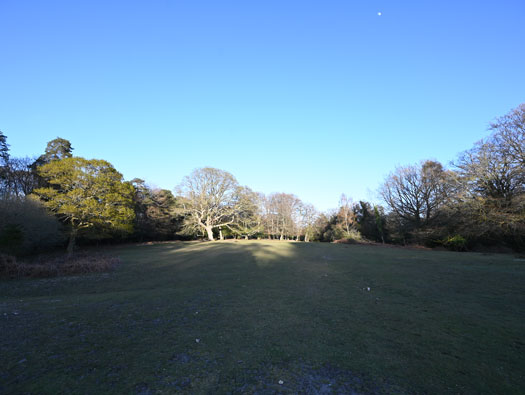

Maintenance & Armoury Unit Looking back on this area, typical of the remains of an RAF station. Try imagining a three ton Bedford lorry painted blue, a Morris or Standard pick up, utility with a canvas cover over the back. Men and Women in blue uniforms walking, cycling from huts to NAAFI/Institution/Sergeants Mess or Officers Mess for their next meal.

Perimeter Track.

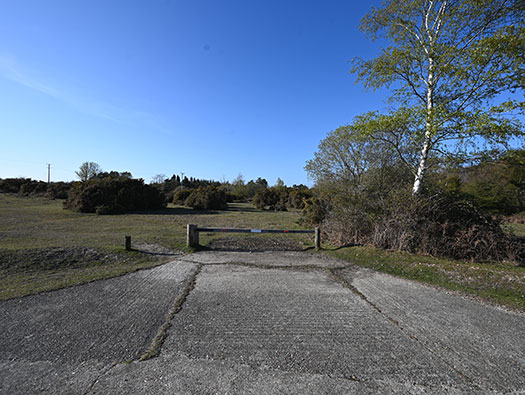

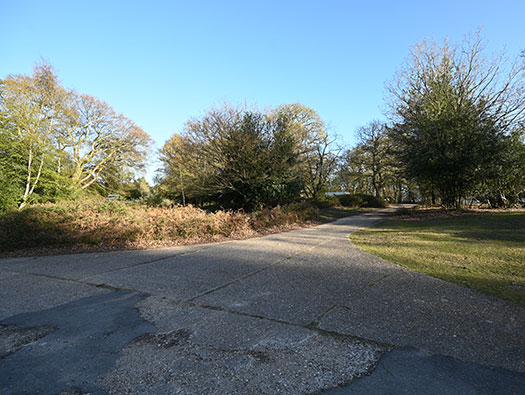

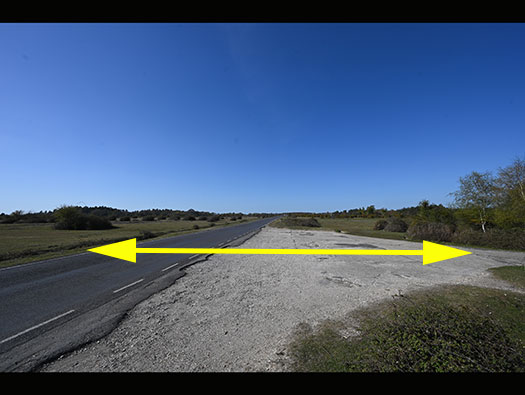

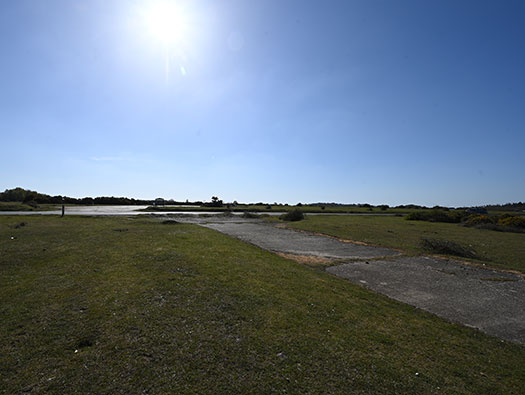

50ft wide and NOT 15.24m. Wide enough for the largest bombers to move around the airfield. This is where the military road arrives from the Technical site out onto the perimeter track.

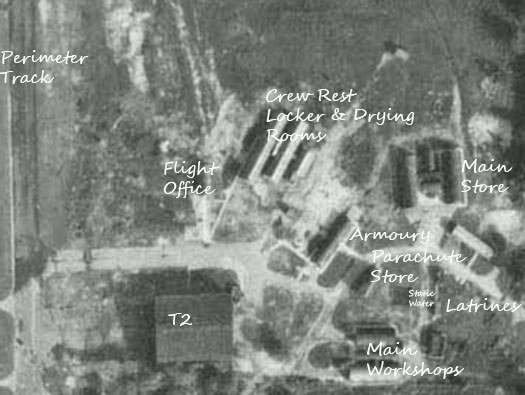

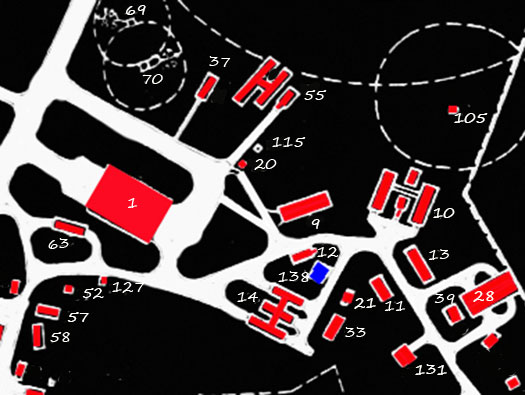

Airfield Technical Site.
1 - T2 Hangar - S - 12908/41.
9 - Armoury - N - 8036/42
10 - Main Stores - N - 12337/41.
11 - Lubricant Inflammable Store - N - 12406/41.
12 - Parachute Store - TB - 11137/41.
13 - Gas Clothing & Respirator Store for 1760 - TB - 12409/41.
14 - Main Workshops - N - 1277/41.
20 - Technical Latrines RAF - TB - 9026/41. (+21)
21 - Technical Latrines RAF - TB - 9026/41.
28 - Fuel Compound - PB - 9018/41.
33 - Sub Station - PB - 13241/41.
37 - Squadron & Flight Office - N - 8036/42.
39 - Water Tower 30,000gal - S - 439/42.
52 - Technical Latrines WAAF - TB - 9026/41.
55 - Crew Rest room & Drying Room - TB - 15657/41.
57 - Flight Equipment Store - N - 12777/41.
58 - Maintenance Staff Block - N - 12777/41.
63 - Turret Repair & Armament Office - N 8037/42.
69 - RU Pyro Store - PB - 5488/42.
70 - RU Pyro Store - PB - 5488/42.
105 - Pyro Store - TB - N - 2109/43.
115 - S.A.A. Stores - N - 2109/43.
127 - Transformer Plinth - PB.
131 - Fuel Compoun

Technical area.

T2 Hangar Details

Technical area.

T2 Hangar.

Technical area.

Hangar area.

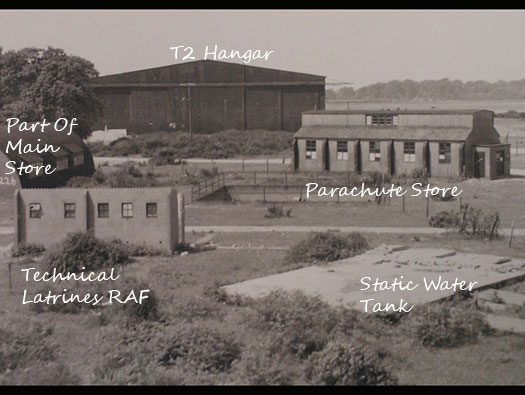

Technical area hangar area
1 - T2 Hangar - S - 12908/41.
12 - Parachute Store - TB - 11137/41. 21 - Technical Latrines RAF - TB - 9026/41.
21 - Technical Latrines RAF - TB - 9026/41.

Technical area.

Main Workshops.
14 - Main Workshops - N - 1277/41.There were three large Nissen huts attached or joined together. Here we only see one.

Technical area.
14 - Main Workshops - N - 1277/41.

Technical area.
Transformer Plinth 127 - Transformer Plinth - PB. PB Permanent Brick, here the brick walls were at least three bricks thick.

Technical area.
10 - Main Stores - N - 12337/41. Four

Technical area.

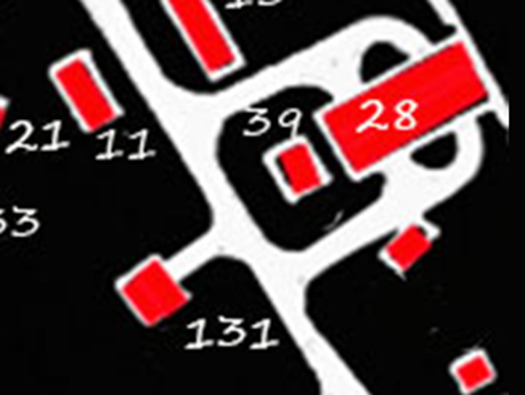

Site of water tower
28 - Fuel Compound - PB - 9018/41.
39 - Water Tower 30,000gal - S - 439/42.
Behind the water tower was a Fuel Store for coal/coke.

Technical area.

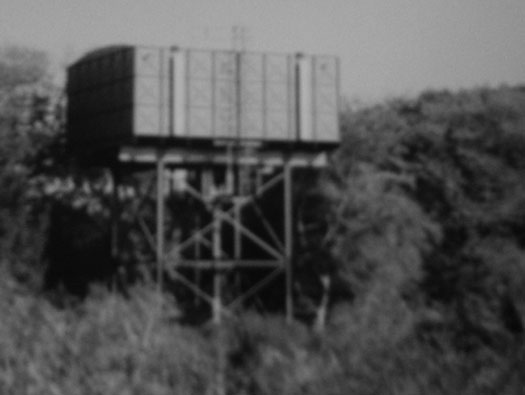

39 - Water Tower 30,000gal - S - 439/42 Iconic sight on so many RAF airfields and many other military camps.

Technical area.

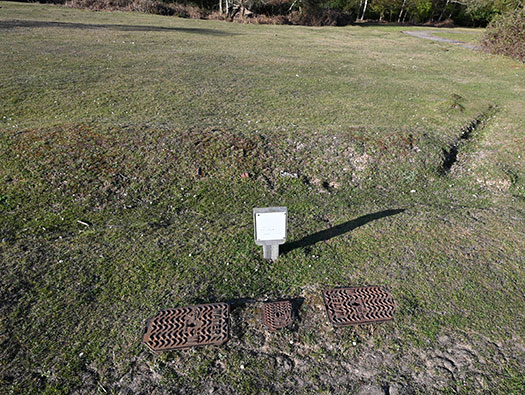

Site of water tower Water main today.

WAAF site.

295 - Dining Room & Sergeants Mess - N -12956/41.

WAAF site.

295 - Dining Room & Sergeants Mess - N -12956/41.

WAAF site No I.

W.A.A.F. Site.

295 - Dining Room & Mess - N - 12656/41.

W.A.A.F. Site.

265 - Officers Qtrs & Mess - N - 12947/41.

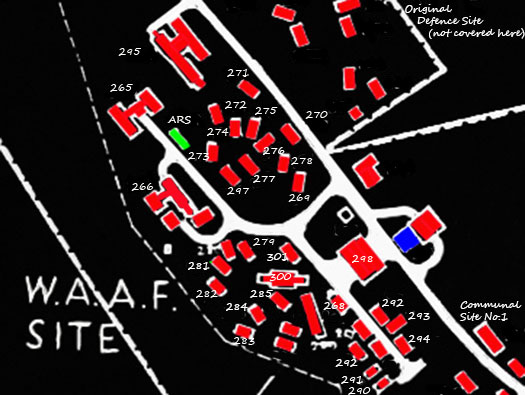

W.A.A.F. Site.

265 - Officers Qtrs & Mess - N - 12947/41.
266 - Institute & Sergeants Recreation Room - N- 12955/41.
270 to 294 - Airwomen's Qtrs - N - 2965/42.
295 - Dining Room & Mess - N - 12656/41. 298 - Fuel Compound - PB - 9018/41.
300 - Ablutions, Latrines & Drying Room - TB - 6507/42.

WAAF site.

WAAF site.

309 - Dining Room - Type 601 - N - 12772/41.

Site No. 2.
Looking back up the hill.

Site No. 2.
Looking a the lower side.

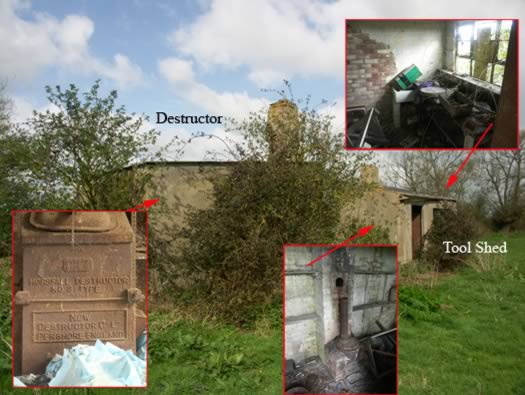

Sewage Site No. 1.

621 - Layout - 1598/41.
622 - Tool house - TB - 7493/40.
623 - Destructor - TB - 9559/40.

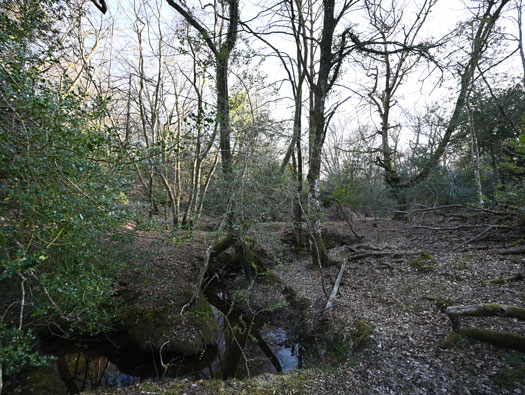

This area is where the four settlement tanks were.

Sewage Site No. 1
622 - Tool house - TB - 7493/40.
This picture is RAF Grove.
