Sa115 'Winterfeld'
K.V.Gruppe Süd Ile Noirmoutier · OK 1 Vendée - Charente Maritime · France
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
le de Noirmoutier is an island off the Vendée coast reached by a bridge (which is now free!).
5a/le.M.A.A.684
1 x R600 5cm KwK.
1 x R612.
1 x R668
1 x R668 +R677.
2 x R502.
1 x 58c Tobruk
2 x Wasser
1 Geschütztellung
2 x 10.5cm cm le.F.H.16
1 x 5cm KwK 39
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

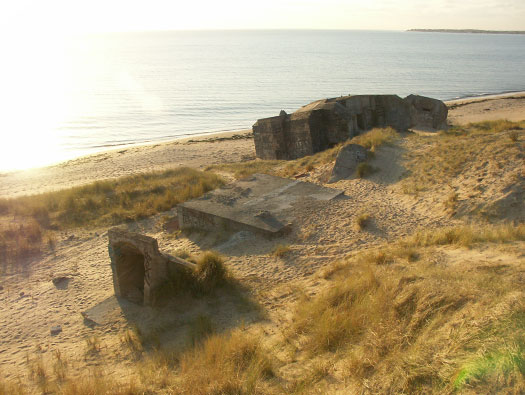

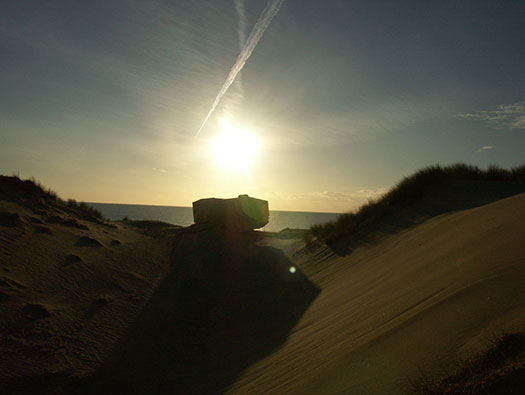

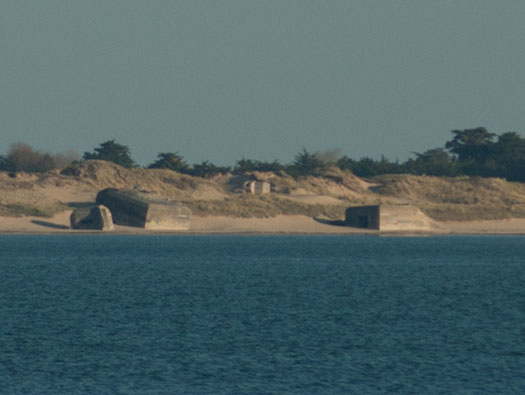

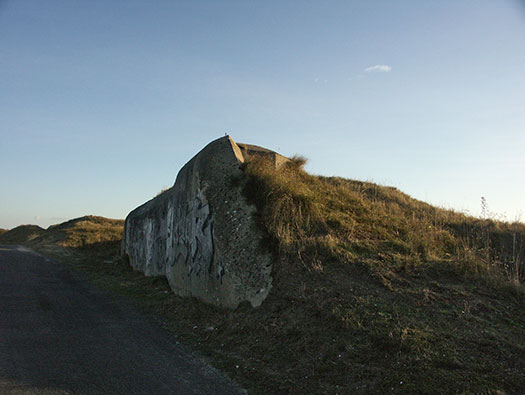

View from a distance.

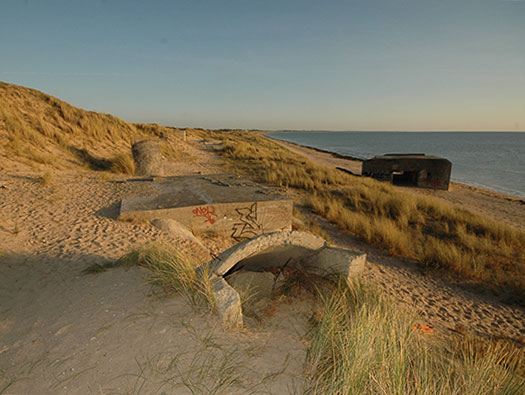

L to R667, R600, Tobruk & an R612.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

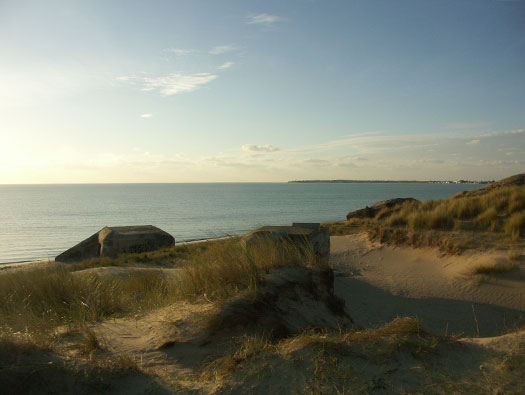

These bunkers have several local additions as water tanks and added Tobruks.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668 with a Tobruk and water tank.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R668 with a Tobruk
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Aerial fittings.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

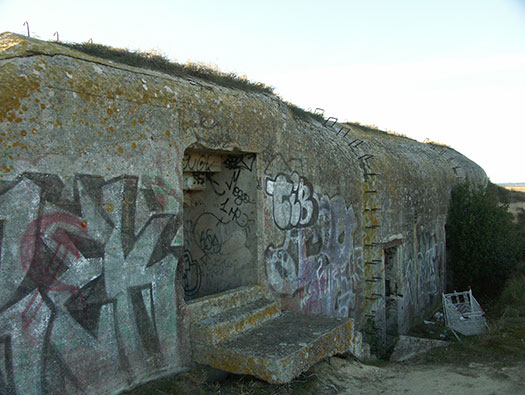

Water tank extension to the bunker.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Water tank extension to the bunker.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

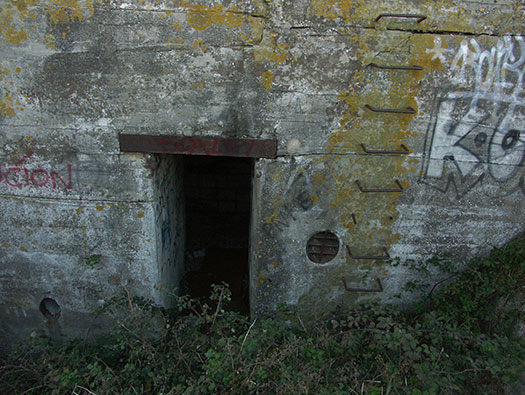

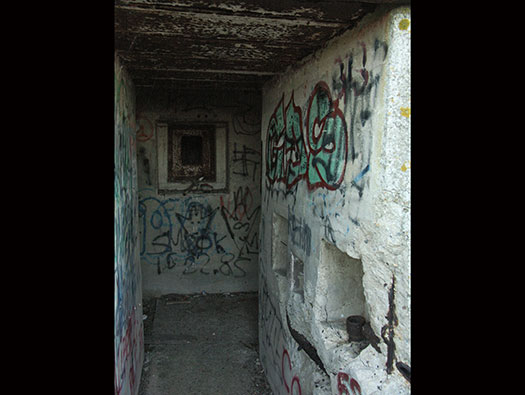

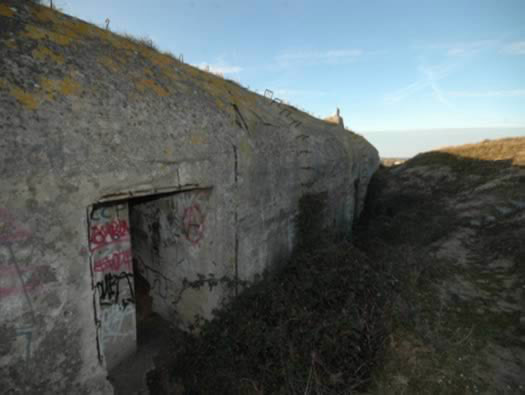

Entrance into the bunker. Speaking tube on the right.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

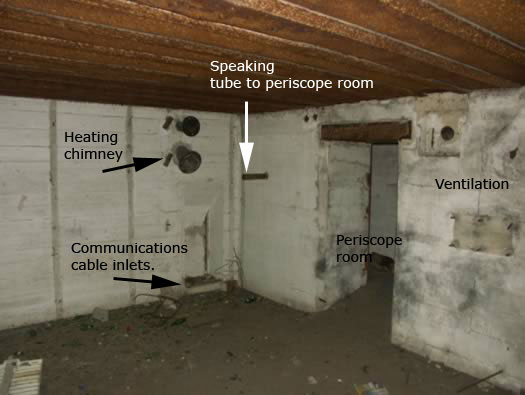

Crew room.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

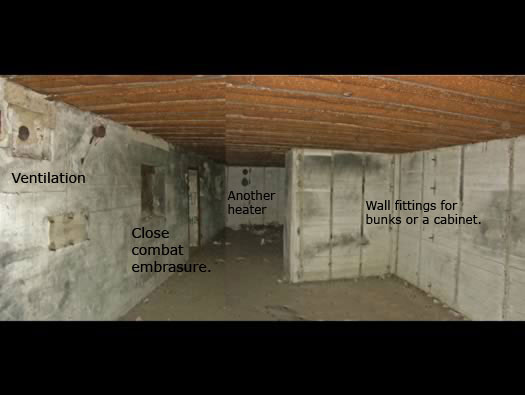

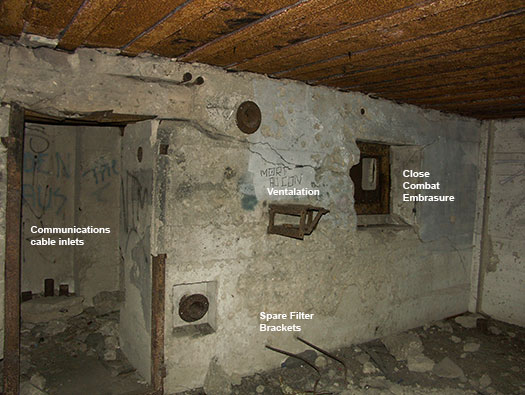

Crew room. An R502 is a twin group bunker for about 20 men and a periscope room often used as a store room for odds and ends and here on Noirmoutier they also added a water storage room.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

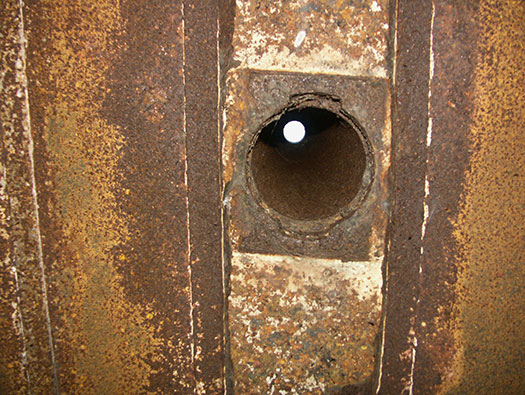

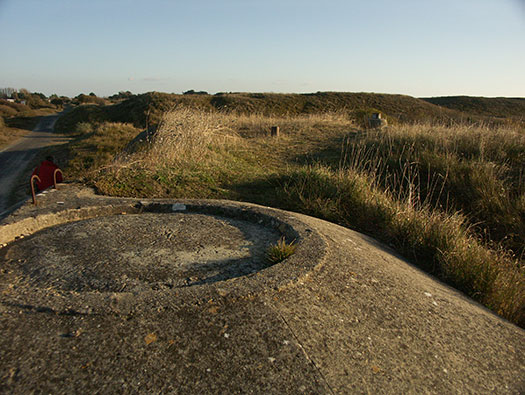

Periscope fitting in the roof.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

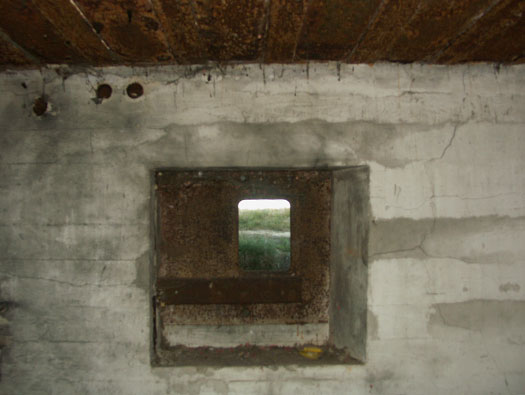

Close combat embrasure covering the entrance.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Another aerial fitting.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Wasser tank.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Entrance2
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Entrance close combat embrasure confronting the attacker on the far wall.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

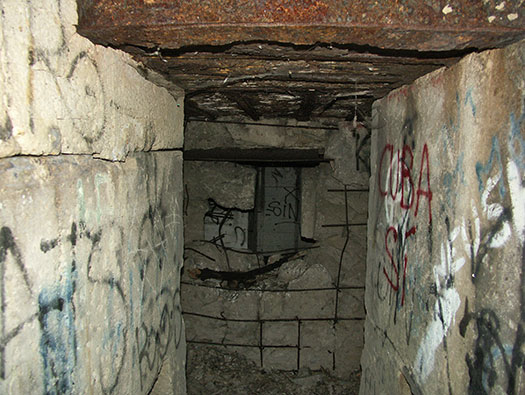

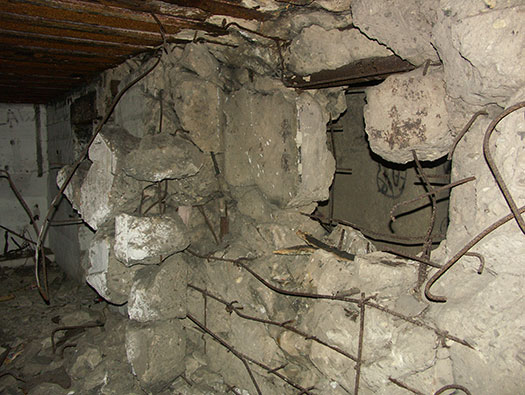

Blown to almost pieces.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
Crew room.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

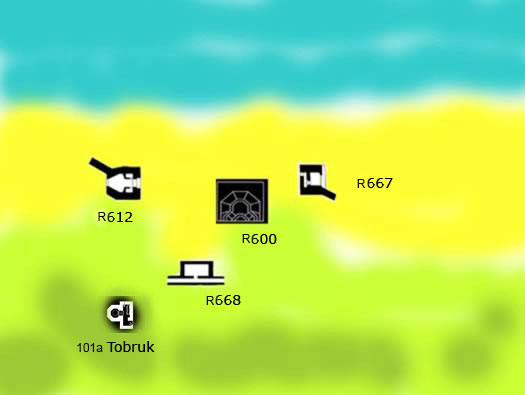

Beach plan.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

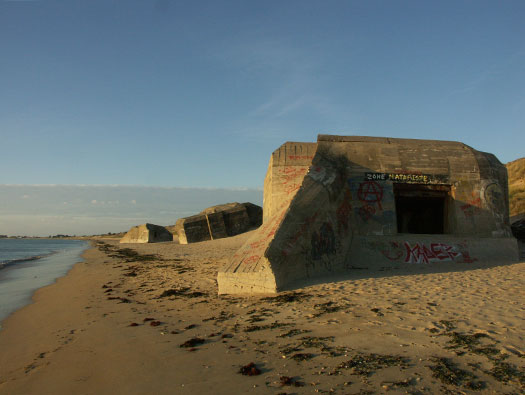

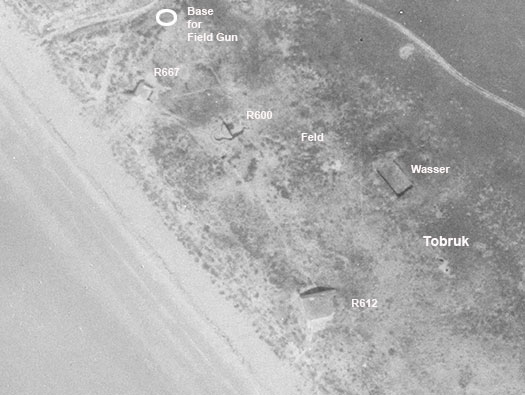

101a Tobruk.

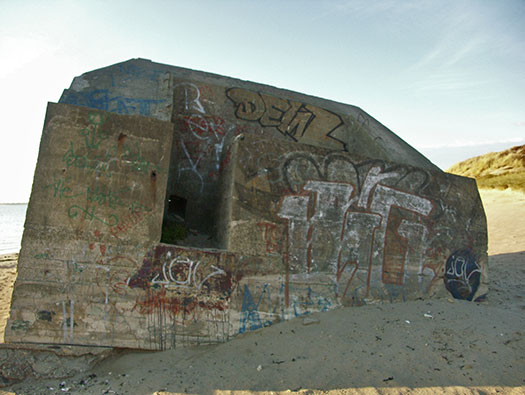

R612 casemate for an assault gun.
R600 emplacement for a 5cm KwK.
R668 eight man bunker.
R667 casemate for a 5cm KwK.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
R612 casemate for an assault gun.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

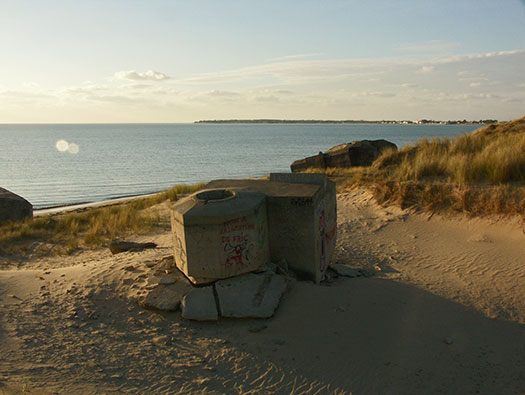

101a Tobruk.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

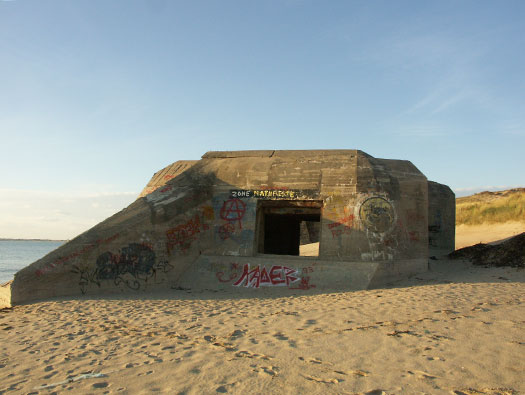

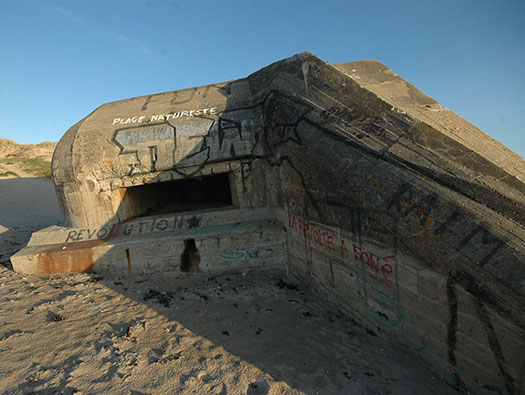

R612 casemate for an assault gun a 10.5cm cm le.F.H.16.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
A strong flanking wall covering the embrasure from direct attack from the sea side.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
A 10.5cm cm le.F.H.16 would have filled this space and could easily hit any target in front of it..
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

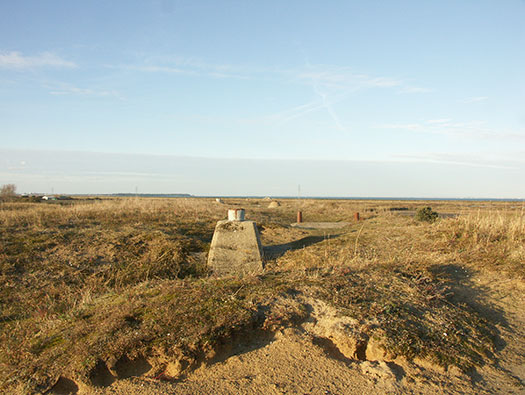

There was also one more 10.5cm cm le.F.H.16 in an open emplacement (Geschütztellung) slightly behind the casemates.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
5cm KwK 39 was a very handy gun, first fitted to tanks and then as tanks improved they needed a new gun so the 5cm KwK 39 was diverted to coastal defence weapon. It could take out most Allied tanks and certainly damage even large landing craft. The '38' did not have a muzzle break so was a more inferior to the L/60 that did have one.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

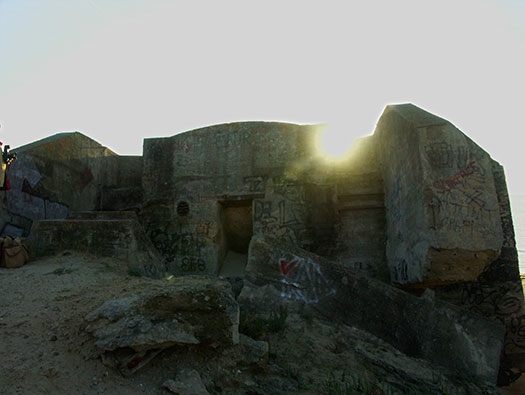

The crew/ammunition room door in the middle and the stairs each side going to the ringstand and gun.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

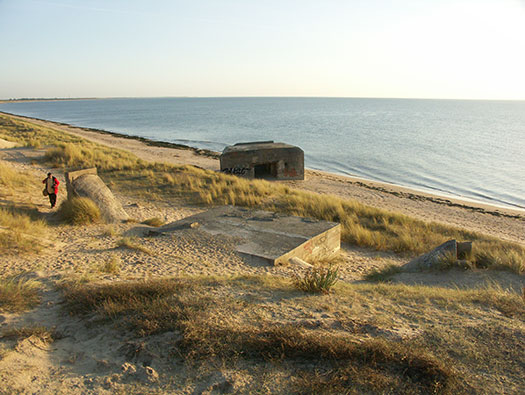

This bunker would be covered in sand up to the top. Due to it being an open emplacement, Hitler’s orders to cover gun in concrete meant that a new casemate was built and the gun transferred to the R667 casemate.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

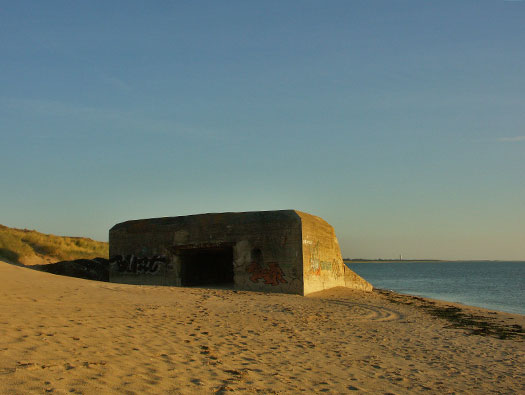

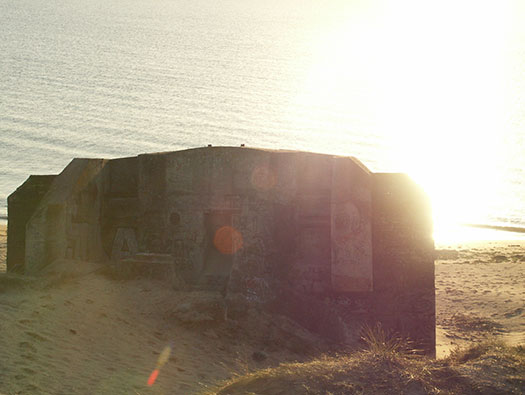

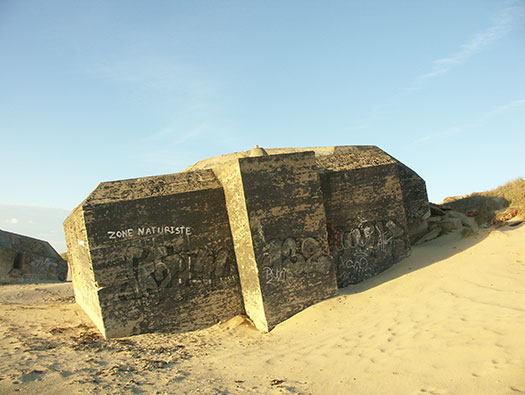

R667 casemate for a 5cm KwK 39.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

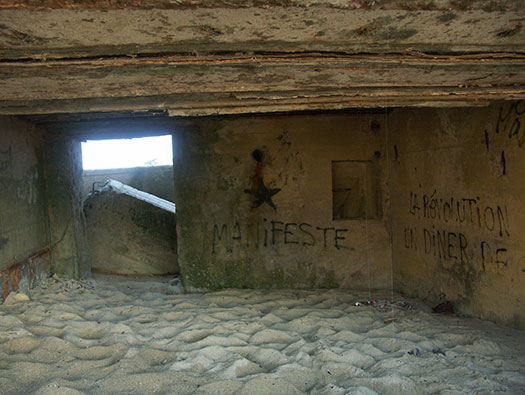

The gun room showing the rear entrance and the slot in the right side for fired cases to be passed through out of the bunker.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
The 5cm KwK 39 would cover this side of the defended area..
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

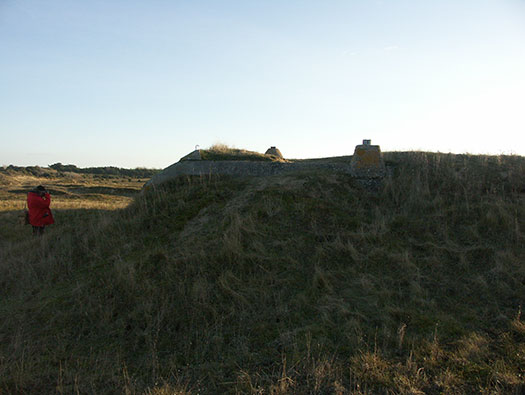

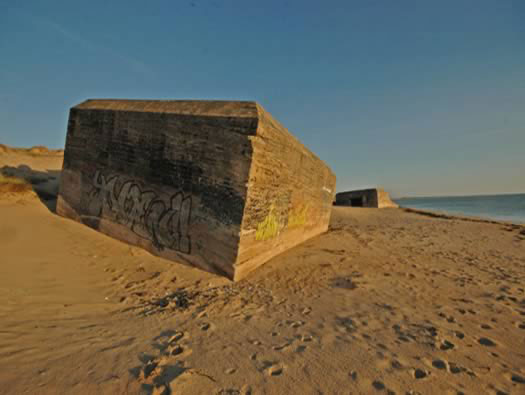

R668 is an eight man bunker but here I wonder if it was used as extra ammunition, if not it would have been a crew room for the gunners.
It has two entrance passages that take you down to the bunker that was sunk into the sand.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier

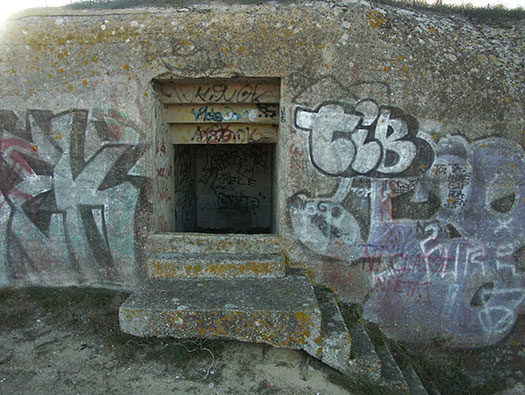

You can see the two entrances each side.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
You can see the two entrances each side.
24 November 2007
Sa115 'Winterfeld', K.V.A. Île de Noirmoutier
24 November 2007
