StP Cucq 'Kinderheim' Batterie 8./A.R.149
BATTERIE · Hardelot - Merlimont K.V.A. D1. · AOK 15 Nord Pas de Calais · France
StP Kinderheim

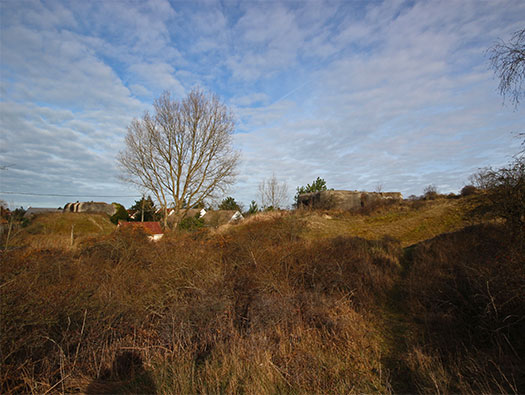

Set in sand dunes at the rear of Stella Plage a batterie of 15.5cm Field Howitzers. Their job was to cover the beach area to he south of Stella Plage.
StP Kinderheim
Avenue De Menton.
StP Kinderheim
Batterie 8./A.R.149.
4 x Geschützstellung.
2 x R669 casemates.
1 x Wellblech shelter.
2 x Field shelters.
2 x 2cm Flak 30.
4 x 15.5cm s.F.H.414(f).

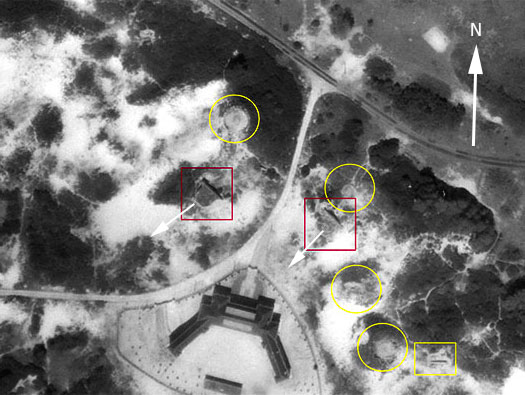

The yellow square is a Wellblech shelter.
The large building was built after the war and has now been completely removed and a new housing estate fills the space.
NA
StP Kinderheim

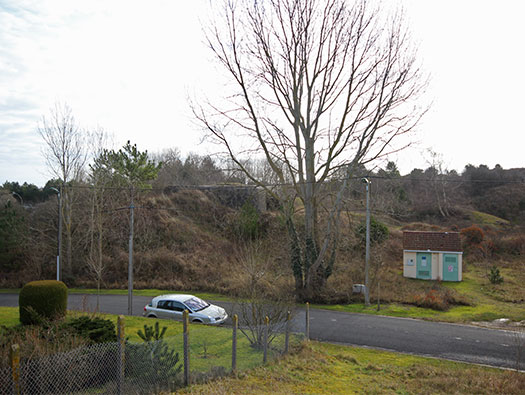

Turm 1 & 2.
2 x R669 casemates for field howitzers.
23 February 2014
StP Kinderheim

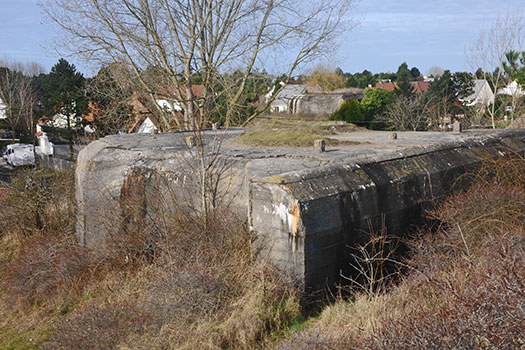

Turm 1 casemate.
As you can see they were all built on sand dunes.
23 February 2014 - 15 March 2024
StP Kinderheim
Turm 1 R669 casemate.
The extended flank allowing earth (sand here) can be built up the sides as a camouflage and extra protection from attack.
Also the hooks made by not cutting off the square mesh steel reinforcement and bent over so the nets could be hooked on.
23 February 2014
StP Kinderheim

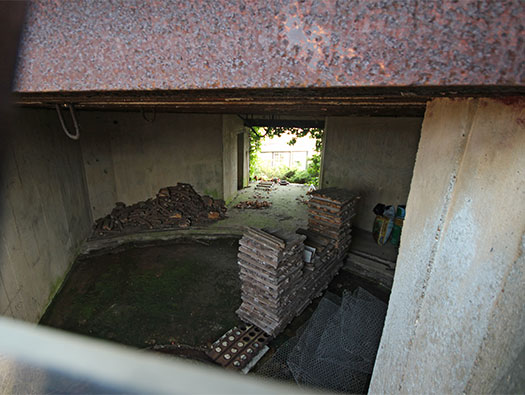

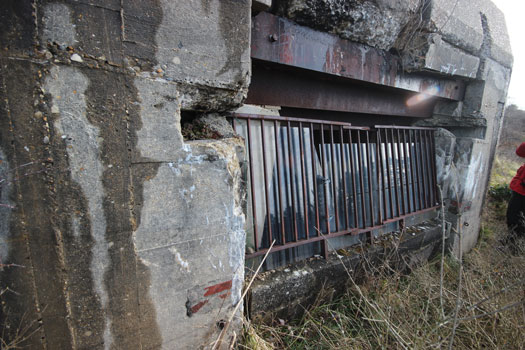

Turm 1 R669 casemate embrasure.
This one is used by the householders as a store.
23 February 2014
StP Kinderheim
Turm 1 R669 casemate.
Looking into the gun room. You can see the half round slot to allow the guns trail to sit in.
23 February 2014
StP Kinderheim

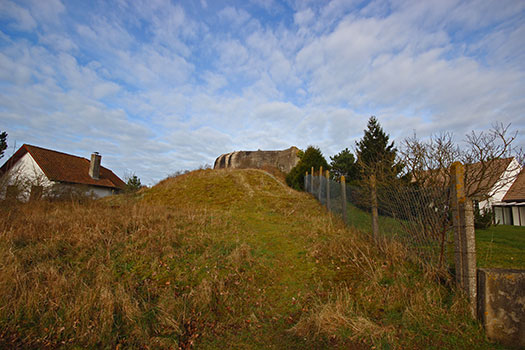

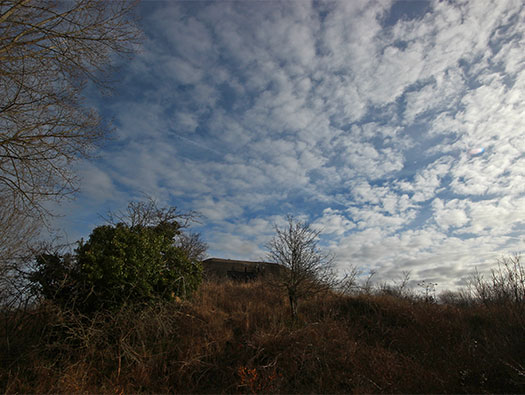

Turm 2 R669 casemate.
Sitting on the top of another sand dune.
23 February 2014
StP Kinderheim
Turm 2 R669 casemate.
23 February 2014
StP Kinderheim
Turm 2 R669 casemate.
15 March 2024
StP Kinderheim
Turm 2 R669 casemate.
Looking down into the casemate.
15 March 2024
StP Kinderheim

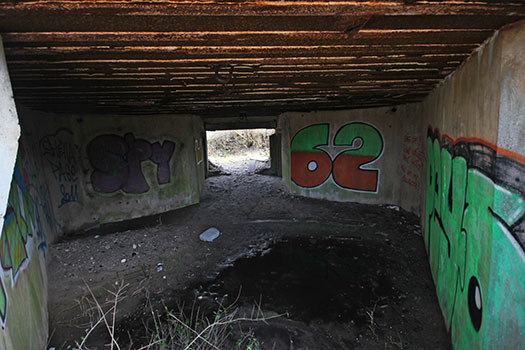

Turm 2 R669 gun room.
23 February 2014

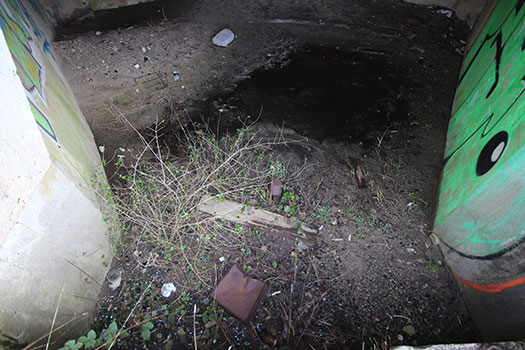

StP Kinderheim
Turm 2 R669 gun room.
You can see threaded stud sticking up.
23 February 2014 - 15 March 2024
StP Kinderheim

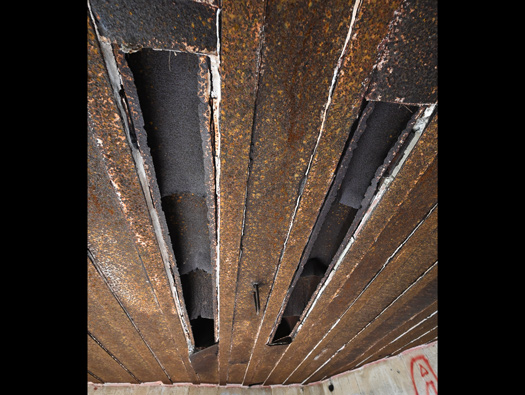

R669 Turm 2.
The slots in the roof to suck out the foul gases after the gun had fired.
15 March 2024 -15 March 2024
StP Kinderheim

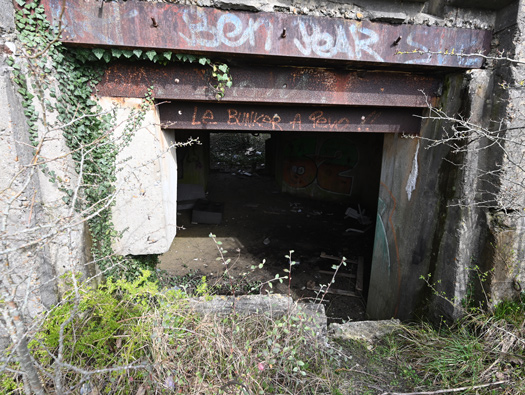

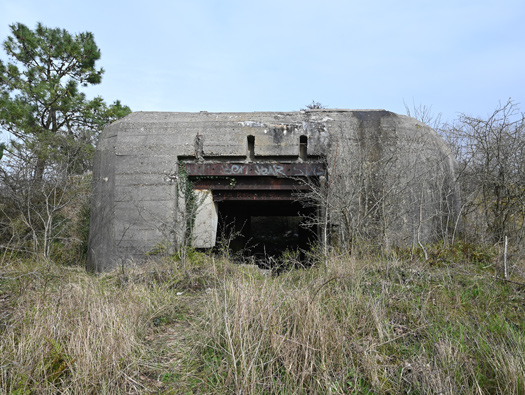

R669 Turm 2.

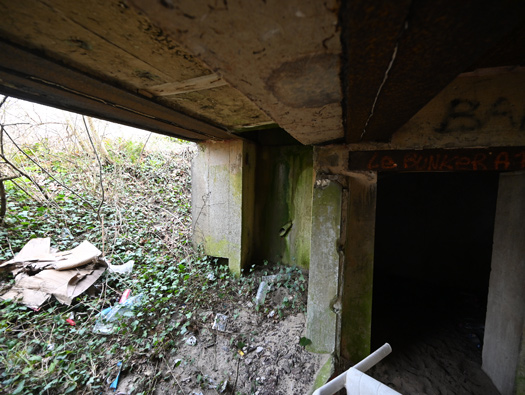

The rear of the bunker where the gun was pushed inside.
15 March 2024
StP Kinderheim

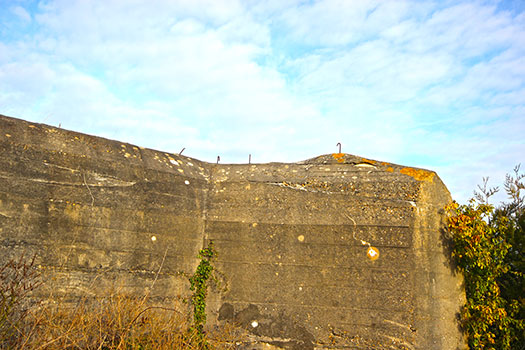

R669 Turm 2.
Note the pieces of concrete sticking up on the bunkers roof, that is to stop the sand piled on the roof and grass grown on it from blowing/sliding off.
23 February 2014
StP Kinderheim

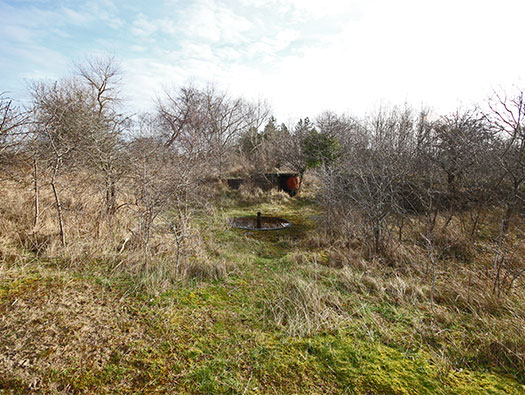

Turm 3 Geschützstellung.
The third open emplacement on the next sand dune with ammunition magazines built around it.
23 February 2014
StP Kinderheim

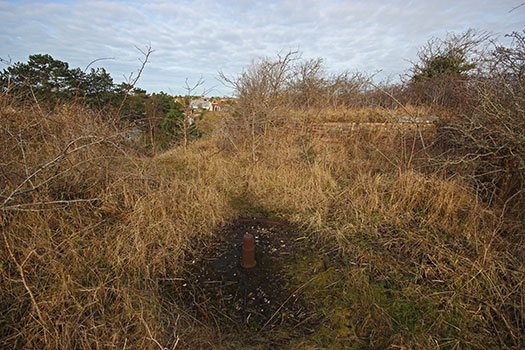

Turm 3 Geschützstellung.

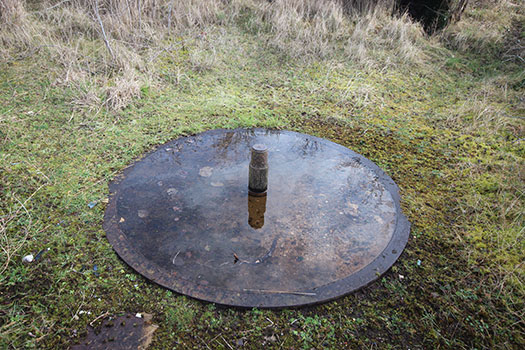

The turntable stud.
23 February 2014

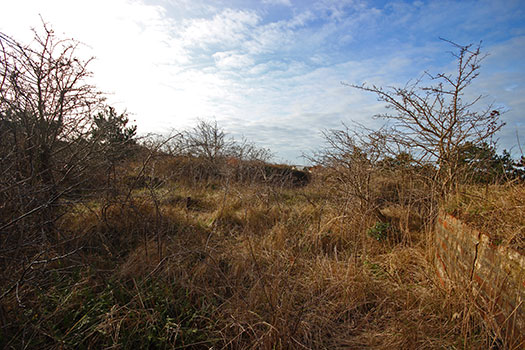

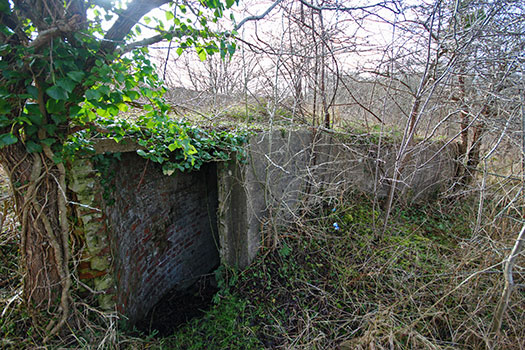

StP Kinderheim
This one is made of red brick possibly taken from French brick stocks in the area.
23 February 2014
StP Kinderheim
Turm 3 ammunition magazine.
23 February 2014
StP Kinderheim

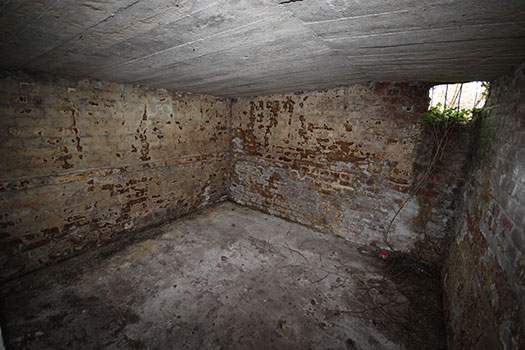

Turm 3 ammunition magazine.

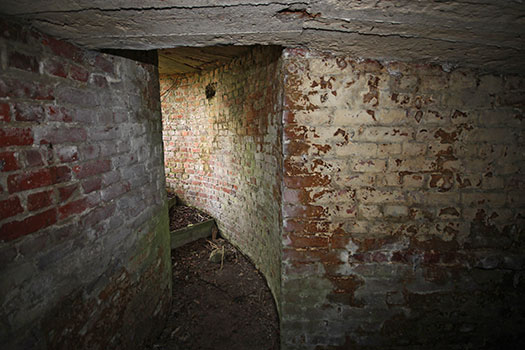

Inside the magazine.
23 February 2014
StP Kinderheim

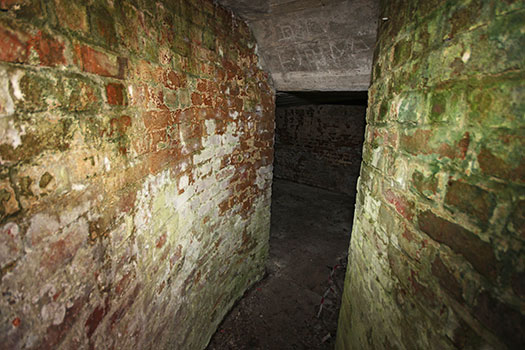

Turm 3 ammunition magazine.
Way out.
23 February 2014
StP Kinderheim
Turm 4.
23 February 2014
StP Kinderheim

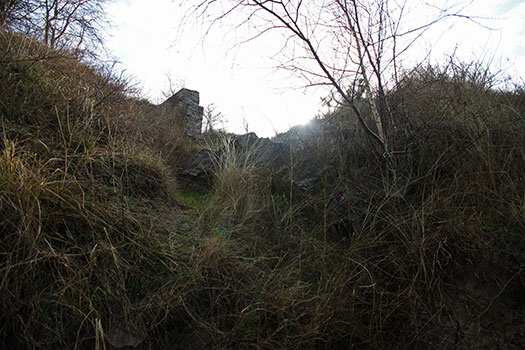

Turm 4 Geschützstellung.
This is very overgrown.
23 February 2014
StP Kinderheim
Turm 4 Geschützstellung.

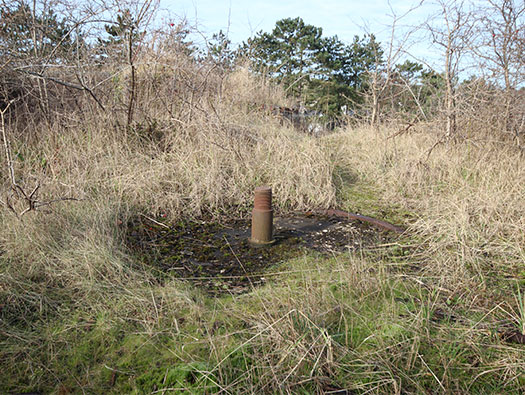

The turntable stud.
23 February 2014
StP Kinderheim
Turm 4 Geschützstellung.
The turntable stud.
23 February 2014
StP Kinderheim
Turm 4 Geschützstellung.

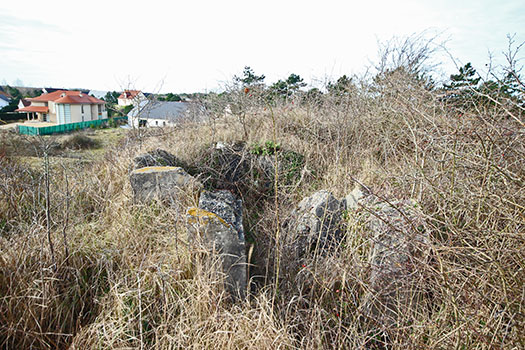

Concrete ammunition magazines very badly damaged.
23 February 2014 - 15 March 2024
StP Kinderheim

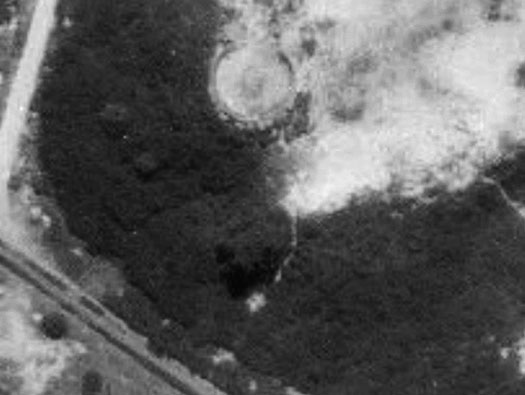

Showing up in this air photo the Geschützstellung on the top of a sand dune.
NA
StP Kinderheim

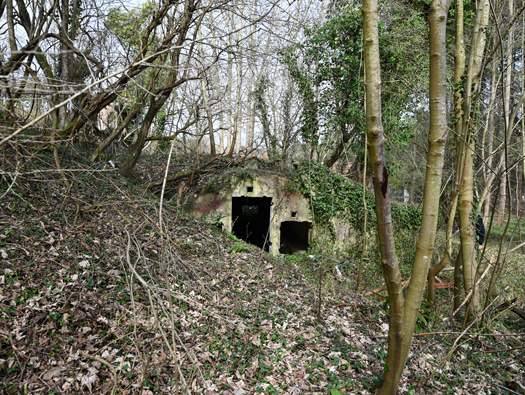

Wellblech shelter.
Set in a nice safe hollow behind the sand dunes and on a Spring day it was a lovely spot.
15 March 2024

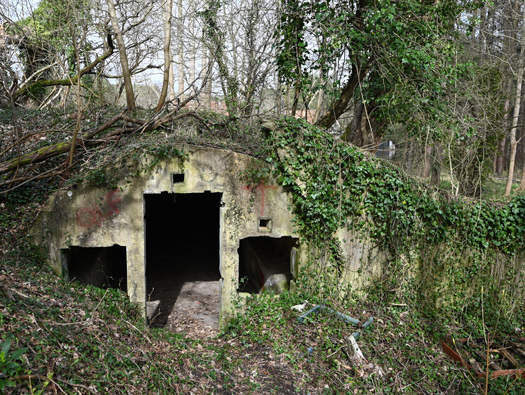

StP Kinderheim
Wellblech shelter.
The entrance and two windows.
15 March 2024

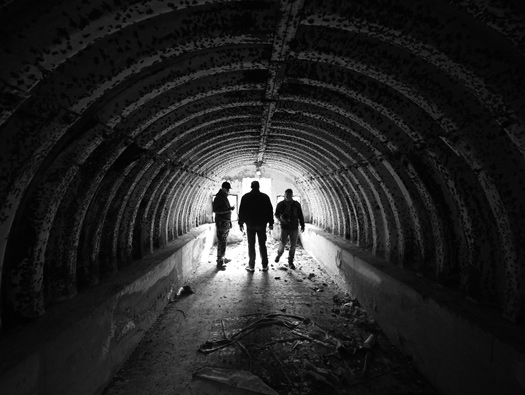

StP Kinderheim
Wellblech shelter.
Kurt, Jany & François.
15 March 2024
StP Kinderheim
Wellblech shelter.

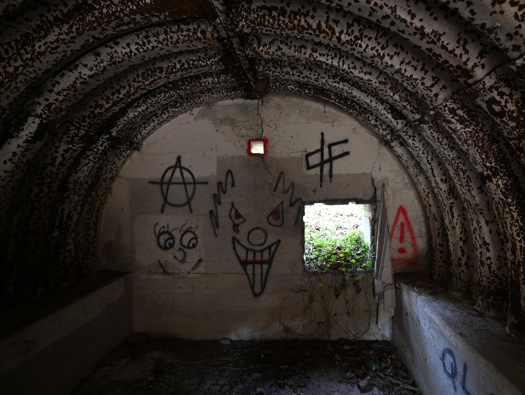

The rear pf the Wellblech with the escape window.
15 March 2024
StP Kinderheim

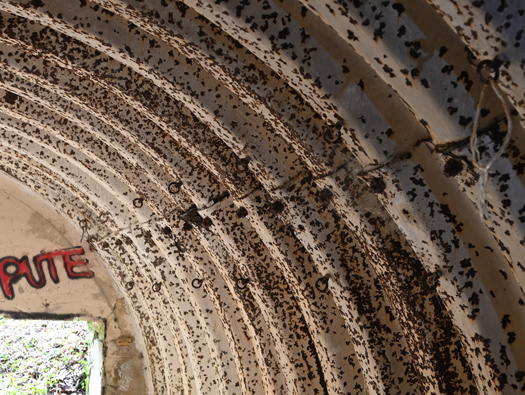

Wellblech shelter.
So the question is, what were the rings on both sides of this Wellblech??.
Bed hooks?
15 March 2024 - 15 March 2024
StP Kinderheim
