StP02 Franceville Ost

StP02 Franceville Ost

1./Ost-Bat. 642.

2 x Anti tank walls.

2 x L413 ammunition bunker for a 3.7cm AA battery.

1 x R105b machine gun casemate L/H.

1 x R105c machine gun casemate R/H.
3 x Vf2a's Gruppe shelter.
5 x Feldm shelters.
1 x Vf Skoda casemate.
1 x R634 6 embrasured turret bunker.
1 x Vf6a observation post, splittersicher (splinter-proof).
1 x Ringstand for 5cm KwK.
1 x Searchlight + Machinenstand.
6 x Vf58c Tobruk's.
1 x Vf58c/SK.
1 x B.Stellen.
1 x R667 casemate for a 5cm KwK Pak gun.
2 x 5cm KwK L/60.
1 x 4.7 Skoda Pak39 (t).
2 x 3.7cm Flak 18.
2 x Pz.T. FT-MG311(f).
2 x Pz.T. FT-3.7cm KwK 144(f).

L413 ammunition bunker for a 3.7cm AA battery.
L413 ammunition bunker for a 3.7cm AA battery.
R105b Machine gun casemate.
R105b Machine gun casemate.
Vf6a observation post, splittersicher (splinter-proof).
Vf6a observation post, splittersicher (splinter-proof).
Pz.T. FT 3.7cm KwK 144(f).
Pz.T. FT 3.7cm KwK 144(f).
Pz.T. FT MG311(f).
Pz.T. FT MG311(f).

StP02 Franceville Ost

StP02 Franceville Ost


Google Maps

StP02 Franceville Ost

StP02 Franceville Ost

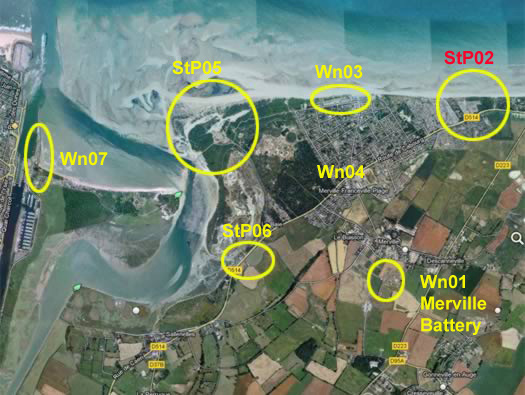

This is a plan of all the Wn/StP's in this area.

Google

5cm KwK L/60.
5cm KwK L/60.
The view before D-Day.
The view before D-Day.
Skoda gun casemate elevation of the gun fittings.
Skoda gun casemate elevation of the gun fittings.

StP02 Franceville Ost

StP02 Franceville Ost

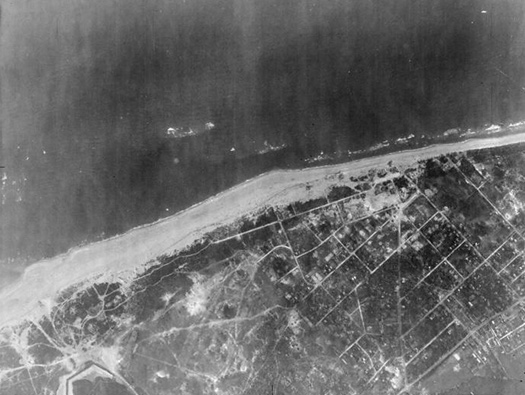

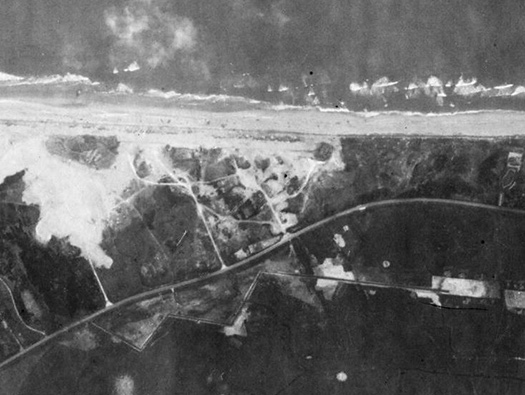

Photo Reconnaissance picture 400/240 15 June 44 F36/12 Task SA/1047/1048 29000 photo: Possibly a Spitfire or a Lightning passing over taking pictures all the way around the Atlantikwall coast.

15 June 1944

PRU Spitfire.
PRU Spitfire.
Loading cameras onto a Spitfire.
Loading cameras onto a Spitfire.
Medmenham interpreters.
Medmenham interpreters.

StP02 Franceville Ost

StP02 Franceville Ost

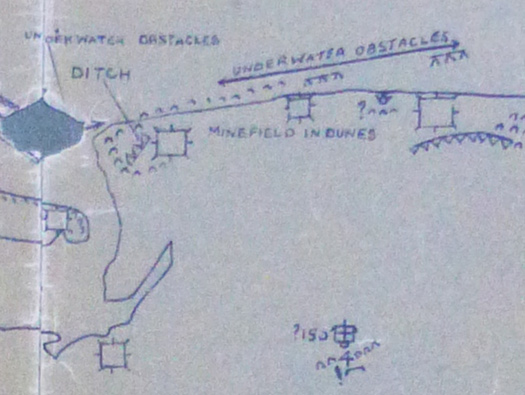

Plan showing where Allied intelligence overlay of expected beach defences and minefields.

1944

Placing beach hedgehogs.
Placing beach hedgehogs.
Teller mines on posts.
Teller mines on posts.
StP02 Franceville Ost

StP02 Franceville Ost

StP02 Franceville Ost

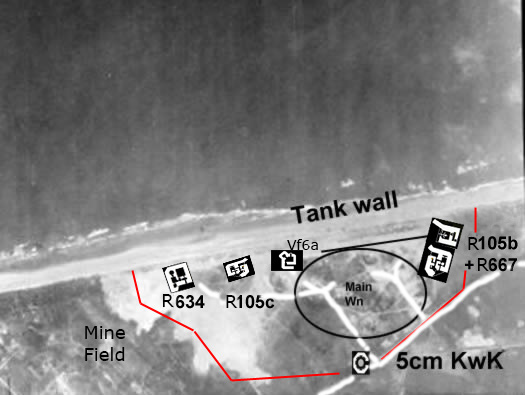

Plan of the outer defence. Quite a large area to defend and lot a bunkers.

15 June 1944

Vf6a observation post.
Vf6a observation post.
Observation officers.
Observation officers.
R634 6 embrasured turret bunker 20P7 turret/dome for an Mg.34.
R634 6 embrasured turret bunker 20P7 turret/dome for an Mg.34.
Tobruk defence.
Tobruk defence.
Vf68c Tobruk.
Vf68c Tobruk.
20P7 turret/dome for an Mg.34 6 embrasured turret R634 bunker.
20P7 turret/dome for an Mg.34 6 embrasured turret R634 bunker.

StP02 Franceville Ost

StP02 Franceville Ost

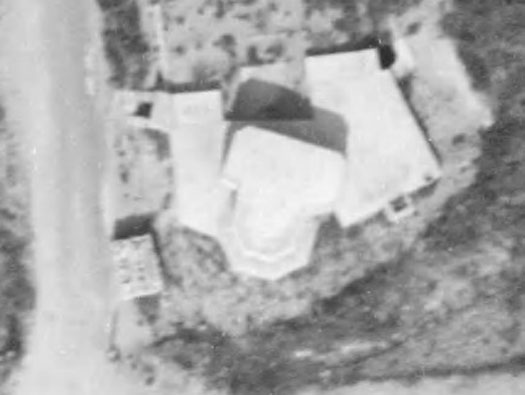

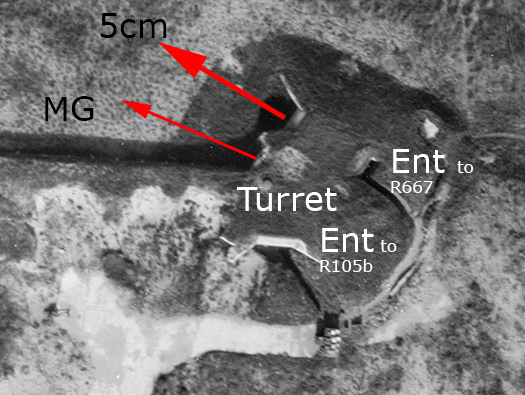

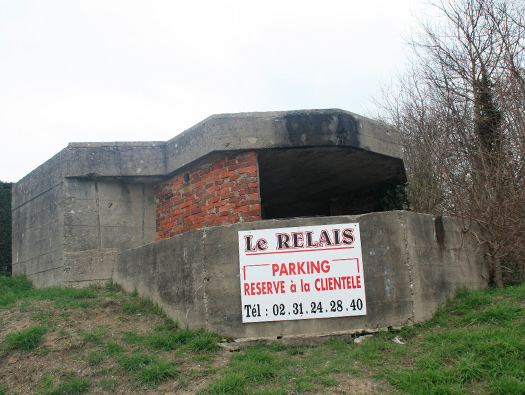

R105b & an R667 bunkers attached. A double bunker with an R105b with only an Mg34 behind a steel plate and added to it an R667 with a 5cm KwK L/60 Pak.
R105b machine gun casemate.
R105b machine gun casemate.
R667 casemate for a 5cm KwK L/60 Pak .
R667 casemate for a 5cm KwK L/60 Pak .
My plan of the double casemate.
My plan of the double casemate.
A 9P7 observation dome the type that may have been on the roof of the R105b.
A 9P7 observation dome the type that may have been on the roof of the R105b.

StP02 Franceville Ost

StP02 Franceville Ost

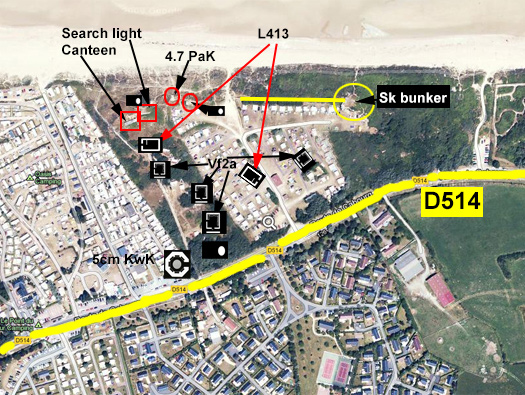

Inside the defences laid out now in a camping site. I have only visited the Vf 5cm Ringstand.

Plan

L414 ammunition bunker for 3.7cm Flak.
L414 ammunition bunker for 3.7cm Flak.
3.7cm Flak 18.
3.7cm Flak 18.
Skoda bunker.
Skoda bunker.

StP02 Franceville Ost

StP02 Franceville Ost
Ringstand for a 5cm KwK Pak L/60 gun. Facing due south, this bunker covers the rear of StP02 and the road that runs east/west. D-Day this StP would have probably had to take on a few stray parachutists falling wide of their DZ's. Then watched as Wn01 Merville batterie was bombed-taken-lost and several days later retaken. Before they too were gradually pushed out by Commandos driving up along this road.

16 March 2012

48 Commando Royal Marines.
48 Commando Royal Marines.
5cm KwK Pak L/60.
5cm KwK Pak L/60.
5cm KwK Pak L/60
5cm KwK Pak L/60

StP02 Franceville Ost

StP02 Franceville Ost

Ringstand for a 5cm KwK Pak L/60 gun.

StP02 Franceville Ost

StP02 Franceville Ost

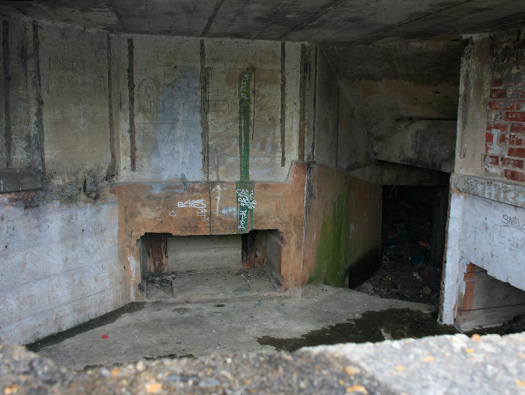

Ringstand for a 5cm KwK Pak L/60 gun. This Ringstand has a lid built over it to give it extra protection from splinters but it stops it being able to fire in all round defence. The niches are for ready ammunition.

16 March 2012

5cm KwK Pak L/60.
5cm KwK Pak L/60.
5cm ammunition.
5cm ammunition.
D-Day early in the morning.
D-Day early in the morning.

StP02 Franceville Ost

StP02 Franceville Ost

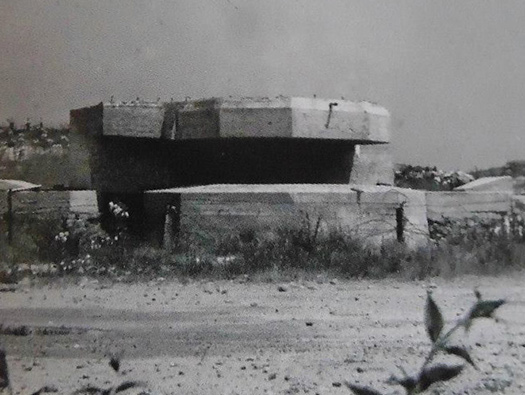

Ringstand for a 5cm KwK Pak L/60 gun. How it looked in 1945.

1945

StP02 Franceville Ost

StP02 Franceville Ost
A large anti-tank ditch running behind the defence.
