StP08 Riva-Bella HKB "Bass" (Sword Beach)
HKB · K.V.Gruppe River-Bella (Sword & Juno Beaches) · AOK 7 Normandy · France
StP08 Riva-Bella
Batterie 1./H.K.A.A 1260. 2., Grenadier-Regiment 736. HQ 1., Grenadier-Regiment 736. Allied code name 'Bass'.
1 x Hochleitstand (FCP).
1 x R644 6 embrasure turret bunker.
2 x R612 casemate for an assault gun.
1 x R666 infantry observation post with small turret.
1 x R626 casemate for a 7.5cm Pak with roof canopy.
6 x R622 twin group shelters.
3 x R134 ammunition bunker.
6 x Geschützstellung (Ringstands for 15.5cm guns).
4 x SK/Schartenstand & 2 x under-construction.
Casemates for poss. 15.5cm guns. 2 x Ringstands for 5cm KwK.
1 x SK/Doppelschartenstand for a 5cm KwK.
1 x Vf/MG machine-gun bunker.
1 x Flakstellung (Flak tower for 2cm Flak).
6 x 15.5cm K.418(f) guns.
1 x 7.5cm F.K38 assault gun.
3 x 5cm KwK L/60 Pak guns.
2 x 2cm Flak (at least).
StP08 Riva-Bella
Google Maps
StP08 Riva-Bella

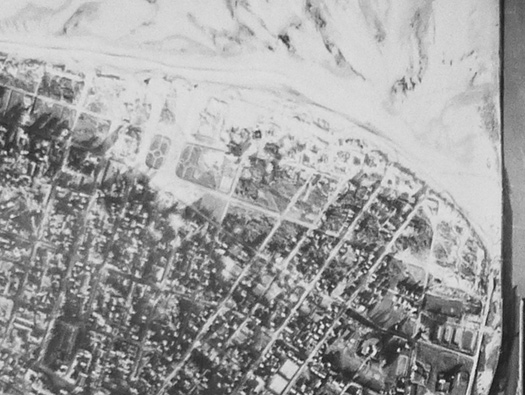

The RAF reconnaissance visited every part of occupied Europe as it could and has a massive archive of photos. This one showing taken in November 1942 three years into the war and very few defences have been build. So everything you see from here on was probably built after this date.
08 November 1942 RAF reconnaissance photo
StP08 Riva-Bella
This is the area of StP08 Riva-Bella. Most of the defences were smaller Wn's, but here they were all grouped together into one large defence. About 31 plus bunkers/casemates/emplacements.
08 November 1942 RAF reconnaissance photo
StP08 Riva-Bella

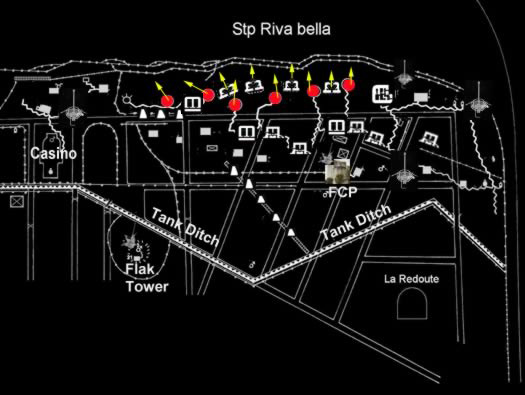

Plan of the StP (Stützgpunkt). The six open emplacements (6 x Geschützstellung (Ringstands for 15.5cm guns) with 3 x R134 ammunition bunker i.
An anti-tank ditch covers the rear of the StP and a ring of Tobruks and tank turreted Tobruks. The Casino was a large interesting building but dismantled to just the ground floor and very well defended. A Flak tower for a 2cm Flak behind and a fire control post (Hochleitstand). 6 x R622
twin group shelters used here as artillery guns crews quarters. Plus many other types.
Plan ------------------------------------------------------------------------------ 2001/1507/48
Anti-tank ditch at Riva Bella.
shm
StP08 Riva-Bella

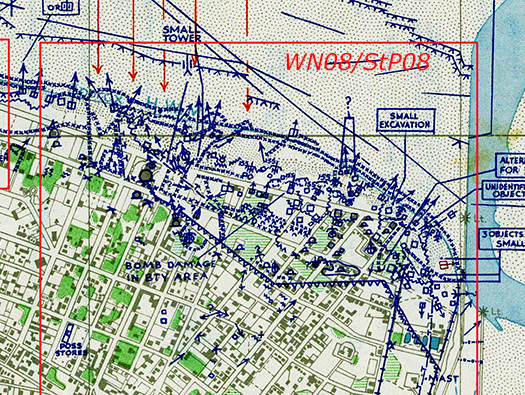

A Bigot map, issued to Bigoted officers in the allied armies due to attack the French coast. To be a Bigot is to mean you were a trusted man to keep a secret. A very accurate map of the German defences and shows what Allied intelligence knew about the StP.
Bigot map
StP08 Riva-Bella

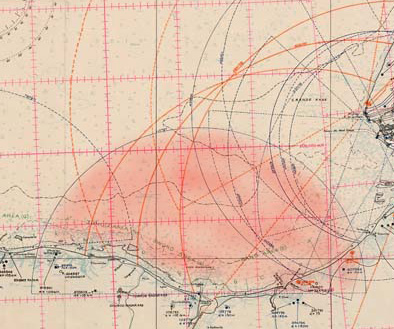

Plan of the ranges of artillery in this part of Normandy. The red area was Batterie H.K.B. 1./1260 six x 15.5cm K.418(f) guns.
NA
StP08 Riva-Bella

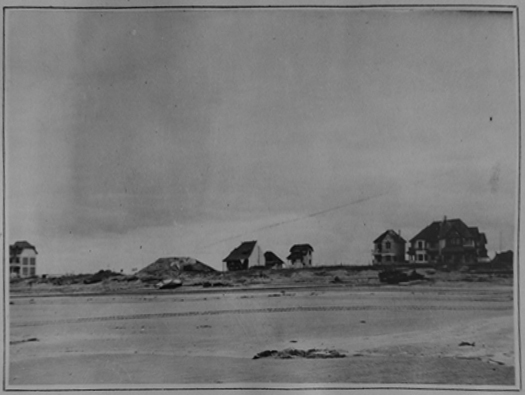

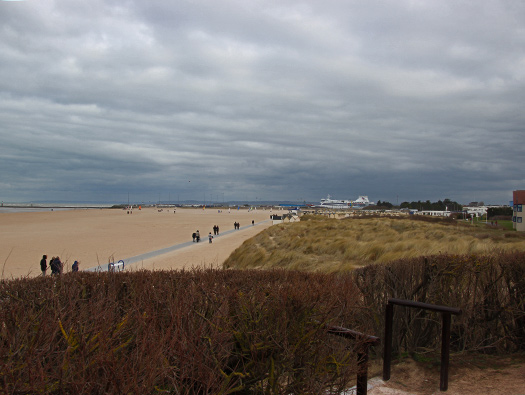

The Beach, a vast area of sand when the tide is out and ideal as a landing beach and Rommel knew it. He increased the defences here and had many more minefields laid out.
21 March 2015
StP08 Riva-Bella

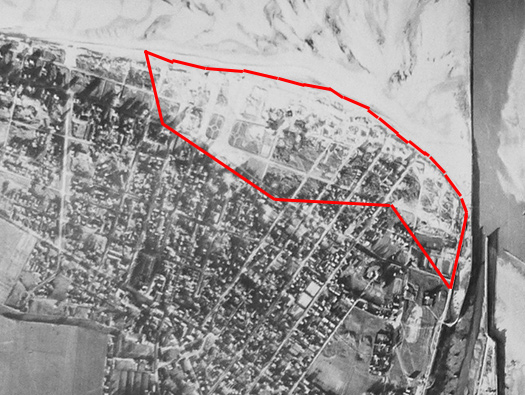

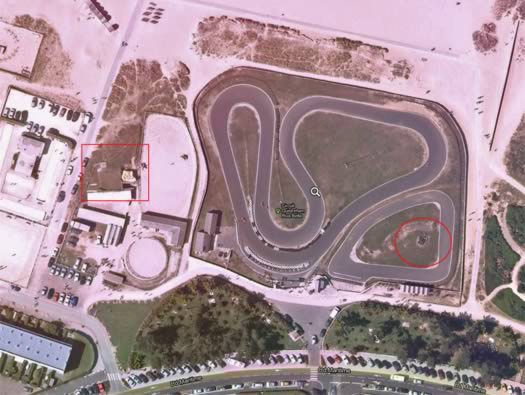

This is an air-photo of where the first remains can be found. The red circle I am not sure what this was but the red square is I believe an R134 ammunition bunker and a Tobruk defence.
StP08 Riva-Bella

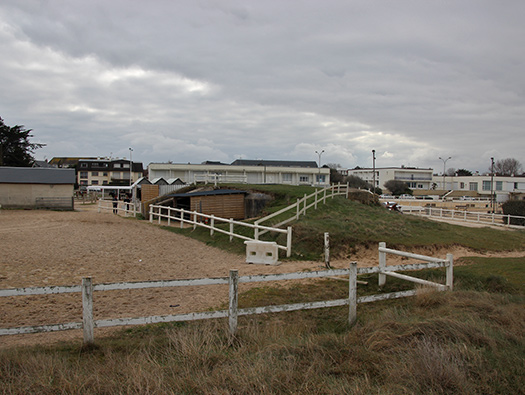

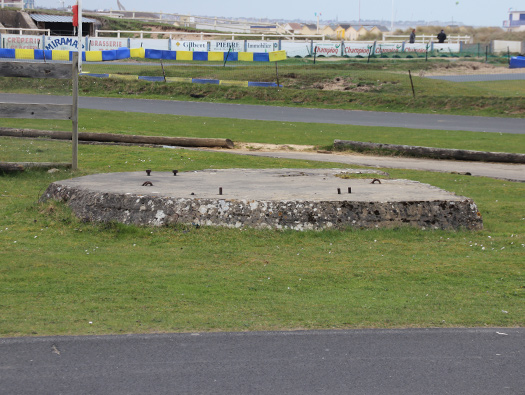

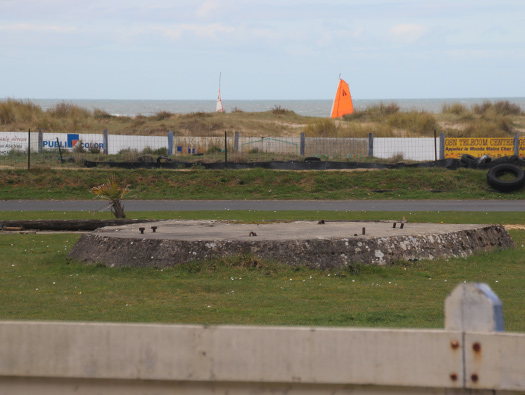

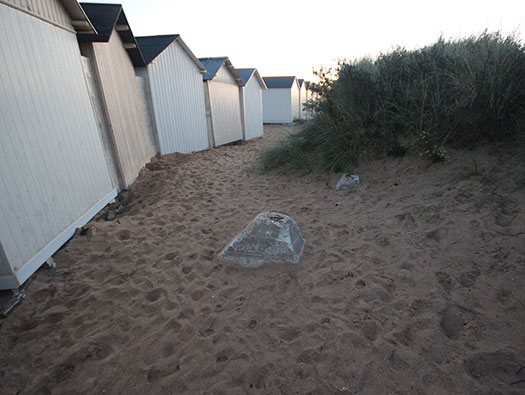

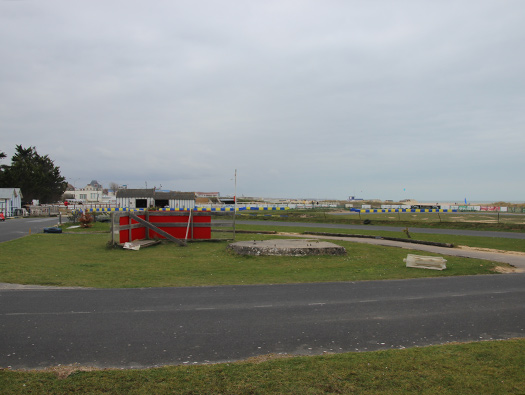

The piece of concrete in the middle of a raceway.
21 March 2015
StP08 Riva-Bella
The piece of concrete in the middle of a raceway.
21 March 2015
StP08 Riva-Bella
The piece of concrete in the middle of a raceway.
21 March 2015
StP08 Riva-Bella

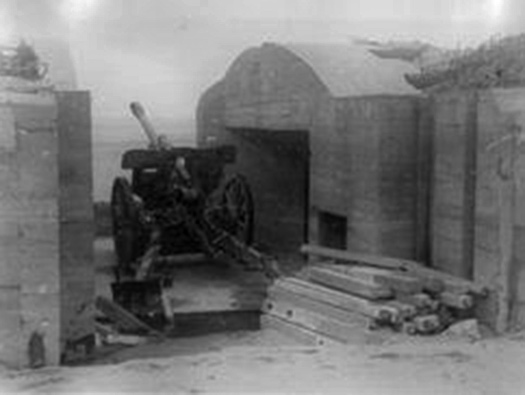

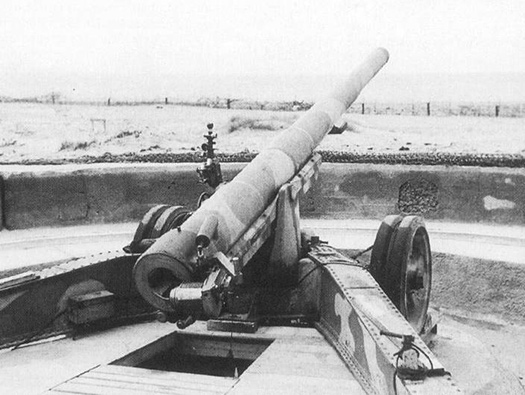

15.5cm K.418(f) guns. This is what a 15.5cm gun in its Geschützstellung.
NA
StP08 Riva-Bella

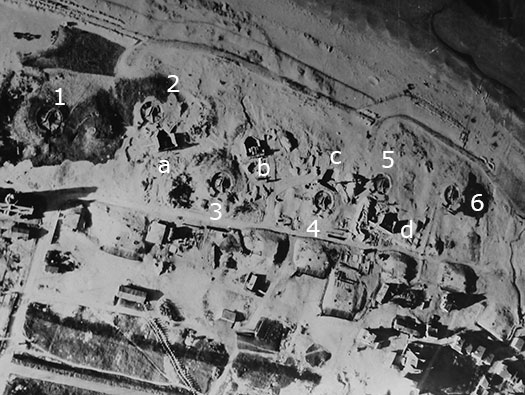

Six open emplacements numbered.
Four casemates being built lettered.
NA
StP08 Riva-Bella
I can see at least four 15.5cm guns in place. Even the crews can be seen around the guns.
NA
StP08 Riva-Bella

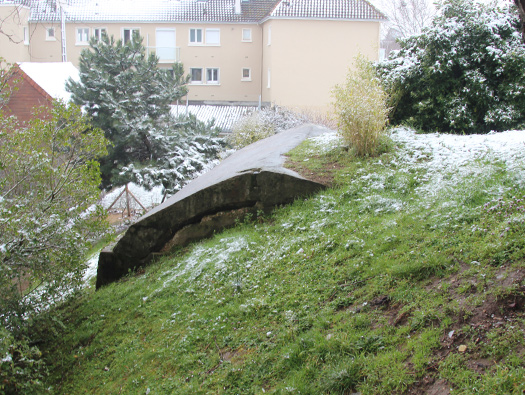

R134 ammunition bunker.
01 November 2010
StP08 Riva-Bella

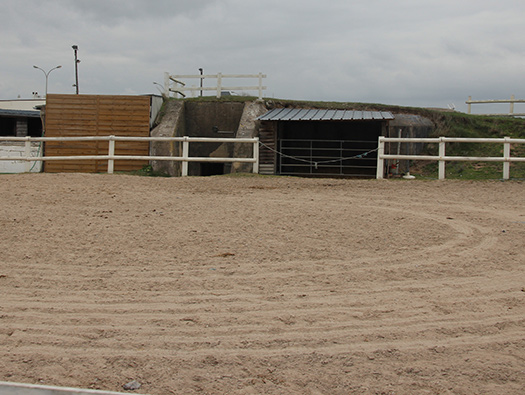

R134 ammunition bunker.
01 November 2010
StP08 Riva-Bella
R134 ammunition bunker hooks sticking out of the concrete to attach a camouflage net..
01 November 2010
StP08 Riva-Bella

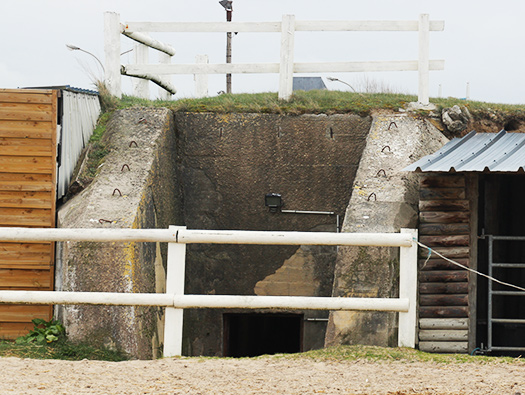

R134 ammunition bunker The entrance into the ammunition bunker..
01 November 2010
StP08 Riva-Bella

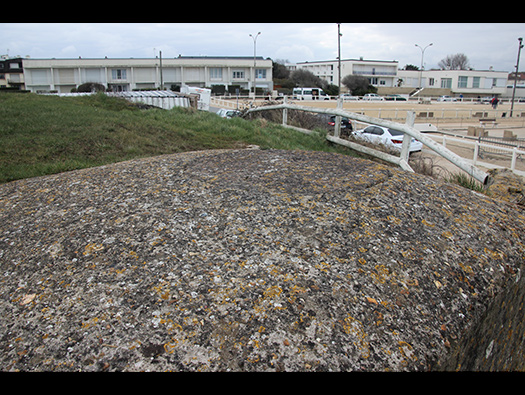

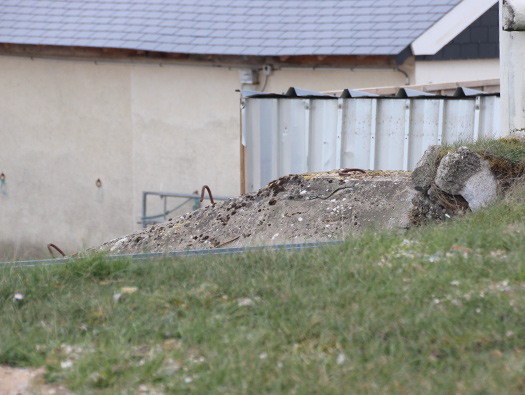

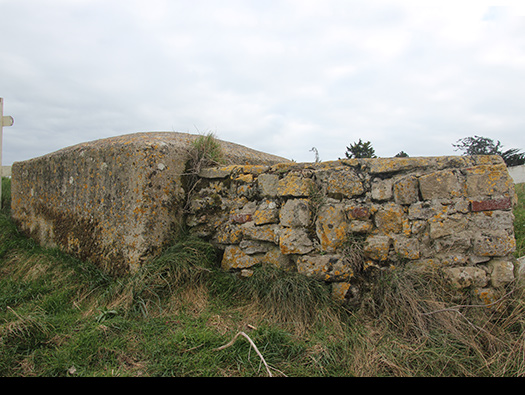

On the top of the R134 is this camouflaged stone wall with a defensive Tobruk.
01 November 2010
StP08 Riva-Bella

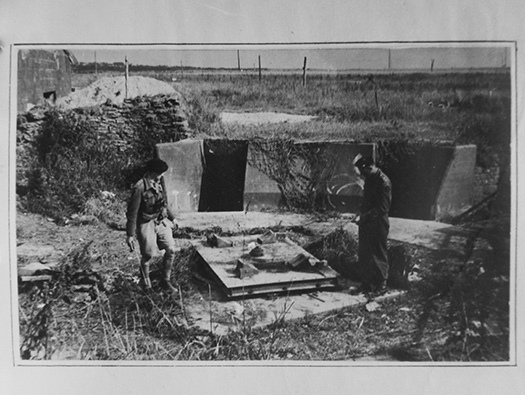

One of the large 15.5cm guns Ringstands.
DEFE 2/433
StP08 Riva-Bella

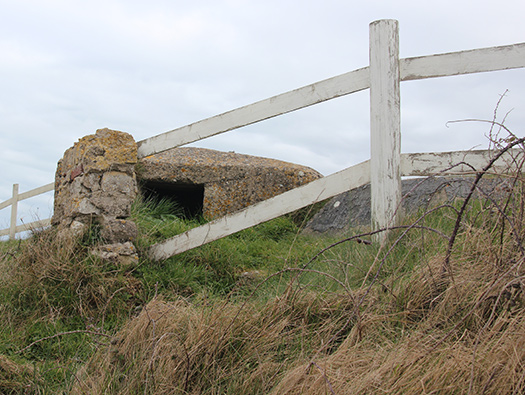

The entrance into the Tobruk.
01 November 2010
StP08 Riva-Bella
The sealed up Tobruk ring in the top.
01 November 2010
StP08 Riva-Bella

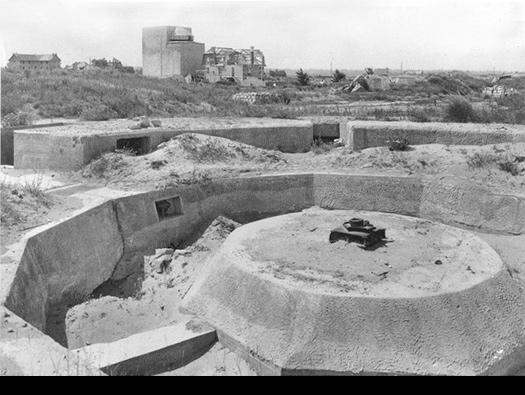

Geschützstellung (Ringstands for 15.5cm guns) with the Hochleitstand (FCP) in the background.
NA
StP08 Riva-Bella
Rommel being shown a Fire Power demonstration early in 1944. This is what the artillery could do to to an invasion fleet if they dared to come this close.
Bundesarchiv
StP08 Riva-Bella
Behind Ouistreham there were several batteries like the Merville Batterie at Wn01.
Bundesarchiv
StP08 Riva-Bella

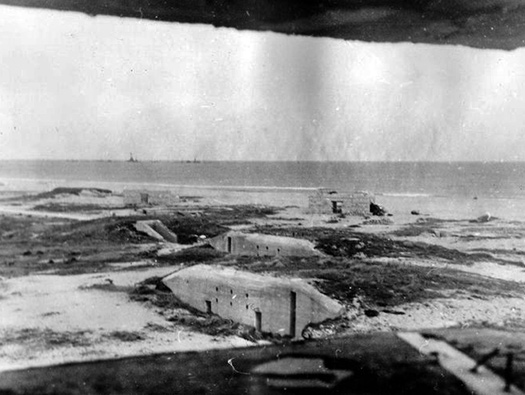

Two casemates under construction, two R622 twin group bunkers and the entrance to an R134.
The R622´s were there to protect the guns crews from heavy bombing and as barracks.
NA
StP08 Riva-Bella

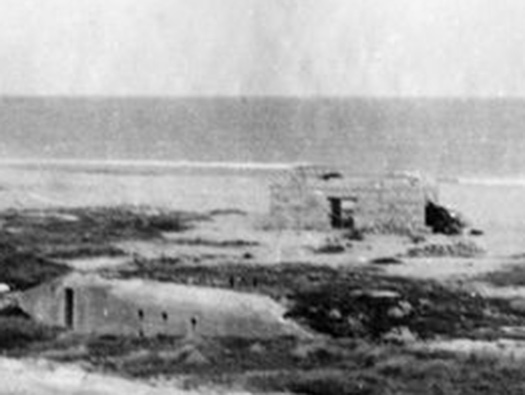

SK/Schartenstand under construction and An R622 twin group bunker.
NA
StP08 Riva-Bella

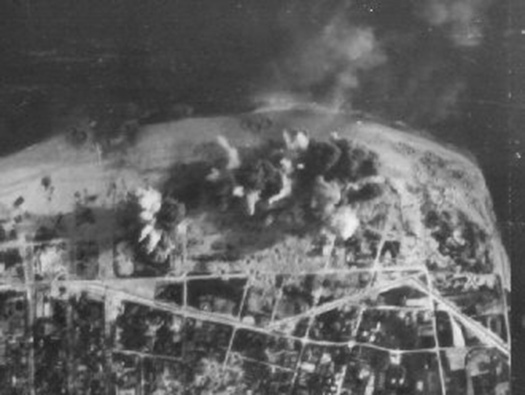

Once the Allies saw that six open emplacements were being built here they started to bomb the batterie. Casemates were then constructed to protect these guns.
NA
StP08 Riva-Bella

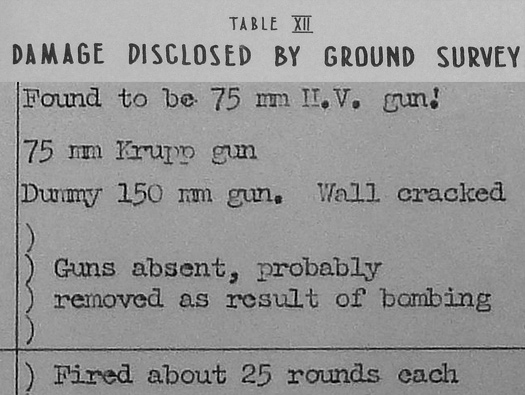

Batterie damage report.
Allied bomb damage report of the Batterie..
NA
StP08 Riva-Bella

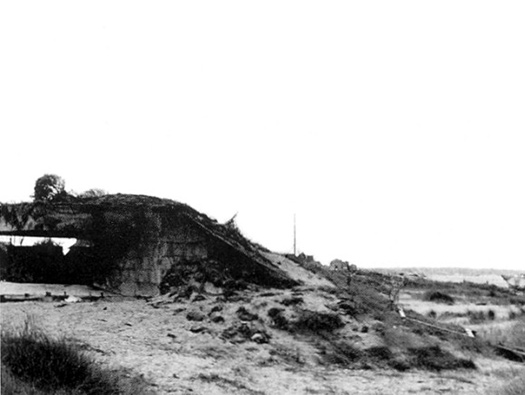

SK/Doppelschartenstand for a 5cm KwK

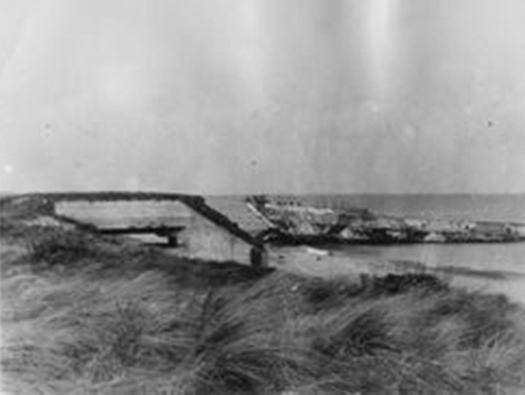

.Interesting casemate. A 5cm KwK Pak gun could fire down either flank. This casemate was removed and now the Brittany Ferries port is now sitting on top of it.
NA
StP08 Riva-Bella
SK/Doppelschartenstand for a 5cm KwK.
The gun had two embrasures, one each side and could fire through either whichever was the greater threat.
NA
StP08 Riva-Bella
SK/Doppelschartenstand for a 5cm KwK.
NA
StP08 Riva-Bella
SK/Doppelschartenstand for a 5cm KwK.

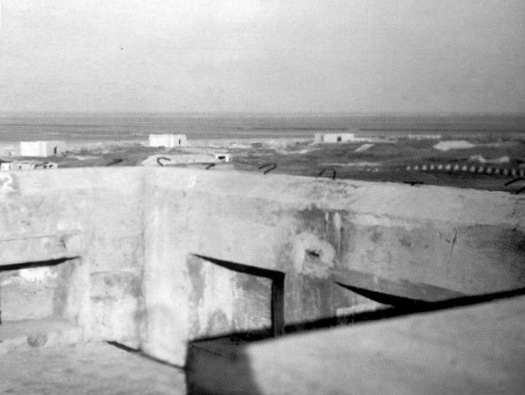

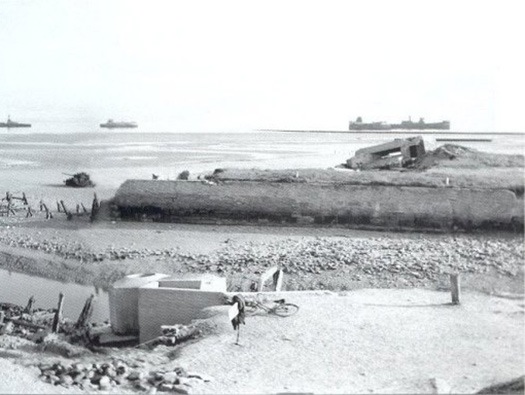

One of the many Tobruk defences. The ships behind were block-ships to protect the beach area from heavy seas after D-Day.
NA
StP08 Riva-Bella

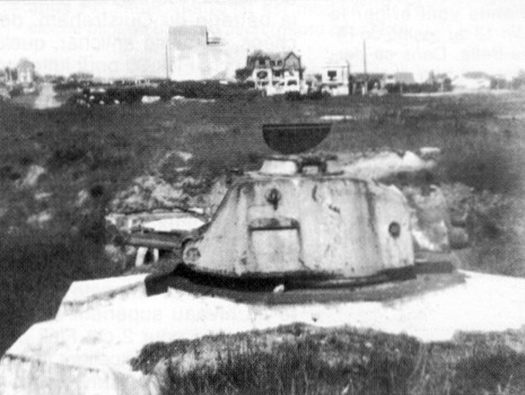

An R35 tank turret it a ´U´ Tobruk with the Fire Control Tower in the background.
NA
StP08 Riva-Bella
An R35 tank turret it a ´U´ Tobruk.

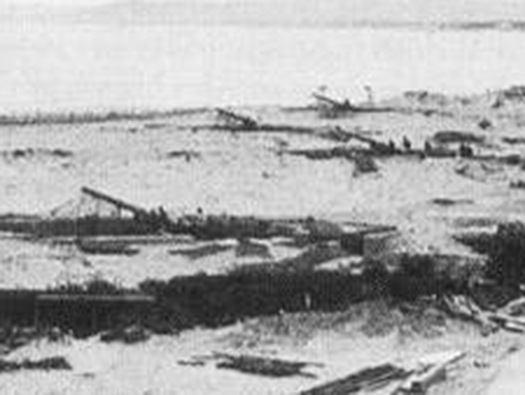

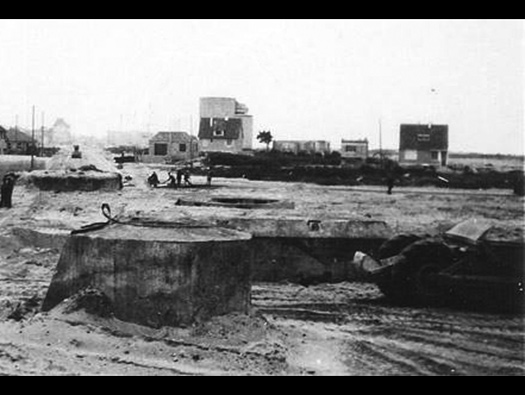

Clearing up the beach and removing the ´U´ tank turret Tobruk that was in the picture above. The road is also being built and several bunkers destroyed.
00 00 00
StP08 Riva-Bella

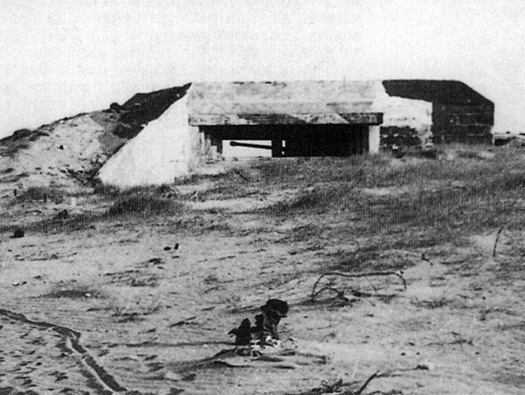

Concrete gun post approximately 20' x 30' housing a German Pak 40 75mm. gun facing westward bearing 310 deg. with about a 60 deg. arc of fire. Roof 7' thick and walls to seaward about 6' thick. Sand bags to seaward up to the top of the roof, which was 10' above ground level. There was no damage to the gun embrasure but it was reported by a doctor who arrived at H + 2 that the crew had had been killed by a shell from a tank which exploded inside. The gun was undamaged and had fired a great deal. DEFE 2/433 [6' = 6feet].
DEFE 2/433 - Commando papers 2001/1507/46
StP08 Riva-Bella
NA
StP08 Riva-Bella

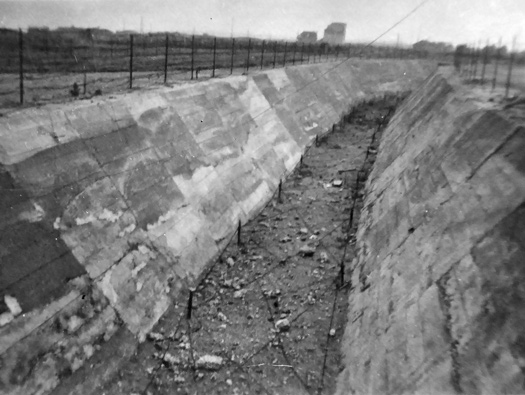

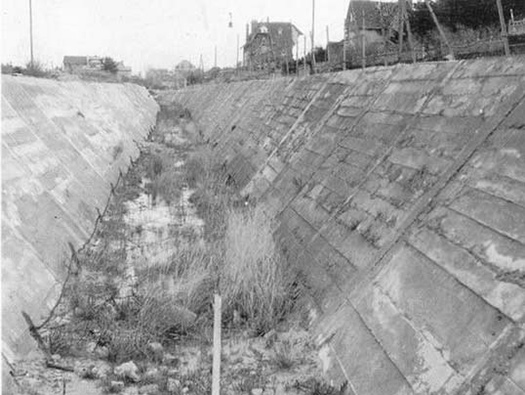

Anti-tank ditch. Zig Zagging along the rear of StP08 was an anti-tank ditch. It was concrete lined and barbed wire laid at the bottom to stop infantry from getting through, also water could lay in the bottom making it a better defence.
NA
StP08 Riva-Bella
Google Maps
StP08 Riva-Bella

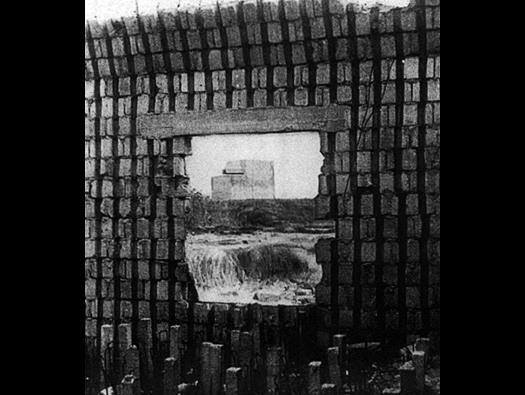

Hochleitstand (Fire Control Post).
This picture of the Hochleitstand is through one of the SK/Schartenstand that was under construction. They were made from a pre-formed concrete block.
The ground floor would have a close combat defence to protect the entrance.
NA
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

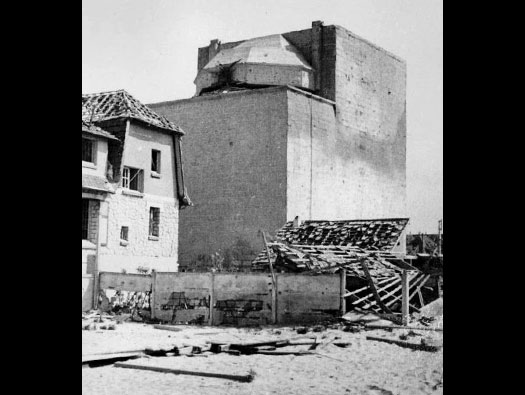

The damage to the upper part of the tower was superficial and only needed the fragments removed and it then continued being used.
DEFE 2/487
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

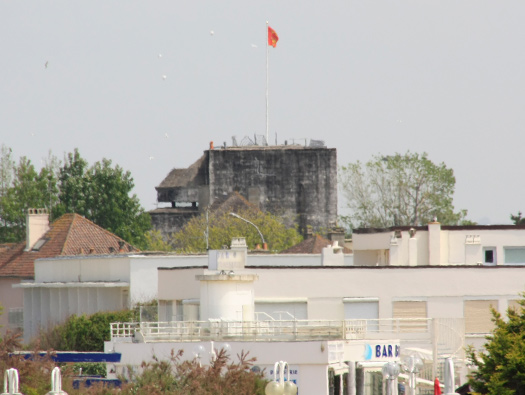

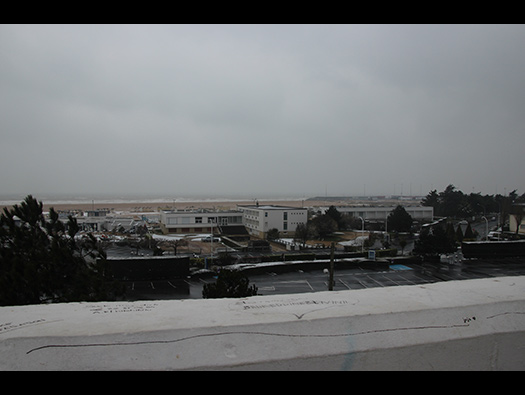

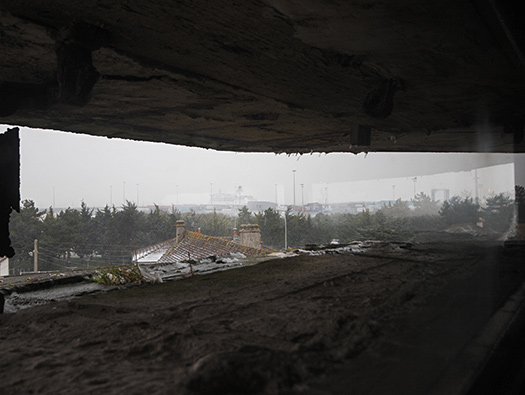

The view across the town.
06 June 2010
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

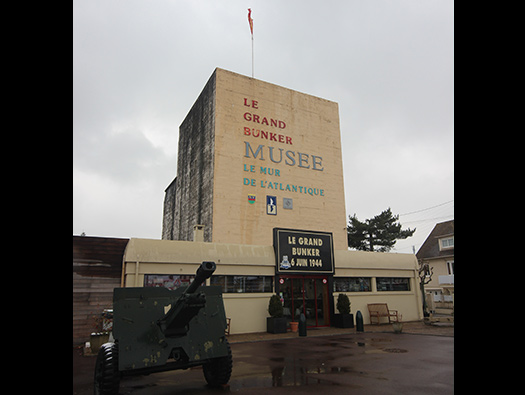

The entrance to the museum.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
Close combat defence.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
The British & French Commandos fought their way through Ouistreham from west to east. They passed by the Hochleitstand (Fire Control Post) and attacked it. Hand grenades showered from above down onto the troops. They decided that as there were no heavy weapons in the tower that it could be bypassed and left to follow up troops. It was not until the 9th June that Lieutenant Bob Orrell o the Royal Engineers was ordered to investigate the bunker. He and three Engineers set off explosives to blow open the door. Then the the Germans inside surrender. Two Officers and 50 men left the bunker.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

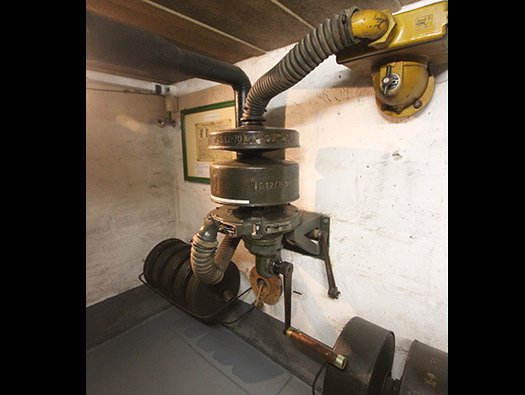

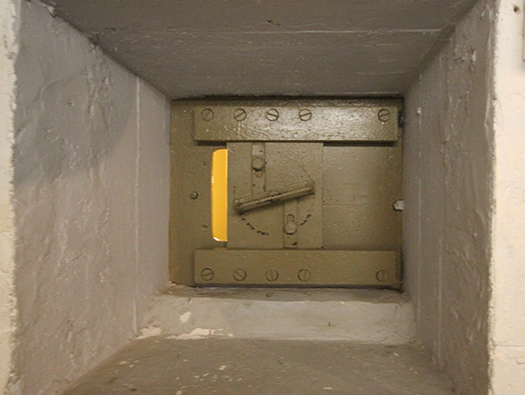

Lufterraum, anti gas room. By rotating the hand pump, air is sucked in from outside, air that could be heavy with gas. This passes through charcoal filters to remove any impurities. Then the clean air is circulated around the bunker via pipes laid into the concrete walls. The internal air is pressurised to above the outside air pressure and that with all doors closed (doors have rubber seals around them) stops the ingress of gas.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
Close combat defence 483P2 type.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

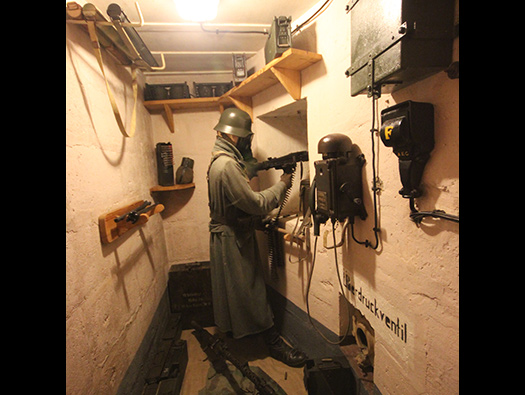

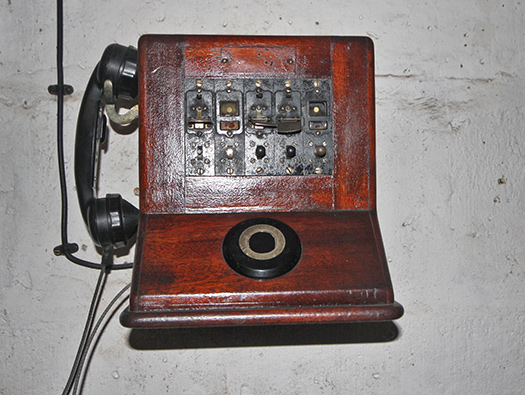

A nice wooden phone.
11 March 2013
StP08 Riva-Bella

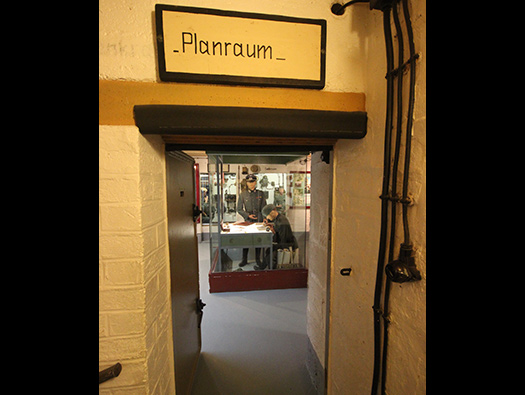

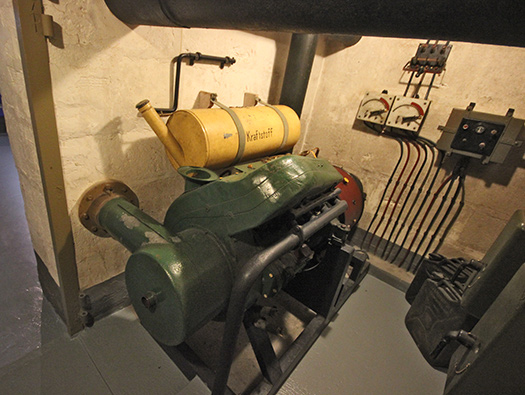

Hochleitstand (Fire Control Post).Generator room, Planraum.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
Main close combat room.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

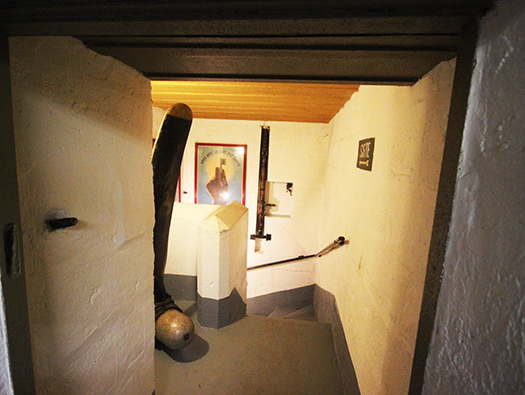

The stairs to the ready room, officers room and ammunition.
11 March 2013
StP08 Riva-Bella

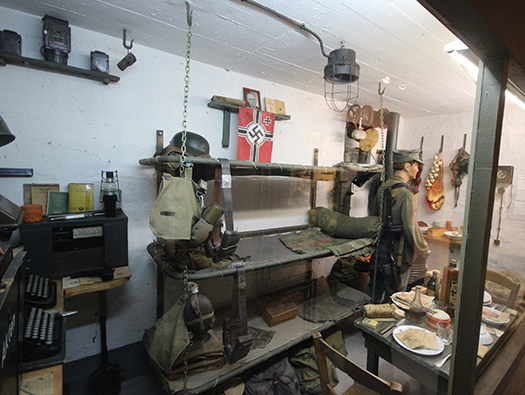

Hochleitstand (Fire Control Post).Working/living space.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

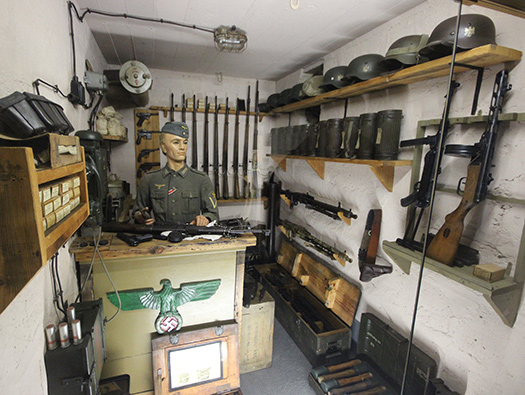

Armoury.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
Plans, radio, information and ammunition room.
11 March 2013
StP08 Riva-Bella

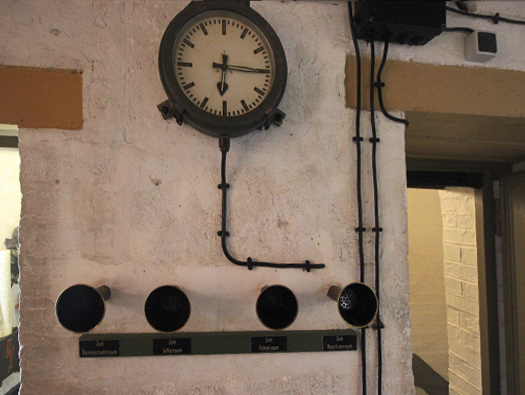

Hochleitstand (Fire Control Post).Speaking tubes. As on old ships and aircraft. Tubes running throughout the bunker from floor to floor can be used to communicate.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

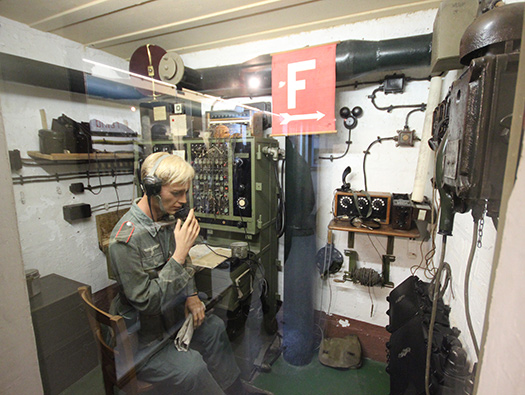

Funkraum - Radio room.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

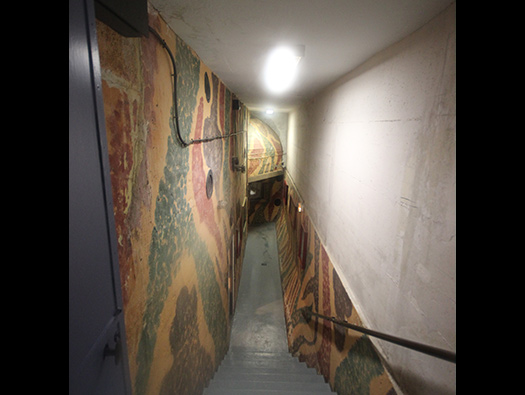

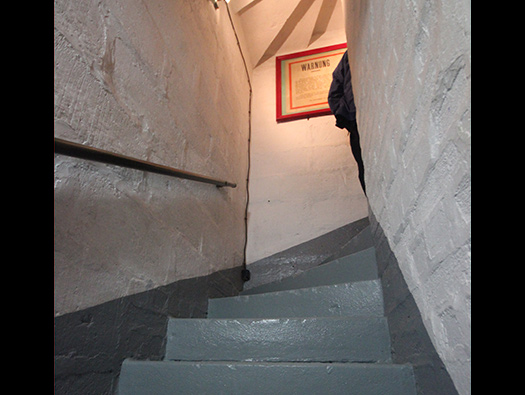

Stairs up to the top floor. On the back wall is a slot for the radio aerial fitting and on the landing a B17 propeller.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
Observation room.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

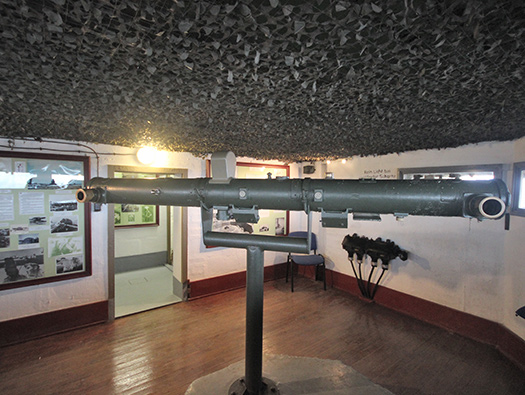

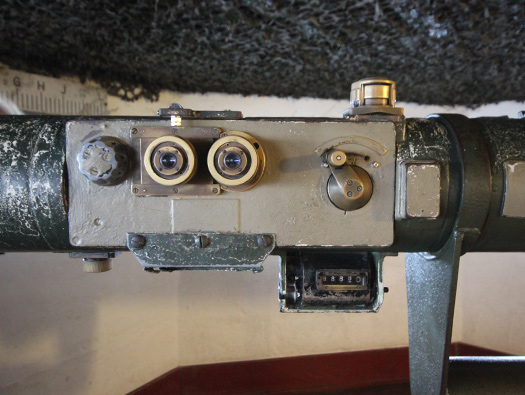

Range finder.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
The view across to the port.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

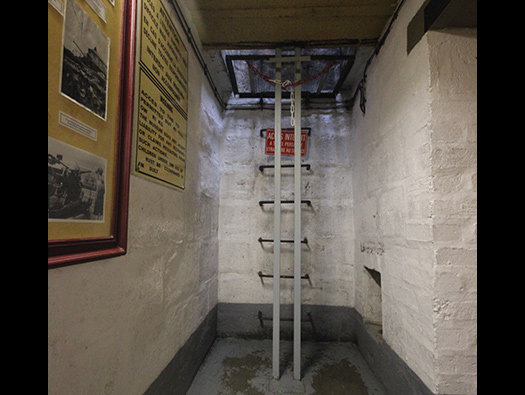

The steel ladder rungs up to the Flak position on the roof. Also all ammunition would have to be carried the five floors and then onto the roof by hand.
11 March 2013
StP08 Riva-Bella
Hochleitstand (Fire Control Post).

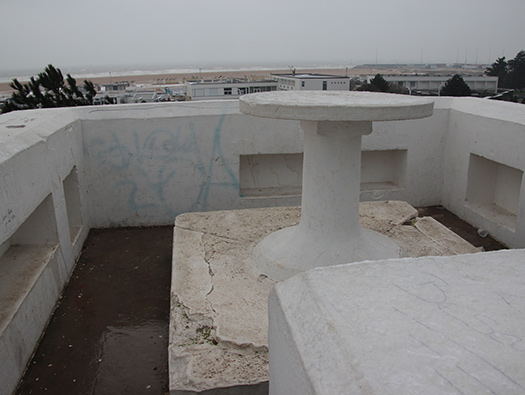

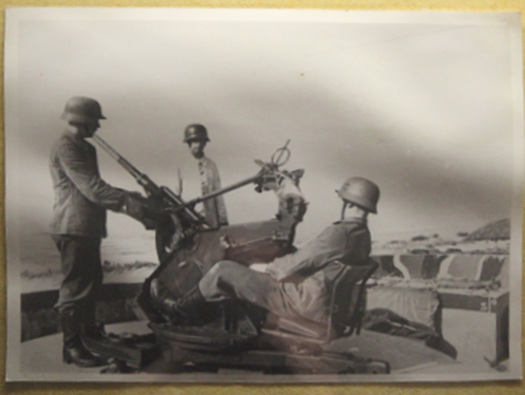

The 2cm Flak 38 actually on the roof.
Museum
StP08 Riva-Bella
Hochleitstand (Fire Control Post).
The concrete pre cast stairs each piece numbered in Roman Numerals.
11 March 2013
StP08 Riva-Bella

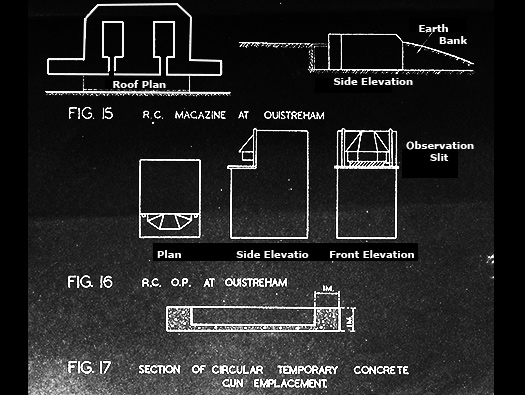

Plans of emplacements around the StP.
After the landings, Allied intelligence parties were sent to France to look at all the German defences, asses battle damage, bring back any secrets. This was a plan from one of those parties a Maj. Anderson. Prof Zukerman was Winston Churchill's science adviser.
DEFE2/487 Air attacks reports by Prof. S Zukerman, Maj. Anderson & others.
StP08 Riva-Bella
Google Maps
StP08 Riva-Bella

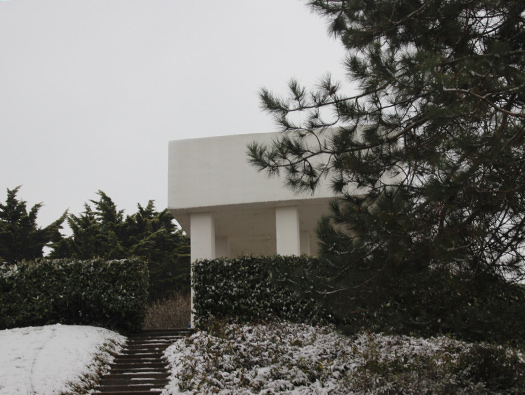

Flak tower for a 2cm Flak 30.
The attack on the Flak Tower
The 500 strong Commando left their Forming up Point (FOP) and lead by the Free French Commando under Commander Kieffer lead the way. They were helped by a French Gendarme and by passed many defences to get to their target. The Commando dropped their rucksacks and started to cross the anti-tank ditch (the French Commando started to attack the Casino).The rest of the Commando assaulted A major defence position which was silenced by machine gun, mortar and a well aimed Piat A/T weapon. The Flak tower with a 2cm AA gun sat on its eight legs fired down on them, so the units mortars brought down on the tower, silenced it. The batterie position was then rapidly cleared of enemy and the Commandos continued on to Pegasus Bridge (Wn13 Pont sur le Canal) and across to their defence positions the ridge on the the east side of the Orne River.
Commando Papers, D-Day Museum Archive Portsmouth.
NA
StP08 Riva-Bella

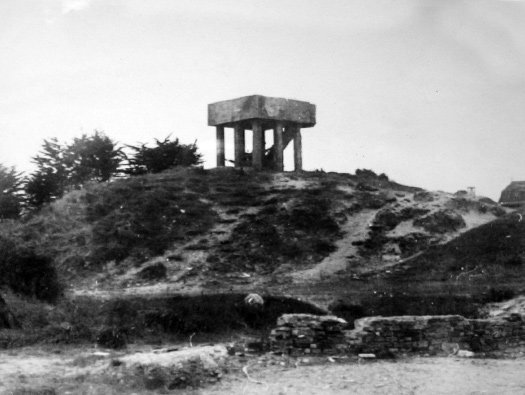

Flak tower for a 2cm Flak 30.
09 March 2013
StP08 Riva-Bella
Flak tower for a 2cm Flak 30.

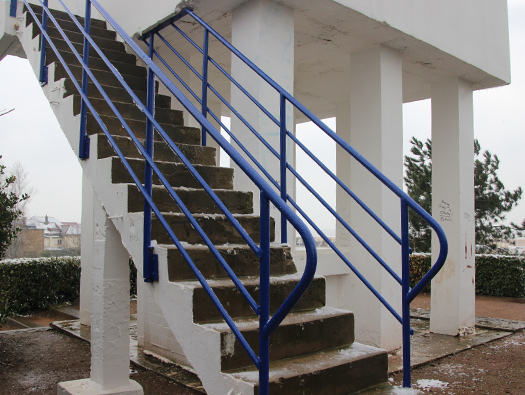

Concrete stairs.
09 March 2013
StP08 Riva-Bella
Flak tower for a 2cm Flak 30.
On the top where a 2cm Flak 30 would sit on the concrete square base.
09 March 2013
StP08 Riva-Bella
Flak tower for a 2cm Flak 30.
The view out to sea. With a 360° view and with the other 2cm Flak 30 on top of the fire control post, the cross fire could be devastating to a low level fighter..
09 March 2013
StP08 Riva-Bella
Flak tower for a 2cm Flak 30.
NA
StP08 Riva-Bella
Flak tower for a 2cm Flak 30.
Wellblech shelter for the guns crew.
09 March 2013
StP08 Riva-Bella
Google Maps
StP08 Riva-Bella

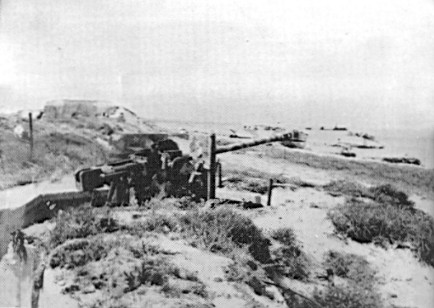

5cm Pak L/60.
In its Ringstand and set out somewhere on the left flank of the defence. This could be the gun that the French Commandos attacked on D-Day.
NA
StP08 Riva-Bella
Casino.
The original Riva-Bella Casino prior to the war.
Delecampe
StP08 Riva-Bella

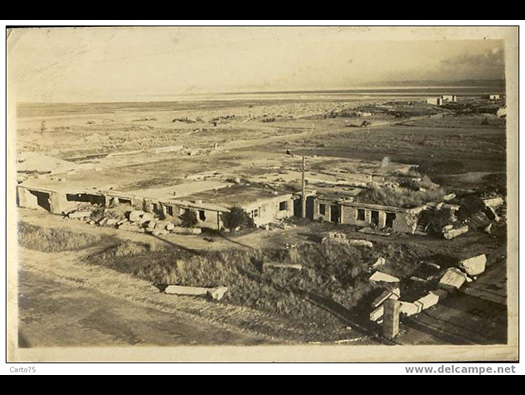

Casino.

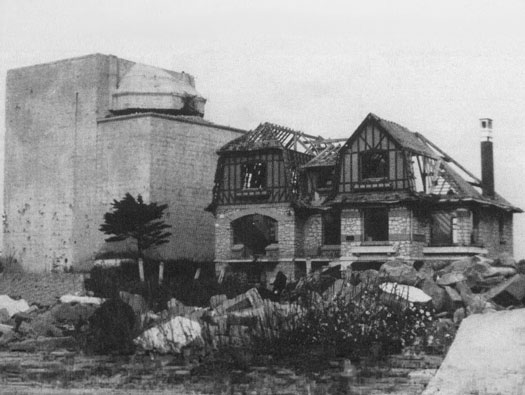

This is how it looked after D-Day, the top of the casino was demolished and then fortified. At least one ´U´ R35 tank turret Tobruk and a 2cm Flak 30.
Delecampe
StP08 Riva-Bella
1er Battalion de Fusiliers Marines Commandos.
Formed in March 1941 and became "Commandos Français" and were tasked on D-Day to take StP08 and bunkers around the Casino.
1er Battalion de Fusiliers Marines Commandos
StP08 Riva-Bella

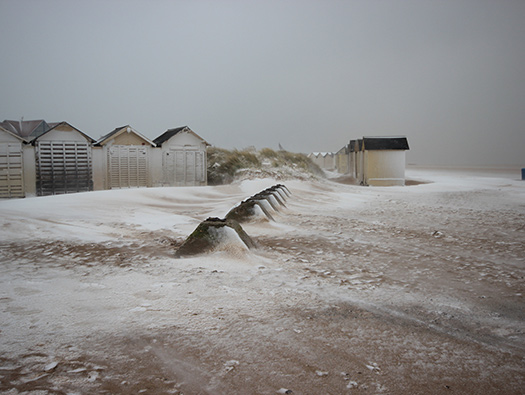

Anti-tank Dragons teeth.
31 October 2016
StP08 Riva-Bella
Anti-Tank Dragons teeth.
00 00 00
StP08 Riva-Bella

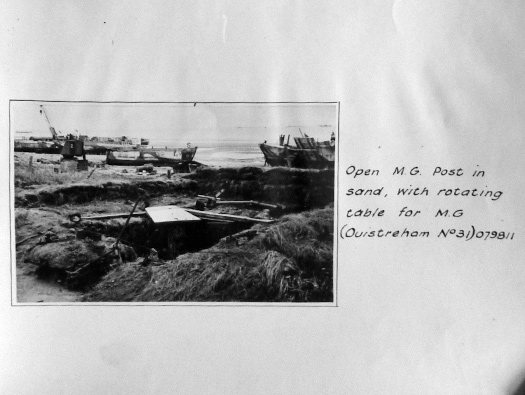

MG post.
NA
StP08 Riva-Bella

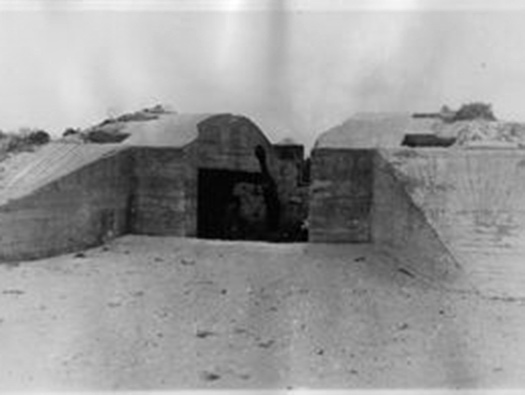

R626 casemate for a 7.5cm F.K. 231(f) without roof canopy.
The steel canopy should have been an 845P6 but was never fitted.
NA
StP08 Riva-Bella
R626 casemate for a 7.5cm F.K. 231(f) without roof canopy.
The 7.5cm F.K. 231(f) in place.
NA
StP08 Riva-Bella
