StP351 Auderville la Roche H.K.B. 1./1262                                                          "Stahl"

HKB · K.V.U.Gruppe Joburg · AOK 7 Normandy · France

StP351 Auderville la Roche H.K.B. 1./1262                                                          "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Batterie 1./H.K.A.R.1262.

4 x R679 casemates (one under construction).

1 x R636 Fire Control Post.

4 x R134 Ammunition bunkers.

1 x SK/Seetakt radar.

5 x SK/Vf bunkers.

1 x SK/Machinestand.

2 x R622 twin gruppe bunker.

2 x R621 gruppe bunker.

6 x 15.5cm K.416(f) guns.

1 x 7.62cm F.K.39(r).

3 x 2cm Flak 30.

R636 Fire Control Post.
R636 Fire Control Post.
15.5cm K.416(f).
15.5cm K.416(f).
R621 gruppe bunker.
R621 gruppe bunker.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"


Google Maps

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

This German plan shows all the defences around Cap de la Hague. StP351 could fire 360° from its six open emplacements. But due to Allied bombing Hitler ordered casemates to be built to protect the guns. So four R679's were in the process of being built.

1944

R679 casemate.
R679 casemate.
6 open emplacements.
6 open emplacements.
15.5cm K.416(f).
15.5cm K.416(f).

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Allied air-photo overlay of StP351, six x 155mm. Range 25,000 yds. Rate of Fire 2 r.p.m. Weight of shell 95lbs. For casemates under construction.

La Roche. Medium Coast Battery. Inter-service Target N°. 9/J/473.

Spitfire PRU.
Spitfire PRU.
USAAF Lightening´s also too a lot of air photos.
USAAF Lightening´s also too a lot of air photos.
Spitfire camera being fitted.
Spitfire camera being fitted.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

American Marauder medium bombers carpet bombing the battery of StP351. The picture shows a Marauder with D-Day stripes on its wings, so this picture must be post D-day as the stripes were painted on no earlier than the 4/5 June. I believe 7 July 1944.

06 March 2016

American Marauder.
American Marauder.
American Marauder.
American Marauder.
American Marauder.
American Marauder.

StP351Auderville la Roche H.K.B. 1./1262 "Stahl"

Two ages of a batterie position are here. First the six open emplacements and then the four casemates. Due to heavy Allied bombing Hitler insisted batteries were to b casemated to give them better protection and on the 29 June 19444 it was heavily bombed and many of the open emplacements were hit badly.

06 March 2016

StP351Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Nice view from under the hill showing how high the guns were placed 60meters I believe. Two of the R679, Turm 3 & 4.

22 June 2006

R679 at Gatteville.
R679 at Gatteville.
Inside the gun room (Gatteville) with a steel shield covering the guns embrasure.
Inside the gun room (Gatteville) with a steel shield covering the guns embrasure.
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

The batterie position from the rear. Turm 3 & 4 with Turm 1 to the far right. Turm 2 was under-construction.

26 June 2002

Construction.
Construction.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A closer look.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R134 ammunition bunker. A twin room'd ammunition magazine.

26 June 2002

R134 plan.
R134 plan.
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
Inside an R134 ammunition room.
Inside an R134 ammunition room.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 4 R679. .The two panels either side of the embrasure would have had metal plates bolted on and the four threads per side are still there.

26 June 2002

R679 plan.
R679 plan.
R679 StP152 Gatteville.
R679 StP152 Gatteville.
Inside an R679 at Gatteville.
Inside an R679 at Gatteville.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 4 R679. This is the left panel where the metal plates bolted on and one nut still in place. I have seen many R679 casemates but never have I seen a steel panel. I do not think many were ever fitted.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 4 R679. The gun room with two ammunition niches each side and the rear door.

26 June 2002

R679 elevation showing where the gun sat.
R679 elevation showing where the gun sat.
R679 plan with two ammunition niches either side and a rear entrance that should have a steel door. Again these often were not fitted due to the D-day invasion.
R679 plan with two ammunition niches either side and a rear entrance that should have a steel door. Again these often were not fitted due to the D-day invasion.
A gun in place.
A gun in place.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 3 R679 casemate. Turm 3 has the two panels each side just like the last one but this one has a larger steel band around the top of the embrasure.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 3 R679 casemate. This is just showing some detail of the panel and a concrete glasses plate that would have been completed when the gun was fitted.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 3 R679 casemate from the rear & Turm 4 in the distance.. The rear entrance with a steel frame and lintel but no door.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 1 R679 casemate. Turm 2 would have been somewhere around here. Note the earth placed around the sides of the casemate. It acts as camouflage and adds to the strength of the casemate.

26 June 2002

Casemate plan.
Casemate plan.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm 1 R679 casemate.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm1 R679 casemate.

26 June 2002

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm1 R679 casemate. Always very muddy.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Turm1 R679 casemate. Railway lines were used extensively in the building of bunkers. This looks like one that was left over.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Set in a very good position in the front of the batterie, here fire control officers could pass information to each of the six guns laid out in open emplacements and also to any of the guns that had been set into the casemates.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
Range finder.
Range finder.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. The air photo shows the Flak position and Tobruk in place. Even the two aerial slots.

06 March 2016

Plan.
Plan.
2cm Flak 30.
2cm Flak 30.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. The rear of the bunker with an entrance for the Flak position and two large radio aerial fittings.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post.

SHM

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Flak position. Rear entrance to the Flak position on the roof. Note the camouflaged concrete overlay.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Flak position. The entrance and Tobruk.

06 March 2016

Tobruk.
Tobruk.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Tobruk. The top of the Tobruk.

06 March 2016

Machine gun fittings in a Tobruk.
Machine gun fittings in a Tobruk.
Details of the lip where the machine-gun swivelled around.
Details of the lip where the machine-gun swivelled around.
Plan of a machine gun mounting.
Plan of a machine gun mounting.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Tobruk. Nice tight squeeze and a niche for a speaking tube. A pipe would go through the concrete of the bunker to somewhere inside and this was his only means of communication.

06 March 2016

Sprachrohr- mouthpiece.
Sprachrohr- mouthpiece.
Tobruk machine gunner.
Tobruk machine gunner.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Flak position. Flak position on the top of the R636.

06 March 2016

2cm Flak 30.
2cm Flak 30.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Flak position. Alderney to the left and Cap de la Hague Lighthouse to the right. Ready ammunition space under lip.

06 March 2016

2cm Flak 30.
2cm Flak 30.
2cm Flak ammunition magazines.
2cm Flak ammunition magazines.
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Flak position. Now looking towards the rear of the site.

06 March 2016

Magazine filling tool.
Magazine filling tool.
2cm shell case.
2cm shell case.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Radio aerial fittings. Two aerial fittings set into the rear of the bunker.

06 March 2016

Plan of an aerial fitting.
Plan of an aerial fitting.
How the aerial fitted inside a bunker.
How the aerial fitted inside a bunker.
Plan of an aerial inside a bunker.
Plan of an aerial inside a bunker.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Camouflage detail.

06 March 2016

R636 Fire Control Post plan.
R636 Fire Control Post plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Looking into the observation room.

06 March 2016

R636 plan.
R636 plan.
Range finder.
Range finder.
Observation.
Observation.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post. Looking into the observation room.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post.

SHM

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Alderney with the Raz Blanchard this is the gap that the guns were protecting.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

R636 Fire Control Post

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

FuMO 2 Seetakt radar. The radar was designed to be used over the sea and was perfect for ranging the guns at StP351. It could direct the guns on any target from here to Alderney.

06 March 2016

FuMO 2 Seetakt radar just after capture by the Americans.
FuMO 2 Seetakt radar just after capture by the Americans.
Plan.
Plan.
Radar.
Radar.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

FuMO 2 Seetakt radar. Camouflage around the radars defending wall.

06 March 2016

Another Seetakt radar instillation.
Another Seetakt radar instillation.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

FuMO 2 Seetakt radar. The view of where the radar searched.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

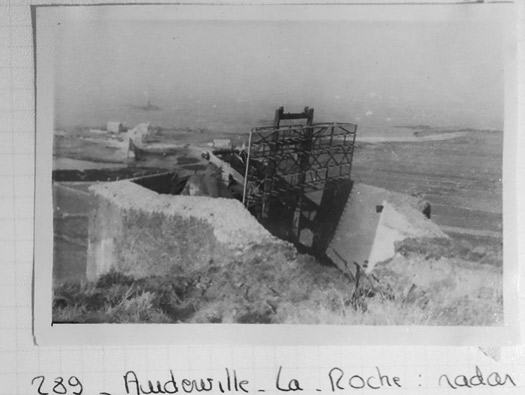

FuMO 2 Seetakt radar. Picture taken around 1945.

SHM

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

FuMO 2 Seetakt radar. The view after capture..

ADM 202-598 30 Assault Unit files.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

FuMO 2 Seetakt radar. Looking into the emplacement where the radar sat.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). .Maschinensatz was a bunker to hold the power to run the radar.

06 March 2016

View from above.
View from above.
SK/Maschinensatz. R/L: Store. Main room. Close combat & men's entrance. Crew room & storage.
SK/Maschinensatz. R/L: Store. Main room. Close combat & men's entrance. Crew room & storage.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The roof of the Maschinensatz and a periscope fitting can be seen.

06 March 2016

The red dot on the plan is the position of the periscope.
The red dot on the plan is the position of the periscope.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The attached Tobruk. Note the hooks for a camouflage net..

06 March 2016

Plan.
Plan.
Tobruk.
Tobruk.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). a: periscope fitting for the crew to look around when under attack. b: another fitting on the roof some way from the periscope.

06 March 2016

Plan.
Plan.
Periscope looking out of a bunker.
Periscope looking out of a bunker.
Periscope.
Periscope.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). View from the other side.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The sunken way into the bunker.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The sunken way into the bunker.

SHM

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The 494P2 rear doors. Heavy steel doors still in place. Set in three parts, one left and two right with a strip of steel bolted to the left door as a lip to shut the right door.

06 March 2016

Plan.
Plan.
Plan.
Plan.
This is a plan of the way a strip of steel was bolted to the left door and the right door would rest against it.
This is a plan of the way a strip of steel was bolted to the left door and the right door would rest against it.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 494P2 rear doors.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 494P2 rear doors. The slot is for viewing or sticking out a rifle/sub-machine gun through it.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 494P2 rear doors.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 494P2 rear doors in another bunker showing how the door was configured.

Not my picture??

This is a plan of the way a strip of steel was bolted to the left door and the right door would rest against it.
This is a plan of the way a strip of steel was bolted to the left door and the right door would rest against it.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The main machine room. This is where a generator would have sat to power the radar.

06 March 2016

Wheeled generator.
Wheeled generator.
8KW generator.
8KW generator.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 434P01 door.

06 March 2016

Plan.
Plan.
434P01 door.
434P01 door.
434P01 left or right opening door.
434P01 left or right opening door.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). Just above the door is a 4ML01 equalising valve. This allows the internal and external air pressure equalise when there is a large explosion.

06 March 2016

Plan
Plan
4ML01 equalising valve.
4ML01 equalising valve.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). Bunker drain.

06 March 2016

Bunker drainage.
Bunker drainage.
Sump emptier.
Sump emptier.
Zinc bunker drain fittings.
Zinc bunker drain fittings.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 434P01 door detail.

06 March 2016

434P01 door.
434P01 door.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). Main room and quite a large space as well.

06 March 2016

Details2
Details2

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). A 19P7 thin steel door, gas tight with a glass viewing window. The large hole may be post war.

06 March 2016

19P7 thin steel door.
19P7 thin steel door.
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The passageway to the crew quarters, close combat defence and the Tobruk access steps. Another 19P7 thin steel door into the crews quarters. The round steel pieces are actually steel wagon tyres.

06 March 2016

Plan.
Plan.
A wooden wagon wheel with a steel tyre fitted over the wood.
A wooden wagon wheel with a steel tyre fitted over the wood.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). Small room.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The other small store room.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). Crew room. The 19P7 thin steel door. Close combat defence embrasure.

06 March 2016

Plan.
Plan.
483P2 close combat defence embrasure.
483P2 close combat defence embrasure.
Close combat defence.
Close combat defence.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). 483P2 close combat defence embrasure.

06 March 2016

483P2 close combat defence embrasure.
483P2 close combat defence embrasure.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The way out to the Tobruk defence.

06 March 2016

Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Stand fur Maschinensatz (stand for machine set). The Tobruk defence.

06 March 2016

Post action view of a Tobruk.
Post action view of a Tobruk.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

This could be a Tobruk for an R621 Gruppe bunker or part of an R134 two room'd ammunition magazine.

06 March 2016

Plan.
Plan.
R621 gruppe bunker.
R621 gruppe bunker.
R134 twin ammunition magazine bunker.
R134 twin ammunition magazine bunker.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun, one of six that were here. The 15.5cm K.416(f) gun is quite a small chassis and barrel so fits easily.

06 March 2016

Plan.
Plan.
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"
StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun. Entrance allowing ease of access for the gun.

06 March 2016

15.5cm K.416(f) gun In an open earth emplacement. This is how it would have looked here.
15.5cm K.416(f) gun In an open earth emplacement. This is how it would have looked here.
Ammunition.
Ammunition.
Ammunition handling.
Ammunition handling.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun. Details of the gun may have been mounted. A base may have been bolted to the threads set into the concrete. A wooden plate then sat on the top swivelled in the centre that the gun could sit on.

06 March 2016

Turntable for gun mounting.
Turntable for gun mounting.
Another turntable design for a larger gun chassis.
Another turntable design for a larger gun chassis.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun. The threads set into the concrete.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun. I am never sure what happened inside these niches, now filled with water. I think this is the side where ready ammunition was stored.

06 March 2016

Plan said to be from here. One side would be for ready ammunition and the other for general communications.
Plan said to be from here. One side would be for ready ammunition and the other for general communications.
Ammunition, cordite in cotton bags being passed to the gun..
Ammunition, cordite in cotton bags being passed to the gun..
Plan.
Plan.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

A large open emplacement for a 15.5cm K.416(f) gun. Communications niche.

06 March 2016

Details2
Details2
Communications from the fire control post post via cables and past on to the guns crew.
Communications from the fire control post post via cables and past on to the guns crew.

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"

Walking back to the car showing the radar emplacement up on the hill.

06 March 2016

StP351 Auderville la Roche H.K.B. 1./1262 "Stahl"



06 March 2016
