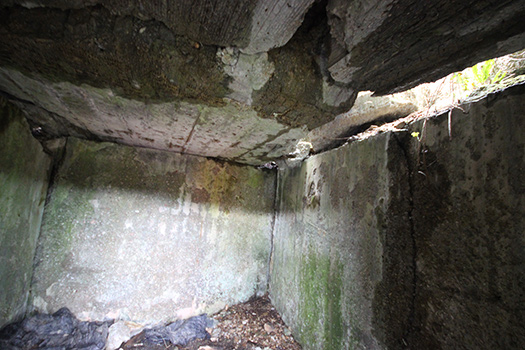

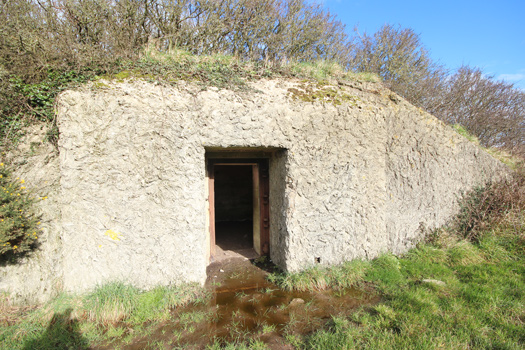

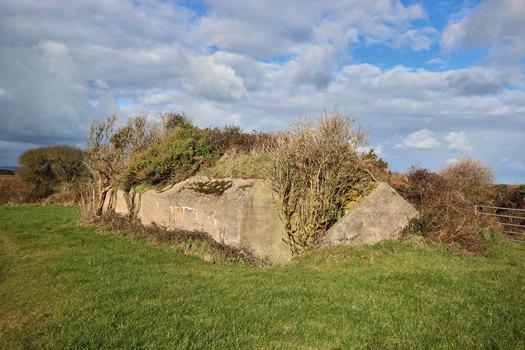

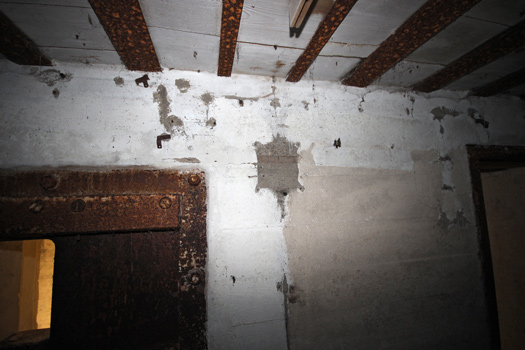

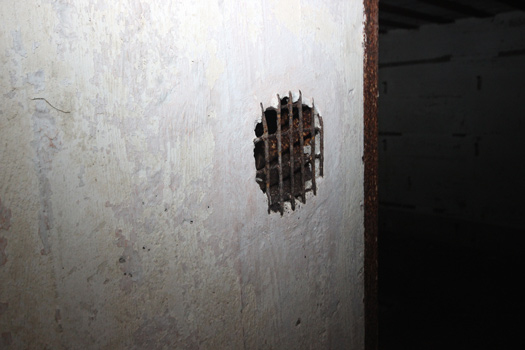

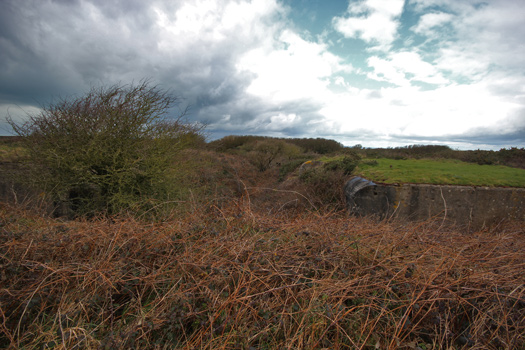

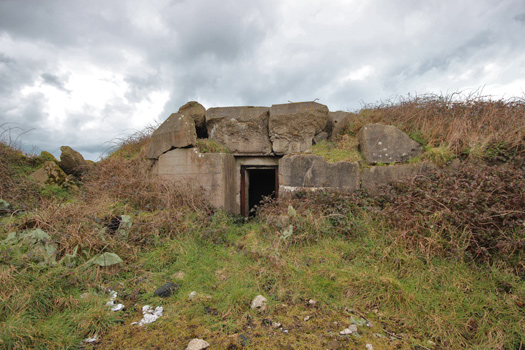

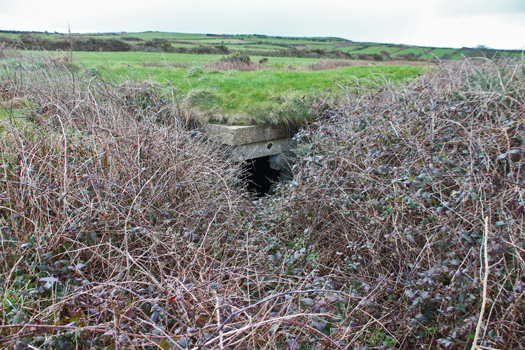

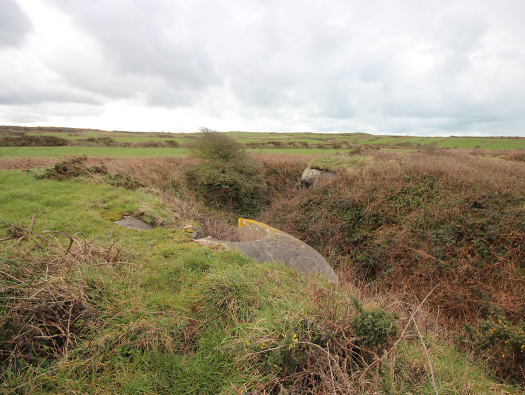

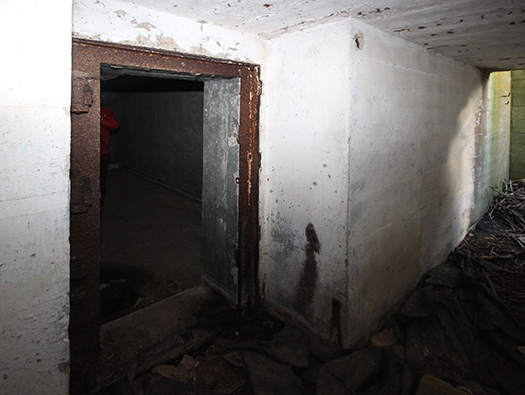

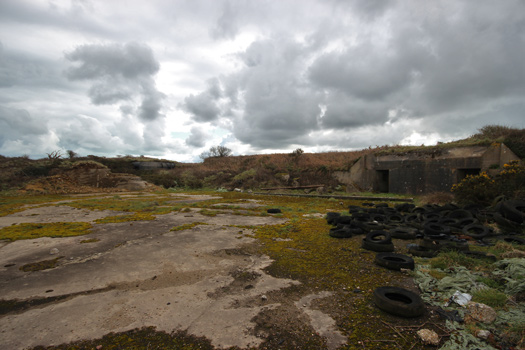

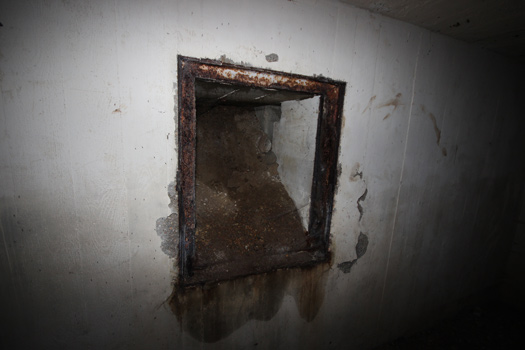

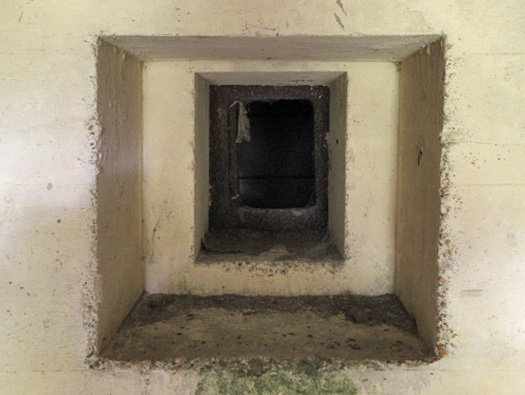

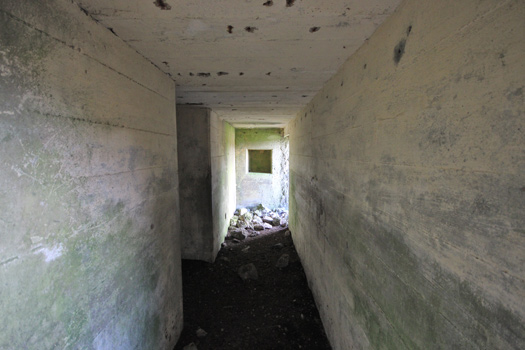

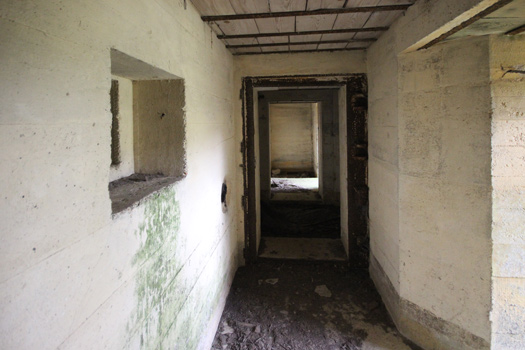

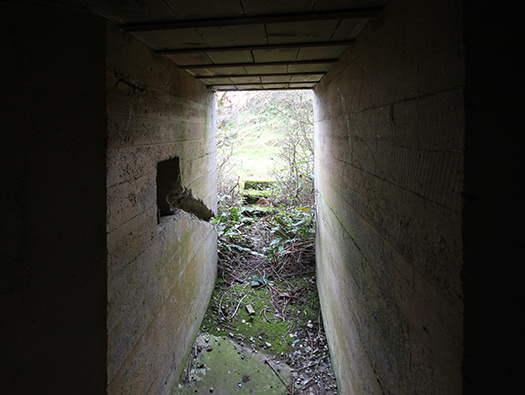

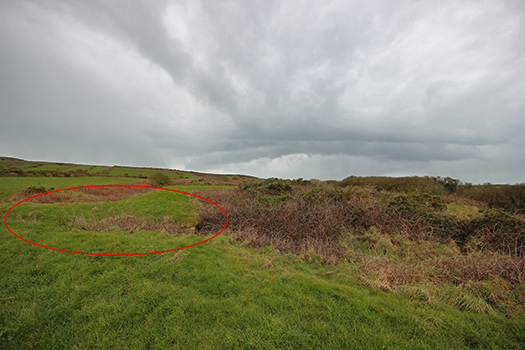

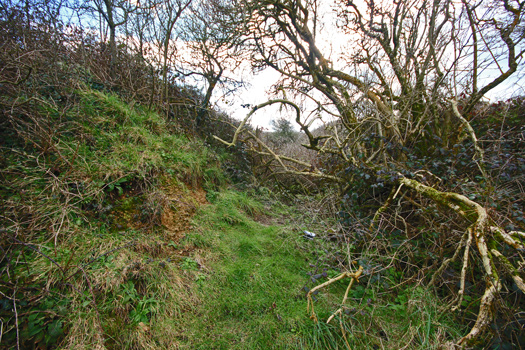

StP356 Auderville Laye H.K.B. (E Batt 685)

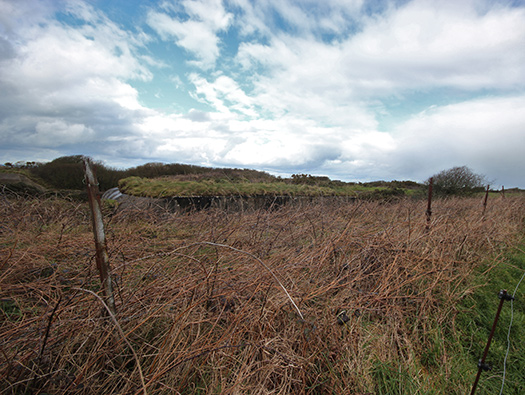

HKB · K.V.U.Gruppe Joburg · AOK 7 Normandy · France

StP356 Auderville Laye H.K.B. (E Batt 685)

StP356 Auderville Laye H.K.B. (E. Batt 685).

Heeres Küsten Batterie E.685 3./1262.

2 x R502 twin gruppe shelter.

1 x SK/Stab Battery. (HQ bunker).

2 x Vf2a gruppe shelter.

4 x Vf/ammunition.

4 x Vf7a ammunition bunker.

1 x Wasser bunker.

2 x Flakstellung.

2 x Vf58c Tobruk's.

4 x 2cm Flack 30.

2 x 20.3cm K (E) S.K.C/34 railway guns.

2 x 15.5 cm s.F.H.414(f).

R502.
R502.

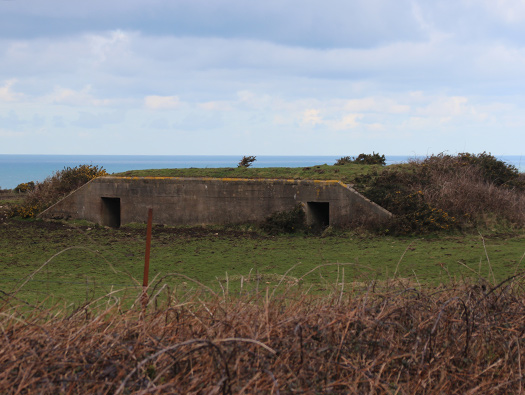

Vf7a ammunition bunker.
Vf7a ammunition bunker.
SK/HQ bunker.
SK/HQ bunker.

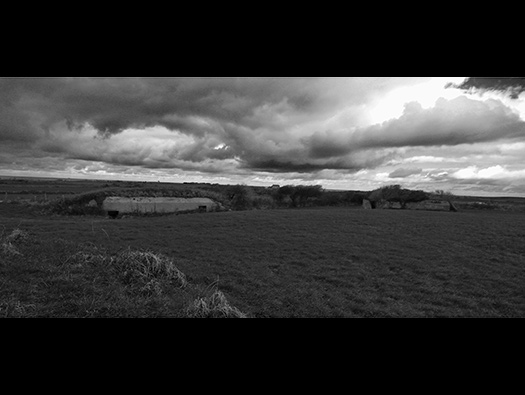

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

Heeres Küsten Batterie E.685 3./1262. - E = Eisenbahn (railway)

Google Maps

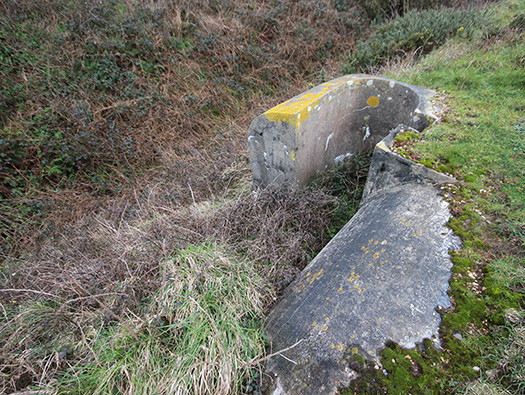

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

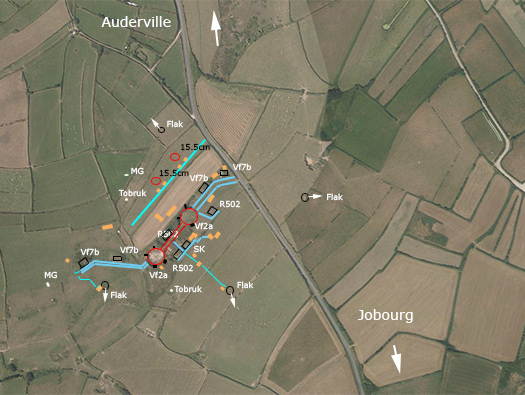

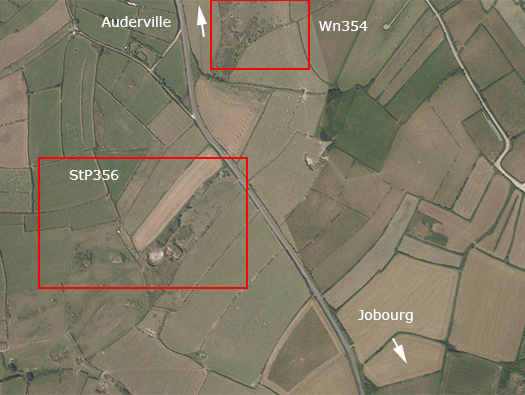

StP356 is the main gun position. Wn354 is a large barracks area with the remains of four huts.

Plan

StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Plan of StP356 . There were two 15.5cm s.H.H.414(f) guns forward and two 20.3cm K.(E) railway guns behind set in a small hollow to hide the guns from view. Then a ring of four 2cm Flak30. We found: The 15.5cm gun positions are completely removed, the railway gun bases are easy to see and all the bunkers are there. At least three baraquement (barracks) are there to see and one just the foundations? We also found one Tobruk and a 2cm Flak position. Animals in fields so we could not investigate any more.

06 March 2016

2cm Flak 30.
2cm Flak 30.
Railway gun.
Railway gun.
Ammunition handling.
Ammunition handling.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
From this reconnaissance air photo the battery position is easily discerned. The four huts of the barracks, four 2cm flak positions, 15.5cm twin battery and the main railway gun battery in the centre.

1944

StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
15.5cm s.F.H414 (f) gun battery position. Two guns and two ammunition stores per gun.

Inter-service Target No: 9/J/470.

Small ammunition storage.
Small ammunition storage.
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
15.5cm s.F.H414 (f) gun battery position. After the bombardment.

Inter-service Target No: 9/J/470.

StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
15.5cm s.F.H414 (f). A captured French field howitzer gun designed in 1916.

Internet

Fuze setter.
Fuze setter.
British gunners setting fuzes.
British gunners setting fuzes.
Fuze box.
Fuze box.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
15.5cm s.F.H414 (f) setting up.

Internet

15.5cm shells.
15.5cm shells.
Stacked shells.
Stacked shells.
Loaded.
Loaded.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Inter-service Target No: 9/J/470. St. Germain Laye: Below details printed out in the report (remember the Allies were guessing what was here form air reconnaissance and intelligence reports.) Two ? 280mm (11in) railway guns. Range ? 40,000yards. Weight of shell 660lbs. Rate of fire ? 1 - 2 r.p.m. Guns mounted on turntables 67ft diameter, 100yds apart. Accommodation: Concrete shelters. Secondery armament: Four light AA guns.

Inter-service Target No: 9/J/470.

The original document.
The original document.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

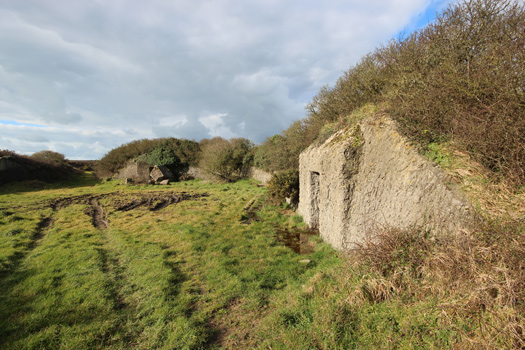

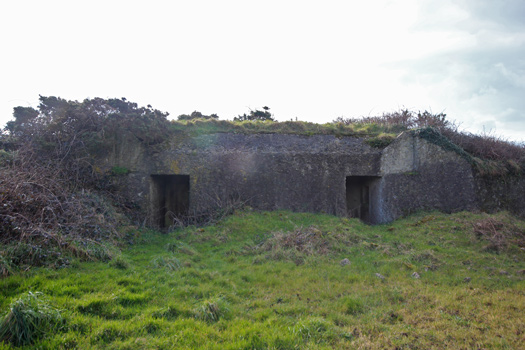

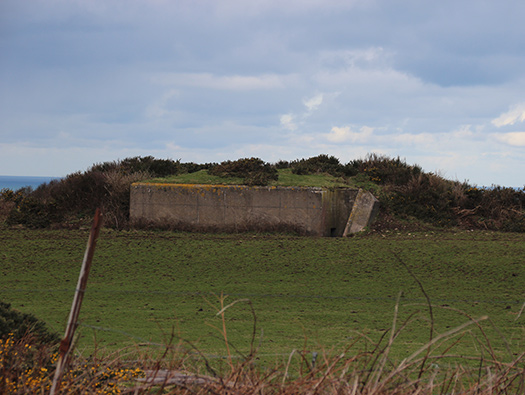

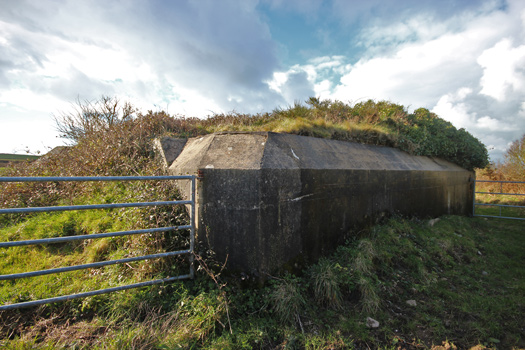

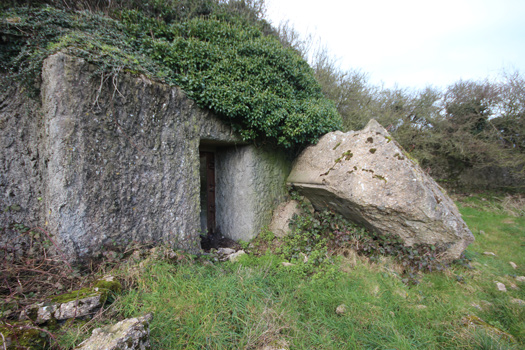

Vf7b ammunition bunker. Two entrances each side and a passage running the length, two large rooms to stack shells and powder.

06 March 2016

Vf7b ammunition bunker plan.
Vf7b ammunition bunker plan.
Shells stacked up.
Shells stacked up.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker rear.

06 March 2016

Plan.
Plan.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker. Blast wall covering the entrance.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker. This looks as though it was going to be a badge of some form on the wall.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

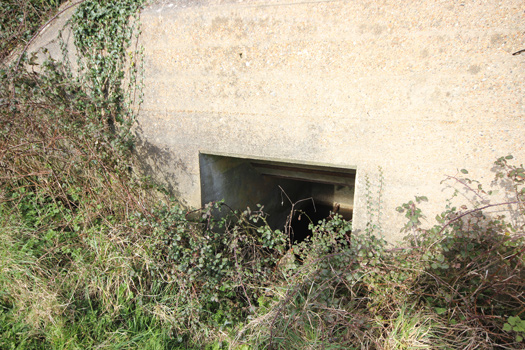

Vf7b ammunition bunker entrance.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

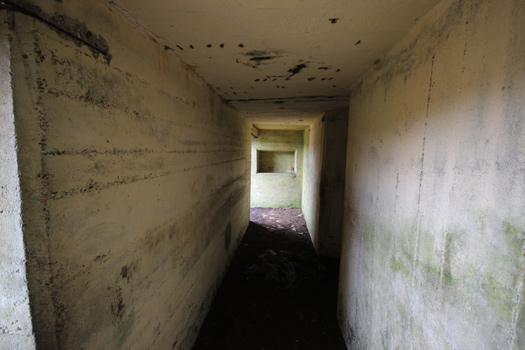

Vf7b ammunition bunker the long covered passage.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).
Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

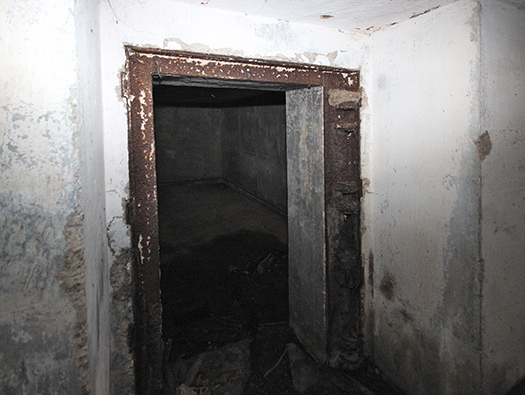

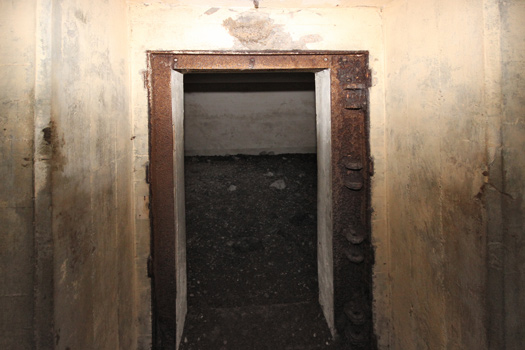

Vf7b ammunition bunker. Door to the first ammunition store. The door was a 434PO1 armoured door.

06 March 2016

434PO1 door.
434PO1 door.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

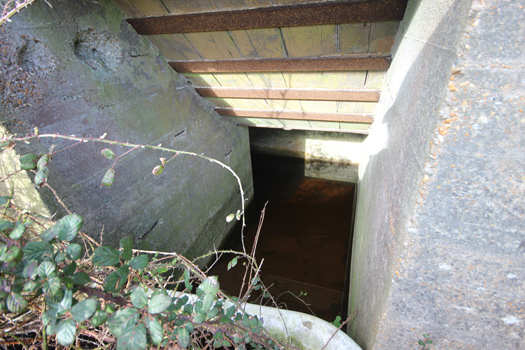

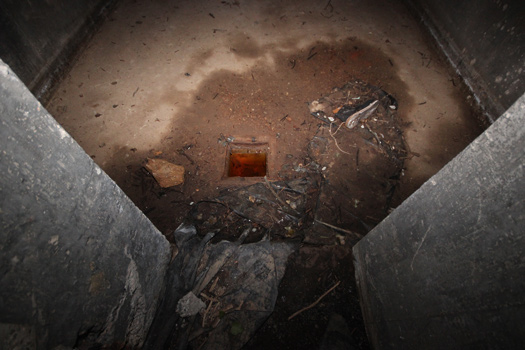

Vf7b ammunition bunker drain in the entrance.

06 March 2016

Plan of a drain.
Plan of a drain.
Zinc drain.
Zinc drain.

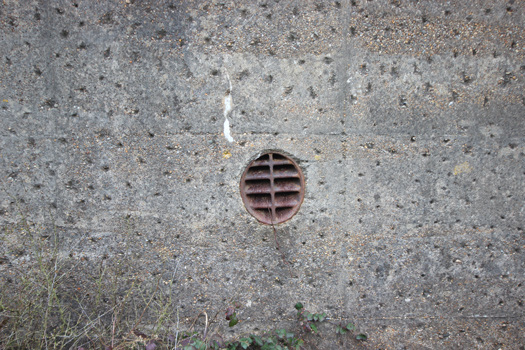

Bunker drainage.
Bunker drainage.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker.

06 March 2016

Details2
Details2

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

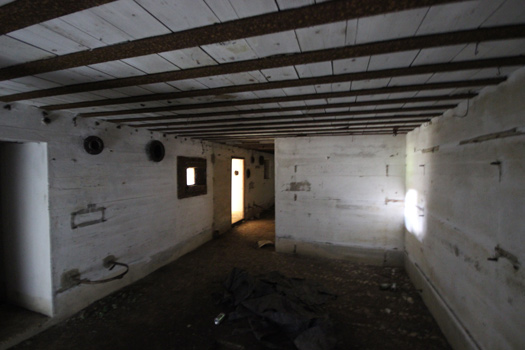

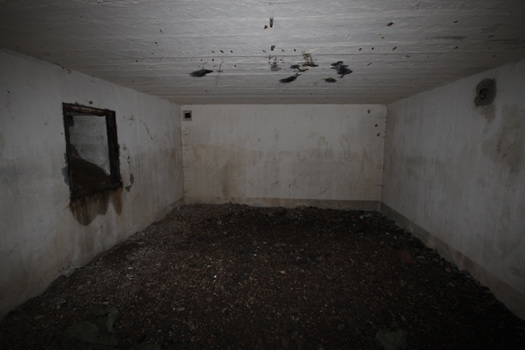

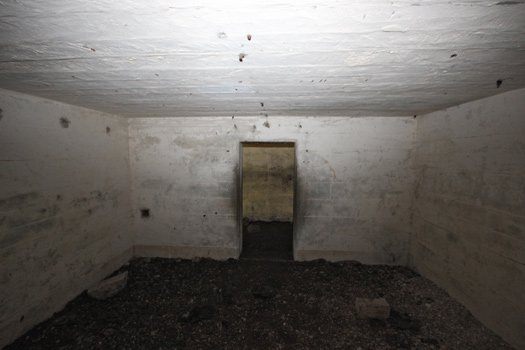

Vf7b ammunition bunker. The second room. I have just noticed that the two doors (yes its taken this long??). There are left and right?? (two different doors of the same design for one bunker --- why)??. All the way around I have realised that most German bunkers that use 434P01 doors use a left and a right opening door. Which seems rather odd. I must check on my next visit to see if a 434P01 door is reversible. I have the answer. I asked on a forum and was kindly informed what the typology is.

06 March 2016

434PO1 doors.
434PO1 doors.
434PO1 doors left & right hinged..
434PO1 doors left & right hinged..

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
This area would have been stacked full of ready ammunition, possibly fused (not set) for a quick reaction if the battery was needed to fire. If there was continuous fire then ammunition could be brought in from the other bunkers either side.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker.

06 March 2016

Plan
Plan

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

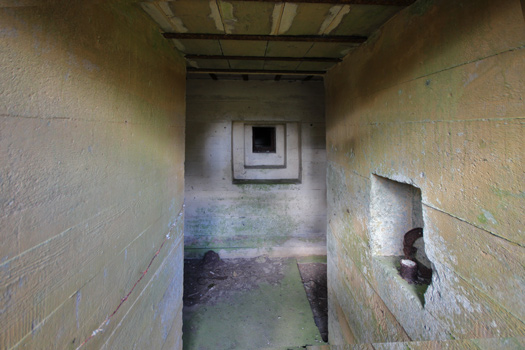

Vf7b ammunition bunker. Looking back along the passage.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker. Back outside after a scrabble to get out.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf7b ammunition bunker. Looking back.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Naval & Army officers visiting the site. The second Vf7b ammunition bunker on the left, the first behind.

Bundesarchiv

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The second Vf7b ammunition bunker.

06 March 2016

Plan
Plan
The second Vf7b ammunition bunker plan.
The second Vf7b ammunition bunker plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Delivering a gun going past the second Vf7b ammunition bunker. 20.3cm K.(e) railway gun.

Bundesarchiv

StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The second Vf7b ammunition bunker. It looks as though the drains are not working here. This one has a different entrance arrangement.

06 March 2016

Plan of the second Vf7b.
Plan of the second Vf7b.
Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The second Vf7b ammunition bunker.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The second Vf7b ammunition bunker. The two Vf's.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

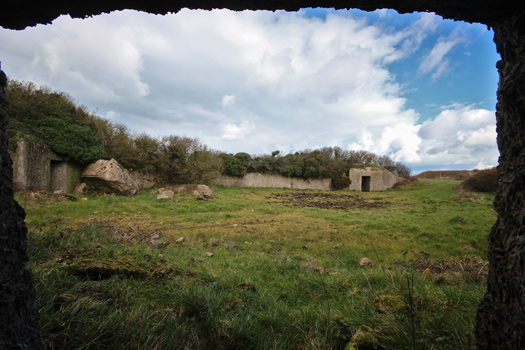

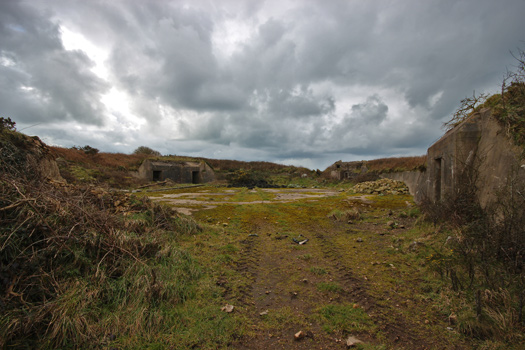

Looking into the open emplacement of the railway gun.

06 March 2016

The tin hut would have been on the left of the main picture.
The tin hut would have been on the left of the main picture.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

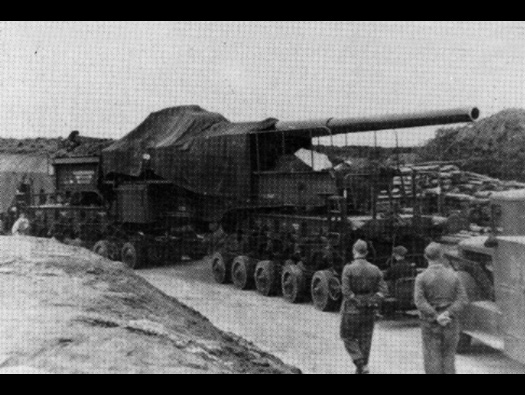

20.3cm K.(E) railway gun. N°919176 was the western gun and N°919177 the eastern one. The guns were towed up on low multi wheeled RW 60 Gotha trailers by two Kaeble lorries. The guns arrived by train at Carteret and then placed on trailers and drawn by the two powerful Kaeble tractor units all the way up here. A railway line was laid between the two turntables and the guns trundled off by hand as it looks.

Bundesarchiv

20.3cm K.(E) railway gun.
20.3cm K.(E) railway gun.
Kaeble tractor unit of the Reichsbahn that towed the guns.
Kaeble tractor unit of the Reichsbahn that towed the guns.
Black line: Railway line. Red line : By road.
Black line: Railway line. Red line : By road.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).


06 March 2016

Plan of the turntable. The gun sat on rails and they sat on a large turntable.
Plan of the turntable. The gun sat on rails and they sat on a large turntable.

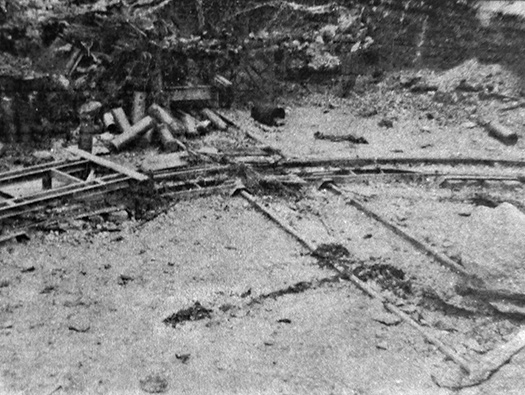

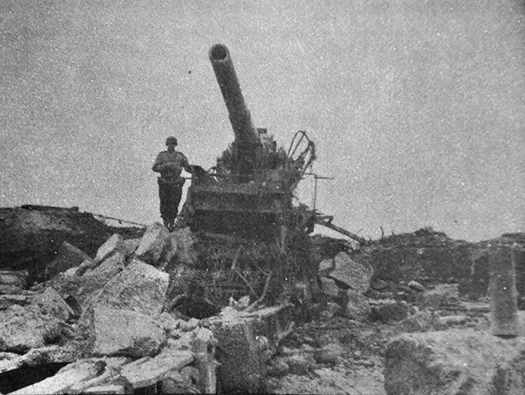

The in its emplacement after the battle.
The in its emplacement after the battle.
Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Ammunition soute. Nice camouflage.

06 March 2016

Turntable.
Turntable.
The ammunition soute can be seen in this picture.
The ammunition soute can be seen in this picture.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

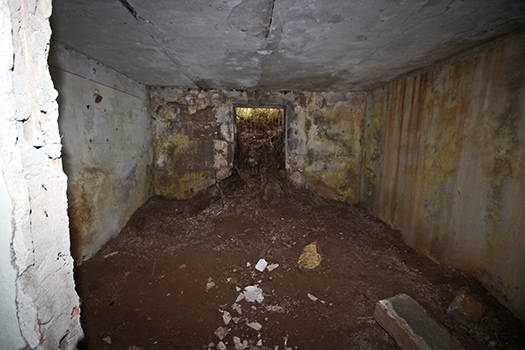

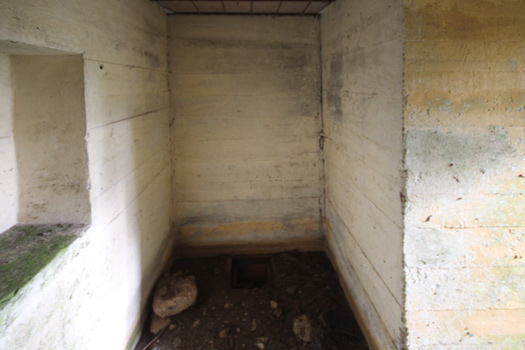

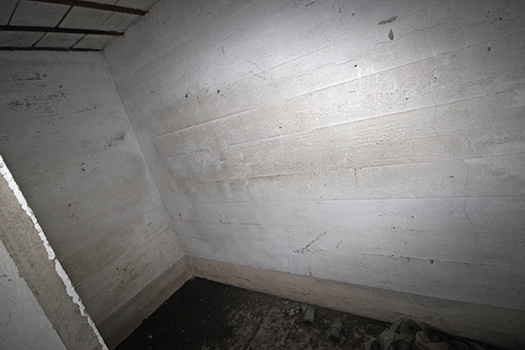

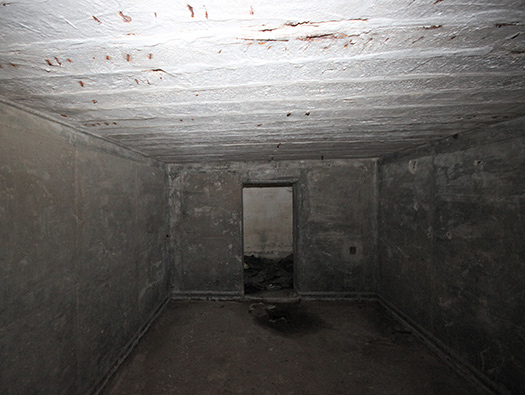

Ammunition soute. The view inside.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

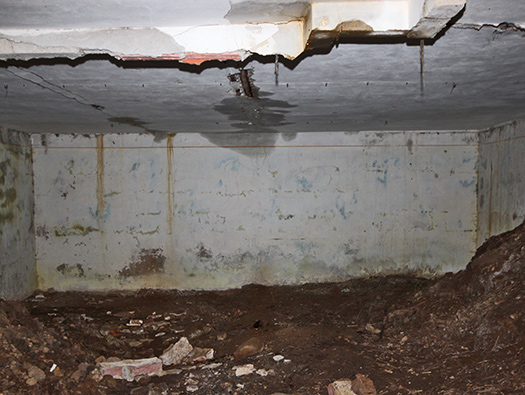

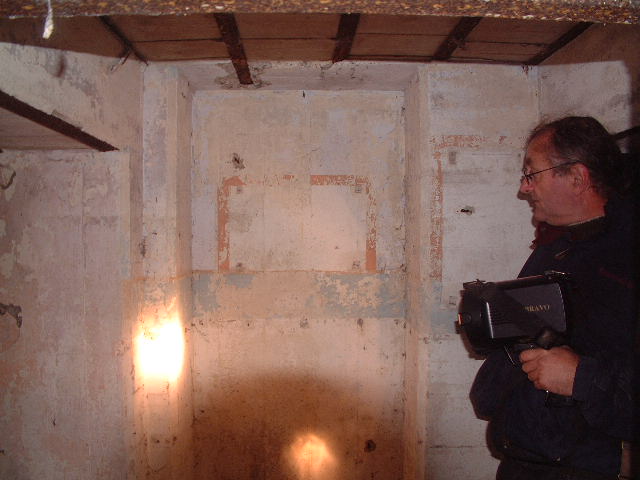

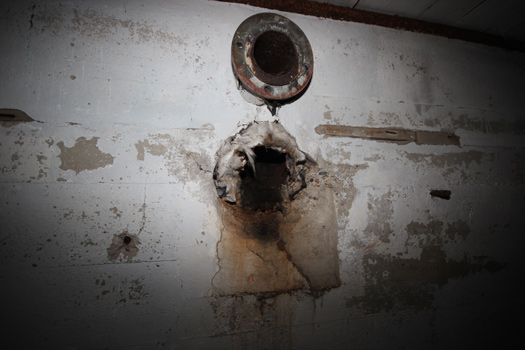

Ammunition soute. Inside wall looks as though there was an explosion inside.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Ammunition soute.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

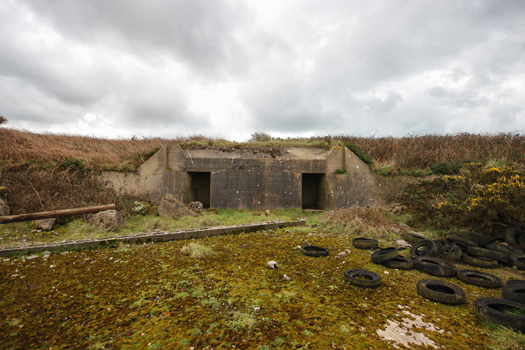

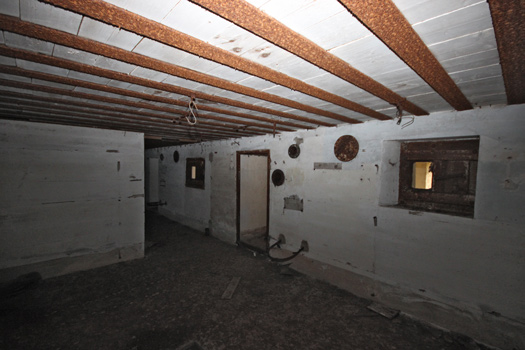

Vf2a Gruppe shelter. An interesting design, much stronger than a typical Vf2a seen along the Atlantikwall.

06 March 2016

Details2
Details2

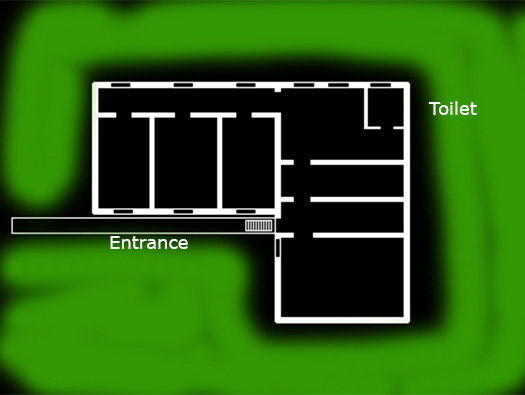

Plan of Vf2a here.
Plan of Vf2a here.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

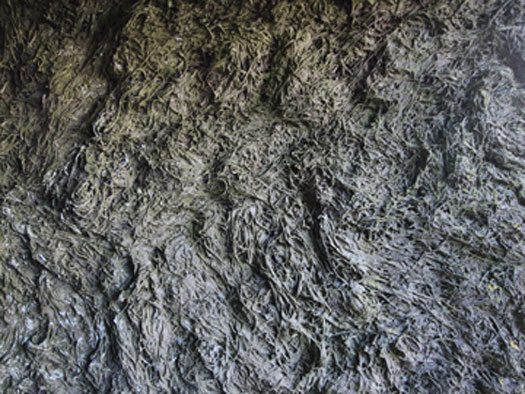

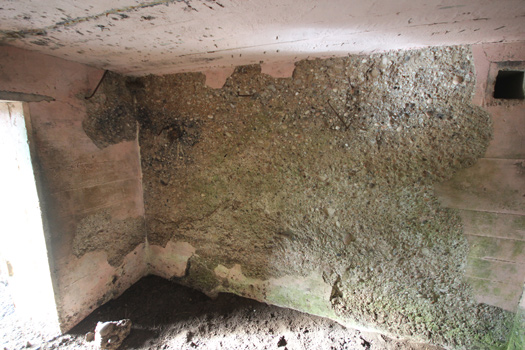

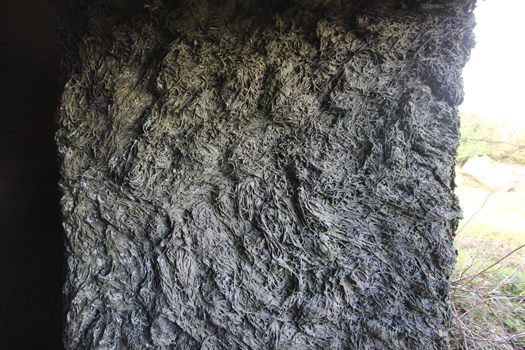

Vf2a Gruppe shelter camouflage. Camouflage added made of possibly asbestos wool mixed with cement.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

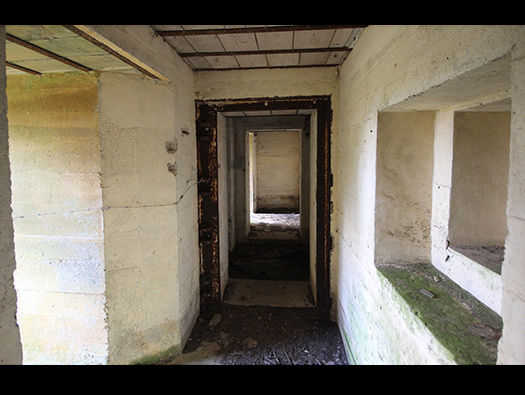

Vf2a Gruppe shelter passageway.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

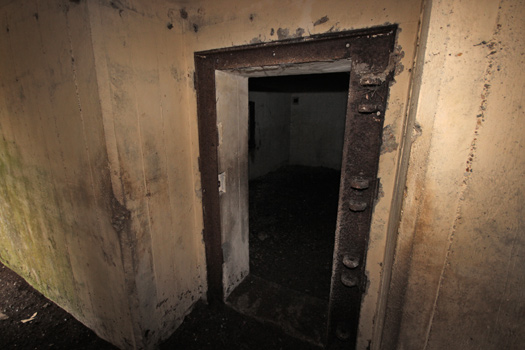

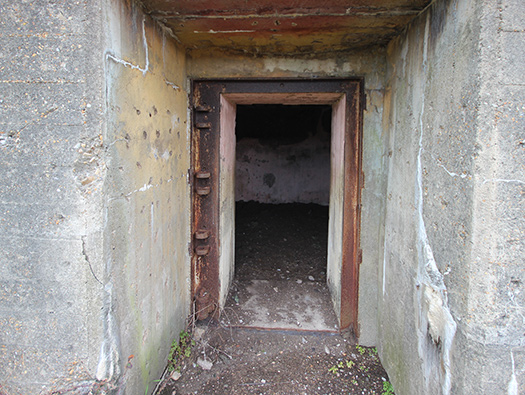

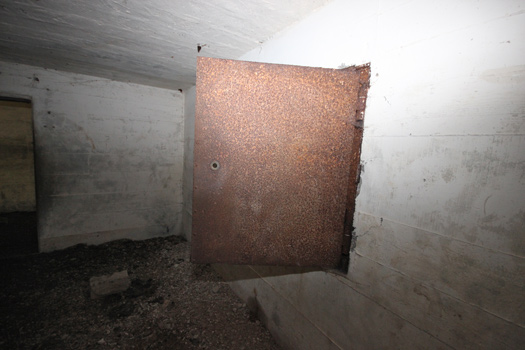

Vf2a Gruppe shelter 434P01 Steel armoured door.

06 March 2016

434PO1 door.
434PO1 door.
Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

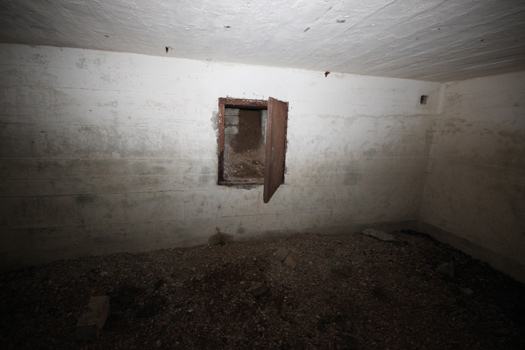

Vf2a Gruppe shelter. Escape hatch.

06 March 2016

Plan.
Plan.
410P9 escape door.
410P9 escape door.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a Gruppe shelter. 410P9 door.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a Gruppe shelter. 410P9 door with the rubber gas tight seal still in place..

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a Gruppe shelter. The escape tunnel, first you open the door, then take out several metal slats. Here it looks as though the slats have been replaced by bricks. The escape would go up the outside of the bunker. This would be filled with gravel or sand and had to be cleared out and only then could you crawl out.

06 March 2016

Metal slats.
Metal slats.
Emergency escape.
Emergency escape.
Escape hatch and steel ladders running up the side of a bunker.
Escape hatch and steel ladders running up the side of a bunker.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a Gruppe shelter.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

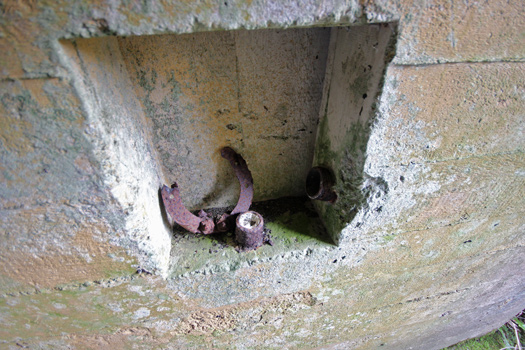

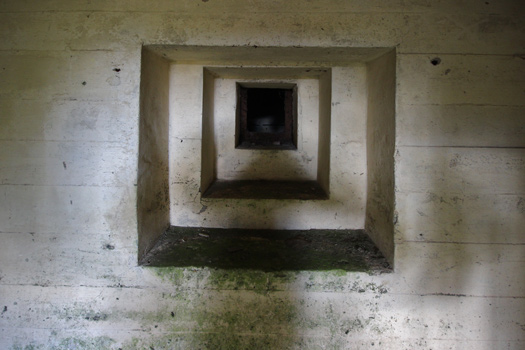

Vf2a Gruppe shelter. Niche in both sides, I would like to know what they were used for? It could be for a light.

06 March 2016

Details2
Details2
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a Gruppe shelter.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

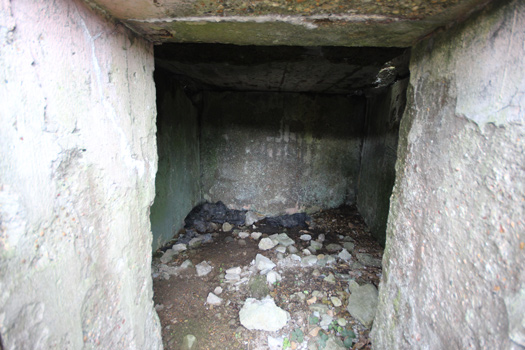

Ammunition soute 2. This piece of concrete must have moved by a massive explosion.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Ammunition soute 2 434PO1 door.

06 March 2016

434PO1 door.
434PO1 door.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Ammunition soute 2.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Ammunition soute 2.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Open turntable for a railway gun. Looking back towards the entrance.

06 March 2016

This gun being positioned into place.
This gun being positioned into place.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
There would have been a railway line running between the two emplacements.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
St. Germain Laye - 2 guns on turntables. (Not rail served). G.S.G.S. 4347 - 28/24 N.W. 9231. (Details at the bottom of the photo).

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

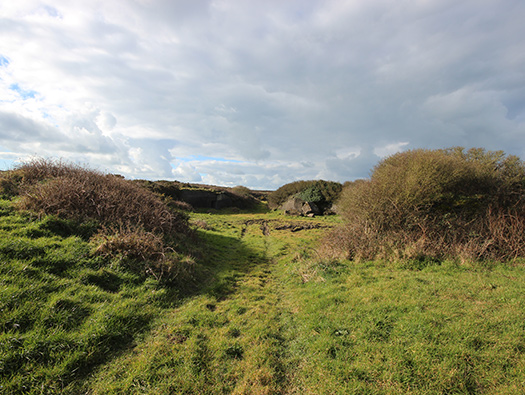

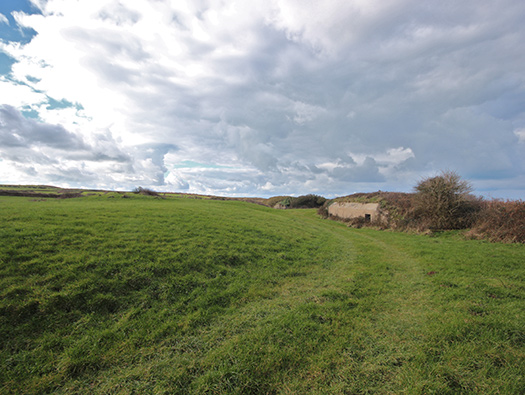

Now very overgrown path to the bunkers and HQ building..

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

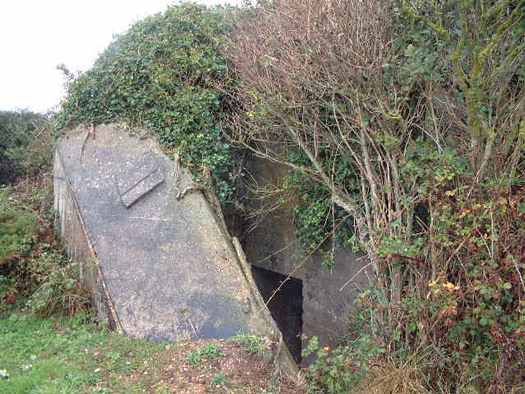

R502 Infirmary. Another style of camouflage on the wall.

06 March 2016

Plan.
Plan.
R502 plan.
R502 plan.
R502 infirmary.
R502 infirmary.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 Infirmary entrance.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entry voice speaking tube.

06 March 2016

Sprachrohr mouthpiece
Sprachrohr mouthpiece

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 close combat defence covering the entrance.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance recess. This may have had anti-gas shower or a sink to wash in.

06 March 2016

Plan.
Plan.
Bunker sink set into a recess.
Bunker sink set into a recess.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance interesting grill.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

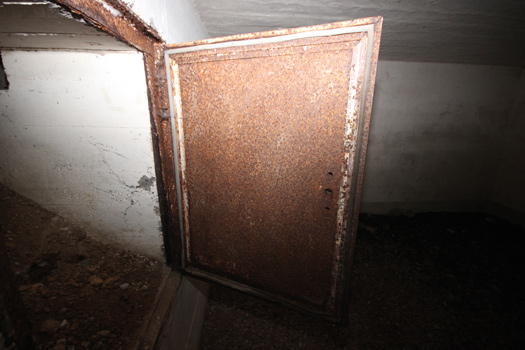

R502 gas lock.. Entrance passage and gas lock with two 434PO1 armoured doors. Also note that the left hand wall is cut back allowing casualties on stretchers to manoeuvre around.

06 March 2016

Plan.
Plan.
434PO1 door.
434PO1 door.
Stretcher and bearers.
Stretcher and bearers.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance gas lock. Details of painting on the walls.

06 March 2016

Details2
Details2

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance gas lock. Same gas lock in 2002 and the same John.

26 June 2002

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

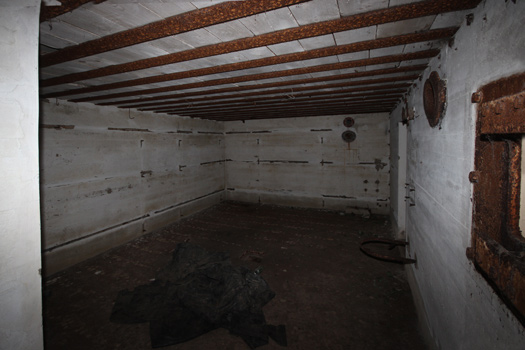

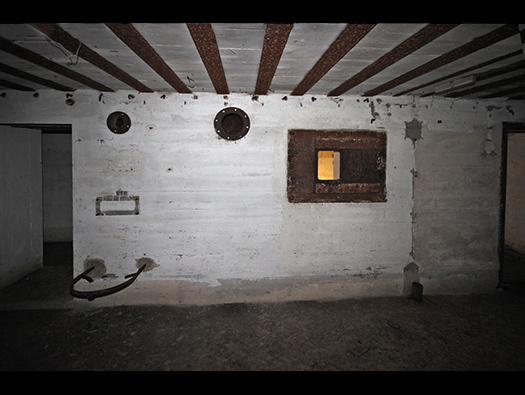

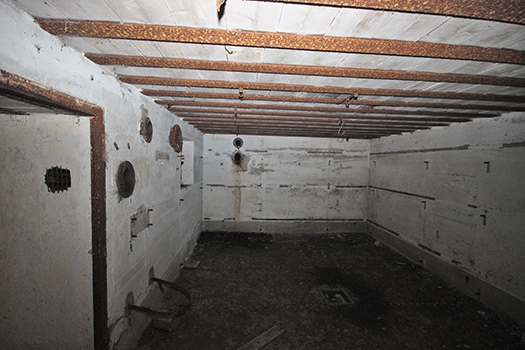

R502 left room. You can see the bed hook fittings on the wall and ceiling fittings for attaching chains to hook on the outsides of the bunks.

06 March 2016

Plan.
Plan.
bunker beds hung on hooks on the wall and chains from the ceiling.
bunker beds hung on hooks on the wall and chains from the ceiling.
Bunker bunk plans.
Bunker bunk plans.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

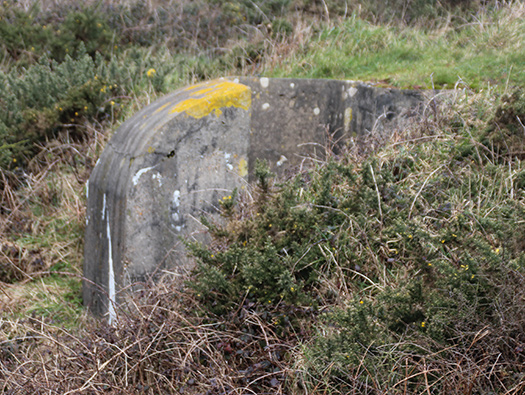

R502 chimney outlet. This one looks rather damaged.

06 March 2016

Plan of the heating pipes.
Plan of the heating pipes.
Bunker heating.
Bunker heating.
19P7 steel door closed off the inner room, it was not armoured but quite strong, with a gas tight seal around the edge and a small glass window.
19P7 steel door closed off the inner room, it was not armoured but quite strong, with a gas tight seal around the edge and a small glass window.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

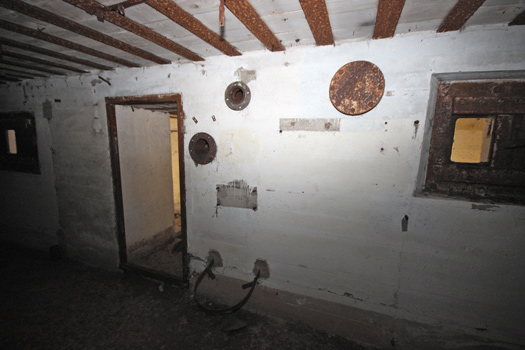

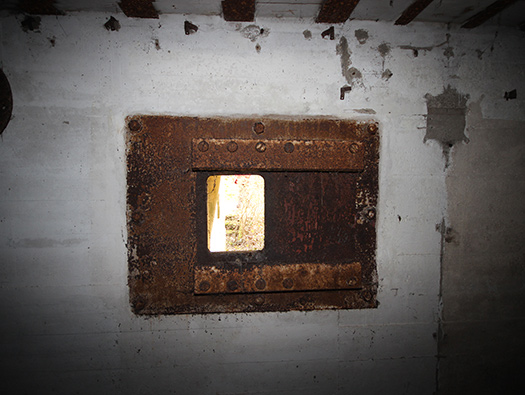

R502. Two close combat defence windows and anti-gas fittings.

06 March 2016

Gas filters.
Gas filters.
Plan of the air pump.
Plan of the air pump.
Pump being used.
Pump being used.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

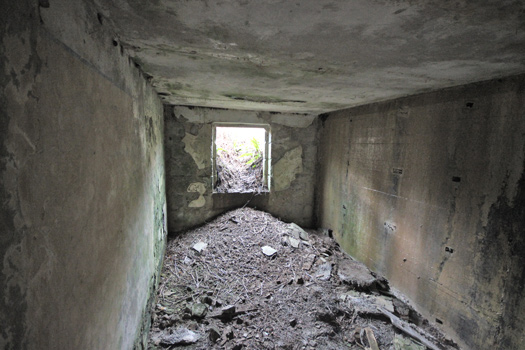

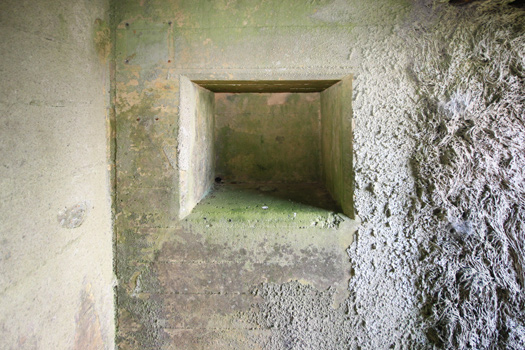

R502 close combat embrasure. 483P2 type close combat embrasure. A gunner could cover the steps down into the bunker from enemy attack.

06 March 2016

Shooting through an embrasure.
Shooting through an embrasure.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).


06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

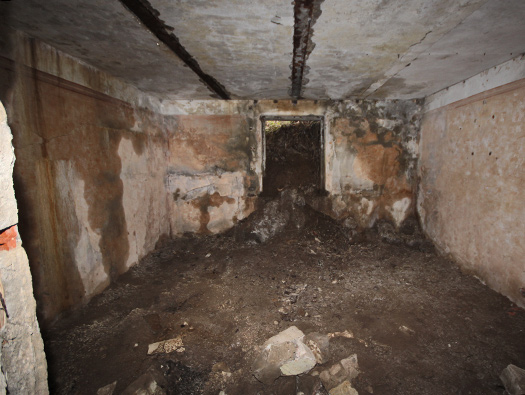

R502 right hand room.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 right hand room and another 483P2 type close combat embrasure.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 right hand room. Paint on the walls painted around the fittings.

06 March 2016

It is possibly where a telephone fitted to the wall.
It is possibly where a telephone fitted to the wall.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 right hand room. Store room to the left of the anti gas pump fittings. The iron loop

06 March 2016

Details2
Details2
Bunker gas pump handle.
Bunker gas pump handle.
Anti-gas pump.
Anti-gas pump.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 store room. In a normal situation this type of bunker would have had a periscope in this room, but as this is an infirmary it does not need one.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 Infirmary.

06 March 2016

Plan.
Plan.
Hospital.
Hospital.
Medics.
Medics.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 close combat outside.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 gas lock.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 and way out.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance. This looks like an after thought, it maybe that somebody forgot to set the speaking tube pipe inside the concrete??

06 March 2016

Sprachrohr mouthpiece.
Sprachrohr mouthpiece.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
R502 entrance. Another interesting detail is the door.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

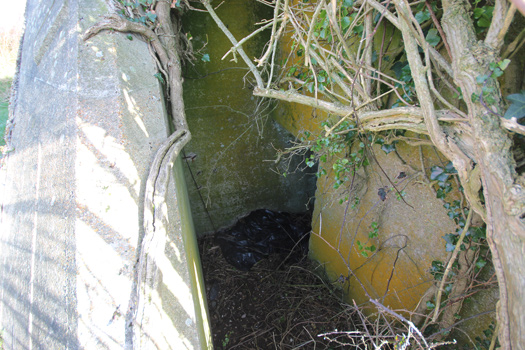

R502 air breather vent and its not set straight in the concrete again.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

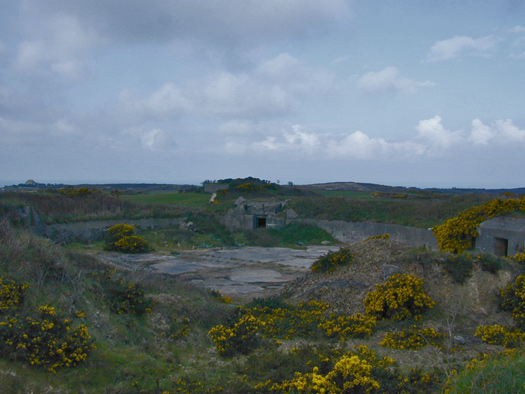

Back outside and looking into the second railway gun ringstand.

06 March 2016

This is how it finished up.
This is how it finished up.
StP356 Auderville Laye H.K.B. (E. Batt 685).
Loading.
Loading.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Another view from above.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Allied Bigot map of the area showing what the Allies thought was there..

Allied Bigot map of the area May 1944.

StP356 Auderville Laye H.K.B. (E. Batt 685).
Planning on board a US transport.
Planning on board a US transport.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

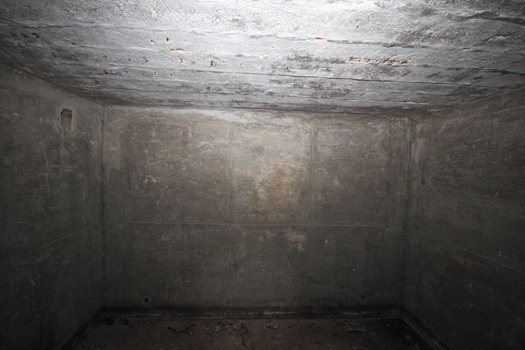

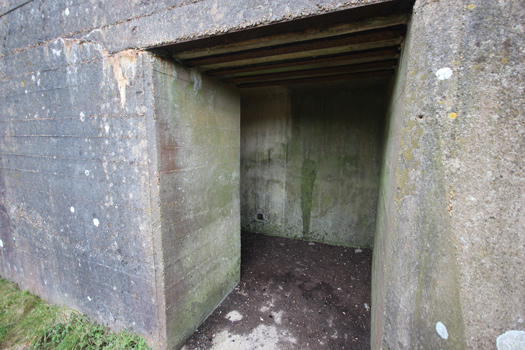

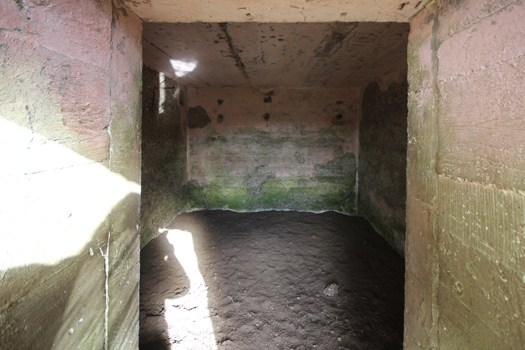

Small ammunition soute.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Small ammunition soute.

06 March 2016

434PO1 armoured door
434PO1 armoured door

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Small ammunition soute.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Small ammunition soute.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

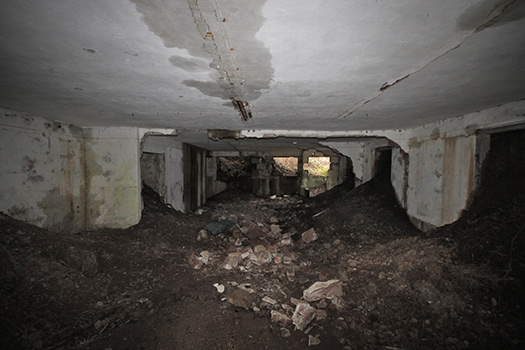

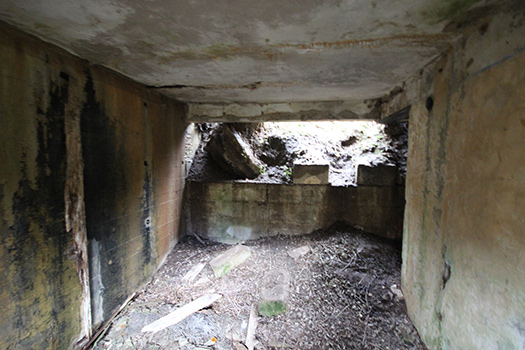

The second ammunition soute. A bit of a bank here. A large shell may have come in from the land side and almost blown the roof off.

06 March 2016

US Long Tom heavy gun.
US Long Tom heavy gun.
Bombing..
Bombing..

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The second ammunition soute.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

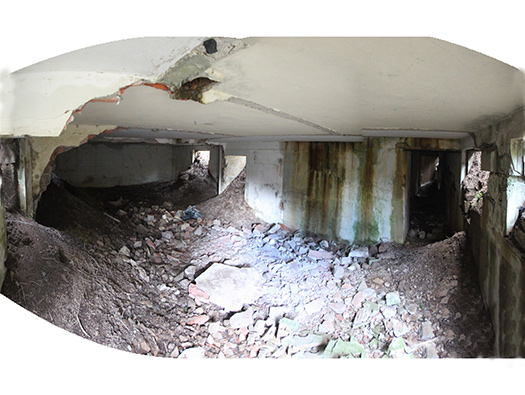

The second ammunition soute. The roof has moved quite a bit.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Where the gun sat.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
After capture, the guns were bombarded by sea and air as they could fire on the advancing Americans all the way up the peninsular and when taking Cherbourg.

Ist Us Army Report

Plan.
Plan.
Loading.
Loading.
Loading.
Loading.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a he same design as the other emplacement.

06 March 2016

Vf2a plan.
Vf2a plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a. Right hand entrance. Might even be a bit of camouflage paint but no concrete added camouflage??.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

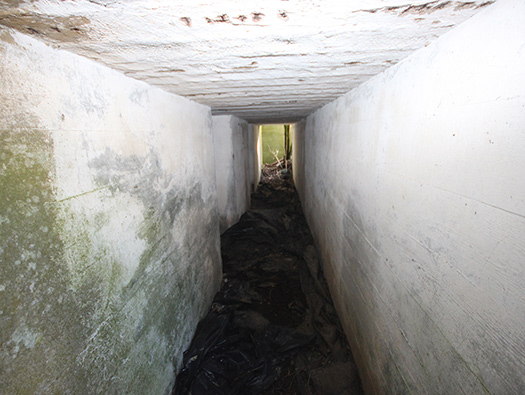

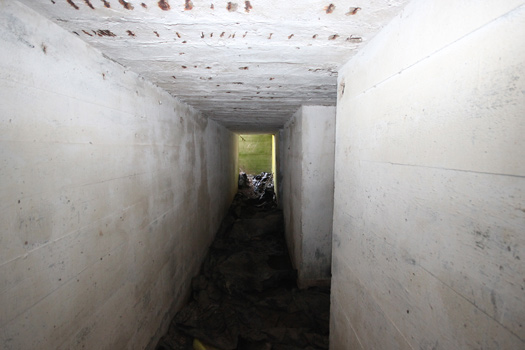

Vf2a passage.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a the 434PO1 door.

06 March 2016

434PO1 door.
434PO1 door.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

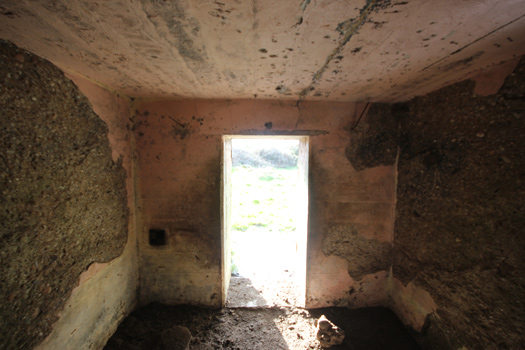

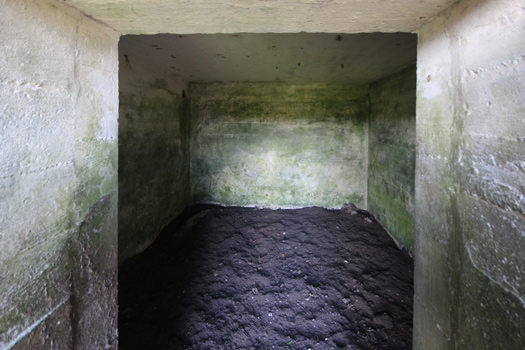

Vf2a inside the room.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Vf2a escape.

06 March 2016

Bunker escape.
Bunker escape.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

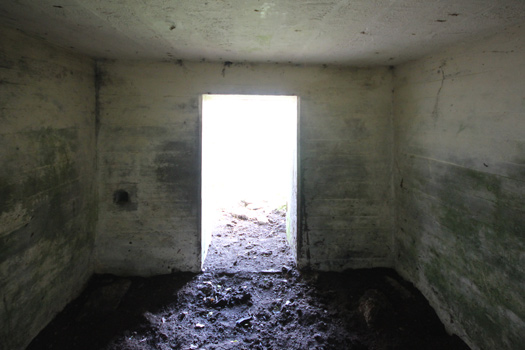

Vf2a exit.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Patiently waiting, In Red.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

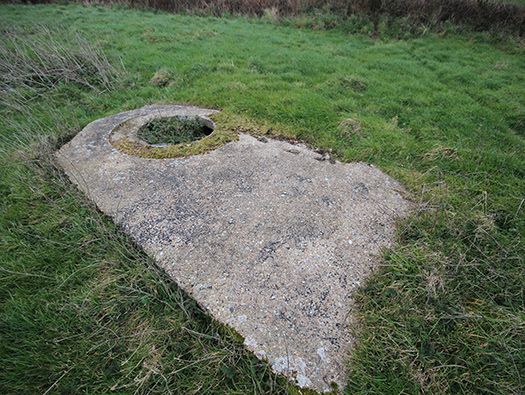

Part of the turntable.

1944

Plan
Plan
Close up of the turntable.
Close up of the turntable.
More detail of the turntable.
More detail of the turntable.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

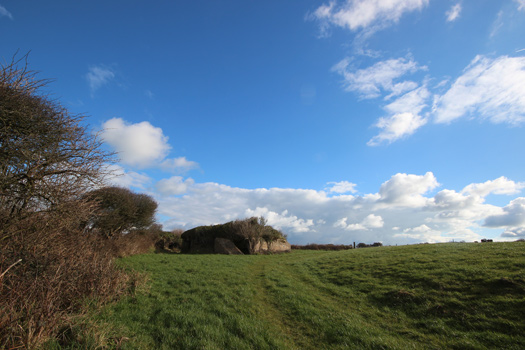

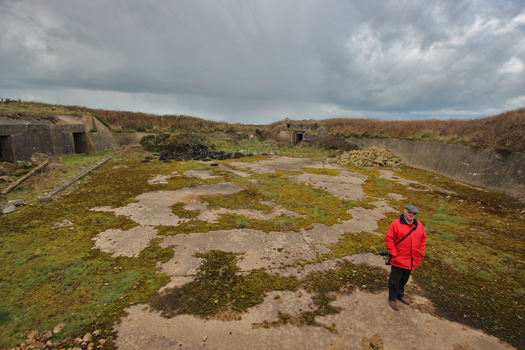

I think this was to be the site of a new bunker, it was excavated but never finished.

06 March 2016

Plan
Plan

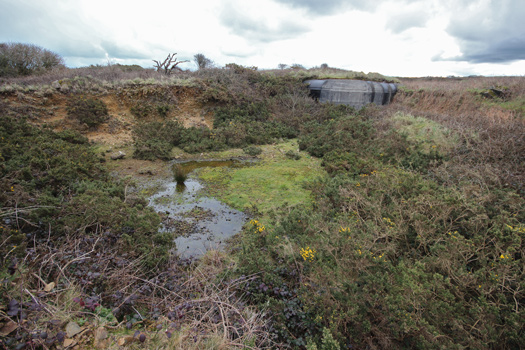

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
On the left is the Central Radio SK bunker. On the right R502 twin gruppe bunker. Both we did not enter but we did find a very interesting Tobruk.

06 March 2016

Details2
Details2

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

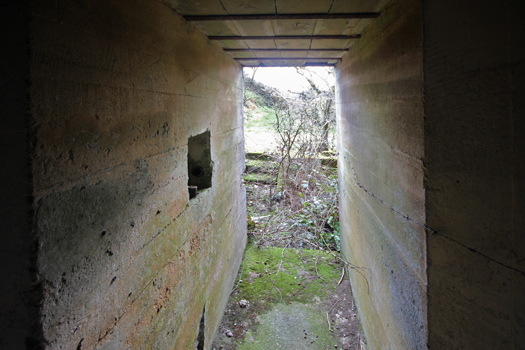

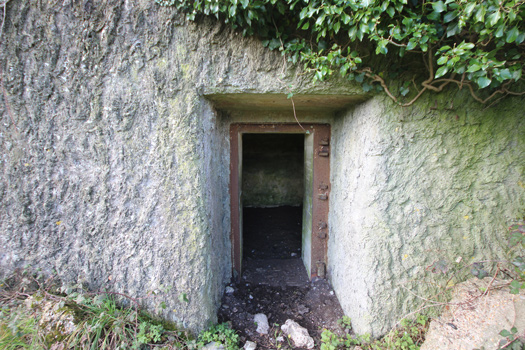

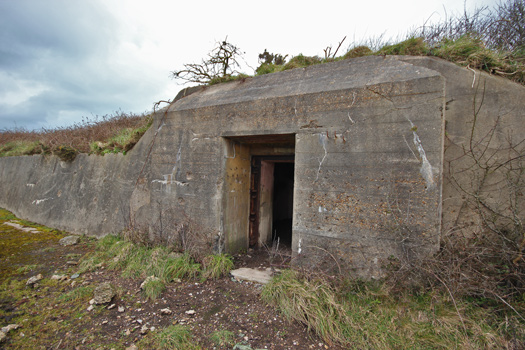

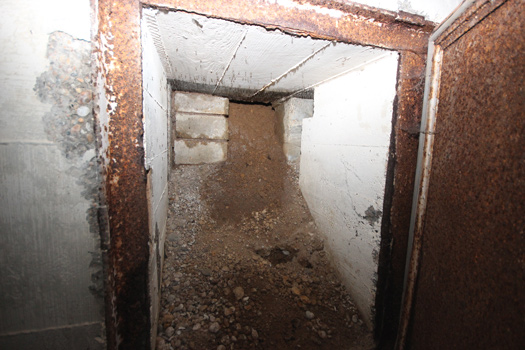

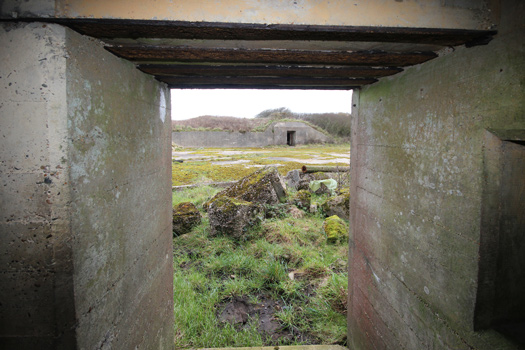

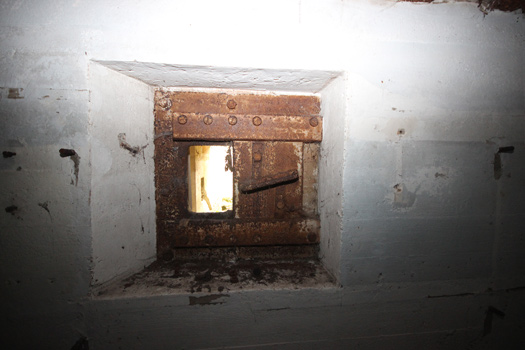

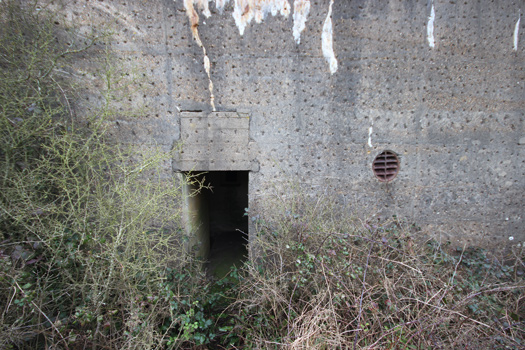

Central Radio SK bunker. R656 .A very early Tobruk open defence/observation position. Possibly for a guard to stand. Inside and there is several inches in water and there are many removed fittings on the walls and a telephone exchange, again removed and just the fittings showing where it was. A nice construction number 73 on a wall. Aerials were used as the cabling and earthing strips are extant.

06 March 2016

Central Radio SK bunker. Basically an R656.
Central Radio SK bunker. Basically an R656.
Bunker aerial slot.
Bunker aerial slot.
Bunker cabling.
Bunker cabling.
StP356 Auderville Laye H.K.B. (E. Batt 685).
Marks remaining on a bunker wall.
Marks remaining on a bunker wall.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Central Radio SK bunker. A very odd Tobruk or an open defence/observation position. Possibly for a guard to stand.

06 March 2016

Guard.
Guard.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

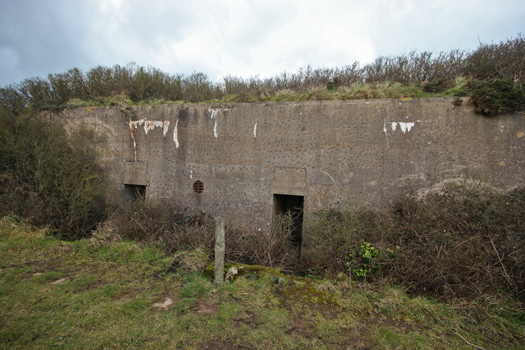

TOn the right R502 twin gruppe bunker This may be a crew bunker or used as a command bunker. It looks to be very like the R502 Infirmary bunker.

06 March 2016

Details2
Details2
R502.
R502.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
On the right R502 twin gruppe bunker and a row of Eisenpfahel barbed wire fence posts. There are so many still on this peninsular.

06 March 2016

Eisenpfahel.
Eisenpfahel.
Eisenpfahel.
Eisenpfahel.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

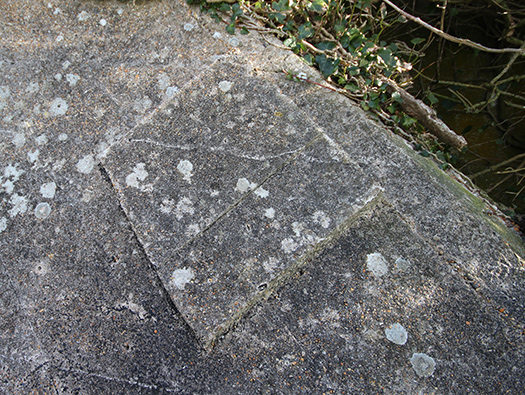

Tobruk.

06 March 2016

Vf58c plan Tobruk.
Vf58c plan Tobruk.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

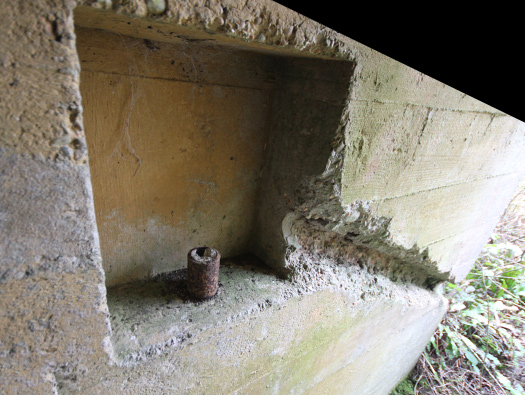

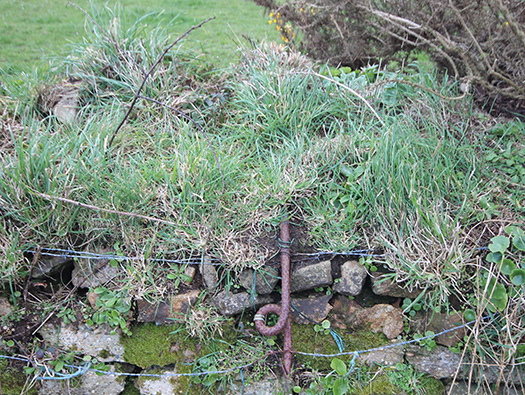

Heavy steel Screw Picket set into the Norman wall.

06 March 2016

Screw Picket.
Screw Picket.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Another Eisenpfahel again in the Norman wall.

06 March 2016

Eisenpfahel.
Eisenpfahel.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

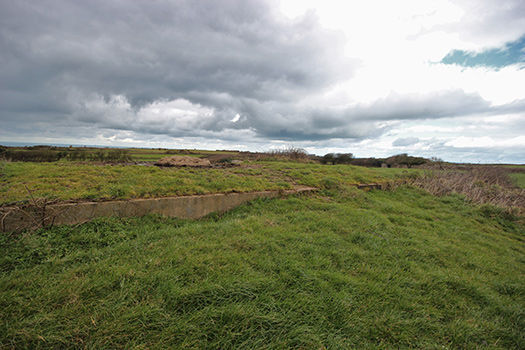

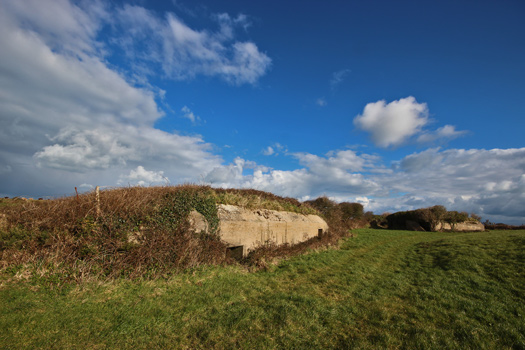

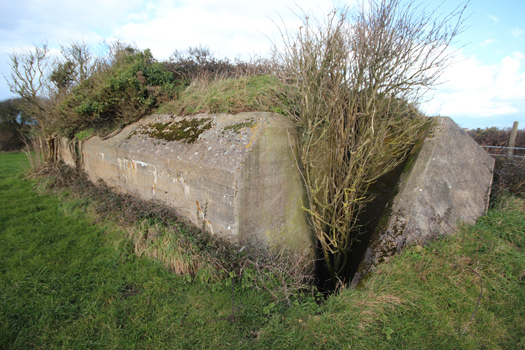

Vf7b ammunition bunker for the western gun.

06 March 2016

Vf7b plan.
Vf7b plan.
Plan.
Plan.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
The next Vf7b ammunition bunker for the western gun. There were either small narrow gauge railway lines laid to carry the ammunition on small railway trucks. Or a concrete roadway and a four wheeled truck pulled by the gunners.

06 March 2016

Plan of a Vf7b.
Plan of a Vf7b.
Four wheeled truck pulled by the gunners.
Four wheeled truck pulled by the gunners.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

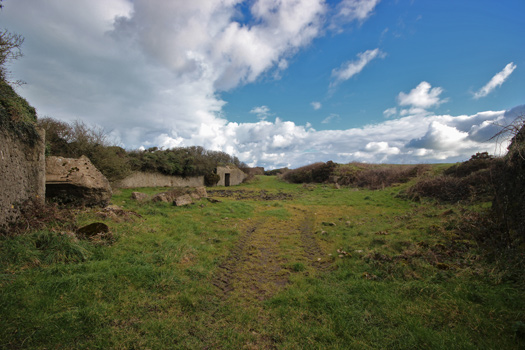

With rain over Alderney. These guns were to cover the gap between the Cherbourg peninsular and Alderney. Laye guns and a battery on Alderney were to cover the gap. When eventually the batteries on Alderney were shelled in June 1944 by HMS Rodney. She sat in the lee of the peninsular and fired right over Cherbourg to Alderney.

06 March 2016

The two batteries covering the straights.
The two batteries covering the straights.
HMS Rodney firing.
HMS Rodney firing.
Rodney firing on Alderney.
Rodney firing on Alderney.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
My plan of the baraquement. The plan is from memory and may not be exact. A hole was dug and a flat roofed baraquement was built and the roof covered with turf as camouflage. There was one entrance that I could find and a toilet. I am reasonably sure there was a toilet as that is the way I entered through its window. Oh what fun we bunker hunters have.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

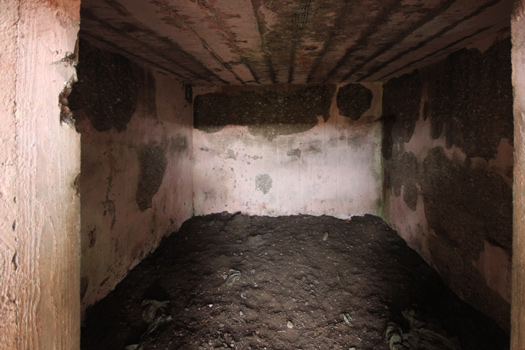

Baraquement (barracks). As you slide into the toilet, this is what presents itself.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks). detail of the end wall.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

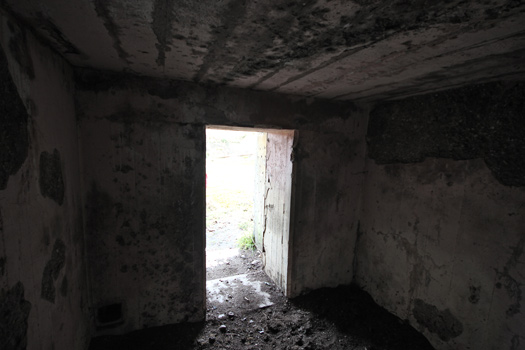

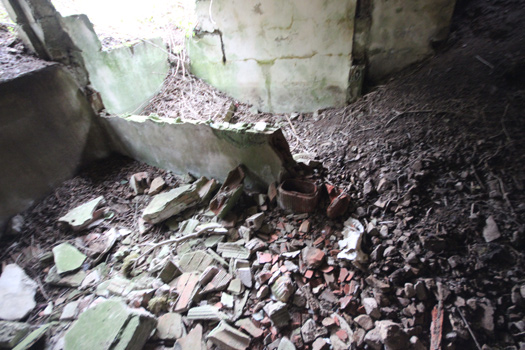

Baraquement (barracks) the toilet.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

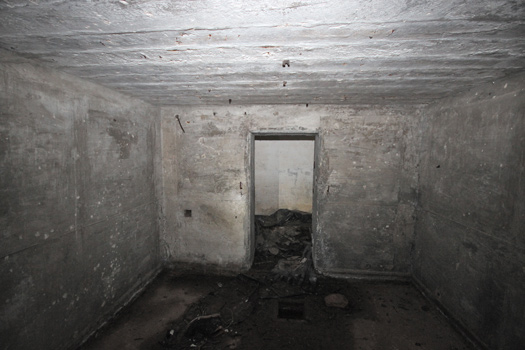

Baraquement (barracks) detritus on the floor.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

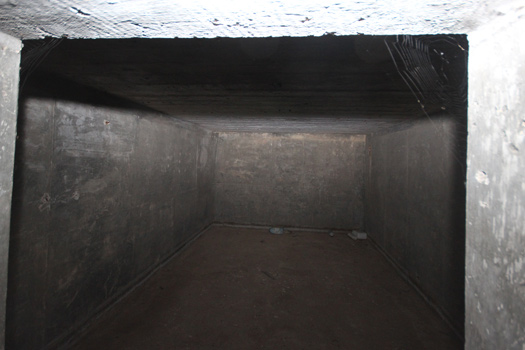

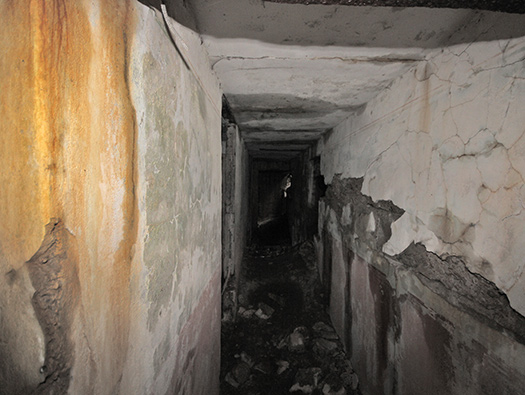

Baraquement (barracks) this is the long rear passage.

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

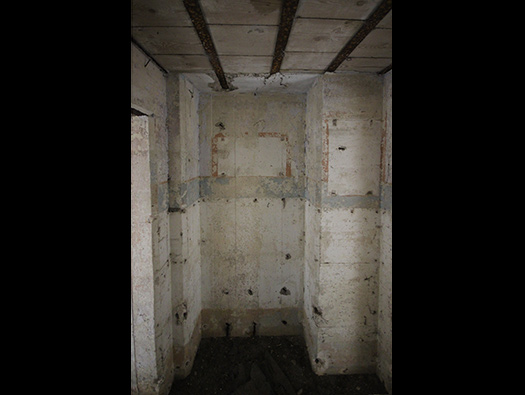

Baraquement (barracks) the end room and this also has painting on the walls.

06 March 2016

Plan.
Plan.
Painted wall.
Painted wall.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks).

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks).

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks).

06 March 2016

Plan.
Plan.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks) window on the left and door on the right.

06 March 2016

Plan.
Plan.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks).

06 March 2016

Plan.
Plan.

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).
Baraquement (barracks) the roof of the baraquement circled in red.

06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

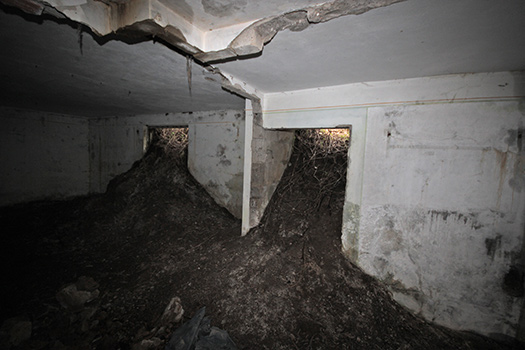

R502 completely covered over..

06 March 2016

Plan.
Plan.
R502.
R502.
StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).


06 March 2016

StP356 Auderville Laye H.K.B. (E. Batt 685).

StP356 Auderville Laye H.K.B. (E. Batt 685).


Bundesarchiv
