Wn73 Vierville-sur Mer ouest (Omaha Beach)
K.V.U.Gruppe Percée (Omaha Beach) · AOK 7 Normandy · France
Wn73 Vierville-sur-Mer ouest
Wn73 on the eastern flank of StP Vierville covering the beach exit with Wn's 72 & 71. Based around an old derelict house 'Maison Gambier' and two mortar Tobruk's for 8.1cm Brant (f) mortars. There would also have been quite a few machine guns situated pointing down onto the beach and valley. An old 7.5cm anti-tank gun was set in a small bunker probably made by the gunners out of one course of concrete blocks. A mortar observation bunker was added to the forward mortar Tobruk. The cliff edge is now quite dangerous and the area is very overgrown. Japanese Knot weed has been dumped in the area and taken over, parts also are just inside a large caravan site and two Tobruks can be seen there. The old house has now gone but the five Felmässig accommodation buildings are all there. Attacked by Rangers and some infantry of the 116th Inf. on D-day, the position was taken and that helped the D1 Draw (Valley) to be opened to traffic.
Wn73 Vierville-sur-Mer ouest
Wn73 Vierville-sur-Mer ouest
WW2 TV Stützpunkt Vierville - WN74, 73, 72 and 71 - (Omaha Beach) with Michael Akkerman.
Wn73 Vierville-sur-Mer ouest
11.Komp./Gren.Rgt.726.
5 x Feldmässig concrete barracks.
2 x Ic125/Vf61a emplacements for Mortars.
2 x Ic116 Tobruk´s.
1 x SK/Schartenstand for Pak.
1 x Barracks (possibly a wooden hut).
1 x Wasser Tank. Remains of Maison Gambier.
1 x 7.5cm Pak 97/38.
2 x 8.14cm Gr.W. Brant (f) Mortars.
A tunnel.
Plan
Wn73 Vierville-sur-Mer ouest

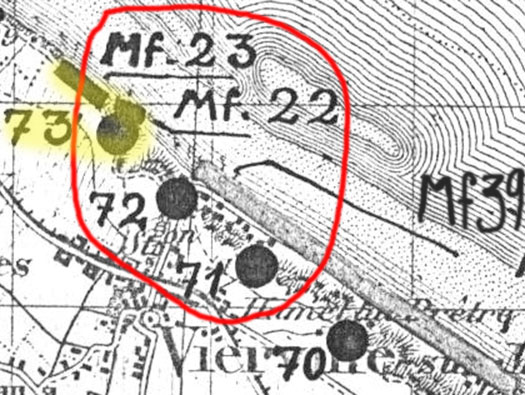

The German map of all the positions around this area with Wn71/72& 73 making StP Vierville, I have seen on some maps that Wn74 may have been added to StP Vierville??
Mine Fields Mf.23 running to the west along the cliff top and Mf.22 along the face of Wn73.
00-00-00
Wn73 Vierville-sur-Mer ouest

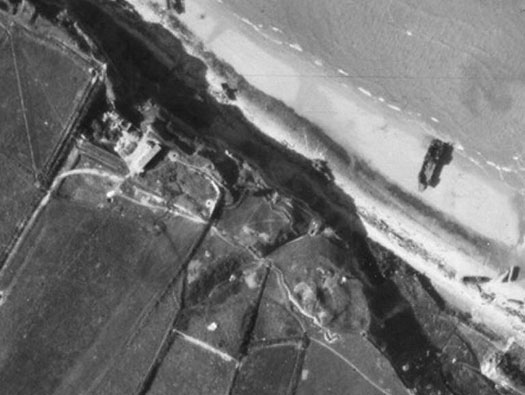

A very good air photo of Wn73.
1944
Wn73 Vierville-sur-Mer ouest

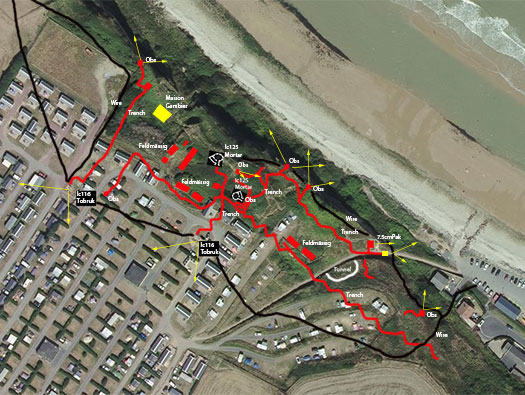

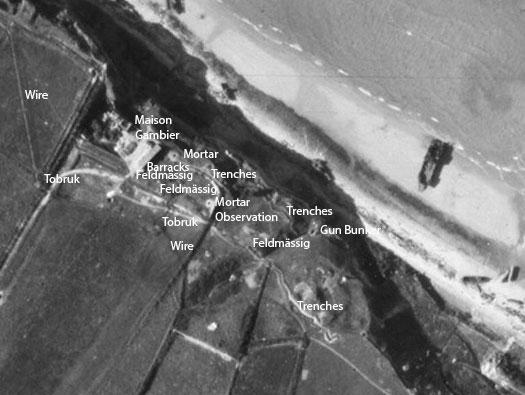

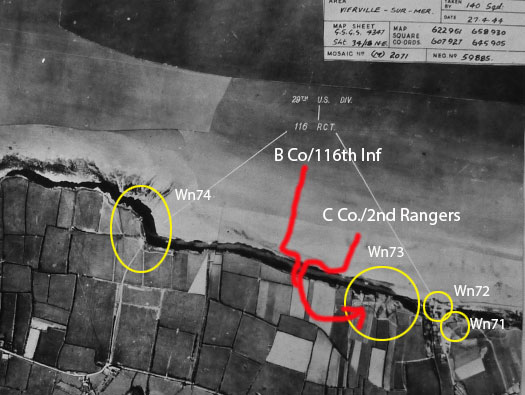

I have added details to this photo.
1944
Wn73 Vierville-sur-Mer ouest

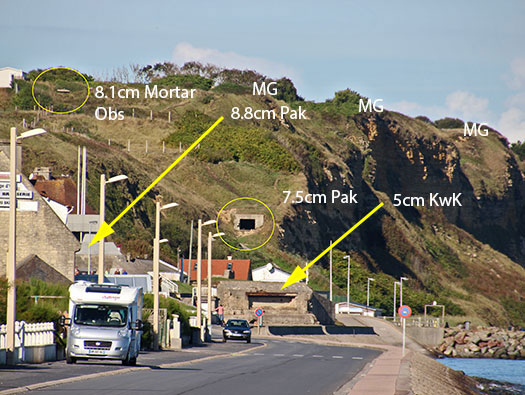

The view a few Americans had as they were landing.
On the cliff : - L/R - Observation for two 8.1cm Mortars, at least three Mg.34/MG.43's.
Below the cliff : - L/R - an 8.8cm Pak 43 in a casemate (Wn72). A 7.5cm Pak 97/38 in a small casemate (Wn73). A Doppelschartenstand casemate for a 5cm KwK L/60 (Wn72).
That is some fire power.
06 August 2013
Wn73 Vierville-sur-Mer ouest
A closer look at the 7.5cm Pak 97/38 casemate on the hill probably out dates the casemates in Wn72. When in 1943 that the coast had to be defended Infantry troops moved here and dug in in earth emplacements. Gradually they were issued heavy weapons like mortars and anti-tank guns. They may have managed to get the Todt organisation to build them the two mortar Tobruk's, an open emplacement with a small added ammunition room. When a Pak gun turned up it was an old 1897 75mm French field gun converted onto a sma 5cm Pak carriage and a newly designed muzzle break fitted. Ammunition was plenty full, as it was all captured from the French and converted to armoured piercing. The gun was rushed into service on the Russian front but when it became super seeded by better guns they were then distributed out to static units. No extra gunners were employed, either the heavy weapons platoon took them over or it was just regular infantry men.
11 October 2018
Wn73 Vierville-sur-Mer ouest

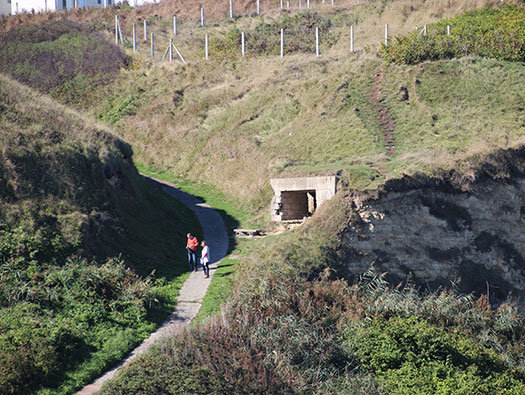

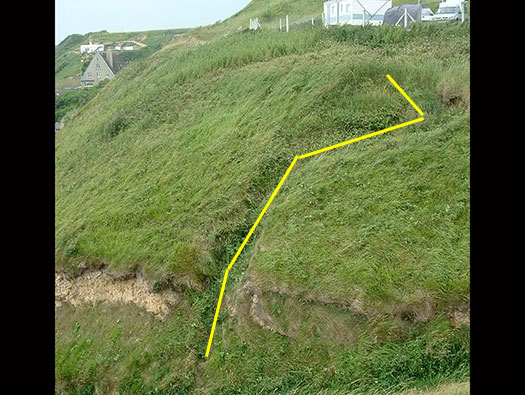

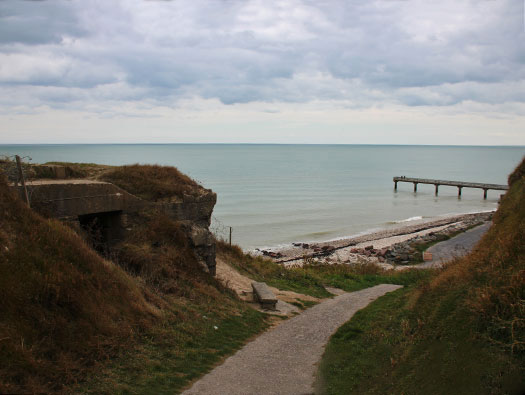

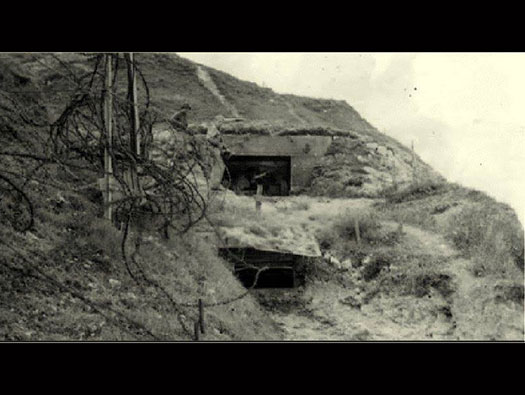

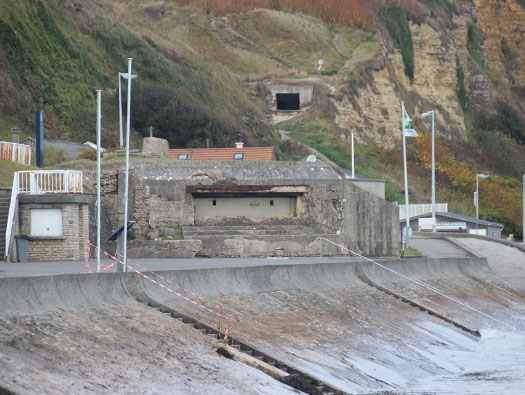

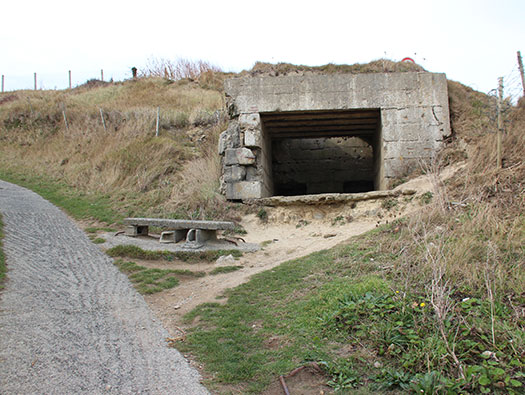

The casemate for the 7.5cm Pak 97/38 set into the hill and completely hidden from the sea side. A trench ran from behind it up the bank to the mortars above and another across the path and up the left side of the defence.
06 August 2013
Wn73 Vierville-sur-Mer ouest

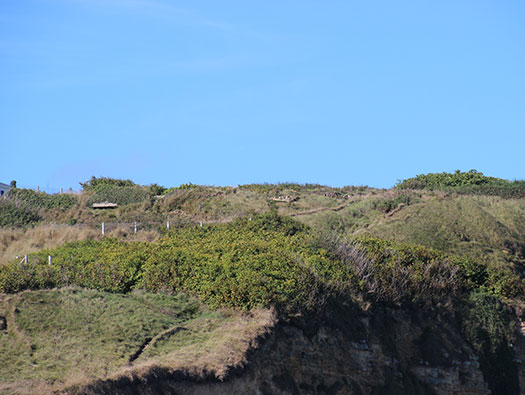

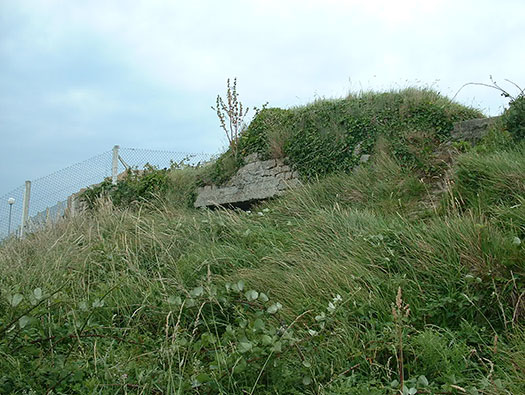

On the top of the hill the mortar observation post (the horizontal piece of concrete) showing up.
06 August 2013
Wn73 Vierville-sur-Mer ouest
In the foreground are some pieces of steel rod, they maybe steps that were set into bunkers to climb up or down.
11 October 2018
Wn73 Vierville-sur-Mer ouest
There looks to be an extra position, either an observation for the guns crew or a machine gun position.
Barbed wire covering the steep hill side.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest

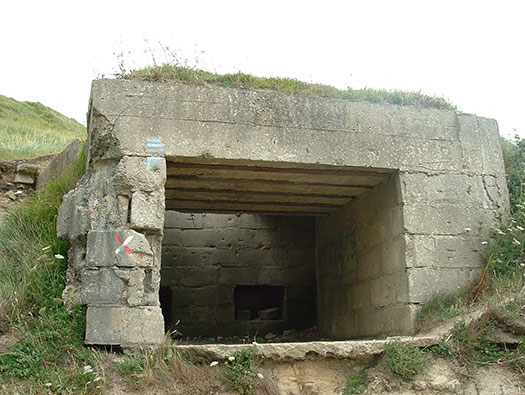

A well made construction of no known design, probably one of the infantrymen was a builder in an earlier life?? An extra strong wall on the seaward side and reinforced steels in the roof.
07 July 2004
Wn73 Vierville-sur-Mer ouest

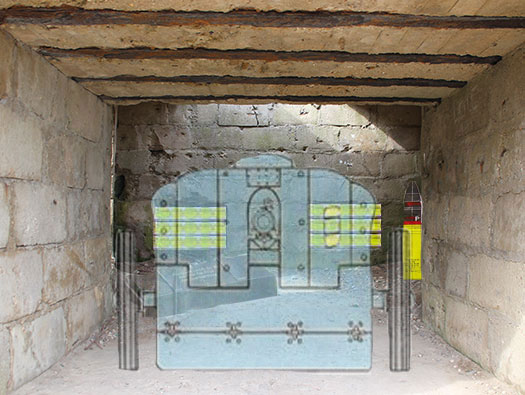

Small ammunition niches in the rear of the casemate and some more space on the right side. I have added about 30 rounds of 7.5cm ammunition inside the niches to give an idea how it may have looked.
11 October 2018
Wn73 Vierville-sur-Mer ouest
At the beginning of the war with the Russia, the Germans collided with T-34 and KV tanks. In a hurry, the Germans began developing tools to combat them. One of the measures was the use of 75 mm barrels of the French field gun of the sample of 1897 - several thousand such guns were seized by the Wehrmacht in the course of campaigns in Poland and France (Polish guns were bought from France in a rather large number). In addition, a large ammount of ammunition also fell into the hands of the Germans. In France more than 5.5 million shells were seized. The barrel was equipped with a new muzzle brake and gun carriage from the Pak.38 gun. Thus the 7.5cm Pak 97/38 was born.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
In the roof is a hole to let out fumes that would have been trapped inside when firing.
11 October 2018
Wn73 Vierville-sur-Mer ouest

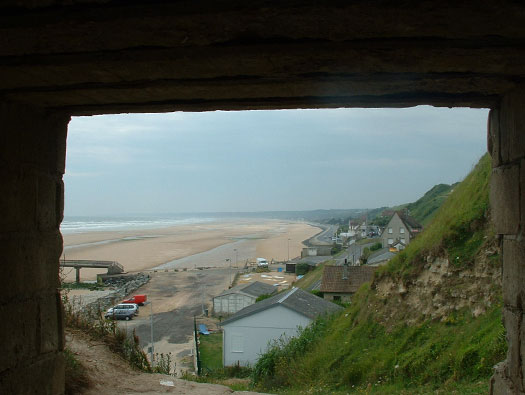

The view down to the beach. The range from here to the white van is 150meters, the gun is capable of putting a shell through 43mm at 2000meters. The front armour on a Sherman tank was 50mm. I will let you work out the maths.
07 July 2004
Wn73 Vierville-sur-Mer ouest
This is the side door where spare ammunition would have been stored somewhere out here.
07 July 2004
Wn73 Vierville-sur-Mer ouest

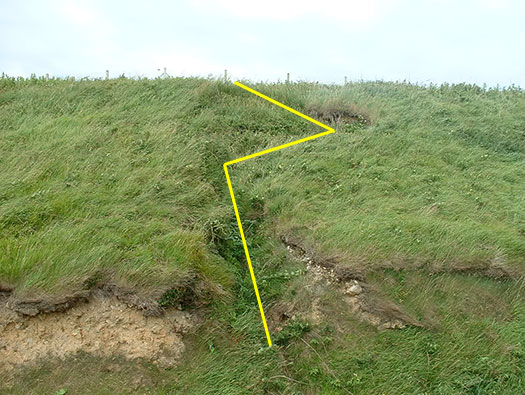

Across the path is a trench running up the hill to the forward part of the defence overlooking the valley.
07 July 2004
Wn73 Vierville-sur-Mer ouest
Across the path is a trench running up the hill to the forward part of the defence overlooking the valley.
07 July 2004
Wn73 Vierville-sur-Mer ouest
This is the mortar observation post looking down to the beach and if it was connected via telephone line to the second mortar and the 7.5cm Pak gun, it could have controlled all the main weapons on this hill. It may also have had connections with artillery control inland and be able to call down direct fire onto the beach.
07 July 2004
Wn73 Vierville-sur-Mer ouest

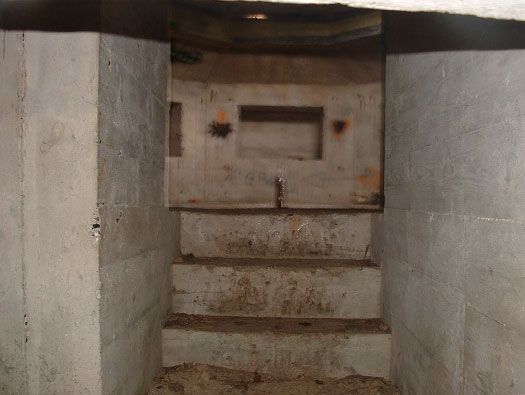

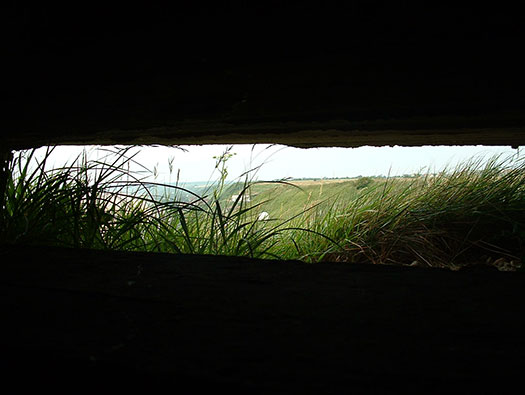

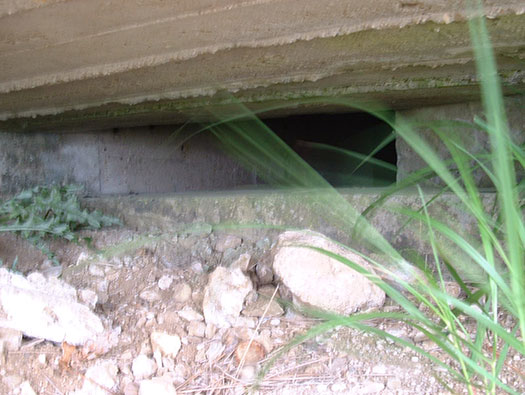

The observation slit.
00-00-00
Wn73 Vierville-sur-Mer ouest
This just shows how hard it was to get in in 2004, this is the trench system to bunker. The Americans complained about shooting at a German and he then disappears into a trench and appears in a completely different place.
07 July 2004
Wn73 Vierville-sur-Mer ouest

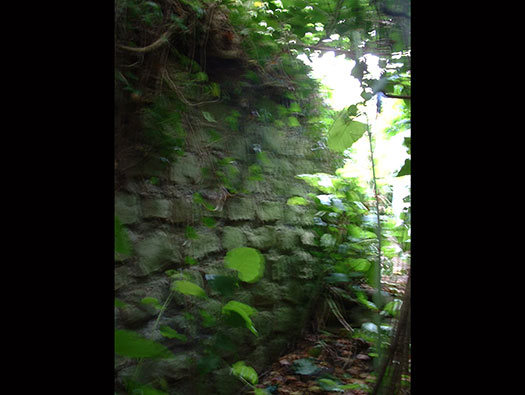

Down in the trench you can see the stone wall lining of the trench.
07 July 2004
Wn73 Vierville-sur-Mer ouest

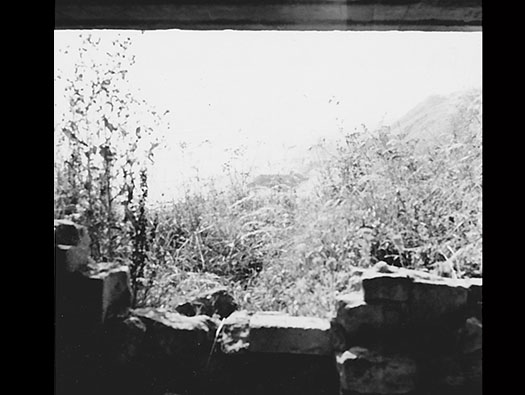

The view outside and why did I not take more photos inside sorry.
07 July 2004
Wn73 Vierville-sur-Mer ouest
This is the ammunition space for the Ic125 Mortar emplacement and stored here would be boxes of 8.14cm Gr.W. mortar bombs.
07 July 2004
Wn73 Vierville-sur-Mer ouest
07 July 2004
Wn73 Vierville-sur-Mer ouest

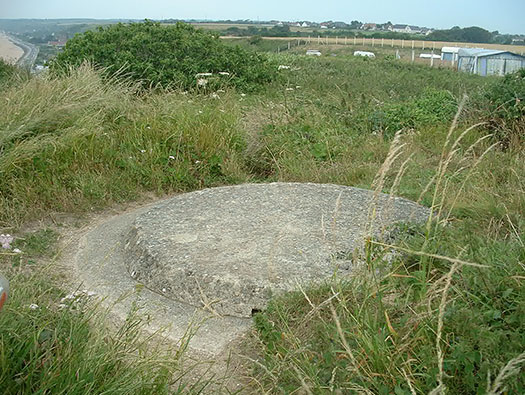

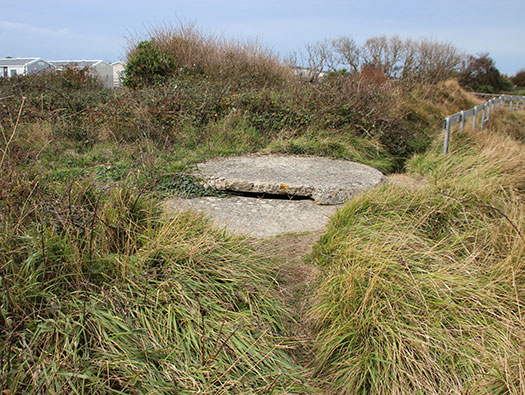

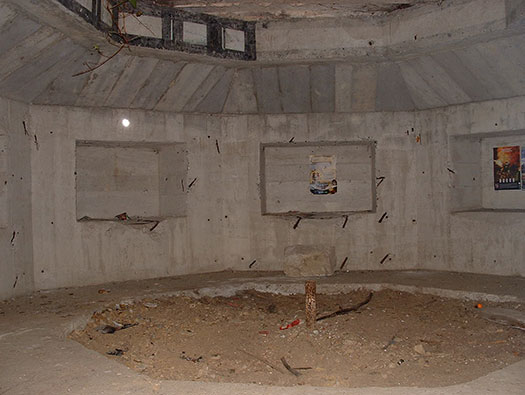

This is where the mortar tube would have fitted and could be moved around 360°'s. On the lid today is a solid concrete cover to stop people falling in, (H&S). But at the time the crew would have had either a wooden cover to keep out the weather or a steel sheet of metal to drag over the hole to protect them from flying splinters when bobarded.
07 July 2004
Wn73 Vierville-sur-Mer ouest

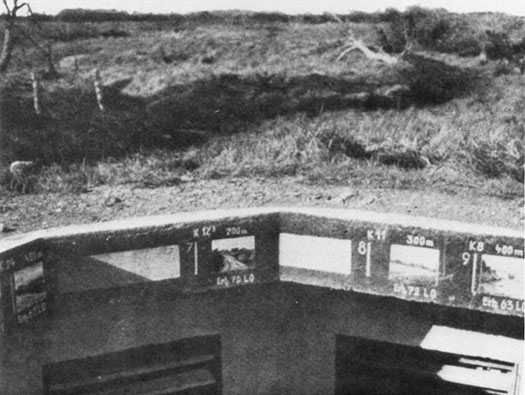

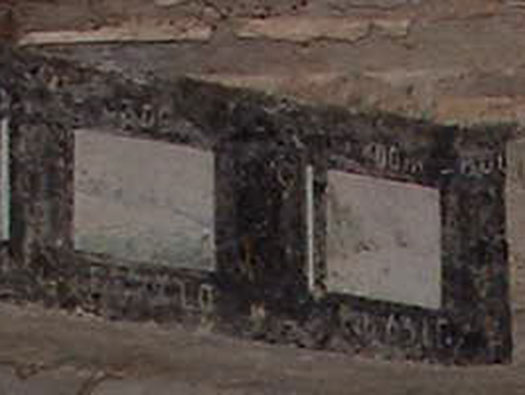

Around the lips of these and many other bunkers where diagrams of targets and distances to them were painted on. They still existed in 2004 and can be seen very well.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
Here is what they looked like just after being captured. Note the ammunition niches have been cleared out of all their mortar bombs.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest

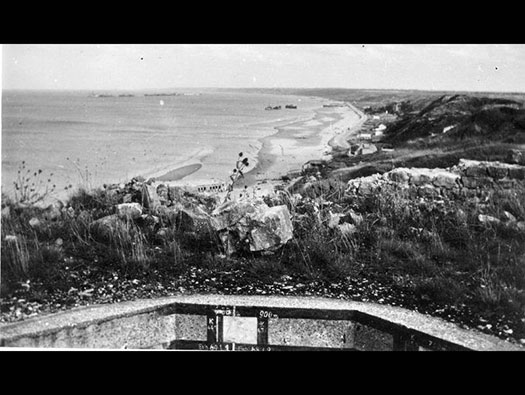

Looking down beach and you can see the painted target indicator for this part of the beach.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
Another trench onwards.
07 July 2004
Wn73 Vierville-sur-Mer ouest

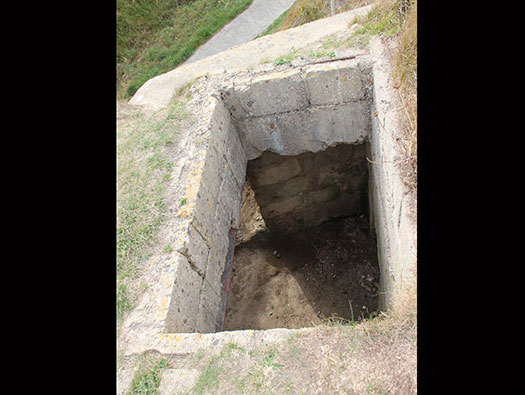

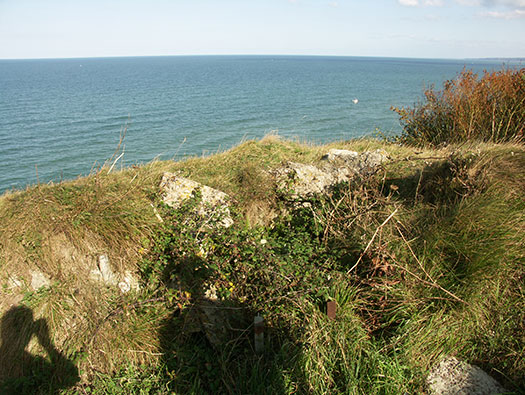

This is one of the cliff edge defence positions. Note the two angle irons sticking up. Cold and wet in the winter and very hot in the summer. The view from here on D-Day would have been overwhelming. Right out on the horizon battle ships shooting, then destroyers, landing ships, landing craft. Smoke and shells landing in the sea, shells flying over their heads and also landing around them both German and Allied.
07 July 2004
Wn73 Vierville-sur-Mer ouest

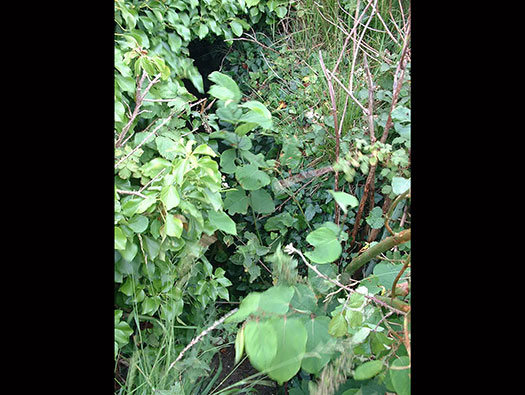

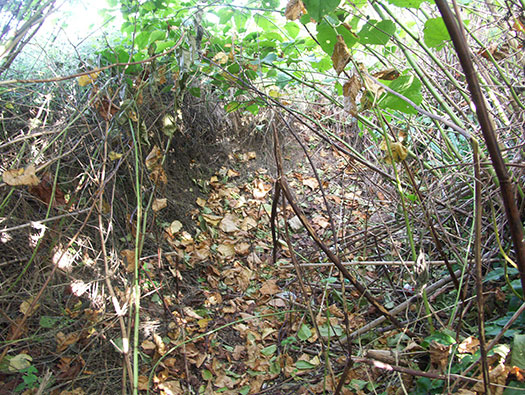

Back in the trenches and that lovely Japanese Knot Weed, now that was a good idea to dump it here. Well done Mr Gardener.
11 October 2018
Wn73 Vierville-sur-Mer ouest

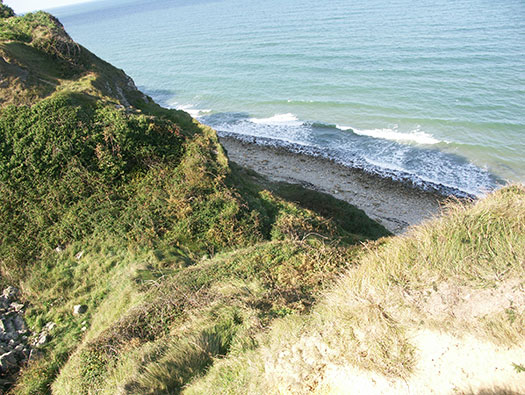

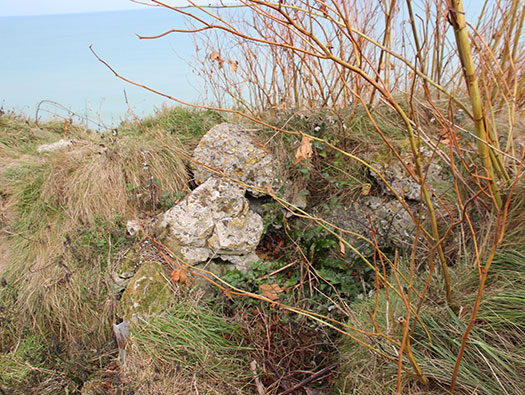

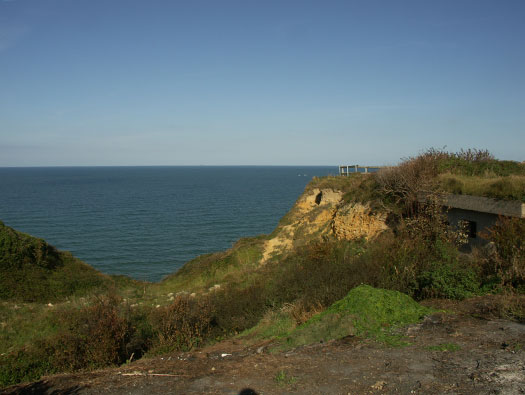

Another defence position looking over the cliff edge. LCT's and LCA's passed under this cliff and landed to the left. They lost almost half their men between leaving the boats and getting under the protection of the cliff from gunfire from Wn74 & Wn73.
11 October 2018
Wn73 Vierville-sur-Mer ouest
The sea is to the right.
11 October 2018
Wn73 Vierville-sur-Mer ouest
Looking down the beach.
07 July 2004
Wn73 Vierville-sur-Mer ouest

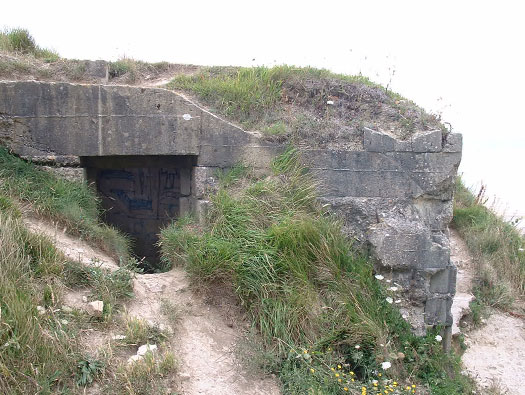

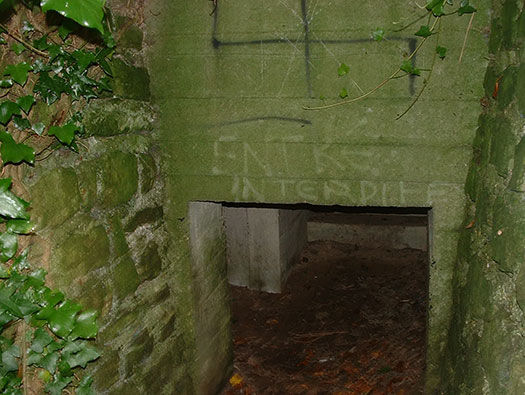

This is the entrance into the emplacement through the trench system
07 July 2004
Wn73 Vierville-sur-Mer ouest

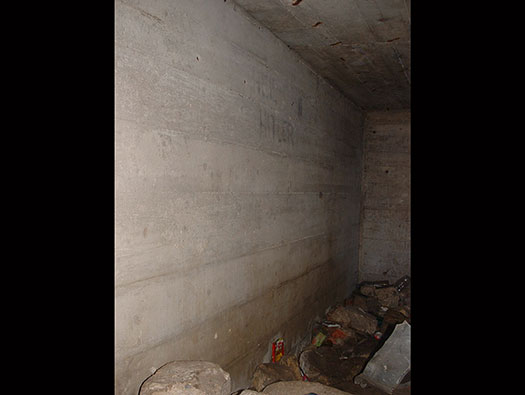

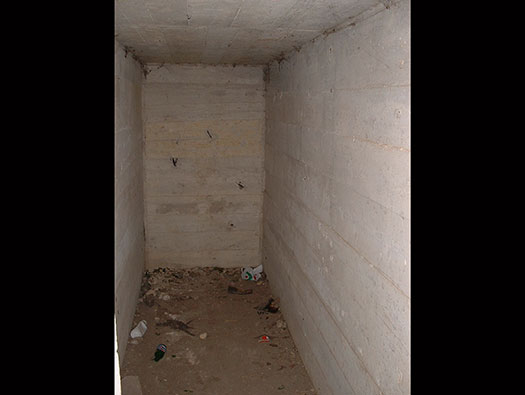

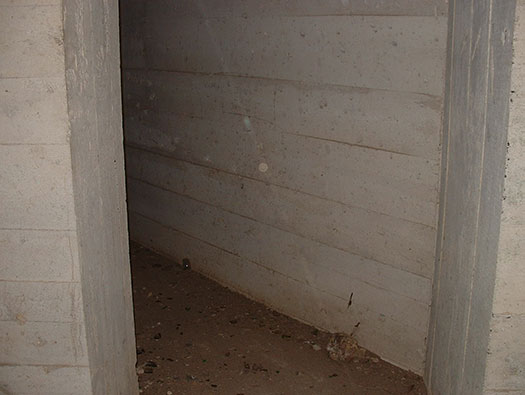

Ammunition room.
07 July 2004
Wn73 Vierville-sur-Mer ouest
Gun room.
07 July 2004
Wn73 Vierville-sur-Mer ouest

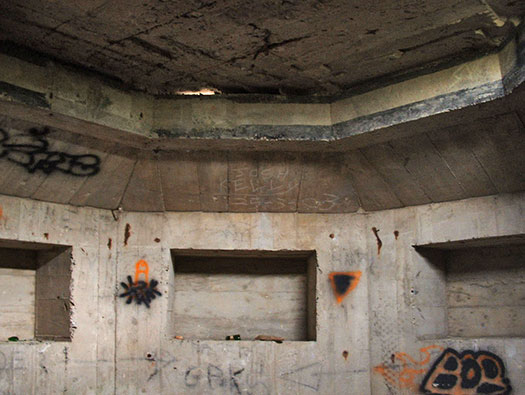

Inside the painting I think is of the sea and three of the many ready ammunition niches.
07 July 2004
Wn73 Vierville-sur-Mer ouest
To the west of here C Co./2 Ranger Bn. landed and climbed up the cliff just like this one. They came in to the front of Wn72 but realised that it would have been murder to land amongst some of the heaviest firing along the coast. They turned west and landed to between Wn73 & Wn74 still taking a lot of machine gun cross fire. Although they took a lot of casualties. They did manage to get off the beach and move under the cliff along about 300m to find a place to cliff. Realising that although thier job was to go straight to help their collogues at Pointe du Hoc, instead they turned left to start clearing Wn73. The right decision in the circumstances.
07 July 2004
Wn73 Vierville-sur-Mer ouest
The Rangers and members of the 116th joined together and advanced through Wn73 taking out each position one at a time.
Wn73 Vierville-sur-Mer ouest
The site of the old house.
07 July 2004
Wn73 Vierville-sur-Mer ouest

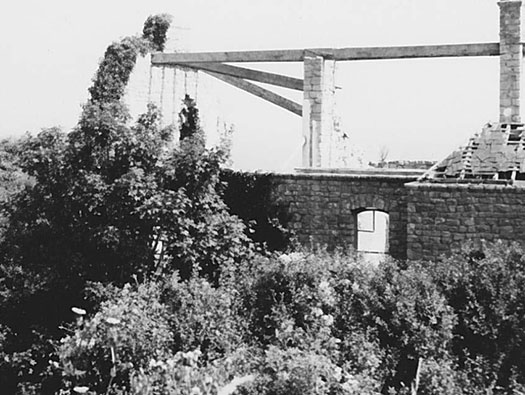

The ruins on the hill.
00-00-00
Wn73 Vierville-sur-Mer ouest

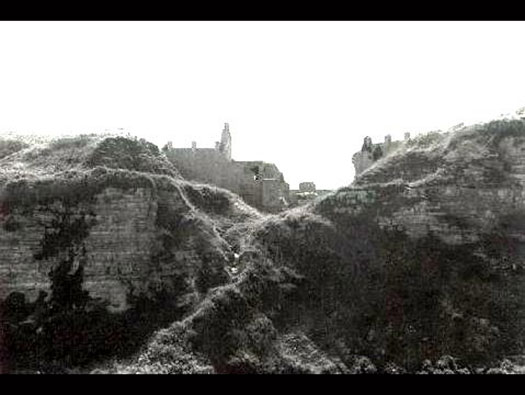

Another view of the ruins on the hill. A lot of the house would have been removed to add to trenches and bunkers.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
This is the use made of the old house and its ruins, it could be a machine gun or a rifleman’s position.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest

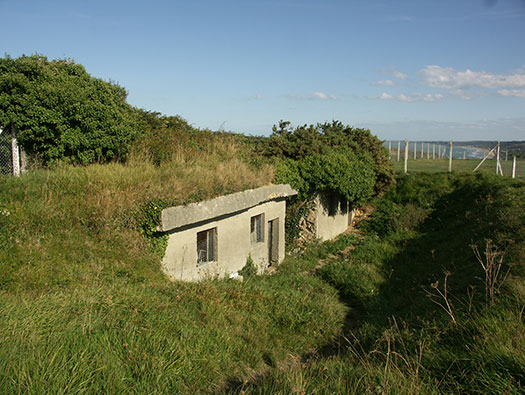

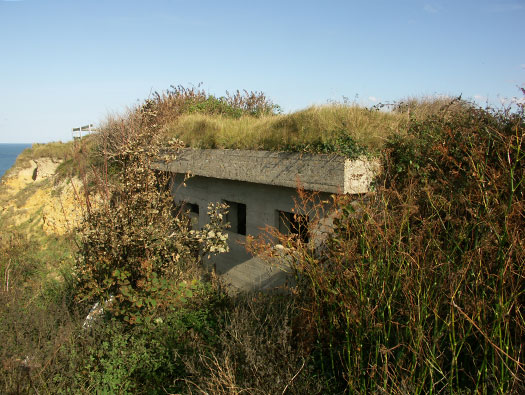

Along the coast here are several concrete buildings like this semi sunk into the ground. They are reinforced concrete offices/accommodation. This Wn actually has five and they are all still here.
07 July 2004
Wn73 Vierville-sur-Mer ouest
Two more just around the corner.
07 July 2004
Wn73 Vierville-sur-Mer ouest

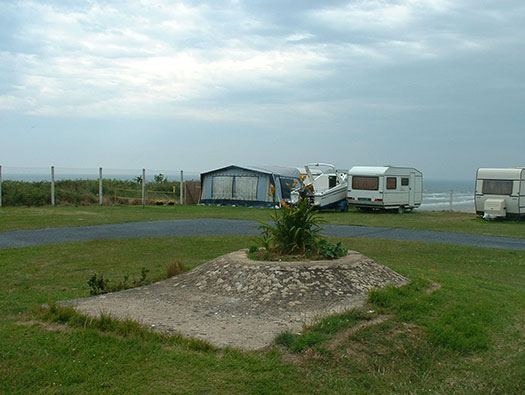

2 x Ic116 Tobruks are covering the rear areas.
07 July 2004
Wn73 Vierville-sur-Mer ouest

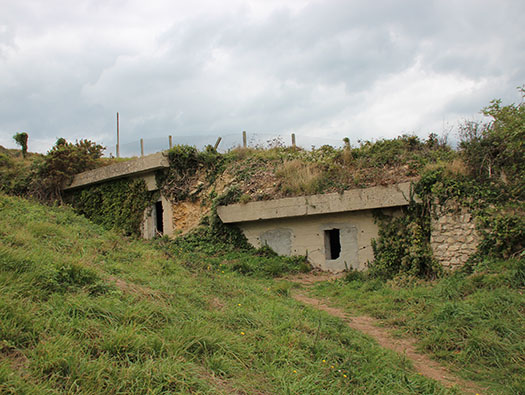

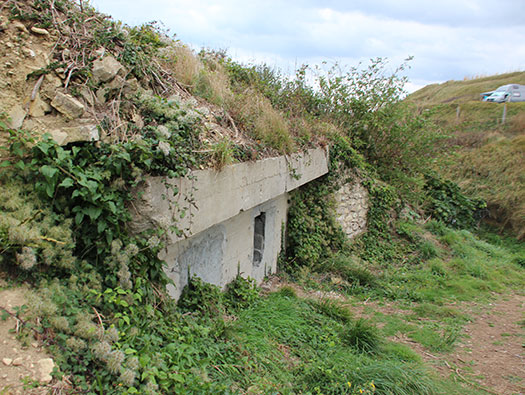

Feldmässig four and five.
11 October 2018
Wn73 Vierville-sur-Mer ouest

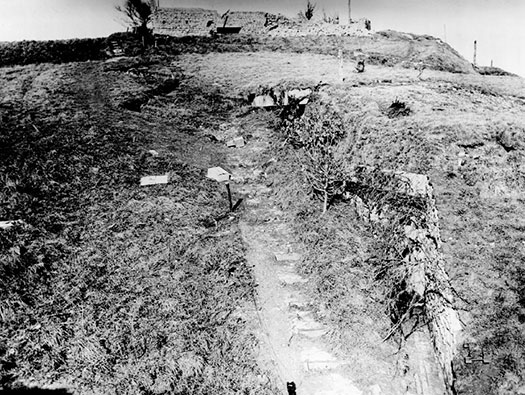

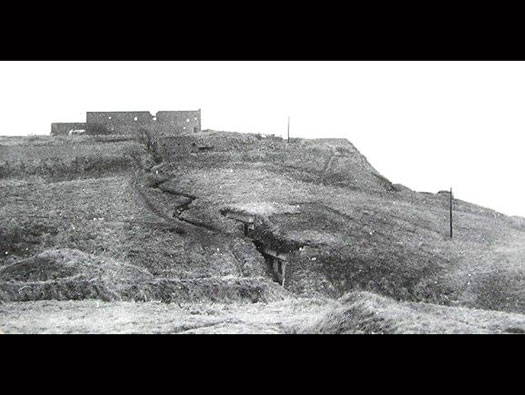

The two Feldmässig four & five set into the side of a trench running up to the top of the hill.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
The two Feldmässig four & five this picture possibly taken later than the one before as the trench looks filled in and steps to make access better to the top. Now its all dug out to of been used by the camp site.
WO 219-508 Observations on invasion of France and fall of Cherbourg 1944 June-July
Wn73 Vierville-sur-Mer ouest
Feldmässig five.
11 October 2018
Wn73 Vierville-sur-Mer ouest
11 October 2018
