Wn83 Fontaine-la-Mallet les Monts-Trottins, K.V.Gruppe Le Havre. From W.O. 233/56 File

K.V.Gruppe Le Havre · AOK 15 Haute-Normandie · France

Wn83 Fontaine-la-Mallet les Monts-Trottins, K.V.Gruppe Le Havre. From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File


Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

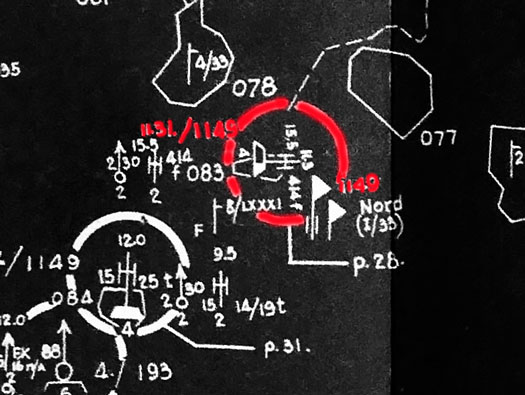

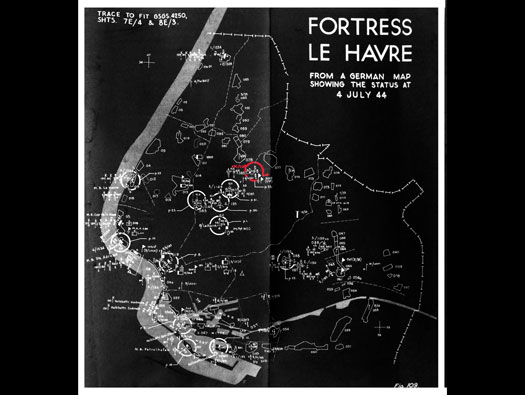

A captured German plan of Le Havre dated from 4th July 1944 showing most of the defences.

W.O. 233/56 File

10.5cmsFH18 I could not find a picture of a 25 model.
10.5cmsFH18 I could not find a picture of a 25 model.

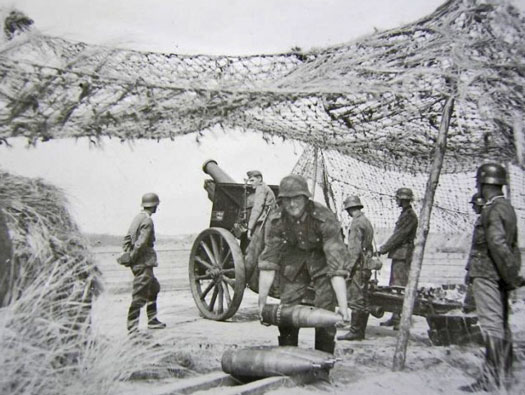

15.5cm SFH.414(f).
15.5cm SFH.414(f).
15.5cm SFH.414(f).
15.5cm SFH.414(f).

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File
Plan.

W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

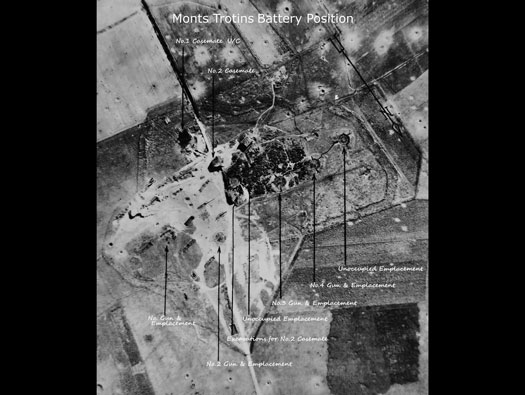

Intelligence air photo.

W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

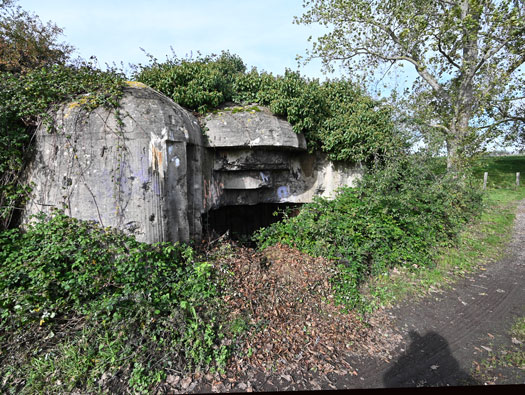

The casemate was almost ready to use, there may have not been enough fittings arrived from stores to finish it off.

W.O. 233/56 File

753P3 door that may have been used to close off the rear of the casemates.
753P3 door that may have been used to close off the rear of the casemates.
It should have had a ventilator fan to extract the foul gases from the gun when fired.
It should have had a ventilator fan to extract the foul gases from the gun when fired.

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File
R669 casemate.

W.O. 233/56 File

R669 plan.
R669 plan.

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

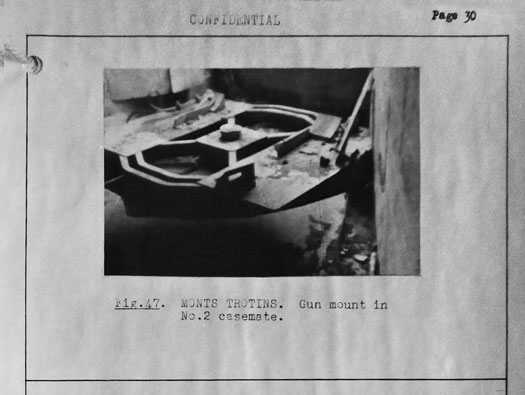

Details

W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

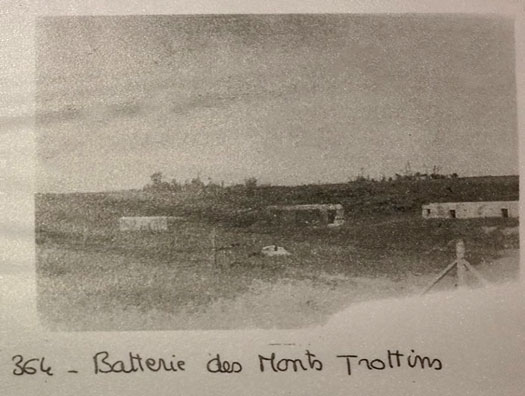

SHM

SHM 1946

Wn83 Monts-Trottins From W.O. 233/56 File

Wn83 Monts-Trottins From W.O. 233/56 File

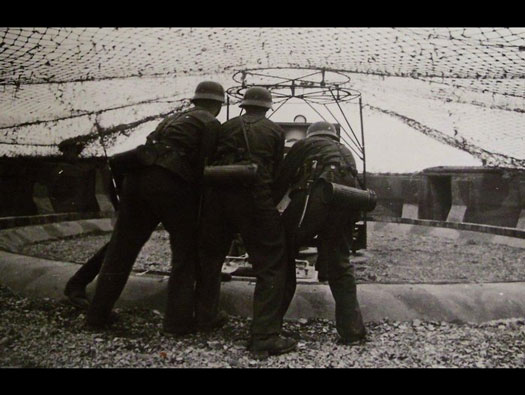

15,5cm sFH.414(f).

Bundesarchiv
