Driving through Isigny and crossing the river Aure and then turn left (north). On the corner by the bridge is a very nice bar and you can sit outside with a beer and have Oysters for lunch, now that is bunker hunting.

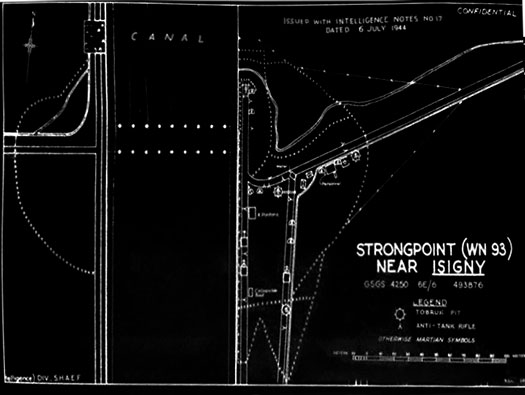

SHEAF (Int) Div.

Isigny.
Isigny.
A post card of the river estuary.
A post card of the river estuary.
Two hundred odd years ago.
Two hundred odd years ago.

Wn93 St-Clément

Wn93 St-Clément


Wn93 St-Clément

Wn93 St-Clément

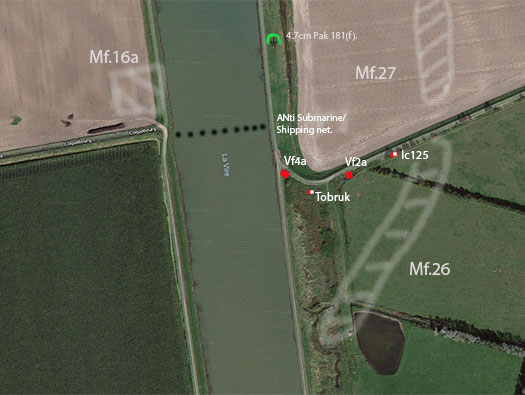

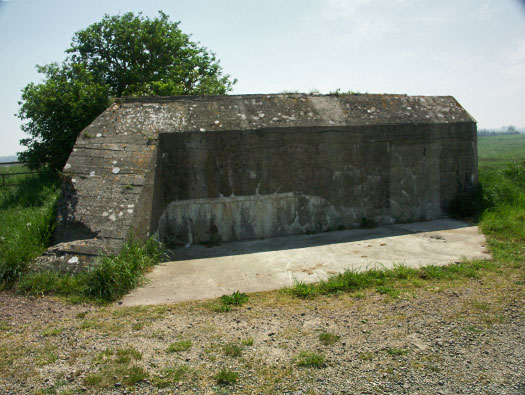

Out in front was a 4.7cm Pak 181(f), then the Vf4a machine gun casemate, a Tobruk and a mortar bunker. There was an anti-submarine/shipping net across the river. Surrounded by mines and wire. 1 x 4.7cm Pak 181(f). 1 x Vf4a machine gun casemate. 1 x Vf8 Tobruk. 1 x Ic116 Tobruk. 1 x Vf2a group shelter. 1 x 8.14cm Gr.W.278(f) mortar. Several machine guns.

11 May 2008

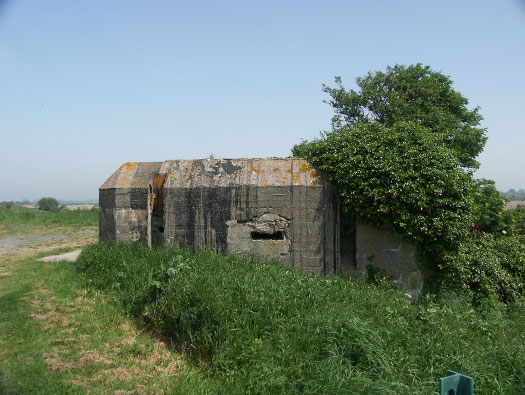

Vf4a casemate.
Vf4a casemate.
Vf2a group shelter.
Vf2a group shelter.
Vf8 Tobruk.
Vf8 Tobruk.

Wn93 St-Clément

Wn93 St-Clément

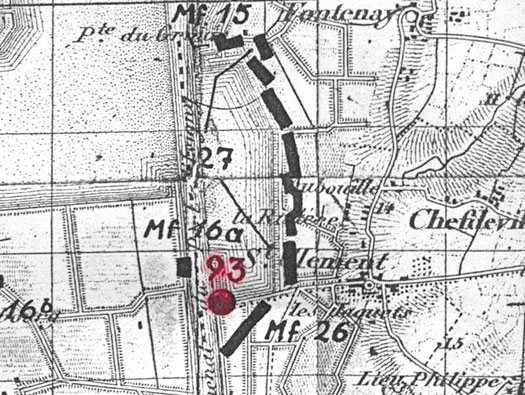

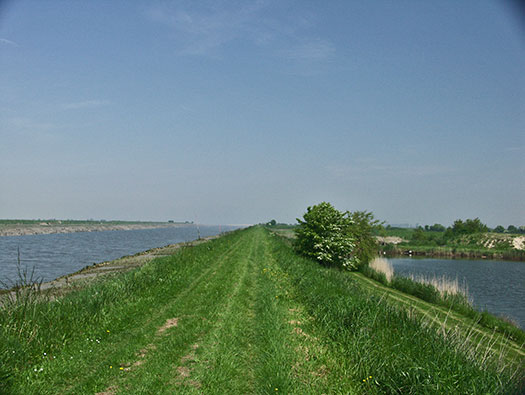

Wn93 sat on the junction of river & dyke. Mine fields covering the eastern side of the river bank another on the other side of the canal.

German army map

Wn93 St-Clément
Mine laying.
Mine laying.
S mine box.
S mine box.

Wn93 St-Clément

Wn93 St-Clément

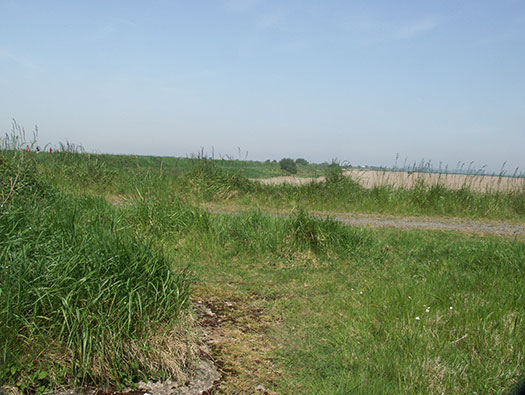

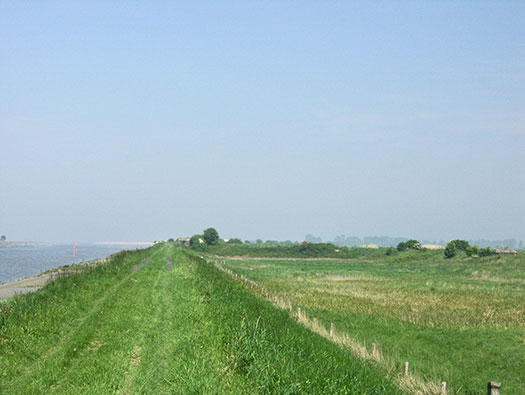

The view up the river estuary.

11 May 2008

Wn93 St-Clément
Wn93 St-Clément
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

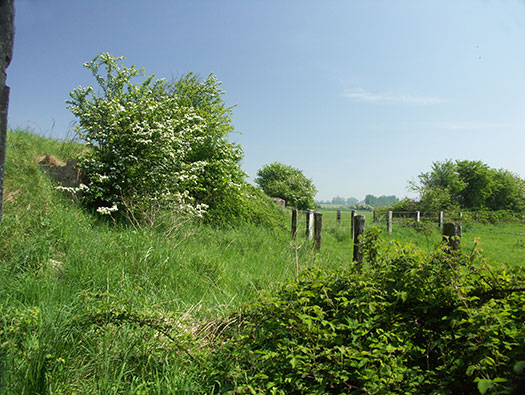

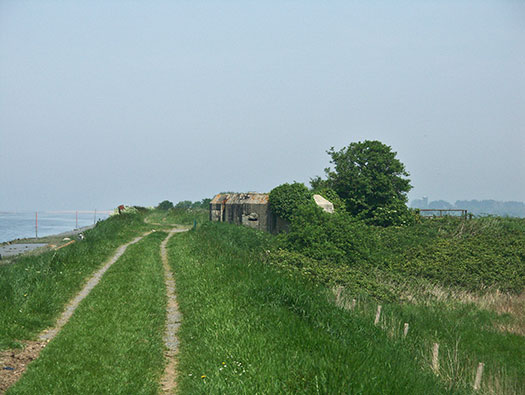

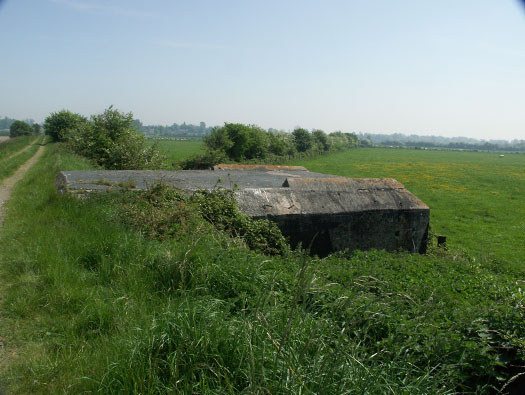

Getting closer. There would have been a mine field to the right.

11 May 2008

Wn93 St-Clément
4.7cm Pak 181(f).
4.7cm Pak 181(f).

Wn93 St-Clément

Wn93 St-Clément
Vf4a

11 May 2008

4.7cm Pak 181(f) was sat further up the river.
4.7cm Pak 181(f) was sat further up the river.
Vf4a casemate.
Vf4a casemate.
MG.34 on its heavy tripod.
MG.34 on its heavy tripod.

Wn93 St-Clément

Wn93 St-Clément

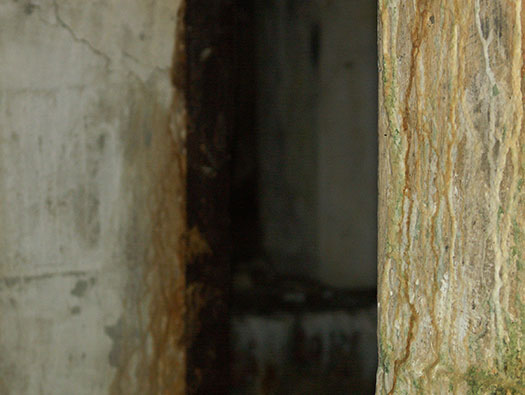

The slit could be a bricked up escape hatch and a slit for another machine Gun?

11 May 2008

Wn93 St-Clément
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

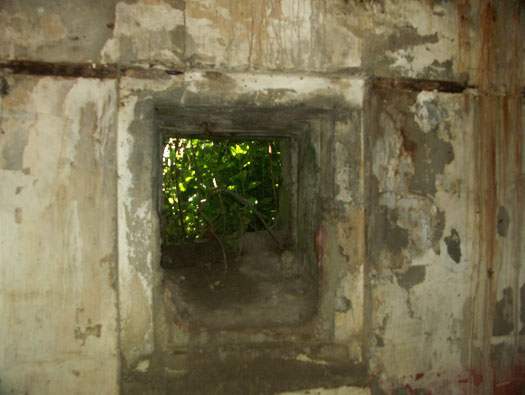

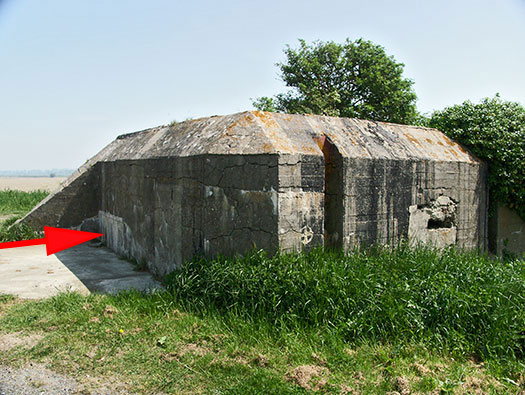

The slot in the wall is for a chimney fitting. The red arrow is where the embrasure was situated.

11 May 2008

Vf4a embrasure..
Vf4a embrasure..
Vf crew heating.
Vf crew heating.
Wt80k heater.
Wt80k heater.

Wn93 St-Clément

Wn93 St-Clément
Looking into what was the gun room and the flanking wall.

11 May 2008

Vf4a embrasure..
Vf4a embrasure..
Vf4a plan.
Vf4a plan.
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

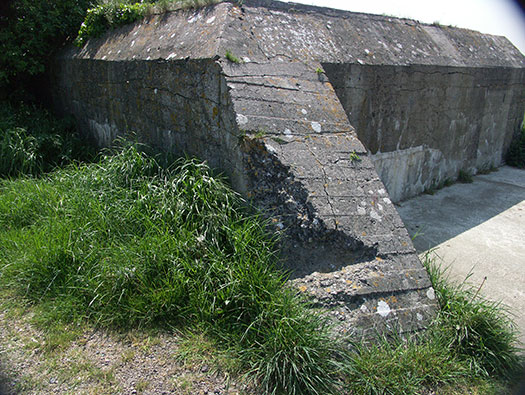

Flanking wall damage.

11 May 2008

Wn93 St-Clément

Wn93 St-Clément
Rear entrance.

11 May 2008

Vf4a plan.
Vf4a plan.

Wn93 St-Clément

Wn93 St-Clément
Passage way.

11 May 2008

details
details

Wn93 St-Clément

Wn93 St-Clément
Rear door a 19P7 gas tight light steel door.

11 May 2008

Vf4a plan.
Vf4a plan.
19P7 gas tight door.
19P7 gas tight door.

Wn93 St-Clément

Wn93 St-Clément

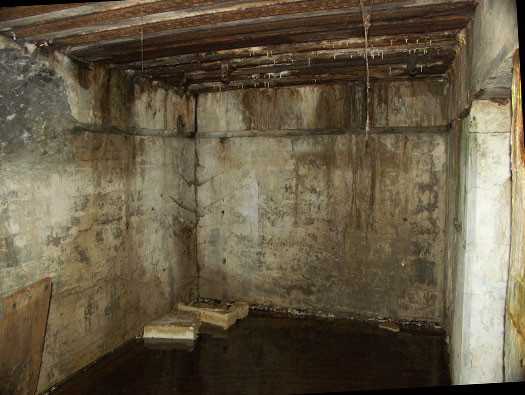

Water filled crew room.

11 May 2008

Vf4a plan.
Vf4a plan.
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

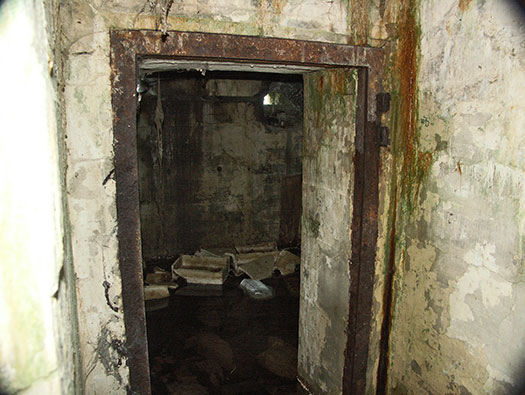

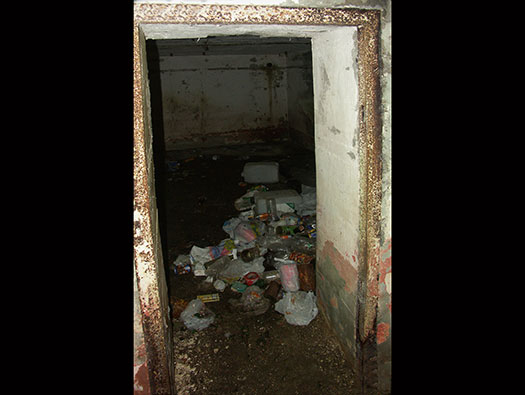

The door way into the gun room.

11 May 2008

Vf4a plan.
Vf4a plan.
7.92 Ammunition boxes.
7.92 Ammunition boxes.
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément
Table for the machine gun to sit on.

11 May 2008

Machine gun table.
Machine gun table.
Vf4a plan.
Vf4a plan.
Crew.
Crew.

Wn93 St-Clément

Wn93 St-Clément

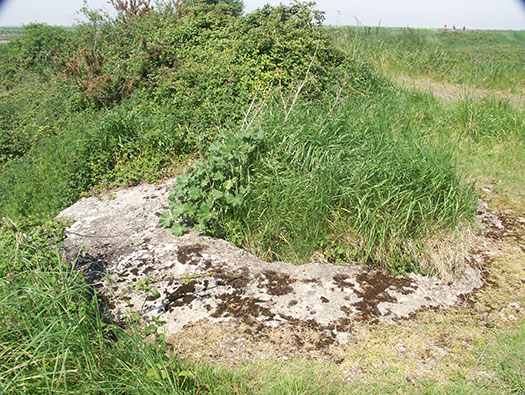

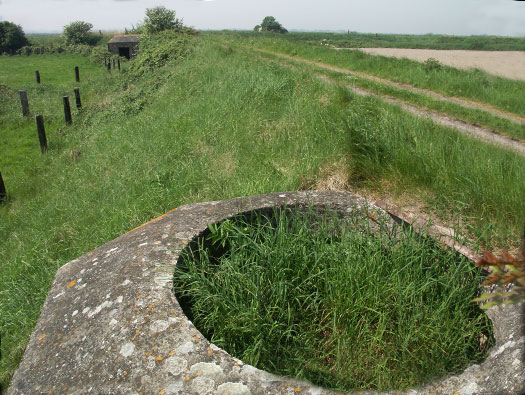

Tobruk situated level with the dyke.

11 May 2008

Wn93 St-Clément
Tobruk.
Tobruk.

Wn93 St-Clément

Wn93 St-Clément


11 May 2008

Wn93 St-Clément
Plan.
Plan.

Wn93 St-Clément

Wn93 St-Clément
Group shelter for about 15 men.

11 May 2008

Vf2a plan.
Vf2a plan.
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

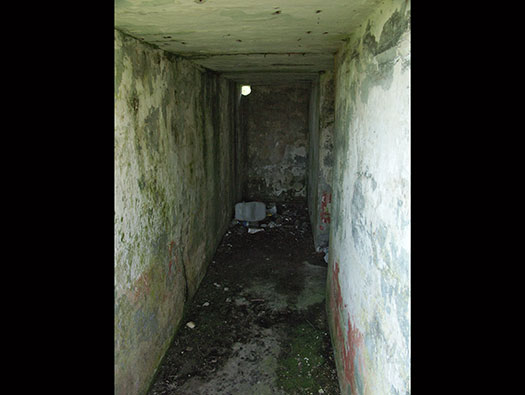

Passage way in. The end wall has been blocked off but on most Vf2a's it would have been open.

11 May 2008

Plan.
Plan.
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément
A gas tight 19P7 gas tight door with a small glass window.

11 May 2008

Plan.
Plan.
19P7 door.
19P7 door.
Gasschutztur 19P7 door.
Gasschutztur 19P7 door.

Wn93 St-Clément

Wn93 St-Clément

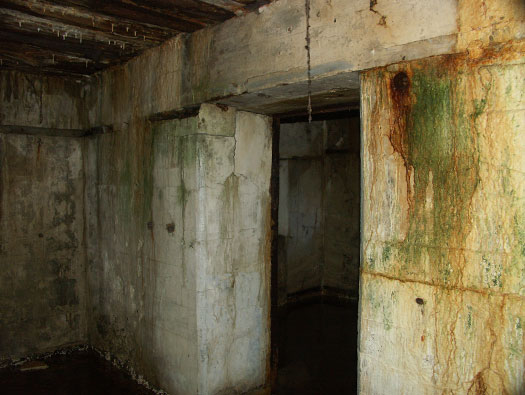

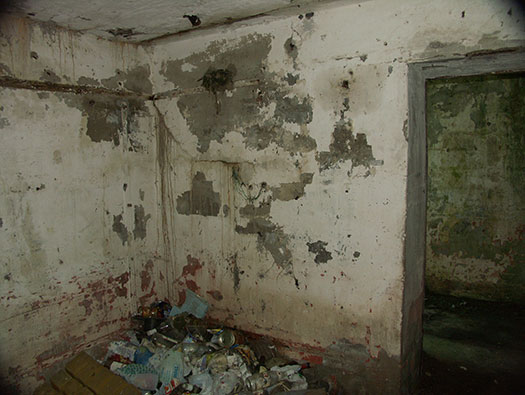

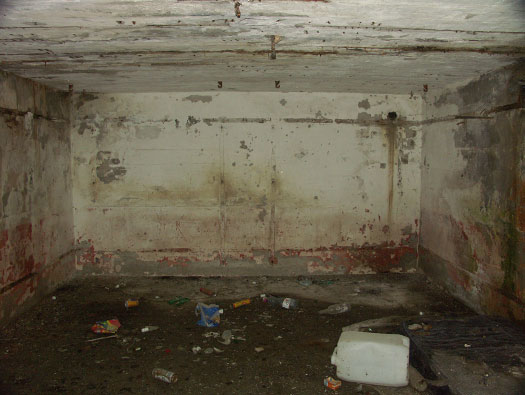

Crew room

11 May 2008

Plan.
Plan.
Crew.
Crew.

Wn93 St-Clément

Wn93 St-Clément

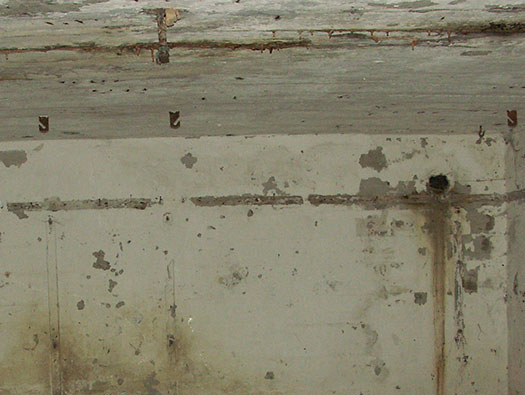

Bunk bed hooks where chains would be hooked onto them to hold up three beds.

11 May 2008

Wn93 St-Clément
Wn93 St-Clément
Wn93 St-Clément

Wn93 St-Clément

Wn93 St-Clément

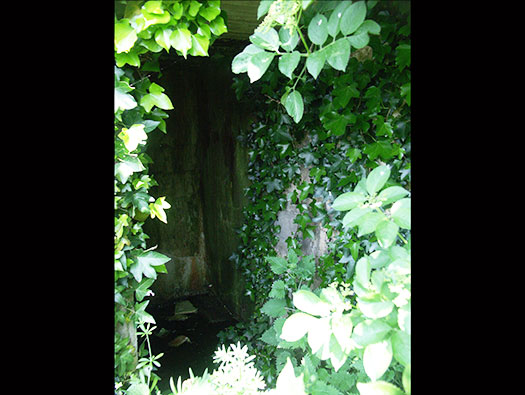

Escape hatch tunnel.

11 May 2008

Plan
Plan
Plan of escape.
Plan of escape.
410P9 escape door.
410P9 escape door.

Wn93 St-Clément

Wn93 St-Clément
Heating, in the wall is the chimney pipe.

11 May 2008

Wt80k heater.
Wt80k heater.
Plan of the heating and chimney pipe. The long outer down pipe is shaped like that so if a hand grenade is dropped down it, it passed down and outside of the bunker.
Plan of the heating and chimney pipe. The long outer down pipe is shaped like that so if a hand grenade is dropped down it, it passed down and outside of the bunker.

Wn93 St-Clément

Wn93 St-Clément

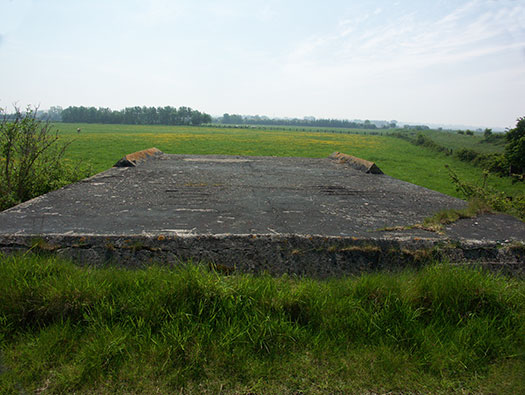

The roof.

11 May 2008

Wn93 St-Clément

Wn93 St-Clément

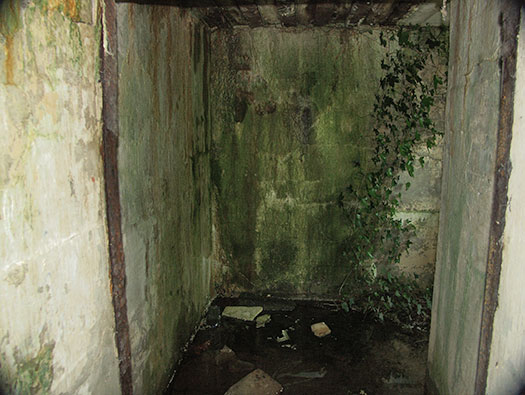

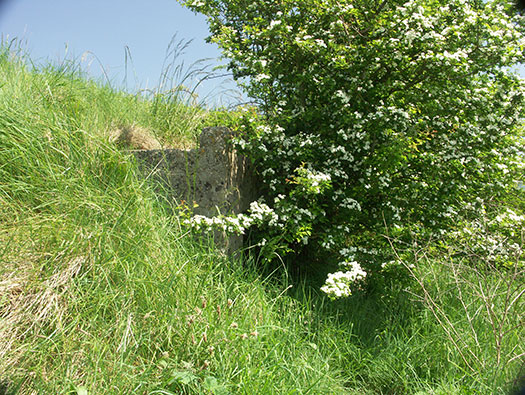

An extra ammunition space.

11 May 2008

Wn93 St-Clément

Wn93 St-Clément
An extra ammunition space.

11 May 2008

Field ammunition store.
Field ammunition store.

Wn93 St-Clément

Wn93 St-Clément
8.14cm Gr.W.278(f) mortar.

11 May 2008

Ic112 Mortar Tobruk.
Ic112 Mortar Tobruk.
Mortar gun pit and mortar fitting.
Mortar gun pit and mortar fitting.
Crew firing.
Crew firing.

Wn93 St-Clément

Wn93 St-Clément

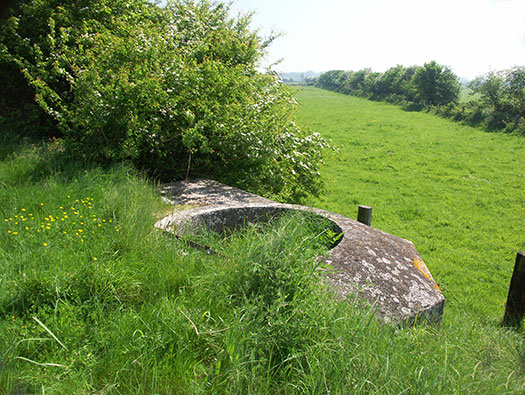

8.14cm Gr.W.278(f) mortar Tobruk.

11 May 2008

details
details
details
details
Plan targets, a forward control officer could call down mortar or gun fire on a mapped targeted area.
Plan targets, a forward control officer could call down mortar or gun fire on a mapped targeted area.

Wn93 St-Clément

Wn93 St-Clément

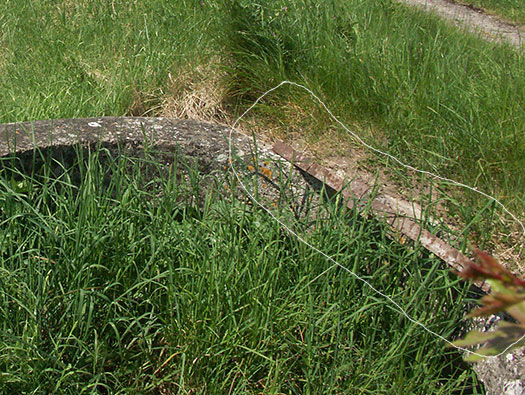

Eisenpfahel barbed wire post laying over the Tobruk.

11 May 2008

Eisenpfahel barbed wire post.
Eisenpfahel barbed wire post.
Eisenpfahel barbed wire post.
Eisenpfahel barbed wire post.
Eisenpfahel barbed wire post.
Eisenpfahel barbed wire post.

Wn93 St-Clément

Wn93 St-Clément

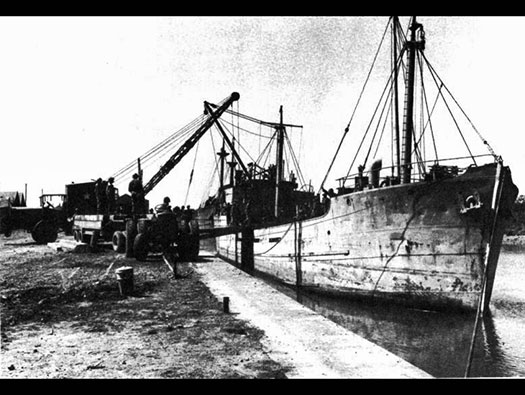

Port of Isigny a small coaster unloading by the Americans after it was captured.

11 May 2008

The old docks.
