— Et06Étretat beach

WN · K.V.Gruppe Etretat · AOK 15 Haute-Normandie · France

Wn Et06 Étretat plage

Etretat a lovely small channel town. In the late 1800's it became a very popular holiday destination, four hours by train from Paris. In WW1 many of the hotels were used as British and then American as hospitals. WW2 and the Germans arrived and started to defend between the high chalk cliffs. First with small bunkers and gradually increasing with tunnel systems to link up the larger gun casemates and lots of beach defences. Most of the bunkers were made locally only one or two were regular designs. One certainly is an R612 casemate for a WW1 type field gun.

Wn Et06 Étretat plage

05 March 2012

Wn Et06 Étretat plage

1 x R612 casemate.

1 x SK/casemate for a 5cm KwK.

1 x Schnabelstand Observation bunker.

1 x SK-Lla.

1 x 7.5cm F.K.235(b).

1 x 5cm KwK L/42.

1 x 5cm KwK L/60.

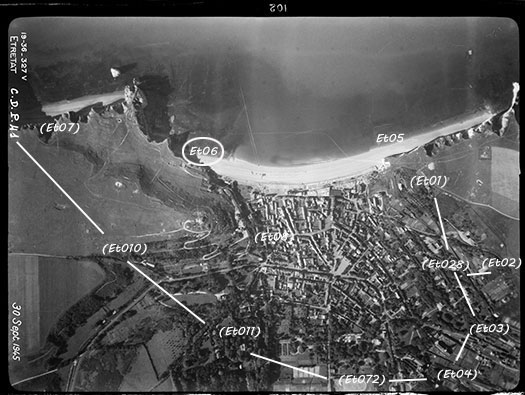

30 September 1945 Geoportail

Wn Et06 Étretat plage

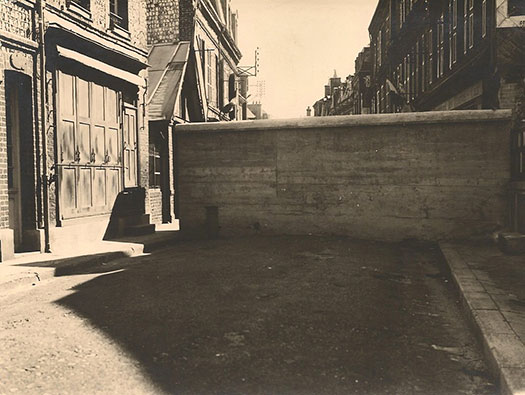

In the town there were several anti-tank walls built to stop or slowdown any attacker from the sea.

1940's

Wn Et06 Etretat plage

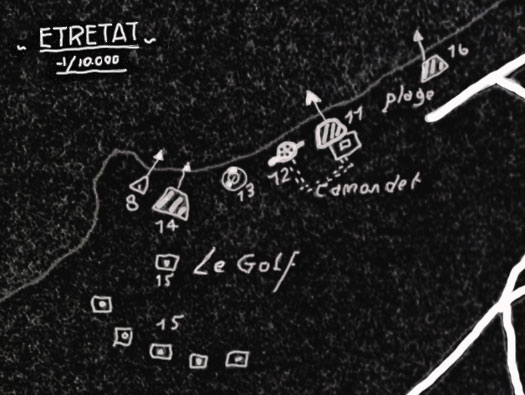

The French military like other allied armies visited many of the defences and drew maps and photographed of bunkers.

8 - Casemate pour Mitrailleuse.

11 - Casemate ' p ' campagne avec abri et souterrain.

12 - PC (Commander).

13 - Encov ' p ' 50mm.

14 - Casemate 612.

15 - 6 Abri personnel.

16 - Abri avec tobruk.

SHM

Wn Et06 Étretat plage

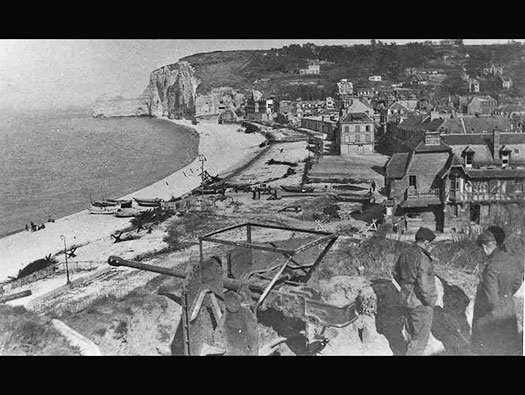

Placed up on the hill behind the beach was a 5cm KwK set in a field style position and not in the usual concrete emplacement.

1945

Gun mounting set into the ground not in an emplacement.

Wn Et06 Étretat plage

Placed up on the hill behind the beach was a 5cm KwK set in a field style position and not in the usual concrete emplacement.

Wn Et06 Étretat plage

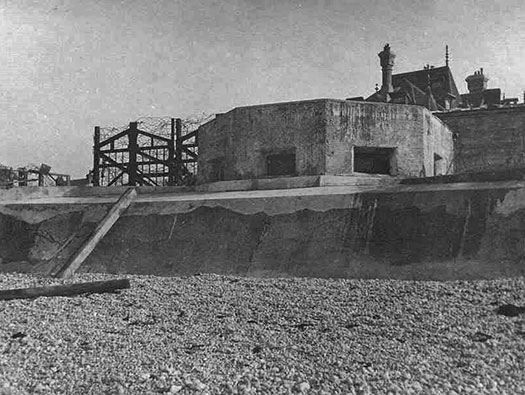

The second pillbox of this style, the first was in WnEt05. Also the Belgian gate road blocks behind.

Wn Et06 Étretat plage

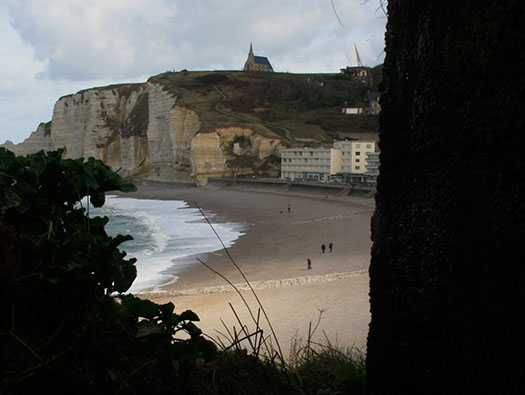

The area the pillbox covered.

05 March 2012

Wn Et06 Étretat plage

The next set of defences of Et05.

05 March 2012

Wn Et06 Étretat plage

An anti-tank gun bunker made locally and of no regular design.

05 March 2012

Wn Et06 Étretat plage

1944 the barbed and in 1945 the barbed wire has gone and the beach defences are starting to be cleaned up.

Bundesarchiv 1945 American

Wn Et06 Étretat plage

The Americans had camps at the end of the war to pass troops from Europe back to America. LeHavre was one of the major ports of embarkation. The American camps were called cigarette camps and were named after their major cigarette companies. The men in their spare time came down to Étretat beach for R&R.
Étretat's camp was Pall Mall.

US Signals Corps

Wn Et06 Étretat plage

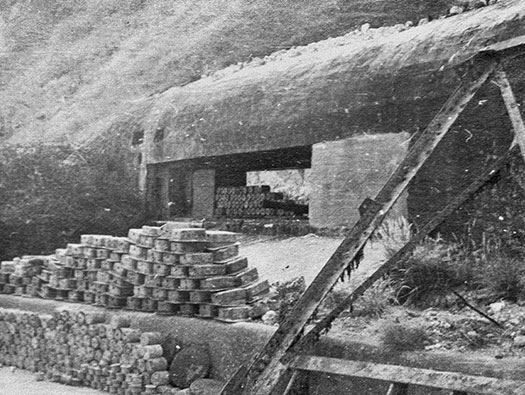

After capture and it looks like mines piled up after being removed off the beach area.

Wn Et06 Étretat plage

The side entrance into the casemate.

05 March 2012

Wn Et06 Étretat plage

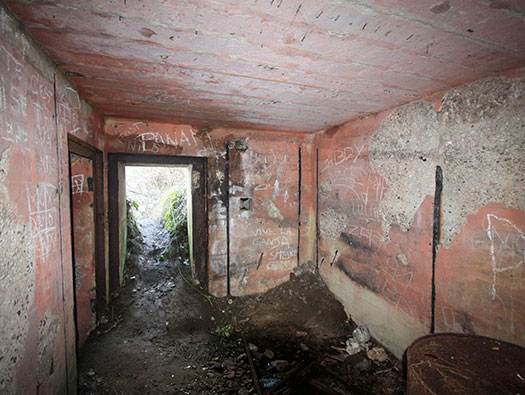

First you enter a small lobby room with a door on the right into the casemates gun room.

05 March 2012

Wn Et06 Étretat plage

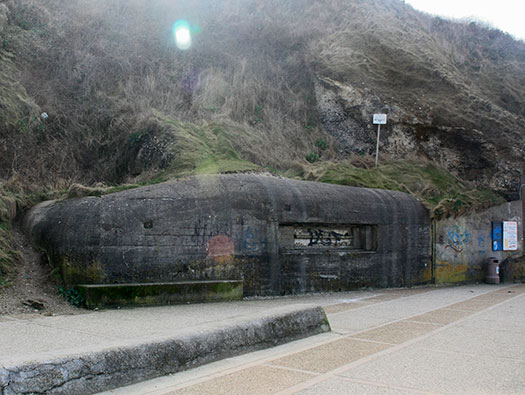

Note the very low roof with a long thin embrasure at the front.

05 March 2012

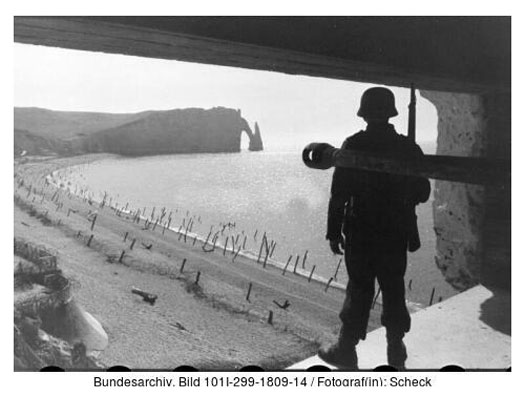

The gun barrel sticking out of the casemate, it does not have a muzzle break, so is it an anti-tank gun or not?

Wn Et06 Étretat plage

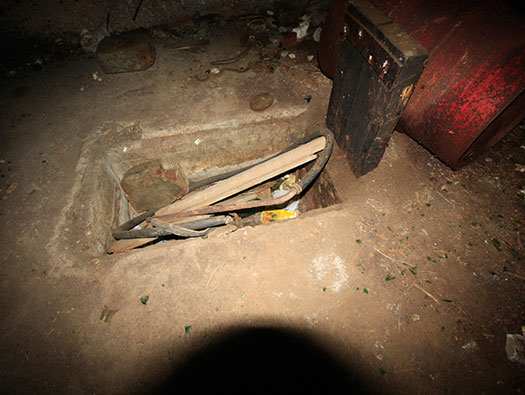

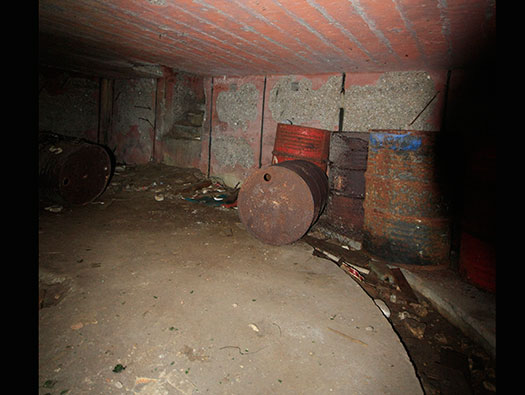

In the middle just below where the gun would have sat is a hole. It could be a pit to drop fired shell cases down after firing. A way of storing them out of the gun room when in action.

05 March 2012

Wn Et06 Étretat plage

Around the rear a trench in the concrete recess in a half moon shape. This was for the trails of the anti-tank gun to sit to stop the gun from flying backwards when the gun is fired.

05 March 2012

3.7cm Pak and you can see the trails sticking back from the gun.

It would have to have been a small anti-tank gun that was low to the ground to fit into the casemate.

Wn Et06 Étretat plage

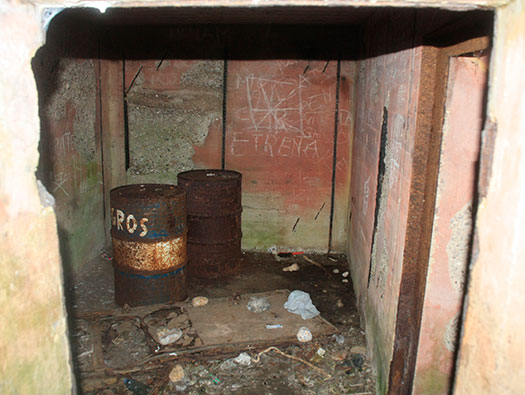

The small room on the way out.

05 March 2012

Wn Et06 Étretat plage

05 March 2012

Wn Et06 Étretat plage

The observation/command post was linked to the gun casemate by a tunnel.

05 March 2012

Wn Et06 Étretat plage

Relaxing troops.

Bundesarchiv

Wn Et06 Étretat plage

Then

Google

Wn Et06 Étretat plage

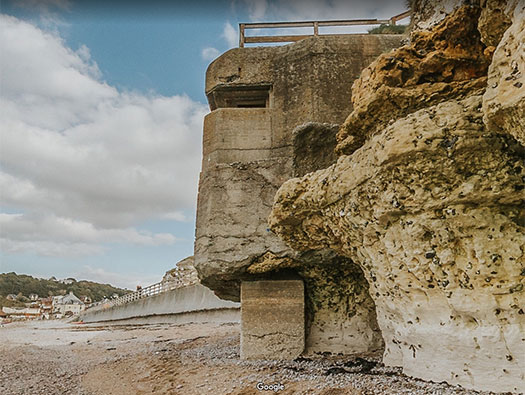

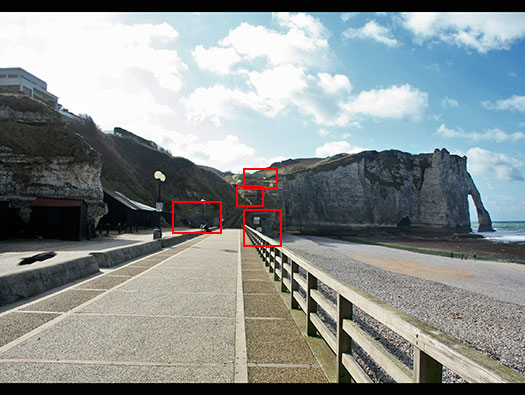

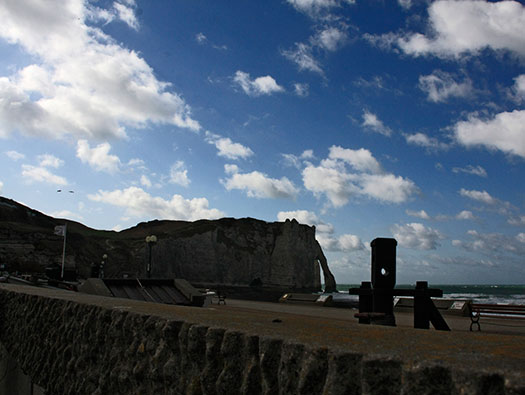

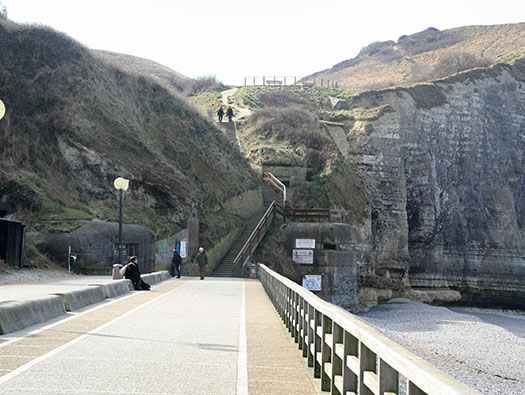

And Now

Wn Et06 Étretat plage

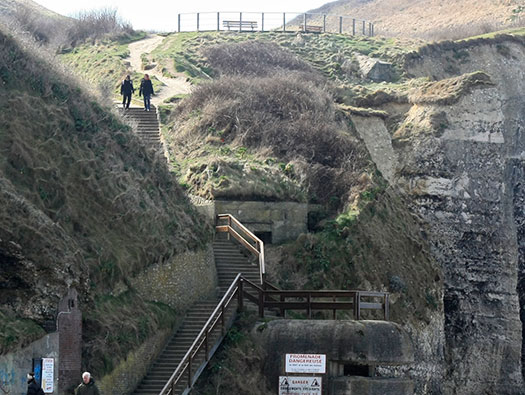

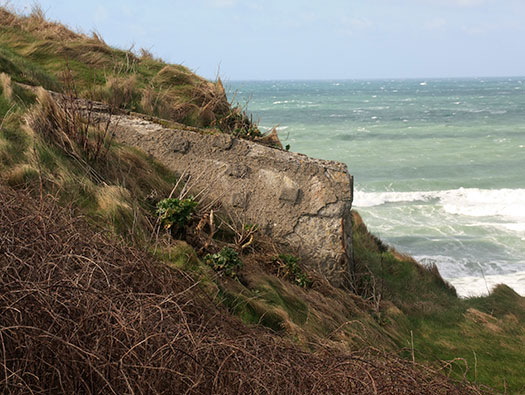

Continuing up the cliff to a machine gun pill box.

05 March 2012

Wn Et06 Étretat plage

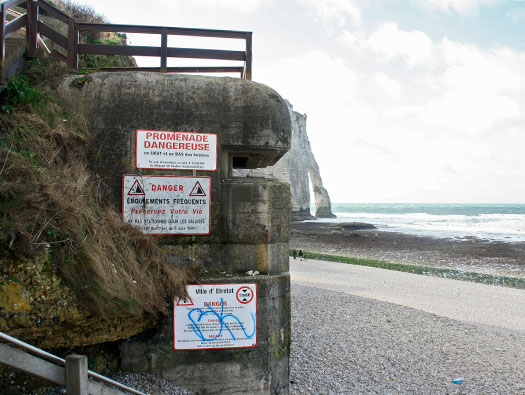

This machine gun could have cut to pieces any advance up the beach, it would have fired down about half the length of the beach.

05 March 2012

Wn Et06 Étretat plage

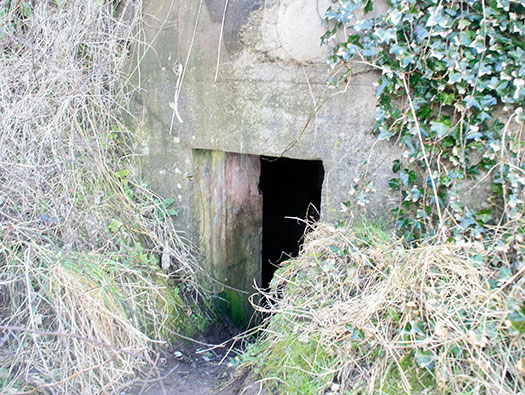

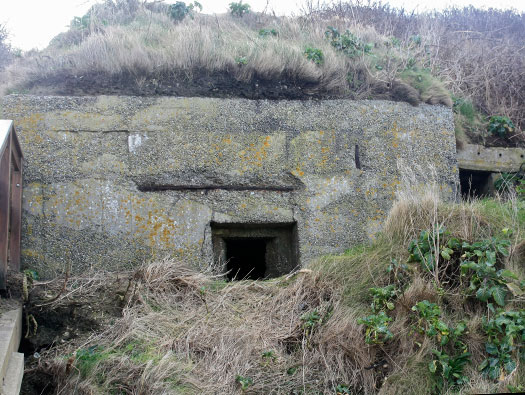

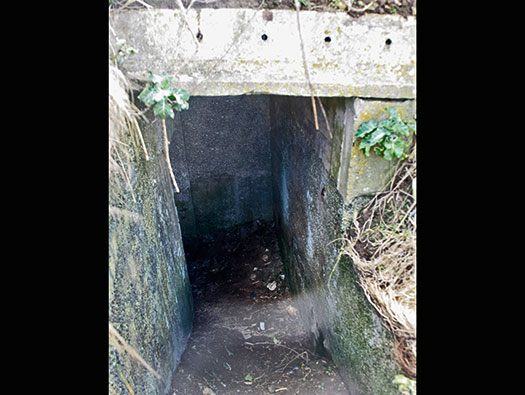

The small entrance.

05 March 2012

Wn Et06 Étretat plage

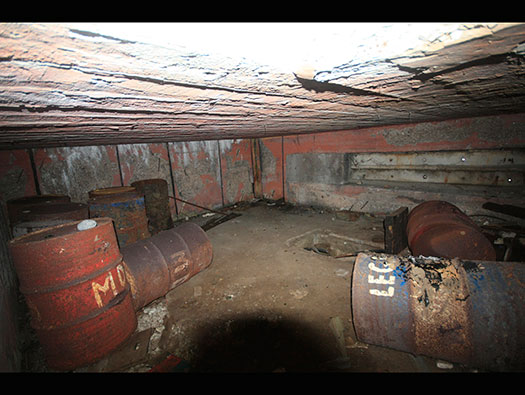

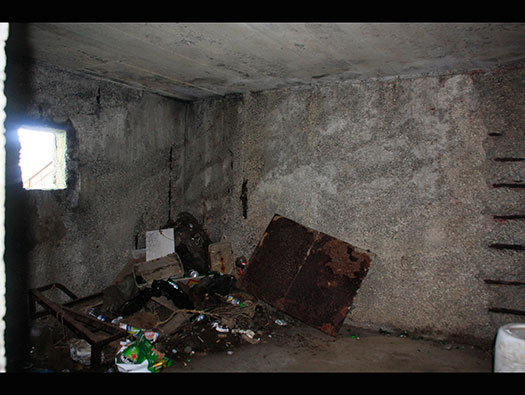

Looking inside the room.

05 March 2012

Wn Et06 Étretat plage

How the machine gun would have been able to fire down the beach.

05 March 2012

Wn Et06 Étretat plage

Above is the R612 casemate for a field gun, a 7.5cm F.K.235(b).

05 March 2012

Wn Et06 Étretat plage

The flanking wall and its camouflaged concrete.

05 March 2012

Wn Et06 Étretat plage

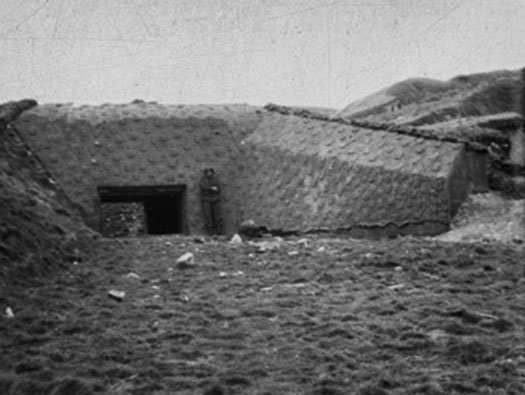

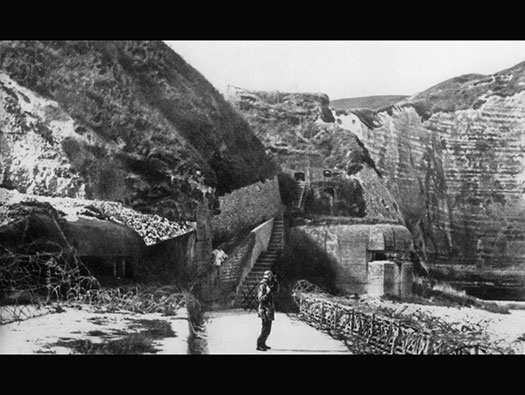

An American soldier being used to show the size of the casemate, or he is sheltering from some very bad weather.

Unknown

Wn Et06 Étretat plage

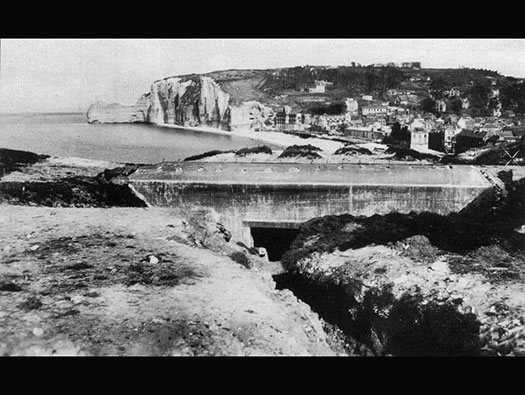

This is the rear of the casemate and a trench entrance into it. This casemate cannot be seen now as a wooden observation platform has been built over it.

1944

Wn Et06 Étretat plage

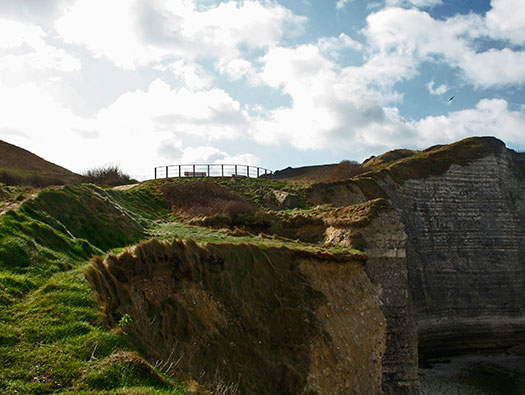

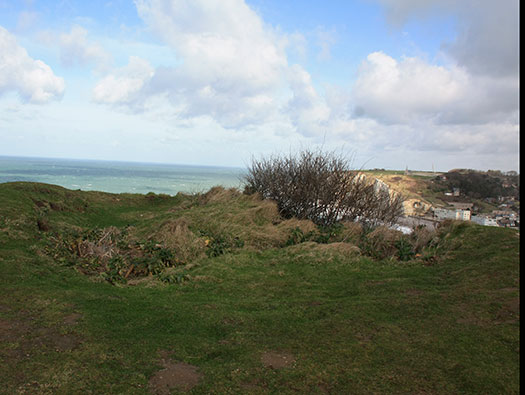

Trenches up on the cliff top. Behind here, now on the golf course, were six small group shelters of unknown type and probably an earth/wood supplemented by concrete to strengthen them. All these have been covered over by the golf course.

05 March 2012

Wn Et06 Étretat plage

05 March 2012
