Fe03 Senneville H.K.B.
HKB · K.V.Gruppe Fécamp · AOK 15 Haute-Normandie · France
Fe03 Fécamp Senneville H.K.B.
H.K.A.A1253.
1 x R636a command post.
1 x R610 RQ.
2 x R635 twin group bunker.
2 x V165 Luftwaffe.
1 x R607 Ammunition.
2+2 x R679 casemates.
3 x 2cm Flak.
6 x 15.5cmK.420(f) guns.
2 x FMG 40 G (gB) Calais B. Luftwaffe Station.
3 x Agregät Bunker (generator). 2 x V165.
Fe03 Fécamp Senneville H.K.B.
Fécamp North east of Le Havre, another cleft in the cliff which was cut through by the river Valmont and later a port was created to accommodate a large fishing fleet.
Fe03 Fécamp Senneville H.K.B.

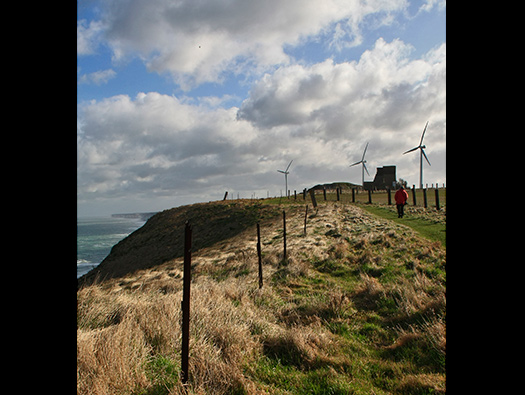

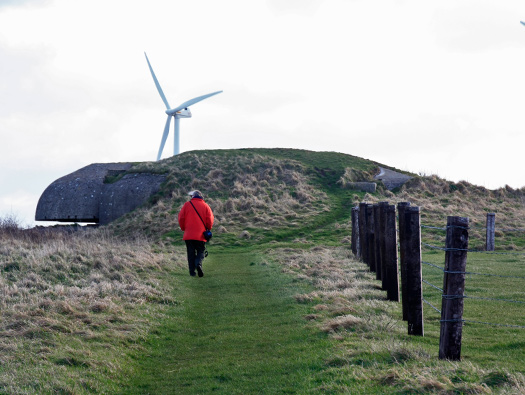

We drove to the top of the hill with plenty of parking by the church and walked around the cliffs.

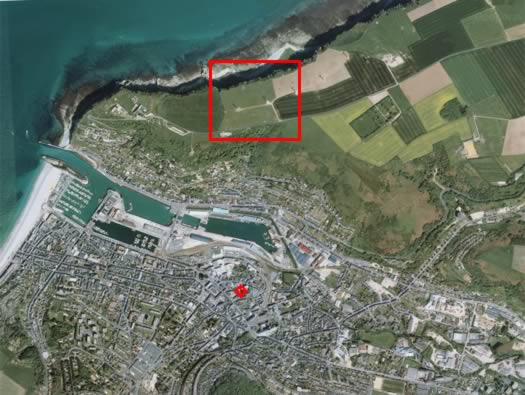

Fe03 is from the cliff edge, amongst the first three wind turbines to the D79 road.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe Station H.K.A.A1253.
An artillery position of six open emplacements gradually being replaced by R679 casemates of which two were finished. Several ammunition, personnel and Command post on the cliff.

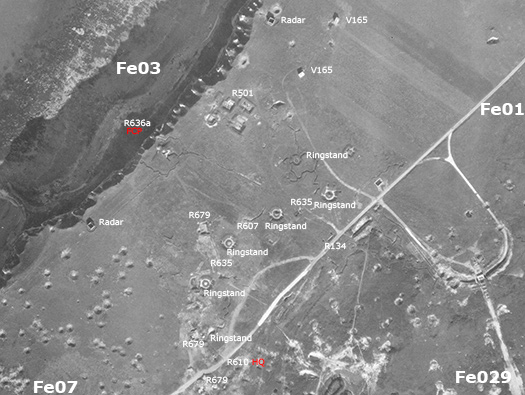

1945 Geoportail
Fe03 Fécamp Senneville H.K.B.
It was so windy I had trouble taking some of these photos.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

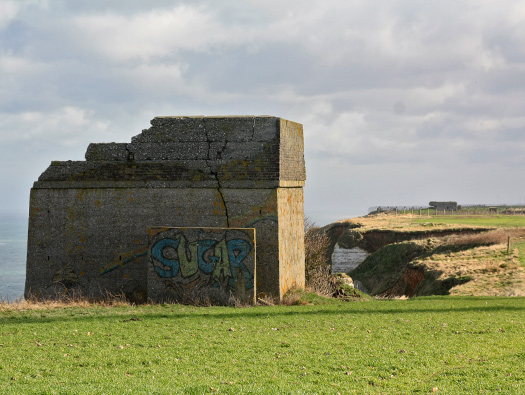

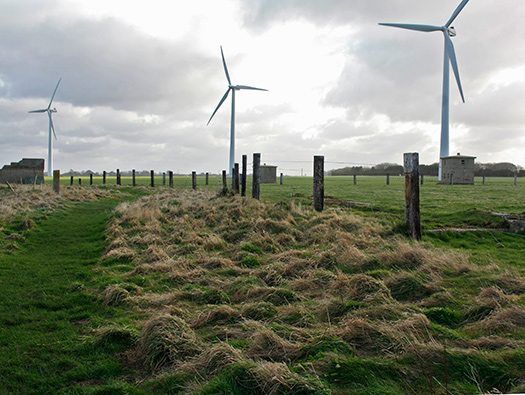

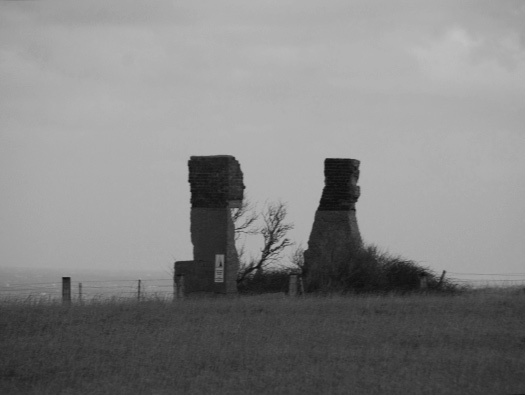

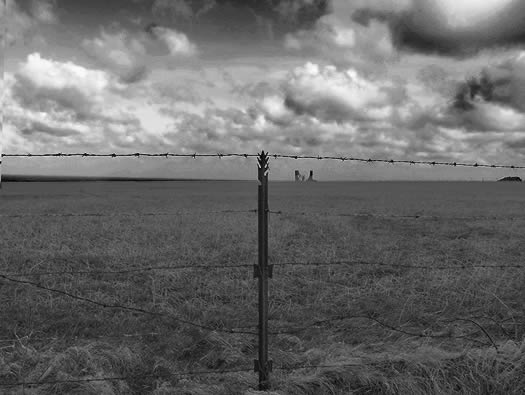

A radar building in the background and several Eisenpfahel barbed wire posts still in place.
05 March 2012
![Eisenpfahel [iron stake].](https://firebasestorage.googleapis.com/v0/b/atlantikwall-a75d6.firebasestorage.app/o/archive-images%2F39635f41.jpg?alt=media)
![Eisenpfahel [iron stake].](https://firebasestorage.googleapis.com/v0/b/atlantikwall-a75d6.firebasestorage.app/o/archive-images%2F1eabe7c9.jpg?alt=media)
Fe03 Fécamp Senneville H.K.B.

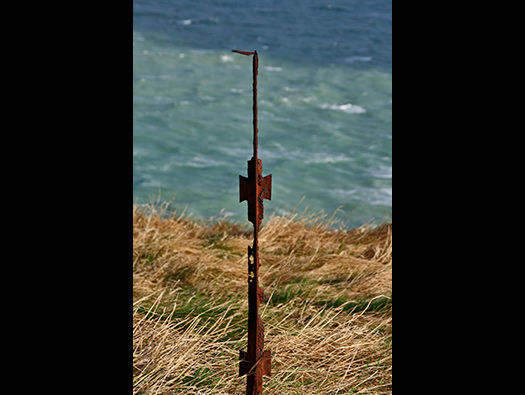

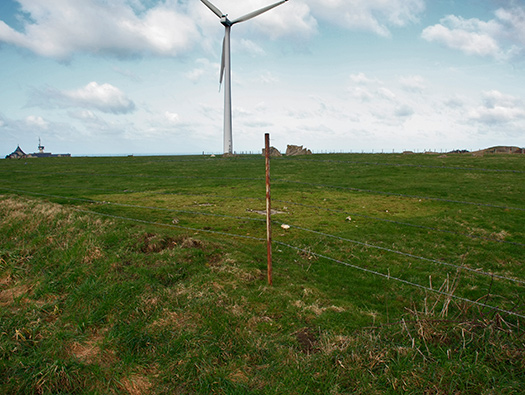

Eisenpfahel [iron stake].
05 March 2012
Fe03 Fécamp Senneville H.K.B.

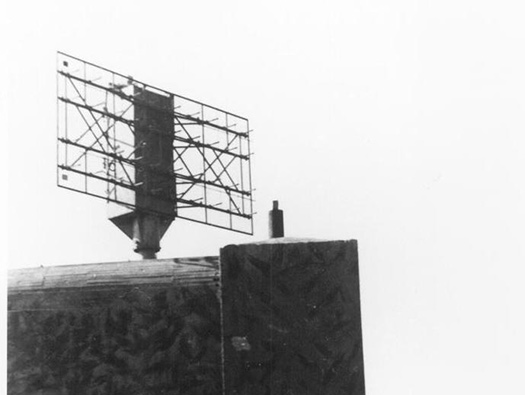

2 x FMG 40 G (gB) Calais B. I believe this is the type of radars here.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
The radar would sit inside a square wall and the radar could be raised or lowered above the protected wall to see Allied ships out at sea and then send the information to the R636a command post and then the batterie of guns would then fire on the ships. A friend who was a 17year old sailor used to go out at night to annoy the radars and get shot at. A Wellington bomber was flying over and packed with electronics. They pinpointed the radars and got to know what types and their output. When D-Day daed these radars were either destroyed by Allied aircraft or left working so decay planes and ship could make themselves look like a landing force miss informing where D-Day was to be. Go to Allied Counter Measures 5/6th June 1944
05 March 2012
Fe03 Fécamp Senneville H.K.B.

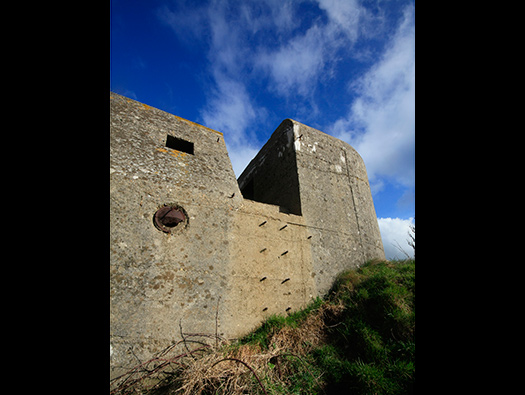

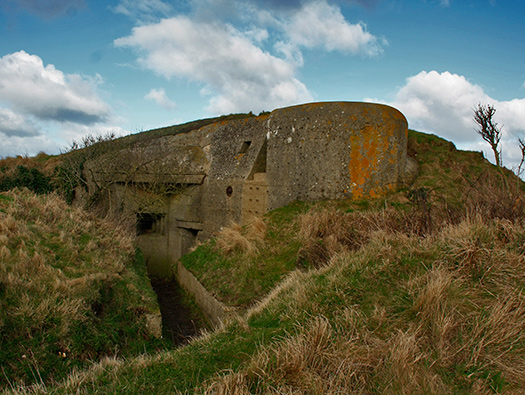

R636a Command post for a coastal batterie.
Before radars the Fire Control Post searched the horizon for an enemy, the information was sent do into the computing room and then details would be sent via field telephone to the guns. Then radars came in and they could see an enemy further than the eye could see. The information again would come in to the computing room and re sent out to the guns allowing them more time to prepare and fire.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

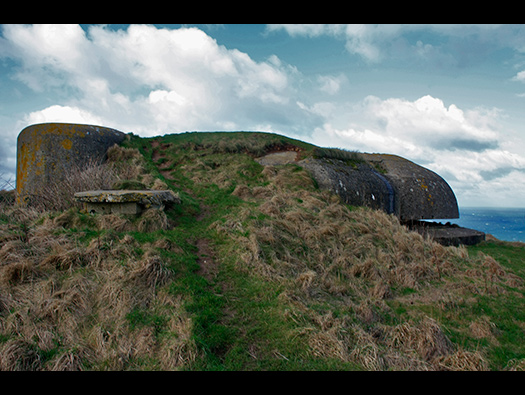

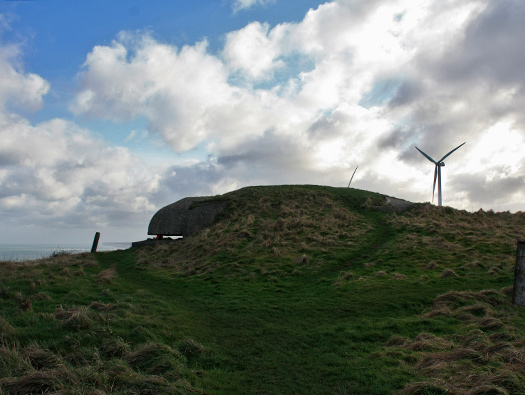

Command post for a coastal batterie.

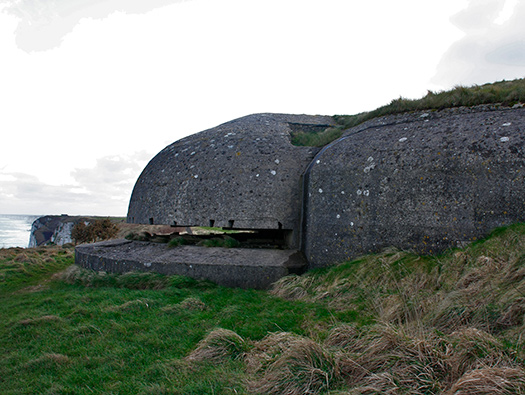

Nice view from the side.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Command post for a coastal batterie.
Observation room with a view.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

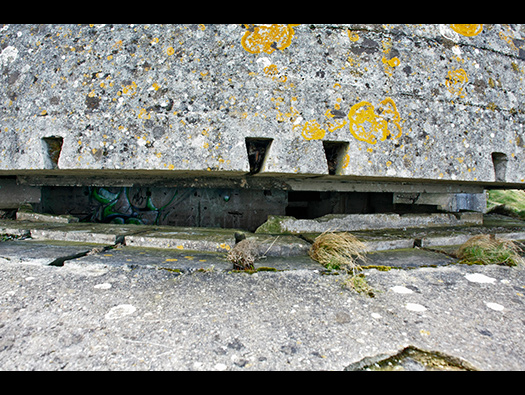

Observation. The slots in the concrete were for wooden blocks for the fitting of windows.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Observation far side.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Command post for a coastal batterie.

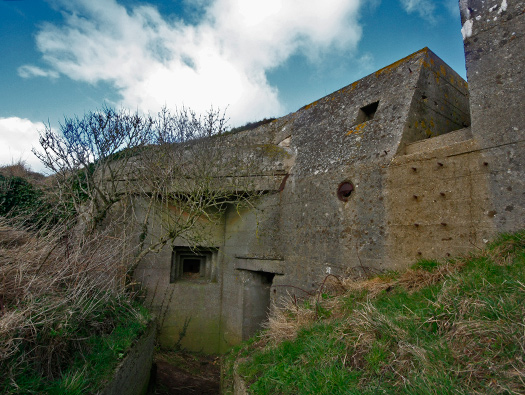

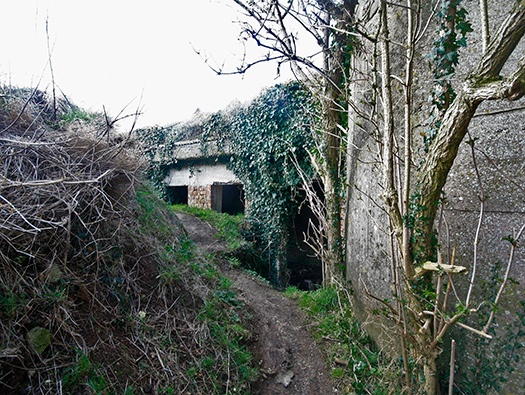

Rear entrance and trenches and way up to the roof.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Command post for a coastal batterie.
Close combat defence covering the entrance.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Behind the command post is a sort of office.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Inside the office.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Command post for a coastal batterie.

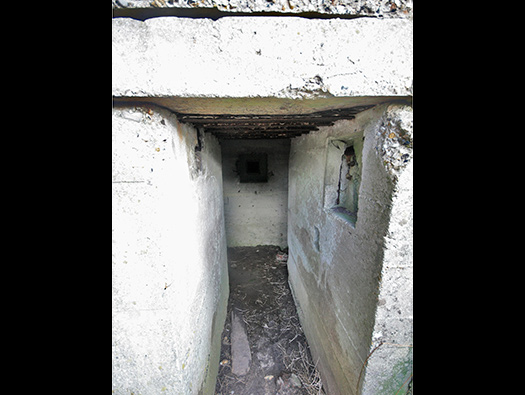

The entrance into the CP with a close combat embrasure covering the way in.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

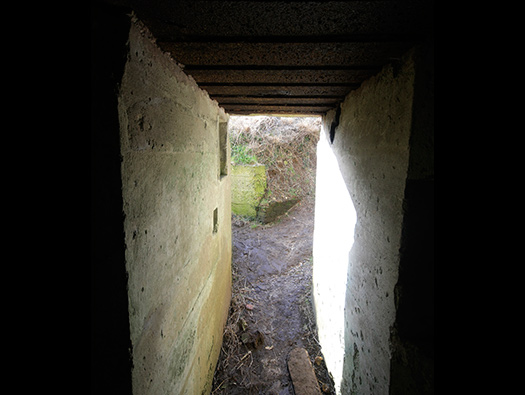

The entrance.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Entrance and close combat defence room.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

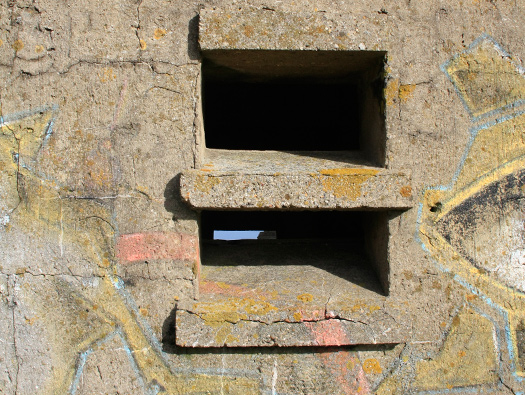

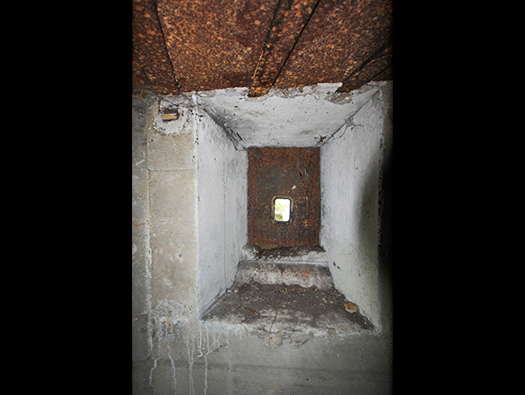

Close combat defence room embrasure covering the entrance.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

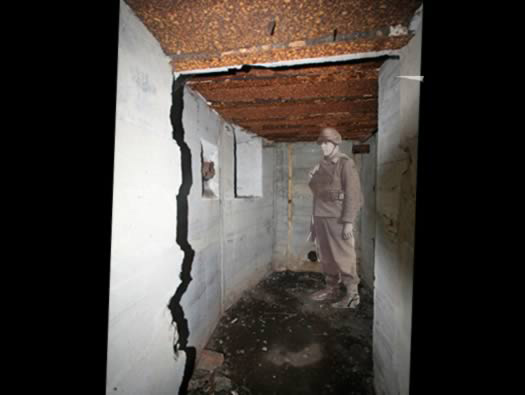

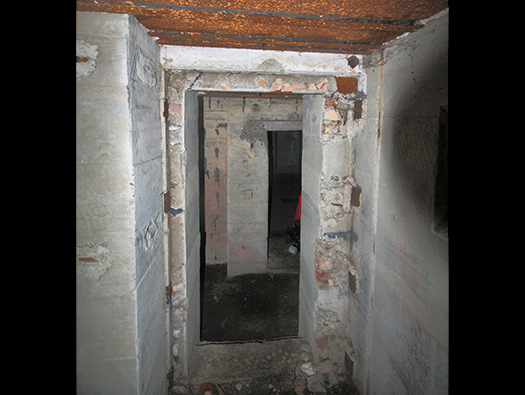

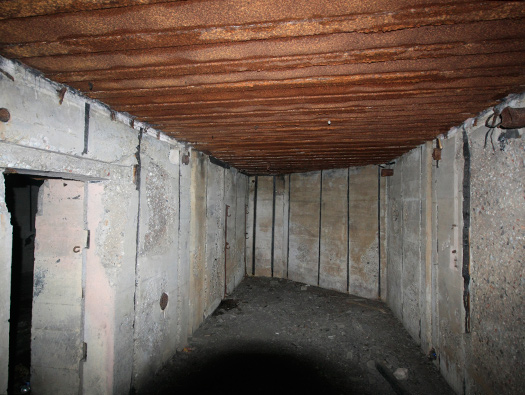

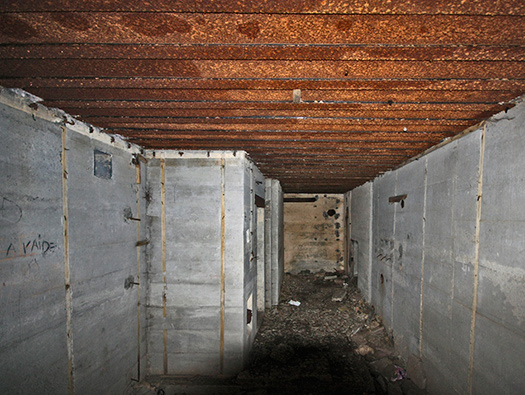

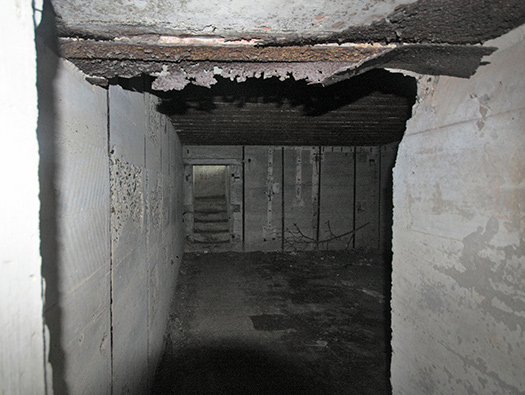

Passageway.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

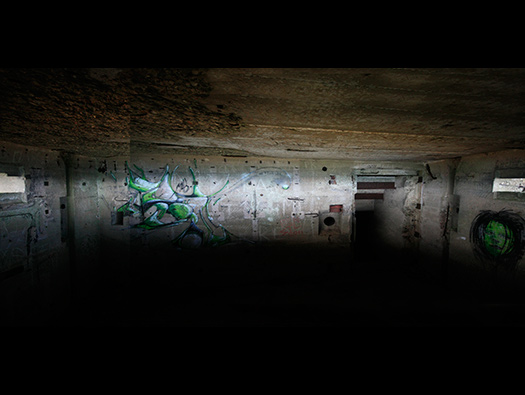

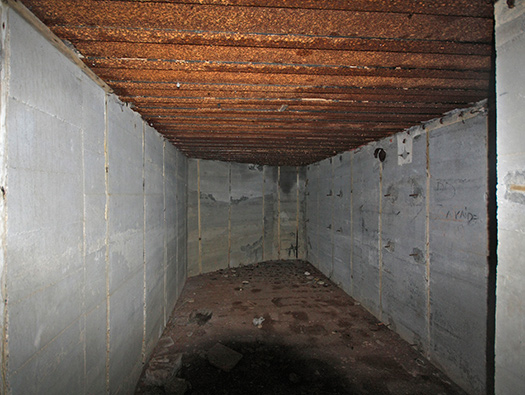

Crew room.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Crew room..
05 March 2012
Fe03 Fecamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Crew room details, the small recess in the wall is a light switch, something I never noticed on my visit.
There was also some other fitting coming do the wall??
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

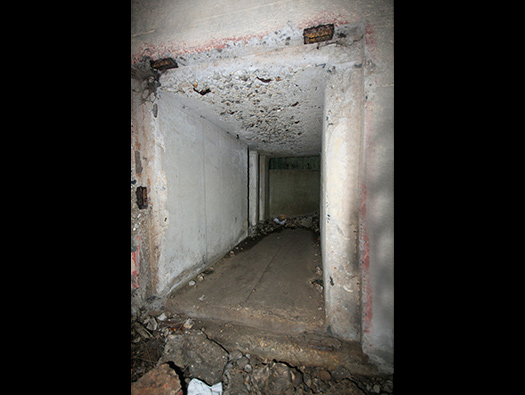

Crew room escape tunnel.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Computing room. All information would have come here and be then sent to its o batterie and any other guns needed for the shoot.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

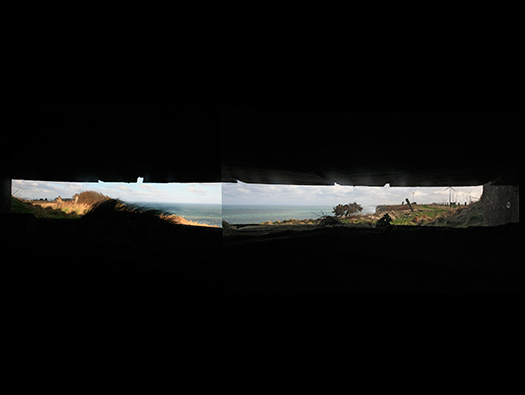

The view out of the observation room.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Now looking at the back wall of the observation room.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

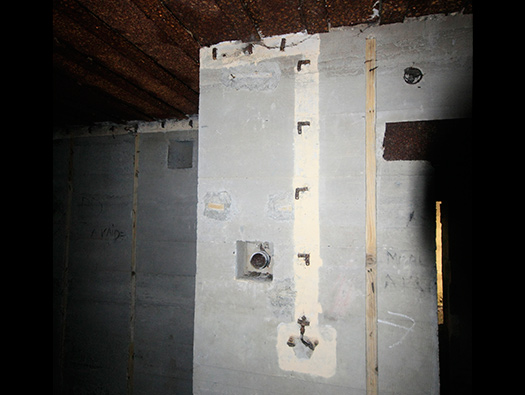

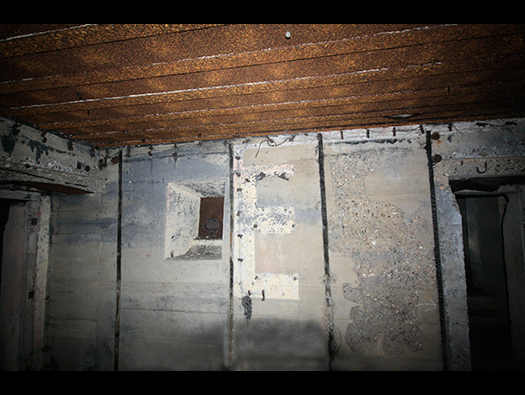

Where fittings were placed on the wall. The E shape is just something that was fitted to the wall and painted around it and the recess is the close combat defence window covering the back door.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

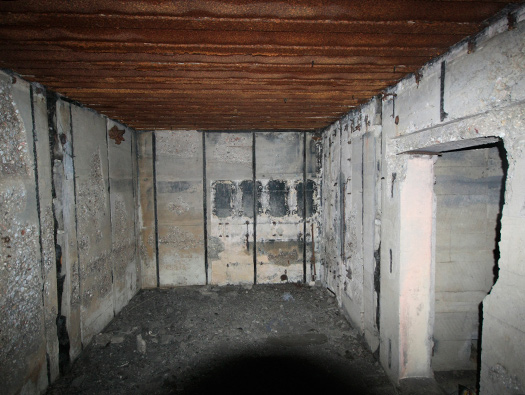

Communications room showing fittings on the wall.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Red dot ----- Officers room.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Way out.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

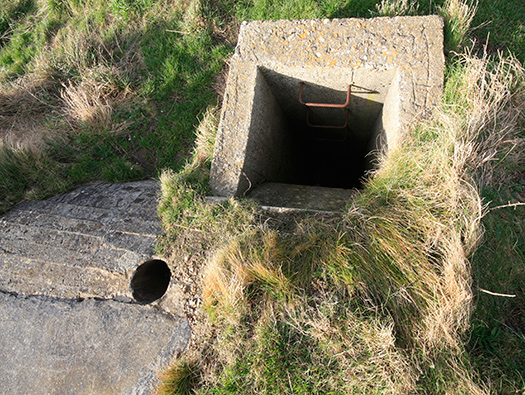

Way up to the rangefinder space and there were steel rungs set into the concrete and now cut off. Spoil sports.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
Rangefinder space.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.

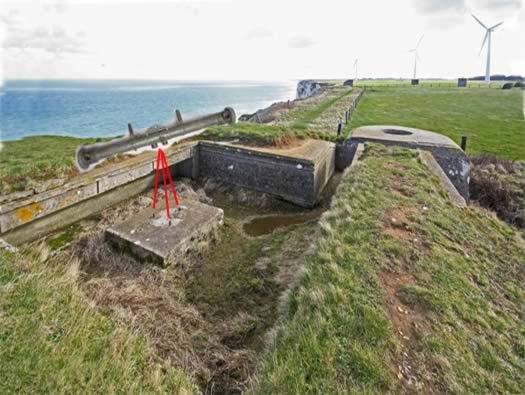

Observation and machine gun ringstand.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
This is where the escape hatch leads out.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
R636a Command post for a coastal batterie.
The incredible view.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

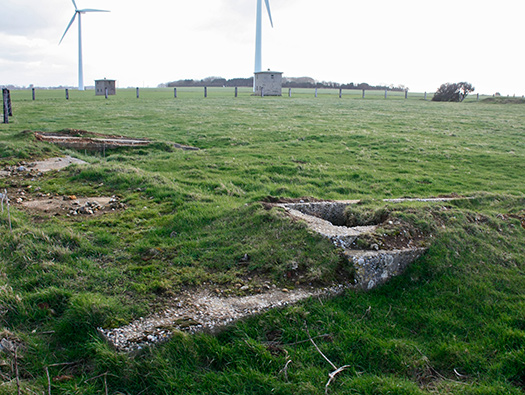

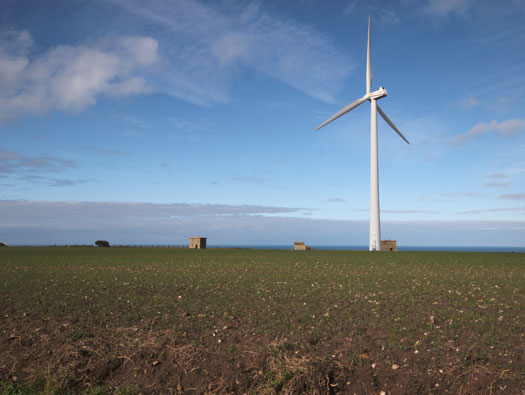

wind farm, radar and V165 radio jamming houses.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Possibly an R501 group shelter.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

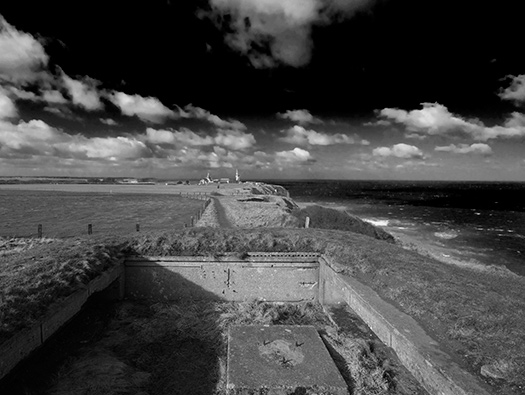

The second radar.
(Copied from earlier radar)
The radar would sit inside a square wall and the radar could be raised or lowered above the protected wall to see Allied ships out at sea and then send the information to the R636a command post and then the batterie of guns would then fire on the ships. A friend who was a 17year old sailor used to go out at night to annoy the radars and get shot at. A Wellington bomber was flying over and packed with electronics. They pinpointed the radars and got to know what types and their output. When D-Day daed these radars were either destroyed by Allied aircraft or left working so decay planes and ship could make themselves look like a landing force miss informing where D-Day was to be. Go to Allied Counter Measures 5/6th June 1944
05 March 2012
Fe03 Fécamp Senneville H.K.B.

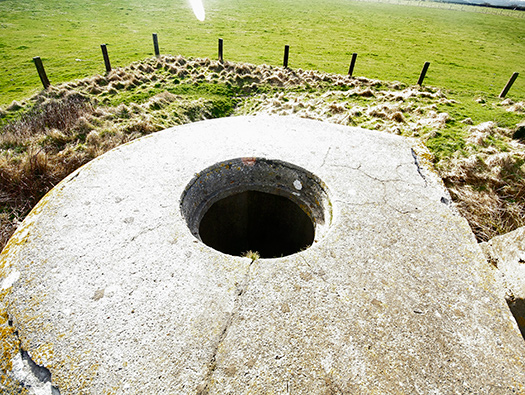

Ringstand.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

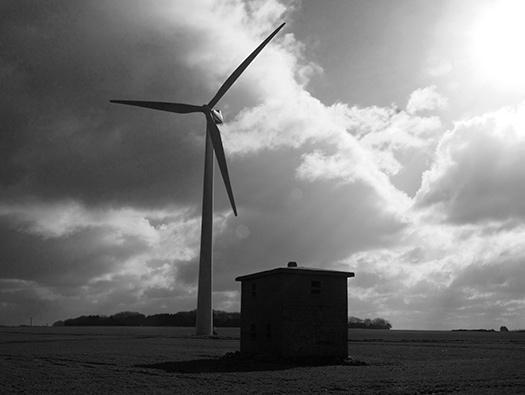

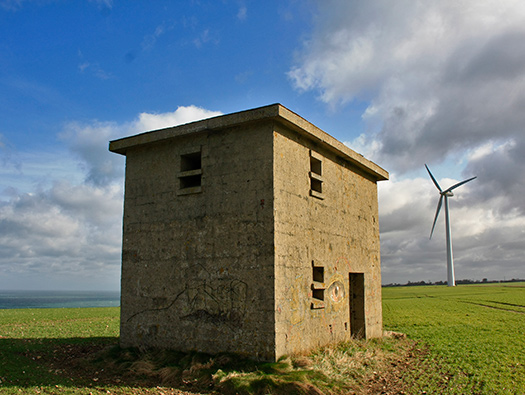

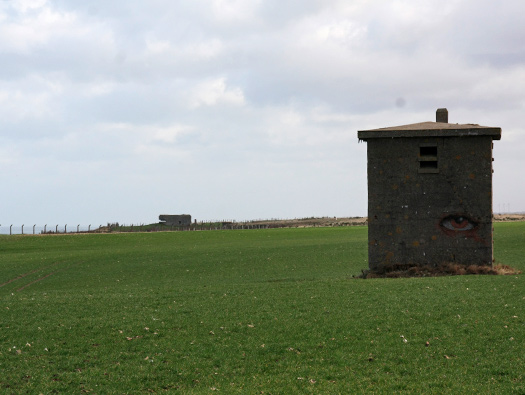

Luftwaffe V165 buiding.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe V165 buiding .
There were at least two V165's and a generator either in a bunker or on a lorry?? The V165's had antennas on the roof and were used to check the accuracy of bomber pilots hitting their targets on the bombing range.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe V165 building.

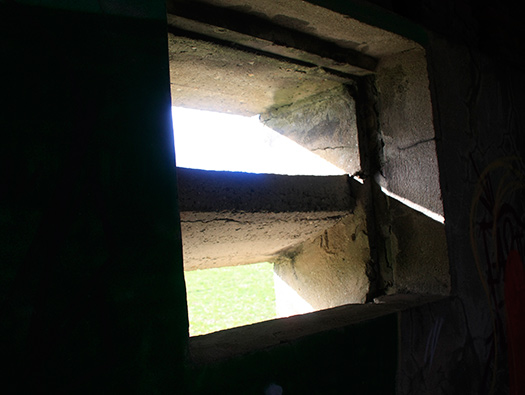

Semi protected windows.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe V165 building.

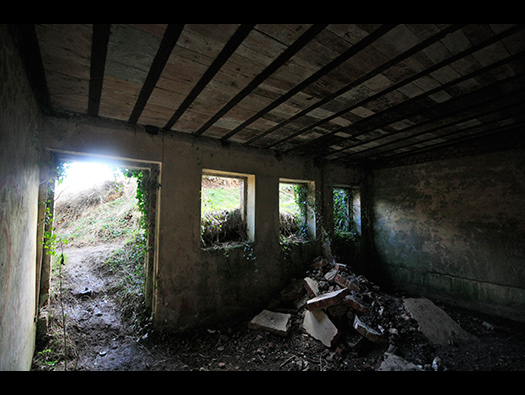

Windows inside.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

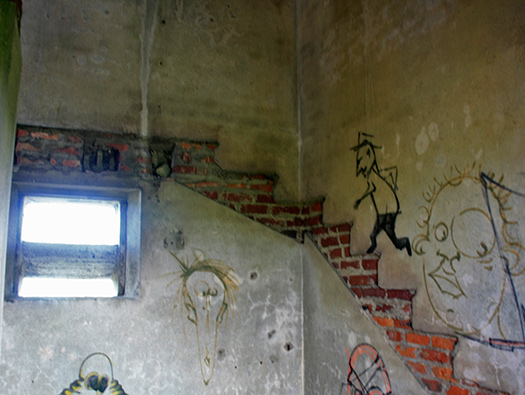

Where the stairs used to be.
This site is quite rare in France, one here at Fécamp and another near Cherbourg. I have received information that there are two similar sites in Denmark.
They were built after 1941 and situated near airfields and used for bombing and firing practice. In Denmark they were used for twin engined aircraft Me Bf 110 and Ju 88, and the same types of planes could have used the range here. They were always situated near airfields, Mont Etolan (Cherbourg) was near Maupertus sur Mer is only a few kilometres away.
Kurt Stigaad from Denmark who supplied the information on the operation of the Danish sites, states that targets would be placed in the surrounding fields and the bombers would be controlled from the main bunker. There would also be a FuMo radar mounted on top of one of the buildings. At Mount Etolan it is possible that the building next to the command type building would be an obvious choice.
The other four two storey buildings would have mirrors on top so that they could monitor the bombing runs, and firing accuracy then radio back to the aircraft their reports.
The site could also have been a fully manned radar station as well as being used for practising precision bombing.
There would also have been an Agregât
bunker that could take in the information of the V165's and send the results to the bomber.
This will take you to Mount Etolan near Cherbourg.
There are four of these buildings. The doors are all facing south away from the bombing range.
A mirror in the roof reflects the bomber target. The image shines do onto a target table. A flash from the bomb dropping is reflected on the table and the position can be pin pointed and the accuracy sent to the plane or squadron. So was it like this??
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe V165 building.

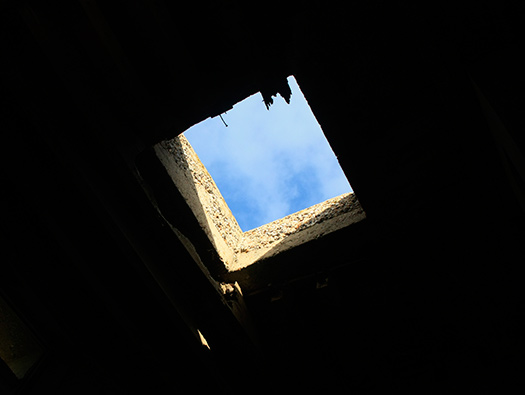

Roof light to allow a mirror structure to protrude out to evaluate the accuracy of the aircraft.
05 March 2012
Fe03 Fecamp Senneville H.K.B.
Luftwaffe V165 building.

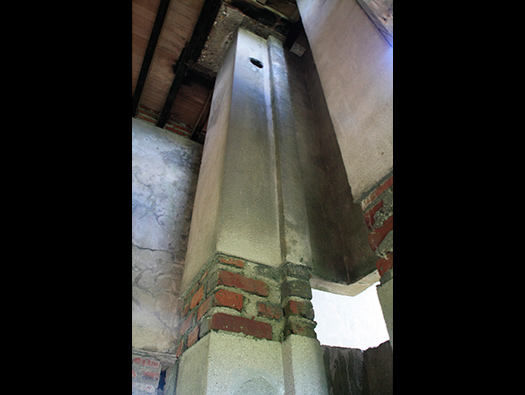

Chimney so there must have been heating.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
Luftwaffe V165 building.
They would make a great house.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
2./H.K.A.A.1253 batterie six 15.5cm K.420(f) guns in open emplacements with two R607 ammunition bunkers and two R635 twin group bunker with a forward apron. Then two R679 were built and two more under construction to place the guns under casemates.
05 March 2012
Fe03 Fecamp Senneville H.K.B.

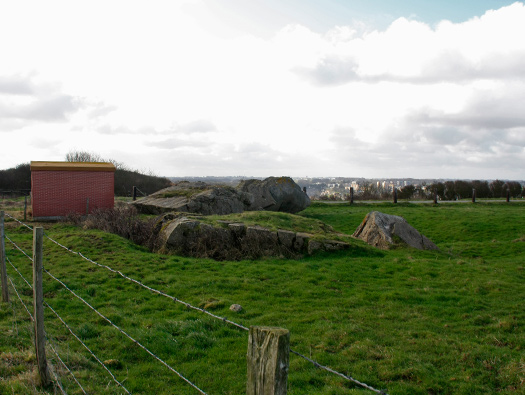

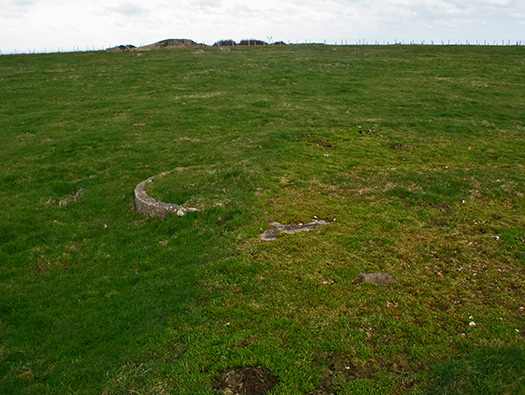

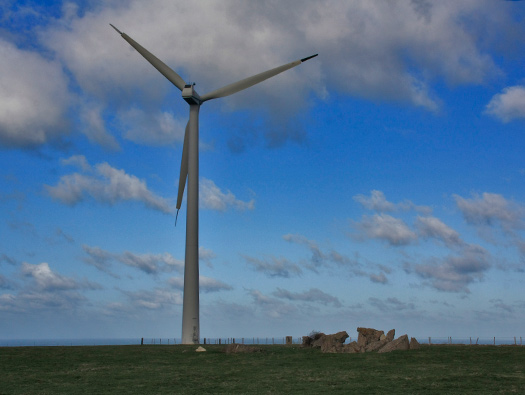

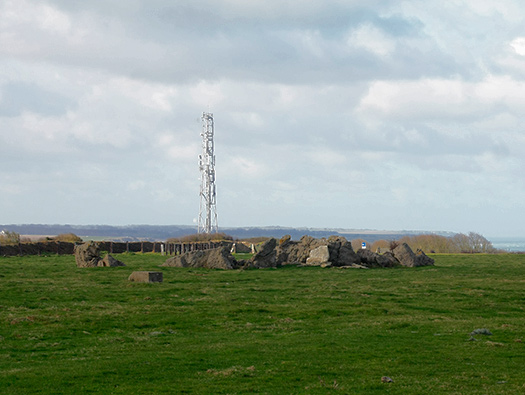

All these bunkers have been destroyed and either removed or just lumps of concrete left lying around.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
I think this is the R622 twin group bunker.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
05 March 2012
Fe03 Fécamp Senneville H.K.B.

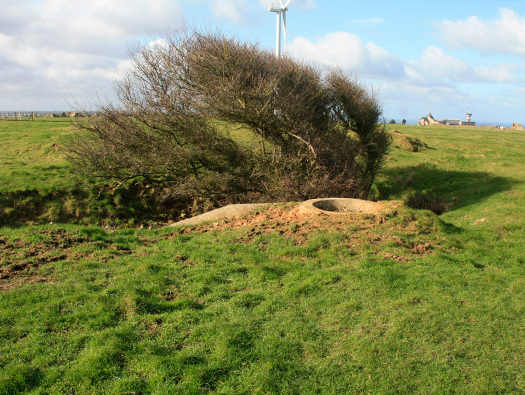

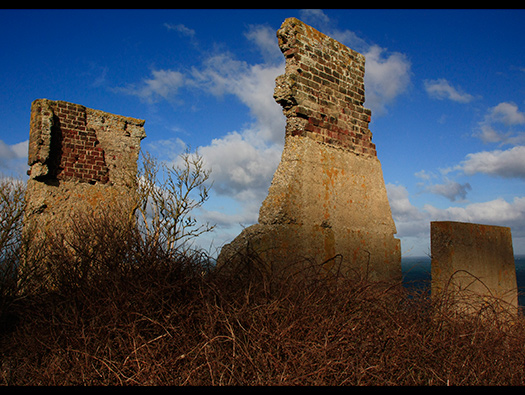

Remains of some kind.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
05 March 2012
Fe03 Fécamp Senneville H.K.B.
05 March 2012
