The defence of the north side of the Gironde river starting at la Route Neuve, the road to the ferry north was Gi01. Now there is a large bridge to Ronce-les-Bains making it very easy to get too. So we start here at Gi02, now almost smothered in housing, but things can be found.

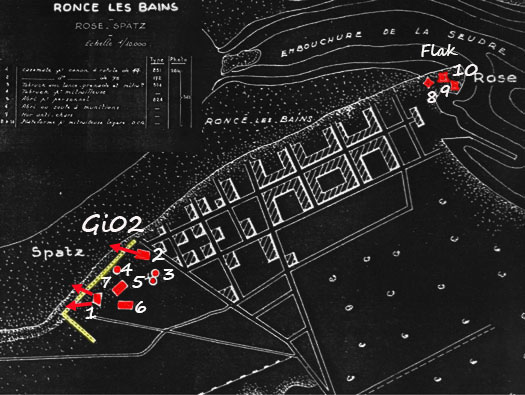

Gi02 Ronce-les-Bains 'Luneburg'

1 - Casemate pour canon 47mm.

2 - Casemate pour canon 75mm.

3 - Tobruk avec lance-grenade et mitrailleuse.

4 - Tobruk pour mitrailleuse.

5 - Abri Pour personnel.

6 - Abri ou soute âmunitions.

7 - Mur anti-char.

8 & 9 - Plateforme pr mitrailleuse Legere D.C A. M.G. Flak.

SHM 1946

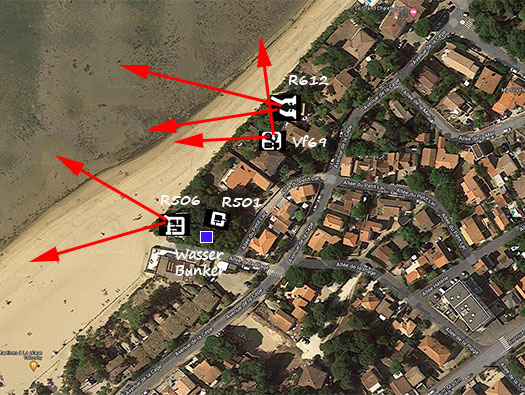

Gi02 Ronce-les-Bains 'Luneburg'

1 x R501 group bunker with flanking walls.

1 x R506 casemate with a 4.7cm fortress Skoda gun.

1 x R612 casemate for F.K.5/8(t).

1 x Vf58c Tobruk.

1 x Vf69 mortar Tobruk.

1 x 4.7cm Pak K.36(t).

3 x 7.5cm F.K236(b).

1 x 7.65cm F.K.5/8(t).

Google

Gi02 Ronce-les-Bains 'Luneburg'

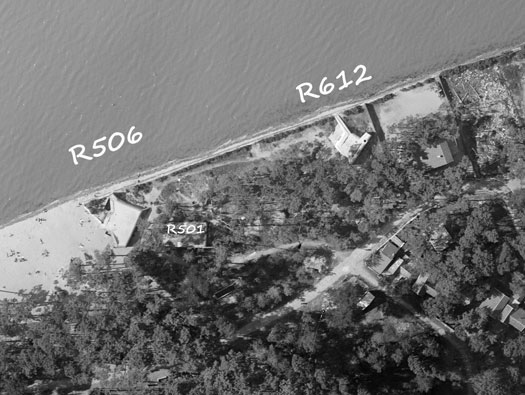

An IGNF air photo taken in September 1946 that really shows the bunkers up well.

IGNF 10-09-1946

Gi02 Ronce-les-Bains 'Luneburg'

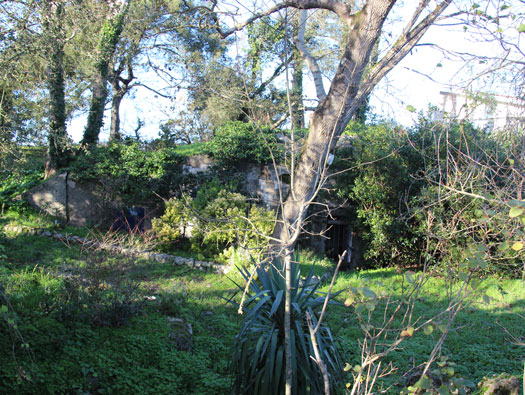

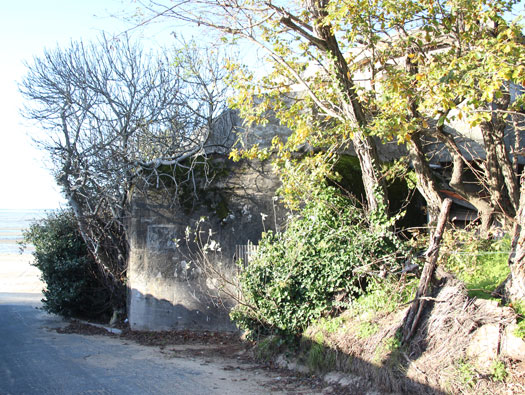

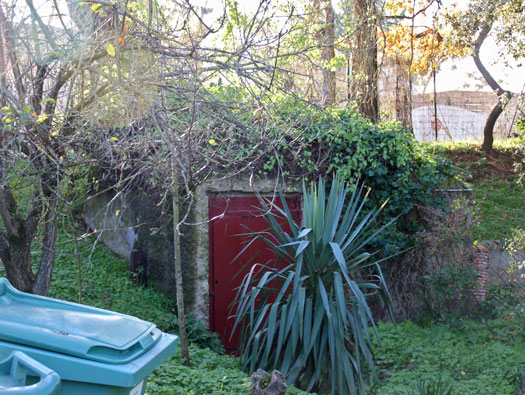

Wasser bunker, when you have 30/40 men in a small area,. They will need a lot of water. So water bunkers were added to the defence. Usually just small room with one or two concrete tanks of water.

07 November 2012

Gi02 Ronce-les-Bains 'Luneburg'

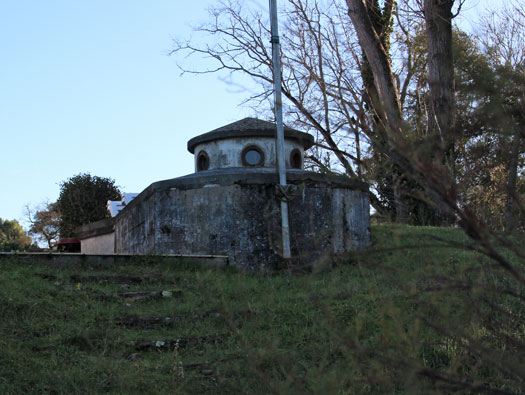

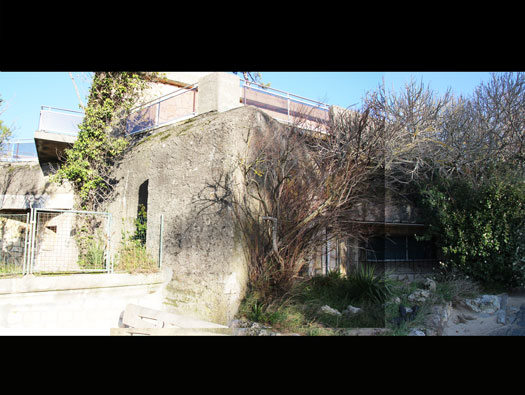

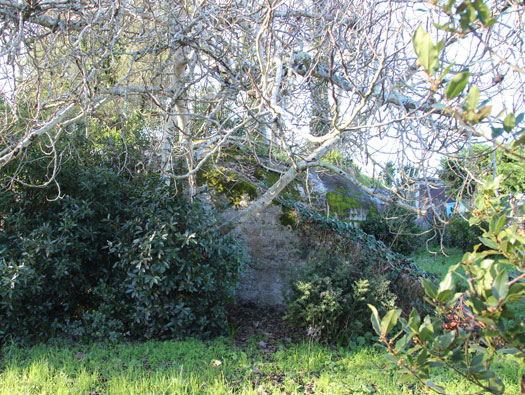

R501 Group Bunker. R501 small group bunker with what looks like an attached Tobruk? as it has two doors on the rear wall.

07 November 2012

R501 with added Tobruk and two protective flanking walls.

Gi02 Ronce-les-Bains 'Luneburg'

R501 Group Bunker You can just see the two flanking walls sticking out.

07 November 2012

Gi02 Ronce-les-Bains 'Luneburg'

R506 was an early 1939 design casemate with a 4.7cm fortress Skoda gun.

07 November 2012

R506.
A. Gun room.
B. Ammunition.
C. Crew room.
D. Gas lock. — R506. A. Gun room. B. Ammunition. C. Crew room. D. Gas lock.

Gi02 Ronce-les-Bains 'Luneburg'

A contemporary picture of the god times..

SD 1942/44

Gi02 Ronce-les-Bains 'Luneburg'

R504 Casemate for a 4.7cm A/T gun (t). Now converted to some form of living accommodation and a house built on the top.

07 November 2012

This is a slightly different one to the plan and has a close combat defence added to the rear door here.

Gi02 Ronce-les-Bains 'Luneburg'

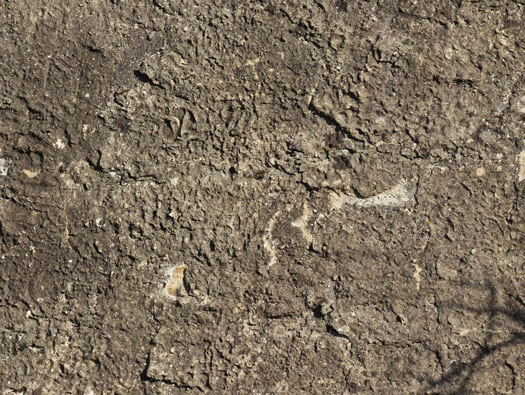

Camouflage concrete extra covering.

07 November 2012

Gi02 Ronce-les-Bains 'Luneburg'

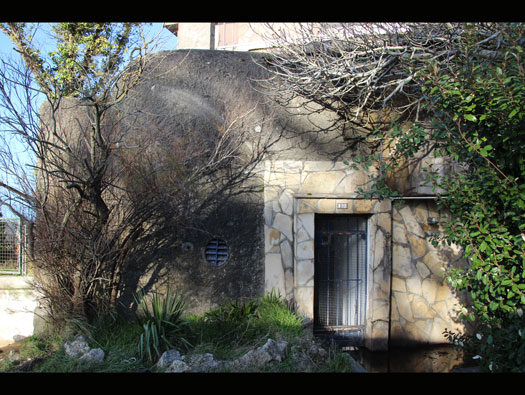

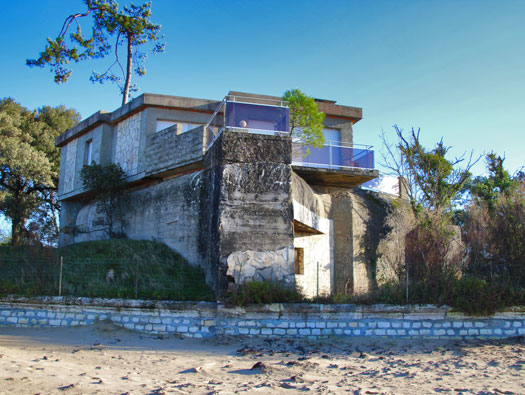

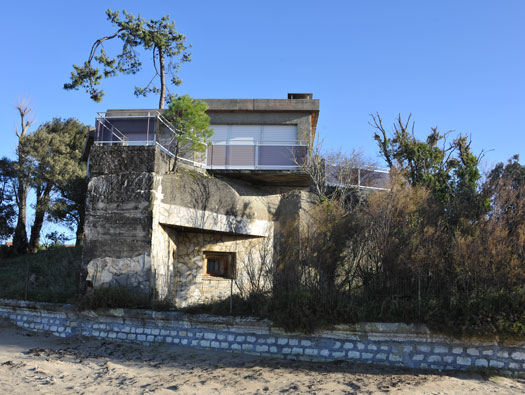

R504 Casemate for a 4.7cm A/T gun (t). The close combat embrasure has been replaced by a larger double window. The 4.7cm Skoda embrasure to the left side.

07 November 2012 Inside a Skoda casemate.

Gi02 Ronce-les-Bains 'Luneburg'

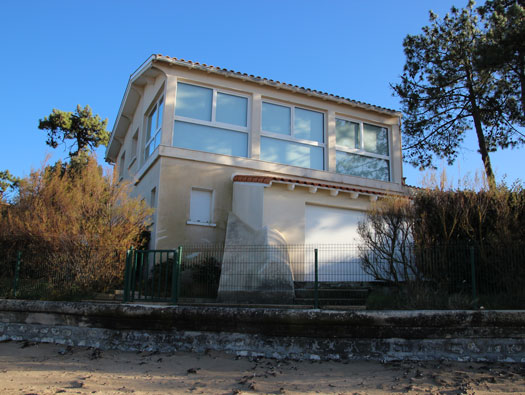

R504 Casemate for a 4.7cm A/T gun (t). A very nice house with great views.

07 November 2012

Gi02 Ronce-les-Bains 'Luneburg'

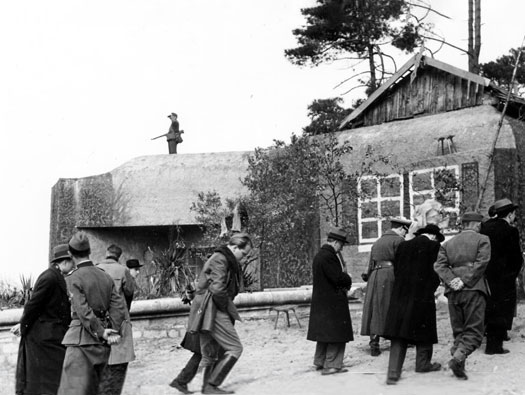

A delegation to revue the defences..

SD 1942/44

Gi02 Ronce-les-Bains 'Luneburg'

R504 Casemate for a 4.7cm A/T gun (t).

07 November 2012

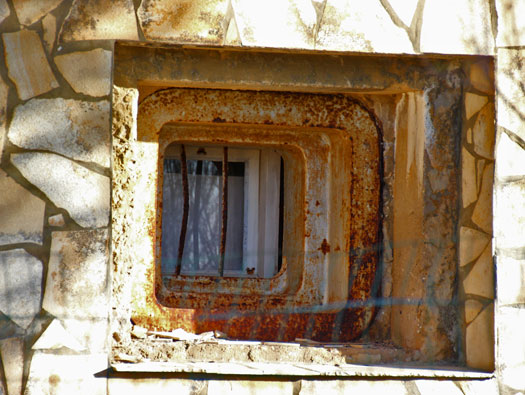

Skoda guns armoured window that can be raised or lowered.

Gi02 Ronce-les-Bains 'Luneburg'

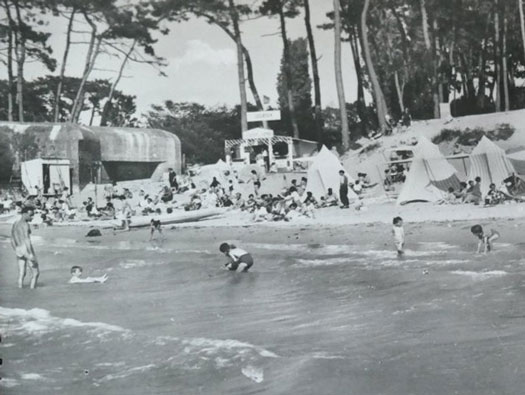

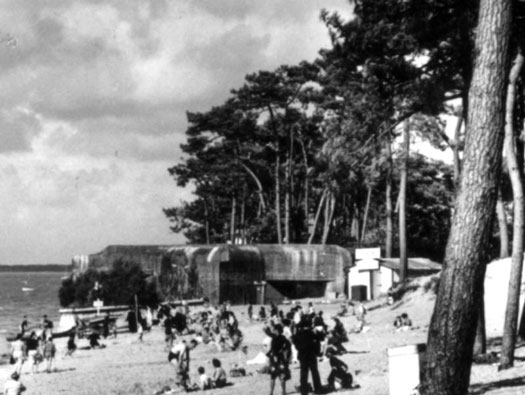

1960's view of the beach.

07 November 2012

Gi02 Ronce-les-Bains 'Luneburg'

R504 Casemate for a 4.7cm A/T gun (t) The gun a 4.7cm Skoda fortress gun. There would be a periscope in the gun room to help aim the gun and a viewing slot for the guns commander.
