La318 Cape Frehel 'Frosch' radar

RADAR · K.V.Gruppe Lamballe · AOK 7 Brittany · France

La318 Cap Frehel Pointe du Jas.

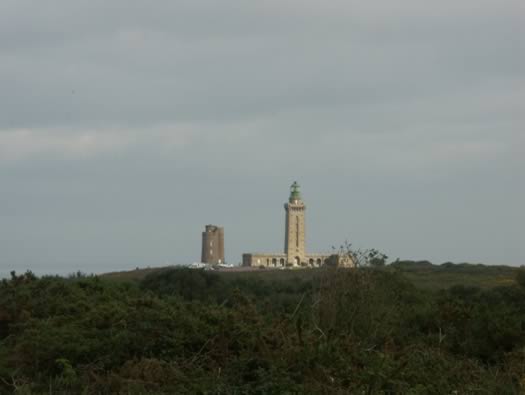

Cap Frehel is located to the west of St Malo/Dinard (40km). A point of land with three fingers jutting out into the Atlantic Ocean with the radar code named 'Froch' on the left, the light house in the centre and Fort La Latte on the right. Luftwaffe, Kriegsmarine station 'Froch'. 24./Luft.Nachr. Rgt.112. 5./ Luft.Nachr. Rgt.54. 1./3. Funkmess-Abteilung.

La318 Cap Frehel Pointe du Jas.

Of the three fingers the main one we are interested in here is on the left. Red X: Radar sites. We parked in the road opposite the path to Pointe de Jas GR34 and walked the route of the red arrows.

La318 Cap Frehel Pointe du Jas.

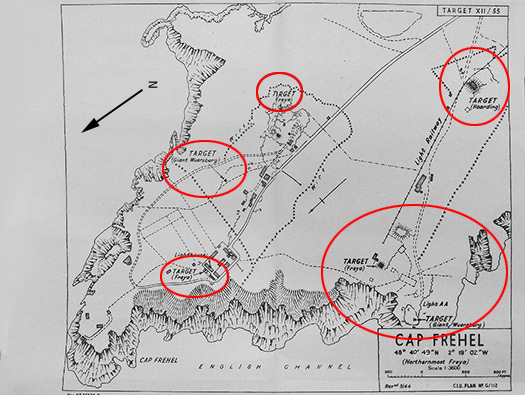

An allied plan from Air 40/1667 of the radars at Cap Frehel. This was a document assembled for the run up to D-Day showing all the radars that needed either allowing to work or ones needing attacking all to do with the deception planning. There is still more to find.

Air 40/1667

Photo reconnaissance Spitfire that went out day after day taking photos of almost the whole of Europe. No guns just its speed to get out of trouble..

The ladies of Medmenham where all the photos were interpreted.

La318 Cap Frehel Pointe du Jas.

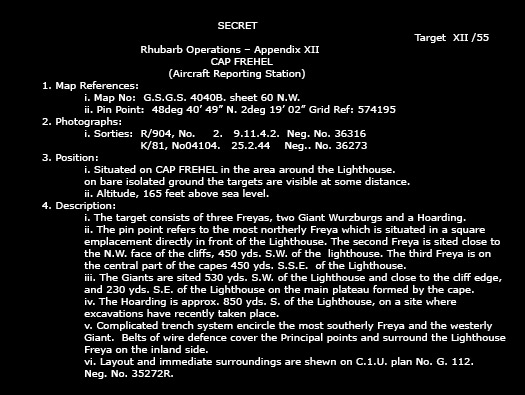

Allied details about Cap Frehel radars. This is a 130 page document on radars from Dunkirk to western Brittany.

Air 40/1667

La318 Cap Frehel Pointe du Jas.

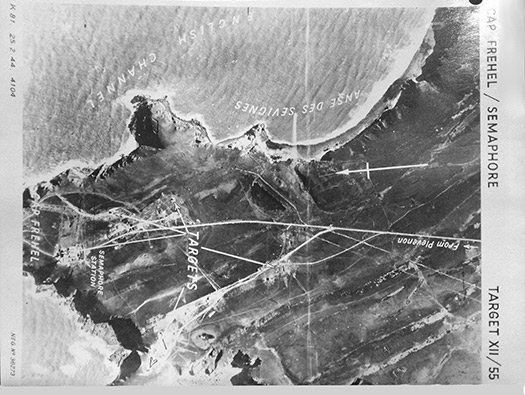

An air photagraph of the Cap taken in February 1944.

Air 40/1667

La318 Cap Frehel Pointe du Jas.

L479 Bunker for Night Fighter Control 'Anton'.

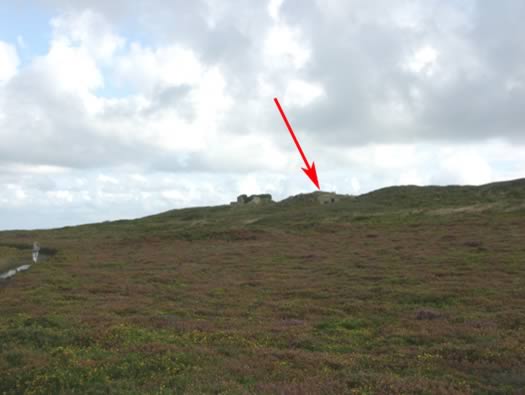

Arrowed is the entrance to an L479 bunker. This is a vast bunker on two levels with two entrances & two machinery entrances.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

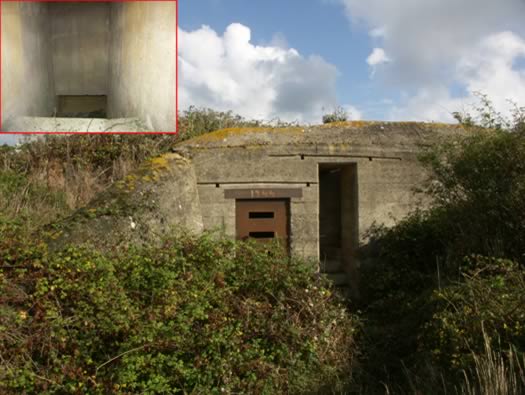

First opening is a re cooling vent. The second is the entrance up to a defence Tobruk.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

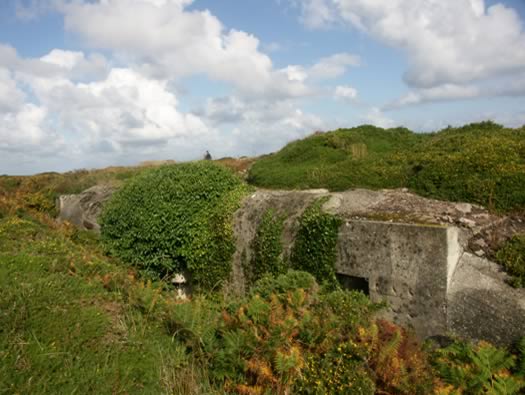

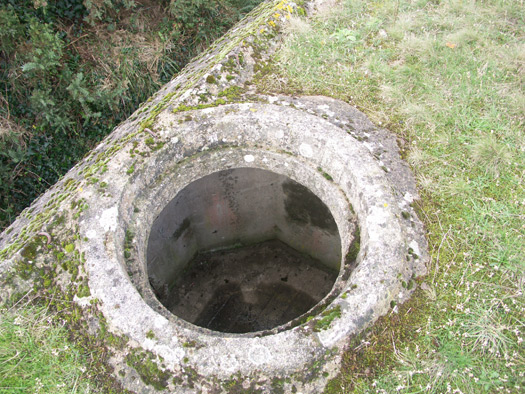

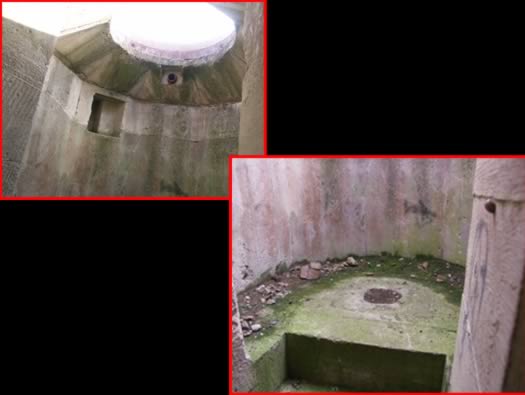

Defence Tobruk.

09 Oct 2006

It looks like this type with a centre post to take the weight of the machine gun.

La318 Cap Frehel Pointe du Jas.

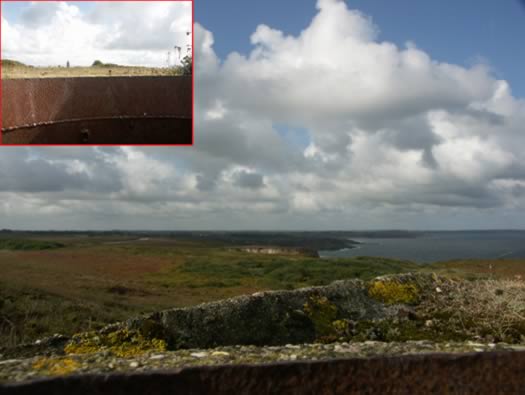

The view from the Tobruk.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

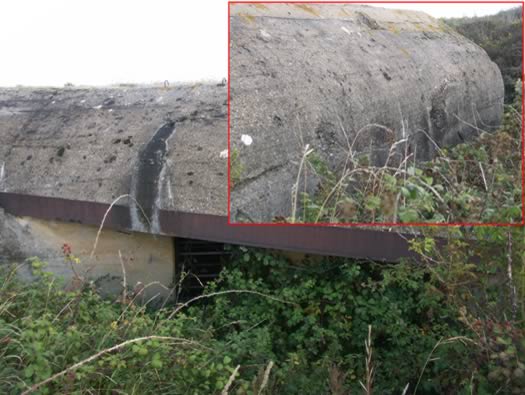

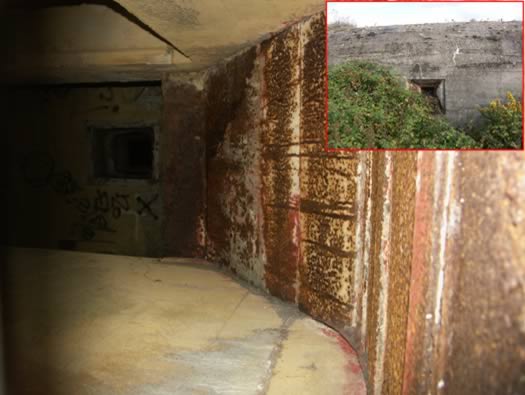

View through the hole Inset. This was a massive bunker about four to six times the size of an R622 (which we will see later), on two levels with a large double height room for a night fighter control room. Bombers would fly down from airfields in England to bomb the U-Boat bunkers at Brest, Lorient, St Nazaire and La Palace.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

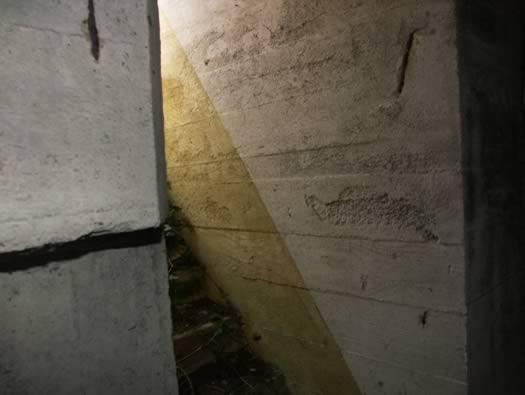

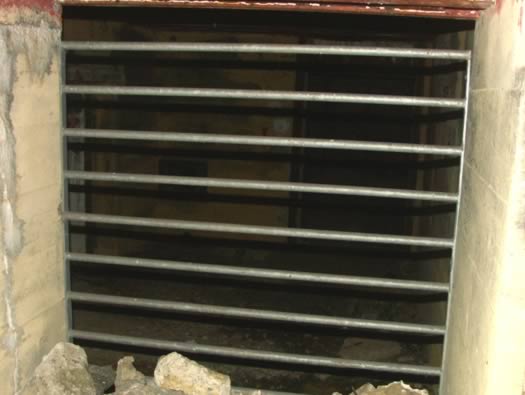

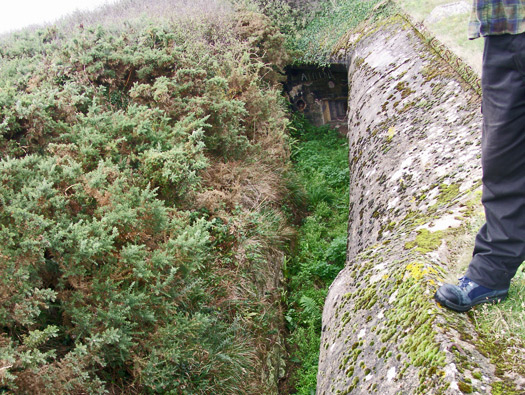

Another machinery entrance with iron bars stopping entry.

09 Oct 2006

A picture of an L479 bunker model showing all the rooms and levels.

Happy drome a British fighter control room, not that much different to an L479.

La318 Cap Frehel Pointe du Jas.

Another Entrance and close combat defence

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Trenches and Bunker. A trench system and small local built bunker.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

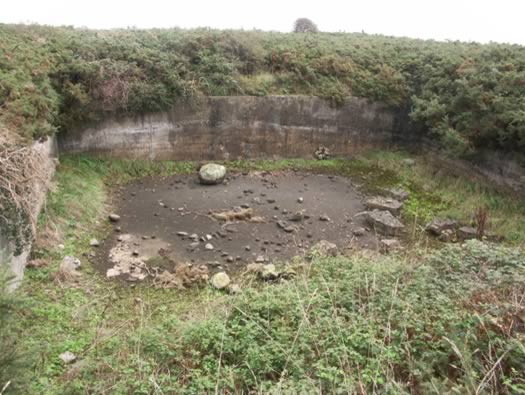

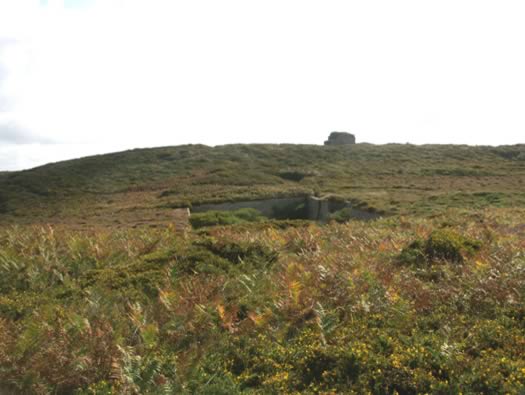

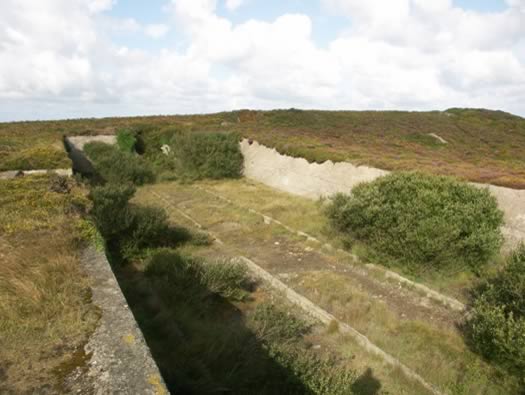

A Large Hole in the Heather. A very large hole with concrete retaining walls. The consensus is that it housed some large wooden huts?.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

A large hole in the Heather. Possibly a large hut or several small ones either for troop accommodation or to do with the radars in this area?

Others call it barracks.

09 Oct 2006

Some RAF wooden huts very like the ones that could have been here.

La318 Cap Frehel Pointe du Jas.

Trenches cut into the rock.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

R622: 152 were built in the AOK7 area with two crew rooms a gas lock and a Tobruk defence.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

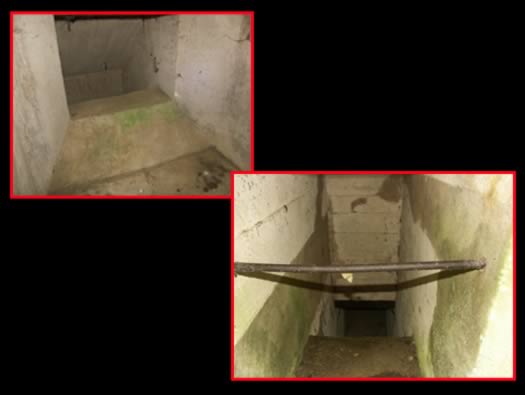

The steps down with a close combat embrasure covering the entrance and the main picture is the gas lock area.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

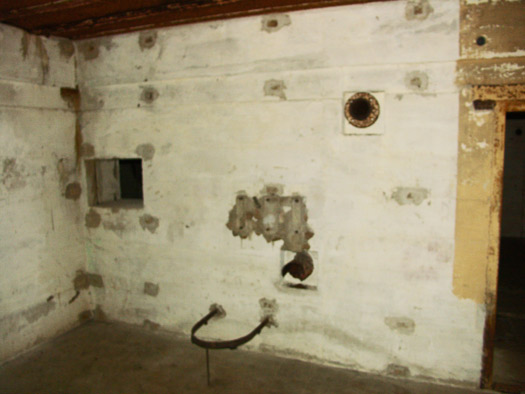

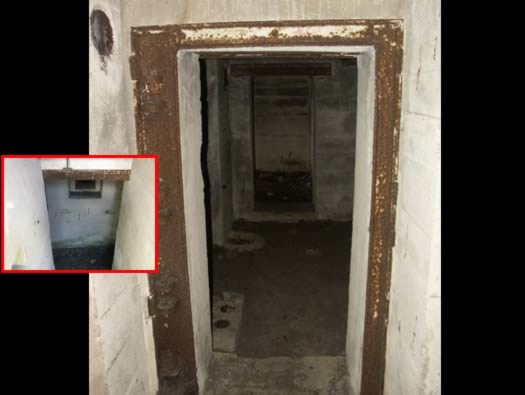

The close combat defence window covering the entrance steps. Some of the internal pipe work still in place and communication wires coming out of the floor. Fittings on the right for the ventilation.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

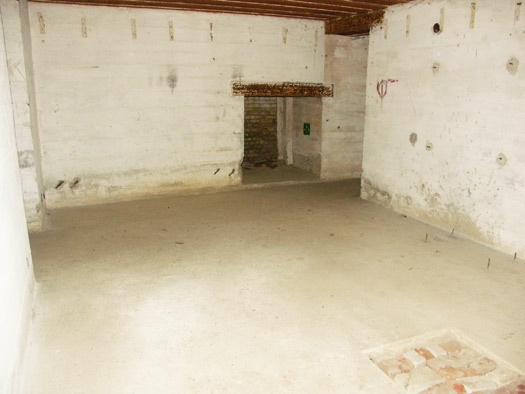

Looking from the left to the right hand room with what looks like communications board fittings on the far wall and the chimney for a heater.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

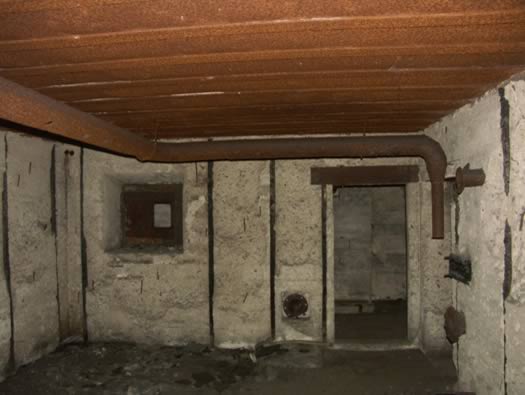

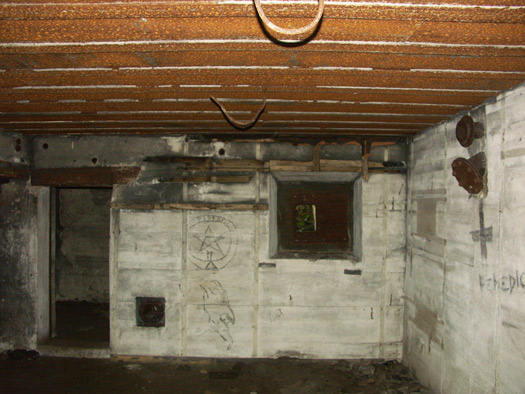

The right hand room with the close combat defence window. Wooden covering on the far wall. The chimney pipes on the right and hoops in tie ceiling for the air pipes.

09 Oct 2006

Air pipes in the other room with hoops holding them up to the ceiling.

La318 Cap Frehel Pointe du Jas.

The second set of entrance stairs still with the original paint on the wall.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

There are lots of bits with no regular designs but all look to be part of the defence. Behind is a V226 radar socket.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Würzburg radar socket for a Würzburg Riese Fu.SE 65.

09 Oct 2006

Würzburg radar better known to the Allies as Giant Würzburg.

La318 Cap Frehel Pointe du Jas.

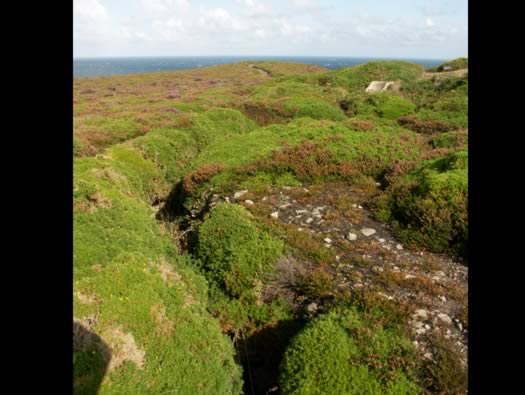

And a trench running through the heather.

09 Oct 2006

Inside a damaged cabin on a Würzburg radar.

La318 Cap Frehel Pointe du Jas.

Views in and around the V229 radar socket.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

More Trenches as we Walk Around.

09 Oct 2006

Yellow lines are the trenches I can see, red dots Tobruk's.

La318 Cap Frehel Pointe du Jas.

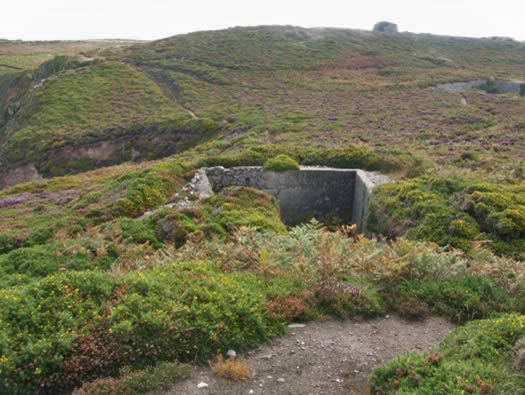

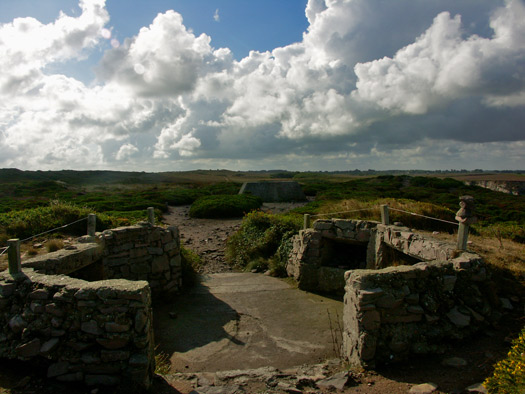

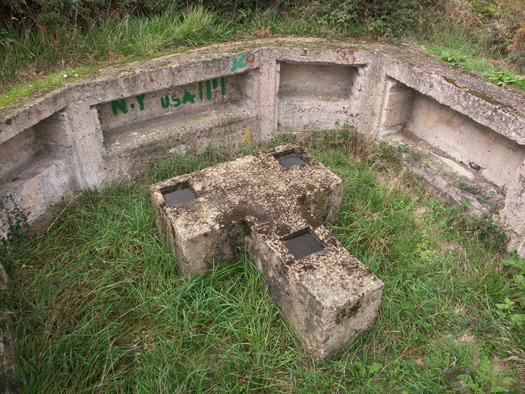

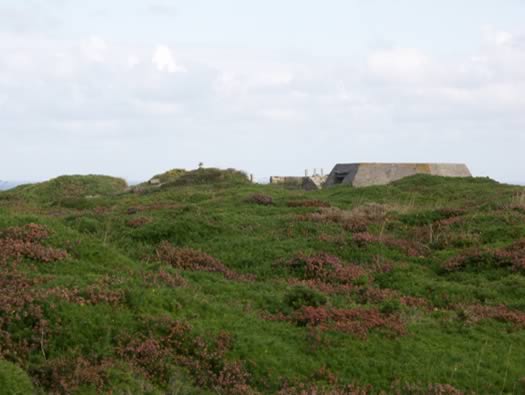

2cm AA Ringstand. A small but very effective anti-aircraft gun.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

2cm AA Ringstand. Locally built of concrete and stone from the excavated rock.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

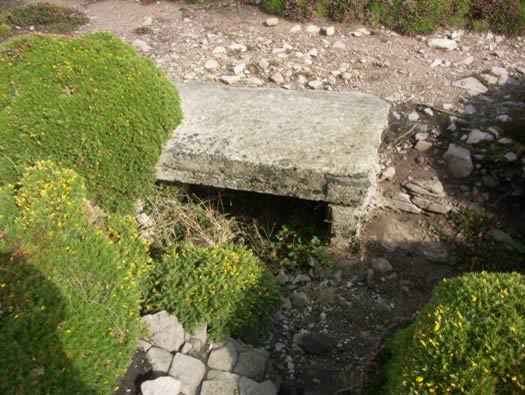

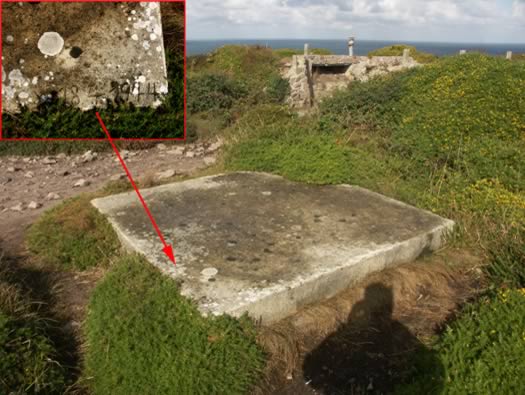

Part of the trench system. Its a trench bridge where a path crossed a trench and a large concrete slap was placed.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Part of the trench system. By September it was all over.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

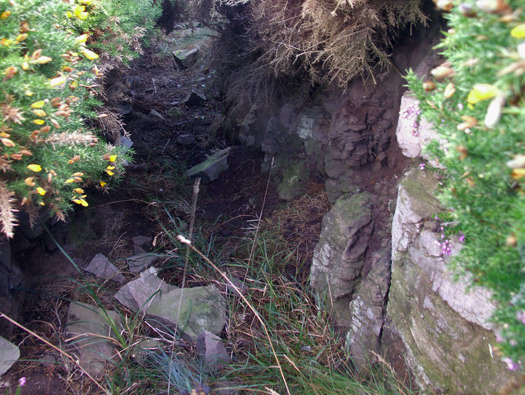

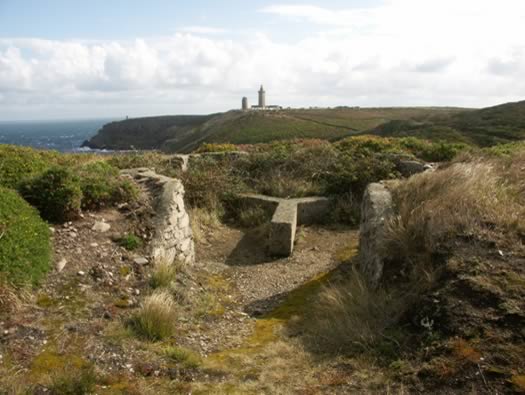

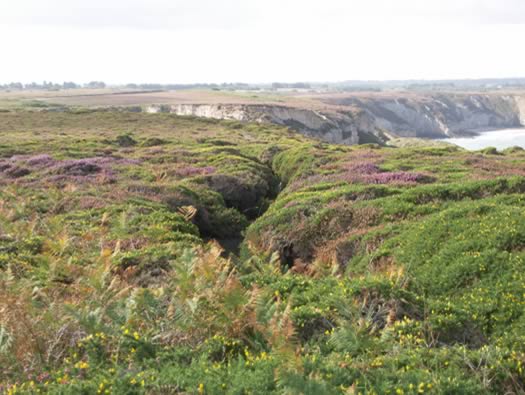

View along the Trench. As you can see its cut out of the rock.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

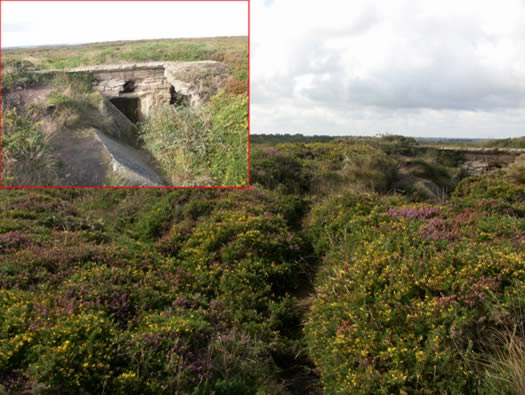

More trench bridges. These are actually trench bridges to allow soldiers to move rapidly across the area without falling in the trenches.

09 Oct 2006

Section La318 Cap Frehel Pointe du Jas.

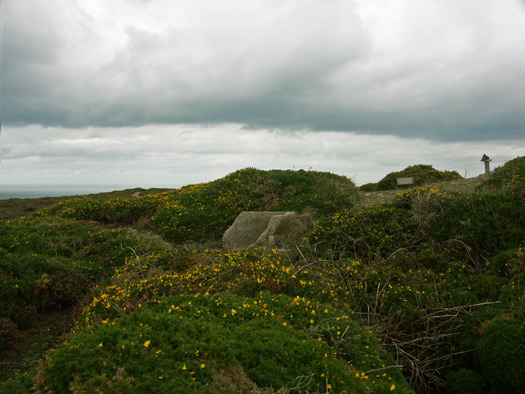

Trenches, defence &Tobruk.

09 Oct 2006

Section La318 Cap Frehel Pointe du Jas.

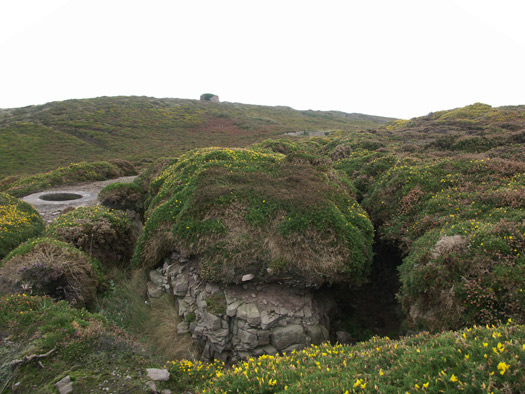

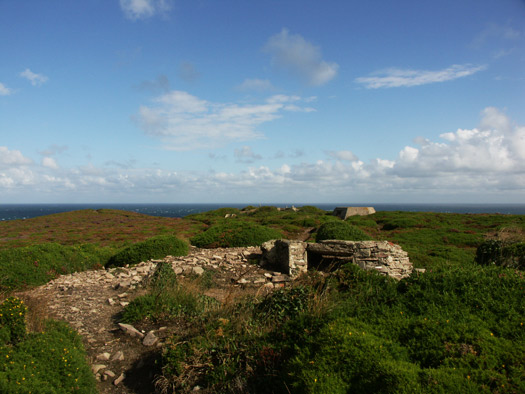

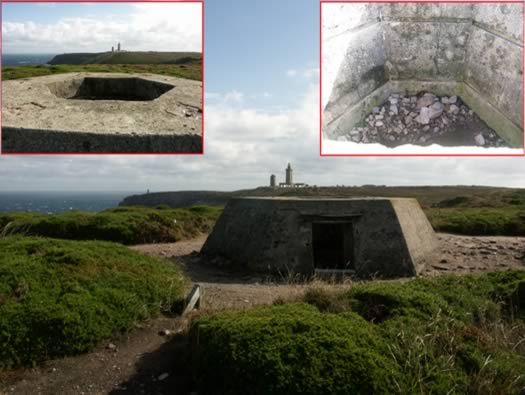

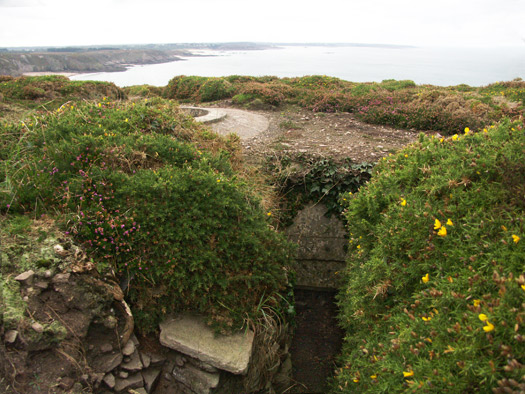

Another Tobruk with a collar around It. A very Brittany Tobruk.

09 Oct 2006

Section La318 Cap Frehel Pointe du Jas.

Third Tobruk. Trench leading into the Tobruk door.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

The Second 2cm Flak. How did the gun stay on the concrete plinth when it was fired?

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

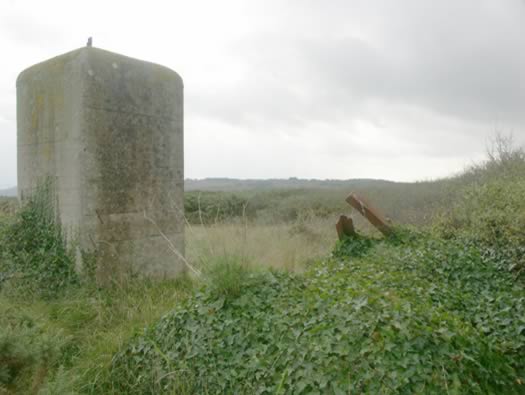

Wasser, water reservoir. A concrete water reservoir.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

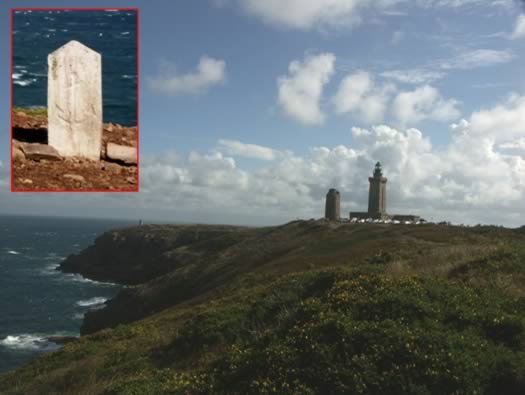

Inset a French Naval boundary stone.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

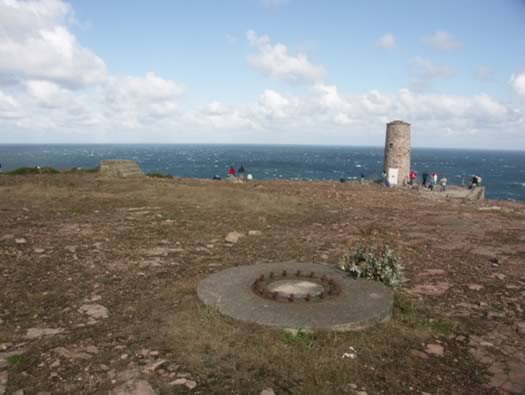

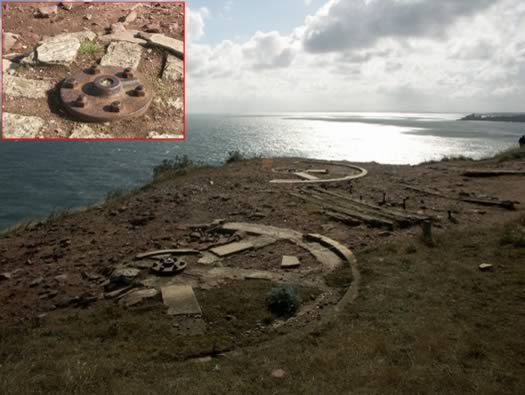

I found this base with a circle of bolts for 9.5cm Canon de Cote de 95 M93 French pre war guns..

La318 Cap Frehel Pointe du Jas.

All from a pre war French battery position.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

One of the prettiest Norman/13cent. Castles. It was the place where they filmed Vikings with Kirk Douglas.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

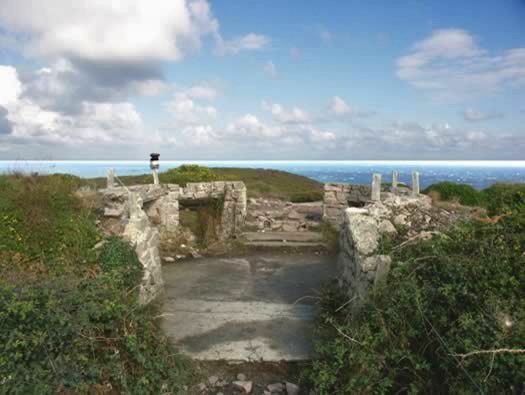

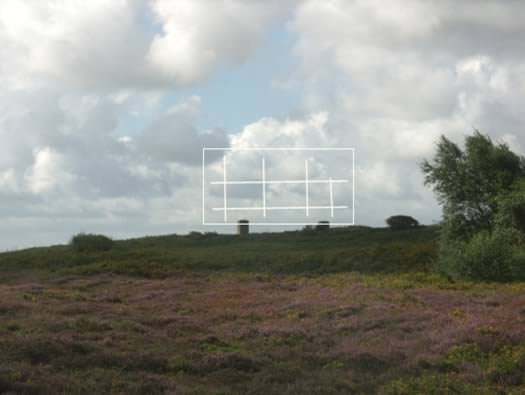

The allies had code names for this type of radar was 'Large Hoarding' a good name for it.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

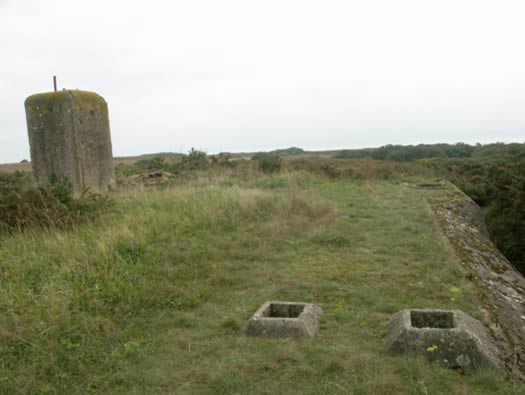

One of the concrete and steel supports for the large radar array.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

The other concrete support.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

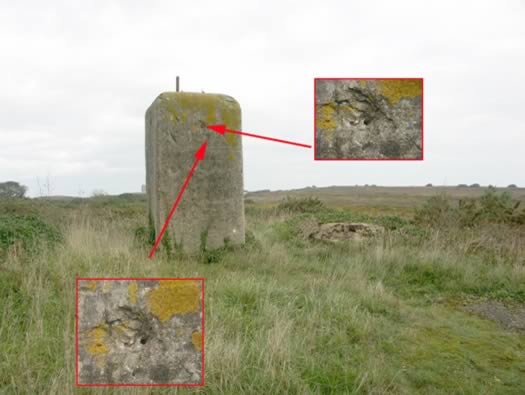

Holes in this concrete support from what look like aircraft machine guns or cannon shells.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

The view from under the close combat defence along the back wall showing one of the entrances and what looks like telephone cable brackets still in place.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

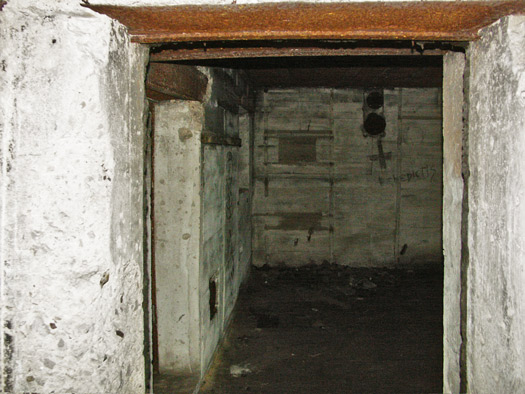

Machinery entrance.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

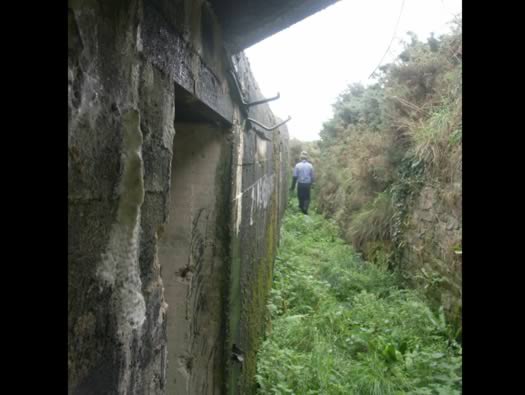

Entrance with the close combat defence where a machine gunner guard would stand and cover the entrance.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Entrance on the left, gas lock in front and left at the gas lock is the close combat/guard room.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

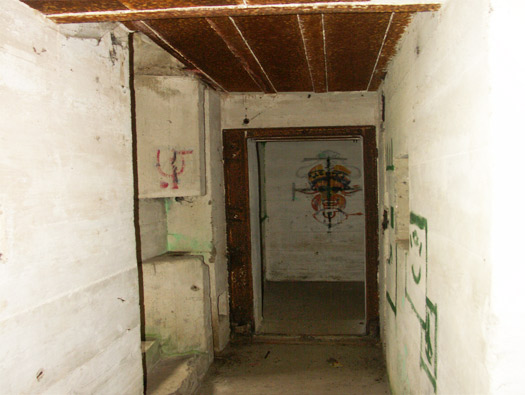

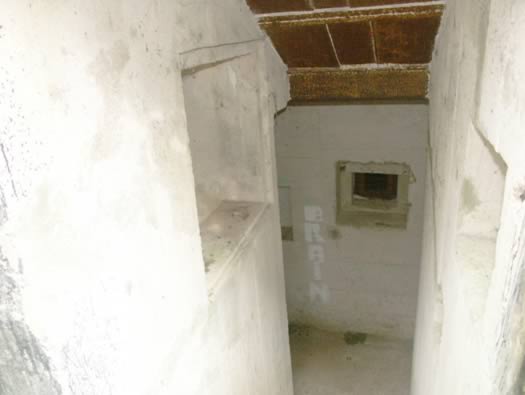

Close combat defence room or guard room.

09 Oct 2006

This is the main close combat defence room or guard room for the bunker could have looked.

This is the close combat outside showing how it covers the back entrance.

La318 Cap Frehel Pointe du Jas.

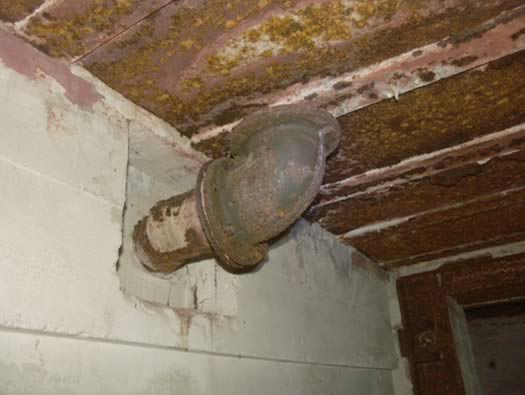

One of the pipes inside.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

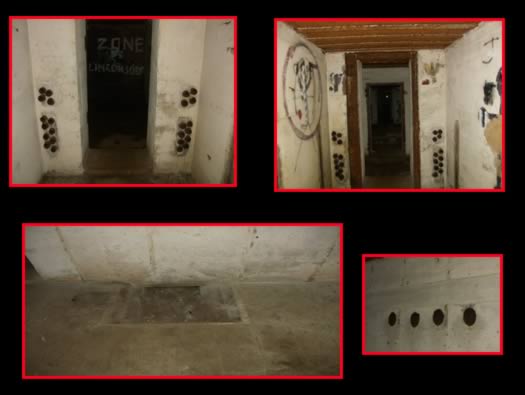

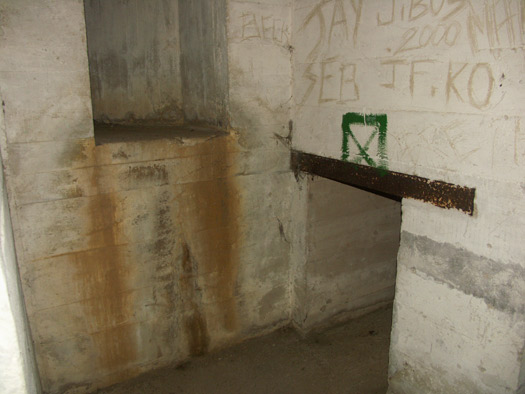

The square hole is to pass messages through. Air filtration hand pump fitting, the metal ring on the wall is for spare filter storage.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Thermo plastic tiled flooring to absorb shock and feel better on the feet.

09 Oct 2006

Here are some modern thermoplastic tiles that I polish to a high standard (Harts of Stur).

La318 Cap Frehel Pointe du Jas.

Two compensator's, one for each deflector (that means an awfully lot to me!!). There were many large cables running through the buildings.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

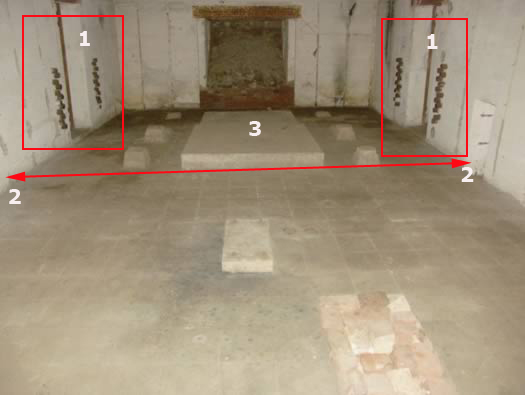

1: Cable pipes for compensator No.1. These cables connect to the radar on the enemies side. 2: Cable pipes for compensator No.2. These cables connect to the radar on the opposite side. 3: Platform for the compensator's. (Axis Forum)

09 Oct 2006

This is a plan I have drawn of a photo on the Axis Forum website of a radar compensator. It looks as though a lot of wires went in one end and out the other

La318 Cap Frehel Pointe du Jas.

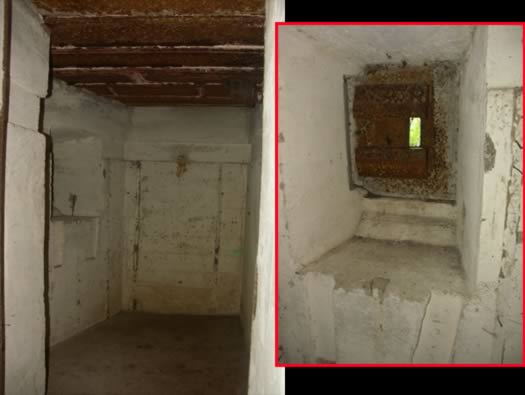

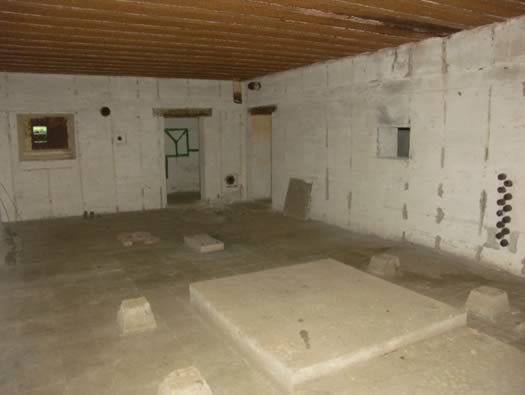

This is the compensator room looking at the entrance and the close combat window. Door on the right to the crew/ventilation room.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

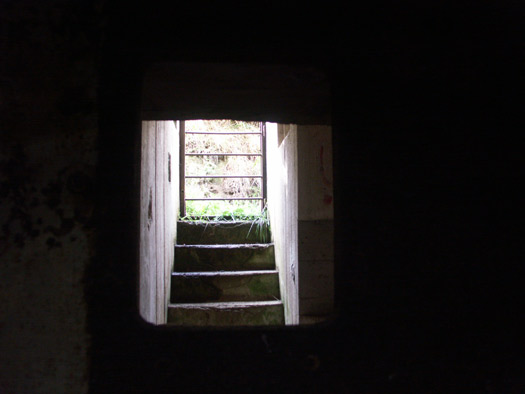

Entrance viewed through the close combat window.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Emergency current room. Emergency generating room.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Re-cooling room.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

The view along the rear of the bunker with the close combat window embrasure covering the entrance.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

Tobruk defence.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

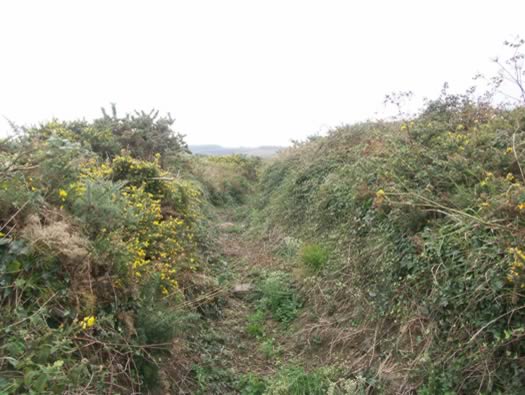

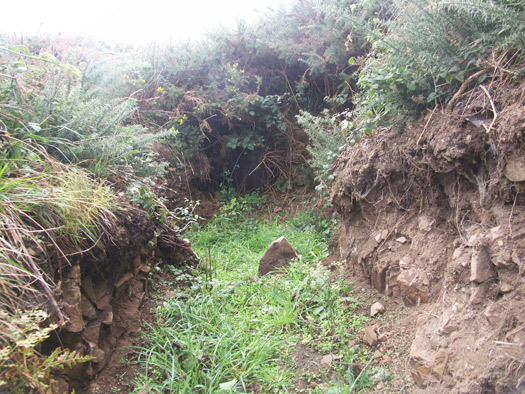

This trench outside the bunker continues away.

09 Oct 2006

La318 Cap Frehel Pointe du Jas.

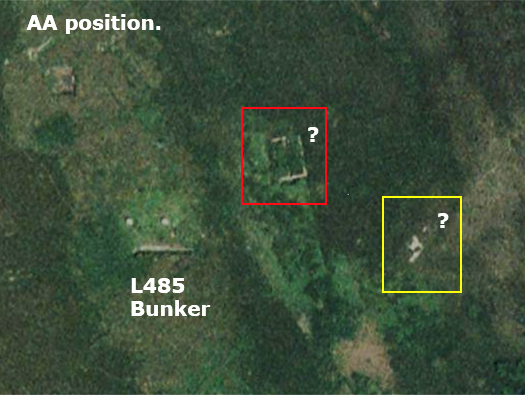

The area around the L485 Bunker. The trench in the last photo leads away towards the yellow square. We did not venture into the heather and brambles to these buildings.

google

The Cap, the above picture is the area of the yellow square on the left.

La318 Cap Frehel Pointe du Jas.

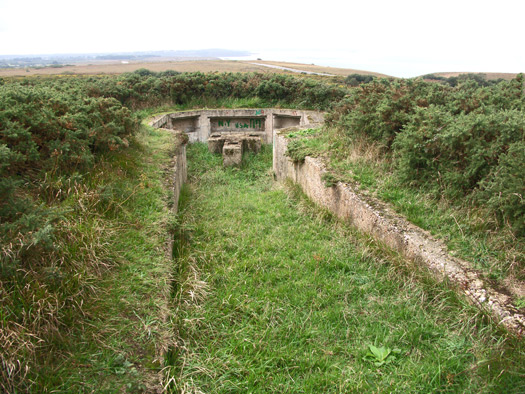

Trench to the Flak. Trenches were dug out from the L485 to several emplacements, one of these trenches has been cleaned out and you can follow it to a 2cm AA gun emplacement.

09 Oct 2006
