Nz105 avant port rive est Süd is the left side of the ecluse which was made to allow shipping to enter the Bassin. When the French capitulated in 1940 the German Navy moved down to the French Atlantik ports. They could use them for their large battle ships and also for their submarines (U-Boats). Later due to excessive allied bombing large concrete pens had to be built to stop U-boats from being destroyed in port.

4./Ma.FI.A820.
1 x R623 machine gun casemate with a front plate.
1 x 625/SK casemate for a 7.5cm Pak40.
3 x R630 machine gun casemate with a front plate.
1 x R638 small dressing station.
2 x Vf/Schartenstand LAG.
5 x SK/Flak.
7 x Vf/MG.
3 x Pz.T. tank turret Tobruk.
4 x MG/Schartenstand.
6 x Flakstellung.
1 x R631/SK casemate for a 4.7cm Festungspak(t).
1 x 7.5cm Pak anti-tank gun.
1 x 7.5cm F.K.235(b).
2 x 8.8cm S.K.C./35.
5 x 4cm Flak 28.
1 x 2cm Flak 28.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.


Google Maps

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Le ecluse.

03 November 2015

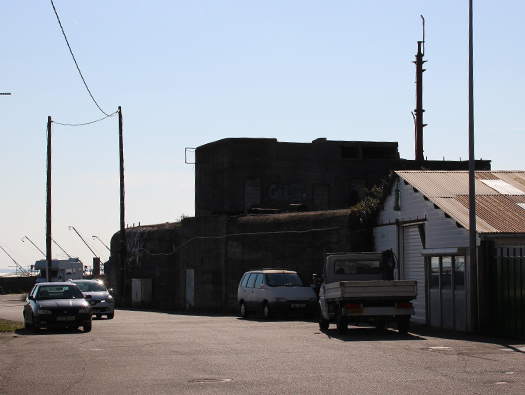

R623 machine gun casemate with a front plate.
R623 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.
R630 machine gun casemate with a front plate.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

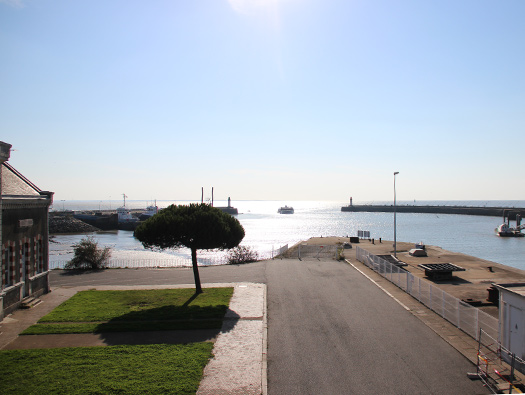

The view due south where submarines came and went.

03 November 2015

Wn Nz105 avant port rive est Süd.
Plan.
Plan.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

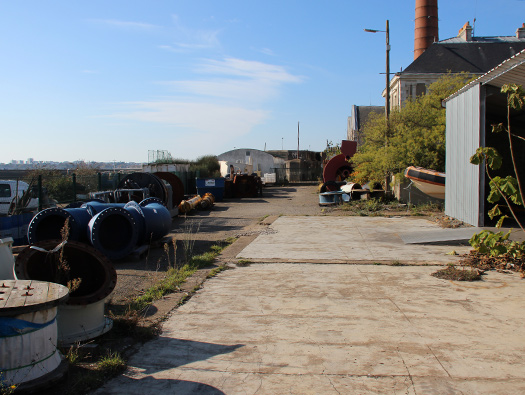

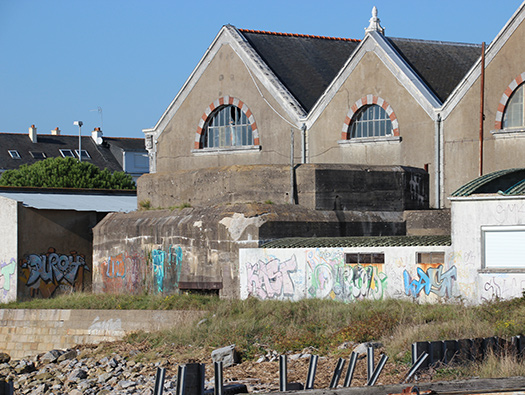

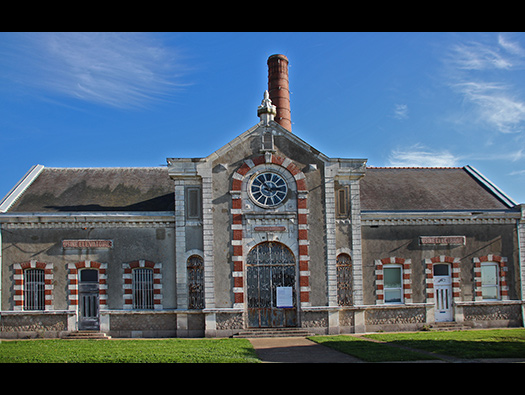

Pumping Station.

03 November 2015

Details2
Details2

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

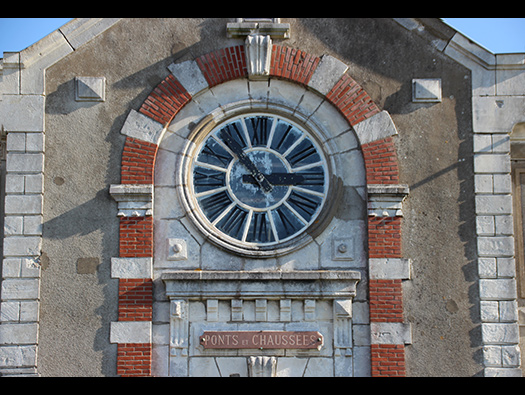

Ville de Sainte-Nazaire.

03 November 2015

Ville de Sainte-Nazaire.
Ville de Sainte-Nazaire.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

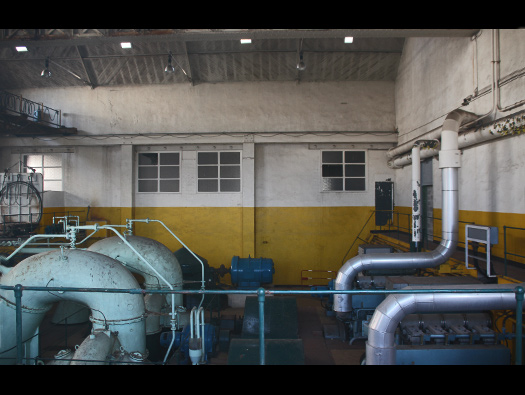

Pump room.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

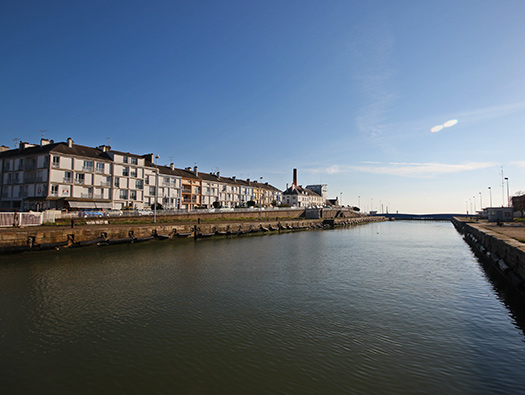

The entrance into ecluse (lock) allowing shipping entry into Bassin de St-Nazaire.

IGNF1952

R630 on the entrance to the ecluse.
R630 on the entrance to the ecluse.
MG34 machine gun.
MG34 machine gun.
7P7plate for an R630 casemate.
7P7plate for an R630 casemate.
Possibly the plan of the R630 that was on the end of the ecluse.
Possibly the plan of the R630 that was on the end of the ecluse.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Vf/Schartenstand casemate for an 7.5cm Pak one of two that were here. The second may have been for the 4.7cm Pak.

03 November 2015

7.5cm in a casemate.
7.5cm in a casemate.
4.7cm Pak.
4.7cm Pak.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
If this had the 7.5cm Pak it would have covered any ships coming into the harbour and would have damage them badly.

03 November 2015

7.5cm Pak.
7.5cm Pak.
Plan.
Plan.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Flak.

03 November 2015

This is a picture of the Flak on the roof. On the right an emplacement for a 2cm or 4cm Flak 28 and on he left a position for a range finder.
This is a picture of the Flak on the roof. On the right an emplacement for a 2cm or 4cm Flak 28 and on he left a position for a range finder.
Hand held range finder.
Hand held range finder.
Larger type of range finder.
Larger type of range finder.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Embrasure.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
The three flak positions, two Vf anti tank gun casemates and a Hockenbunker (command bunker).

IGNF1946

Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.
Plan.
Plan.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Vf 7.5cm gun bunker.

03 November 2015

Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Vf 7.5cm gun bunker.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

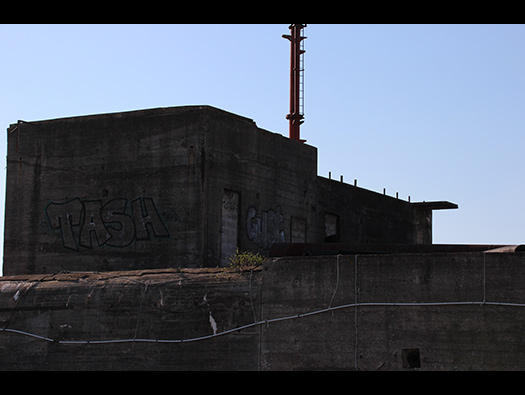

Flak position on the roof..

03 November 2015

Hockenbunker.
Hockenbunker.
Hockenbunker flak on the roof.
Hockenbunker flak on the roof.
Flack position.
Flack position.
4cm Bofors.
4cm Bofors.
Plan.
Plan.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

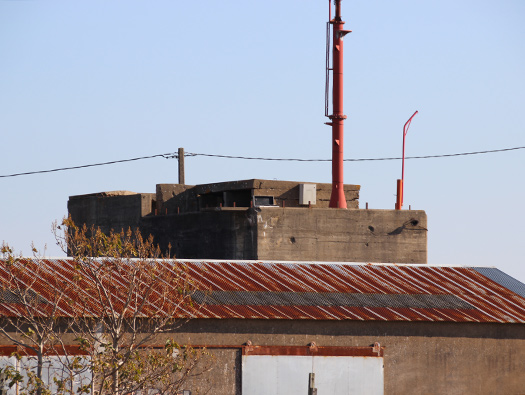

The flak position on the roof.

03 November 2015

Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Command bunker a mix of SK & Vf bunkers. SK - Sonder Konstruktion (Special construction). Vf - Verstärkt feldmässig. (strengthened reinforced structure).

03 November 2015

Wn Nz105 avant port rive est Süd.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

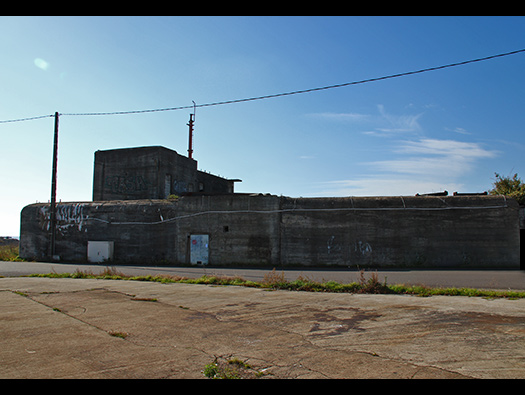

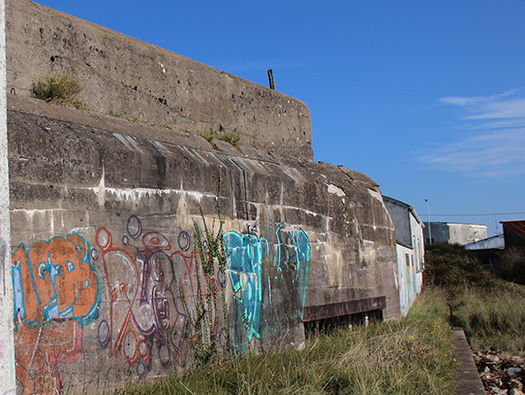

Closer look at the flak bunker. You can see one of the entrances into the crew part of the bunker.

03 November 2015

Crew room.
Crew room.
4cm Bofors gun on the roof of a large bunker.
4cm Bofors gun on the roof of a large bunker.
Four round magazines of 4cm flak 25.
Four round magazines of 4cm flak 25.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

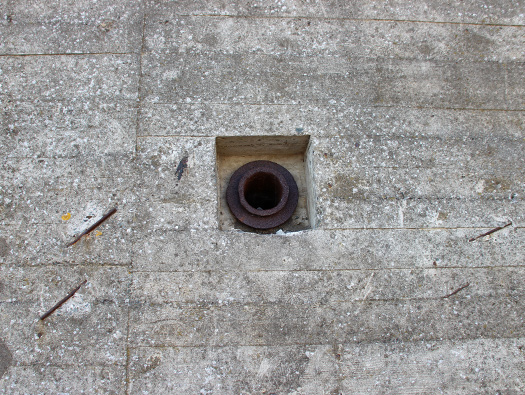

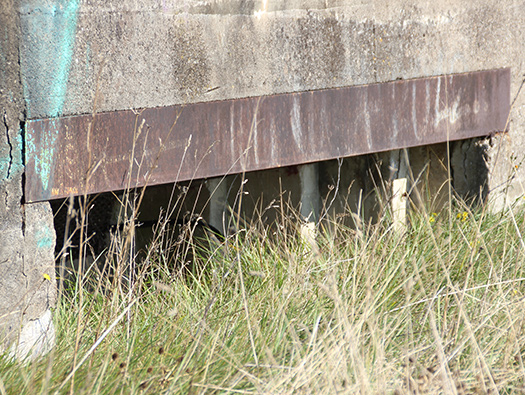

Air vet set into the bunkers wall.

03 November 2015

200mm vent steel cover.
200mm vent steel cover.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

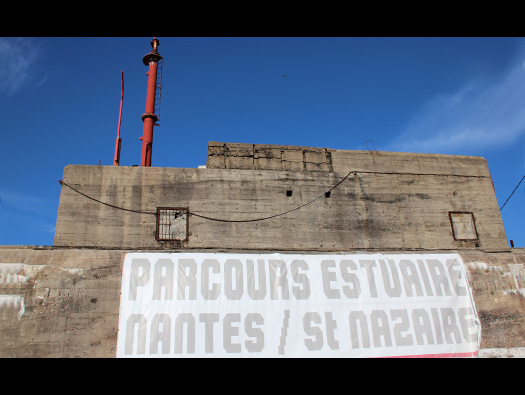

The two small square windows I think were escape hatches. Most bunkers have an escape on the opposite side of the entrance and here that´s what these two look like.

03 November 2015

410P9 escape door inside the bunker.
410P9 escape door inside the bunker.
How the emergency escape worked.
How the emergency escape worked.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

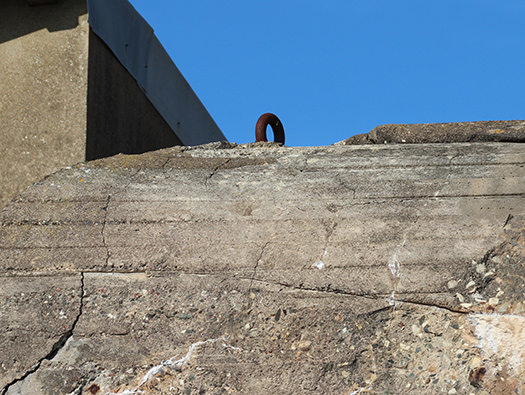

I think this steel eye is an aerial cable tie down.

03 November 2015

Bunker radio aerial.
Bunker radio aerial.
Bunker radio.
Bunker radio.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

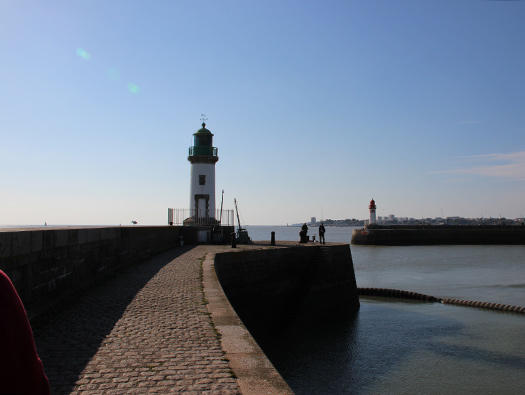

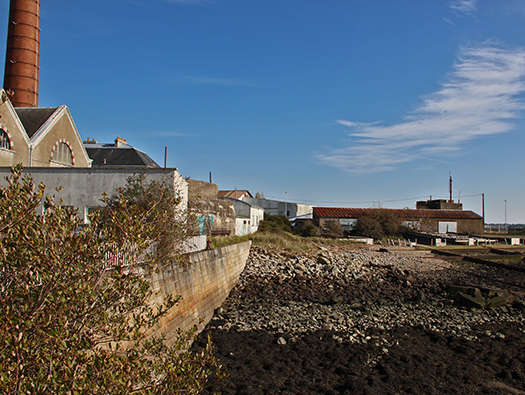

The end of the mole.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

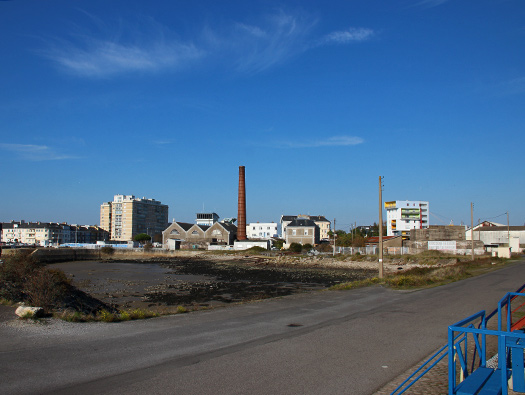

Looking back towards Nz105 from the mole.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Modern art. St-Nazaire modern regeneration.

03 November 2015

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

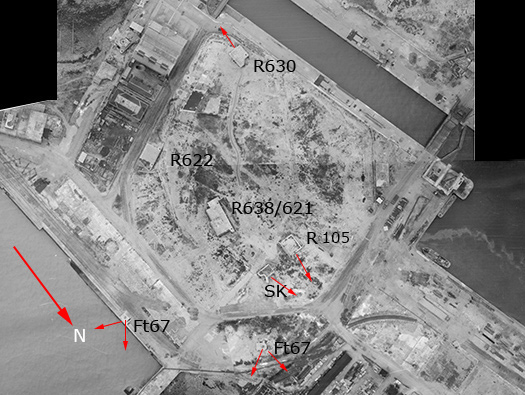

This is a 1946 photo the inner area with the ecluse. There were many bunkers built here amongst the ruins of the old town. In the picture which is post war the area was cleaned up and then the bunkers were removed and re building started. By the ecluse is an R630 machine gun bunker, then an R622 twin group bunker. R638/621. R638 a small dressing station and R621 a group shelter possibly used as an extra ward. Ft67 a French Ft67 tank turret on a concrete Tobruk. Also an SK bunker?.

IGNF 1952.

Ft67 tank turret on a concrete Tobruk.
Ft67 tank turret on a concrete Tobruk.

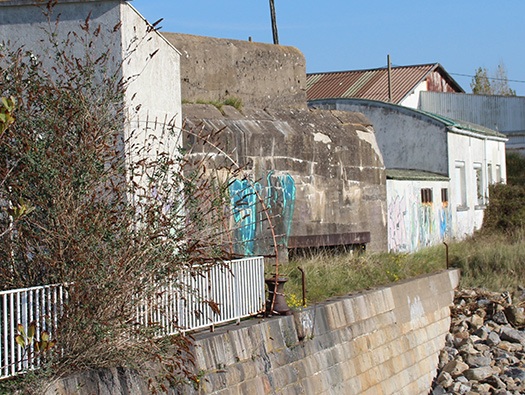

R630 without a flanking wall.
R630 without a flanking wall.
R638 small dressing-station.
R638 small dressing-station.
R621 entrance..
R621 entrance..
R622 twin group bunker with two Tobruks.
R622 twin group bunker with two Tobruks.
R105 machine gun casemate.
R105 machine gun casemate.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.
Allied bombing of St-Nazaire.

Allied intelligence photo.

B17's.
B17's.
Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.

Wn Nz105 avant port rive est Süd.


03 November 2015
