Tu500 Croisic Vigie de la Romaine: Luftwaffe station 'Nutria'

RADAR · K.V.Gruppe Loire · AOK 7 Brittany · France

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

Luftwaffe station 'Nutria'. Luftnachrichten-Regt.54. 19. Flugmelde-Leit-Kompanie.
2 x V229 radar bases.
6 x Vf2b Gruppe shelter.
11 x Vf58c Tobruk's.
1 x M123 Machinery bunker.
4 x L402 Emplacements for 2cm Flak guns.
2 x R622 twin Gruppe bunkers. under construction. 4 x 2cm Flak 30.
2 x Fu.SE 65 Würzburg-Riese.
1 x Fu.MG 401 LZ Freya 1 x Fu.MG 450 Freya.

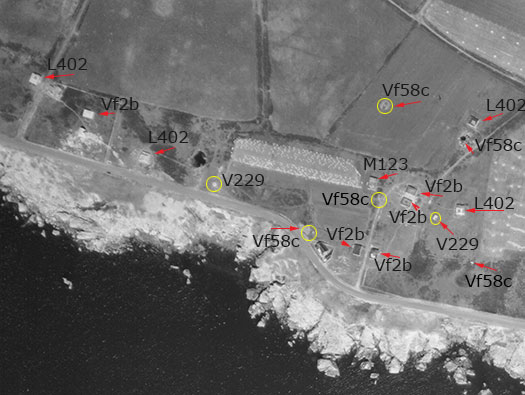

Plan

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

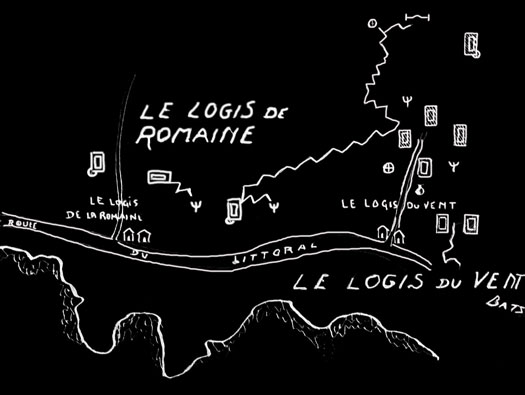

SHM plan.

shm

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

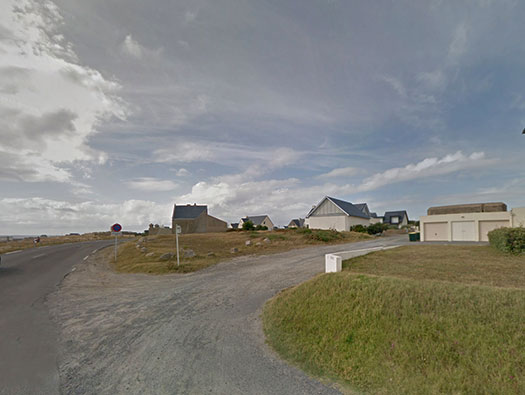

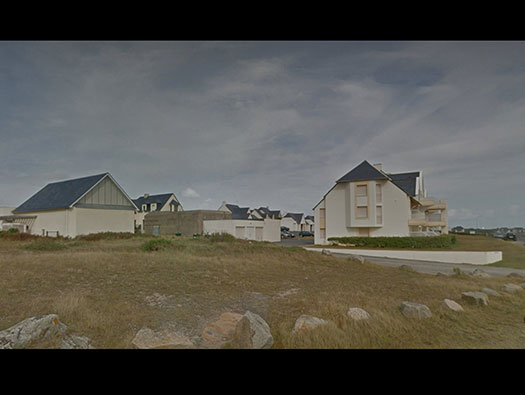

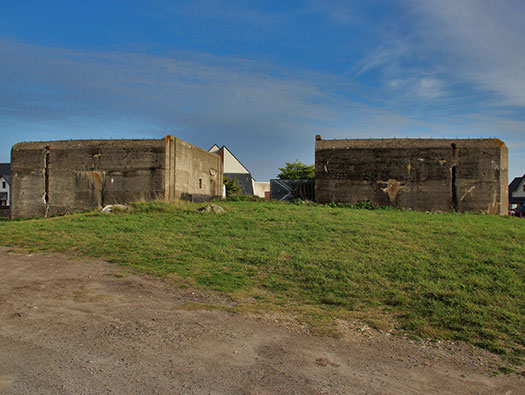

This is the first view you get of two bunkers, the one on the right no problem. On its left now a garage and I have just noticed.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

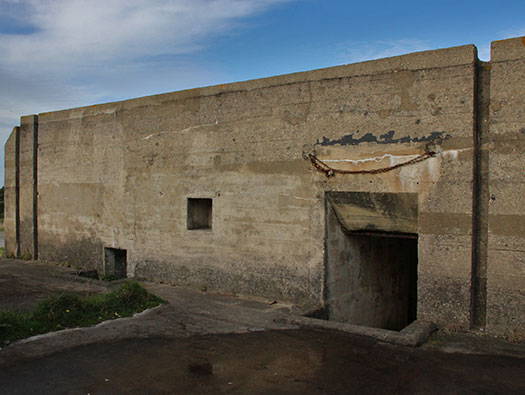

The two Vf2b's. Vf2b was a Gruppe shelter a 1942 design of one room and a passage entrance acting as a sort of blast wall. Most have an escape hatch in one of the walls and a steel door (now removed ).

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

Vf2a.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

A nice small bunker that can accommodate a Gruppe of eight to twelve soldiers.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

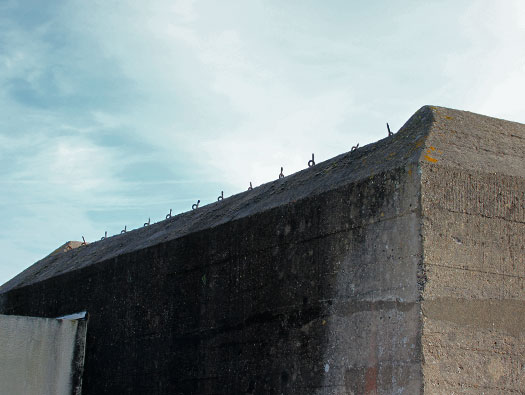

The pigtail hooks to hold a camouflage nett.

04 November 2015

Camouflage nets being laid out on a bunker.

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

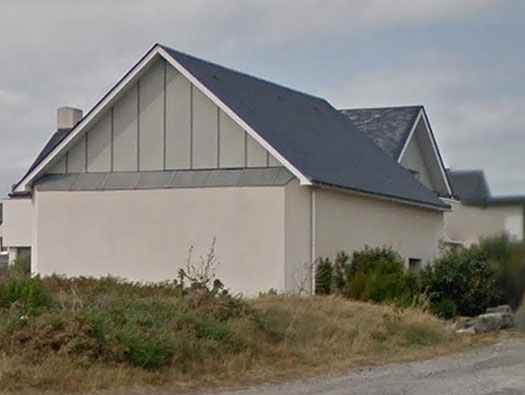

Now a very nice garage.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

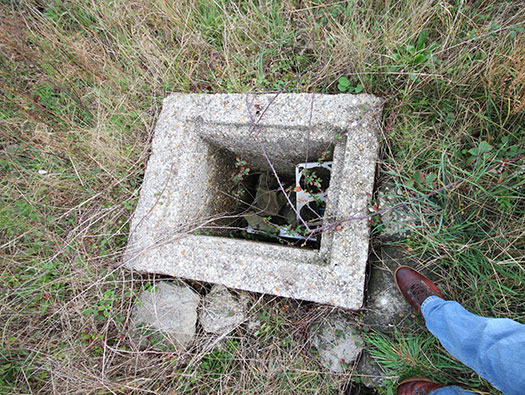

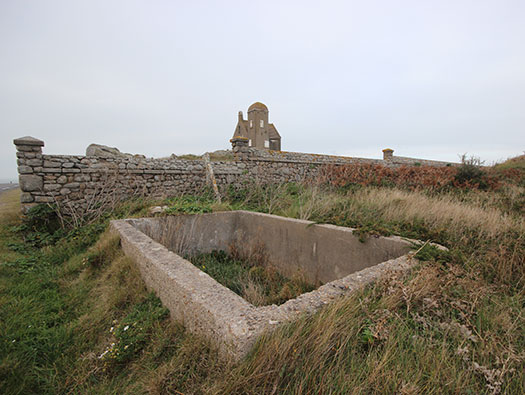

There were eleven Tobruk's around the radar station. We found two.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

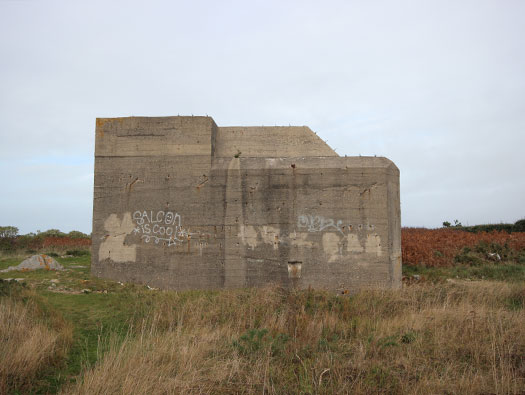

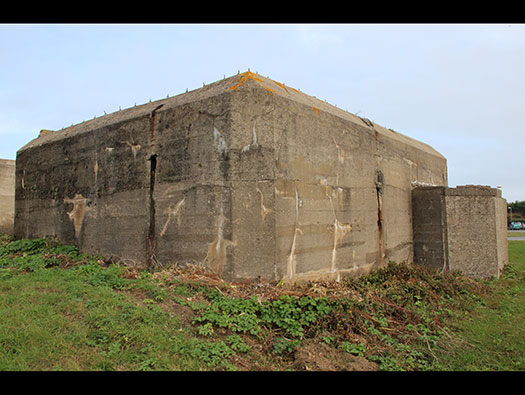

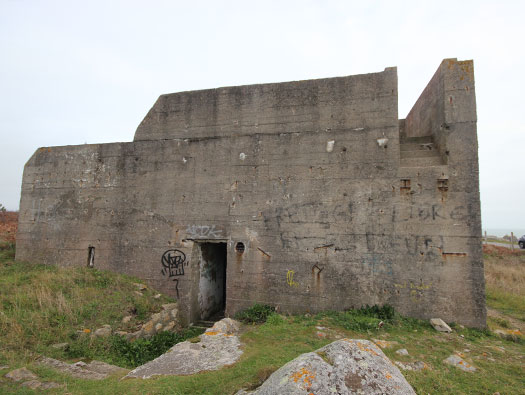

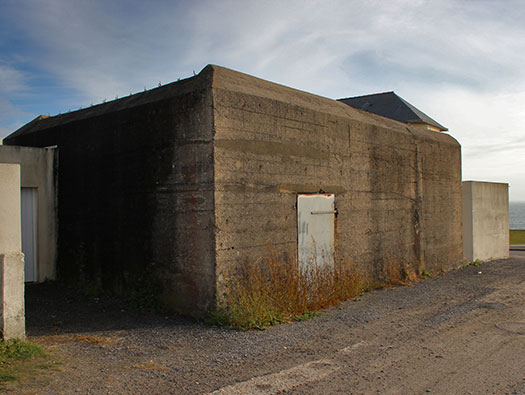

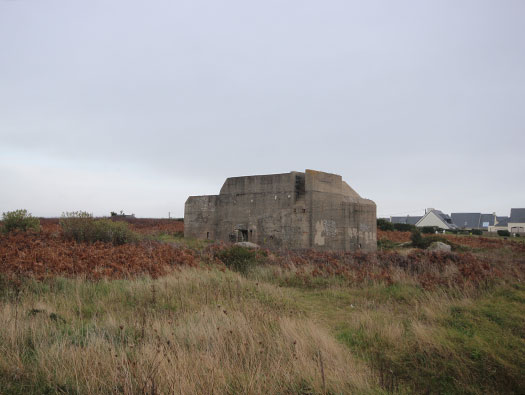

M123 bunkers were for machinery, a generator for a searchlight (Unterstände für Maschinen und Scheinwerfer). Here it probably powered the three radars.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

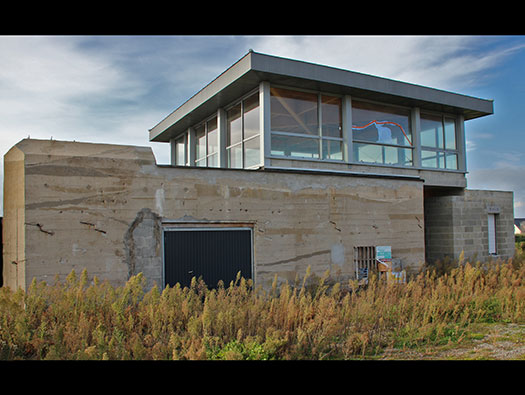

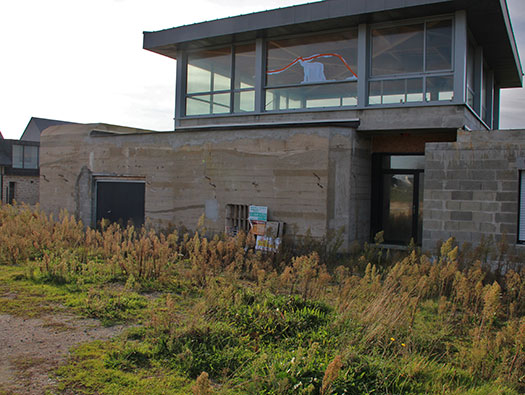

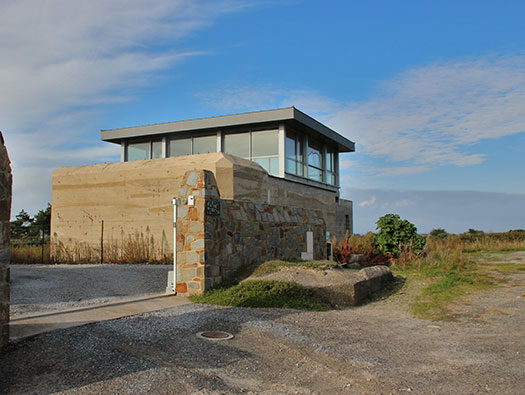

Now an attempt to convert it into a house. I would buy it. But derelict at the moment.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

The door allows access from both sides.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

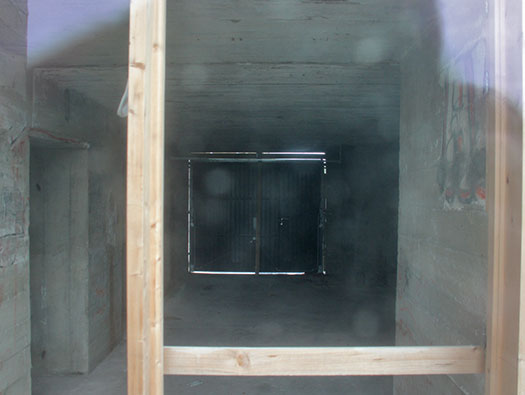

The two doors and central section.

04 November 2015

A large ,obile generator that could fit inside.

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

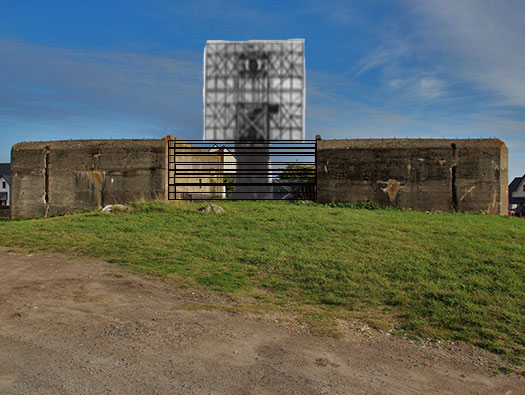

I think the two Vf2b's here had a Freya radar setup on the hard stand between the two bunkers. The radar set placed on the concrete and wooden bulks of timber filling in the gap.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

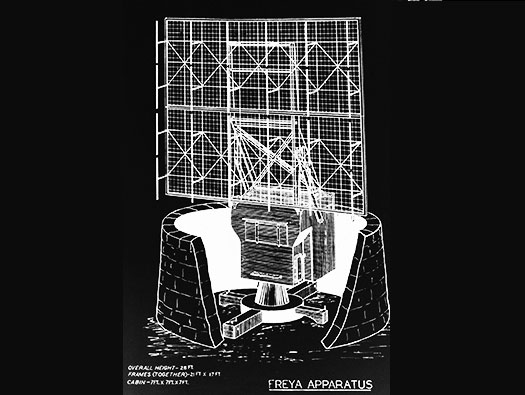

A British intelligence drawing of a Frey radar.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

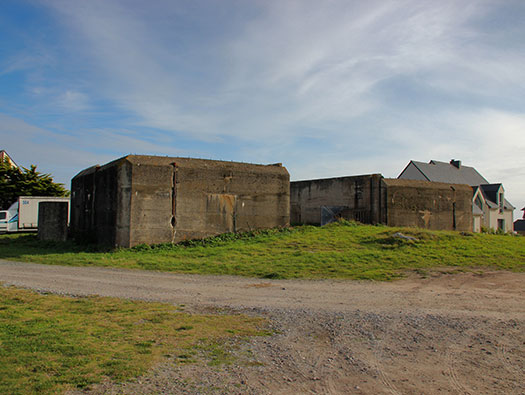

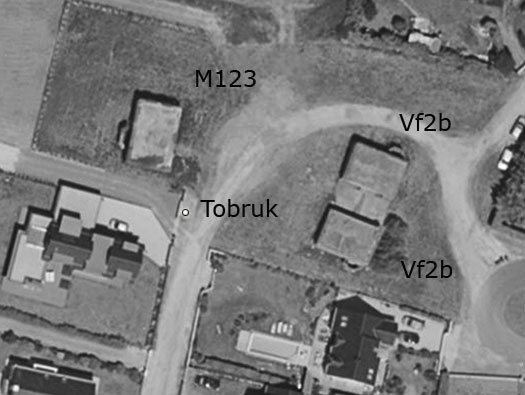

2 Vf2b's with a hard stand between the two.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

The Freya sat between the two bunkers with large wooden bulks of timber slotted into the recesses in the bunkers and filled with sand or small shingle.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

Details

04 November 2015

How the radars may have worked, picture taken form 'Luftnachrichten and the Reich's defense'.

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

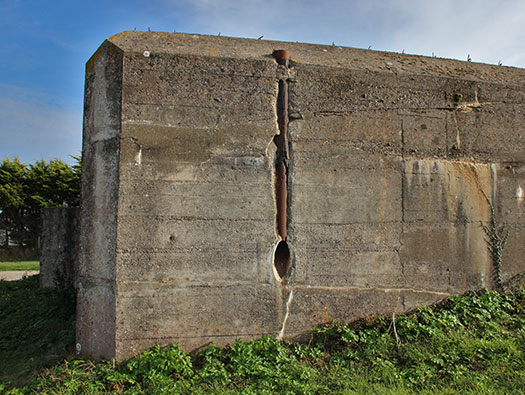

Chimney from a stove inside the bunker. It was used not just heating but also for cooking and drying ones cloths.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

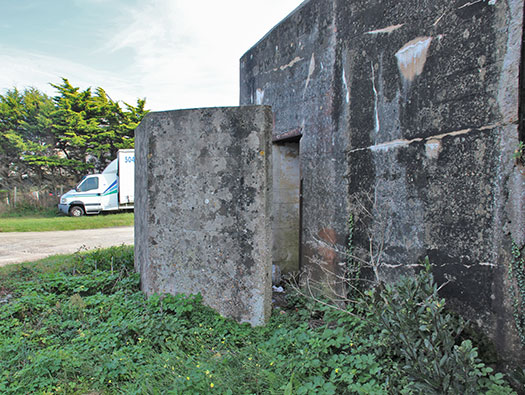

This is a small blast wall covering the entrance passage.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

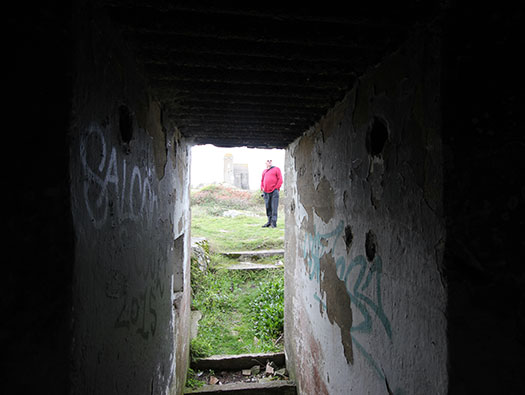

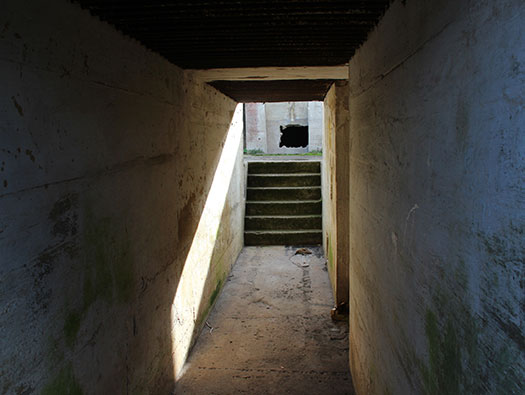

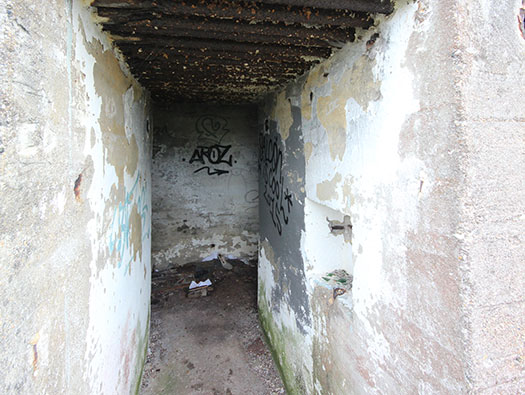

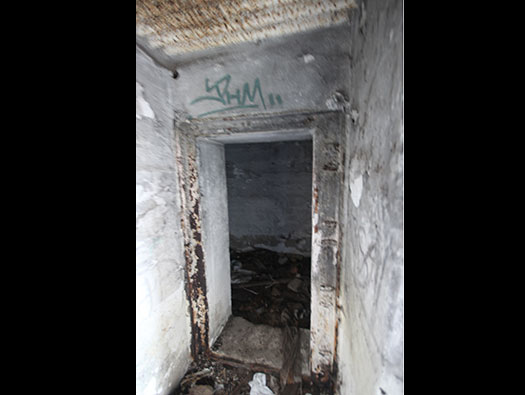

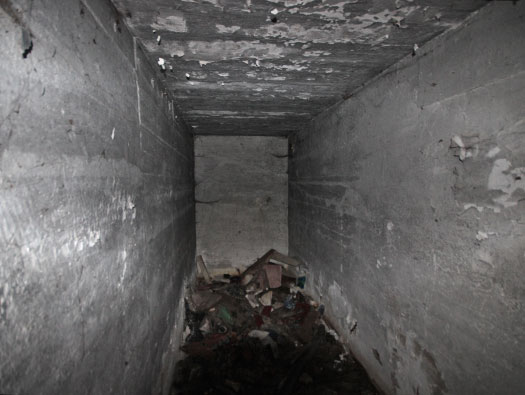

The entrance passage

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

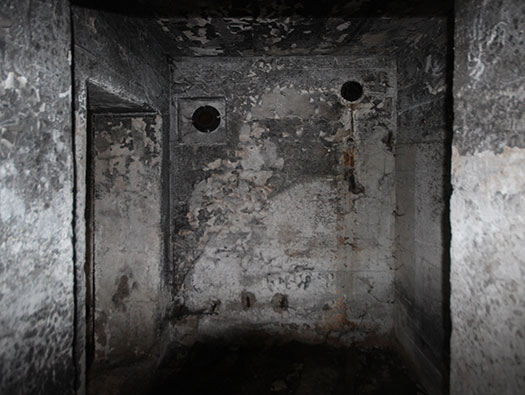

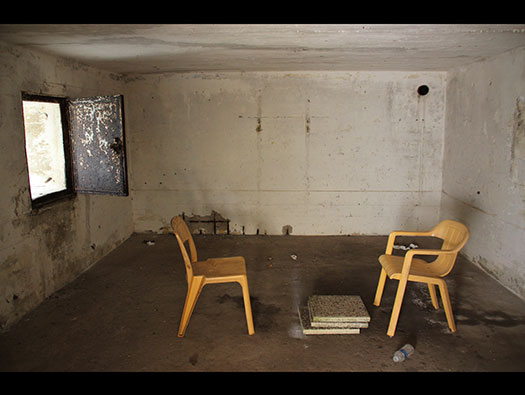

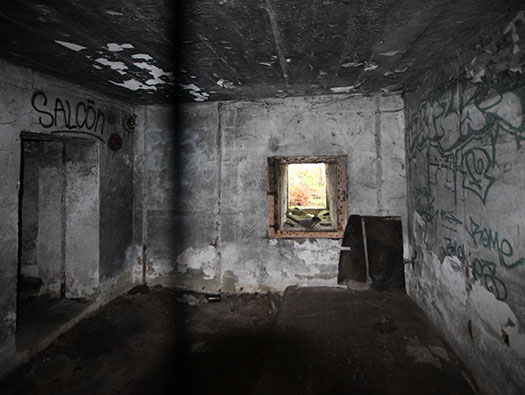

Inside the bunker with the escape on the left, marks on the wall for bunk bed fittings and the outlet for the chimney.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

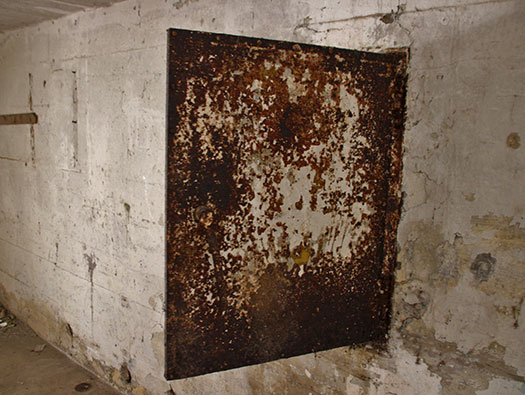

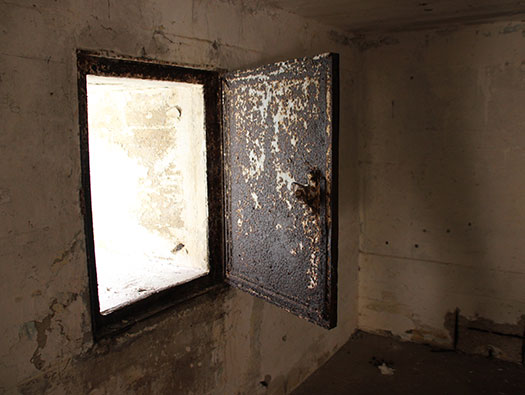

Escape door 414P9 type.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

Escape door 414P9 type.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

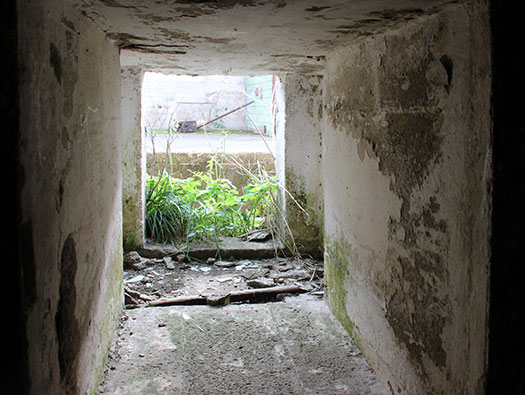

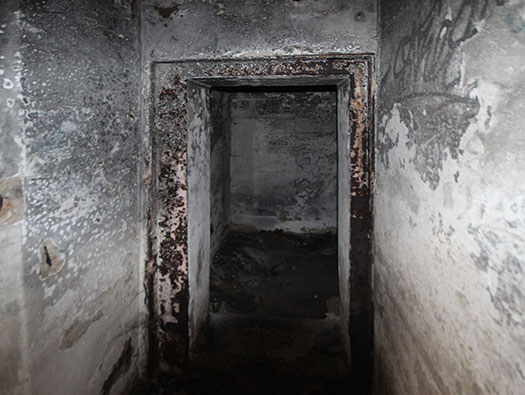

The escape running through the concrete wall.

04 November 2015

Looking into an escape and showing the shutters to close off the outside, they fitted into a slot seen on the main picture.

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

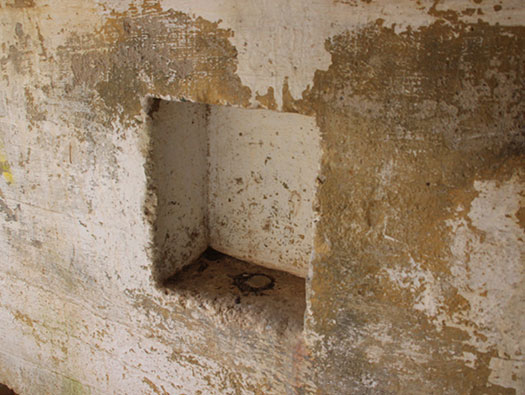

Light switch recess.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

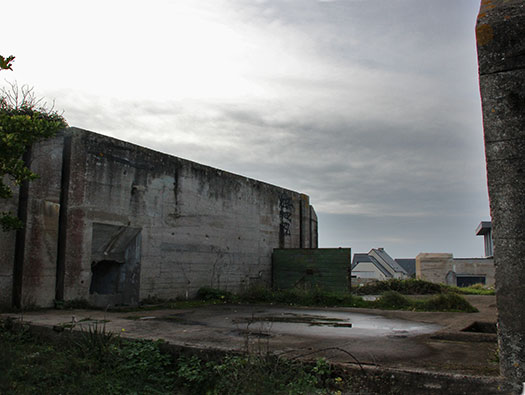

Outside on the hard stand between the two bunkers. The passageway to the bunker, the escape on the left and a small square recess in the wall which I am very sorry I did not notice when we were there and the virtical slots for timber walls.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

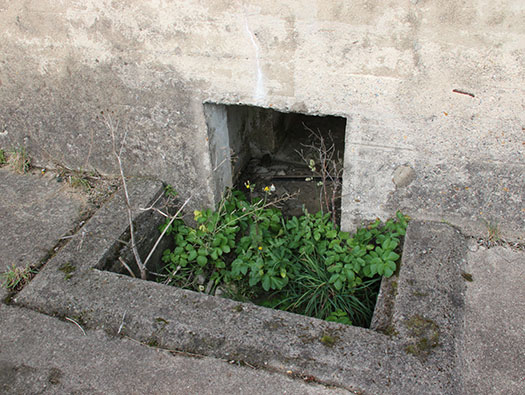

The escape into the outside world.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

Notice the double set of slots, to me they may have been where large bulks of timber could be set between the bunkers. The two rows timber could have had sand or fine pebble infill to act as an armoured protection and can also be taken down to allow the radar to be removed and replaced.

04 November 2015

My plan showing the Freya radar sat on the hard standing and the timber walls.

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

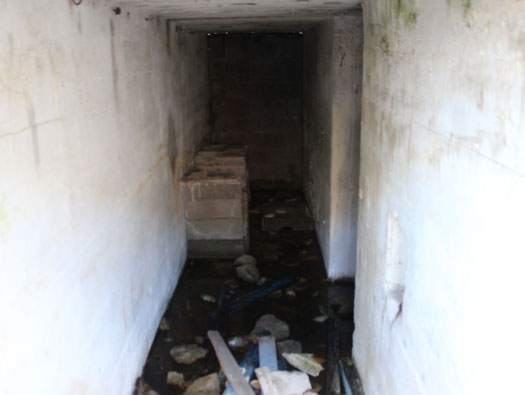

The passage through to the second bunker now sealed up.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

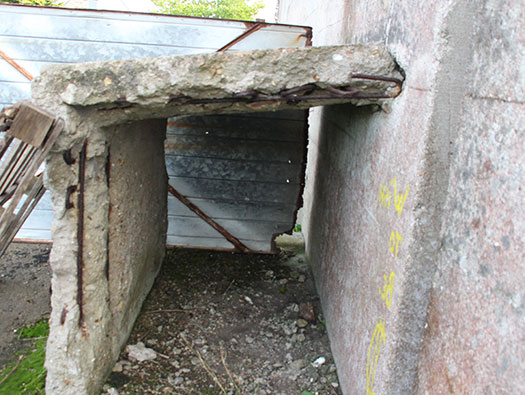

An odd lean-too??

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

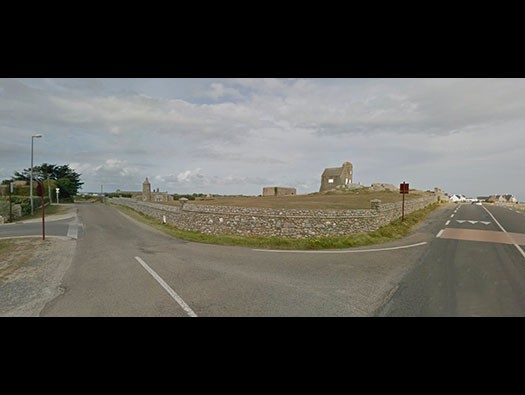

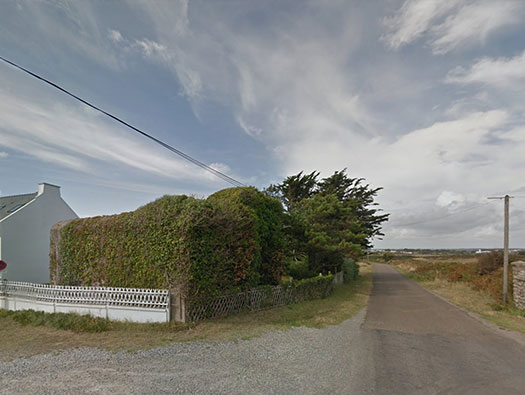

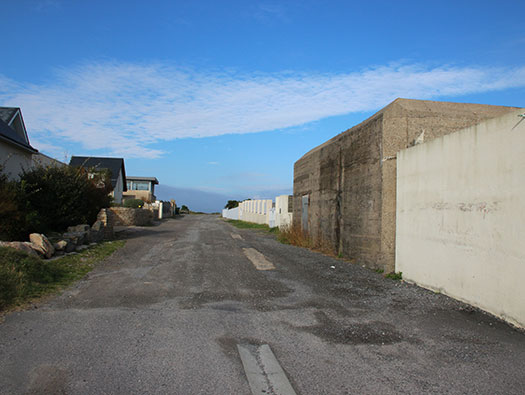

Heading back to the sea front and along the road west.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

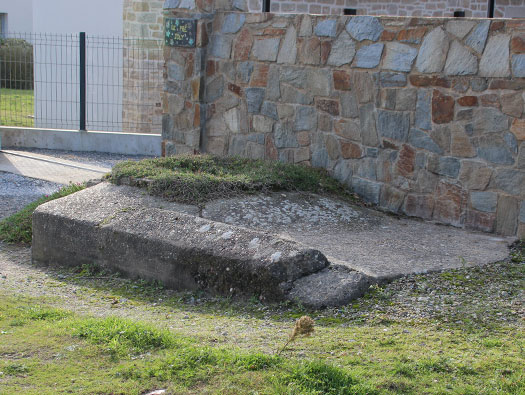

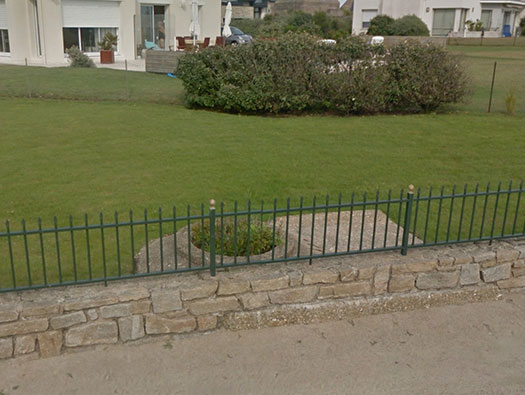

Now in a very nice garden, this Tobruk would have protected this part of Tu500 from the seaward side.

04 November 2015

Wn. Tu500 Croisic (Nutria) Vigie de la Romaine

The FuSE-65 Giant Würzburg radar was developed by the Telefunken Co., it was used to locate and track Allied aircraft & shipping (as a secondary use). A pair of Würzburg antennas were used together; one to track Allied aircraft and the second to guide German fighters with the help of the Freya set.
