StP M.K.B. Oye Plage,

MKB · K.V.A. B Dunquerque Freie Küste S/W · AOK 15 Nord Pas de Calais · France

StP M.K.B. Oye Plage,

StP M.K.B. Oye Plage, Oye Plage.

Batterie 8./M.A.A.204. 4 x M270 casemates. 1 x R219 Doppelschartenstand. 1 x Hochleitstand FCP. 1 x (M)134. 1 x Barracks. . 1 x Feldmäßig. 1 x Michelmannstand. 2 Vf2a bunker. 4 x 15cm S.K.C/28. 4 x 7.5cm Flak M33(f). 4 x 2cm Flak 28. 1 x 7.5cm Lag.
M270 casemate.
M270 casemate.
15cm S.K.C/28.
15cm S.K.C/28.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
At les Dunes d'Oye a battery of four casemated guns.

Google

Parking les Dunes d'Oye.
Parking les Dunes d'Oye.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

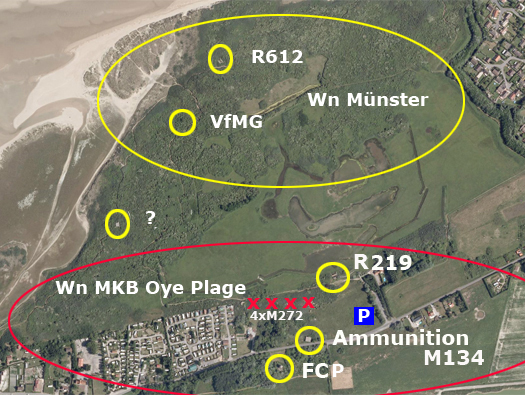

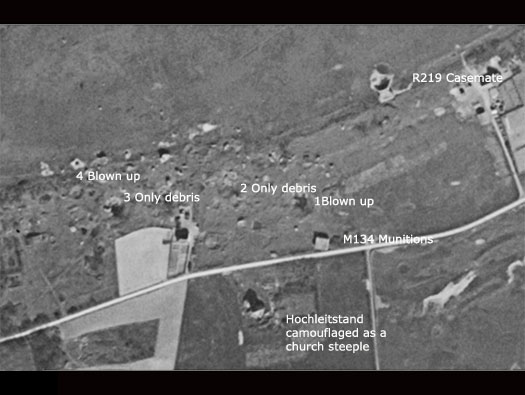

Above: is Wn Münster (yellow circle). Not covered. Below: Wn M.K.B. Oye Plage. (Marine Küsten Battery).

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
Wn M.K.B. Oye Plage. (Marine Küsten Battery).

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
Fire control post for battery 8./M.A.A.204 (Marine Artillerie Abteilung) with good views over the coast and the sea controlled the fire of four 15cm S.K.C/28.

26 February 2005

4 x M270 casemates with a 120degree ark of fire.
4 x M270 casemates with a 120degree ark of fire.
15cm S.K.C/28 pivot mounted guns.
15cm S.K.C/28 pivot mounted guns.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
I believe rather than give the bunkers up to the Allies they blew them up.

26 February 2005

Remains of an M270.
Remains of an M270.
Plan.
Plan.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

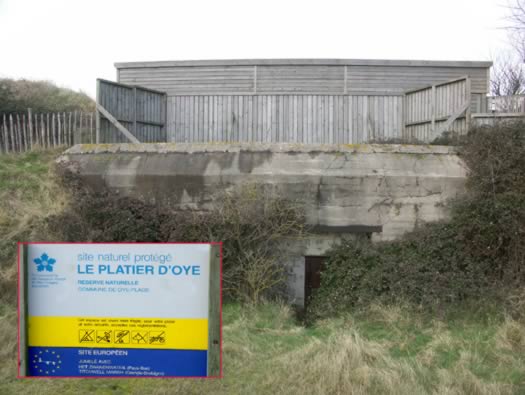

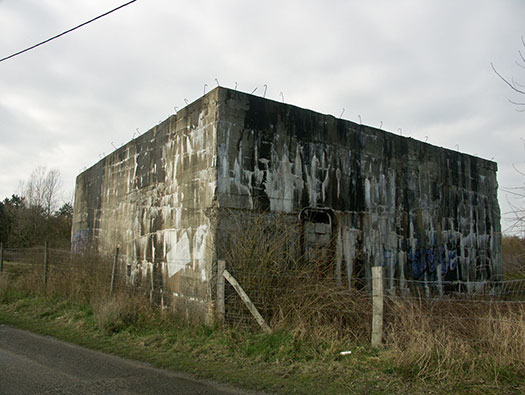

Note that the bunker has straight sides and is not rounded off.

26 February 2005

134 ammunition bunker plan of how I see it?
134 ammunition bunker plan of how I see it?
The blue line is the extent of the West Wall and purple the Maginot line.
The blue line is the extent of the West Wall and purple the Maginot line.
Plan.
Plan.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

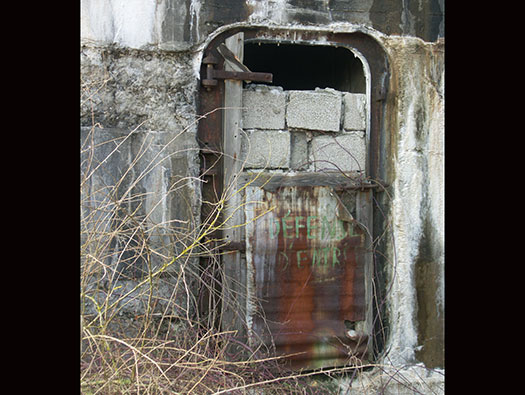

Parts of the original door are still in place.

26 February 2005

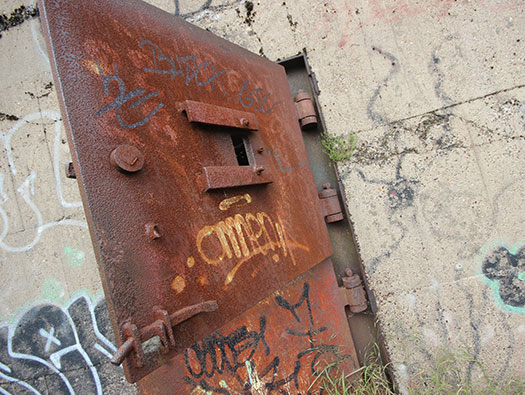

This may be an 882P7 marine armoured door.
This may be an 882P7 marine armoured door.
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
This picture taken in 2018 and it looks very much the same..

18 May 2018

134 ammunition bunker plan of how I see it?
134 ammunition bunker plan of how I see it?
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

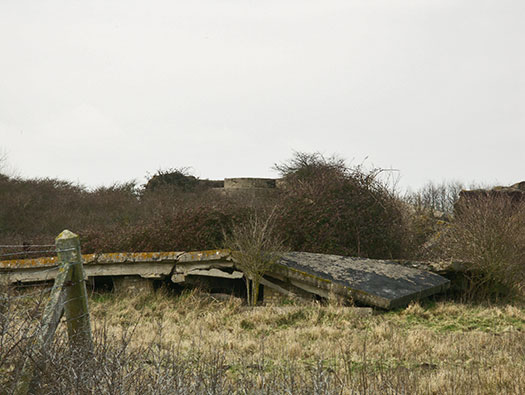

A light reinforced concrete structure, not a bunker.

26 February 2005

How it may have looked.
How it may have looked.
The inside of the same style of building inside.
The inside of the same style of building inside.
Plan.
Plan.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

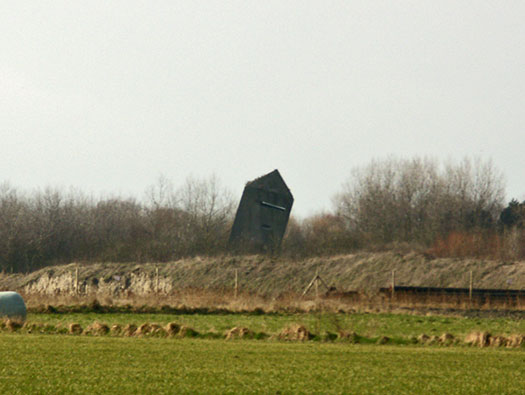

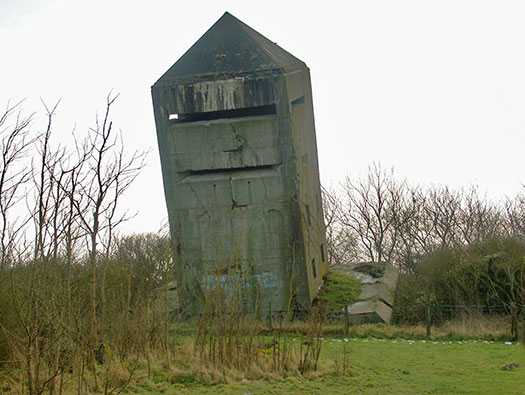

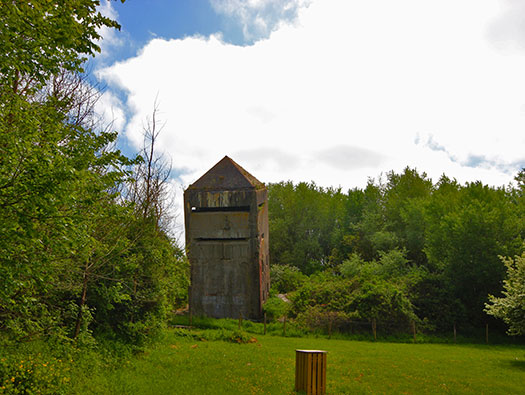

Set behind the gun line which is situated on a sand dune, this fire control post built to look like a church tower had to be able to look over and in front of the guns and out to sea at its targets. Just before its inevitable capture the foundations at the front were under mined to allow it to collapse, but as you see it now leans like Pisa.

26 February 2005

Plan.
Plan.
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
The trees have grown around it and hard to see from a distance..

18 May 2018

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

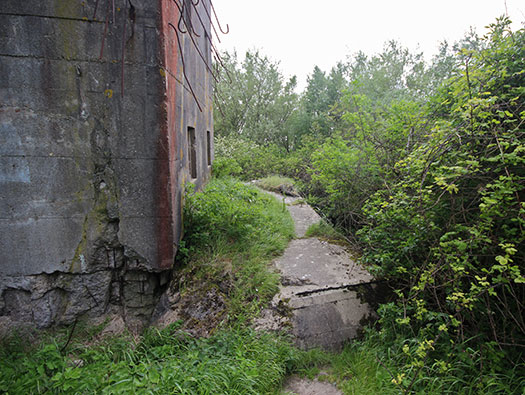

Walking around the side and over the main control room under the Hochleitstand.

18 May 2018

Plan of the FCP.
Plan of the FCP.
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

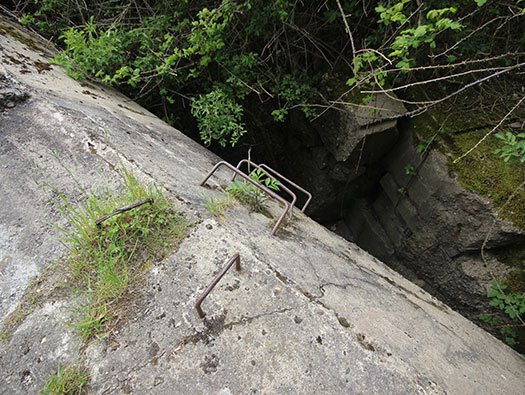

The set of steps are the only way into the control room below.

18 May 2018

Plan.
Plan.
FCP main command post under the tower. Two entrances, one from above and one at ground level.
FCP main command post under the tower. Two entrances, one from above and one at ground level.
Plotting room.
Plotting room.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

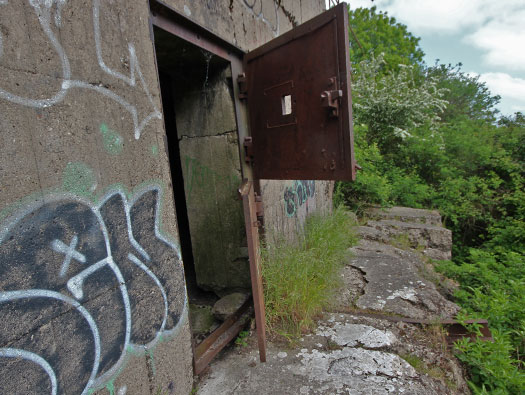

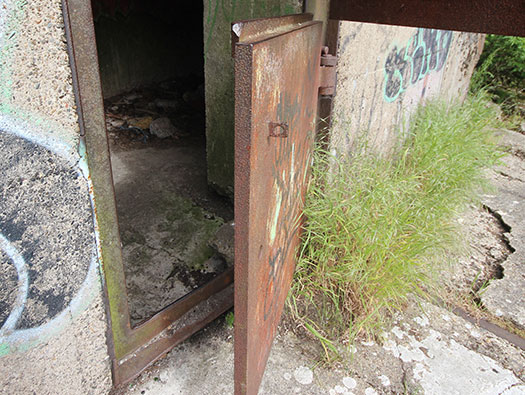

The 434P01 rear armoured door still nicely in place.

18 May 2018

434P01 door.
434P01 door.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
The 434P01 rear armoured door a real piece of thick plate.

18 May 2018

434P01 door.
434P01 door.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
The rear armoured door front view with the viewing slit and door bolt.

18 May 2018

434P01 door.
434P01 door.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

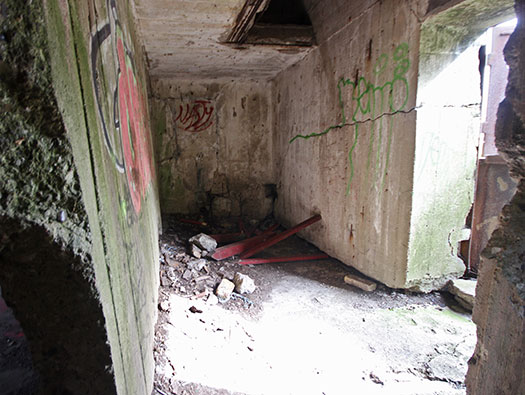

Coming through the door and the first anti-room where a set of iron stair case went to the first floor continuing to the top.

18 May 2018

You can see the stairs on the elevation.
You can see the stairs on the elevation.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

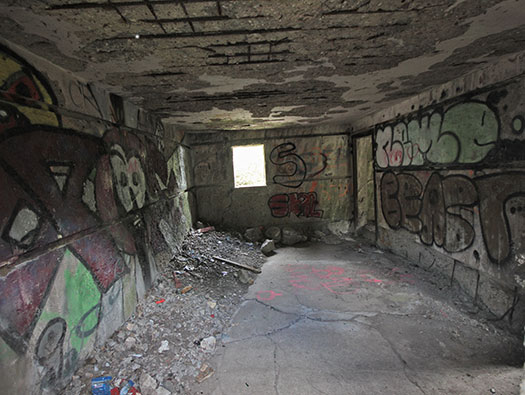

The first floor room with windows each side but none facing forward.

18 May 2018

Ground floor.
Ground floor.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

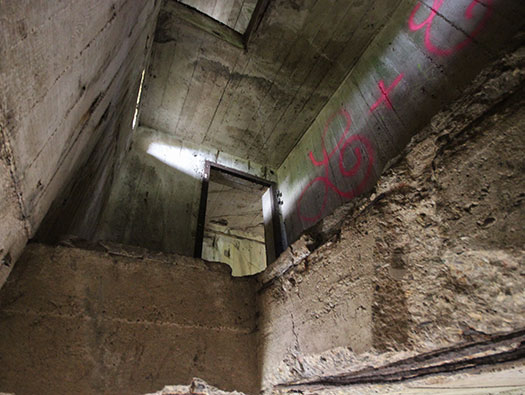

Looking up through the stair well to the first floor.

18 May 2018

First floor.
First floor.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

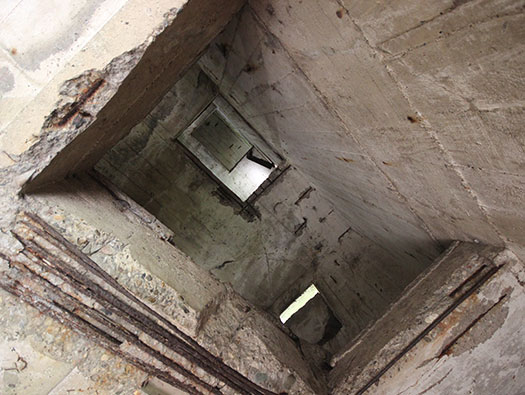

Looking up the stair well to the top. Just a ladder needed.

18 May 2018

Elevation.
Elevation.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

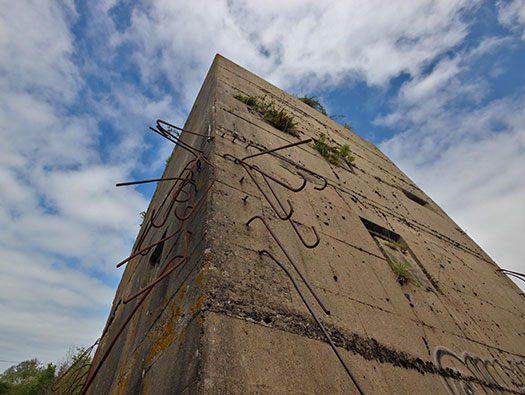

The view up the tower and steel reinforcement that has been deliberately left to hook camouflage nets to it.

18 May 2018

Camouflaged bunkers.
Camouflaged bunkers.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

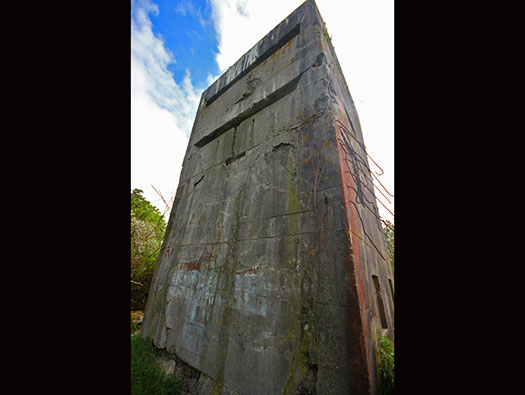

The view up the front face.

18 May 2018

StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

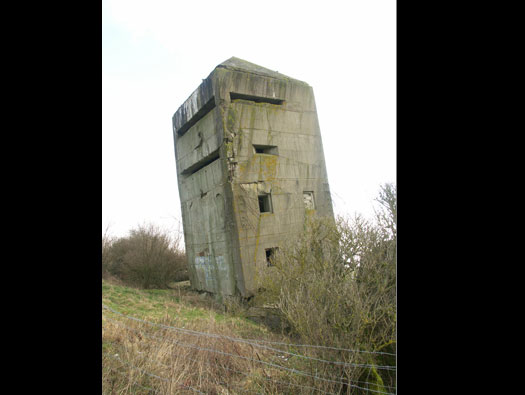

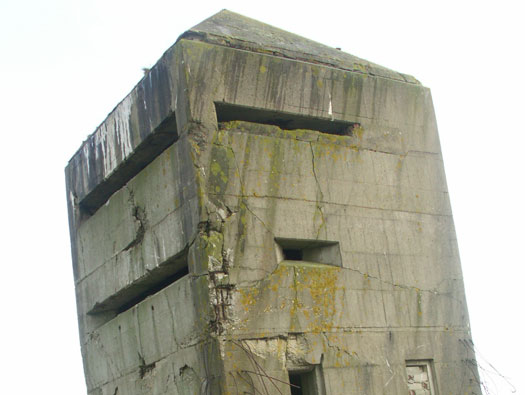

Designed to look like a local church tower to add to its camouflage effect, but as you can see it did not stop the Canadians from firing at it by the looks of the many hits received.

26 February 2005

StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

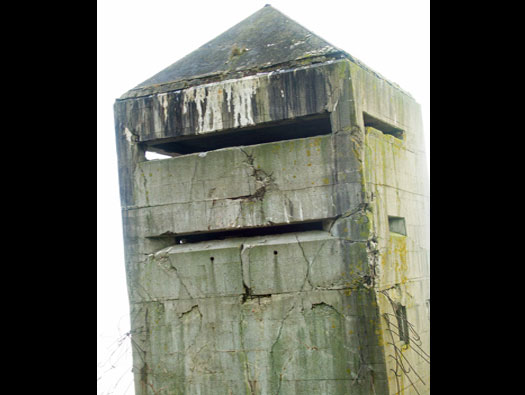

A nice view of the top vision slits.

26 February 2005

StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

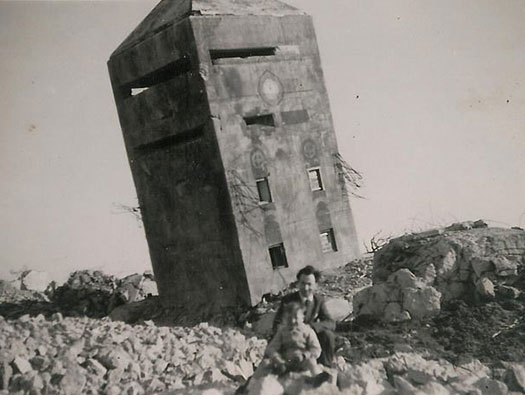

A picture taken post war. It even looks as though it had a clock face painted on.

Found on Internet

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

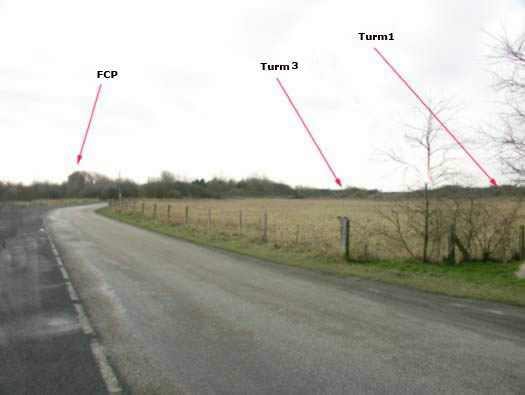

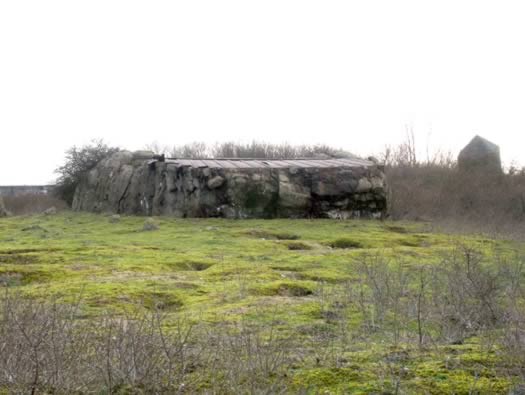

Fire control post and the gun positions, number four is to the right off the picture.

26 February 2005

Plan.
Plan.
Horses on the beach.
Horses on the beach.
15cm S.K.C/28.
15cm S.K.C/28.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
The rear of the casemate now turned into a bird hide.

26 February 2005

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

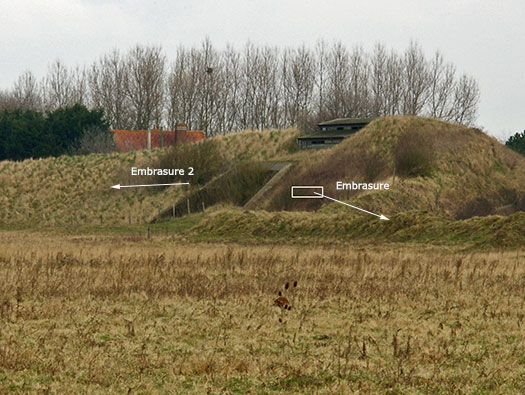

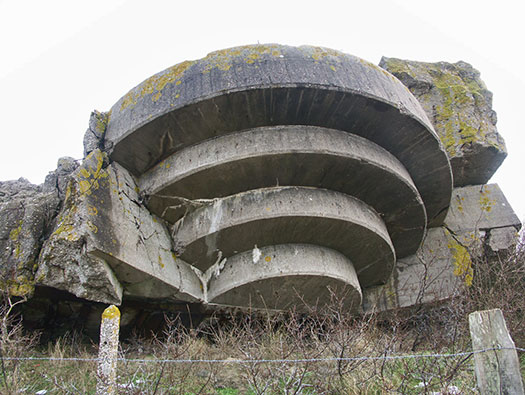

The front of the casemate looking into one of the embrasures.

26 February 2005

This could be a plan of a R219 casemate Vf LAG stand for a 7.5cm LAG gun and the gun could be used either through the left or the right embrasure. LAG (anti landing gun).
This could be a plan of a R219 casemate Vf LAG stand for a 7.5cm LAG gun and the gun could be used either through the left or the right embrasure. LAG (anti landing gun).
Plan.
Plan.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
The batterie site was destroyed to stop it falling into the hands of the Canadians as they advanced.

26 February 2005

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

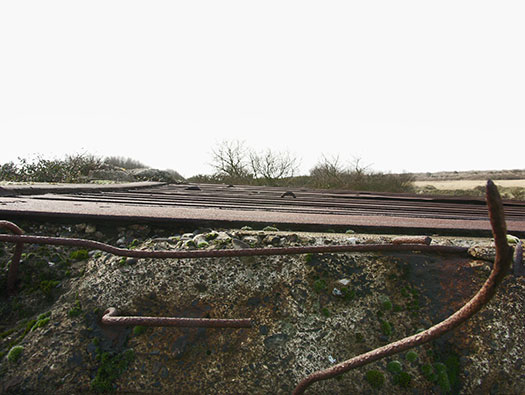

Casemate roof showing the reinforcement rods and the steel roof..

26 February 2005

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

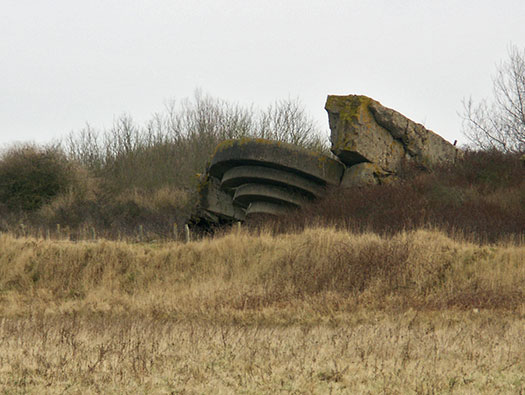

All the M270 casemates completely destroyed.

26 February 2005

M270 at Battery Brommy, Cherbourg
M270 at Battery Brommy, Cherbourg
Plan.
Plan.
StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
Closeup of the top of the embrasure.

26 February 2005

M270 plan, gun room, two ammunition rooms and close combat defences to both rear entrances.
M270 plan, gun room, two ammunition rooms and close combat defences to both rear entrances.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

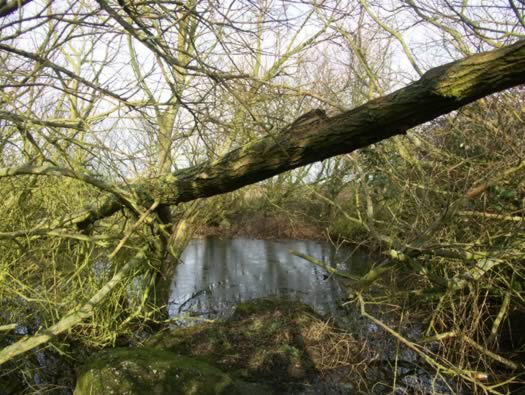

Looks like a bomb crater, most batteries were bombed or shelled relentlessly after D-day to save infantry casualties when they were attacked.

26 February 2005

Halifax.
Halifax.
Lancaster.
Lancaster.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

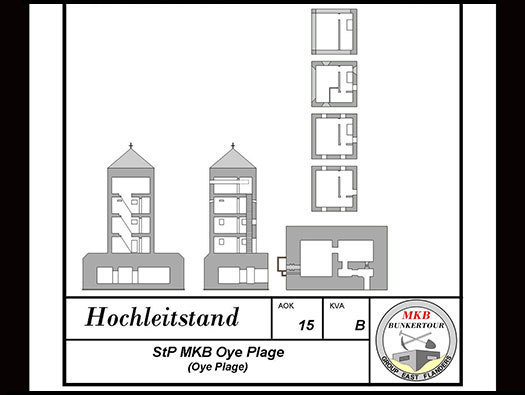

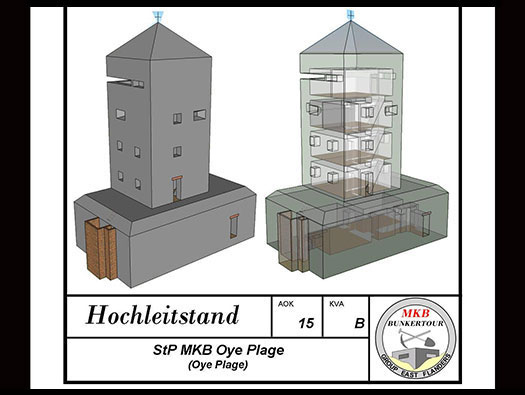

A lovely plan kindly lent buy Kurt from MKB Bunkertour.

21 May 2018

MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.
A lovely plan kindly lent buy Kurt from MKB Bunkertour.

21 May 2018

MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.
MKB. Click on image for MKB's Facebook Page.

StP M.K.B. Oye Plage, Oye Plage.

StP M.K.B. Oye Plage, Oye Plage.

26 February 2005
