Ra104b/Ra310a Pointe du Grouin.

K.V.Gruppe Rance · AOK 7 Brittany · France

Ra104b/Ra310a Pointe du Grouin.

Cancale a wonderful place for sea food. Situated on the coast between Le Mont Saint Michel and Saint-Malo. Ra104b:

2 x R501 Group shelter.

1 x R502 Twin group shelter.

1 x Vf600 Emplacement for 5cm KwK gun adjusted.

1 x R504 Anti-tank bunker with group shelter.

1 x R667/SK casemate for a 5cm KwK.

6 x Vf68c Tobruk's.

1 x Stolen.

2 x 5cm KwK L/42 guns. Ra310a: Station Kriegsmarine,

1./3. Funkmess-Abteilung. 1st Company of the 3rd Marine Transmission Groupe 1 x SK/Machinenstand.

1 x Fu.MO 2 (FuMG Gema NR.g.236type 40a).

August 1944 all equipment and personnel were transferred to the Channel Islands.

R504 Anti-tank bunker with group shelter.

Ra104b/Ra310a Pointe du Grouin.

Google

Ra104b/Ra310a Pointe du Grouin.

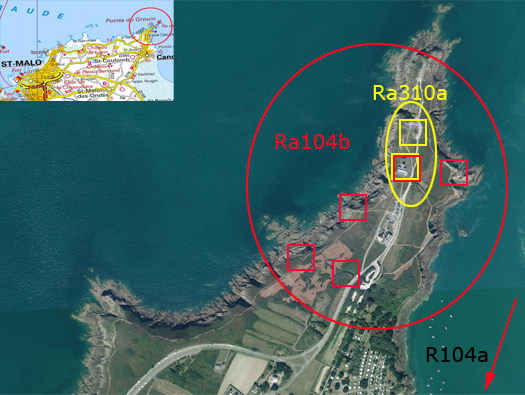

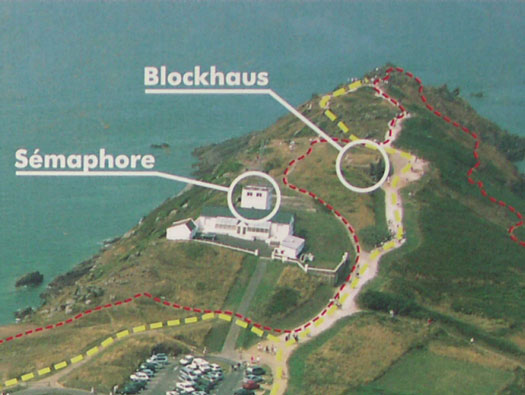

Ra104b (red) is the Pointe and Ra310a (yellow) is the radar station.

Ra310a:
Station Kriegsmarine, 1./3. Funkmess-Abteilung.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

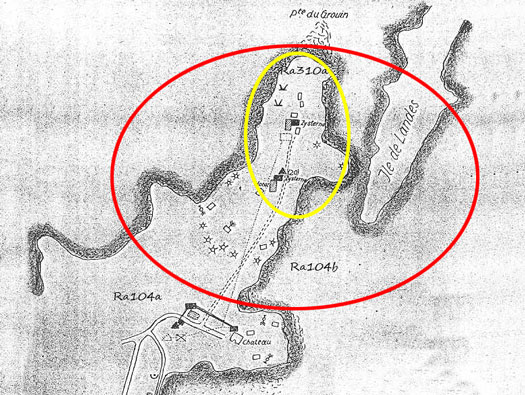

Plan dated 30 Jan. 1943.

WEHRGEOL docs.

Ra104b/Ra310a Pointe du Grouin.

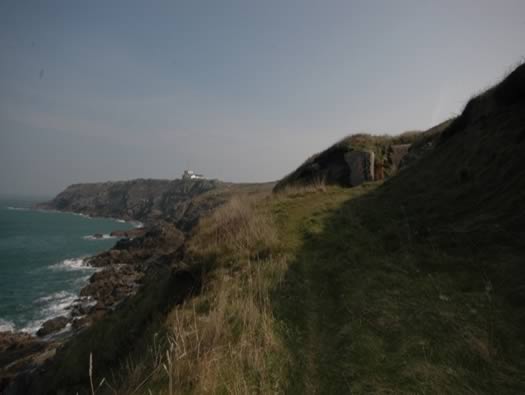

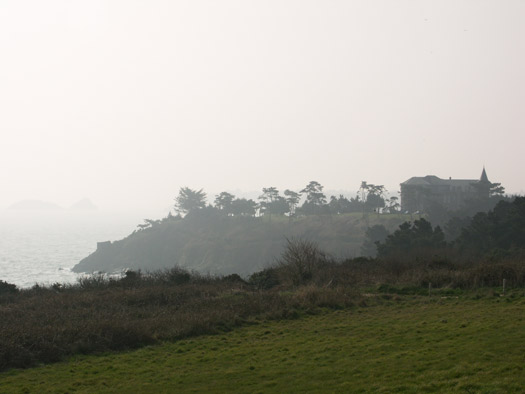

The view back as we started out on our walk. Ra104a Château de la Barbe Brulée. (That is for another day)

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

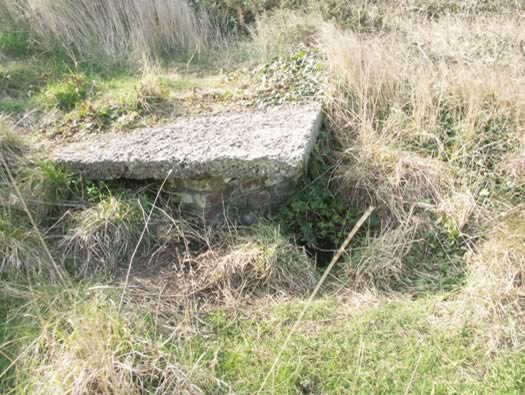

Ra104b. The first Tobruk.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

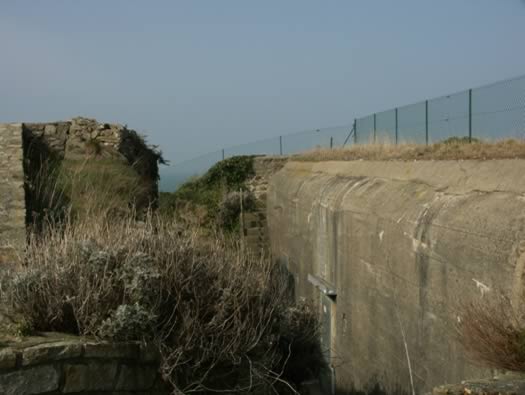

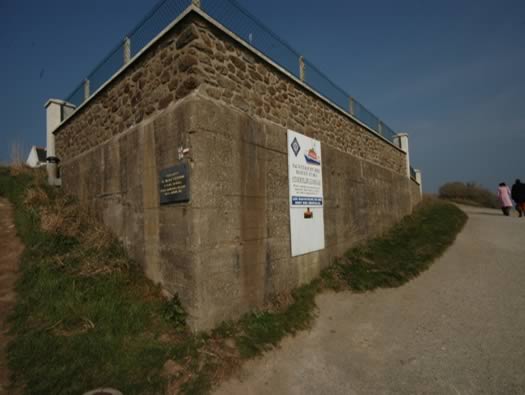

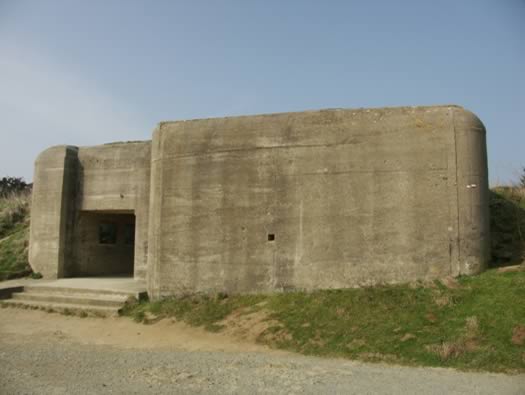

Ra310a Exploitation bunker. This is the exploitation bunker where the radar operators would have to work.

18 March 2006 JF

Ra104b/Ra310a Pointe du Grouin.

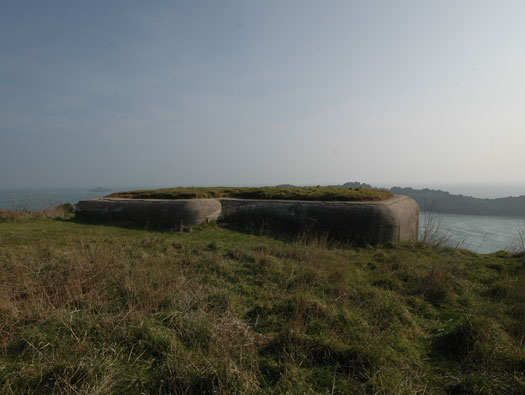

Ra310a SK/Machinenstand.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra310a SK/Machinenstand. Behind this bunker was a Seetakt Gema radar.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra310a SK/Machinenstand.

18 March 2006

Probably two generator sets would be inside here, plus storage for fuel.

Ra104b/Ra310a Pointe du Grouin.

Ra310a SK/Machinenstand. The entrance into the bunker where quite large generator sets would have been brought in.

18 March 2006

A plan of how it may be. A big entrance to allow large machinery to be moved in. You cannot get access.

Ra104b/Ra310a Pointe du Grouin.

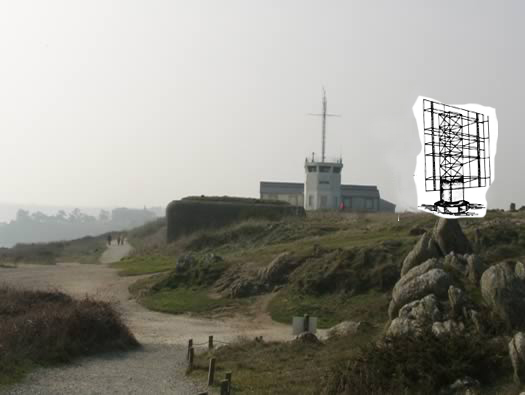

Ra310a. Radar Exploitation Bunker by the Semaphore & then the Generator bunker. In front was a base for a Fu.MO 2 (FuMG Gema NR.g.236type 40a). A view back at the semaphore with the radar bunker and to its right the place the radar would have been placed. I have cut and pasted a Seetakt Gema radar scanner onto the picture to show what it may have looked like.

RAF Target File.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

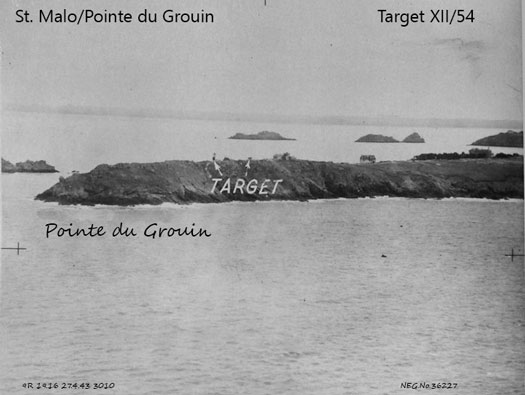

RAF Target File low level air photo showing the radars.

18 March 2006 WEHRGEOL docs.

Ra104b/Ra310a Pointe du Grouin.

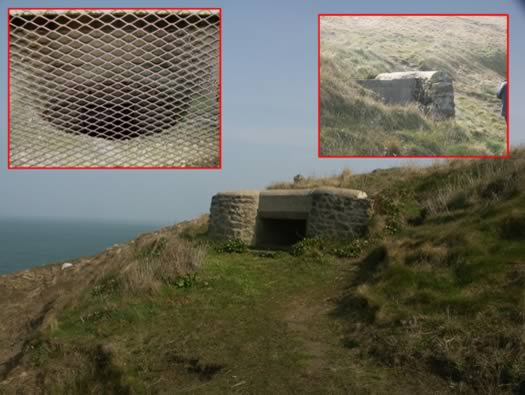

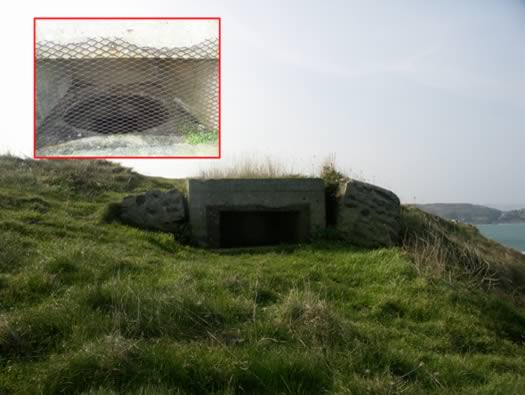

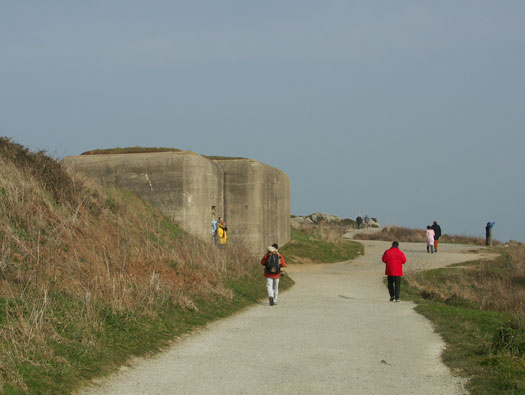

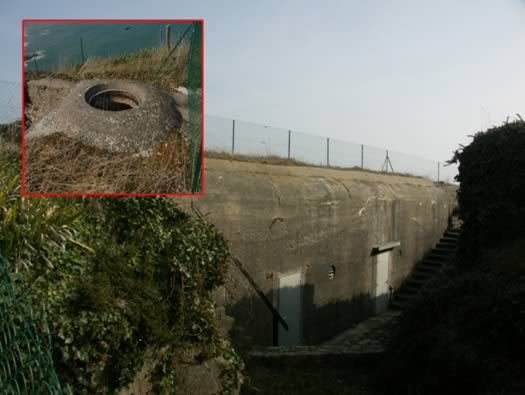

Ra104b. R502 twin group bunker. Inset the Tobruk attached to the bunker.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b. R502 twin group shelter.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

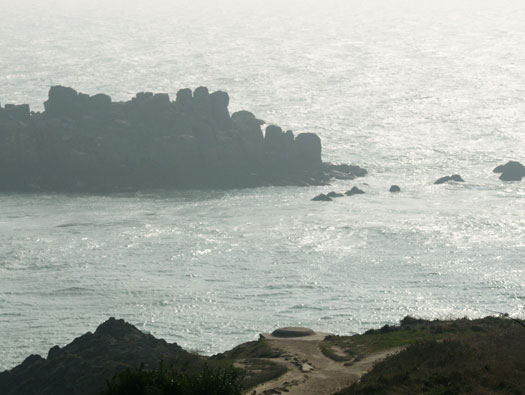

The Pointe.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

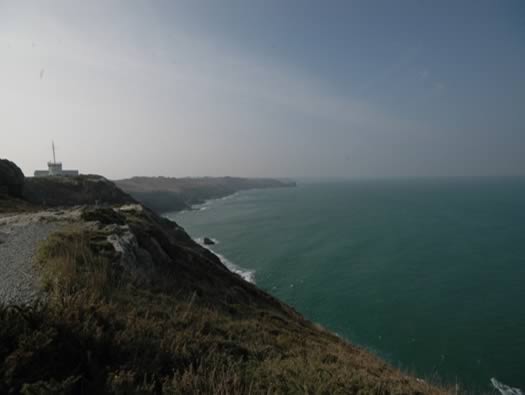

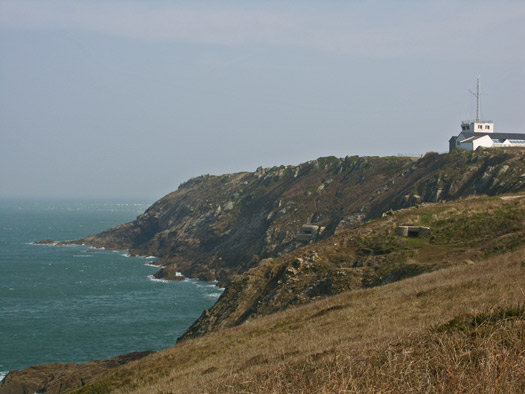

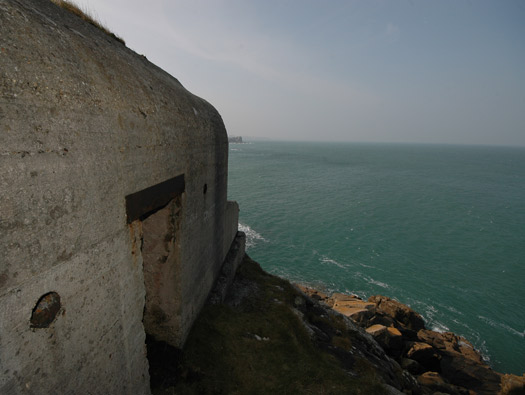

Ra104b. The west side of the Pointe With the Semaphore above you can see one R667/SK 5cm KwK casemate and a covered Tobruk.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

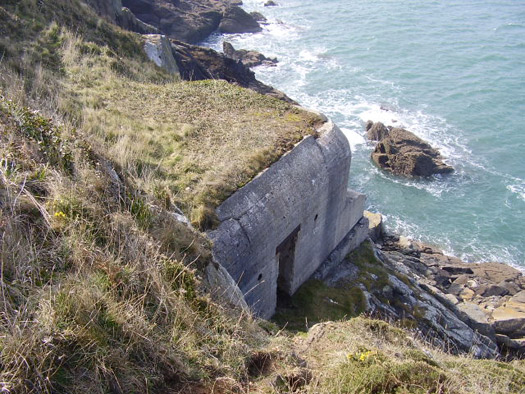

Ra104b. R667/SK casemate for a 5cm KwK 39 L/42 Pak gun. A long way down.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b. How one gets to the bunker. I'm too old for this.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

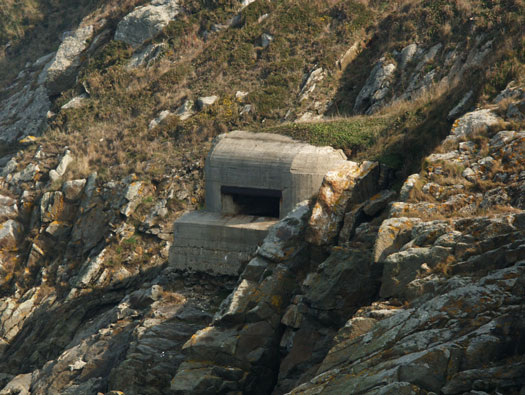

Ra104b R667/SK casemate for a 5cm KwK gun.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

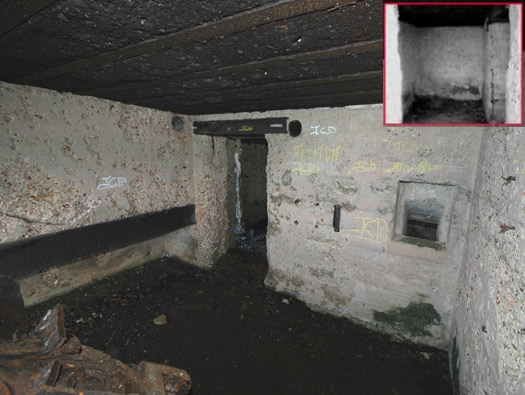

Ra104b R667/SK casemate for a 5cm KwK gun. The gun room with the ready ammunition storage on the left, then the door, to the right is a square chute for putting the fired brass case to clear them from the gun room. Behind the wall (inset) is an added ammunition room.

18 March 2006

R667/SK with extra ammunition or crew space behind.

Ra104b/Ra310a Pointe du Grouin.

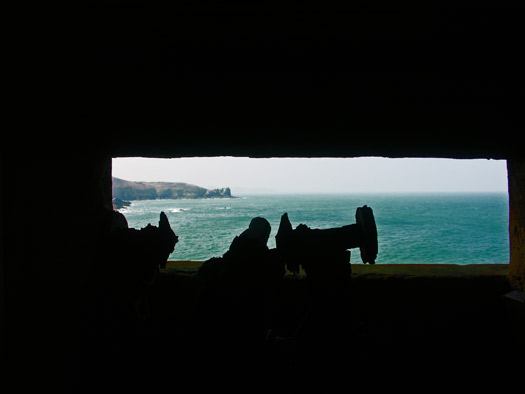

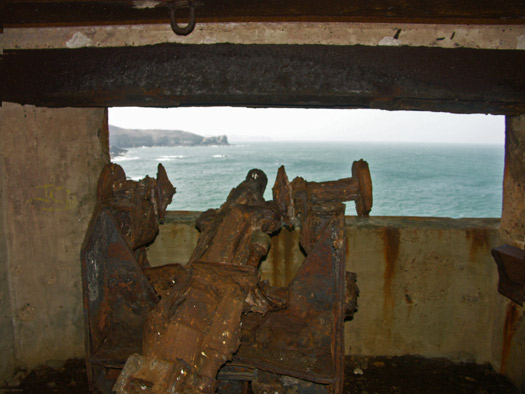

Ra104b R667/SK casemate for a 5cm KwK gun. Part of the corroded gun still in place.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b. R667/SK casemate for a 5cm KwK gun.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b. R667/SK casemate for a 5cm KwK gun with the view from the door.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

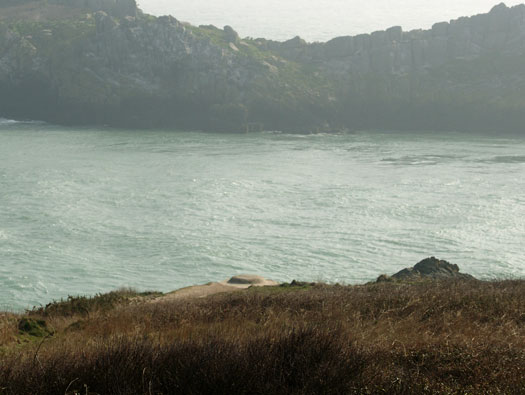

Ra104b. Covered Tobruk. Two very unusual Tobruk's they could only fire one direction.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b. Covered Tobruk two.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

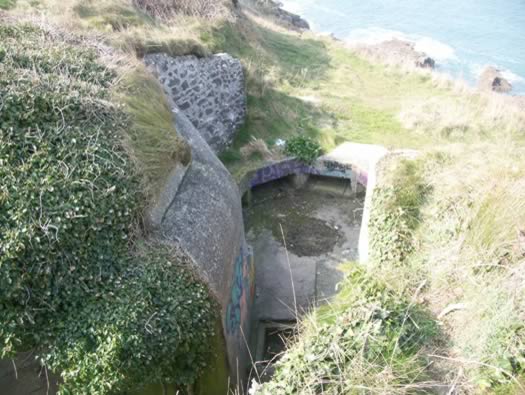

Ra104b R600 Ringstand and personnel bunker. Set into the side of the cliff is a very well camouflaged Ringstand for a 5cm KwK and behind a personnel/ammunition bunker. Usual the Ringstand fits on the top of the bunker, but here its placed at the side.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

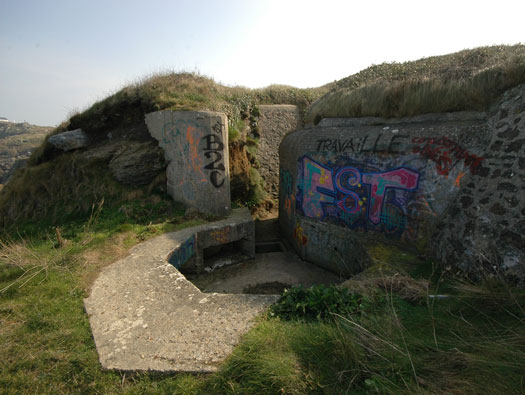

Ra104b. The Ringstand. R600 Ringstand and personnel bunker.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

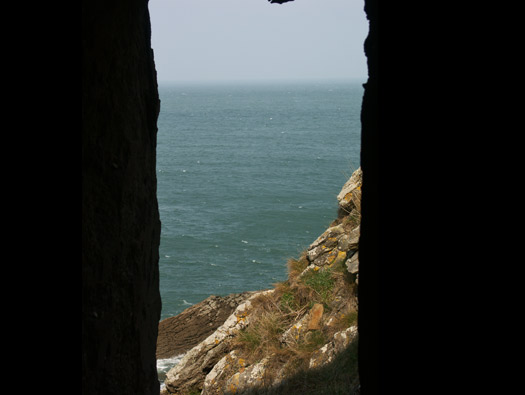

Ra104b R600 Ringstand and personnel bunker. A narrow passageway to the bunker.

18 March 2006 JF

Ra104b/Ra310a Pointe du Grouin.

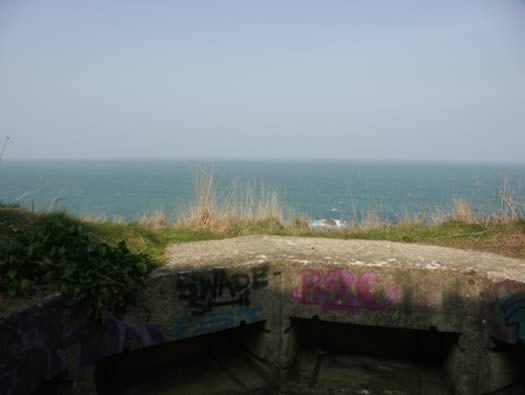

Ra104b R600 Ringstand. The view the gunners would have had. Ready ammunition would have been stored in the niches set around the Ringstands low wall.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

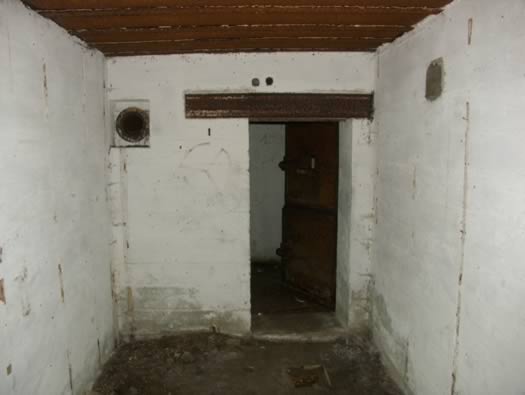

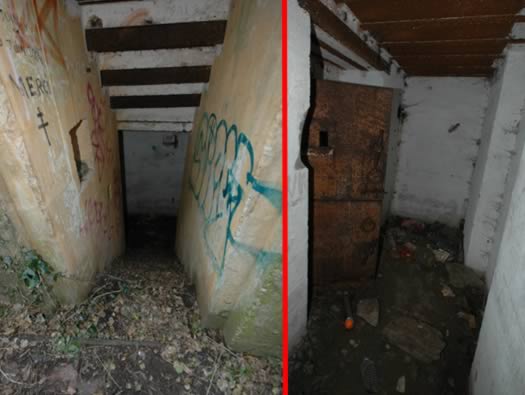

Ra104b. R600 Ringstand and personnel bunker. Left : steps down into the bunker. Right : the gas lock area and an armoured door to the ammunition room.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

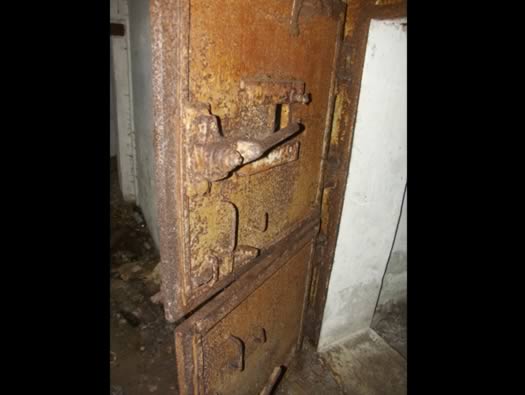

Ra104b R600 Ringstand and personnel bunker. The armoured door to the ammunition room showing the door fittings. A Marine type door 434p01.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

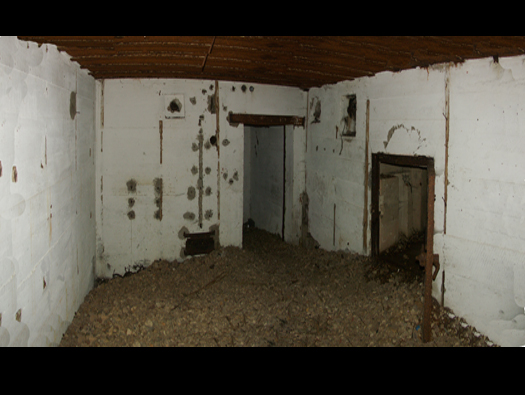

Ra104b R600 Ringstand and personnel bunker. Crew room on the left, ammunition room on the right and the gas lock in the front.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

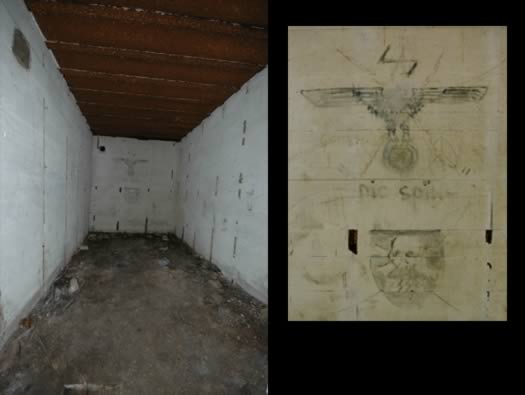

Ra104b R600 Ringstand and personnel bunker. The ammunition room, the painting on the wall is NOT original we believe.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

Ra104b R600 Ringstand and personnel bunker. The crew room with the main door and an escape passage and 410p9 escape door.

18 March 2006

The way the escape works with the door and a passage through the concrete wall and a steel ladder up the side.

Ra104b/Ra310a Pointe du Grouin.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

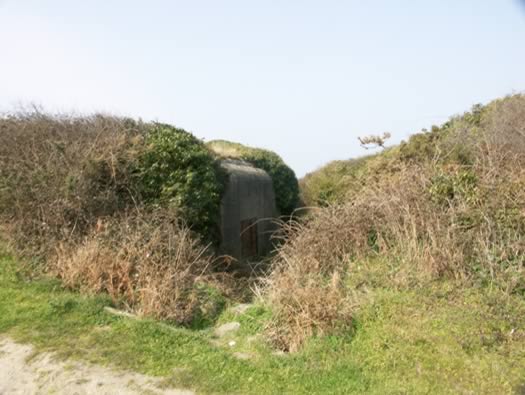

Ra104b R504 gun garage for a 3.7cm Pak gun. The bunker is set into a bank with access both ways.

18 March 2006

The Pak gun could be moved up to the coast or back to the road making a flexible defence.

Ra104b/Ra310a Pointe du Grouin.

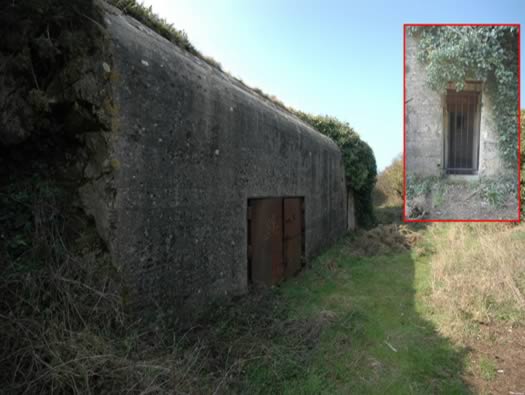

Ra104b R504 gun garage for a 3.7cm Pak gun. Inset is a gate (491p2 Gittertür).

18 March 2006

How it may look inside. An R504 at Ra670.

Ra104b/Ra310a Pointe du Grouin.

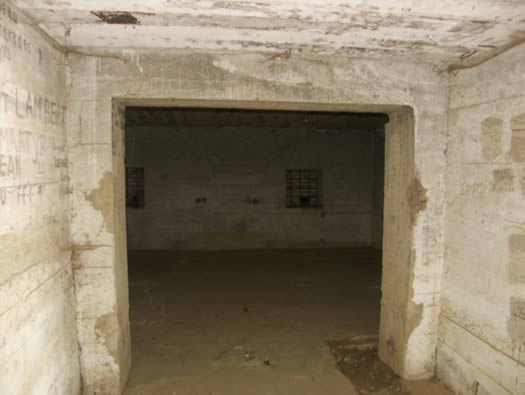

Ra104b R504 gun garage for a 3.7cm Pak gun. Looking into the entrance through the Gittertür with the close combat window protecting the entrance. On the right is the escape tunnel.

18 March 2006

Ra104b/Ra310a Pointe du Grouin.

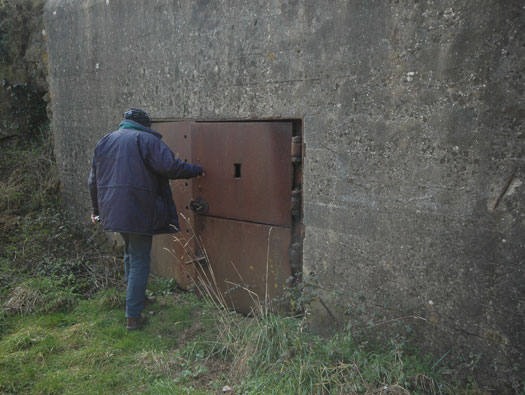

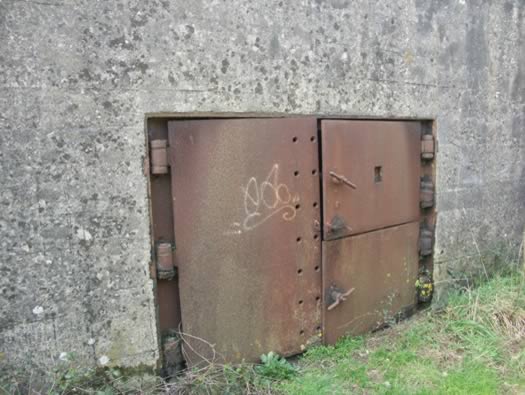

Ra104b R504 garage. 494p2 armoured double garage door.

18 March 2006

494p2 double heavy steel armoured doors.

Ra104b/Ra310a Pointe du Grouin.

The view from the Pointe. The Brittany coastline is very varied and beautiful, here with with cliffs, small coves, fishing ports and fine sandy beaches.
