Ra156 la Richardais H.K.B.1271

HKB · K.V.Gruppe Rance · AOK 7 Brittany · France

Ra156 La Richardais Battr, H.K.B.1271

It was in open fields, now a housing estate has been built around it.

Ra156 La Richardais Battr, H.K.B.1271

Heers Kusten Batterie 1271.

4 x R611 casemates.

2 x R669 casemates.

1 x R501.

1 x Nachrichtenstand [New stand?].

1 x Vf bunker.

1 x SK/Schartenstand MG.

6 x 12.2cm K.390/2(r).

Ra156 La Richardais Battr, H.K.B.1271

I had a lot of trouble finding this battery site, I asked several people who I thought ought to have known. In the end on a second visit with a bit more information I found it. Good planning before you visit is a good idea. All the casemates are in gardens and one is the foundations of a house.

24 November 2013

This gun has a very long barrel and large chassis.

Ra156 La Richardais Battr, H.K.B.1271

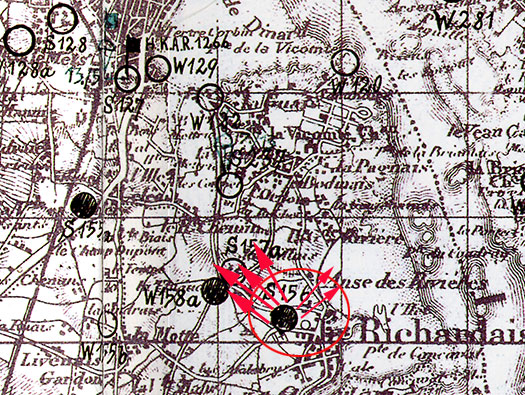

This battery covers the left of Dinard and the beaches of Saint-Lunaire. The two R669's cover the gap which is the estuary of the river Rance.

Plan

12.2cm K.390/2(r) configured to travel..

A captured 12.2cm K.390/2(r) in the St Malo area.

Ra156 La Richardais Battr, H.K.B.1271

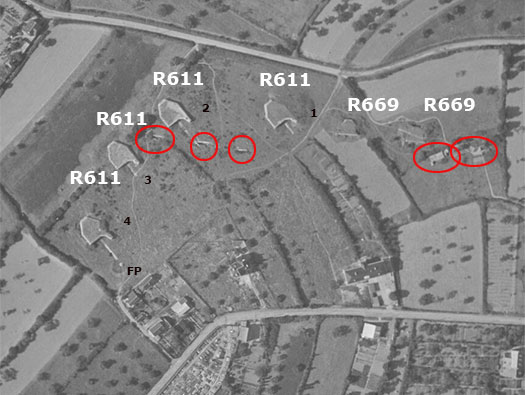

An air photo of the battery with the four R611 casemates and outside firing point (FP), trenches and R669 casemates. Firing Points are circular positions just outside the casemate where the gun can fire 306deg. and then go back into the bunker for safe keeping. The five bunkers can be seen here circled in red.

IGNF

Ra156 La Richardais Battr, H.K.B.1271

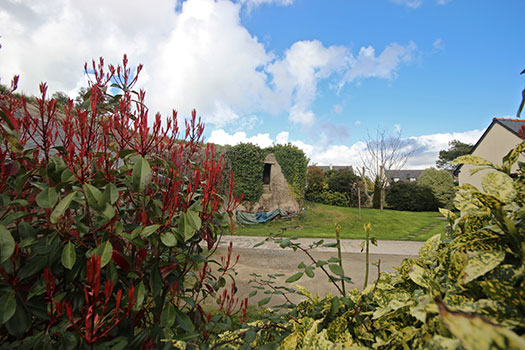

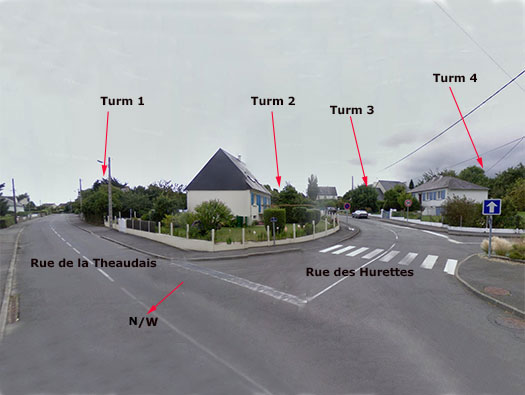

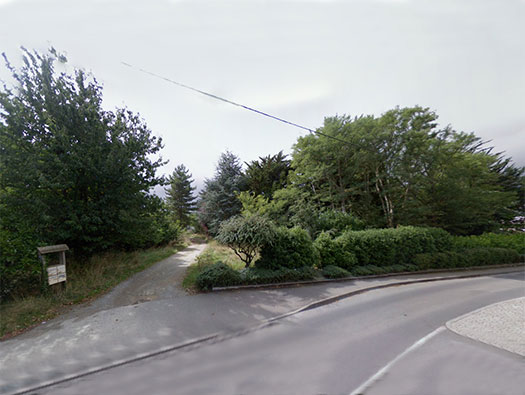

Turm 1 and two R669 casemates hiding in the bushes somewhere.

Google Maps

Ra156 La Richardais Battr, H.K.B.1271

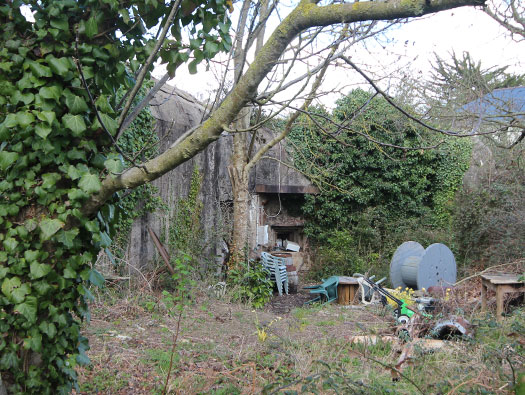

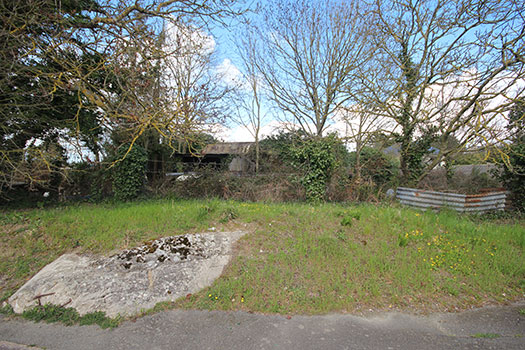

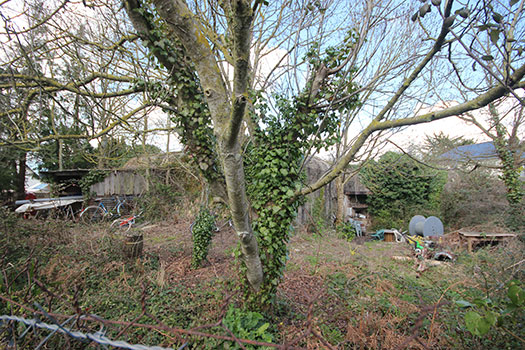

Also hidden but can be seen over the hedge. Not sure what the concrete by the path was for.

24 November 2013

Ra156 La Richardais Battr, H.K.B.1271

Close combat defence embrasure covering the rear entrance.

24 November 2013

Ra156 La Richardais Battr, H.K.B.1271

Close combat defence embrasure covering the rear entrance.

24 November 2013

Close combat embrasure at Ra155's R611 a 48P8.

Ra156 La Richardais Battr, H.K.B.1271

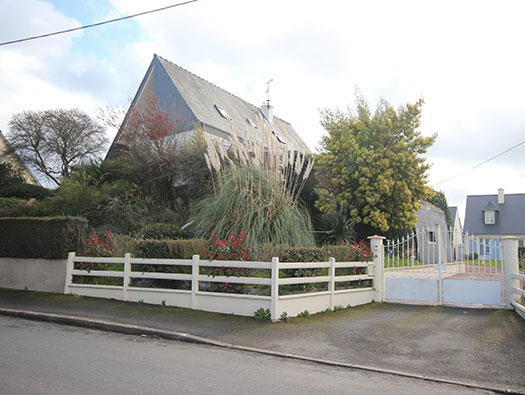

The house is built on th casemate.

24 November 2013

Air photo of the house. You can see the nose of the bunker sticking out at the front.

Ra156 La Richardais Battr, H.K.B.1271

24 November 2013

Ra156 La Richardais Battr, H.K.B.1271

You can just see the door into the rear Tobruk.

24 November 2013

A cut away of an R611's Tobruk at Ra155.

Machine gun on a slip ring and could fire 360deg. and fire at aircraft.

Ra156 La Richardais Battr, H.K.B.1271

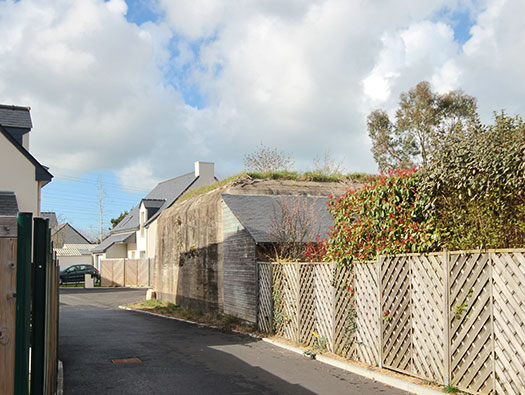

Side view and also the guns embrasure on the left.

24 November 2013

Russians using a 12.2cm m1931, the Russian name for the gun.

Ra156 La Richardais Battr, H.K.B.1271

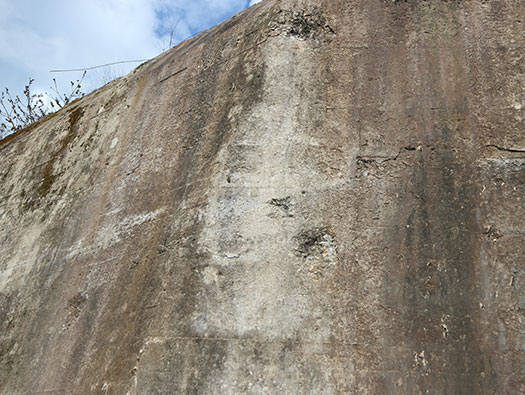

Battle damage.

24 November 2013

Ra156 La Richardais Battr, H.K.B.1271

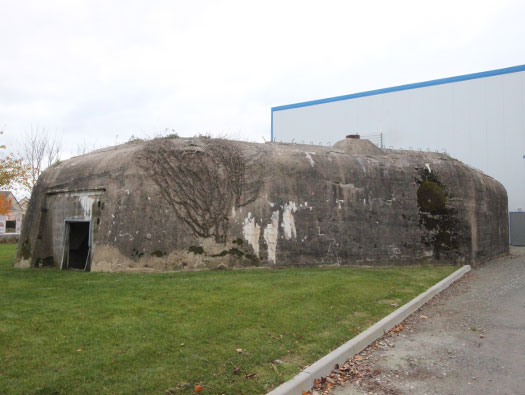

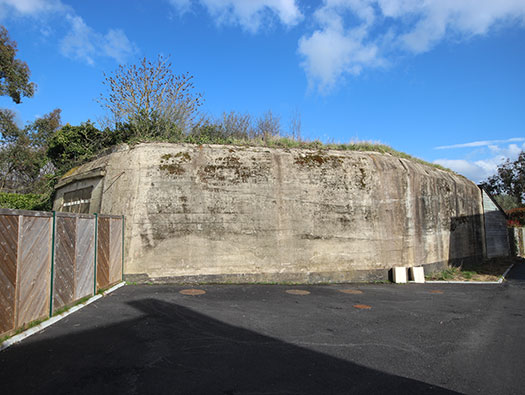

This is Term 1 at Ra155 Ville es Mesneir, 'Battr. Kahlenbach'. As we cannot see an R611 closely at Ra156 I have added three pictures of an R611 at R155. This picture just shows how large an R611 really is and how much concrete and energy was needed to build it.

24 November 2013

Plan of an R611 with a close combat room, crew room and two ammunition rooms.

Ammunition passage to the shell and case room.

Ra156 La Richardais Battr, H.K.B.1271

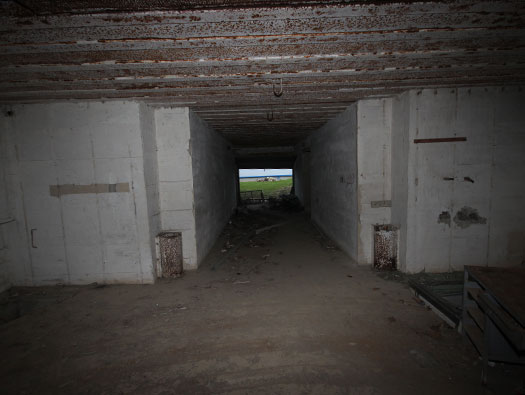

This is Term 1 at Ra155 Ville es Mesneir, 'Battr. Kahlenbach'. The view from the gun room looking back with the crew room on the left and the two ammunition stores on the right.

24 November 2013

Plan R611.
CCB -Close Combat Defence.
Tob - Tobruk. — Plan R611. CCB -Close Combat Defence. Tob - Tobruk.

Ra156 La Richardais Battr, H.K.B.1271

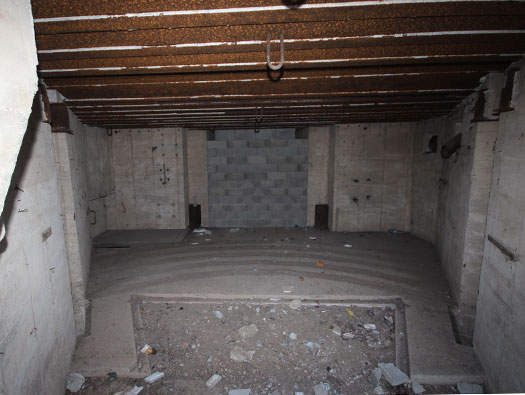

Gun room.This is Term 1 at Ra155 Ville es Mesneir, 'Battr. Kahlenbach'.

24 November 2013

Spent case man hole with three steel hand holds and steps.

Under the gun room floor is a large used shell case store. When the gun fires the shell case is placed down one of two holes in the floor. To retrieve them there is a manhole cover.
