Ra157 la Broussette 6./A.R.177

BATTERIE · K.V.Gruppe Rance · AOK 7 Brittany · France

Ra157 la Broussette 6./A.R.177

Ra157 la Broussette 6./A.R.177.

6./A.R.177 = 6th Artillery Abteilung 177.
R669 casemate.
R669 casemate.
10.5cm le.F.H. 18.
10.5cm le.F.H. 18.
2cm Flak 30.
2cm Flak 30.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

4 x R669 casemates.

2 x 2cm Flak 30.

4 x 10.5cm le.F.H. 18.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

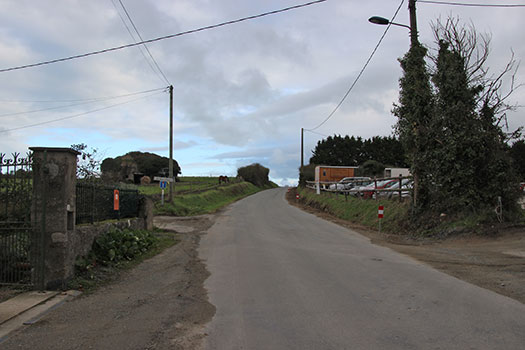

You can park in the stables on the right. The battery straddles the road to Dinard.

23 November 2013

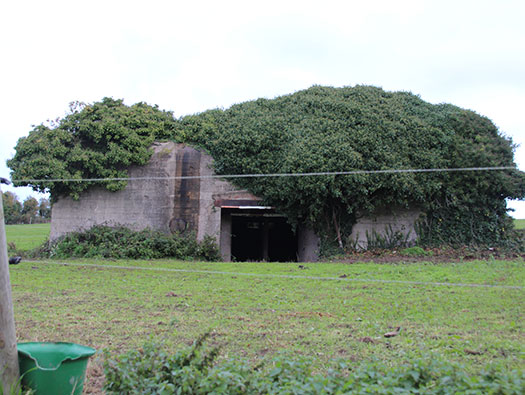

R669 casemate with a 60degree angle of attack. Two small ammunition niches either side of the rear door.
R669 casemate with a 60degree angle of attack. Two small ammunition niches either side of the rear door.
Ra157 la Broussette 6./A.R.177.
R669 casemate being built.
R669 casemate being built.
Front view of an R669 at Ozeville, Normandy.
Front view of an R669 at Ozeville, Normandy.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

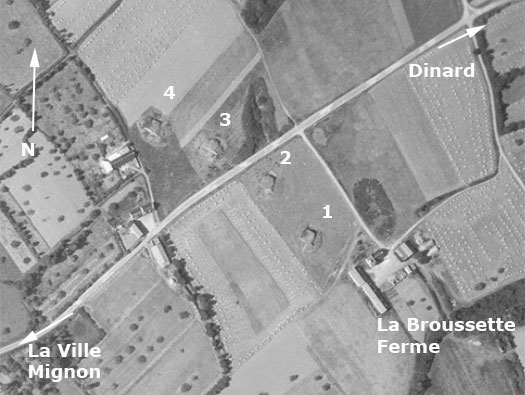

Four R669 casemates in a neat row.

IGNF

Guns crew.
Guns crew.
Guns crew.
Guns crew.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.
These guns were directed at an attack in the Dinard area.

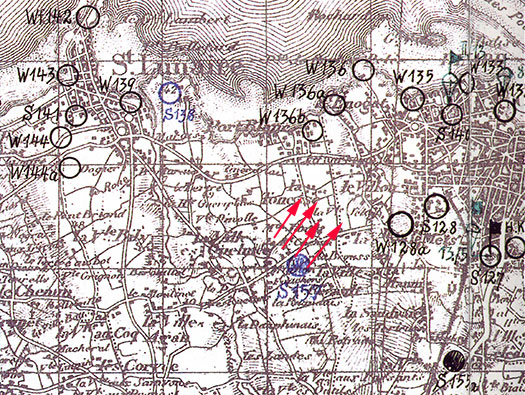

German plan of the area

Officer inspection.
Officer inspection.
10.5cm artillery.
10.5cm artillery.
Somewhere on the coast would have been a fire control officer to direct the guns via a cable or a radio.
Somewhere on the coast would have been a fire control officer to direct the guns via a cable or a radio.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

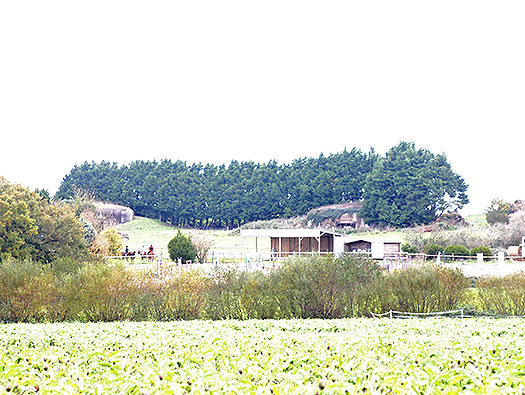

A bad picture taken from Ra236 I Pleurtuit Pontual Belle entree. Turm 2 & 1 within the stables R669 casemates.

23 November 2013

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

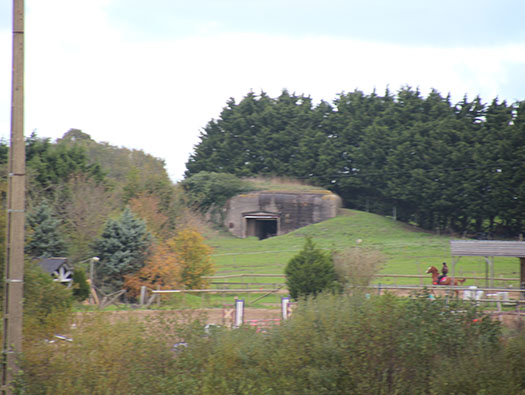

Turm 2. A slightly better long distance photo of Term 2 showing up its rear door.

23 November 2013

Inside an artillery casemate.
Inside an artillery casemate.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

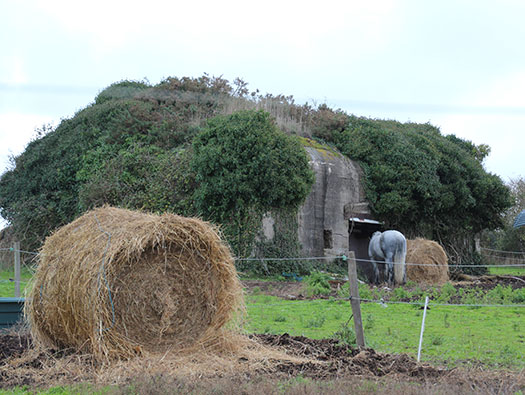

Term 4. Horses, horses everywhere. R669 casemates.

23 November 2013

German horse artillery.
German horse artillery.
Ra157 la Broussette 6./A.R.177.
Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

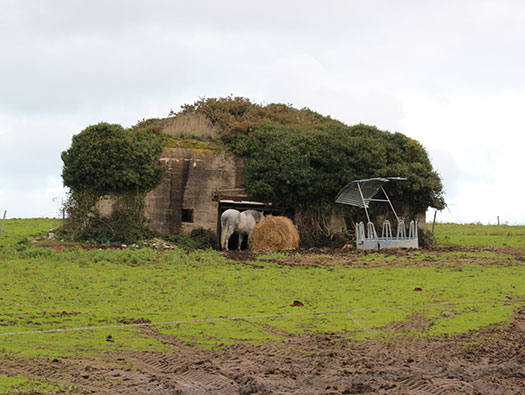

Term 4 casemate R669 casemates.

23 November 2013

Ra157 la Broussette 6./A.R.177.
Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

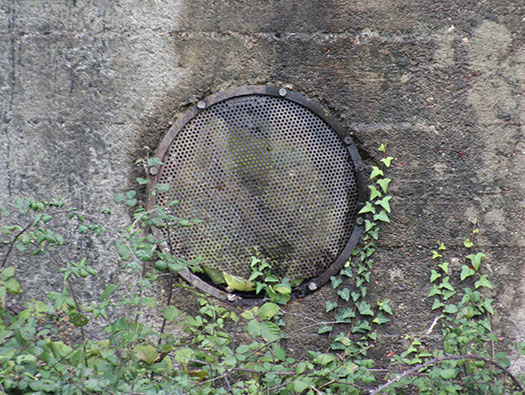

Term 4 rear exhaust vent 200mm.

23 November 2013

R669 firing its gun.
R669 firing its gun.
When the gun fired smoke would fill up the casemate and in the roof pipes could extract the gases via a pump in the left side ammunition niche and then out of the grill in the rear.
When the gun fired smoke would fill up the casemate and in the roof pipes could extract the gases via a pump in the left side ammunition niche and then out of the grill in the rear.
Extraction fan inside an ammunition niche.
Extraction fan inside an ammunition niche.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

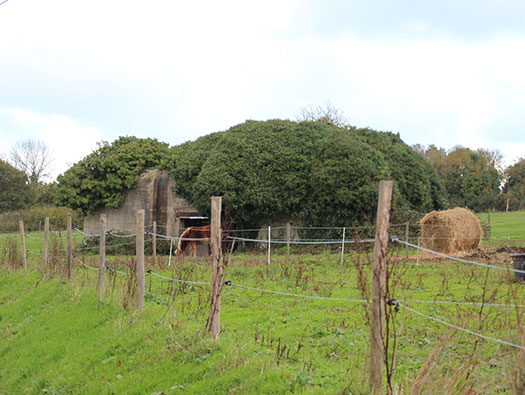

Term 3 R669 casemates.

23 November 2013

2cm Flak 30.
2cm Flak 30.
2cm Flak 30.
2cm Flak 30.
2cm Flak 30.
2cm Flak 30.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.
Term 3 R669 casemates.

23 November 2013

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

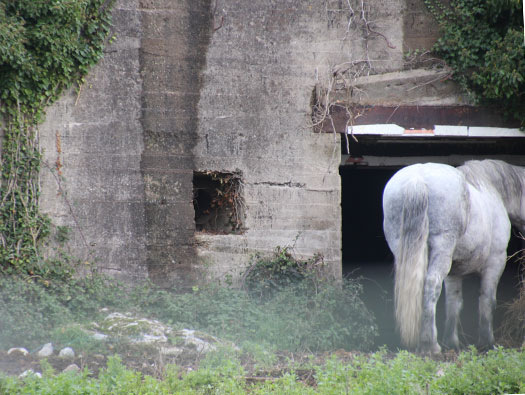

Term 3. The square hole to take the exhaust vent, probably this casemate was still being built and the large metal vent had not been fitted. Or it may have been removed by scrap men.

23 November 2013

Cordite powder bags for 10.5cm guns.
Cordite powder bags for 10.5cm guns.
15.5cm case and shot.
15.5cm case and shot.
200mm vent
200mm vent

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.
10.5cm le.F.H. 18.

1940/5

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

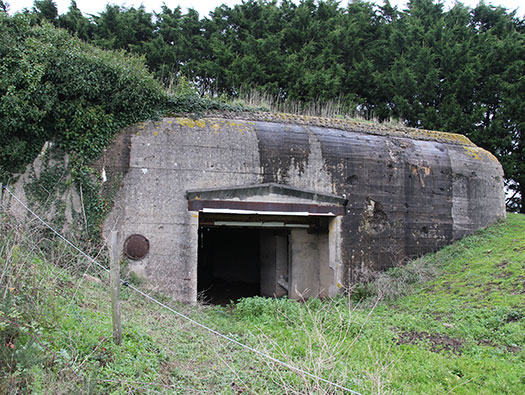

Turm 2. This one still has its vent and note the rainwater lip around the top of the rear door.

23 November 2013

Rear door that should have been fitted here.
Rear door that should have been fitted here.
494P2 door.
494P2 door.
Ammunition.
Ammunition.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

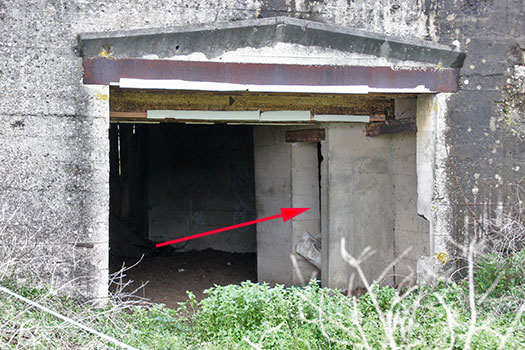

Turm 2. It does look as though the doors were never fitted. Ammunition niche.

23 November 2013

Plan
Plan
Ammunition niche with shelving for either shells or cases.
Ammunition niche with shelving for either shells or cases.
10.5cm ammunition in a box.
10.5cm ammunition in a box.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.

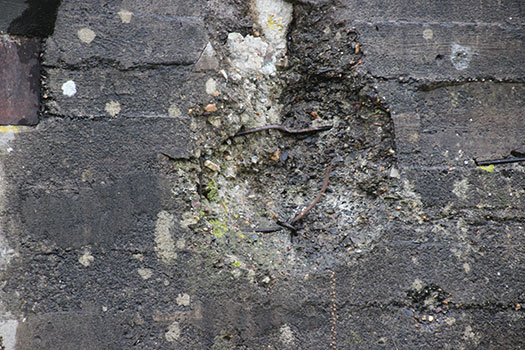

Turm 3. Damage done probably by an American gun when they attacked from inland. Or an air attack from a Mustang fighter.

23 November 2013

This could be a cannon shell or .50 calibre M2 Browning bullet from a Mustang.
This could be a cannon shell or .50 calibre M2 Browning bullet from a Mustang.
Ground attacking Mustangs.
Ground attacking Mustangs.
.50 calibre ammunition.
.50 calibre ammunition.

Ra157 la Broussette 6./A.R.177.

Ra157 la Broussette 6./A.R.177.


23 November 2013
