RAF Keevil, Wiltshire. Dispersed Sites Site No's. 8/9/10/12/13/14 & 15.

Dispersed sites to the west of the airfield. here I will cover 8/9/10/12/13/14 & 15. The reason the sites were dispersed, was due to earlier on in the war, when airfields were targeted and bombed. The 1920's/1930's expansion of the RAF, airfields were designed for all buildings to be close to the grass airfield. So when the runways and hangars were bombed, the barracks and communal sites were also hit and many killed and wounded. So the planners came up with the layout of spreading the barrack areas around the fields and using the farm tracks and roads to link with the airfield. The distances travelled sometimes were miles back and forwards. So bicycles were issued and so bike racks had to installed to store them around the sites. Buses were used also, to collecting and delivering around the sites. This went on 24hours a day.

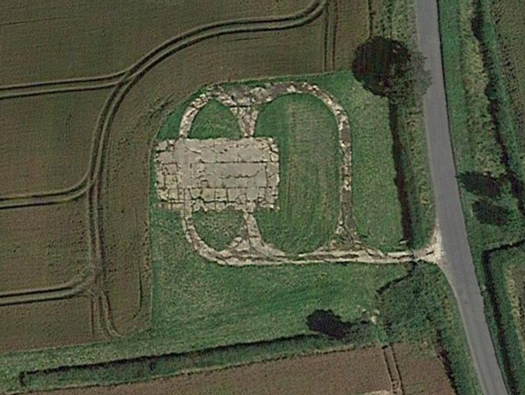

All that is left of Site No.9 is the fuel (coal/coke) compound [384] 2434/41. There was : 362 - Picket post - 53681/41. 363-All that is left of Site No.9 is the fuel (coal/coke) compound [384] 2434/41.
There was :
362 - Picket post - 53681/41.
363-365-366 - Officers Quarters - T&P -9025/41.
364 - Officers Latrines - TB - 5368/41.
369 - Sergeants quarters - 16' N - 2965/42
368-365 Sergeants quarters - T&P 9025/41.
370 - Sergeants Latrines - TB 5368/41.
371-379 Airmens barrack huts, Latrines as Sergeants.
384 - Fuel Compound - 90'x54' - 2634/41.
365 - M&E plinth - none.
Buildings either temporary brick (TB). N Nissen or, T&P which I think is Tar and paper. Plaster board covered in paper and tared over. Very effective and cheep to build on a wooden frame.

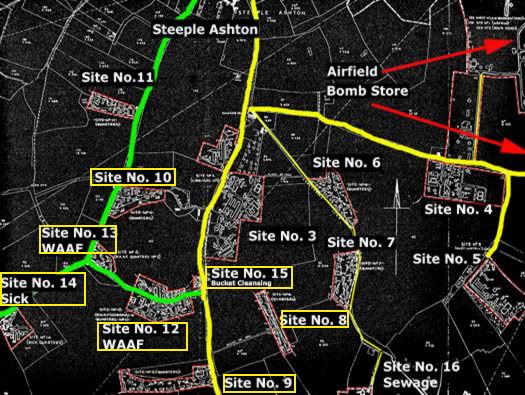

Dispersed Sites  No.'s 12, 13, 14, 10 & 15.

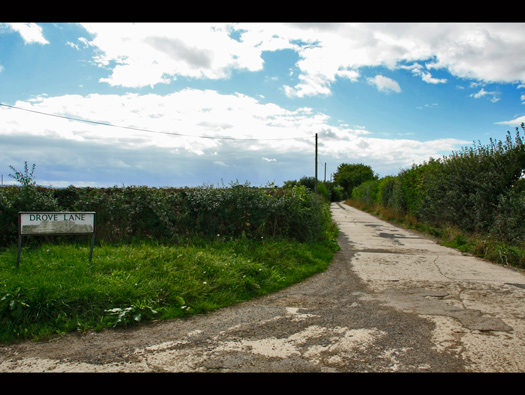

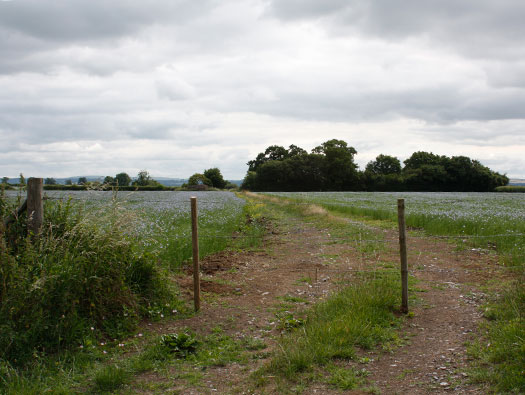

Drove Lane is the green track between 12 & 15.

Site No.12 WAAF Communal & Quarters.

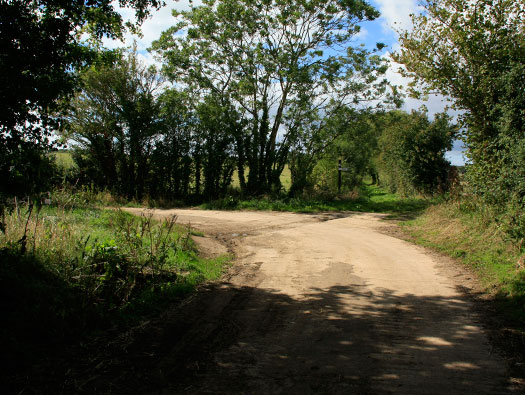

Turning in on the left into the WAAF site.
There was :
439 - picket post - 16'N - 12404/41
440 - Pump Shelter (Fire) - TB - none .
441 - Sergts' Lats/Showers, Baths & Decontamination - TB - 16339/41.
442 - Sergts' Lats/Showers, Baths & Decontamination - TB - 16339/41.
443-444 - Barrack huts - T&P - 14423/41.
445 - Barrack hut - Orlit - none.
456 - Sergeants quarters - Orlit - none
457-451 - Barrack huts - T&P .     T&P Tar & Paper, wooden frame.
452 - Dinning room & Sergeants mess - 24' N - for 300 - 12641/41.
453 - Institute & NAAFI Quarters 24' N - for 350 - 12568/41.
454 - fuel compound - 54'x54' - 9101/41.
455 - Officers Mess & Quarters (10) - 18303/41.
456 - Sick Quarters (6 bed) - 24' N - 16351/41.
457 - static water tank 20,000gal.
458 - Sergeants & A/men’s Abl. Lats. Med. dressing & Laundry - TB - 6506/42.
459 - Sergeants & A/men’s Abl. Lats. & Decontamination Block - TB - 6506/42.
460-461 - Barrack Huts with night latrines - Orlit - none.
TB - Temporary Brick.

N-Nissen. 24'-24 feet wide.

T&P-Tar and paper hut.

Orlit concrete hutting

Site No.12 WAAF Communal & Quarters.

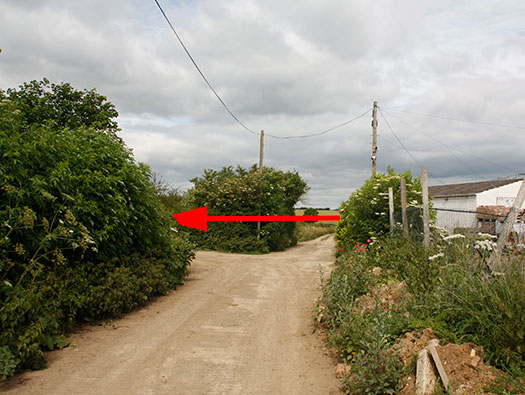

Turning in on the left into the WAAF site.

Site No.12 WAAF Communal Quarters.

This is the only building on the south side.

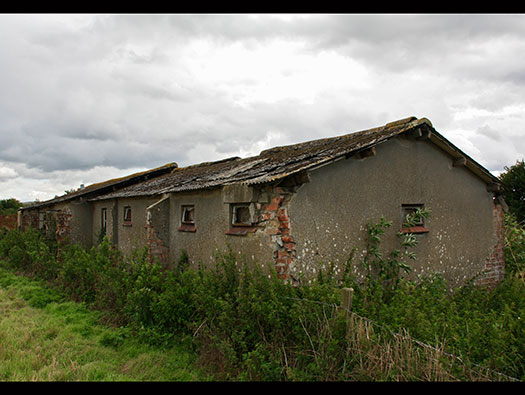

Sergeants & air women's ablutions latrines & drying room [442] 16339/41. [442] in brackets is the number of the building. 16339/41.

16339 the building plan number & /41 the drawing plan year.

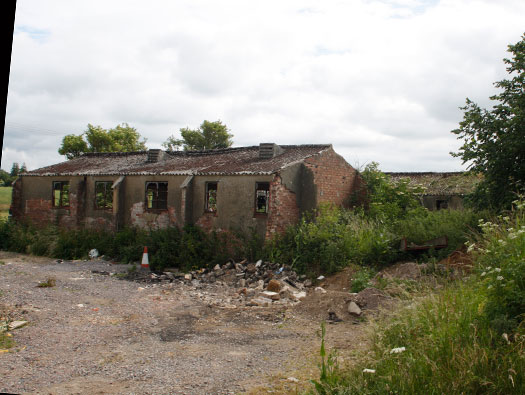

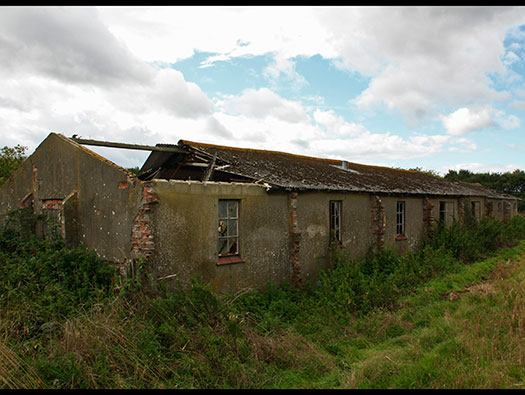

Site No.12 WAAF Communal Quarters.

This is the only building on the south side. Sergeants & air women's ablutions latrines & drying room [442] 16339/41. There were bathrooms, showers, toilets & a drying area.

Site No.12 WAAF Communal Quarters.

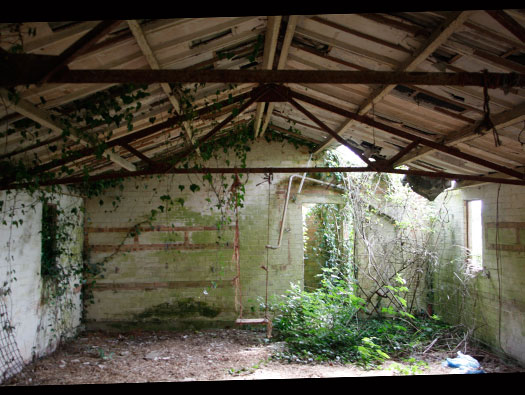

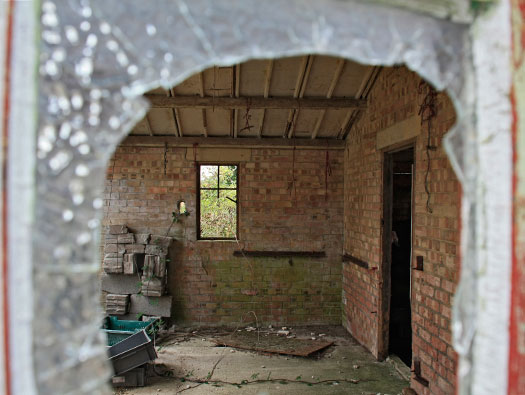

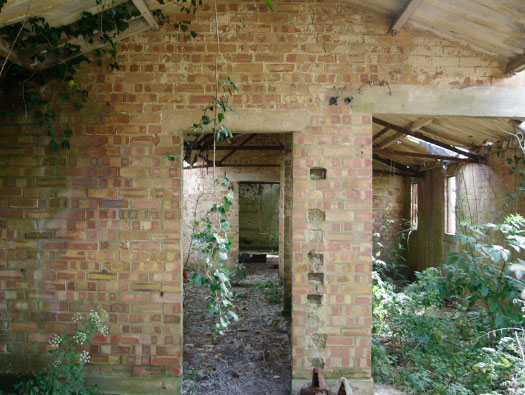

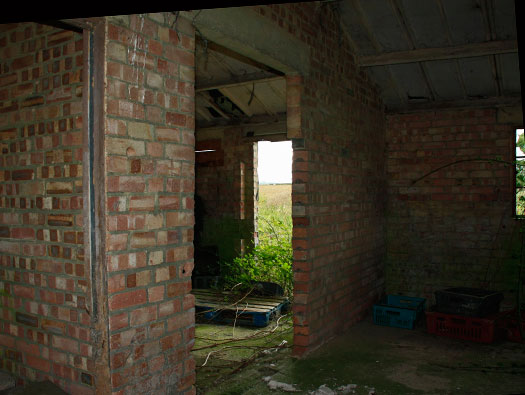

This is the only building on the south side. Sergeants & air women's ablutions latrines & drying room [442] 16339/41. Washing area, note where the wash stands sat against the back wall and pipes from the heating plant.

Site No.12 WAAF Communal Quarters.

442 - Sergeants & A/W Abl. Lat's. & Drying Room - TB - 16339/41.

Sites No.12 Sergeants & A/W Abl. Lat's. & Drying Room.

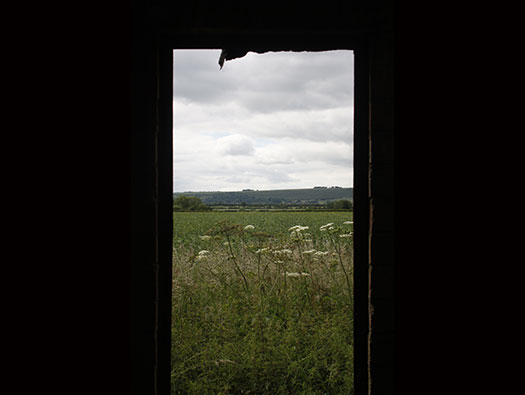

The view the ladies had of view of Salisbury Plain in the distance.

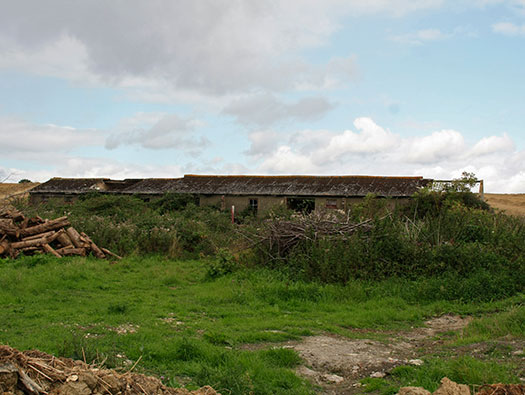

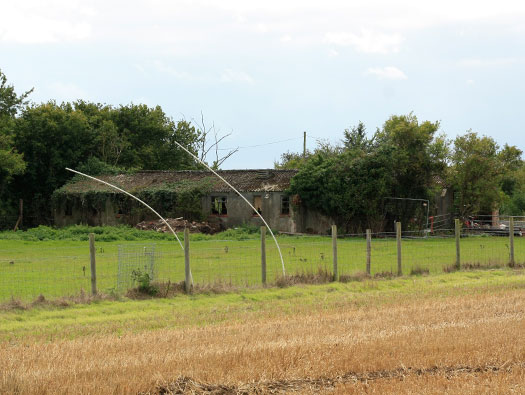

Sites No.12 WAAF Communal Quarters No.1.

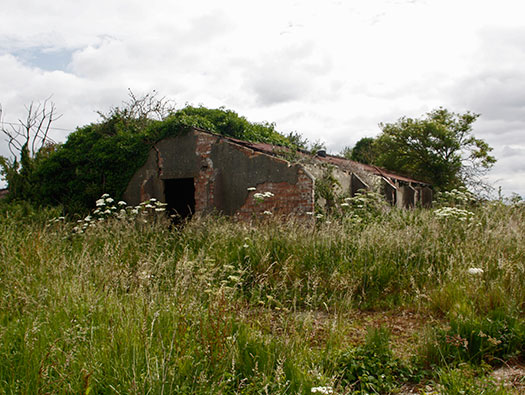

458 - Sergeants & A/men’s Abl. Lats. Med. dressing & Laundry - TB - 6506/42

Sites No.12 WAAF Communal Quarters No.1.

Viewed from the other direction.

Site No.13 WAAF Quarters.
467 - Picket Post - 16' N - 12404/41.
468 - Pump House - TB - none.
469-471 - Barrack Huts - Laing -144234/41.
472 - M&E Plinth - none.
473 - Barrack Hut - Laing - 144234/41.
474 - A/W's Abtns. Lat's & drying room TB - 16339/41
475 - Barrack Hut - Laing - 144234/41.

All barrack huts here had night toilets, probably Elson's.

Site No.13 WAAF Quarters.

474 - A/w's Abtns. Lat's & drying room TB - 16339/41

Site No.13 WAAF Quarters.

474 - A/w's Abtns. Lat's & drying room TB - 16339/41

Site No.13 WAAF Quarters.

474 - A/w's Abtns. Lat's & drying room TB - 16339/41

Site No.13 WAAF Quarters.

474 - A/w's Abtns. Lat's & drying room TB - 16339/41.

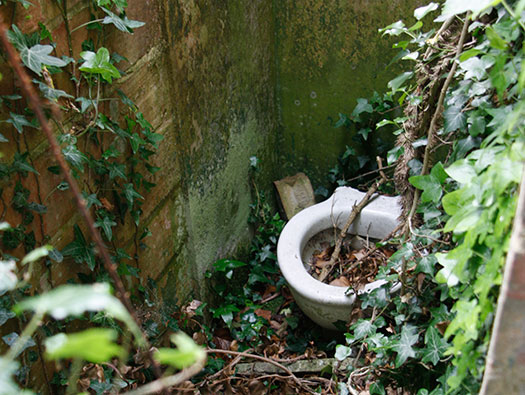

The toilet (latrines) end. Note the smaller windows.

Site No.13 WAAF Quarters.

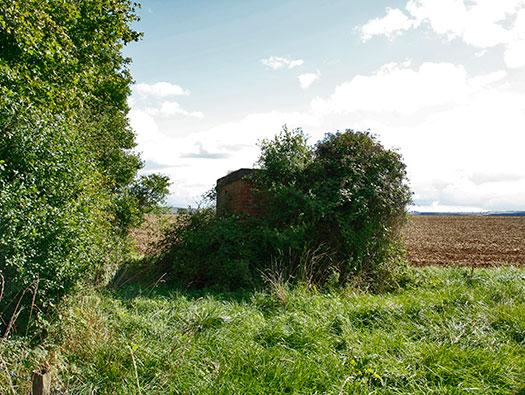

468 - pump house - TB - none.

Pump house pumping water from a bore hole here to fill the 20,000gal static water tank and may have been a Braithwaite tank.

Site No.14 Sick Quarters.
Yellow is the 489 - Ambulance Garage & Mortuary.
481 - Picket Post - 16' Nissen - 12454/41.
482 - Sick Annexe - 24' Nissen - 2436/42.
483 - Sick Quarters (23 bed) - 24' Nissen - 16349/41 + 9301/42.
484 - Pump Shelter (Fire) - TB - None.
485 - Orderlies Quarters for 34 - Laing - 14423/41.
486 - Ablutions Latrines & Drying Room - TB - 5368/41.
487 - Cycle Shed - 84201E.
488 - M&E Plinth - ????
489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41.

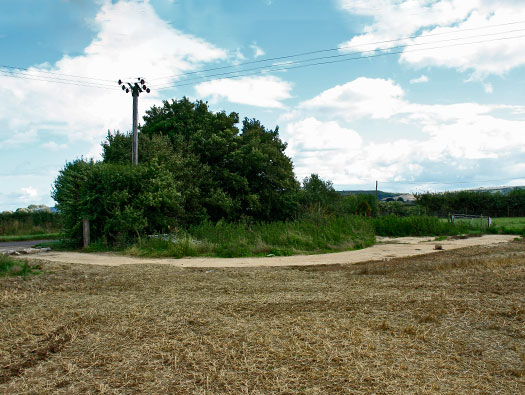

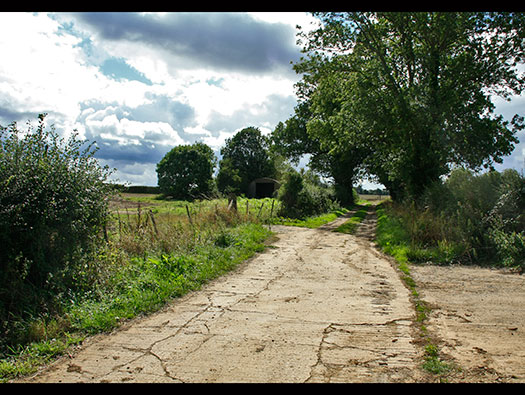

Note the concrete road turns into the Sick Quarters Site. The Ambulance garage is in the far trees.

Site No.14 Sick Quarters.

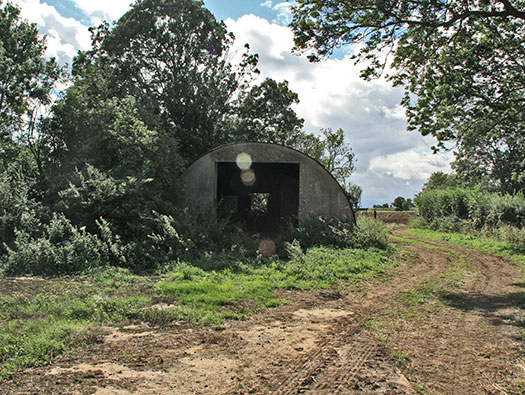

489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41. Made of a 24ft Nissen hut these garages housed their ambulance and at the rear was the mortuary. The concrete roadway leads into the garage.

Site No.14 Sick Quarters.

489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41.

Site No.14 Sick Quarters.

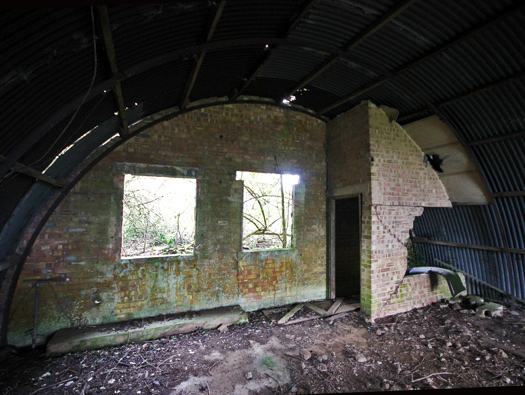

489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41. The Mortuary end, there would have been a wooden partition blanking off this area.

Site No.14 Sick Quarters.

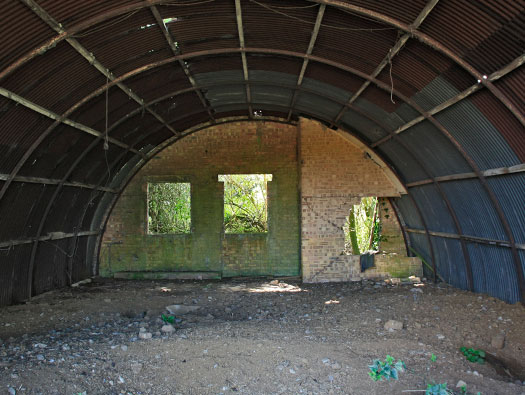

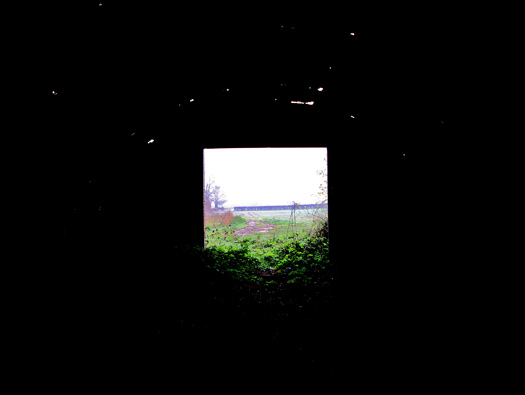

489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41. Looking out of the garage.

Site No.14 Sick Quarters.

489 - Ambulance Garage & Mortuary - 24' Nissen - 13027/41.

Site No.14 Sick Quarters.

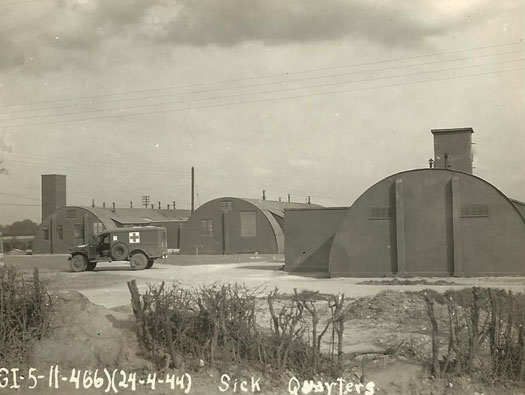

This could be a 483 - Sick Quarters (23 bed) - 24' Nissen - 16349/41 + 9301/42.

This picture is of an American hospital in 1944.

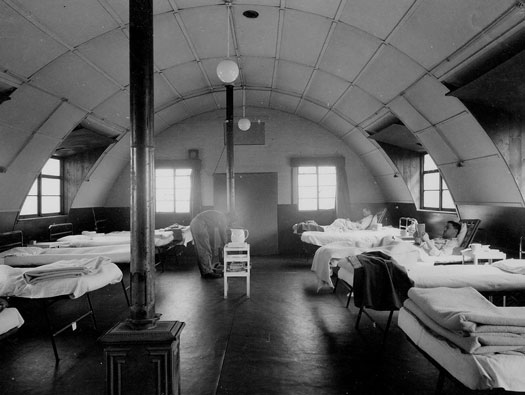

Site No.14 Sick Quarters.

Inside one of the 24' Nissen huts used as a ward..

Site No.15 (Bucket Cleansing).

Where to empty your Elsan toilet bucket.

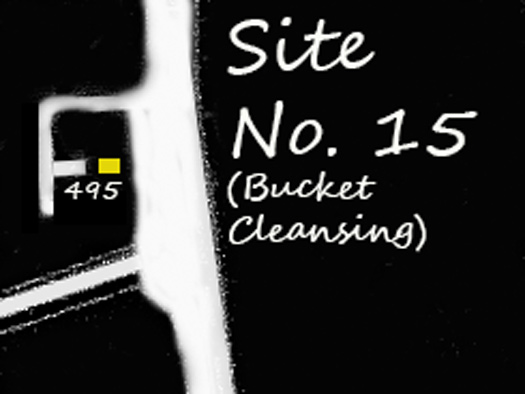

Site No.15 (Bucket Cleansing).

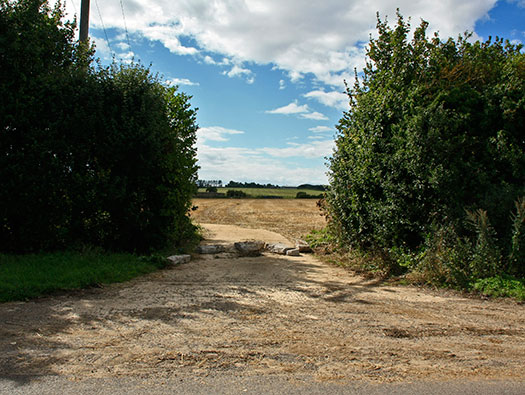

The site of the bucket cleansing house [495] TDS412b

Site No.15 (Bucket Cleansing).

The site of the bucket cleansing house [495] TDS412b.

Site No.8 (Quarters).

Officers, Sergeants and Airmen's quarters in mostly TB huts.
