RAF Riccall, Yorkshire. Bomb Store

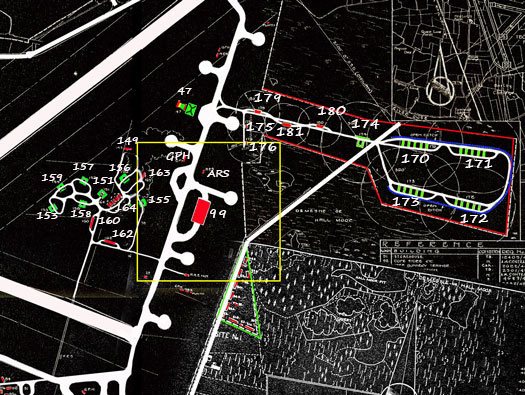

Air Ministry Record Site Plan 5116/45 covering the bomb store. On the right: 148 - Incendiary Bomb & Pyro Store - Tb - 5244/40. 149 - SAA Store (Type "E") - TB - 16075/40 150 - SAA Store (Type "F") - TB - 16075/40 151 - Component Store - TB - 5384/40. 152 - Component Store - TB - 5384/40. 153 - Fuzed & Spare Bomb Area - ST & TB - 5410/40. 154to159 - Bomb Store - ST & TB - 5410/40. 160 - Fuzing Point Building (Heavy) - N -19963/40. 161 - Sea Marker & Flame Float Store - N 2?69/43. 162 - Fuzing Point Building (Light) - N -19964/40. 163 - SAA Store (Type "F") - TB - 16075/40. 164 - S.B.G Stores (6No.) A,B,C,D,E&F - N - 2169/43. 170to173 - Bomb Stores - TB Bays - 3164/42. 174 - Fuzed & Spare Bomb Store - N - 4780/42. 176 - Component Store - N - 4780/42. 178 - Incendiary Bomb Store - N - 4734/42 179 - Explosive Laboratory - N - 4734/42. 180 - Explosive Laboratory - N - 4734/42. 181 - Explosive Laboratory (Heavy Light) - N - 4778/42Air Ministry Record Site Plan 5116/45 covering the bomb store.
On the right:
148 - Incendiary Bomb & Pyro Store - Tb - 5244/40.
149 - SAA Store (Type "E") - TB - 16075/40
150 - SAA Store (Type "F") - TB - 16075/40
151 - Component Store - TB - 5384/40.
152 - Component Store - TB - 5384/40.
153 - Fuzed & Spare Bomb Area - ST & TB - 5410/40.
154to159 - Bomb Store - ST & TB - 5410/40.
160 - Fuzing Point Building (Heavy) - N -19963/40.
161 - Sea Marker & Flame Float Store - N 2?69/43.
162 - Fuzing Point Building (Light) - N -19964/40.
163 - SAA Store (Type "F") - TB - 16075/40.
164 - S.B.G Stores (6No.) A,B,C,D,E&F - N - 2169/43.
170to173 - Bomb Stores - TB Bays - 3164/42.
174 - Fuzed & Spare Bomb Store - N - 4780/42.
176 - Component Store - N - 4780/42.
178 - Incendiary Bomb Store - N - 4734/42
179 - Explosive Laboratory - N - 4734/42.
180 - Explosive Laboratory - N - 4734/42.
181 - Explosive Laboratory (Heavy Light) - N - 4778/42

TB - Temporary Brick.
N - Nissen.
ST - Steel

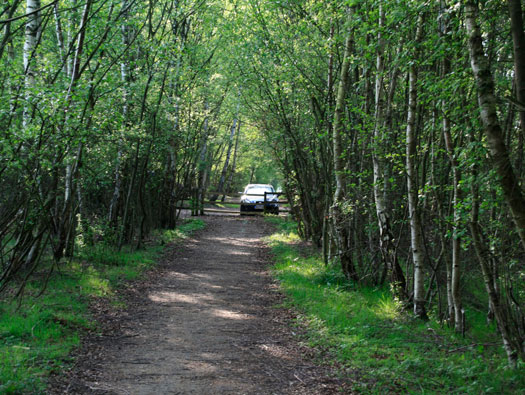

Bomb store.

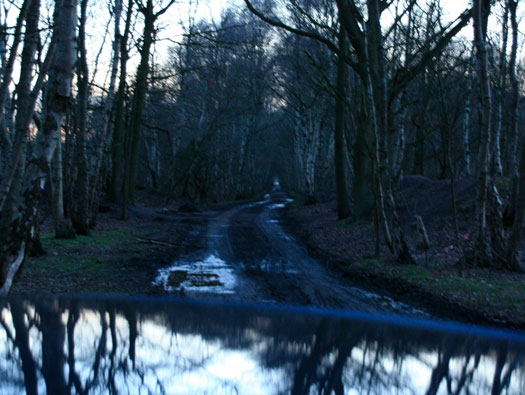

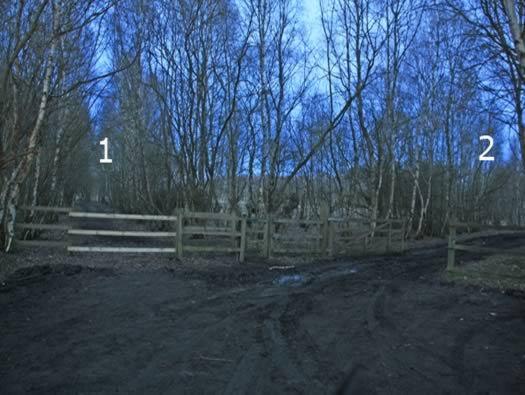

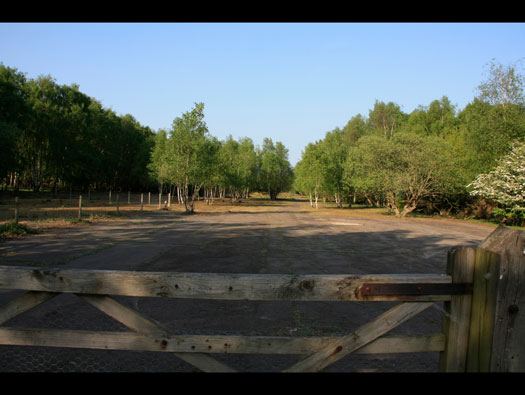

We are now where the track cuts across the bomb store road and the picture looks into:

1 - the unloading road.

2 - the return bomb trailer road.

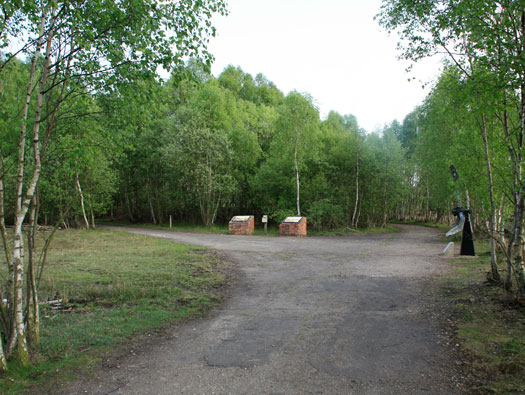

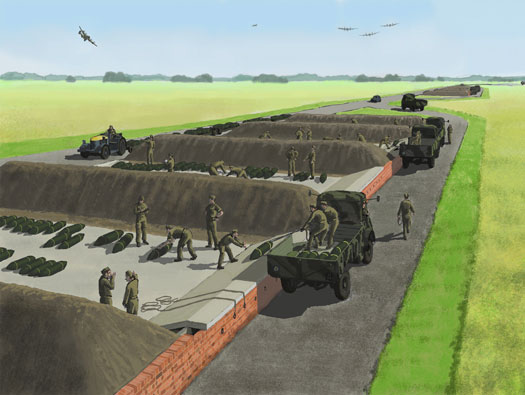

This is the adopted information board.

This was the one I helped with and was the second draft.
This is I feel, was a very accurate start to what would have told the bomb stores story correctly.

170 to173 - Bomb Stores - TB Bays - 3164/42.

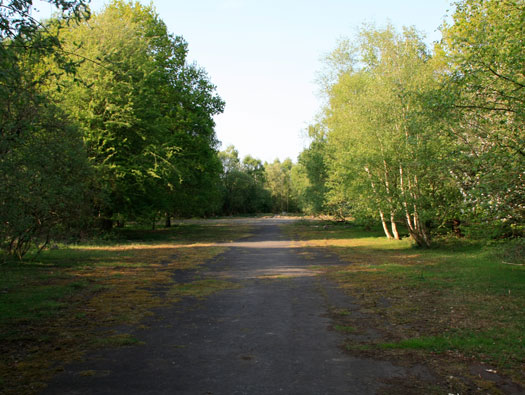

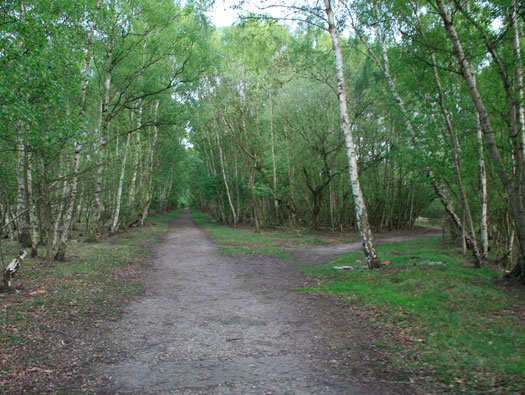

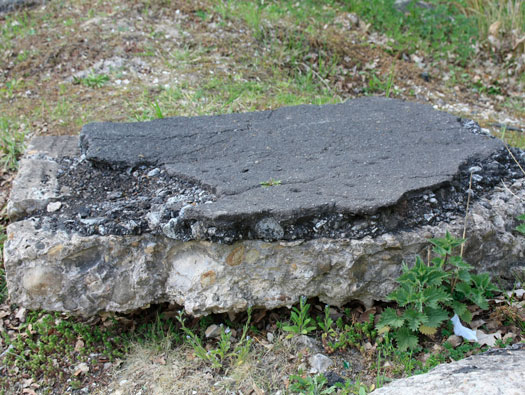

This is where the roadway splits and goes around the back of the store, the unloading side.

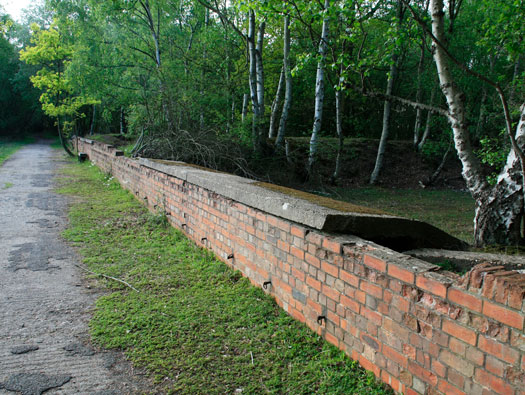

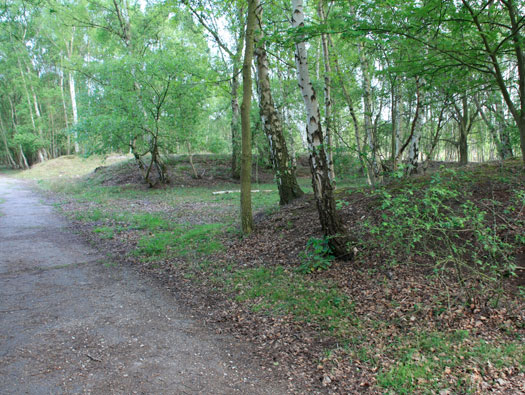

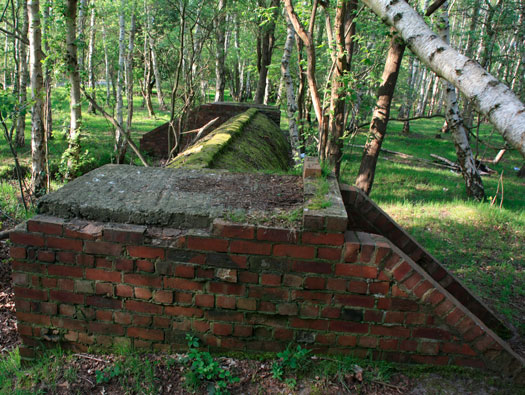

The unloading side. One of the four 170 to1 73 - Bomb Stores - TB Bays - 3164/42.

TB Bays - Temporary Brick.

170 to1 73 - Bomb Stores - TB Bays - 3164/42.

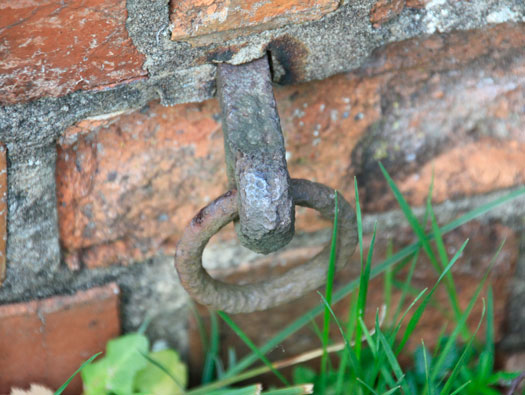

Trammelling rings.

A rope was tied to the ring, laid onto the bomb store slope. brought up to the bomb and the bomb was rolled off the lorry bed along planking between the lorry and the store ramp, and slowly lowered down. a simple and easy method of passing heavy bombs form a lorry to the store. When the bomb was collected for transportation, it had with it enough chocks to hold it tight on the lorry and several more to use in the store.

170 to1 73 - Bomb Stores - TB Bays - 3164/42.

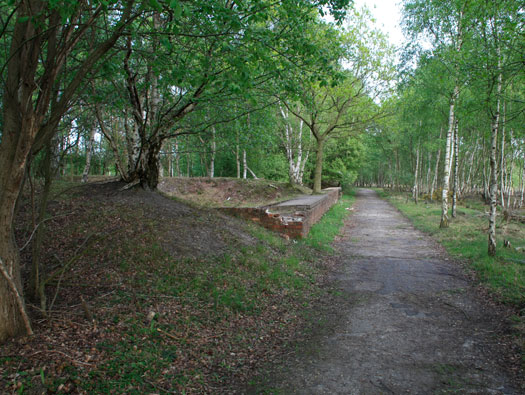

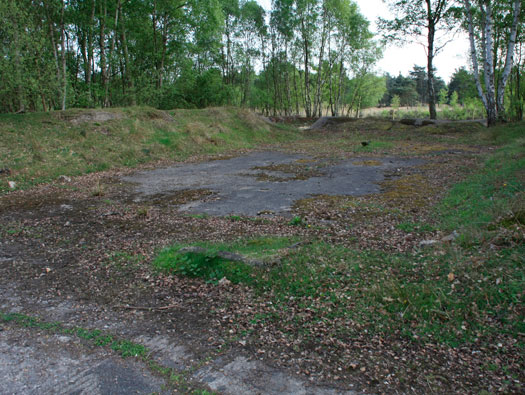

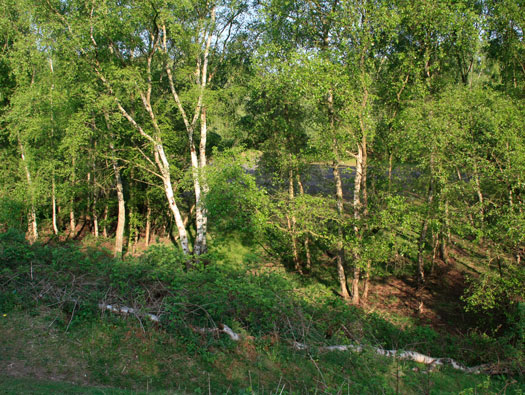

Bomb storage area.

170 to1 73 - Bomb Stores - TB Bays - 3164/42.

Bomb storage area.

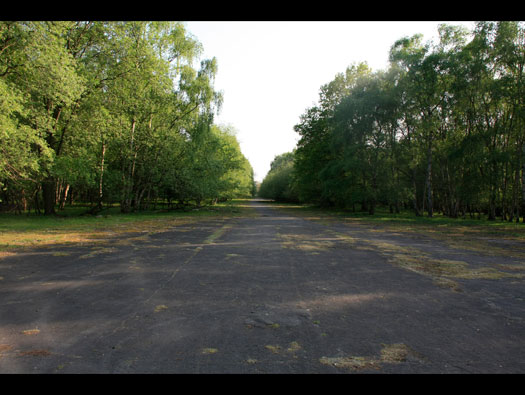

Note how the bomb store roadway runs around and has no sharp turns. The reason is, that the bomb trains are quite long and cannot be reversed. All bomb stores had a one way system and the loop roads are narrower than the main run. This is to allow overtaking. Not speeding.

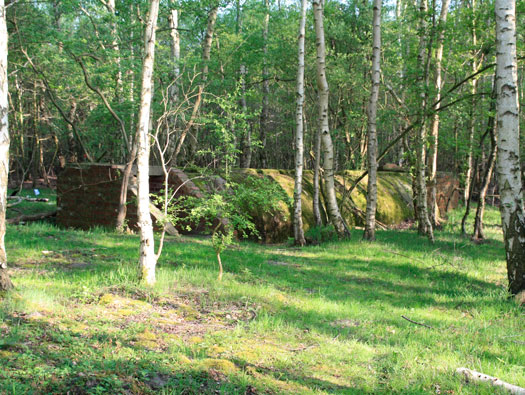

179 - Explosive Laboratory - N - 4734/42.
180 - Explosive Laboratory - N - 4734/42.
181 - Explosive Laboratory (Heavy/Light) - N - 4778/42
N - Nissen, these are where bombs came on a bomb train and the fuze's were fitted, then taken around the airfield to the awaiting plane.
Explosive Laboratory - another name for a fuzing point.

47 - Harmonisation Range & MG Range - TB - 909340.

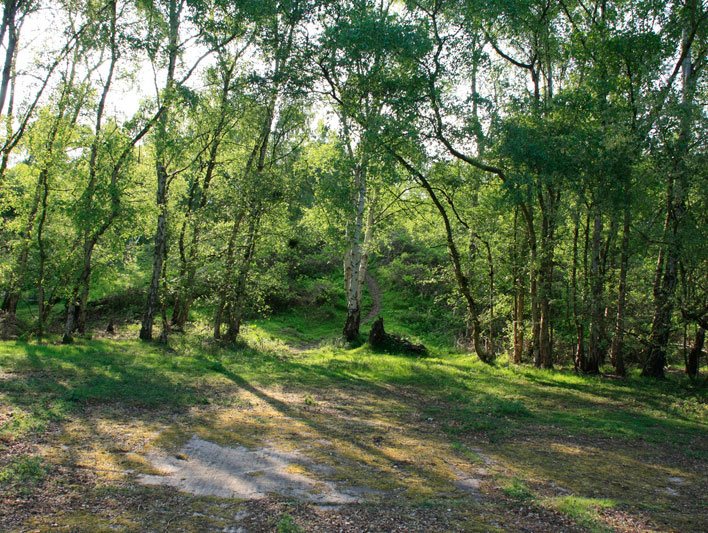

The large mound behind the trees. A bomber could draw up and all its machine guns can shoot at targets to harmonisation the guns. Behind is the Machine Gun Range also used as a rifle range.

A Halifax on a circular dispersal bombing up.

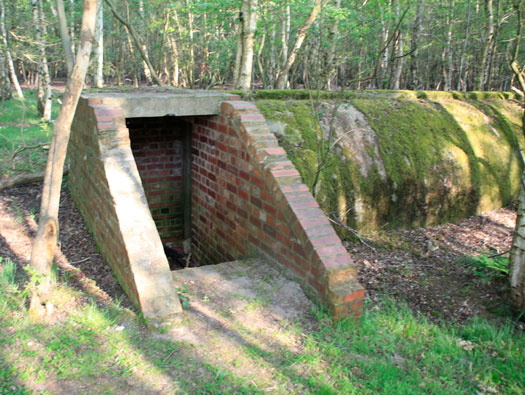

ARS - Stanton Air Raid Shelter. Designed and built by the Stanton Iron Works.

A shelter for around 50 men. This one has two entrances, they usually had one entrance and an escape.

Stanton details.
