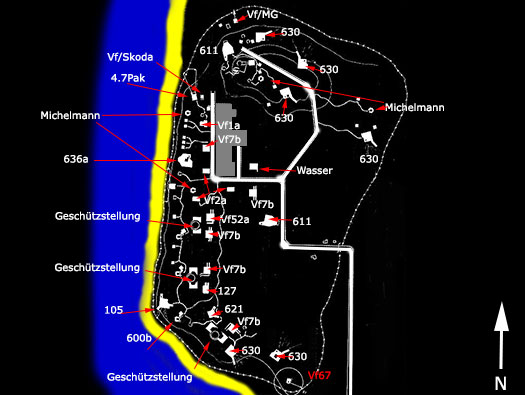

StP Berck Nord

Batterie 6./H.K.A.R.1245.
1 x R636a Fire Control Post.
3 x Geschützstellung (open ringstands).
1 x Vf7a Ammunition Bunker.
1 x Vf7b Ammunition Bunker, bomb proof.
1 x R127 group bunker with forward apron .
1 x Vf52a Mortar Tobruk.
5 x R630 machine gun casemate.
1 x R624 machine gun bunker with steel plate front and roof plate.
1 x R105 machine gun casemate large.
4 x Michelmannstand machine gun open emplacement.
1 x Ringstand for a 5cm KwK Pak.
2 x R611 casemate for a field gun.
1 x Vf/Skoda 4.7cm Pak.
3 x 17cm K18 guns.
1 x 7.5cm F.K.236(b) Field Kannon.
1 x 7.5cm F.K.38 Field Kannon.
1 x 2.5cm Pak 112(f) A/T.
1 x 4.7cm Pak K.36 Skoda gun.
1 x Pz.T. 3.7cm KwK 144(f) tank turret.
2 x 2cm Flak 30 AA.

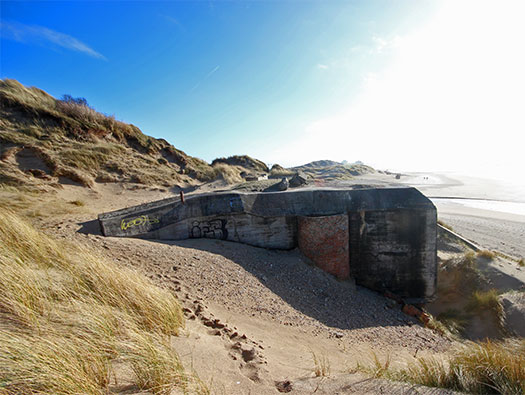

 R105(b) machine gun casemate.
A rather large casemate (1939 design) just for a machine gun with quite few rooms. This type was really not really cost effective and was dropped from the bunker building list.

 R105(b) machine gun casemate.

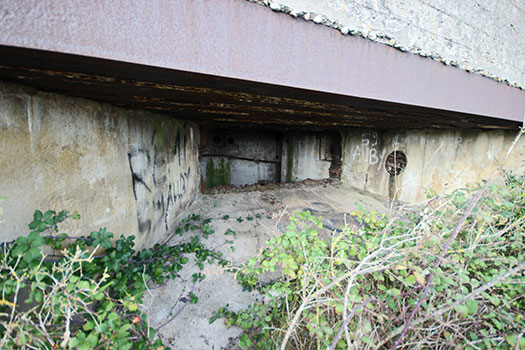

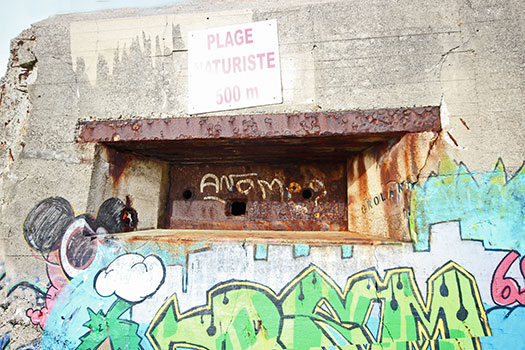

The metal plate covering the embrasure.

 R105(b) machine gun casemate.

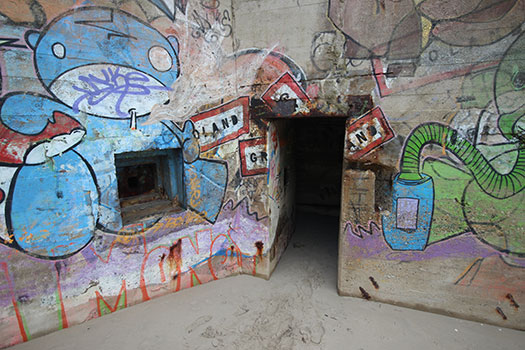

Rear entrance with a close combat window on the left to cover the door.

 R105(b) machine gun casemate.

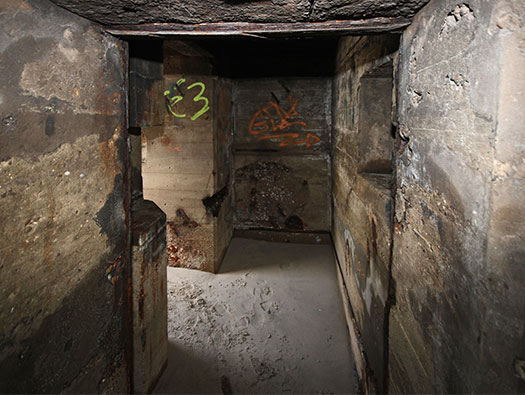

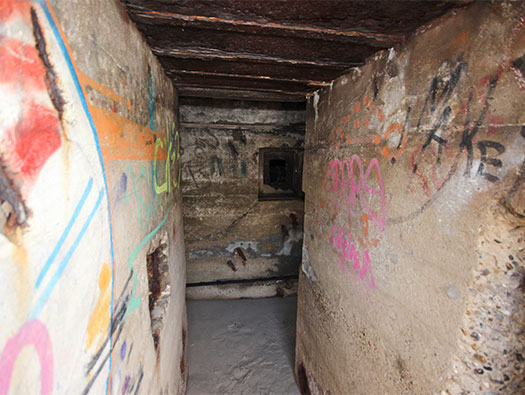

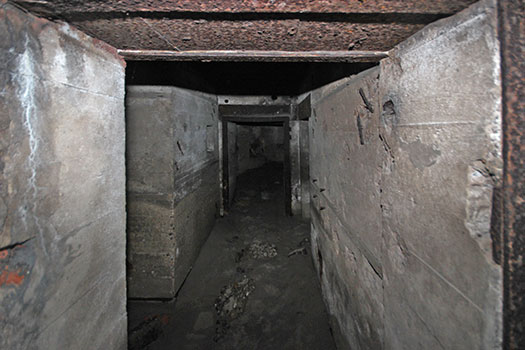

Passage inside.

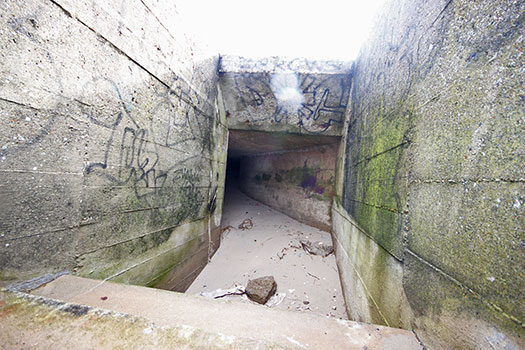

 R105(b) machine gun casemate.
Entrance.

 R105(b) machine gun casemate.

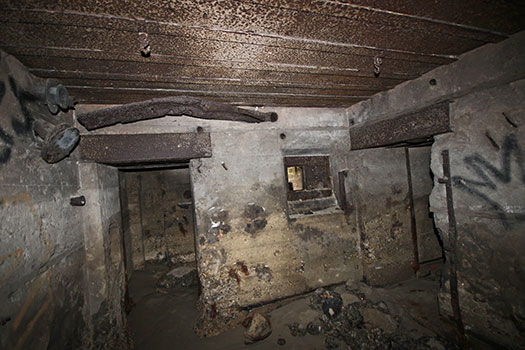

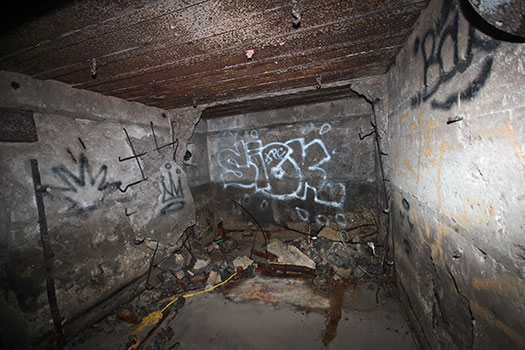

Crew room.

 R105(b) machine gun casemate.

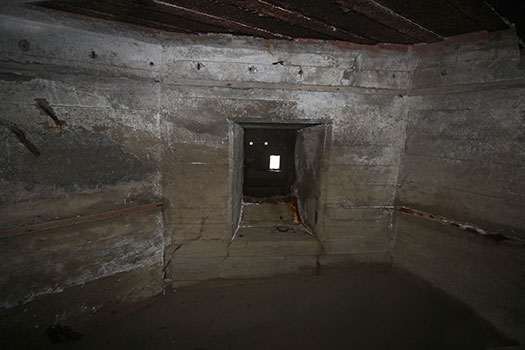

Crew room and close combat window covering the entrance passage.

 R105(b) machine gun casemate.

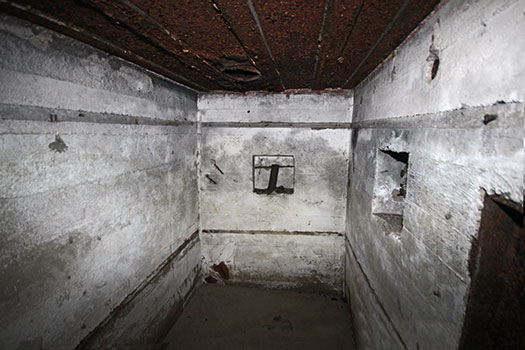

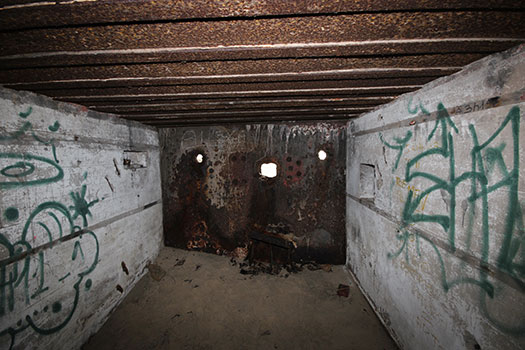

The gun room and metal plate possibly a 78P9.

 R105(b) machine gun casemate.
Gun room.

 R105(b) machine gun casemate.

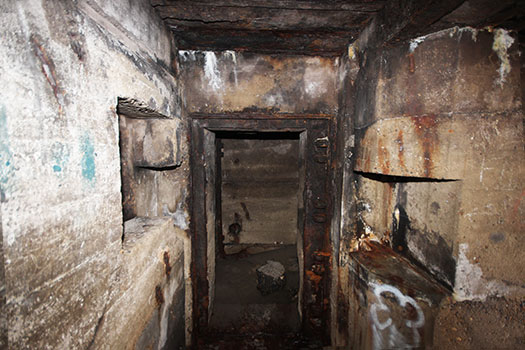

Internal passage.

 R105(b) machine gun casemate.
The periscope room would be connected to the gun room and could guide the gun onto its target, also it would have been stacked with amminition.

 R105(b) machine gun casemate.
Periscope room.

 R105(b) machine gun casemate.
Close combat embrasure it looks like a 57P8?

 R105(b) machine gun casemate.

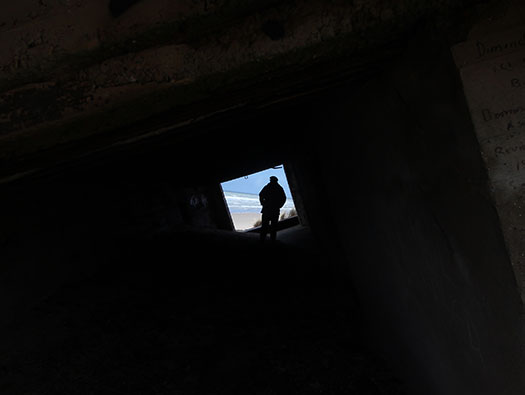

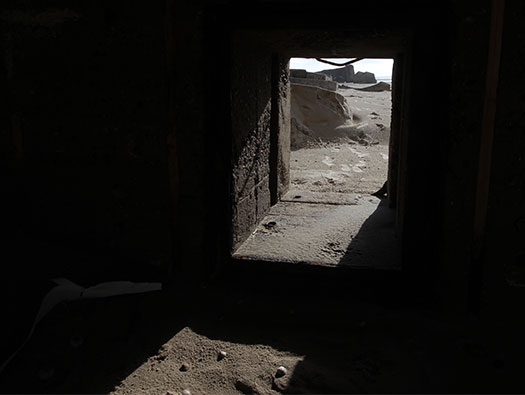

Exit and I feel I have been found?

 R105(b) machine gun casemate.

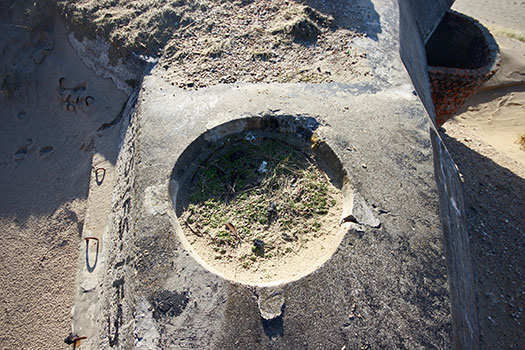

Attached Tobruk for area defence.

 R105(b) machine gun casemate.

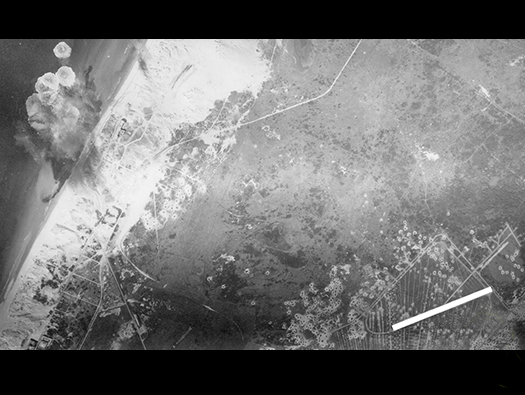

An attack by Allied bombers attacking the batterie. Before D-Day, heavy and light bombers, blasted the northern coast, to make out that this is where they were to land. The ploy worked. You can also see Berk aerodromes concrete runway showing up so well.

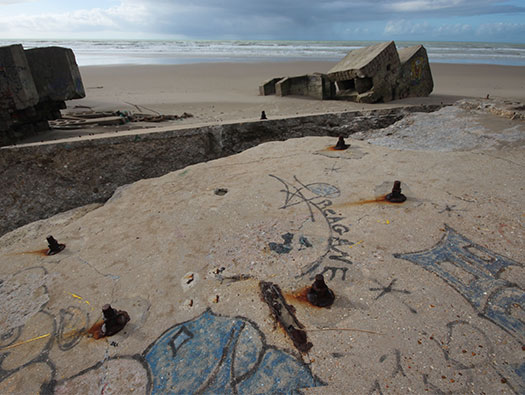

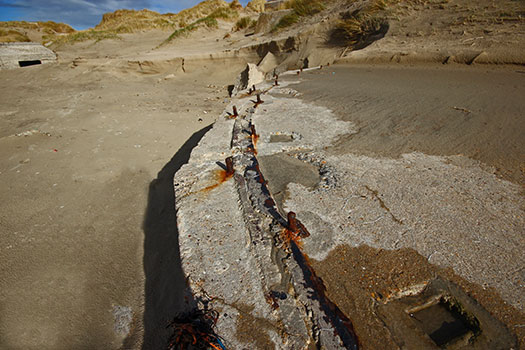

The hold fast bolts to bolt the gun down.

The guns racer bolts where the trail would slot in and slide around.

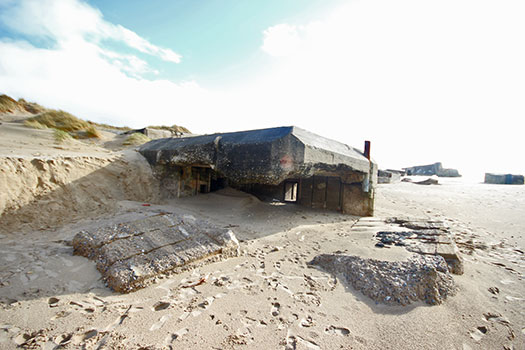

Vf2a group shelter.

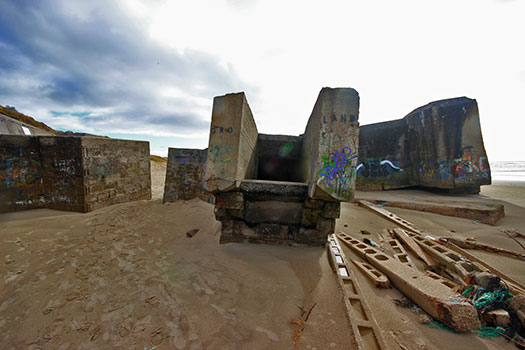

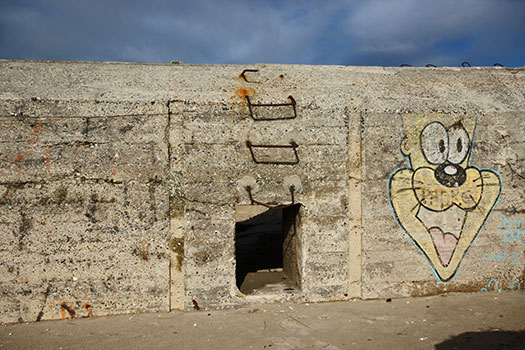

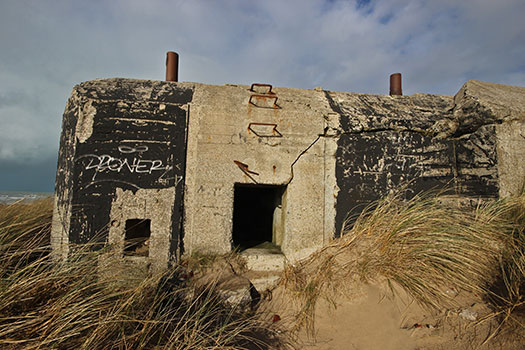

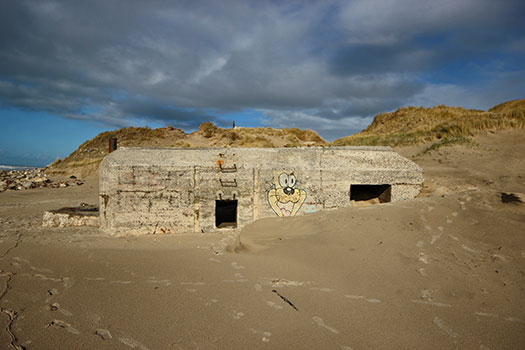

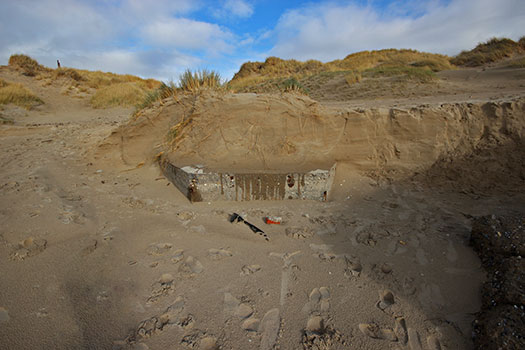

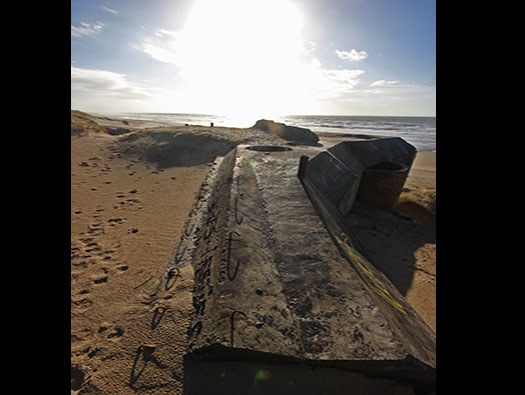

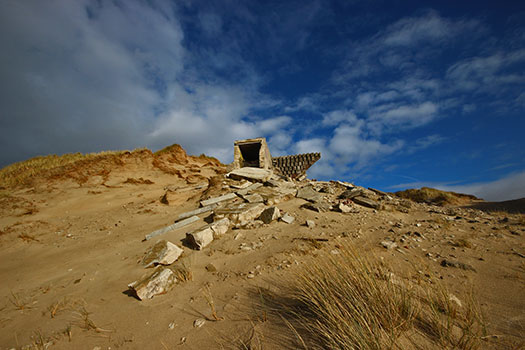

The escape hatch and steel ladder rungs up the side of the bunker. This bunker was sunken to its roof in the sand but all that has been washed away by the sea.

Vf2a group shelter.

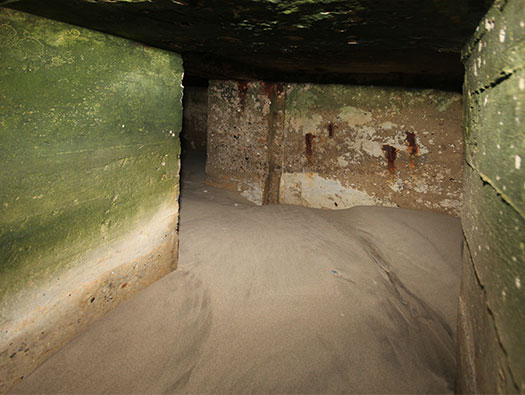

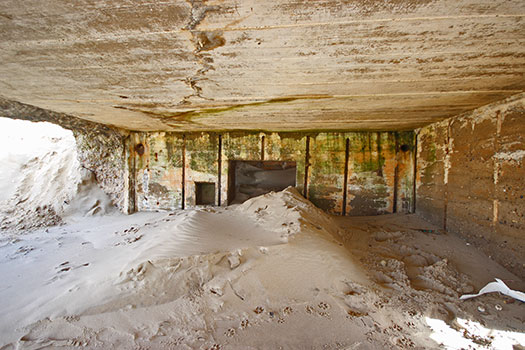

Looking into the crew room.

Vf2a group shelter.

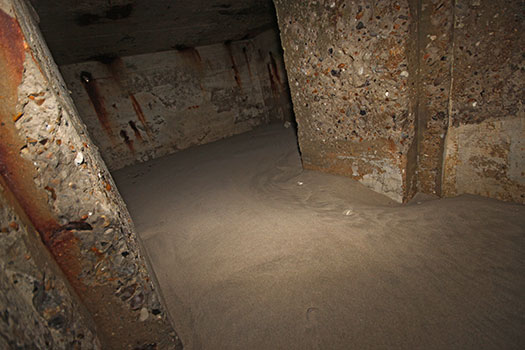

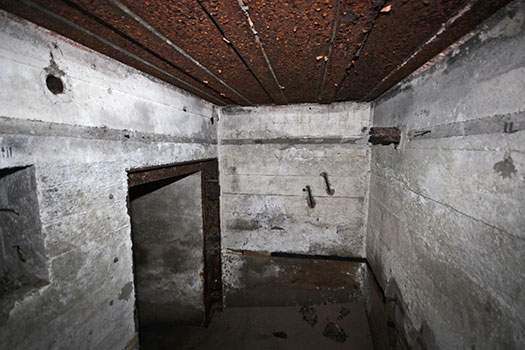

Crew room, there would have been bunks attached to the wall and roof around the room. The bunkers door is at the fa end and the left wall has been blown out.

Vf2a group shelter.
Looking out of the escape hatch.

Vf2a group shelter.

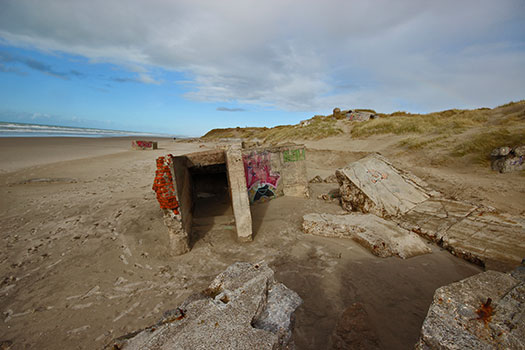

A rather damaged model. The escape showing up and sand filling the entrance passage.

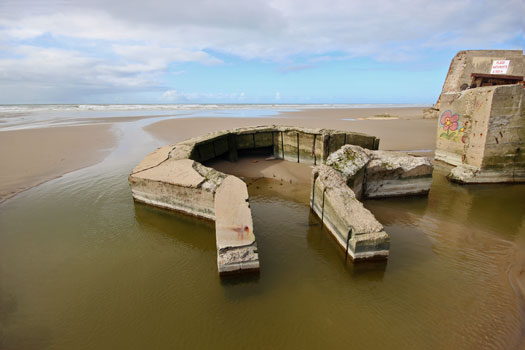

Michelmannstand a form of Ringstand for a machine gun. A very distinctive shape and I think ammunition storage below.

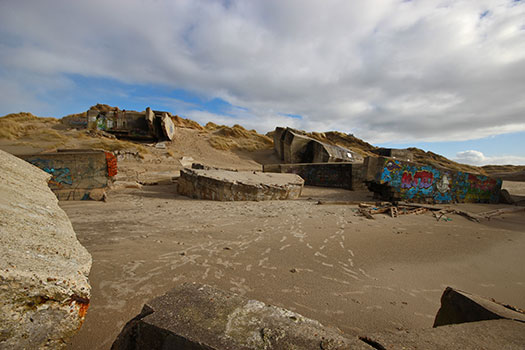

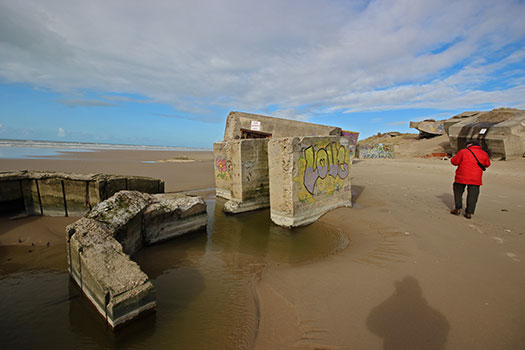

If you are good with Jigsaws you would be able to build your own bunker.

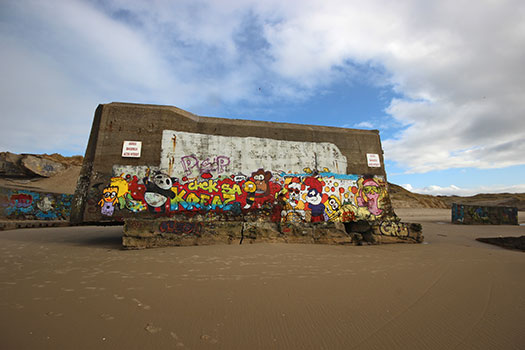

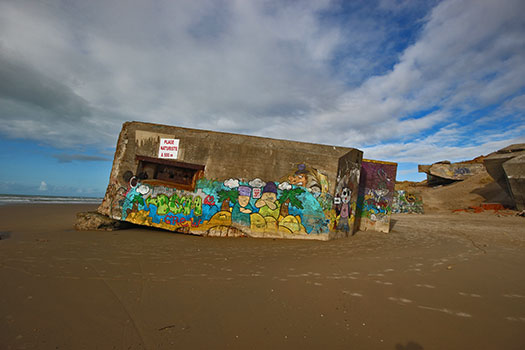

R611 casemate.
This one covers the right flank.

R611 casemate.
Note the size of the foundations underneath the bunker. Another very large bunker, superseded by R669 a much smaller type later in the war.

R611 casemate.
A very strong bunker and looks as though it has been completely missed by aerial bombing.

R611 casemate.

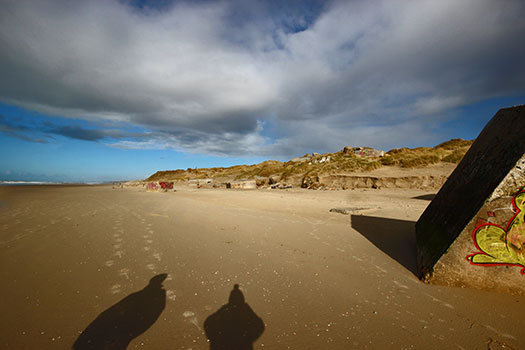

There he is again always in the way.

R611 casemate.
This is where the 7.5cm F.K38 gun would have sat.

R611 casemate.

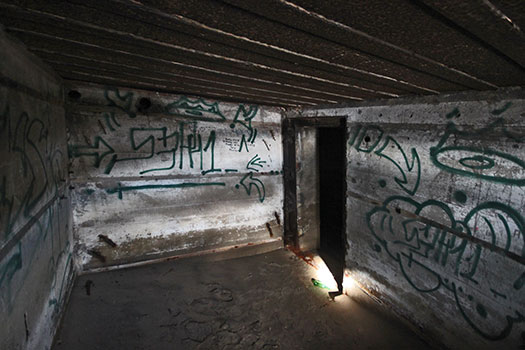

The door into the two ammunition rooms, one for the case and the other for the shells. The other side is the crew room under the sand.

R611 casemate.
Rear view.

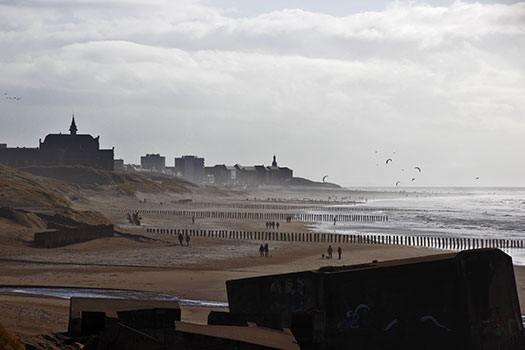

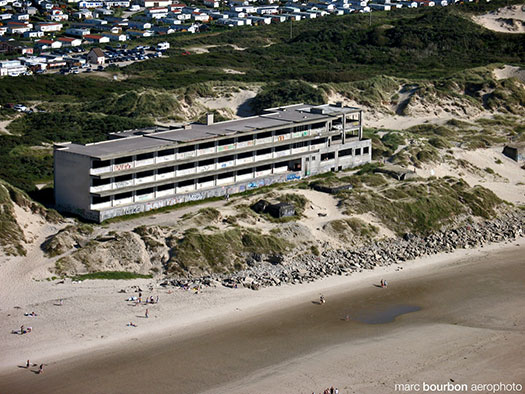

Sanatorium Bellevue.
It was derelict for many years and was demolished quite recently.

R636a Command post for Army (Heers) coastal batteries.
An R636a was here but I think demolished before or at the same time as the Sanatorium Bellevue. It would have controlled the 17cm K18 batteries in the area.

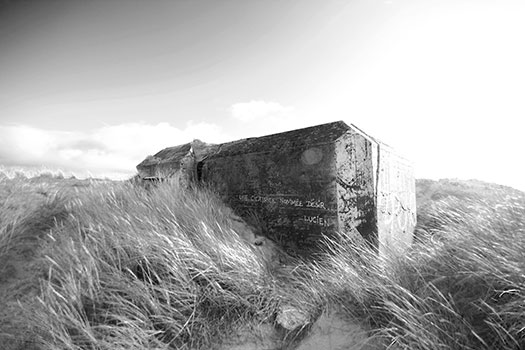

R630 casemate for a heavy machine gun.
We parked back outside the camping site. Oh dear what joys, many cars with ONE man in each. If you do enter this bunker, be very careful. Its used by many of these men and quite honestly there are better R630's to visit in the area. Best give this one a miss.

R630 casemate for a heavy machine gun.

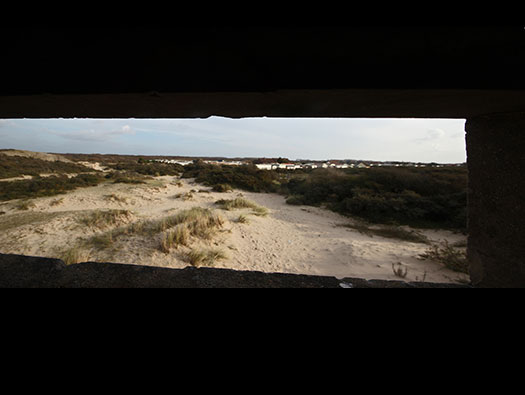

This is the view that the machine gun would have had right down the road and covering the flatter ground on the left side. To the right its all sand dunes and hard to access for an attack.

R630 casemate for a heavy machine gun.
There would have been a heavy steel plate closing off the aperture with a viewing slit and a machine gun fitting.

R630 casemate for a heavy machine gun.

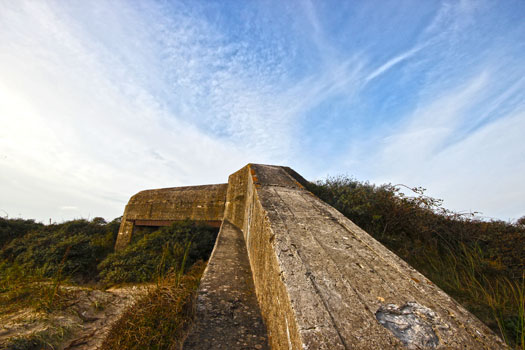

Flanking wall.
