StP106 'Dresden' M.A.A.244 Batterie MII Sangatte
BATTERIE · K.V.Gruppe Calais · AOK 15 Nord Pas de Calais · France
StP106 Dresden
Batterie MAA 244 a three 17cm S.K.L/40
gun batterie set into the cliff face with an SK (Sonder Konstruktion - special cons.) fire control post. Half the site is in accessible due to it being in a garden, the rest you can see from the cliff top walk or if the tide is out, along the beach. Parking is easy and there is a access to the cliff edge path past the last building in Sangatte.
In the summer 1940 the Kriegsmarine installed 4 17cm average batteries between Waldam and Gris-Nez for the close defense of the Seelöwe Operation to attack Britain.
This is one of the four M batteries, they were named “Coastal batteries M” of the Marine Artillery Abteilung 244.
StP Waldam, Fort Vert M.K.B. MI.
StP Dresden M.K.B. MII.
StP164a Sickingen M.K.B. MIV.
StP106 Dresden
StP106 Dresden
Batterie MAA 244
Commanded by Kapitänleutnant Edelbert Specker with 1 Officer, 24 NCO´s and 106 Men.
2 x M270 Casemates.
1 x SK Fire Control Post (Leitstand).
1 X Wellblech.
1 x SK/Scheinwerfer
2 x Feldm bunkers.
1 x SK bunker.
3 x Munitionsbunkers.
3 x Vf Machine gun stands.
1 x Wellblech + Flak.
3 x 17cm S.K.L/40 guns.
2 x 7.62 F.K.39(r).
2 x 4cm Flak 28.
1 x 2.5cm Pak112(f).
2 x 4cm Flak 28 Bofors type.
1 x 2cm Flak 28
1944
StP106 Dresden

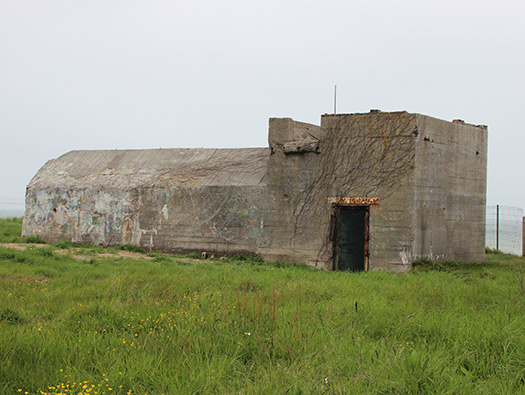

Wellblech/Flak for a 2cm Flak 28 Oerlikon.
15 May 2018
StP106 Dresden

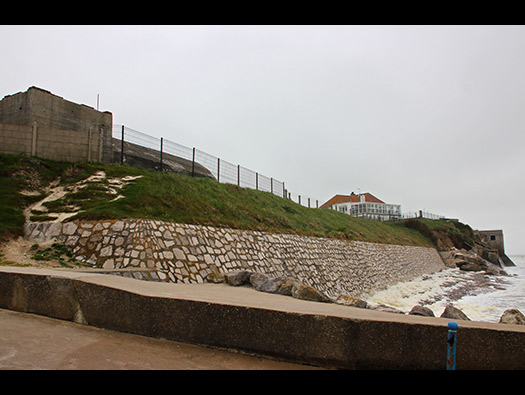

View from the beach.
15 May 2018
StP106 Dresden

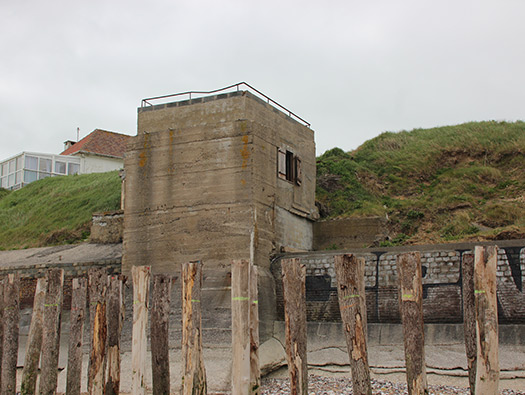

Flak tower just gives the gun a bit of height above ground level to see very low flying fighters coming across the channel.
15 May 2018
StP106 Dresden

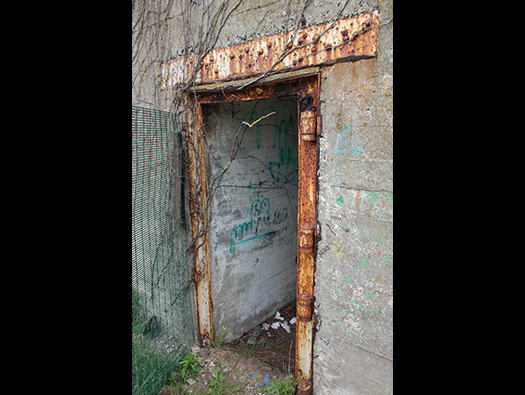

Door into the Wellblech bunker was a
434PO1 type armoured door comes in two halves with a small opening to look out or poke a gun through.
15 May 2018
StP106 Dresden
Going inside.
15 May 2018
StP106 Dresden

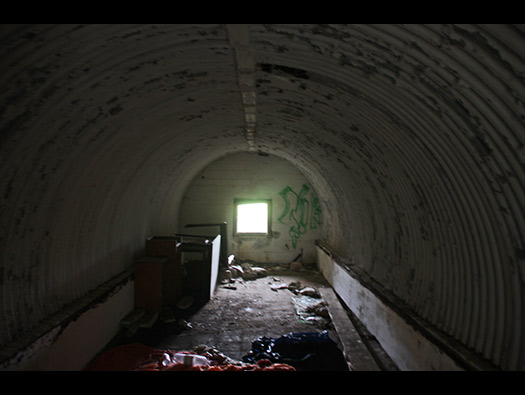

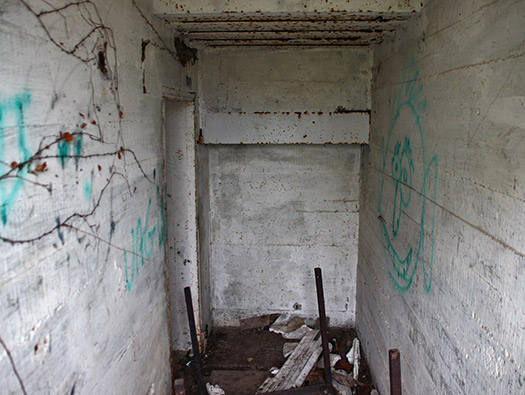

Inside the crew Wellblech bunker.
15 May 2018
StP106 Dresden
Escape tunnel.
15 May 2018
StP106 Dresden
Escape tunnel outside. The Wellblech would be almost covered in earth and a concrete or brick lined tunnel leading out at the top..
15 May 2018
StP106 Dresden
The escape and the insets in the wall to take the concrete or brick tunnel, there would also be a set of iron ladders up the wall to climb out.
15 May 2018
StP106 Dresden

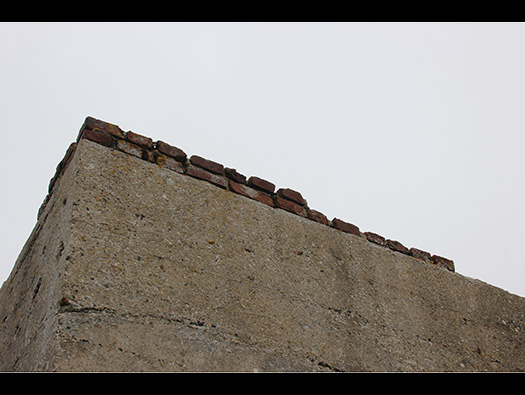

Flak tower with a couple of layers of brick around the top to give extra cover for the crew. The guns crew could be as little as one man in an emergency to probably three at the gun and one carrying ammunition up to the roof.
15 May 2018
StP106 Dresden

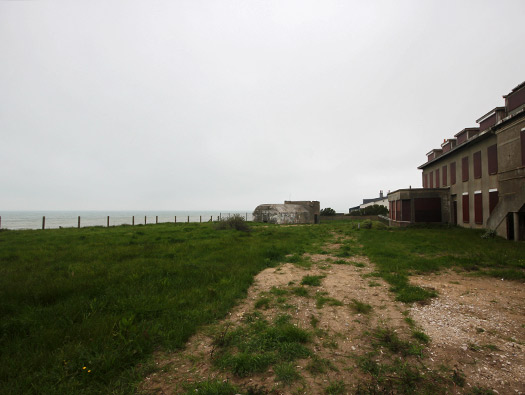

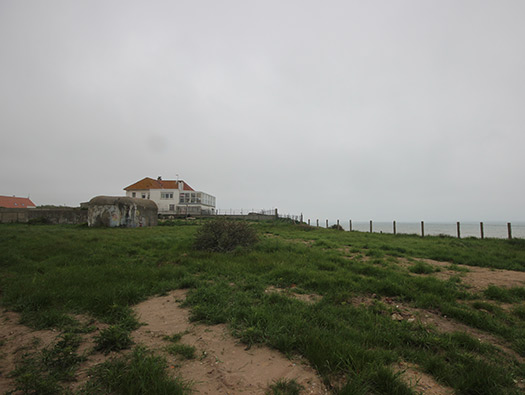

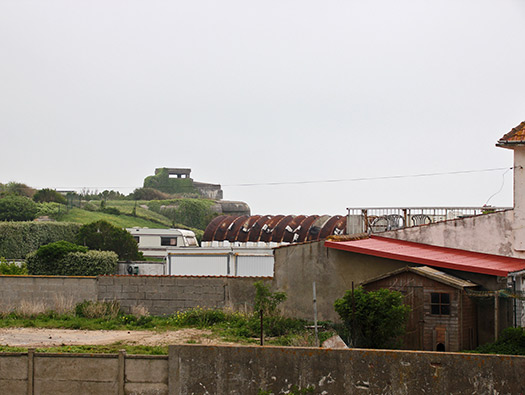

The view with the old hotel.
15 May 2018
StP106 Dresden

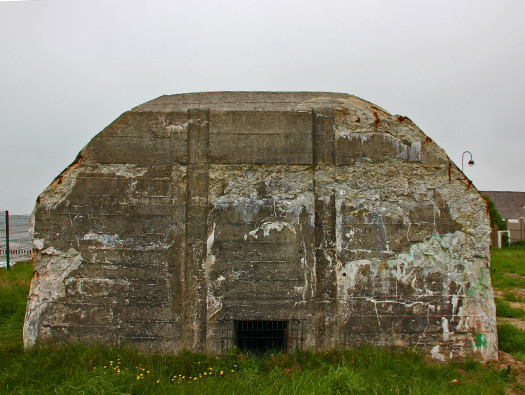

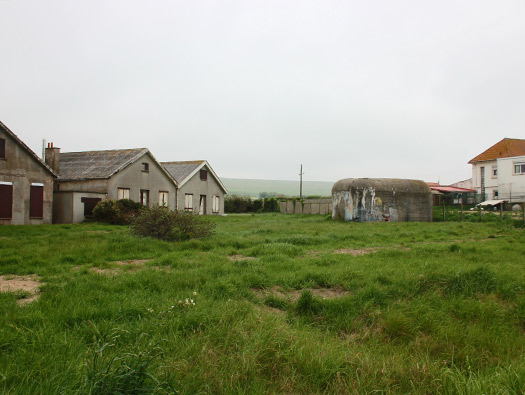

One of three ammunition bunkers that were on the complete site.
15 May 2018
StP106 Dresden
An old Marine style munitions bunker.
15 May 2018
StP106 Dresden

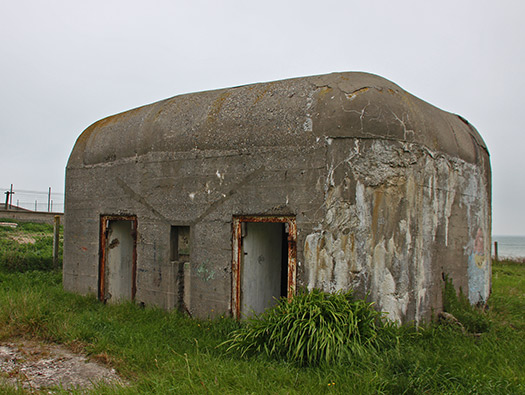

A quite small two roomed bunker.
15 May 2018
StP106 Dresden
Not sure why a cable run has been cut into the concrete, it may have been done post war??
15 May 2018
StP106 Dresden

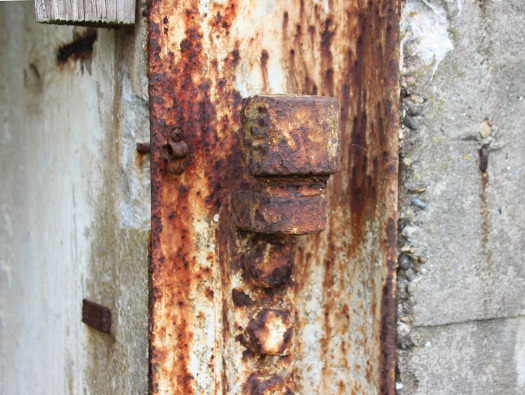

Usually these bunkers would have had a Marine door say a T8 Marine double ships type door but here there was just a single door with two hinges of unknown type??
15 May 2018
StP106 Dresden

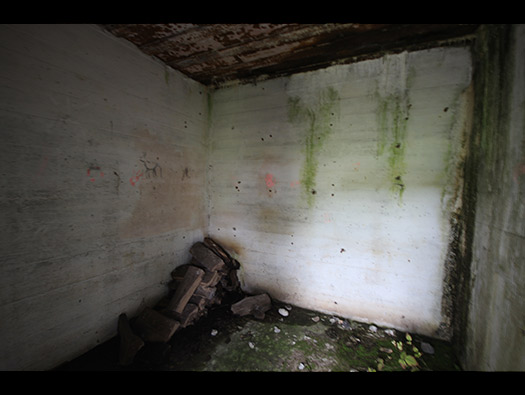

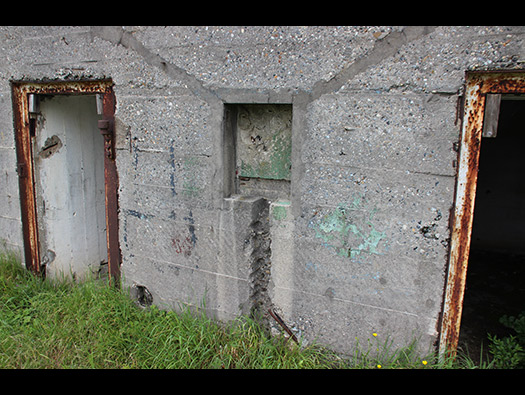

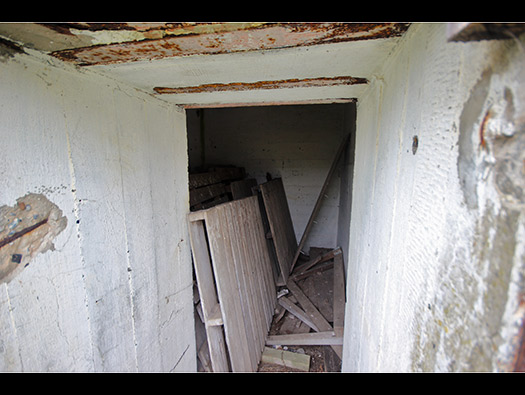

Inside the left room. I do not know if this was for the Flak guns or the main guns. 17cm shells would fill this Munitionsbunker very quickly, so it may have been for the 2cm Oerlikon Flak 28 gun??
15 May 2018
StP106 Dresden
Inside the right room.
15 May 2018
StP106 Dresden
This is an individual Wellblech (Corrugated iron) style bunker just for crew or ammunition, it could be either.
15 May 2018
StP106 Dresden

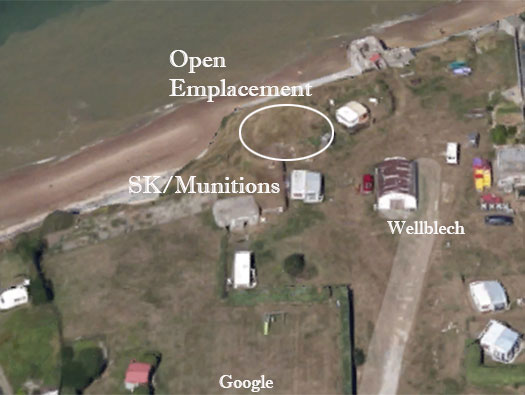

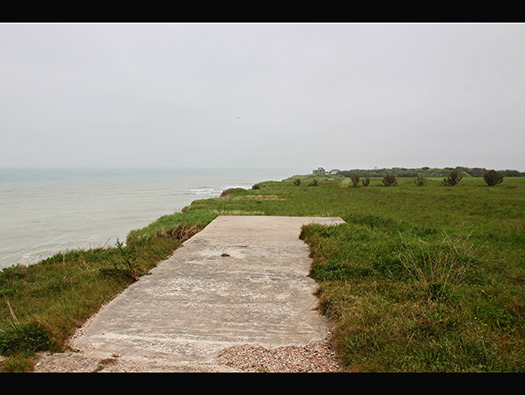

I believe this was Turm1 the open emplacement. Also another SK/Ammunition store and a Wellblech bunker.
StP106 Dresden

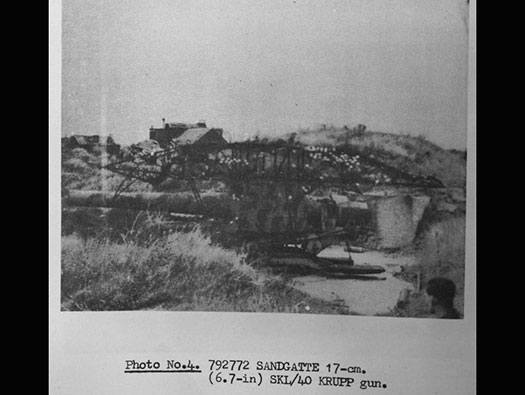

Turm3 of StP106 Dresden (Sangatte Batterie) 17cm S.K. L/40.

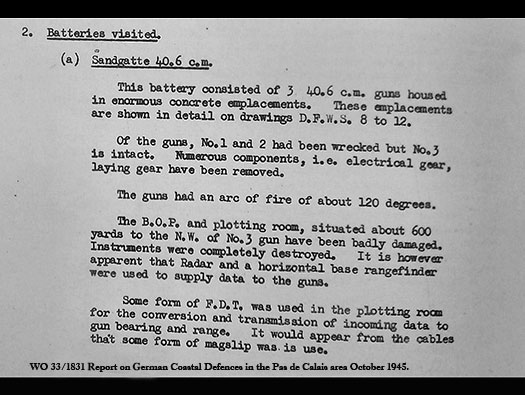

WO 33/1831
StP106 Dresden
WO 33/1831
StP106 Dresden

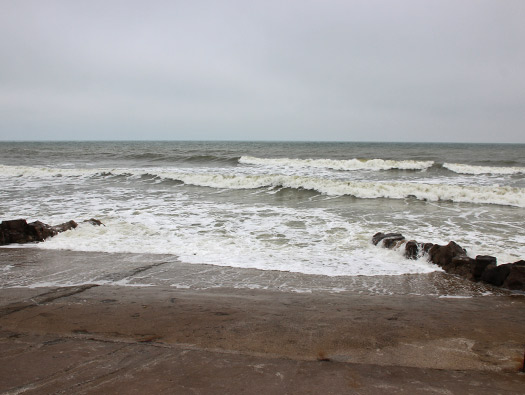

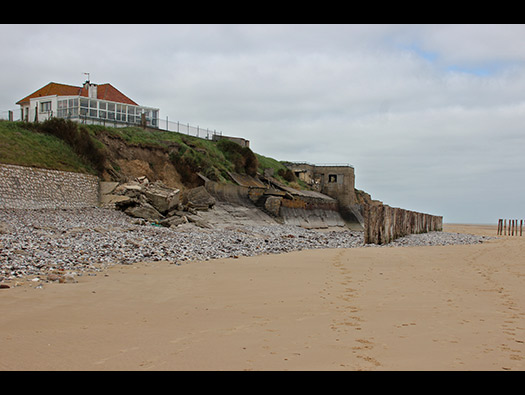

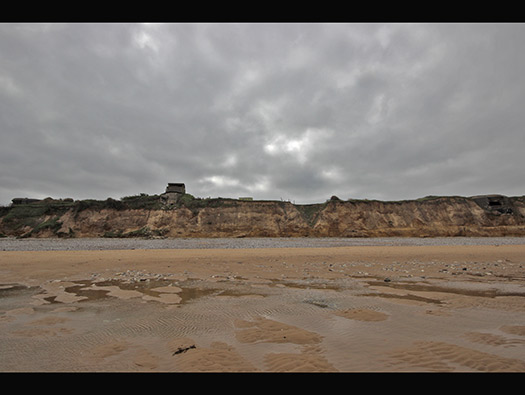

This is the ramp down to the beach and when the tide is out, you have plenty of time to look at the batterie from the sand.
15 May 2018
StP106 Dresden

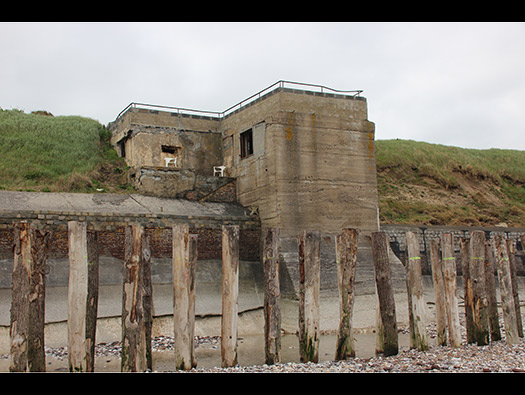

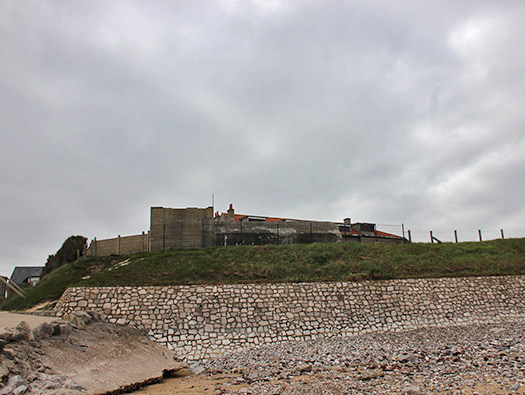

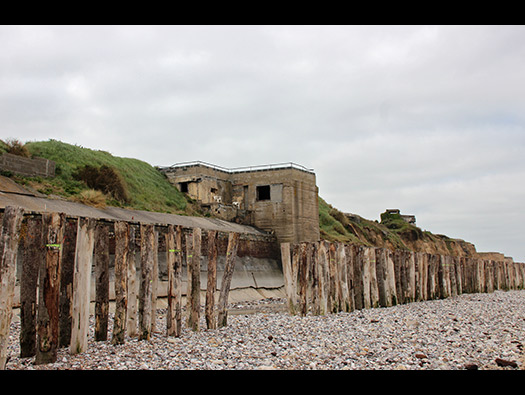

The Wellblech looking up from the beach.
15 May 2018
StP106 Dresden

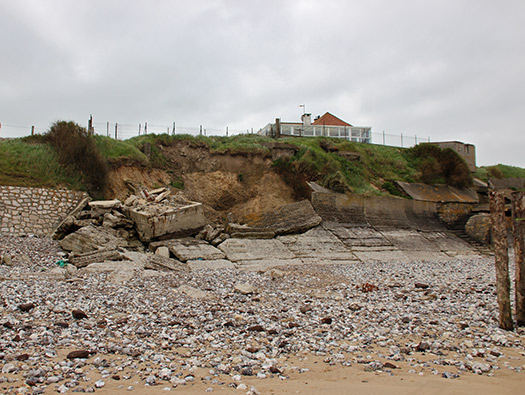

Unknown bits an pieces, some now vanished and others a mystery??
15 May 2018
StP106 Dresden
18 May 2018
StP106 Dresden
There may have been one of the machine gun bunkers.
18 May 2018
StP106 Dresden
So I wonder what it was?
18 May 2018
StP106 Dresden
There are many odd buildings probably built by the crews that manned the defence and could not await official channels, so they got on and made what they wanted.
18 May 2018
StP106 Dresden

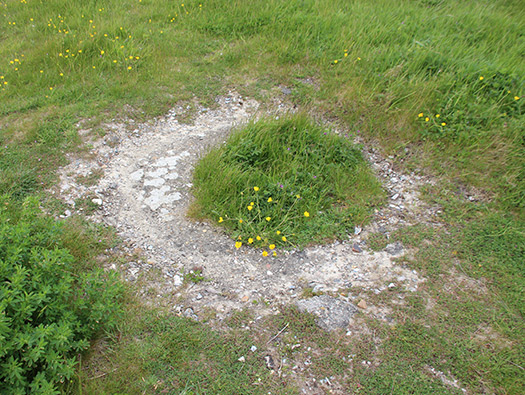

I have seen it said that it could be the site of a searchlight and there was one on the batterie site??
18 May 2018
StP106 Dresden

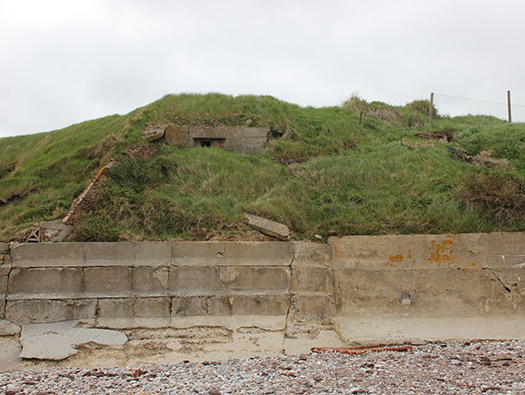

A dug in MG emplacement, probably accessed by a tunnel from behind.
This is exactly the area that Hitler and his Generals expected an invasion to come.
18 May 2018
StP106 Dresden
Very like some at Omaha beach area.
18 May 2018
StP106 Dresden

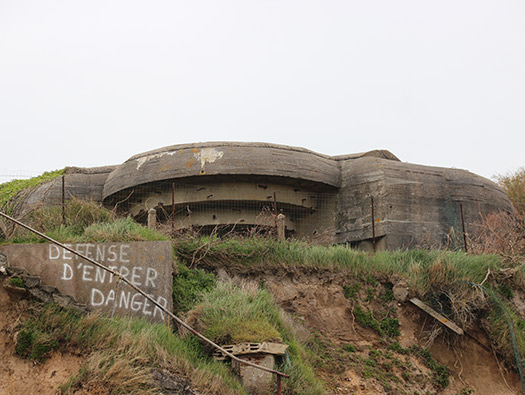

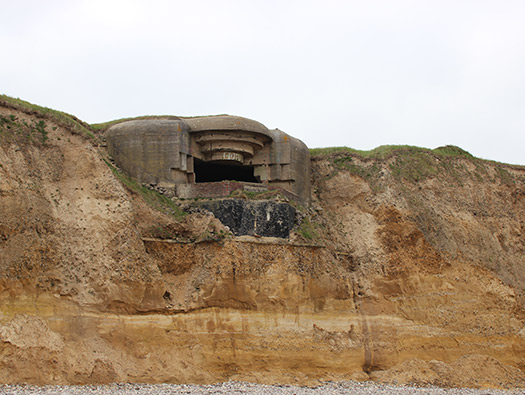

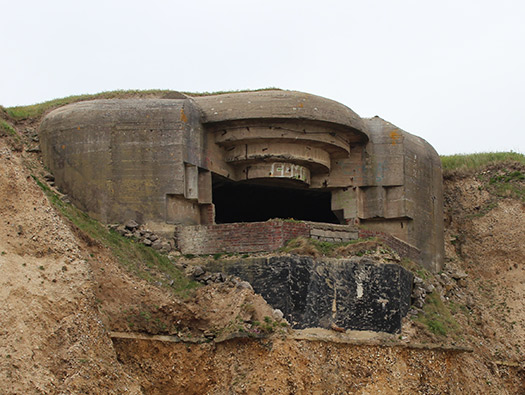

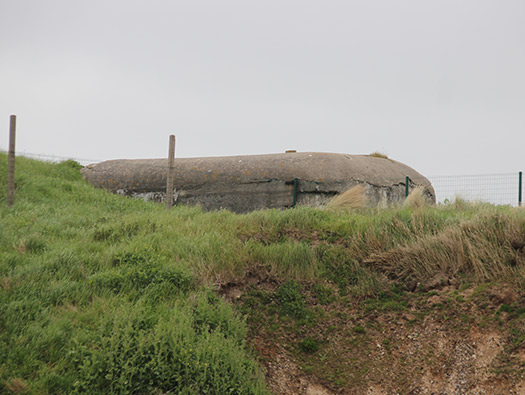

M270 Casemate designed for the Marines (Navy) and used widely. A large emplacement to house a 17cm S.K.L140 gun with its own shield..
18 May 2018
StP106 Dresden

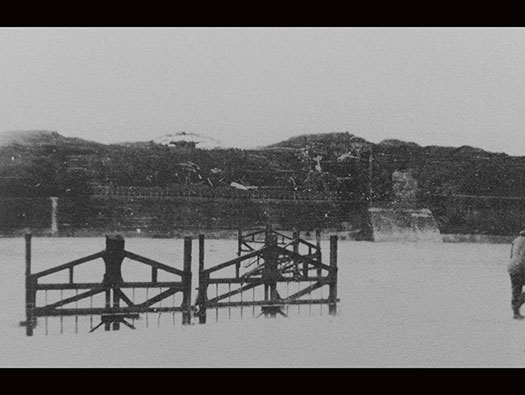

This could be before the FCP was built?? Three Belgian gates protecting the batterie from assault from the sea.
DEFE 2/2092 1944
StP106 Dresden
18 May 2018
StP106 Dresden
17cm S.K.L/140 gun.
18 May 2018
StP106 Dresden

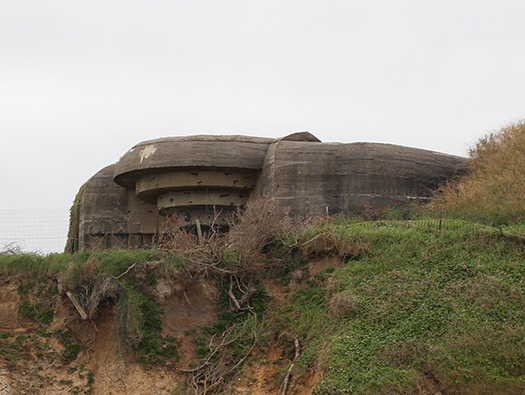

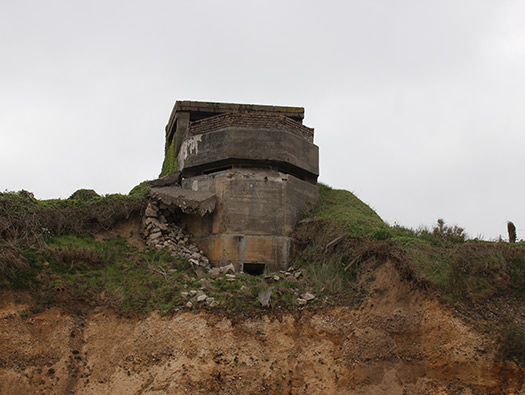

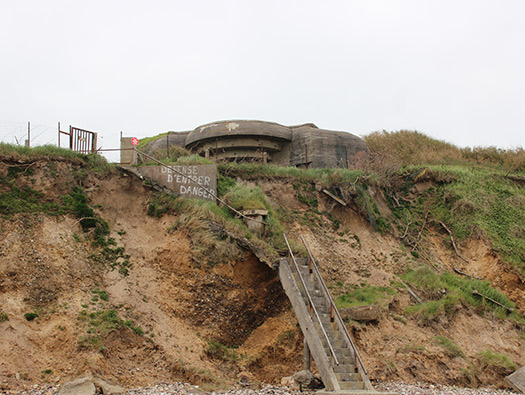

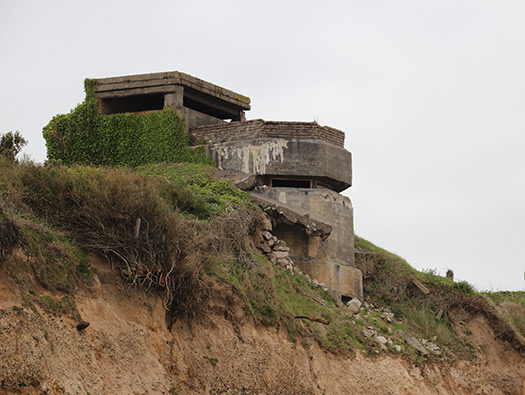

SK fire control post.
18 May 2018
StP106 Dresden
It looks to have a higher upper viewing platform with a wider slit than standard models like the
18 May 2018
StP106 Dresden

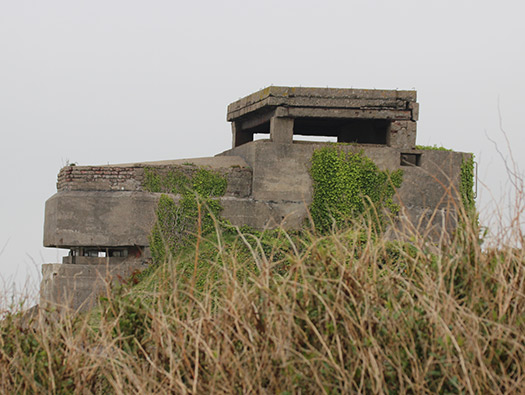

Three levels of viewing.
18 May 2018
StP106 Dresden

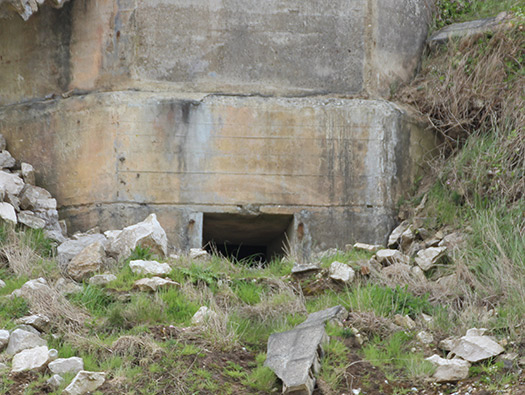

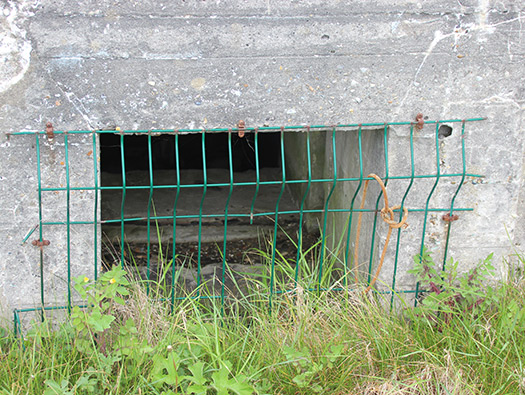

An odd opening in the lower front of the Leitstand?
18 May 2018
StP106 Dresden

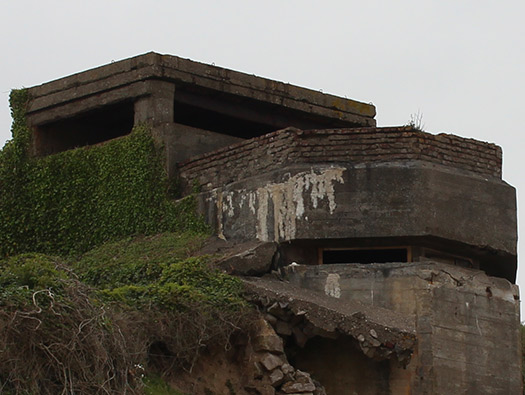

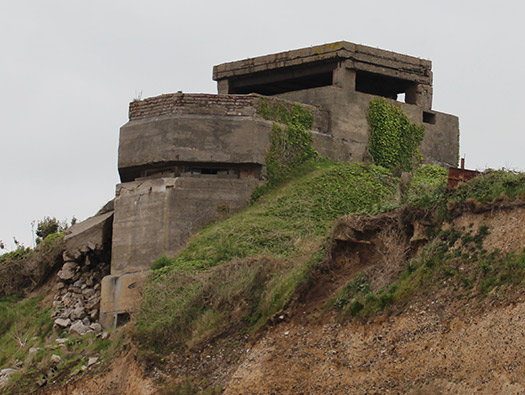

Another nice side view showing the added brickwork and concrete to give the lower lookouts more cover, usually added just before D-Day when in the early 1944 a lot of beefing up of emplacements was carried out.
18 May 2018
StP106 Dresden

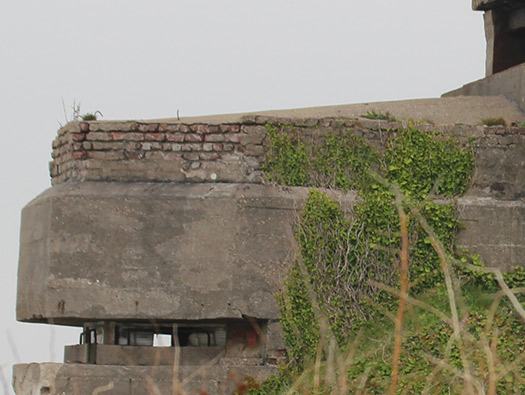

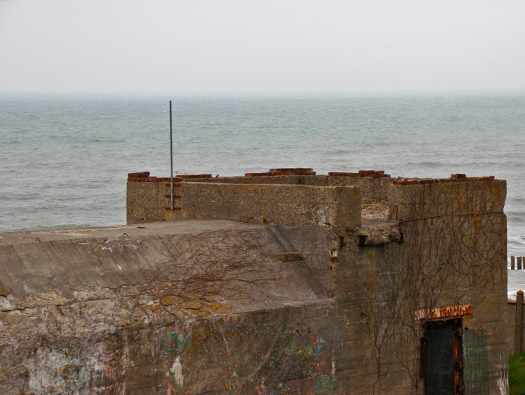

You can see in this close up showing the added brickwork and concrete observation room. Inside would be the computing room where the information seen would be transferred to the guns teams.
15 May 2018
StP106 Dresden

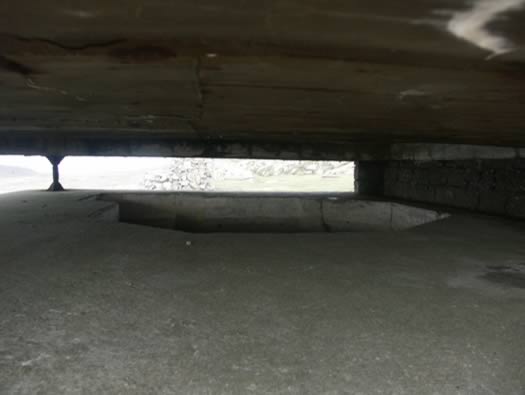

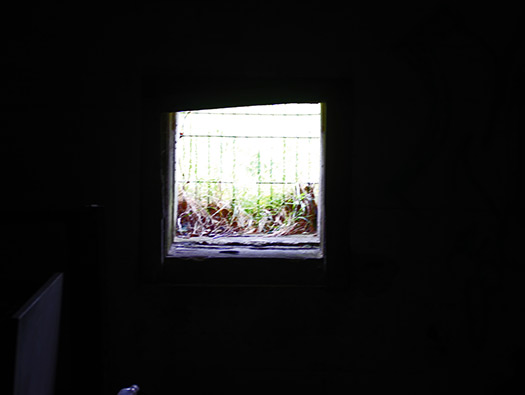

Observation.
15 May 2018
StP106 Dresden
15 May 2018
StP106 Dresden
17cm S.K.L/140 gun.
18 May 2018 WO 33/1831 Rep. on German Coastal Defrnces
StP106 Dresden
17cm S.K.L/140 gun.
18 May 2018
StP106 Dresden

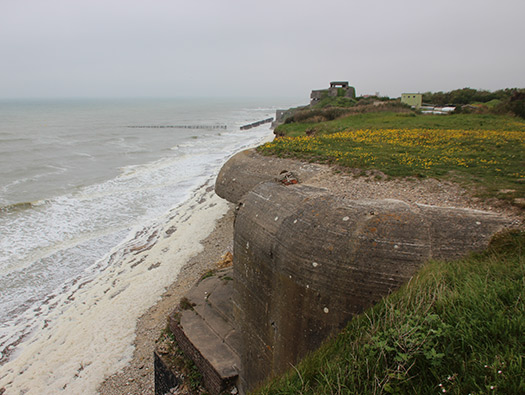

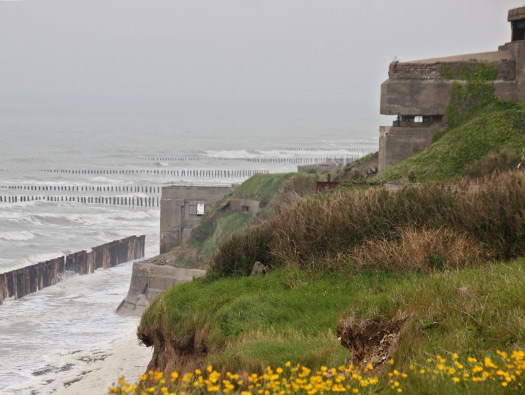

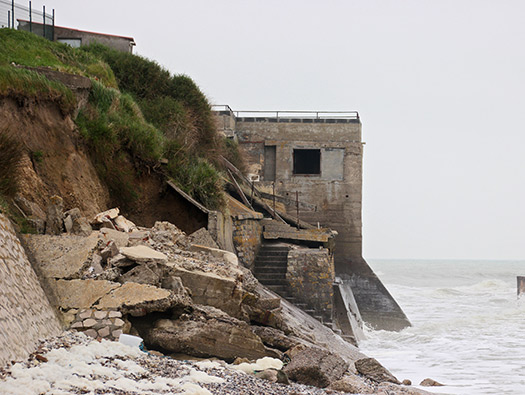

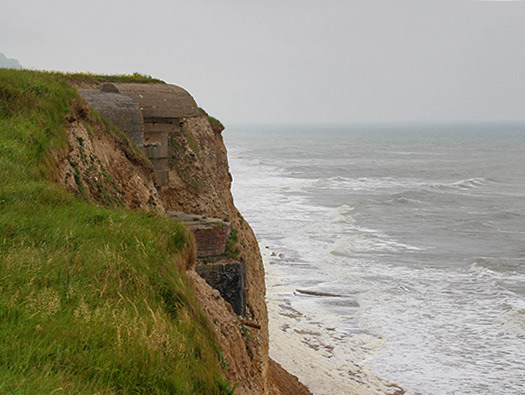

You can see how the sea erosion has taken away a lot of the cliff and getting worse.
DEFE 2/2092 1944
StP106 Dresden
17cm S.K.L/140 gun.
15 May 2018
StP106 Dresden
17cm S.K.L/140 gun.
15 May 2018
StP106 Dresden
17cm S.K.L/140 gun.
15 May 2018
StP106 Dresden

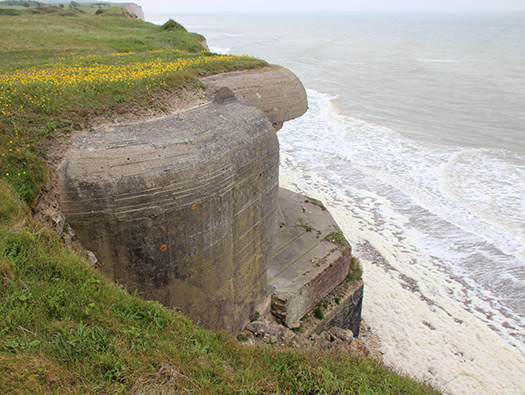

The Fire Control Tower in the middle with two M270 casemates either side. There was another open emplacement for a the third S.K.L/140 gun somewhere, two 7.62 F.K.39(r) field guns, a 2.5cm Pak 112(f) for anti-tank defence and 2 x 4cm Flak 28 Bofors type.
18 May 2018
StP106 Dresden

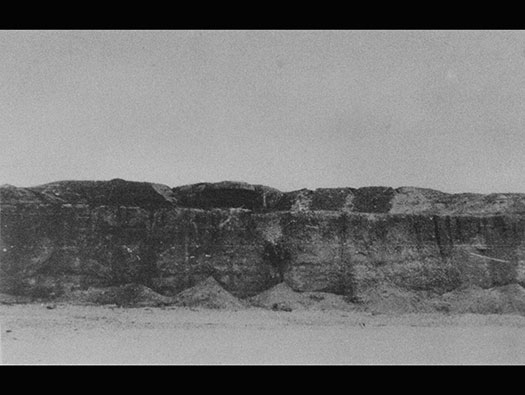

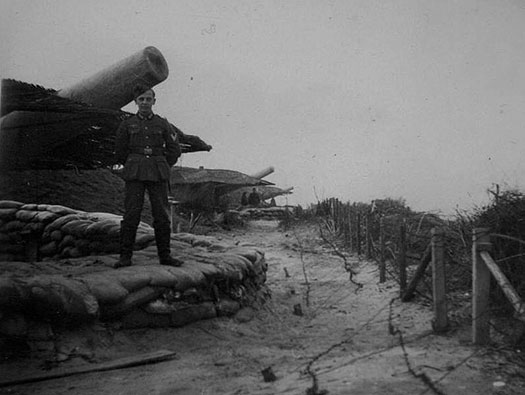

This is the original Dresden three gun batterie in open emplacements before the casemates were built.
DEFE 2/2092 1944
StP106 Dresden

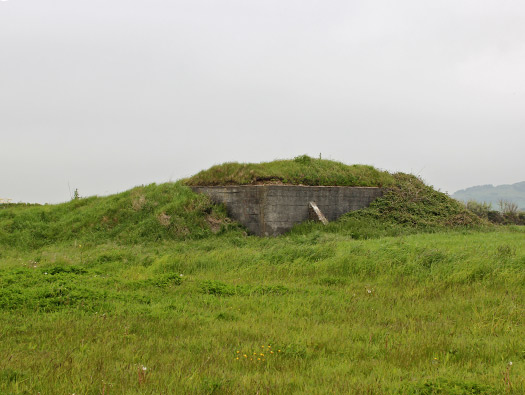

Unsure of this bunker but it may be another Munitionsbunker or an Vf/crew bunker?
18 May 2018
StP106 Dresden

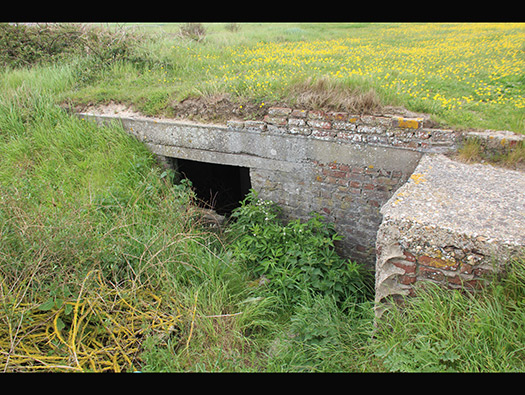

On the top of the cliff several home made bunkers can be found.
15 May 2018
StP106 Dresden
Built with local bricks, probably from bombed out houses in Calais.
15 May 2018
StP106 Dresden

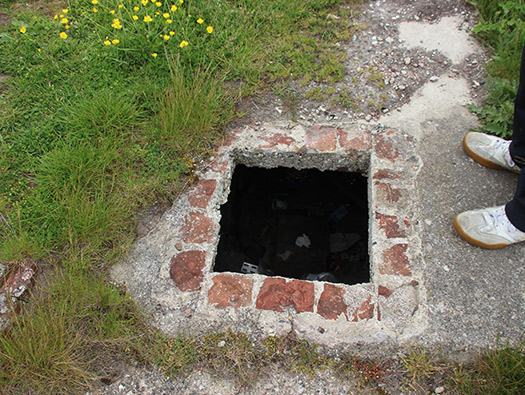

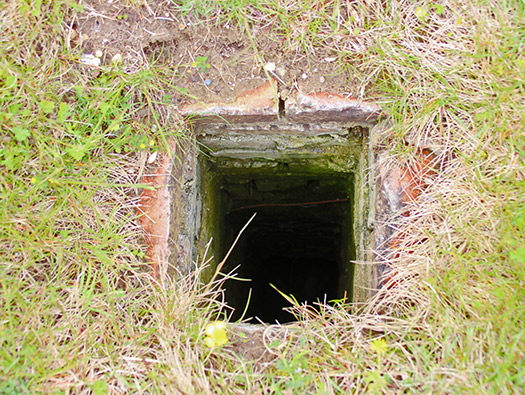

Escape hatch from an underground bunker.
15 May 2018
StP106 Dresden
A Tobruk which may be part of the western M270 casemate?
15 May 2018
StP106 Dresden

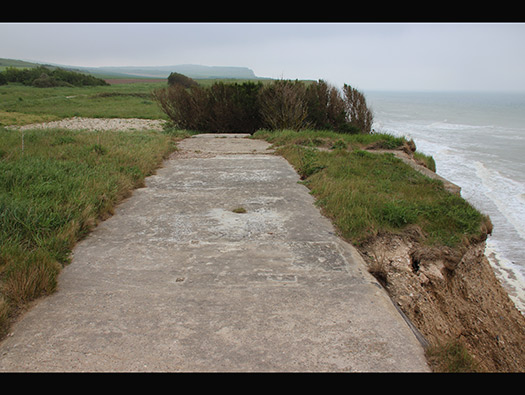

Another concrete structure close to the cliff.
15 May 2018
StP106 Dresden
Looking along its length.
15 May 2018
StP106 Dresden
Now looking back.
15 May 2018
StP106 Dresden

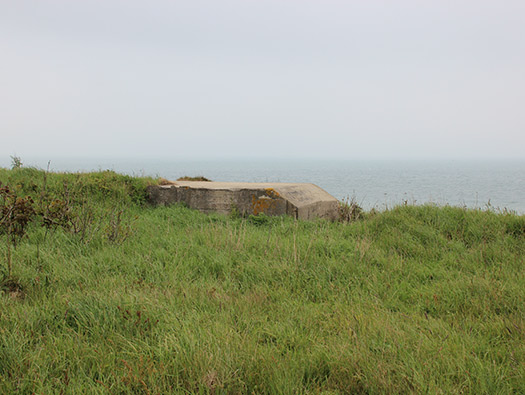

This is a bunker just behind the cliff.
15 May 2018
StP106 Dresden
Barbed wire hanging out of the cliff.
15 May 2018
StP106 Dresden
Whilst laying out StP106 Dresden, I was sailing past StP106 in the P&O cruise ship, Azura bound for Southampton.
