StP18 'Oldenburg', le Moulin Rouge
BATTERIE · K.V.Gruppe Calais · AOK 15 Nord Pas de Calais · France
StP18 M.K.B. Oldenburg
A batterie of two 24cm S.K.L/50 guns originally from a Russian battleship "Rurik" which was in the harbour of Libau, Latvia, and was captured when the port was taken. The guns were removed and modified from 25.4cm to 23.80cm to be able to use standard German ammunition. Then sent to the island of Borkum of the German coast as a coastal batterie. In 1940 they were moved to Calais. 1942 casemates were built around them
StP18 M.K.B. Oldenburg
StP18 M.K.B. Oldenburg
Batterie 2./M.A.A.244
200 naval personnel.
1 x R606 bunker for a 60cm searchlight.
2 x R612 casemate for an assault gun (LAG).
1 x R629 anti-tank gun bunker.
5 x SK bunkers.
1 x SK/Maschinenbunker.
1 x Leitstand/SK + Hospital.
2 x Vf/Schartenstand.
1 x 7.5cm F.K.231.
2 x 5cm KwK Ringstand's.
2 x Vf58c Tobruk's.
5 x MG Stand.
1 x Wellblech.
2 x 24cm S.K.L/50 guns.
2 x 4cm Flak 28.
18 May 2018
StP18 M.K.B. Oldenburg

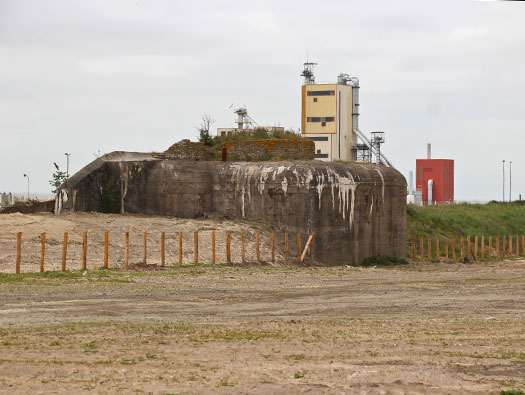

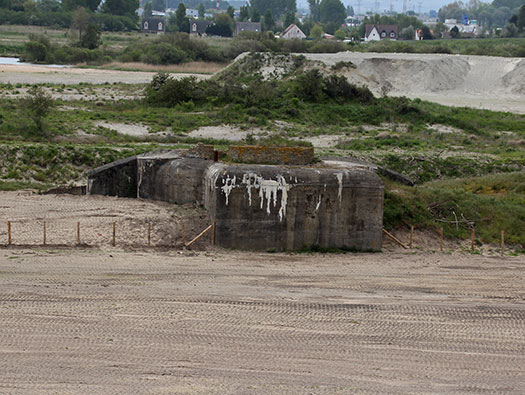

The two large gun bunkers have now had the ground completely re modelled since the holiday camp (Vacance) and the Jungle has been removed.
18 May 2018
StP18 M.K.B. Oldenburg

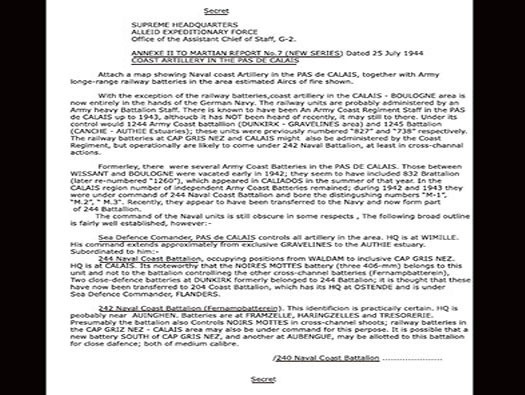

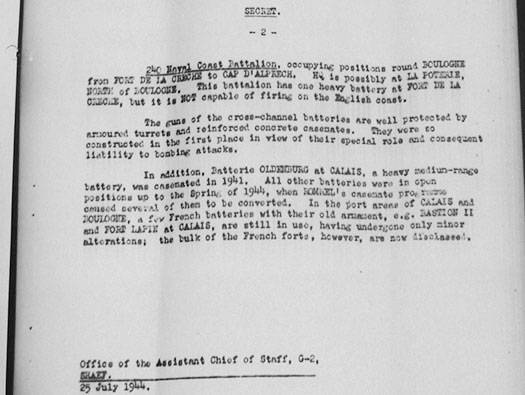

Page -1- Interesting details about the heavy batteries in the Calais area. Remember these documents are SECRET!
Martian Report
StP18 M.K.B. Oldenburg
Page -1- Interesting details about the heavy batteries in the Calais area. Remember these documents are SECRET!
Martian Report
StP18 M.K.B. Oldenburg
Page -2-
Martian Report ii
StP18 M.K.B. Oldenburg

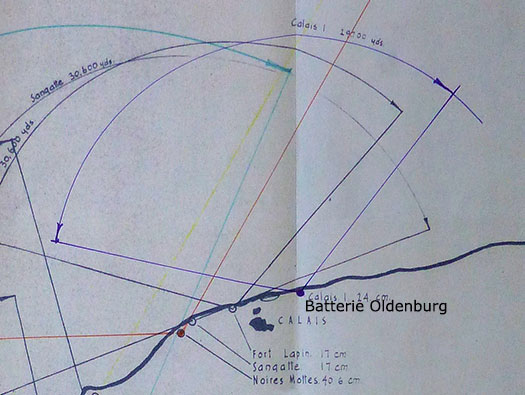

Batterie Oldenburg’s arc of fire.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg

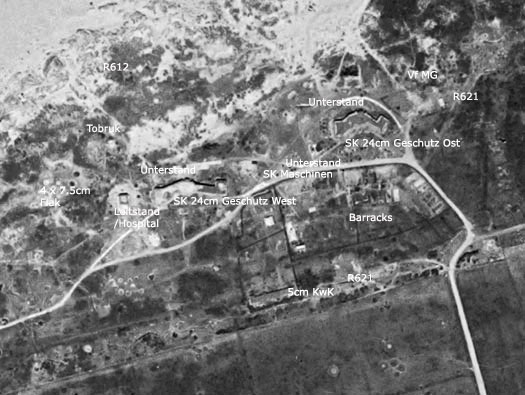

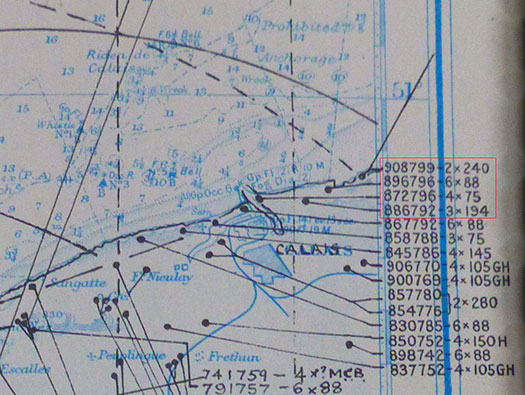

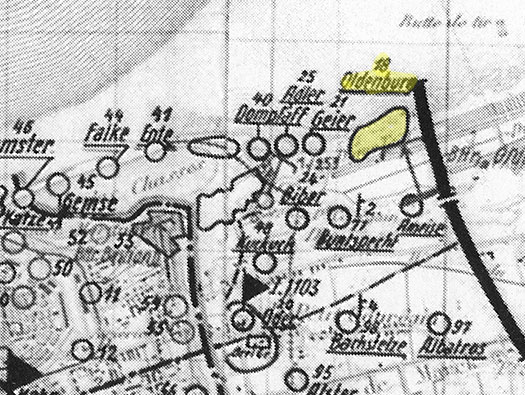

This is the German map showing all the defences along the coast with Oldenburg as StP18.
The black line is the demarcation line between - in the east AOK15 (15th Army) to the west AOK7 (7th Army).
18 May 2018
StP18 M.K.B. Oldenburg

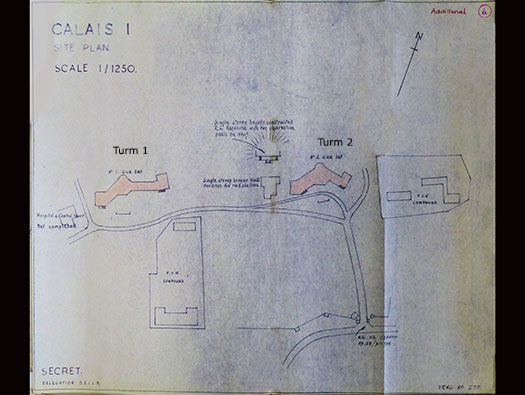

Plan of the batterie by Allied Intelligence 1944 with the two casemates either side.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg

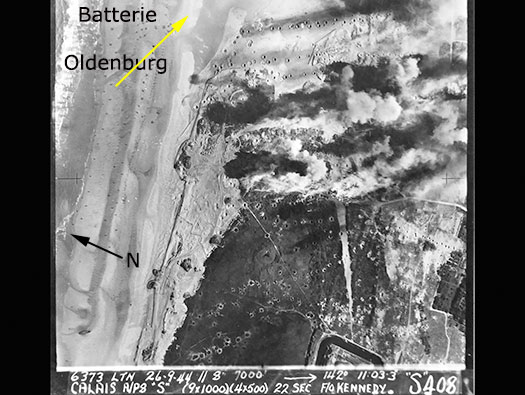

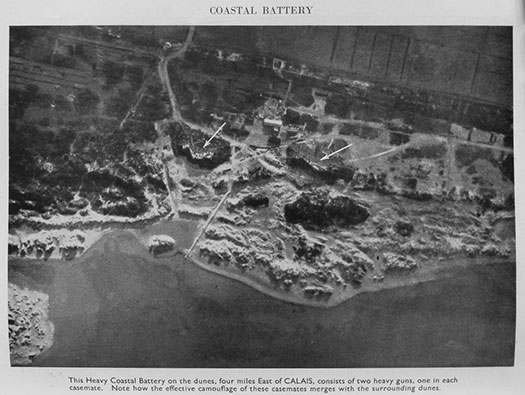

Allied aerial photo of the batterie showing the two casemates arrowed.
Evidence in camera
StP18 M.K.B. Oldenburg

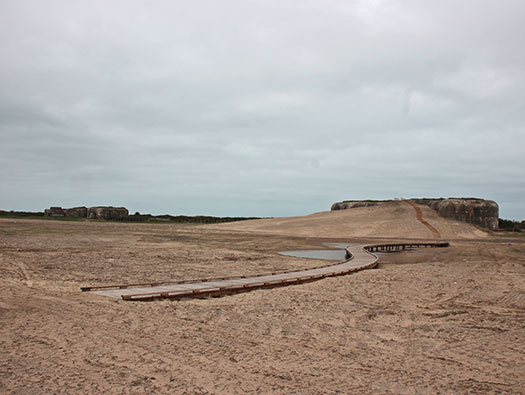

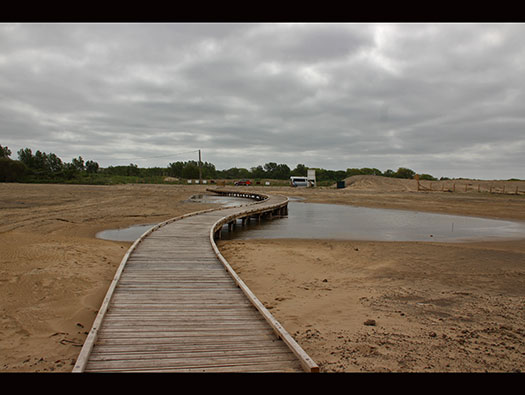

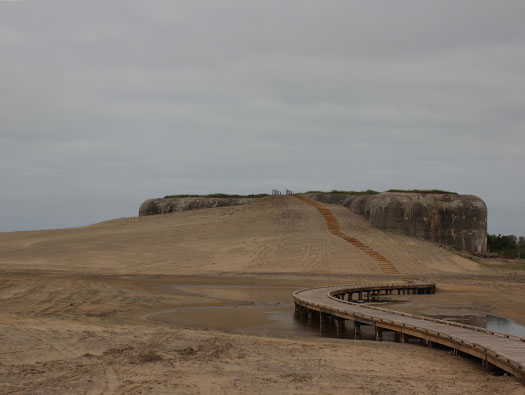

Today you have to walk along the board walk to the first casemate.
18 May 2018
StP18 M.K.B. Oldenburg

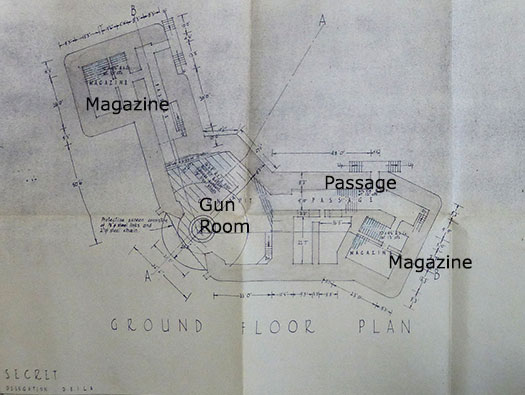

Casemate ground floor plan.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg

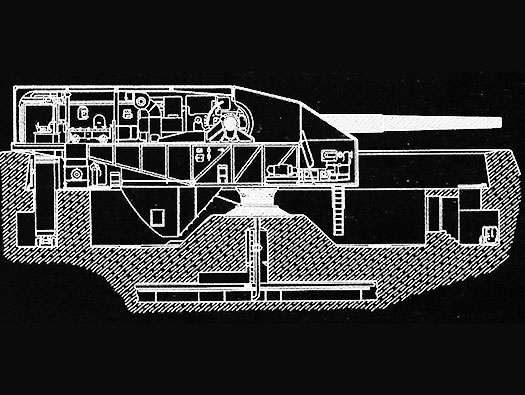

The open emplacement at Batterie Lindemann, how this would have looked..
Batterie Lindemann
StP18 M.K.B. Oldenburg

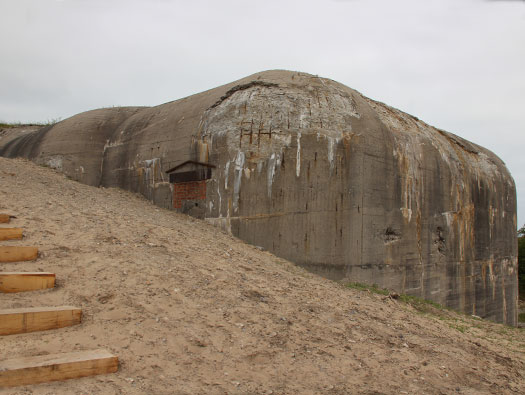

The door with a very nice porch over it allows access to the magazine. This door can be seen on the picture below but without the porch. It must have been found that a modification was needed..
18 May 2018
StP18 M.K.B. Oldenburg
The rear in 1941 when it was under construction.
1941
StP18 M.K.B. Oldenburg

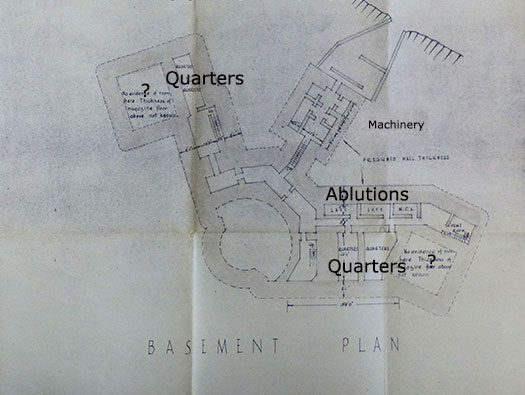

Plan of Basement level.
Quarters for seamen and officers, also at the rear a machine bunker.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg

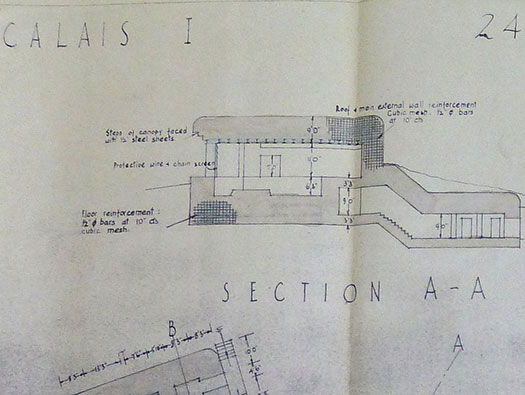

Elevation of the gun room through A--A and out to the machinery room.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg

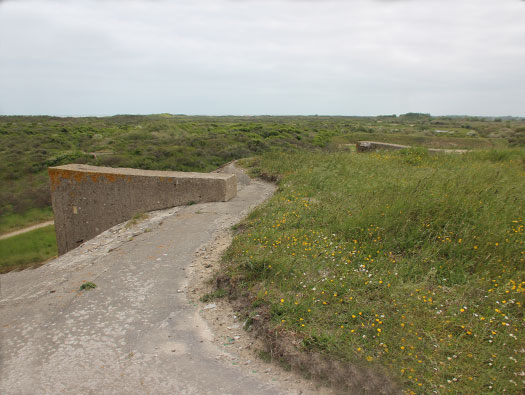

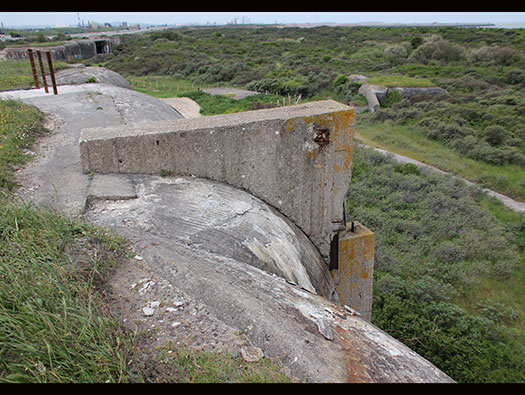

Up on the roof looking down on the embrasure and the concrete extensions to carry heavy steel nets (to explode any shell that might penetrate the embrasure) and also camouflage nets.
18 May 2018
StP18 M.K.B. Oldenburg

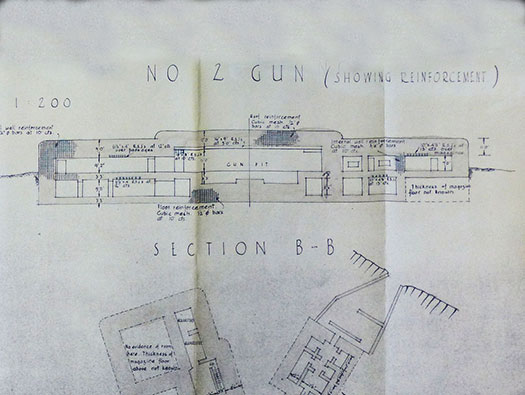

Elevation plan of the casemate.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg
Erik Ritterbach gave me these photos many years ago and has allowed me to use them which I thank him very much. We could not get to the front of the casemates on this visit..
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

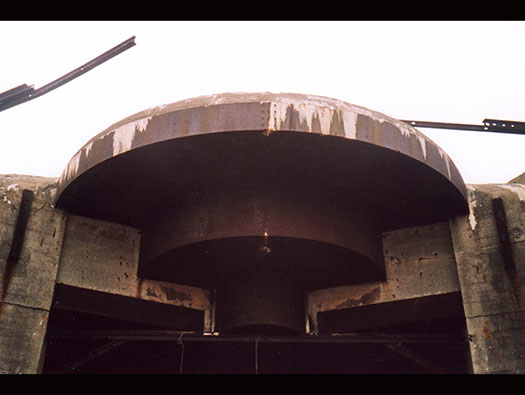

Up on the roof looking down on the embrasure and the concrete extensions to carry heavy steel nest (to explode any shell that might penetrate the embrasure) and camouflage nets.
18 May 2018
StP18 M.K.B. Oldenburg

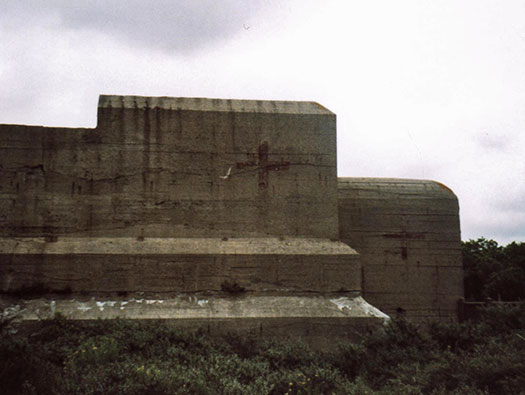

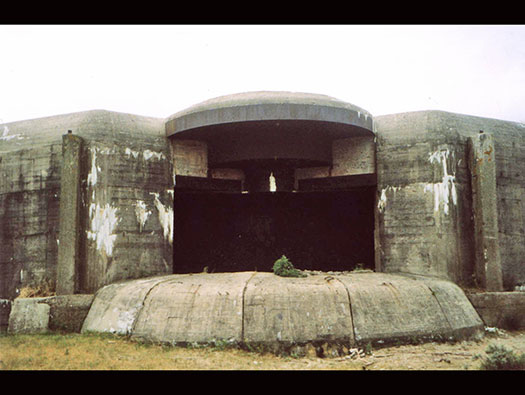

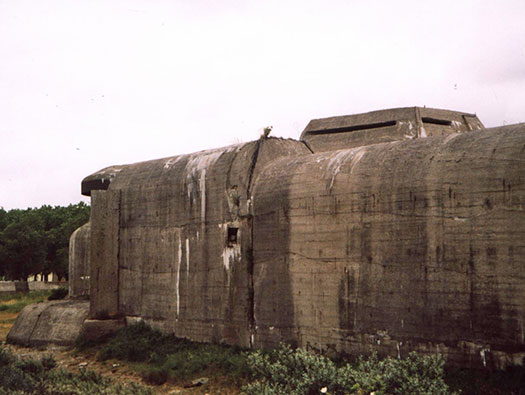

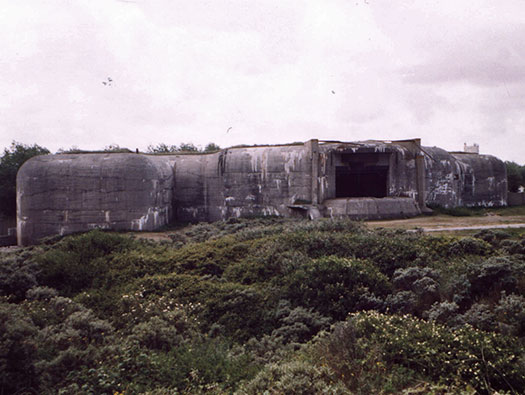

Erik's photo of the casemate and the overhanging nose.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

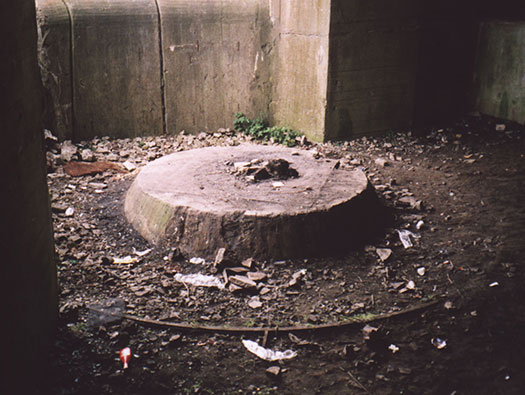

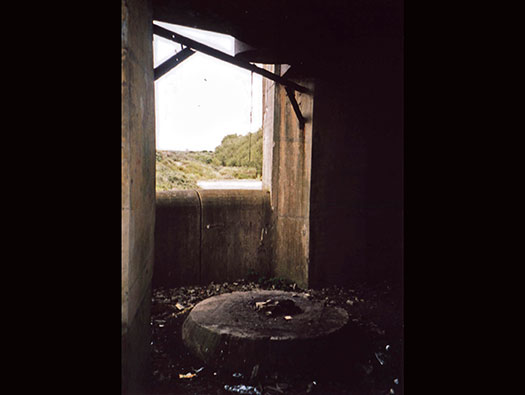

Inside the casemates gun room where the gun and shield was mounted.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

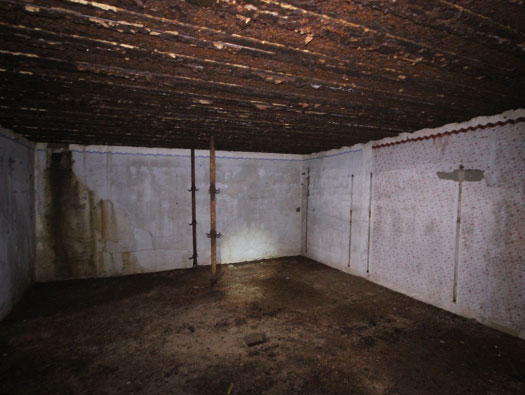

Inside the casemates gun room.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

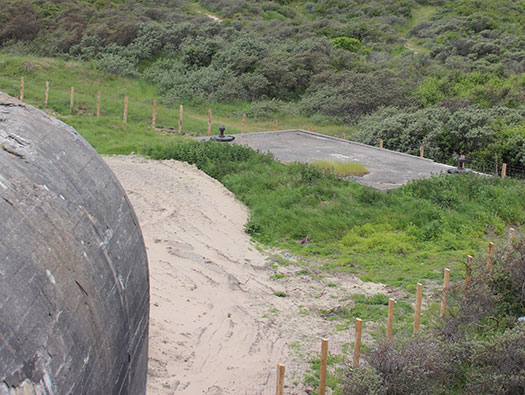

Tobruk defence on the roof.
18 May 2018
StP18 M.K.B. Oldenburg

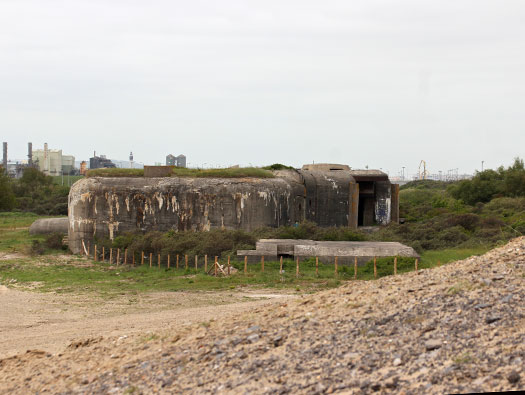

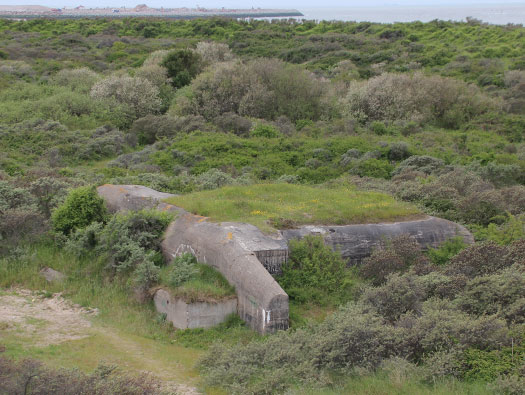

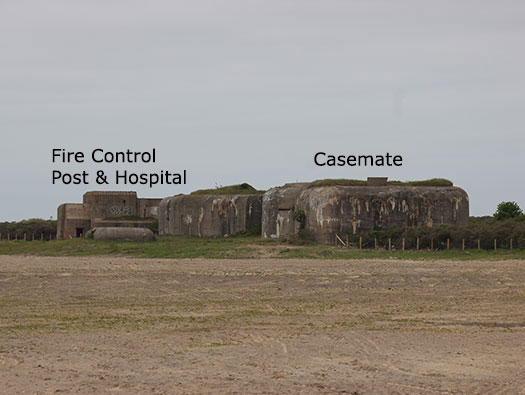

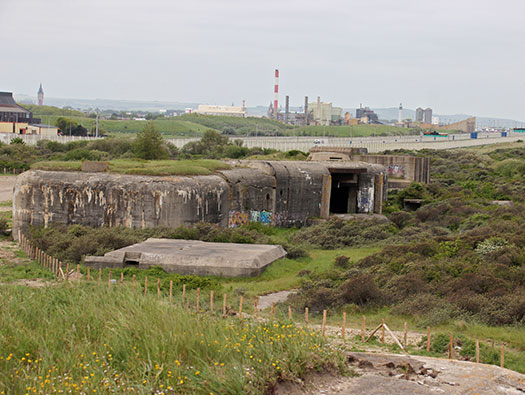

Turm 1 and the fire control post/Hospital.
18 May 2018
StP18 M.K.B. Oldenburg

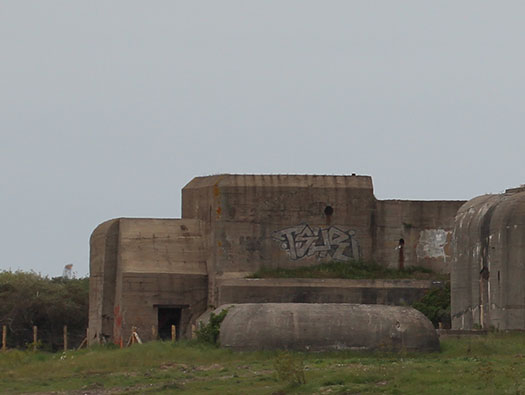

Fire Control Post (Leitstand) and the ground floor is a Hospital.
Between us and the FCP is a machinery bunker.
18 May 2018
StP18 M.K.B. Oldenburg

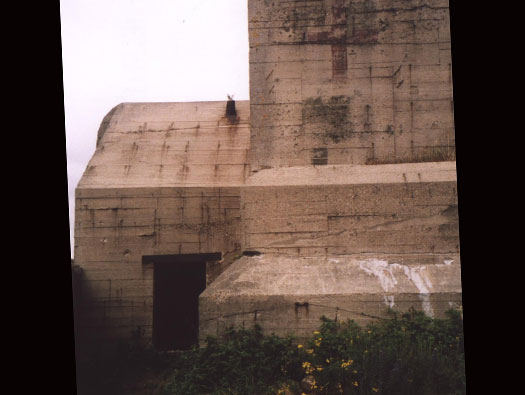

Fire Control Post (Leitstand) and the ground floor is a Hospital.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
Fire Control Post (Leitstand) and the ground floor is a Hospital.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
Fire Control Post (Leitstand) and the ground floor is a Hospital.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
The bunker with a side entrance is a Naval design bunker for guns crew.
18 May 2018
StP18 M.K.B. Oldenburg
Naval design bunker for guns crew.
18 May 2018
StP18 M.K.B. Oldenburg

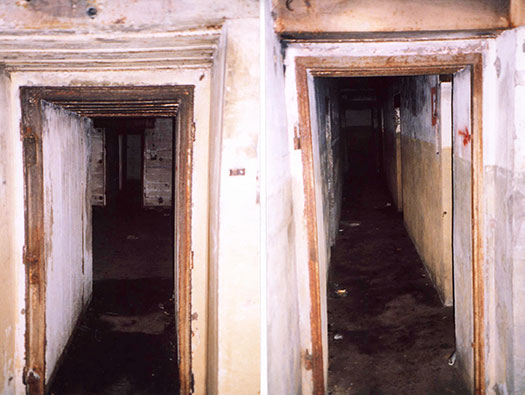

One of the Crew bunker passage at Oldenburg.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
My picture of a Crew bunker at Grosser Kurfürst Batterie.
18 May 2018
StP18 M.K.B. Oldenburg
On the roof is a small odd shaped fire control post ?
18 May 2018
StP18 M.K.B. Oldenburg
On the roof is a small odd shaped fire control post ?
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
On the roof is a small odd shaped fire control post ?
18 May 2018
StP18 M.K.B. Oldenburg

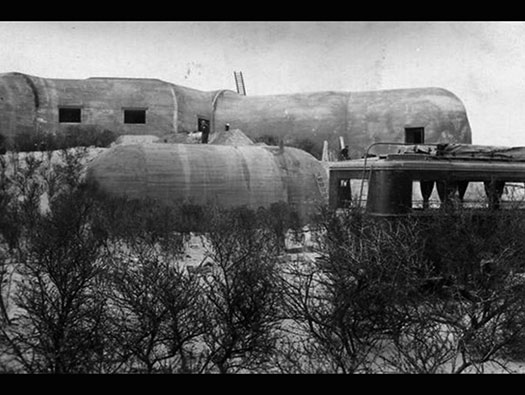

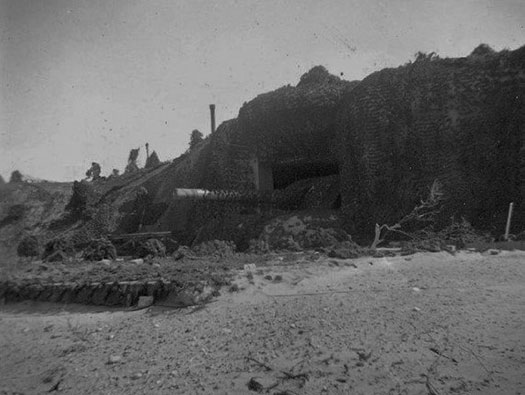

This looks like it was taken just after capture.
The Canadians attacked from the rear and the crew surrendered very quickly.
1944
StP18 M.K.B. Oldenburg

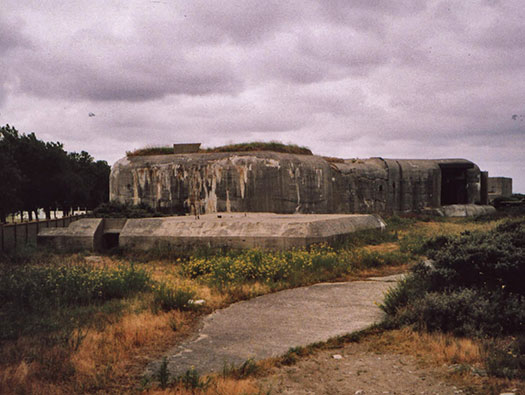

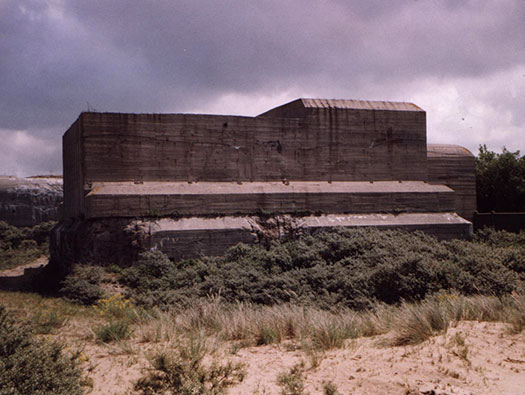

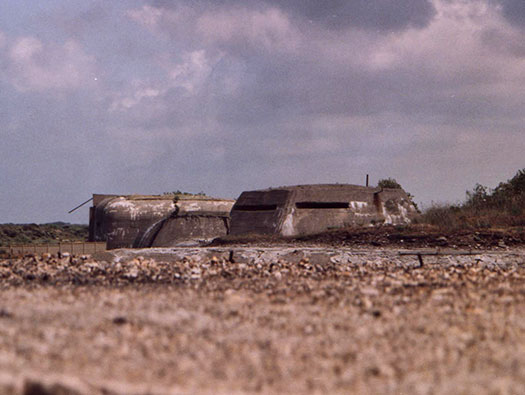

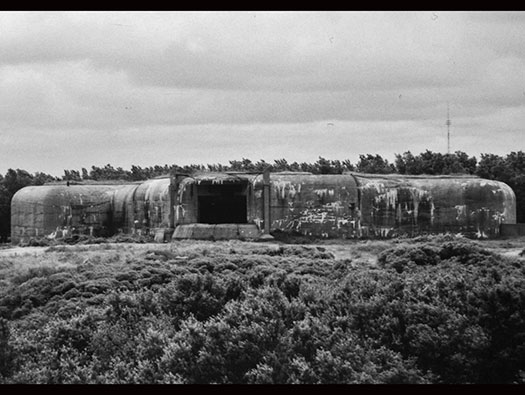

Gun casemate.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

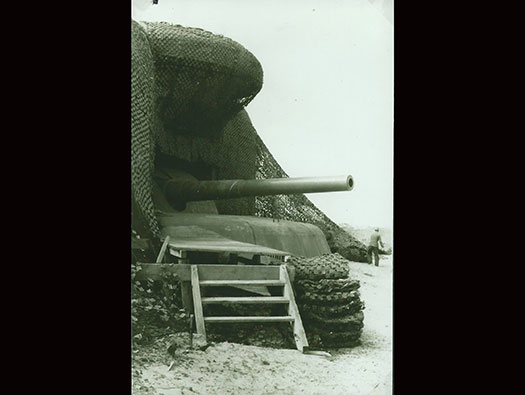

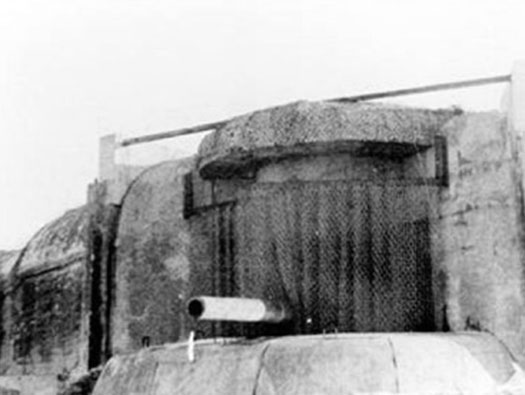

Turreted gun in position with a few camouflage nets stacked around.
1940's
StP18 M.K.B. Oldenburg

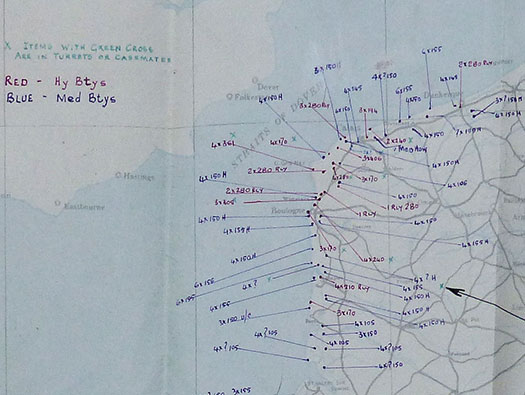

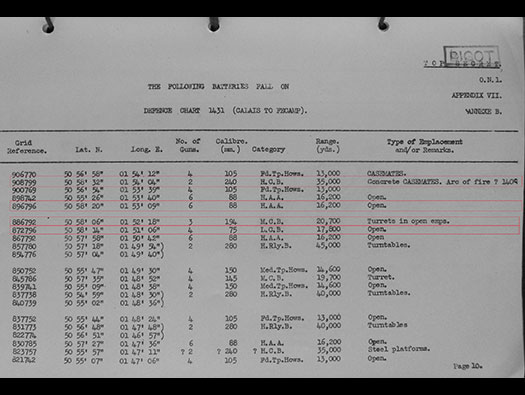

Batteries in the area.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg
Batteries in the area.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg
Crew bunker and a ringstand for a 5cm KwK gun on its roof built in local brick.
18 May 2018
StP18 M.K.B. Oldenburg
Crew bunker and a ringstand for a 5cm KwK gun on its roof built in local brick.
18 May 2018
StP18 M.K.B. Oldenburg
R629 anti tank gun garage.
18 May 2018
StP18 M.K.B. Oldenburg

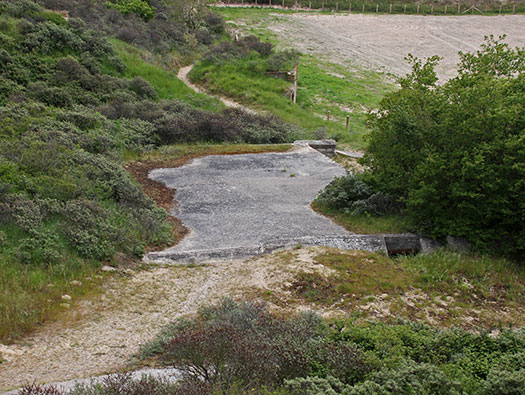

Out in front an Unterstand /R621?
18 May 2018
StP18 M.K.B. Oldenburg
Bombing of Calais and Oldenburg areas on many occasions.
18 May 2018
StP18 M.K.B. Oldenburg

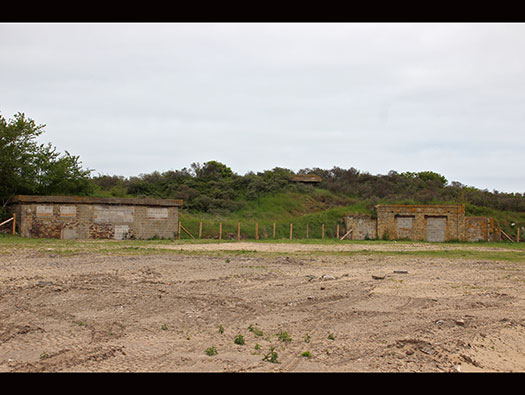

Several barrack looking buildings continuing to the east side.
18 May 2018
StP18 M.K.B. Oldenburg
Unterstand/Naval barracks bunker?
18 May 2018
StP18 M.K.B. Oldenburg
Note our own police protection.
The batterie position was captured on 1 October 1944, by the Canadian 3rd Infantry Brigade.
18 May 2018
StP18 M.K.B. Oldenburg

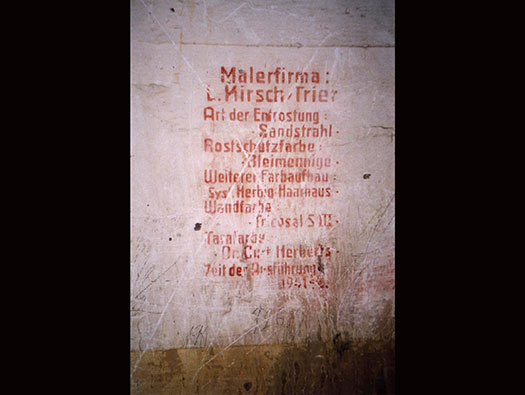

Writing on the bunkers wall.
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg
Writing on the bunkers wall.
Translated 'Piecing pipe wiper' ?
18 May 2018
StP18 M.K.B. Oldenburg
On the fence by the road.
18 May 2018
StP18 M.K.B. Oldenburg
On the fence by the road.
18 May 2018
StP18 M.K.B. Oldenburg
Heavy and light batteries in the Pas de Calais.
WO 219/5133 D E I L A Report On Preliminary Reconnaissance In France
StP18 M.K.B. Oldenburg
Erik Ritterbach 27 March 2001
StP18 M.K.B. Oldenburg

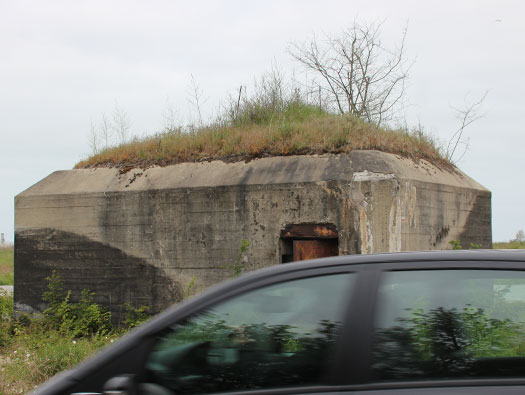

There is a story here, just before we turned to go up the road to the batterie, we found this bunker. A young lady 'of the night' was hanging around the back of the bunker with her car. I was reluctant to take her in the picture, but in my haste this car entered the frame. Oh dear what we come across bunker hunting.
18 May 2018
StP18 M.K.B. Oldenburg

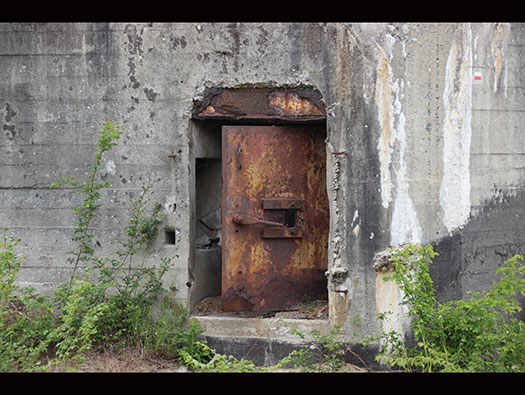

Bunkers very heavy door.
18 May 2018
StP18 M.K.B. Oldenburg
The Bunker.
