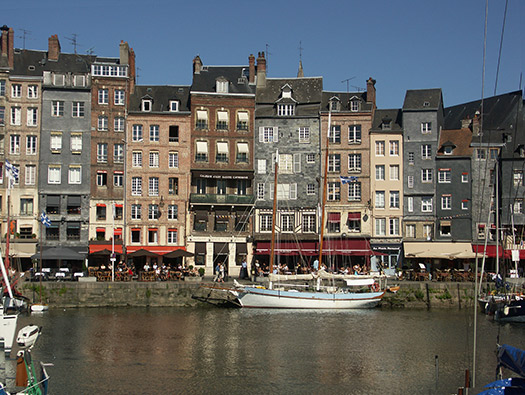

This defence is of one of the prettiest harbours in France. The defence of this harbour was inside the entrance with one 5cm KwK Pak gun on the north bank of the harbour, a Pz.T. R35 3.7cm KwK144 (f) tank turret on the other side and 4.7cm Skoda Pak in the middle. The British and Canadians forces came down the main road from the south the D579A.

Entrance to the Port of Honfleur (1870) by Claude Monet.

R621 group shelter.
R621 group shelter.
5cm KwK Pak L/60.
5cm KwK Pak L/60.
L411 60cm search light bunker.
L411 60cm search light bunker.
Plan of the remaining defences.
Plan of the remaining defences.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

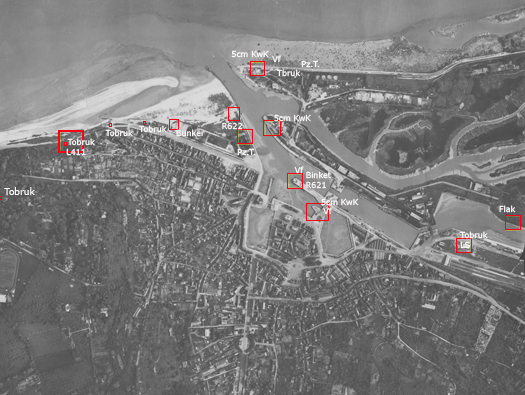

Plan of the defences.
1 - R621 Unterstand group shelter.
1 - Vf/Skoda bunker.
3 x Ringstands for 5cm KwK L/60.
3 x Vf58c Tobruk.
1 x L411 bunker for 60cm searchlight.
1 x L7 position for a 60cm searchlight.
1 x Ls. bunker (air-raid shelter).
1 x Bf66 bunker.
3 x 5cm KwK L/60.
1 x 4.7cm Pak K.36.
1 x Pz.T. R35 3.7cm KwK144 (f) tank turret.
3 x 5cm KwK L/60.
1 x 2cm Flak.

IGN 1947 + added info from SD 02/12/21

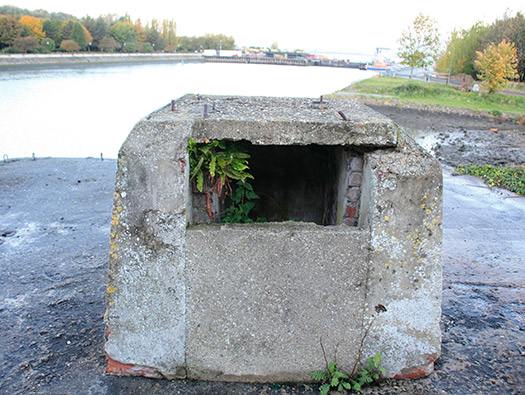

Vf58c Tobruk.
Vf58c Tobruk.
Ls. bunker.
Ls. bunker.
Nr.1694 ringstand for a 5cm KwK L/60 gun.
Nr.1694 ringstand for a 5cm KwK L/60 gun.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
This is an open emplacement for a 5cm KwK L/60 gun with a small ammunition and crew bunker.

02 November 2010

Plan.
Plan.
Plan of the Vf bunker.
Plan of the Vf bunker.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

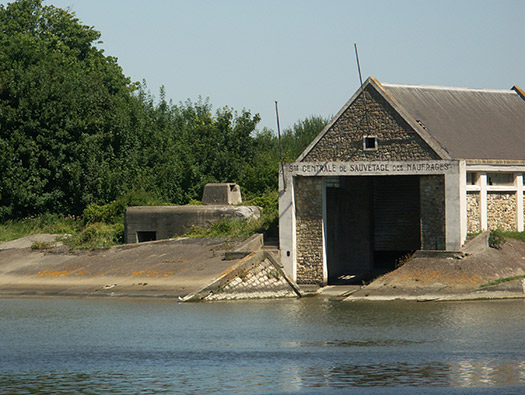

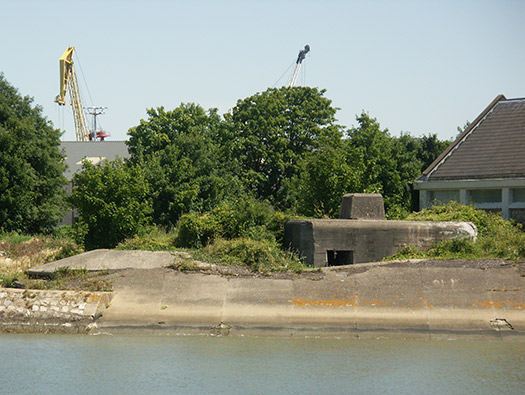

The open emplacement for a 5cm KwK is on the left and the Vf bunker on the right.

02 November 2010

5cm KwK L/60.
5cm KwK L/60.
5cm KwK L/60 in an Nr.1694 ringstand.
5cm KwK L/60 in an Nr.1694 ringstand.
5cm KwK L/60.
5cm KwK L/60.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

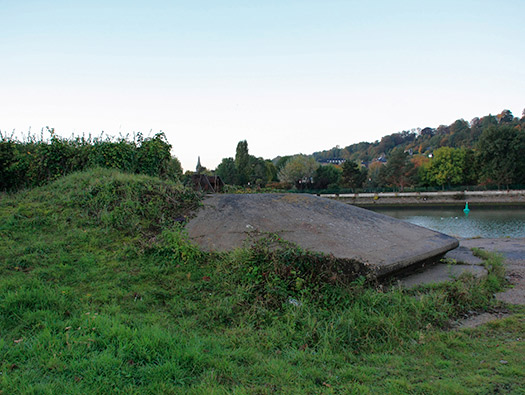

To me it looks very much like a cable bunker type.

02 November 2010

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
The base of the 5cm gun is still in the bunker.

02 November 2010

5cm KwK ringstand & Vf bunker with a trench entrance. IGNF1946.
5cm KwK ringstand & Vf bunker with a trench entrance. IGNF1946.
Wn Trou02 Honfleur digue est et port
Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

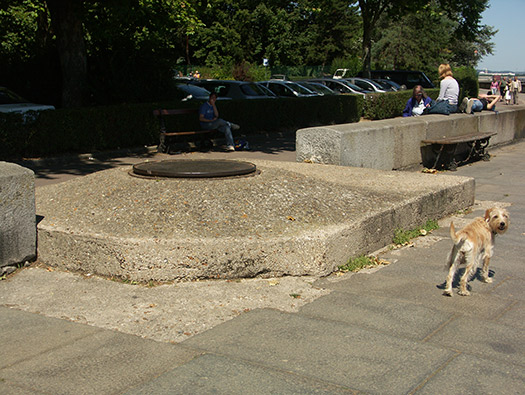

You can just see the cradle of the 5cm gun sticking out of the top.

02 November 2010

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

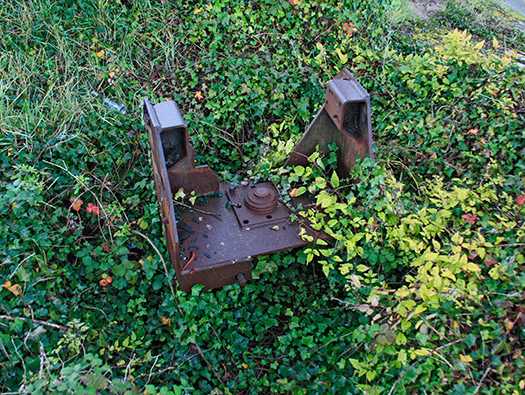

The 5m guns cradle.

02 November 2010

5cm KwK gun.
5cm KwK gun.
5cm KwK gun.
5cm KwK gun.
5cm KwK gun.
5cm KwK gun.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
Vf bunker.

02 November 2010

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
The entrance into the Vf bunker

02 November 2010

Plan.
Plan.
Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

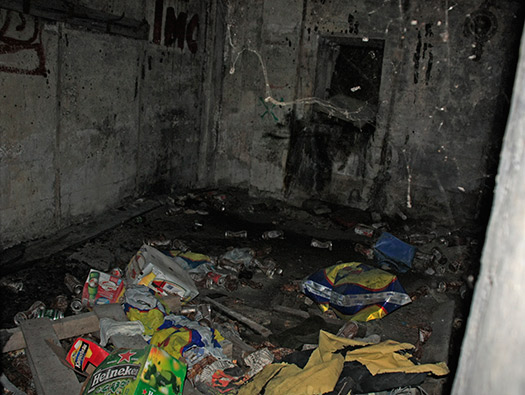

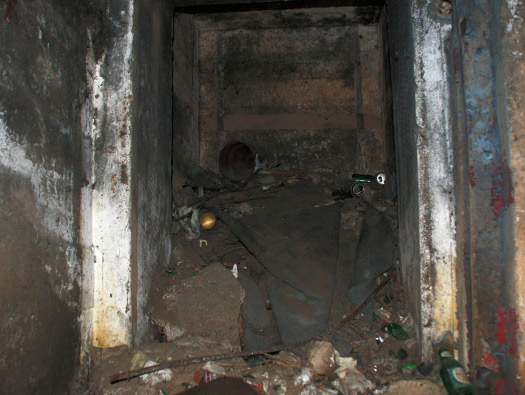

The first room of the Vf bunker, note the small escape hatch in the far wall.

02 November 2010

Plan.
Plan.
Escape plan.
Escape plan.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

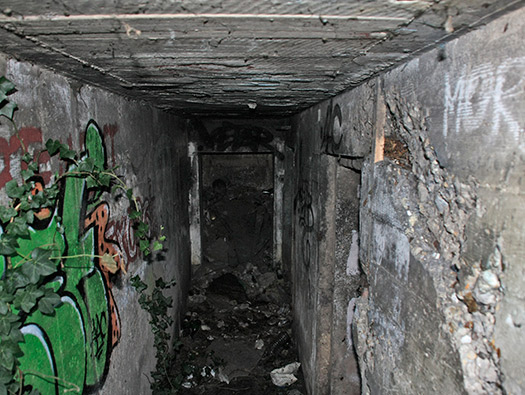

The end of the corridor.?

02 November 2010

Plan.
Plan.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

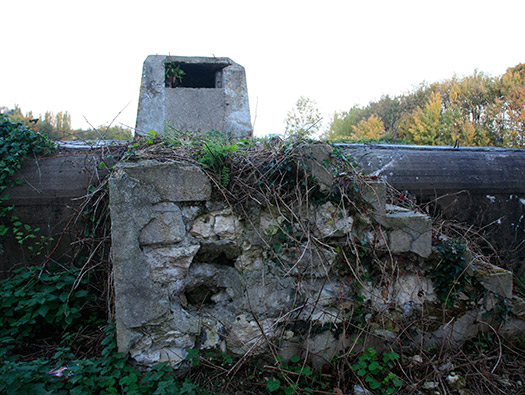

This raised concrete looks like the same as a cable bunker. This may be a ventilation shaft??

02 November 2010

Cable bunker.
Cable bunker.
On a cable bunker there is a raised section which was used for ventilation (Luchtkoker).
On a cable bunker there is a raised section which was used for ventilation (Luchtkoker).

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
Vf Bunker roof. This may be a ventilation shaft??

02 November 2010

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

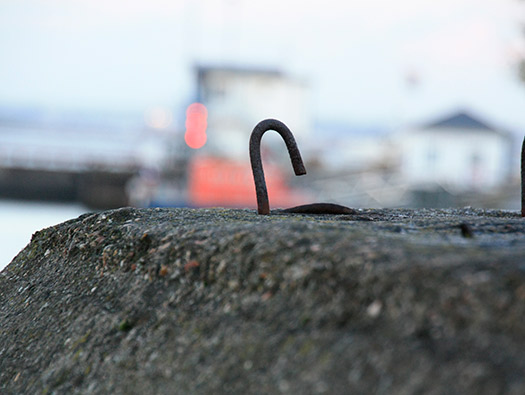

Camouflage hooks.

02 November 2010

Camouflage netting.
Camouflage netting.
Camouflaging a bunker with netting.
Camouflaging a bunker with netting.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

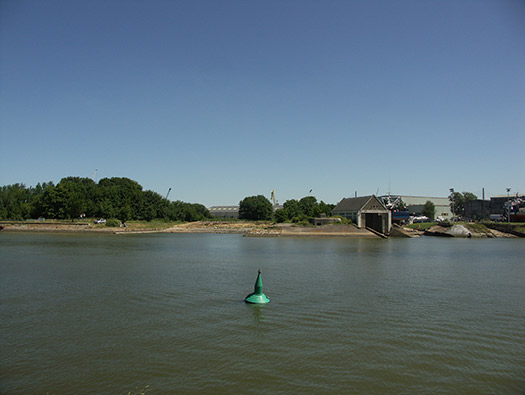

Inside the harbour is another 5cm KwK Pak gun in an open emplacement.

02 November 2010

Site of the second ringstand.
Site of the second ringstand.
Open ringstand emplacement.
Open ringstand emplacement.
Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

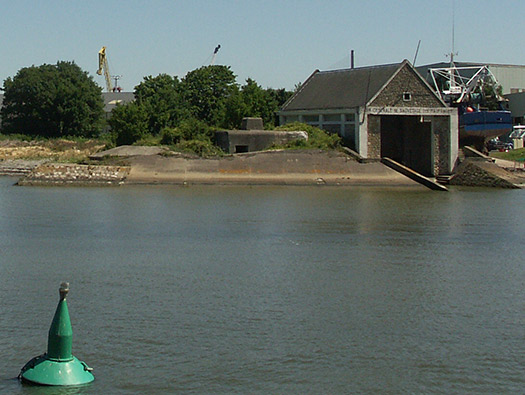

Another picture a bit closer.

02 November 2010

Honfleur Les Bassins Bateaux, (www.delcampe.net).
Honfleur Les Bassins Bateaux, (www.delcampe.net).
Dockers.
Dockers.
Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

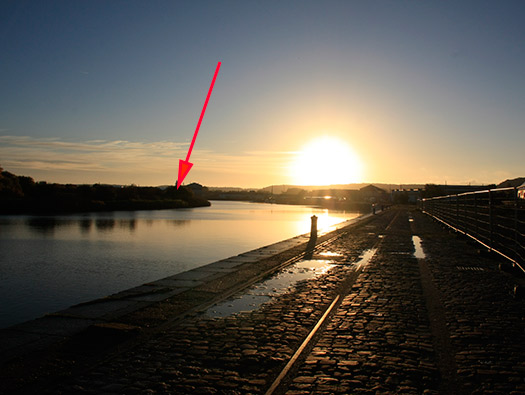

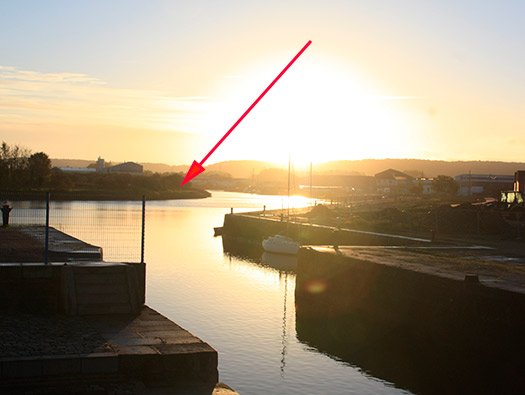

The position of the ringstand.

IGN

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

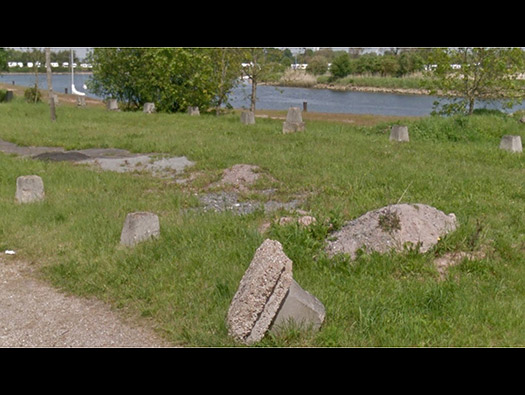

Tank obstacles re used around the inner docks.

Google maps

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

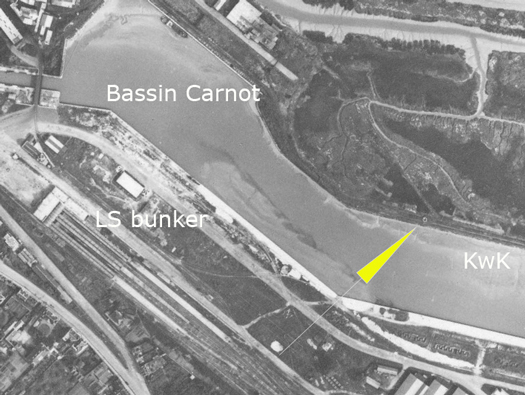

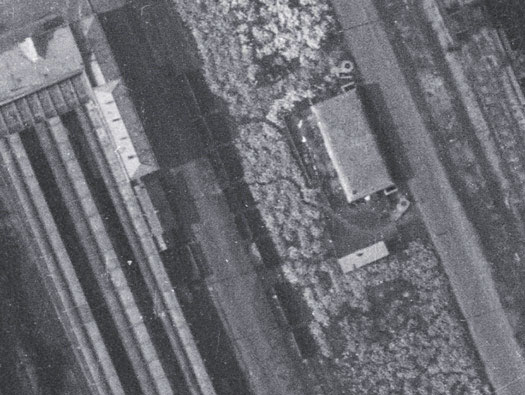

Ls shelter - Luftschutzbunker. The railway on one side and the docks the other. Also note that there were two Tobruk's covering each entrance‘s.

IGNF1946

Luftschutz with a Tobruk each side.
Luftschutz with a Tobruk each side.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

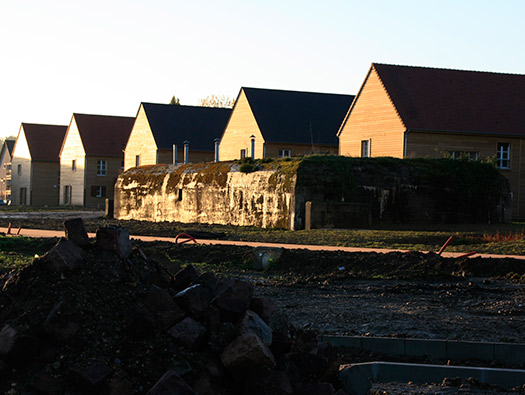

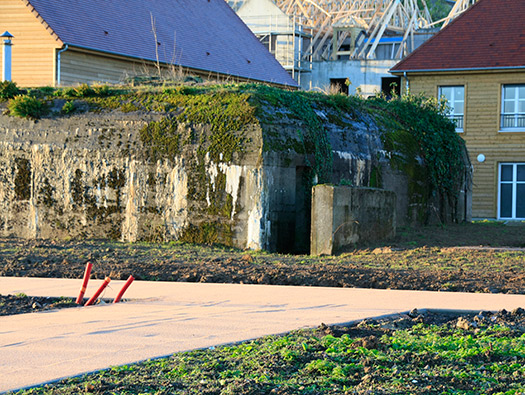

Large air-raid shelter.

02 November 2010

Luftschutz arm band.
Luftschutz arm band.
Luftschutz plan.
Luftschutz plan.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
As this was a working docks the RAF would have been very interested in it and would have bombed it quite a few times. The shelter was for the dock workers and towns people in the vicinity.

02 November 2010

First Aid kit.
First Aid kit.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

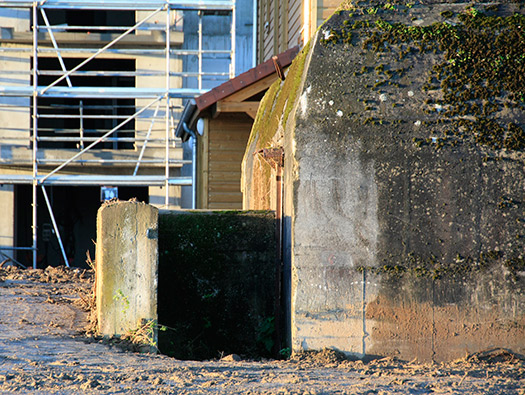

Eastern protected entrance.

02 November 2010

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

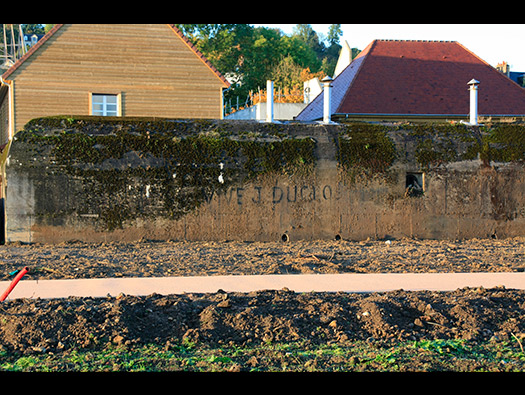

Western protected entrance.

02 November 2010

Heavy bombing.
Heavy bombing.
Lancaster's.
Lancaster's.
Lancaster radio operator.
Lancaster radio operator.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

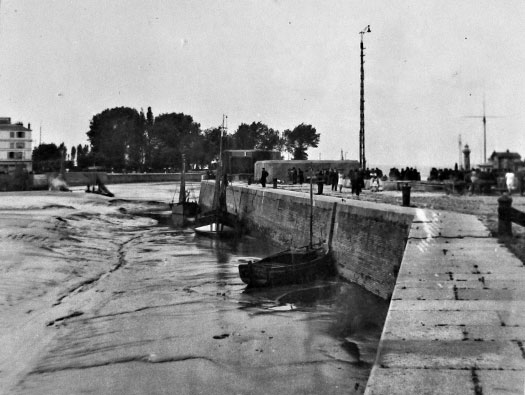

The inner harbour .

WO 252/151

Plan of an SK Skodabunker.
Plan of an SK Skodabunker.
The plan today, the basin is a car park and the quay has had all the bunkers removed.
The plan today, the basin is a car park and the quay has had all the bunkers removed.
The port of Dieppe, quay des Pilotes casemate SK pour antichar de fortress 4,7 cm Festungspak 36(t) it may have looked like this one?
The port of Dieppe, quay des Pilotes casemate SK pour antichar de fortress 4,7 cm Festungspak 36(t) it may have looked like this one?

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

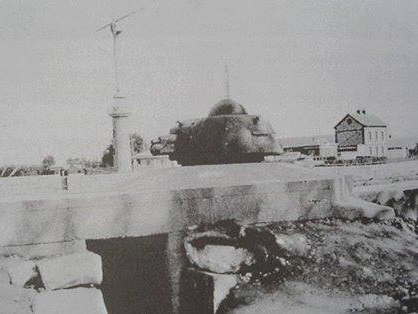

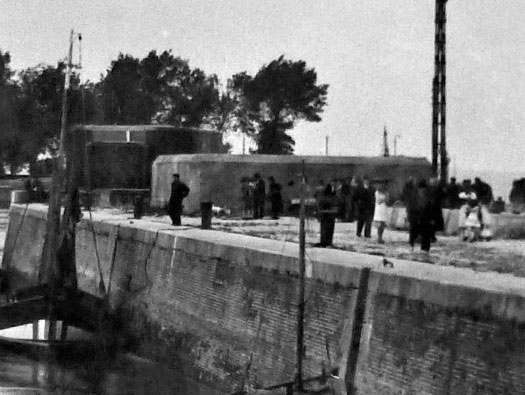

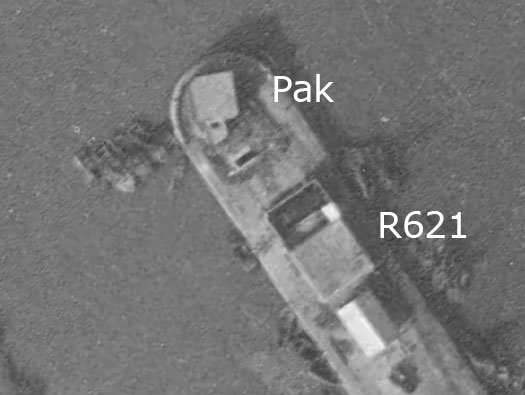

The far bunker is an SK Skodabunker. R621 Unterstand group shelter.

WO 252/151

How it may have looked from the front.
How it may have looked from the front.
4.7cm Pak K.36(t).
4.7cm Pak K.36(t).
R621 Unterstand group shelter.
R621 Unterstand group shelter.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

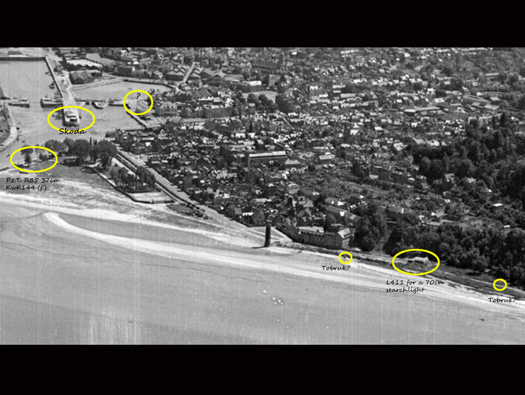

A zoomed in aerial view of the bunkers.

IGN 1949

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
Pz.T. R35 3.7cm KwK144 (f) tank turret.

27 July 2008

Now on the western side of the port.
Now on the western side of the port.
R35 French tank the type the turrets came from.
R35 French tank the type the turrets came from.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
Pz.T. R35 3.7cm KwK144 (f) tank turret.

27 July 2008

Plan.
Plan.
Plan.
Plan.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port
Pz.T. R35 3.7cm KwK144 (f) tank turret.
elevation plan of he bunker showing the entrance.
elevation plan of he bunker showing the entrance.
SHM plan 14 - Abri avec tourelle de char de 57mm.
SHM plan 14 - Abri avec tourelle de char de 57mm.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

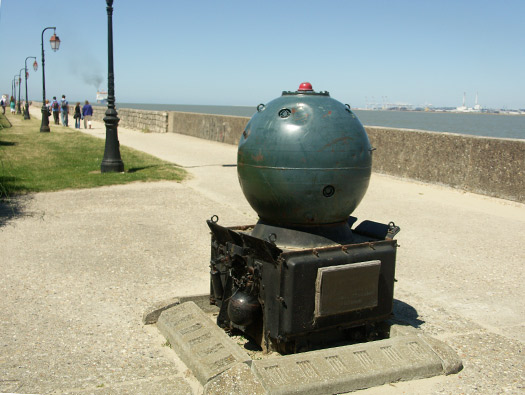

There were many mines stored at StP Hasso, Dannes, Pas-De-Calais. K.V.A. D1 Hardelot to Merlimont.

27 July 2008

Mk6 mine.
Mk6 mine.
Mine laying from the rear of a ship.
Mine laying from the rear of a ship.
Mines on a ship ready to drop.
Mines on a ship ready to drop.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

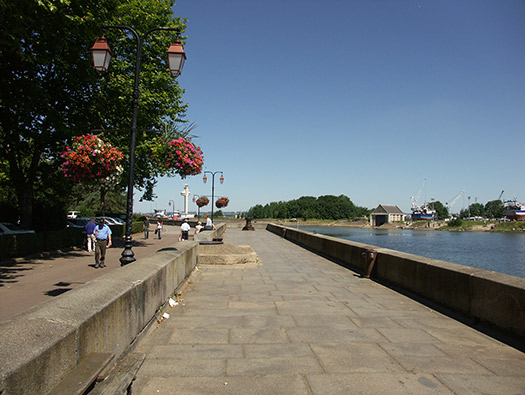

Moving along the coast west away from the town, the sea came right up to the road. There is a camping site which would have had a beach front and now is nowhere near the sea. There were two Tobruks, positions I am not exactly sure of and a 60/70cm search light position in an L411 emplacement. If you can get to the campsite it can be seen on the left as you enter.
L411a type shelter to store the searchlight when not in use with rooms for crew, generator, etc.
L411a type shelter to store the searchlight when not in use with rooms for crew, generator, etc.
The L411 bunker from the air..
The L411 bunker from the air..
A searchlight in position..
A searchlight in position..

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port

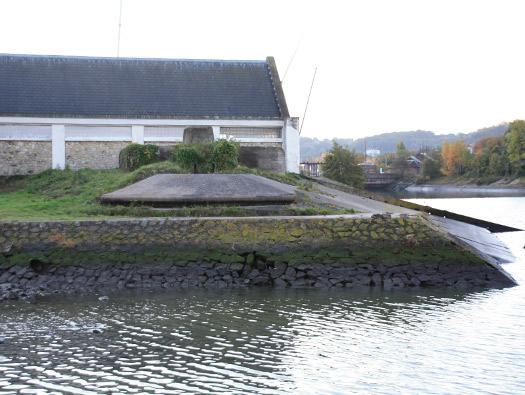

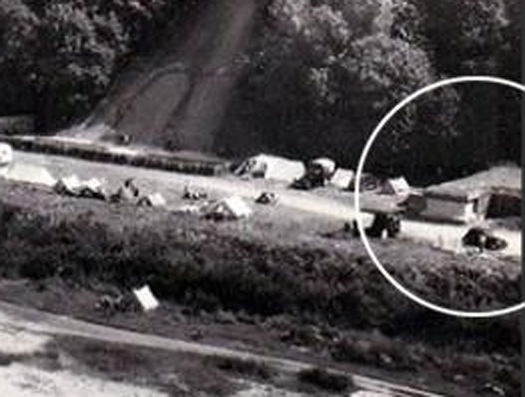

Just inside the camping site is an L411 bunker for a searchlight..

1950's postcard

This is how the searchlight bunker looked. It had an open emplacement and a concrete lid over the top. The bunker was set behind the light.
This is how the searchlight bunker looked. It had an open emplacement and a concrete lid over the top. The bunker was set behind the light.
The camping site.
The camping site.
A closer picture.
A closer picture.

Wn Trou02 Honfleur digue est et port

Wn Trou02 Honfleur digue est et port


27 July 2008
